Research Article

Spatial Analysis of UAS-generated Data to Evaluate Nitrogen Fertilizer Placement Alternatives, Predict and Map End-of-Season Rice Yield

Andrew Manu^1*, Vincent Kodjo A², Thomas JL³, Ama Twumasi D¹, and Amisu Mohammed²

¹Iowa State University, USA

²University for Development Studies

³Indigo Ag

Submission: September 03, 2024; Published: September 13, 2024

*Corresponding author: Andrew Manu, Lowa State University, USA

How to cite this article: Andrew M, Vincent Kodjo A, Thomas J, Ama Twumasi D, Amisu M. Spatial Analysis of UAS-generated Data to Evaluate Nitrogen Fertilizer Placement Alternatives, Predict and Map End-of-Season Rice Yield. Agri Res& Tech: Open Access J. 2024; 28(5): 556425.DOI: 10.19080/ARTOAJ.2024.28.556425

Abstract

Urea deep placement (UDP), which directly targets nitrogen (N) to the root zone, has shown promise in enhancing crop uptake, yield, and environmental sustainability compared to other N placement methods (non-UDP). This study utilized unmanned aerial systems (UAS or drones) to evaluate the impact of different N placement strategies on rice spectral signatures across three production zones, with an average farmer field size of 11.4 hectares. The research focused on analyzing Normalized Difference Vegetation Index (NDVI) and Optimized Soil Adjusted Vegetation Index (OSAVI) reflectance from UAS flight data collected during the booting stage in three rice health zones defined as low _{(NDVI 0.728)}, medium _{(NDVI 0.874)}, and high _{(NDVI 0.914)}. End-of-season rice grain yields revealed a nonlinear relationship with NDVI on the plot scale, whereas OSAVI exhibited a significant linear correlation with plot yields across the different zones. Spatial analysis, supported by the Jenks natural breaks algorithm, categorized OSAVI reflectance into four homogeneous groups, enabling predictions of rice yields at the plot scale and extrapolating plot yields to farmer field levels. This approach refined assessment outcomes, effectively distinguishing between UDP and non-UDP treatments. The UDP N management consistently outperformed other N placement methods, with yield increases of 9.9% at the plot level and 14.3% at the farmer field level. Additionally, this spatial analysis facilitated the generation of high-resolution digital yield maps, providing a valuable tool for precision agriculture to optimize N management and enhance overall productivity in rice cultivation.

Keywords: Unmanned Aerial Systems (UAS); urea deep placement (UDP); crop health; NDVI; OSAVI; Jenks Natural Breaks Algorithm; Upscaling

Abbreviations: UDP: Urea Deep Placement; N: Nitrogen; NDVI: Normalized Difference Vegetation Index; OSAV: Optimized Soil Adjusted Vegetation Index; USAID: United States Agency for International Development; IFDC: International Fertilizer Development Center; USG: Urea Super Granules; SPOT: Satellite Pour l’Observation de la Terre; TIS: Tono Irrigation Scheme; GPS: Global Positioning System; SODA: Sensor Optimized for Drone Applications; Ca: Calcium; Mg: Magnesium; K: Potassium; Na: Sodium; ECEC: Effective Cation Exchange Capacity; ANOVA: Analysis of Variance; OM: Organic Matter; CEC: Cation Exchange Capacity; TN: Total Nitrogen; CVs: Coefficients of Variation; UAS: Unmanned Aerial System

Introduction

Rice (Oryza sativa L.) is Ghana’s second most crucial staple grain and a profitable cash crop for local farmers [1,2]. Ghana’s annual per capita rice consumption has risen significantly from 17.5 kg during 1999-2001 to 24 kg in 2010-2011, with projections indicating an increase to 51.63 kilograms by 2020 [3,4]. Despite this growth, Ghana relies on imports for 66% of its rice consumption. Low yields play a significant role in this imbalance, with a national average of 3.28 mt ha^-1 compared to an attainable yield of 6.0 mt ha^-1 [5]. Rice productivity in Ghana faces a significant challenge due to low soil fertility, typically linked to reduced organic carbon levels, as well as limited availability of nitrogen (N) and phosphorus (P) [6,7]. Other social constraints further contribute to the widening gap between local production and imports. Notable issues include the high cost of improved seeds, limited access to credit, and inadequate processing facilities [8].

Despite a marginal increase in rice production to around 651,000 tons of milled rice in 2020 [9], an estimated $450 million is allocated annually for rice imports to meet local demand [10]. The Government of Ghana has recently intensified efforts to develop the local rice sector, collaborating with international organizations like the United States Agency for International Development (USAID). This collaborative initiative aims to bolster national rice security, generate youth employment opportunities, stimulate economic growth, and alleviate poverty. Research by [11] suggests that implementing appropriate policy measures could narrow the gap between domestic rice production and imports. Nitrogen emerges as a crucial yet limiting factor within rice production systems. Be-yond maximizing rice yield, N is pivotal in ensuring grain yield quality [12]. The substantial N requirement underscores the need for efficient management to enhance productivity. Traditionally, farmers employ surface broadcasting of N-containing fertilizers for N application. However, N use efficiency (NUE) is notably low, ranging between 30% and 50% [13]. Factors contributing to N loss include high levels of ammonia volatilization up to 50% of applied N, denitrification, leaching, and surface runoff [14,15].

The urea deep placement technology development emerged from a collaboration between the International Fertilizer Development Center (IFDC) and primarily Bangladeshi farmers [16]. A comprehensive examination of the technology’s features and impact is outlined in the works of [17,18]. This farmer-friendly advancement enhances NUE in rice production by mitigating N loss through volatilization [19,20], thereby boosting rice productivity. Urea super granules (USG) briquettes, acting as N carriers in this technology, exhibited a 25 percent increase in rice grain yield when applied at a rate of 56 kg N ha^-1 compared to the recommended dose of 100 kg N ha^-1 using the conventional urea broadcast method in Indonesia [21]. Similar positive outcomes were observed in Ghana, Nigeria, and Burkina Faso [22-24].

Accurate and timely assessments of rice field extents and their potential production capacity are essential for governmental bodies, planners, and decision-makers [25]. However, existing national statistics on crop production capacities often rely on field surveys and farmer interviews. Besides occasional inaccuracies, these data acquisition methods can be exceptionally time-consuming, labor-intensive, and cost-ineffective. Additionally, there is often a notable delay between data collection, collation, and reporting [26].

Remote sensing has been employed for monitoring and mapping extensive fields through satellite imagery. [27] combined optical and radar satellite data from the Satellite Pour l’Observation de la Terre (SPOT) to improve the accuracy of rice yield predictions in Taiwan. Similarly, [28] suggested a multi-satellite approach to assess the growth status of rice plants and determine the protein content of rice grains. Additionally, [29] used multispectral imagery from Landsat ETM+ to produce NDVI data, which was subsequently used to evaluate rice crops’ health and growth stages.

Vegetation indices are crucial in remote sensing, assessing vegetation’s presence and condition. Additionally, VIs can gauge variations in physiological state and biophysical properties [30], monitor crop growth, and evaluate vegetation stress and crop yields [31,32]. VIs rely on the photosynthetic responses of green vegetation to incident light. A high VI, termed “high health” in this context, results from high reflectance in the infrared region of the electromagnetic spectrum and low reflectance due to chlorophyll absorption in the red spectrum. Conversely, stressed, unhealthy, or deceased vegetation exhibits a low VI, referred to as “low health,” attributed to diminished chlorophyll pigment [33]. Challenges in remote sensing include low spectral and temporal resolution and cloud cover [34]. Furthermore, [35] suggested that this technology is beneficial mainly for extensive studies and may not be suitable for the smaller-scale farming systems commonly found in Africa and Asia.

Over the past decade, UAS applications have expanded significantly. Unmanned platforms provide greater

versatility and flexibility over satellites or other airborne systems. UAVs can operate at low altitudes, capturing im-ages with high temporal and spatial resolution [36-38]. These characteristics enable UAS remote sensing to address research inquiries and apply the technology in practical field scenarios. NDVI is computed based on light intensities reflected from canopies in the visual and near-infrared range [39]. This index holds immense potential for extracting information about dynamic changes in various vegetation types, making it a valuable tool for investigating spatial and temporal variations in diverse plant cover [40]. However, it has been observed that NDVI reaches saturation levels when estimating biomass in fully developed canopies [41,42]. However, several other VIs have been created to examine spatial and temporal variations and remain sensitive when NDVI saturates with OSAVI) [43] being one such index. In addition, OSAVI incorporates a soil adjustment coefficient (0.16) to mitigate variations in soil background conditions.

This study aims to achieve two interrelated objectives, each supported by a pair of hypotheses. For the first objective, hypothesis H1a posits that different N placement methods affect end-of-season rice production. Hypothesis H1b suggests that spectral signatures from UAS data can reliably predict the effects of these N placement methods. For the second objective, hypothesis H2a asserts that vegetation indices, such as OSAVI, strongly correlate with rice yields, allowing for accurate prediction of field-scale rice production. Hypothesis H2b proposes that visualizing the OSAVI-yield relationship across the landscape can identify high and low-productivity areas, providing valuable insights for agricultural intervention.

The objectives of this study are to:

a) Investigate the use of UAS technology-acquired data to compare the impact of different N placement alternatives on crop spectral signatures and resulting end-of-season rice production.

b) Predict field-scale rice yields using OSAVI and visualize how the OSAVI-yield relationship manifests across the landscape.

Materials and Methods

Site Characterization

The research was conducted within the Tono Irrigation Scheme (TIS) (latitude 10° 52’N; longitude ^-1° 11’W) situated in the Kassena-Nankana East District of the Upper East Region of Ghana (Figure 1a). This gravity-fed irrigation system operates on reservoir storage, boasting a total capacity of 93 million m³ and covering a catchment area of 650 km² (Figure 1b). The scheme is designed to irrigate 3,840 hectares of land potentially, yet it currently provides irrigation to 2,490 hectares, predominantly dedicated to rice cultivation. This scheme comprises 4,000 smallholder producers and the average farmer field sizes range from 0.2 to 0.6 hectares.

Farmer Volunteers and Field Ground Mapping of Producer Fields

Farmers from zones H, I, and J (Figure 1b) volunteered for the study based on their N management preferences. The initial group, UDP farmers, showed a keen interest in experimenting with the emerging UDP N management technology. The second group consisted of non-UDP volunteers, an independent set of farmers with plots within the three zones who had not yet adopted the UDP technology. These farmers autonomously performed various agricultural tasks, including land preparation, seedling raising in nurseries, transplanting, fertilizer application, weed and pest control, and field harvesting. Fifty volunteers participated in this study, with 25 assigned to each UDP and non-UDP N management group. The distribution of farmers across the three zones is out-lined in (Table 1).

Field sizes varied between 0.15 and 2.7 hectares, with an average of 0.62 hectares. Zone J had the largest average field size among the three zones, measuring 0.86 hectares. This contrasted significantly with Zone H (0.52 hectares) and Zone I (0.4 hectares).

UAS Remote Sensing and Image Processing

At the beginning of the study, we used a handheld Garmin SD MAP 64sc global positioning system (GPS) unit to delineate the boundaries of each farmer’s rice field. Subsequently, we utilized ArcGIS Pro to estimate the sizes of farmers’ fields based on the coordinates of their field boundaries. It is crucial to highlight that the farmer field within each zone served as the basic unit for investigation and subsequent data analysis.

At the booting stage of the rice crop, low-altitude aerial surveys were conducted for zones H, I, and J (Figure 1b) as distinct units. The flight boundaries were established using field coordinates obtained from the initial ground GPS mapping. These coordinates were imported into eMotion, a SenseFly software [44], to generate autonomous flight plans for an eBee ag (Figure 2), a cost-effective agricultural drone. The eBee offers fully autonomous flight capabilities, from takeoff to landing, and is controlled via a user-friendly ground control software that allows for mission planning and real-time monitoring. This drone offers an extended flight time of up to 55 minutes and 160 hectares / 395 acres coverage. Two multispectral sensors were used, the Sequoia and the Sensor Optimized for Drone Applications (SODA). The Sequoia sensor captured images in the following four distinct bands: green _{(530-5570 nm)}, red _{(640-680 nm)}, near-infrared _{(800-880 nm)}, and red edge _{(710-740 nm)}. It also has an embedded 16 MP red _(640-680), green _{(530-5570 nm)} blue _{(450- 500)} The SODA camera captured the red _(640-680), green _{(530- 5570 nm)}, and blue _(450-500) bands.

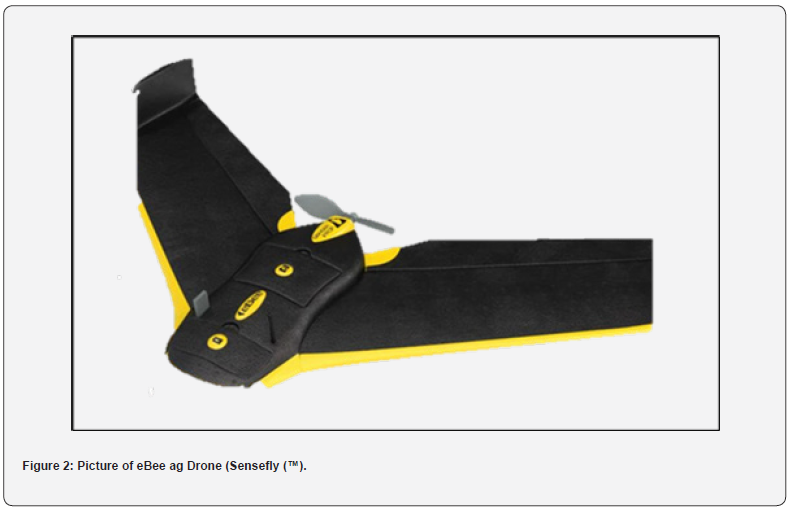

The eBee Ag drone, coupled with the Sequoia camera, was flown at 127.4 meters above elevation data (AED), with a 60% fore lap and 80% lateral overlap, resulting in a 12.0 cm/pixel ground resolution. The same eBee was flown with the SODA camera at 74.3 meters with 65% forelap and 70% side-lap to achieve a 7.0 cm/ pixel. The initial image processing phase involved the eMotion 3 software [44]. This software facilitated georeferencing, alignment, and stitching of images by identifying tie points in overlapping images. Subsequently, the processed data were transferred to Pix4D, where the Standard Ag multispectral processing option was employed to generate seamless high-resolution orthomosaics for Zones H, I, and J, as depicted in (Figure 3). Two vegetation indices, NDVI and OSAVI, were computed, and their respective formulas and references are provided in (Table 2). Reflectance imagery was produced for the two vegetation indices.

Assessment of Crop Health Areas and Rice Grain Yield Determination

Three crop health plots were identified, designated as low, medium, and high, in farmers’ fields based on NDVI values obtained from reflectance information and verified with visual assessment within the three zones. The NDVI values used to define crop health categories in UDP and non-UDP plots are presented in (Table 3). A total of 141 evenly distributed plots were identified, with 47 plots in each health zone category. These distinct areas of varying crop health contained contiguous pixels sufficient to establish 4m² area plots. The coordinates of the four corners defining each health plot were recorded, and these 4m² zones subsequently served as sampling plots for yield assessment. The average NDVI and OSAVI values for each 4m² plot were also recorded from the reflectance map.

Means followed by the same letter in a column are not significantly different at the 0.05 probability Means followed by the same letter are not significantly different at the 0.05 probability level based on Duncan’s multiple range test.

*, **Correlation is significant at 0.01 and 0.05 (Pearson).

Acronyms: OM: Organic matter; TN: Total nitrogen; CEC: Cation exchange capacity.

At the end of the growing season, a GPS device navigated to the center of each 4m² A handheld sickle was used to harvest rice paddy within the designated sampling areas. The harvested paddy was then threshed by hand, winnowed, and weighed. Subsequently, the grain was air-dried for approximately a day, and the grain moisture content was determined using the M3GTM (Dickey-john) moisture meter. The grain weight in kg per hectare was calculated using the following formula:

General Soil Characterization of Rice Production Zones

Surface (0 - 25 cm) soil surface samples of the 141 identified plots were collected from centers of all health plots delineated in farmer fields. Samples were air-dried, ground to pass a 2 mm sieve, and characterized. Particle size analysis was carried out using the pipette method [45]. A glass electrode measured soil pH in a 1:1 soil/water ratio. Organic carbon and total N were analyzed using a Leco Truspec C/N analyzer [46]. Plant available P was extracted with Bray1P solution using a 1:7 soil/solution ratio [47]. Exchangeable cations, calcium (Ca), magnesium (Mg), potassium (K), and sodium (Na), were extracted with neutral ammonium acetate (1 M NH₄OAC) [48]. The concentration of cations was analyzed using ICP - AES. Effective cation exchange capacity (ECEC) was estimated as the sum of exchangeable cations.

Yield Prediction and Mapping Based on Vegetation Indices

Estimating and yield mapping based on vegetation indices involved several crucial steps, as depicted in (Figure 3). They involved (1) acquisition and mosaicking of multispectral images acquired on a UAV platform, (2) extraction of NDVI VIs, (3) identification of yield plots based on NDVI reflectance data, and (4) rice yield assessment. With the objective to determine the optimal vegetation index for predicting rice grain yields in UDP and non-UDP fields, OSAVI emerged as the preferred yield predictor, exhibiting a relatively high correlation with grain yield (r = 0.72 p < 0.05) and the capability to address saturation issues at high reflectance, a concern associated with NDVI. Utilizing GIS-Pro, the Jenks Natural Breaks algorithm [49] was applied to categorize the OSAVI raster map of each farmer’s field into four distinct, natural, and homogeneous groups. The aggregation and averaging of extrapolated yields of the four natural groups in each plot generated grain yields on the spatial scale.

Statistical Analyses

Relationships between soil parameters were evaluated using Pearson correlation analysis. Analysis of variance (ANOVA) was used to test yield differences, and mean separations were calculated using Tukey’s studentized range with an alpha of 0.05 differences [50]. All data were checked for normality supported by a Shapiro-Wilk w statistic of 0.98 (p = 0.05) and a standard probability plot using the STATISTIX [51] software. The following two analytical procedures were used to evaluate and compare the plot and spatial yield data obtained from the study: (a) Box-and-whiskers analysis, a graphical representation of nonparametric ANOVA, to provide a visual summary of the central tendency, spread, and skewness of the data, and (b) descriptive statistics to identify trends and potential relation-ships between the variables.

Extrapolation of Plot Scale Yield to Spatial Field Scale

Following the outlined process illustrated in the flow chart in (Figure 3), grain yield data from 4m² plots were extrapolated to encompass entire farmer field levels. Simple linear regression was developed between OSAVI and rice grain yields independently for plots in non-UDP and UDP fields. The models were used to extrapolate OSAVI values to their corresponding rice yields at the spatial scale. The projected yield values and the acreage within each class were utilized to calculate the kilograms of rice. The cumulative grain weight in the four natural break classes within a field determined the overall grain weight. Dividing this total weight by the entire field size yielded the average rice grain yield per hectare in the field.

Results

Orthomosaics and Crop Health Delineation

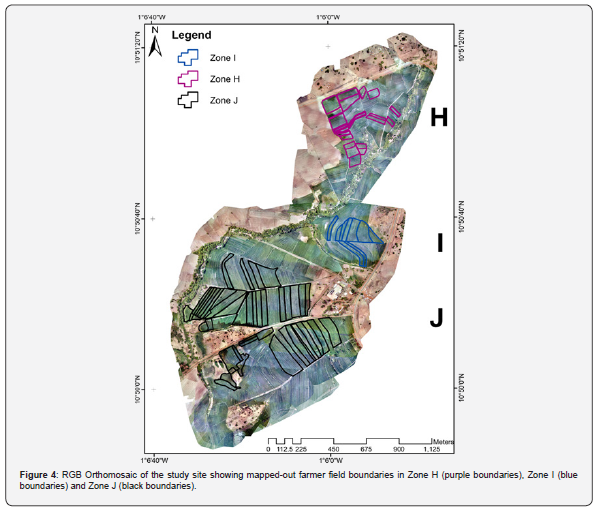

The RGB Orthomosaics for zones H, I, and J were created using imagery captured on the UAS platform. GPS coor-dinates marking field boundary points were employed to outline farmer fields in each zone (Figure 4). These true-color images are powerful tools that offer detailed, accurate, and easily interpretable information about rice fields. High spatial resolution, geo-referencing, and uniform scales enable precise measurements and analysis. Reflectance maps derived from orthomosaics for NDVI and OSAVI are illustrated in (Figures 5 and 6), respectively.

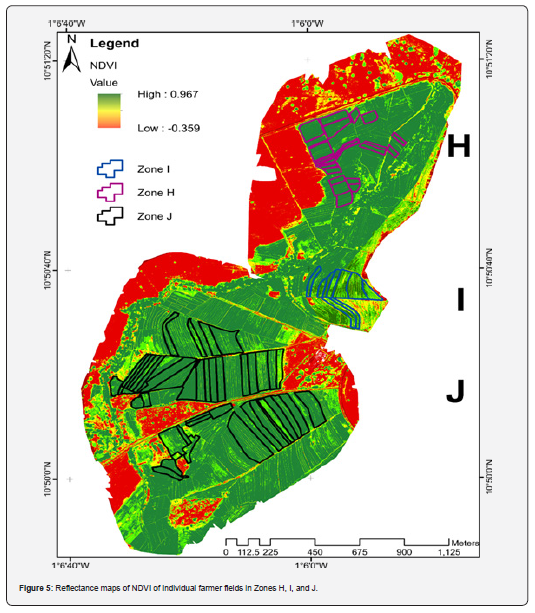

The NDVI reflectance map (Figure 5) is created using the formula developed by [39] to utilize satellite or UAS remote sensing data for monitoring vegetation health and density.

This map shows high NDVI values ranging from 0.6 to 0.9 as dark green areas, indicating dense and healthy vegetation. Moderate NDVI values (0.2 to 0.5) are displayed as light green to yellow areas. Low-health regions, characterized by pale green to almost yellowish areas, have NDVI values of less than 0.5. The OSAVI reflectance map (Figure 6), derived from the formula developed by [43], measures and monitors vegetation health, density, and coverage. High OSAVI values, represented by green colors, indicate dense and healthy vegetation. In contrast, lower values, shown in yellow, indicate sparse or stressed vegetation. Red colors on the OSA-VI map highlight areas of bare or exposed soil.

Midseason Crop Health, N Management, and End-of- Season Rice Grain Yield

Figure 7 shows the relationships between the designated midseason crop health as a function of NDVI and OSAVI and the final rice grain yield obtained at the end of the season. There was a linear increase in yield from low _{(OSAVI 0.544)} to high _{(OSAVI 0.685)} health as assessed by OSAVI. On the other hand, no statistically significant differences in rice yields were observed between the medium _{(NDVI 0.874)} and high _{(NDVI 0.874)} crop health zones based on NDVI. However, medium and high-health zones had significantly higher yields than low _{(NDVI 0.725)}-health zones.

Soil Characterization

The upper layer of soil (0 - 25 cm) displays a prevalent sandy loam texture. Zone H exhibits the highest clay con-tent at 18.76% (Table 3). In contrast, Zone I shows the highest sand content at 70.6%, a considerably more significant proportion compared to zones H and J. Across all zones, the soil demonstrates acidity. While there is no notable difference in pH levels between zones, there is a slight increase from 5.4 in Zone H to 5.9 in Zone J. Zone H inherently has higher fertility levels than Zones I and J, as evidenced by elevated levels of organic matter (OM), total N, and cation exchange capacity (CEC). Particularly noteworthy is Zone J, which exhibits significantly higher concentrations of plant-available P, measuring 6.58 mg kg^-1, in contrast to 5.08 mg kg^-1 and 2.32 mg kg^-1 in Zones I and H, respectively.

Though initially not included in the research plan, soil properties have been naturally categorized into two groups based on N management systems, providing context for the study site background. Fields managed under UDP N revealed distinctive textural and fertility relationships. The UDP soils showed an average sand content of 65.2%, significantly higher than the 55% observed in non-UDP fields. In contrast, there was a reverse relationship in clay content, with non-UDP fields having a significantly higher percentage of clay (27.3%) than UDP fields (13.6%). While all soils had a sandy loam texture, the surfaces of fields under UDP management were noticeably coarser than their non-UDP counterparts, representing the sole distinctive fertility parameter between the two. The different N management systems could also be distinguished based on soil fertility. Non- UDP-managed fields exhibited a significantly higher CEC level of 10.22 compared to 8.18 cmol(+) kg⁻¹ in UDP fields, as outlined in (Table 3).

Crop health assessment

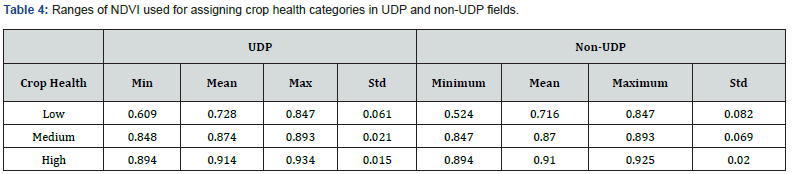

The NDVI values used to define crop health categories in UDP and non-UDP fields are presented in (Table 4). These are based on reflectance values obtained from UAS data collected at the booting stage of the rice crop, as shown in (Figure 5).

Extrapolating Yields from Plot to Field Levels

The predictive equations for UDP and non-UDP fields are presented in (Figures 7a and 7b), respectively. These equations reveal that OSAVI significantly predicts grain yield for UDP and non-UDP conditions, though the impact and the models’ predictive power differs. The equations suggest that OSAVI significantly predicts rice grain yield, with 51.5% of the variability explained for UDP and 75.5% for non-UDP.

Plot and Spatial Scale Yield Analysis

A total of 141 yield data points were collected from NDVI crop health plots, with 68 points from UDP plots and 73 points (Table 5) from non-UDP plots. The data set was expanded to 324 yields (160 UDP and 131 non-UDP) points at the field level by applying spatial extrapolation using the Jenks natural breaks algorithm. At the plot scale, UDP plots’ interquartile range (middle 50% of yields) ranged between 5.55 and 7.78 mt ha^-1, indicating a 2.23 mt ha⁻¹ difference (Figure 9). Conversely, non-UDP fields exhibited a broader interquartile range of 2.66 mt ha⁻¹, with a minimum of 4.91 to a maximum of 7.57 mt ha⁻¹.

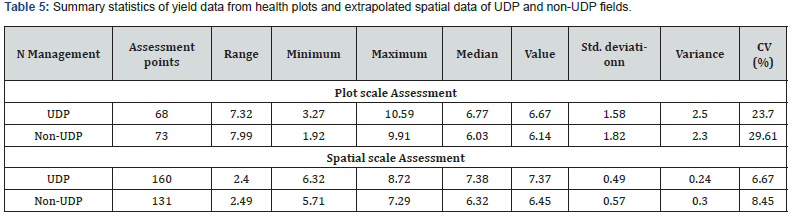

The descriptive statistics (Table 5) revealed a yield range for UDP of 7.32 mt ha⁻¹ with a minimum of 3.27 mt ha⁻¹ and a maximum of 0.59 mt ha⁻¹, but non-UDP plots had a more extensive range of 7.99 mt ha⁻¹ with a minimum of 1.92 mt ha⁻¹ and a maximum of 9.91 mt ha⁻¹. The non-UDP plot yields were relatively more dispersed than their UDP counterparts. UDP plots’ standard deviation (SD), variance, and coefficient of variation (CV) were 1.58, 2.50, and 23.7%, respectively. The non-UDP plot yields had an SD of 1.82, a variance of 3.30, and a CV of 29.61%. The average grain yield from UDP plots was 6.67 mt ha^-1, contrasting with 6.14 mt ha^-1 in non-UDP plots (Figure 10). Tukey’s HSD test indicates that the 11% difference is statistically significant at an alpha 0.05.

Field Scale Yield Analysis

In Figure 11, the interquartile range in the UDP fields was 0.70 mt ha^-1, ranging from 7.05 to 7.75 mt ha^-1, compared to the interquartile range of 1.07 mt ha^-1 in the non-UDP data. The ranges in yields were substantially reduced in the field yield assessment (Table 5). It decreased by 4.92 mt kg^-1 between UDP field and plot yields. A decrease of 5.5 kg ha^-1 was observed in non-UDP management between plot and field-based assessments. The other dispersion variables also showed similar trends: SDs decreased by 1.58 mt ha^-1 from plot to spatial field assessment under UDP management to 0.49 mt. ha^-1 at the field scale, while non-UDP fields registered SDs of 1.82 mt ha^-1 and 0.54 mt ha- 1, respectively. Variances and CVs showed the same decreasing trends from plot to field scales, as shown in (Table 5). There was a 17% reduction in CV in UDP plot scale yields to field scale level, while yield CV of non-UDP yield was reduced to 8.45% in non-UDP fields.

Scaling plot scale yields to spatial levels significantly reduced data variability. Initially, variances in plot scale da-ta for UDP and non-UDP were at 2.50 mt ha⁻¹ and 3.30 mt ha⁻¹, respectively, which decreased to 0.24 mt ha⁻¹ and 0.30 mt ha⁻¹ at the farmer field level, as shown in (Table 5). Correspondingly, the coefficients of variation for UDP and non-UDP plot-scale data, initially at 23.07% and 29.96%, respectively, decreased to 6.7% and 8.45% at the farmer field scale. The calculated averages for rice grain yields in UDP and non-UDP fields were 7.37 mt ha⁻¹ and 6.45 mt ha⁻¹, as depicted in (Figure 12). According to Tukey’s standardized test, this 14% difference is statistically significant at the 0.05 level.

Rice Grain Yield Mapping

An important outcome of this research is the generation of high-resolution prediction digital maps illustrating the landscape patterns of rice production in the three zones (Figure 13). These rice grain yield maps are characterized by their high spatial resolution, geo-referencing, and uniform scales, which enable precise measurements and analysis. The scale of these maps allows for identifying field boundaries and other pertinent field features, providing a comprehensive overview of rice grain yield potential across the three intervention zones [62]. It also facilitates precise management and planning. Zone J has a notably higher average grain yield, achieving 7.17 mt ha^-1 under UDP management compared to 6.42 mt ha^-1 non-under UDP management (Table 6).

†Means followed by the same letter in a column are not significantly different at the 0.05 probability level based on Duncan’s multiple range test.

Discussion

The results of the physicochemical analysis affirmed the variable and depleted nature of soils in the study zone. These results support the claim by [52,53] that soil fertility poses a significant challenge to agricultural production in the West African Savanna. The low P content and organic matter levels agree with the findings of [54], who reported soils’ low overall fertility status in the Tono irrigation scheme.

In this study, UAS technology was utilized to evaluate the impact of different N placement strategies on rice grain yield. The rationale for employing this aerial assessment method is diverse. Still, the primary advantages include: (1) UAS captures high-resolution images that offer detailed spatial information, allowing for precise assessment of N distribution and crop health [36]. (2) The system detects small-scale variability within fields, enhancing the understanding of N placement effectiveness [55] and enabling the prediction and mapping of rice yields [56], a critical objective of this study. (3) The multispectral imaging capabilities of the UAS system permit the calculation of indices such as NDVI and OSAVI, which are sensitive to N status and plant health. (4) Additionally, UAS technology reduces the need for extensive manual labor in data collection [57] because it covers large fields at a time [58].

According to [59], the booting stage of the rice crop at which the aerial survey was carried out marks the rice plant’s nutrient growth peak, featuring the highest leaf area index. The high leaf area index reflects the plant’s maximal photosynthetic capacity and yield potential [60], pertinent to one of the addressed objectives. Orthomosaics from the captured imagery depicted rice fields in the three intervention zones. These orthomosaics rectify heights, tilts, topographic relief, and lens distortions, ensuring geometric accuracy [61]. The high spatial resolution, geo-referencing, and uniform scales of the map enable precise measurements and analysis [62]. NDVI raster maps derived from these orthomosaics facilitated the identification of crop health plots as a function of UDP and non-UDP. The categorized NDVI means for UDP fields are 0.728 for low health, 0.874 for medium health, and 0.914 for high health. The non-UDP mean crop health equivalents were 0.716 for low, 0.870 for medium, and 0.910 for high health plots. In a previous study, [63] mapped rice crop health using NDVI ranges, defining very good health as 0.721 - 0.920, good health as 0.421 - 0.720, normal health as 0.221 – 0.42, and poor health as 0.110 - 0.220.

The end-of-season assessment of rice grain yield significantly correlated with assigned crop health (r = 0.68, significant at p<0.05). However, this correlation weakened at elevated NDVI levels. This finding aligns with [64], who observed a non-linear relationship among NDVI, crop health, and end-of-season yields. According to [65], NDVI tends to saturate asymptotically with increasing reflectance in dense canopies, leading to the underestimation of rice yields in areas with high vegetative growth, as observed by [66]. Nevertheless, this study demonstrated that NDVI remained sensitive enough to differentiate crop health areas and was a distinguishing metric between N management systems.

In contrast, OSAVI exhibited a consistent linear relationship (r = 0.72 significant at p<0.05) with crop health throughout the spectrum, as noted by [67]. This vegetation index then functioned as a proxy for forecasting end-of-season rice grain yields based on mid-season reflectance. Consequently, akin to a prior study where [68] employed linear regression models to forecast rice yield using OSAVI, we leveraged the linear correlation association between OSAVI derived from a single midseason reflectance assessment to extrapolate plot-scale rice yields to spatial dimensions.

In this study, the innovative integration of multiple vegetation indices, NDVI and OSAVI, epitomizes the frontier of agricultural monitoring and management. NDVI is renowned for identifying crop health through sensitivity to vegetation density, chlorophyll concentration, and vigor. OSAVI is also distinguished by its robustness in reducing soil background effects. In comparing multiple vegetation indices for rice yield estimation, OSAVI [69,70] had a slightly better correlation with rice yield than NDVI, especially in areas with low vegetation. The soil adjustment factor in OSAVI helped reduce the noise caused by soil reflectance, leading to more accurate yield prediction. A simi-lar study in Southeast Asia [71] suggested that NDVI and OSAVI provide more stable and reliable predictions in heterogeneous fields with varying soil conditions. In this study, the creative use of NDVI and OSAVI leverages the strengths of each index: NDVI for real-time crop health monitoring and OSAVI for accurate yield predictions.

This study also leveraged the innovative computational capabilities of the Jenks natural breaks classification algorithm [49] to optimize the classification of OSAVI values from rice plots, thereby enhancing yield predictions and their extrapolation to spatial dimensions. Renowned for its robustness in handling spatial data distribution, this classification system effectively organizes data into distinct classes, minimizing variances within classes while maximizing differences between them, as noted by [72]. This ensures that the classification reflects true natural groupings within the data [73], highlighting the algorithm’s utility in capturing yield variation and emphasizing its value in agricultural planning and management. [74] used this method to classify crop yields and found it superior to other classification methods in terms of accurately reflecting the spatial variability of crop yields. Using this classification system on the high-resolution data captured by UAS technology, the accuracy and variability of predicted rice grain yields were significantly enhanced, leading to improved data interpretation and visualization, as illustrated in (Figure 12).

Linear regressions were established between OSAVI and rice yield as a function of N placement. The coefficients of determination, R2 for the prediction equations, were 0.5152 and 0.7555 for UDP and non-UDP plots, respectively. The aggregation of extrapolated yields in the four Jenks grouping of each field constituted the potential or predicted rice grain yield for the entire field on the spatial scale. This approach allowed for the prediction, subsequent mapping, and generation of a realistic, spatially meaningful predicted potential rice yield map for the intervention zones. This visual tool can be essential to policymakers, researchers, and farmers, helping them quickly grasp complex spatial data and make informed decisions before the end of the growing season. As highlighted by [75], the assessment scale is crucial in determining crop yield variability. Establishing a connection between plot-scale data and extrapolated spatial data is also essential for comprehending and predicting trends, patterns, and variations in crop yields within fields. Additionally, considering yield variability at multiple scales is pertinent for modeling, predicting, and mapping, a key study objective for this study.

Following the recommendation of [76], we utilized summary statistics and the box-and-whisker plot, a graphical representation depicting the distribution of a dataset. This approach effectively illustrated the significant dependence of yield variability on the evaluation scale. Two significant observations were made regarding grain yield structure and metrics at the plot and spatial data levels. Firstly, it was noted that the relationships among different metrics remained relatively consistent with those observed in the analysis of plot-scale yields. Secondly, the transition from plot-scale data to spatial levels substantially reduced data variability and enhanced data quality. It improved the data’s discriminatory capacity between N placement alternatives on rice yield, which is the second primary objective of the study.

While data generated at both plot and spatial scales exhibited the same relationships and trends, the upscaling process refined the assessment data by reducing standard deviations, variance, and coefficients of variation (CVs). As indicated by [77], the success of spatial assessment hinges on the size and total number of samples. In this study, augmenting the sample size from 141 plot yields (68 UDP and 73 non-UDP plots) (Table 5) to 291 (160 UDP and 131 non-UDP) (Table 6) following the Jenks natural breaks grouping led to an improved data distribution and enhanced discrimination assessment of N placement alternatives.

On UDP plots, grain yields ranged from a minimum of 3.27 to a maximum of 10.59 mt ha^-1 with a range of 7.32 mt ha^-1 but narrowed to a minimum yield of 6.32 to a maximum of 8.72mt ha^-1, a range of 2.4 mt ha^-1 at the spatial scale. Grain yield from UDP plots exceeded their non-UDP counterparts by 0.69%, and at the field scale, UDP outperformed non-UDP by 0.84%. Similar relationships were obtained by [78,79] in their rice yield-N placement strategies investigations in Northern Ghana and Southern Bangladesh, respectively.

The research produced accurate data and utilized straightforward spatial analysis to illustrate, predict, and map the end-of-season rice grain yield. The maps illustrate rice yield’s spatial distribution and variability across the three intervention zones, providing insights into landscape-level production patterns. The maps are created with high spatial resolution, allowing detailed visualization of yield patterns across the landscape. These not only facilitate a detailed examination of the spatial variability in rice yield but also support targeted agricultural interventions and re-source management by highlighting areas with different yield potentials. A thorough examination of the anticipated yield chart (Figure 12), corroborated by a yield analysis (Table 6), revealed that zone J possessed the highest yield potential, averaging 7.17 metric tons per hectare. This yield is notably superior compared to zones H and I.

The observed yield distribution projected by the study corresponds with the soil fertility patterns noted during the initial physicochemical assessment of the project area. The P content was prominent among the fertility indicators, affecting the rice grain yield after fulfilling the N requirement. This finding echoes a similar study conducted in Pakistan [80], where applying 90 kilograms of P205 led to a 29% increase in paddy rice yield compared to the control once the N levels were adequate. Furthermore, Pearson correlation analysis demonstrated a significant link between P and rice grain yield (r = 0.74, significant at 0.05). In contrast, the high sand content (70.6%) in Zone I is likely re-sponsible for the reduced grain yield observed, which could adversely affect the soil’s water and nutrient dynamics.

Conclusion

This study employed Unmanned Aerial System (UAS)-derived data to create reflectance orthomosaics of NDVI and OSAVI. at the booting stage of the rice crop. Three progressive health plots were identified in UDP and non-UDP N placement rice fields using NDVI. While a linear correlation was observed between NDVI and crop health, its relationship with end-of-season rice grain yield was nonlinear. In contrast, OSAVI exhibited linear correlations with crop health and end-of-year yields, establishing it as the preferred end-of-season yield predictor. In addition, OSAVI pro-vided more suitable and reliable predictions in heterogeneous fields with varying soil conditions and was therefore utilized as a suitable index to extrapolate plot yield data to spatial dimensions through linear regression.

The OSAVI data in the linear equation were generated from distinct natural homogeneous groups identified by the Jenks natural breaks algorithm for each farmer’s field. Aggregating the four natural break yields constituted the predicted average rice yield for the respective field, generating spatially meaningful predicted yields for each zone. This process produced a high-resolution, practical digital spatial yield map depicting rice distribution and productivity for each zone. The yield data analysis from plot-level and spatial scale assessments involved summary statistics and plot-scale analyses. Although yields from both scales demonstrated similar relationships and trends, upscaling plot data to spatial dimensions refined the assessment data by reducing standard deviations, variances, and coefficients of variation.

Assessing the impact of N placement at the plot scale highlighted the superiority of UDP-N placement over non-UDP N management by 9.9%, equivalent to 0.6 mt ha⁻¹. In spatial assessment data, UDP field yields surpassed on-UDP counterparts, outperforming non-UDP by 14.3%, resulting in a yield differential of 0.92 mt ha⁻¹. This research has developed a concrete protocol for predicting and producing high-resolution maps of rice yield, which can be analogous to field mapping, utilizing midseason crop reflectance data generated from the UAS technology.

Acknowledgments

We express our deepest gratitude to Mr. Jeff DaCosta Osei and Mr. Prosper Kpiebaya for their invaluable assistance with the GIS work crucial to producing the images for this research. Their expertise and dedication significantly contributed to the quality and success of this study.
