Directional Dispersion Effect of Thin and Short
Fibers on Performance of High Ductile Mortar
Tek Raj Gyawali*
Department of Science and Technology, Pokhara University, Nepal
Submission: February 07, 2020; Published: July 06, 2020
*Corresponding author: Tek Raj Gyawali, Department of Science and Technology, Pokhara University, Nepal
How to cite this article: Tek Raj G. Directional Dispersion Effect of Thin and Short Fibers on Performance of High Ductile Mortar. Trends Tech Sci Res.
2020; 4(1): 555629. DOI: 10.19080/TTSR.2019.03.555629
The plain cement mortar is weak in flexural and ductility behavior. If the thin and short synthetic fibers, like Poly Vinyl Alcohol (PVA) fibers, are uniformly distributed and well coated with mortar, it enhances the both flexural and ductility. The directional dispersion effect of PVA fibers was investigated on the flexural and deflection behaviors of High Ductile Mortar (HDM). In the first attempt, 2-dimensional dispersion effect was studied with the HDM beams of different depths. And in the second, the 50mm beam mold was cast with 1 layer (50 mm depth of layer) and 5 layers (10 mm depth of each layer). The flexural strength of 12 mm deep beams increased by about 35% than that from 48mm beams, with an increase of deflection by about 800%. The flexural strength of five layers casting (10mm each) beams was increased by about 36% than from the one-layer (50 mm) casting, with an increase in the deflection by about 410%. The analytical model satisfied the experimental results. The 2-dimensional dispersed fibers enhanced the both flexural and deflection behaviors of HDM. It is recommended not to use the fibers of length not less than the thickness of the casting layer. This result was used for the manufacture of lightweight composite panels.
The concrete is considered as one of the most difficult materials to handle, because it is the mixture of different sizes materials like water, cement and aggregates . Different modern types of concretes like self-compacting concrete (SCC) [2-4] and ultra-high strength concretes  have already been developed. Steel fiber is the discrete, short length of steel with its aspect ratio (ratio of the length to diameter) ranging from 20 to 100 . Steel Fiber reinforced concrete (SFRC) is also considered as the prestigious construction material with its high flexural strength and ductility. The various research and developments have been carried out with FRC materials since the early 1960’s for its wide range of practical applications . American Concrete Institute (ACI) had listed the 5 methods of adding fibre materials while mixing SFRC .
It has, however, indicated that the fibres should be added to a fluid mix, either as the last stage of mixing or added to the mixer with the aggregates . The effect of mixing procedure on the properties of fibre reinforced concrete, especially with the feeding sequence of ingredients into the mixer, was studied by Bartos and Hoy [10-12]. They claimed that ordinary commercially available concrete mixers may not give the better quality of mixed FRC [11,12]. Japan Concrete Institute  has recommended that the fiber materials to be fed after the completion of the mixing of the plain concrete.
Synthetic fibres are considered as an inexpensive reinforcement, with no corrosion, for concrete. Victor Li. first introduced Engineered Cementitious Composites (ECC) in early 1990s [14-16]. Poly Vinyl Alcohol (PVA) fibres were developed by the time. PVA fibres have high tenacity, high modulus, low elongation, light weight, good resistance against chemicals (alkaline), good adhesion to cement matrix . Gong and Zhang found that using high performance fibre-reinforced cementitious composite (HPFRCC) materials, instead of normal concrete in RC frames, increased the ultimate load, ultimate deflection, ductility ratio, and plastic hinge characteristics of the frames Pang et al.  determined the effect of the fly ash on the ultimate tensile stress and strain of the high ductility cementitious composites . Li and Xu proposed the bending properties and toughness evaluation method of high toughness cementitious composites . The impact resistances of high-performance fiber reinforced composites were studied by Wang et al.  and Zhang et al. .
Various attempts were made by Gyawali to enhance the flexural and deflection behavior of High Ductile Mortar (HDM) with Poly-Vinyl Alcohol (PVA) fibers. These include dispersion method of PVA fibers and mixing in mortar , development of High Ductile Mortar mixing method , effect of sizes and contents of fibers  and different types of sand and mixing process . The author hereby has studied the directional dispersion effect of thin and short PVA fibers on flexural strength and deflection of HDM.
The main aim is to investigate the directional dispersion effect
of thin and short Poly-Vinyl Alcohol (PVA) fibers on flexural and
deflection behavior of High Ductile Mortar (HDM). Its specific
objective is to determine the effect of PVA fibers on flexural
strength and deflection when they are made to disperse in
2-dimensional and 3-dimensional directions with the following
two casting methods.
a) Casting the beam specimens of varying depth
b) Casting the same depth of beam with one layer of casting
and 5 layers of casting

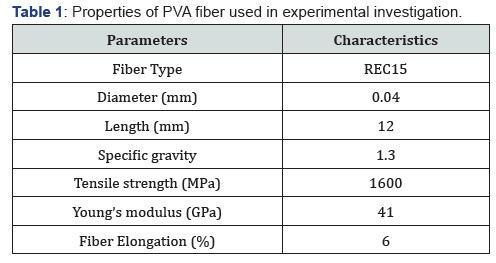

Since the target of this experimental work was to check the
effect of directional dispersion of thin and short fibers, type of PVA
fiber and its content, mix proportion of HDM as well as mixing
procedure were kept the same.
The water cement ratio (W/C) was 30% with unit cement
content (C) of 1000 kg/m3 and unit content of water (W) of 300
kg/m3. The content of PVA fiber was 2% by volume. 1.0% of super
plasticizer (by weight of cement) and 0.3% of viscosity agent
(by weight of water) were used to enhance the workability and
viscosity of mortar.
The HDM mixing method was used in all series of experimental
work. Mixing was carried out in a mortar mixer with 6 liters per
each batch. The viscosity agent was pre-mixed with cement in
bucket by small scoop. The dry mixing of sand and cement was
carried out for 30 seconds. Then, the first part of the water was
poured into the mixer and wet mixing was carried out for 2
minutes. When pouring the water, the mixer was run with low
speed. After finishing the charging of water, the mixing was done
with high speed for one minute. Then, PVA fibers were charged
into the mixer while mixing on low speed. After finishing the
charging of fibers, the mixing was done in high speed for one
minute. Finally, the remaining water was added and then mixing
was done for further one minute.
The workability and the viscosity of the HDM mortar were
found same in all cases. PVA fibers were uniformly distributed,
without any clumps, and firmly coated by the mortar. The average
table flow value of each HDM was more than 150 mm. It was the
workability requirement of the fresh HDM for the easiness of
casting. Three specimens of small beams were produced in all
series of experiments. The specimens were initially air cured for
24 hours, followed by the water tank curing until the test day.
Three wooden (plywood) beam molds of each depth of 6mm,
12mm, 20mm, 30mm and 48mm were prepared in these series
of tests. The length (400mm) and width (100mm) were same. All
specimens were cast with the same quality of the HDM mixed at
the same time under the similar environmental conditions. The air
curing and water curing of all specimens were carried out under
the similar conditions.
The standard steel molds with sizes of 400mm × 100mm ×
50mm (length × width × depth) were used in this method of casting.
Casting of fiber mortar into the mold was done in 1 layer and 5
layers, as shown in Figure 1. In 1-layer casting method, the whole
mold was cast at once. It was done for maintaining the directional
dispersion of fibers in 3-dimensions. In 5 layers casting method,
the depth of each cast layer was 10 mm to make the dispersion of
fibers in 2-dimensions. It is due to the depth of each layer (10mm) being less than the length of fiber (12mm). Three specimens were
produced from each casting method. The curing method was the
same to those cast with varying depth specimens.

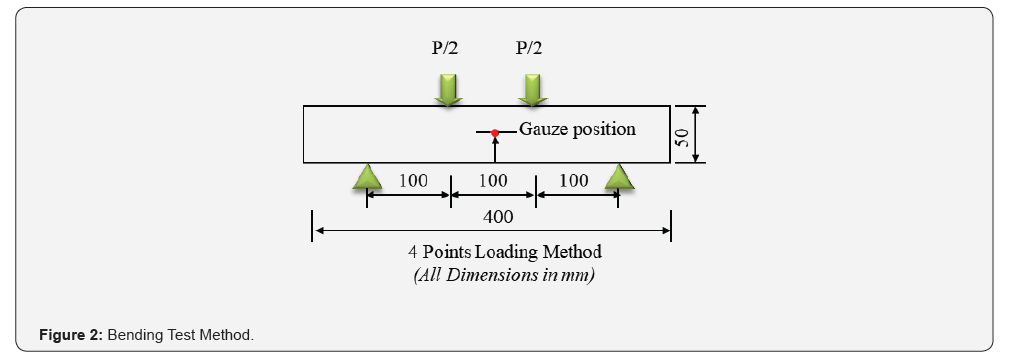

Since this investigation was for the comparative study, the
bending tests were done in 7 days age. It was done with 4-point
loading method, shown in Figure 2. Gauges were set at the exact
center of the depth, on both sides, to measure the deflection. The
average values of the deflection from the both sides were taken
for the study.
The data of load vs. deflection values were recorded from the
bending test of each specimen. The flexural stress was calculated
from the recorded load. The trend of flexural stress-deflection
relationship was studied in general. The maximum flexural stress
was considered as the flexural strength and the deflection value at
this point as deflection.

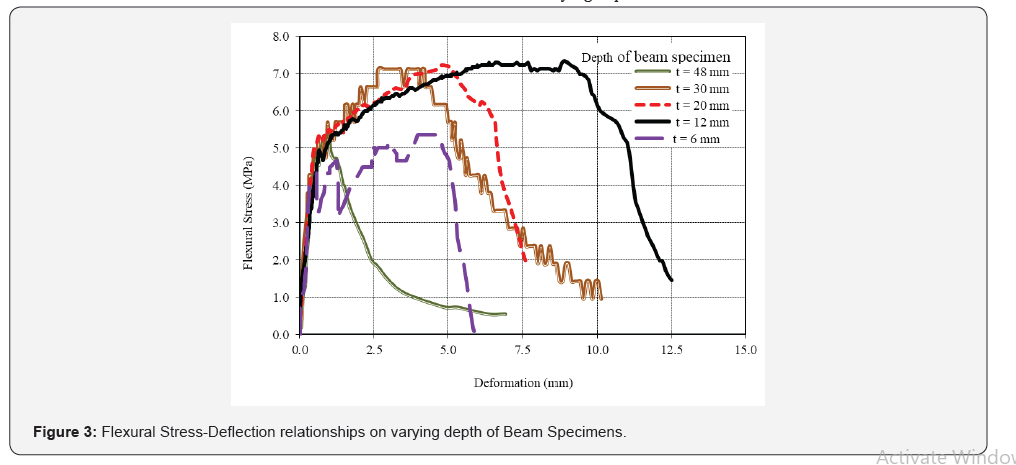

Average seven days flexural stress-deflection relationships
of test specimens with a depth of 6 mm, 12 mm, 20mm, 30mm
and 48mm are shown in Figure 3. The 12 mm beam showed
more deflection before the failure. It was due to 2-dimensional
distribution of PVA fibers. It is assumed that, 2-dimensional
distribution of PVA fibers increased the probability of having the
direction of fibers in 1- dimensional distribution (longitudinal
direction of the beam) to resist the flexural stress as well as
strengthening the bridging work to resist the widening of micro
cracks. The results obtained for the case of 20 mm and 30 mm
specimens were in-between. Moreover, numbers of micro-cracks
before the failure were more on the thin beam than in the thicker
one. However, the result was different with 6 mm beam which
gave the least flexural strength. Moreover, the flexural stress was
fluctuating at every point of loading. It is assumed that the depth
of the beam was not sufficient with respect to the length of the
fiber (12mm) used. Figure 4 gives the 7 days flexural strength of
the varying depth of beams.
The flexural strength of the 12mm beam was the maximum
(7.34MPa) followed by those of 20 mm (7.23 MPa), 30 mm
(7.12MPa) and 48 mm beams (5.45MPa). The increase in flexural
strength of the 12mm beam was about 35% than that of the 48mm
beam. The trend of decreasing of flexural strength while increasing
the depth from 12mm to 30mm was slight, but steep from 30
mm to 48 mm. The overall trend of decrease in flexural strength,
while increasing the depth, was found in the tentative parabolic
form. With exception, the flexural strength of 6 mm beam was the
Figure 5 shows the deflection values of beams, with varying
depth, on their maximum flexural strength capacity. The deflection
value of 12mm beam was the maximum (8.99mm), following by
those of 20mm (4.77mm), 30mm (2.64mm) and 48mm (0.98mm)
beams. The deflection of 12mm beam was about 800% more than
that of the 48 mm beam. Unlike the flexural strength, the decrease
of deflection of 12 mm to 20 mm beams was steeper than in the
range of 20mm to 30mm beams. The decrease trend from 30 mm
to 48 mm beams was slight. The deflection value of 6 mm beam
was 4.2mm, less than that of the 12mm beams. The trend of the
deflection curve was linear with the thickness up to 12mm (equal
to the length of fiber). It was tentative exponential decay with the
thickness from 12mm upward.
Figure 6 gives the relationship of stress-deflection curve
on casting methods of 1 layer and 5 layers of the same depth of
50 mm beam mold. The flexural strength of one-layer casting
(50mm) was only 4.76 MPa with its deflection value of 1.05mm.
The flexural strength of 5 layers casing (10mm) was 7.41MPa
with its deflection value of 4.2mm. Increase in flexural strength
and deflection of 5 layers casting was about 36% and 410 %
respectively than one-layer casting. The fibers of 12mm length
were assumed to be distributed randomly (3-dimensions) in
1-layer casting and in 2-dimensions in 5 layers.
The analytical model was developed for the both flexural
strength and deflection in a variation of the thickness of the
specimens. Equation 1 gives the empirical formula for the relation
of the flexural strength with thickness.
Here, fb is the flexural strength in MPa and t is the thickness
of beam in mm. The constant k_1depends upon the type and the
percentage of fiber. The constants k2 and k3 depend upon the
direction orientation of fibers and act as the reduction factor of
thickness to match with the exact value of fb in MPa.
Equation 2 gives the empirical formula for the relation of the
deflection with thickness.
Here, δ, t and Φ are the deflection, thickness of the beam and
length of fiber in mm, respectively. In equation 2(a), the constant
c1 depends upon the type and percentage of fiber and acts as the
reduction factor for the thickness. In equation (2b), c2 depends
upon the type and percentage of fiber. The constants c3 and c4 are
for the direction orientation and the reduction factor of thickness.
Figure 7 compares the analytical and the experimental data.
Values of k1, k2 and k3 are 7.4, 0.45 and 0.43 respectively. The
analytical result satisfactorily fits with the experimental results.
However, the experimental data of 6 mm beam are less than the
analytical result. Furthermore, experimental data from the second
series experiment are also plotted in the graph. The data for onelayer
casting (50 mm) fits well with the analytical result. However,
the data of 5 layers casting (10mm each) are more than that of
analytical result and a little bit more than that of the 12mm beam.
The comparison of analytical model and experimental results
for the deflection is shown in Figure 8. The values of c1, c2, c3 and c4
are 0.74, 64, 0.5 and 0.55 respectively. The analytical curve fits to
the experimental data satisfactorily. The test data of 50mm beam
(one-layer casting), from the second series experiment, perfectly
fit with the analytical curve. However, the test data of 5 layers
casting (10mm each) are far below than that of analytical results.
With the observation of bending tests followed by the study of the
pattern of stress-strain curve, flexural strength and deflection;
the author hereby recommends that the thickness of any HDM
specimen should not be less than the length of PVA fiber for HDM.
From this study, it was understood that the directional
dispersion effect of small and thin PVA fibers is vitally important
for enhancing the both flexural and deflection behaviors of HDM.
Two-dimensional distribution of PVA fibers enhances the both
flexural and deflection behavior of HDM. In practical application,
it is possible to make the 2-dimension dispersion of short and
thin fibers by producing the high flowable HDM. It may give its
characteristics of self-flowing, self-compacting and self-leveling
while pouring to any mold or formwork from any fixed position.
The directional dispersion effect of short and thin PVA
fibers (φ40μm × 12 mm) was experimentally studied by taking
two major parameters of specimen casting methods. In the first
series of experiment, the flexural strength of 12mm beam was
the maximum (7.34 MPa) with its respective deflection value of
8.90 mm. The flexural strength of 48mm beam was 5.45 MPa with
the deflection value of 0.98 mm. The increase in flexural strength
of the 12mm beam was about 35% than that of the 48mm beam.
The increase in deflection of the12mm beam was about 800%
than that of the 48 mm beam. The results of 20mm and 30mm
beams were in the middle range for the both flexural strength and
deflection values. In contrast, the flexural strength of 6mm beam
was the minimum (5.36MPa). The deflection value (4.71mm) was
also well below than that of the 12mm beam.
The flexural strength of 5 layers casting (10mm each) beams
was more (7.41 MPa) than one-layer (50mm) casting (4.76MPa)
beams. The deflection value of the first (4.2mm) was also more
than that of second (1.05mm). The increase in flexural strength
and deflection were 36% and 410% respectively. The empirical
model was developed for the both flexural strength and deflection
values. The analytical curve fitted well with the experimental data
for the beam thickness of not less than the length of the fiber.
However, the problem was noted with the less thickness. The
author recommends that it is better to produce the specimens not
thinner than the length of fiber for HDM.
It concludes that the two-dimensional distribution of PVA
fibers enhances the both flexural and deflection behavior of HDM.
In practical application, it was made possible by producing the
high flowable HDM.
The author carried out this research work in Maeda
Corporation, Tokyo, Japan. All required expenditure required for
this research work was funded by Maeda Corporation. The author
would like to give sincere thanks to Dr. Matabee K. Maeda for his
continued support during this research work. Sincere thanks also
go to all counterparts who helped during the experimental work.
Wille K, Naaman AE, Parra MGJ (2010) Ultra high-performance concrete with compressive strength exceeding 150 MPa: A simpler way. ACI Materials Journal 108(1): 46-54.
ACI 544 1R (1996) State-of-the-Art Report on Fiber Reinforced Concrete. American Concrete Institute, Farmington Hills, Michigan.
Barr BIG (1992) Fibre Reinforced Concrete-Where do we go from here? Fibre Reinforced Cement and Concrete. Proceedings of the fourth RILEM International Symposium, Edited by R. N. Swamy, E&FN SPON, London, UK p. 3-11.
ACI Committee 6.44 (1982) State-of-the-Art Report on Fibre Reinforced Concrete. ACI 6.44. IR, ACI, Detroit, 9.
Bartos PJM, Hoy CW (1996) Interaction of Particles in Fibre Reinforced Concrete. Proceedings of the International RILEM Conference on Production Methods and Workability of Concrete, edited by PJM. Bartos, DL Marrs & DJ Cleland, E&FN Spon, London, UK 461-462.
Hoy CW, Bartos PJM (1997) Mixing of Fibre Reinforced Concrete. Presented at the 1997 Spring Convention, American Concrete Institute, Seattle, Washington, U.S.A.
Hoy CW (1998) Mixing and Mix Proportioning of Fibre Reinforced Concrete. PhD Thesis, University of Paisley.
JCI-SF (1983) JCI Standards for Test Methods of Fibre Reinforced Concrete. Japan Concrete Institute (in Japanese).
Victor CL, Lin Z, Matsumoto T (1998) Influence of Fibre Bridging on Structural Size-Effect. International Journal of Solids and Structures 35 (31-32): 4223-4238.
Victor CL, Sun X, Wang S, Wu C (2001) Tensile Strain-Hardening Behaviour of Polyvinyl Alcohol Engineered Cementitious Composites (PVA-ECC). ACI material Journal 98 (6): 483-492.
Victor CL (2007) Engineered Cementitious Composites (ECC) – Material, Structural, and Durability Performance. University of Michigan.
Kuraray (1993) Characteristics of KURALONTM (PVA fibre). Fibres and Industrial Materials Division.
Gong CX, Gong J, Zhang H (2008) Uni-axial Tension Behaviour of High Ductile Fibre Reinforced Cementitious Composite with Focus on Some Influencing Factors. Journal of Hydraulic Engineering 139(3): 361-366.
Pang CM, Leung CKY, Sun W (2009) Preparation and properties of high ductility cementitious composites with high content of fly-ash. Journal of the Chinese Ceramic Society 37(12): 2071-2077.
Li HD, Xu SL (2010) High Toughness Cementitious Composites Bending Properties and Toughness Evaluation Method. Civil Engineering Journal 3: 32-39.
