Preliminary Characterization of a Nisin Z Bacteriocin with Activity Against the Fish Pathogen Streptococcus iniae
Emily E Wright*, Hong Uyen Nguyen and Leigh Owens
Department of Microbiology and Immunology, James Cook University, Australia
Submission: February 08, 2017; Published: June 28, 2017
*Corresponding author: Emily E Wright, Department of Microbiology and Immunology, College of Public Health, Medical and Veterinary Sciences, James Cook University, Townsville, Queensland, Australia , Email: emily.wright@dpipwe.tas.gov.au
How to cite this article: Wright E, Nguyen H U, Owens L. Preliminary Characterization of a Nisin Z Bacteriocin with Activity Against the Fish PathogenStreptococcus iniae. Ocean & fish Open Access J. 2017; 3(2): 555610. DOI: 10.19080/OFOAJ.2017.03.555610
Abstract
This is a preliminary characterisation of a bacteriocin, BacL49 produced by Lactococcus lactis ssp. lactis. This bacteriocin is significant due to its activity against Streptococcus iniae, a bacterial pathogen causing severe economic losses in the global aquaculture of various fish. Spot-on-lawn and microtitre plate assays were used to test antagonistic activity of the bacteriocin. BacL49 is heat and pH stable (100 °C for 60min, pH 2.5-9.5), and sensitive to proteinase K, a-chymotrypsin, trypsin and papain. BacL49 has a bactericidal mode of action and is produced during late log phase growth. BacL49 exhibits a broad activity spectrum against S. iniae, antagonising 93.75% (45/48) of S. iniae isolates collected from a variety of hosts and environments. The apparent molecular masses of the active protein components determined by sodium dodecyl sulfate-polyacrylamide gel electrophoresis are 5 and 54kDa. Molecular analyses were performed to locate the genetic determinants of BacL49. PCR of chromosomal DNA successfully amplified the structural gene encoding the precursor of nisin. Subsequent analysis of nucleotide sequences of the PCR products revealed it to be identical to the nis Z structural gene of nisin Z. There is a paucity of reports examining the inhibition of S. iniae by a lactococcal bacteriocin or even L. lactis as an aquacultural probiotic. This is one of the first studies to identify nisin genes in a strain of L. lactis exhibiting activity against S. iniae. BacL49 is a candidate biocontrol agent for mitigation of this important fish pathogen.
Keywords: Bacteriocin; Lactococcus lactis; Probiotic; Streptococcus iniae; Nisin Z
Introduction
Streptococcus iniae is one of the most economically important bacterial pathogens causing streptococcosis in fish. Globally, economic damages have been in excess of US$100 million per year [1] with as much as 70% loss in annual production in certain fish cultures [2]. S. iniae causes disease and mortality in at least 30 species of fish in marine, brackish and freshwater environments [3,4]. Outbreaks of S. iniae typically occur in warm-water, cultured situations throughout the world including Australia, Bahrain, Israel, Japan, Korea, Spain, Italy, and the United States [4,5-10]. Epizootic incidents have also been reported in wild populations [11,12], the most notable being the 1999 and 2008 Caribbean fish kills [13,14]. Zoonotic infections of S. iniae, normally caused by percutaneous injuries sustained during raw seafood preparations, have been reported in Canada, China, Hong Kong, Singapore, Taiwan, and the United States [15]. Prevention and treatment of S. iniae in aquaculture remains difficult, particularly with the industry seeking safer alternatives to antibiotics and vaccines. Antibiotics, including erythromycin have previously been successful in treating streptococcus is in fish [16]. Nonetheless, the use of antibiotics in aquaculture is gradually being eschewed due to widespread development of antibiotic resistance in the environment and in cultured fish, which causes consumer concern [16-18]. In some cases, antibiotics are also believed to merely suppress clinical symptoms without eliminating the infection, thereby promoting the development of "carrier fish" [1].
Research devoted to creating effective vaccines for prevention of S. iniae suffered a major setback when a novel serotype of S. iniae caused severe outbreaks in Israel amongst vaccinated rainbow trout (Oncorhynchus mykiss) [19,20]. Since then, commercial vaccines against S. iniae have been marketed, but are very limited geographically [21,22]. Alternative vaccines have yielded successful results but are still undergoing testing [2325]. In spite of this progress, the task of effectively vaccinati Oceanogr Fish Open Access J 3(2): OFOAJ.MS.ID.555610 (2017) each individual can be tedious, expensive, and even stressful for the fish [26]. Vaccinations can be futile when applied to juvenile fish that may not be fully immunocompetent [27]. Additionally, S. iniae is capable of surviving in the aquatic environment without a host [11,28,29] and this was speculated to have been a factor in the evolution of the new serotype by allowing the bacterium to evade the immune response of the vaccinated fish [19]. Furthermore, the outbreak in Israel is evidence of serotype diversity that could enable S. iniae to eventually overcome yet another vaccine. Thus, the quest continues for a long-term solution that can be universally and easily applied throughout the aquaculture industry [25]. Chemical-free "green solutions" appear to be the next era of therapeutics for preventing bacterial epizootics in fish [17]. Probiotics, either in the form of whole cells or cell components such as bacteriocins, are anticipated as being effective replacements for antibiotics and chemotherapeutics to fight infectious diseases [30]. Bacteriocins are a group of proteinaceous molecules that are biologically active against bacteria that are closely related to the bacteriocin producer, while the producer is immune [31-33]. Ubiquitous across all bacterial genera, these ribosomally synthesized peptides confer a selective advantage to their producers [31,32,34]. Bacteriocins are recognized as potentially useful agents in the control of bacterialinfections due to their effectiveness, non-toxicity and relatively cheap production [32,35,36]. Only two published studies on bacteriocins have tested S. iniae as an indicator species [37,38].
An inhibitory substance, identified as bacteriocin BacL49, was found during experimentation with the library of S. iniae and other aquatic bacteria from James Cook University (JCU). The bacteriocin was produced by a strain of Lactococcus lactis ssp. lactis and was observed to inhibit a large spectrum of S. iniae isolates. L. lactis, along with the rest of the lactic acid bacteria (LAB) are considered the most prolific of all the Gram-positive bacteriocinogens [32,39]. A versatile species, variousstrains of L. lactis can produce an assortment of bacteriocins that are predominantly encoded on plasmids [40-43]. Some L. lactis strains produce the bacteriocin nisin, a small (<5kDa), membrane-active member of the Lantibiotic class of LAB bacteriocins capable of antagonistic activity towards a wide range of Gram-positive bacteria [44-46]. Nisin is heat-tolerant (115-121 °C) at low pH levels, making it an ideal preservative in pasteurised and acidic food products [45,46]. Being "generally regarded as safe," nisin has achieved worldwide recognition as a non-toxic food additive in over 50 countries [31,32,45]. As produced by various strains of L. lactis, nisin occurs as natural variants with designations A, Z, Q, and F [47-49]. 106 Unlike most plasmid-encoded bacteriocins produced by L. lactis, nisin is encoded on a conjugative transposon [50-52], a chromosomally- associated segment of DNA with the capacity to repeatedly insert into and mobilise plasmids and genomes [52,53]. Thus, one objective of this study was to identify the genetic determinants of the bacteriocin BacL49 through assessing the prevalence of plasmids in L. lactis subsp. lactis L49 and examining the bacterial chromosomal DNA for nisin genes. This study also provides a brief characterisation of bacteriocin BacL49 and highlights the potential of this substance as a green solution for S. iniae infections in fish.
Materials and Methods
Source and identification of BacL49 producer. A lawn of S. iniae AS-04-1524#1 (JCU isolate S42; Table 1) was observed as a mixed culture, with one distinct colony type antagonizing the growth of the other. Both isolates were identified using a PCR assay for the lactate oxidase (lctO) gene of S. iniae using the primer combination LOX-1/LOX-2 [54], and a 16S rDNA PCR assay using universal primers 27F/1492R. PCR products were cleaned and sequenced by Macrogen Inc. (Korea). The 16S PCR assay returned a sequence 99% identical to Lactococcus lactis ssp. lactis in BLAST. According to sequencing, the antagonizing bacterium was identified as L. lactis L49, originally isolated from a moribund sleepy cod (Oxyeleotris lineolatus) at JCU. The inhibitory substance produced by L. lactis L49 was designated as BacL49.

*Altered TAAHL accession number. Changes were made for unknown reasons by previous researchers; it is likely these isolates are from the correct animal accession but the final number has been altered (ie. -9 and -11). **Invalid TAAHL accession number.
Bacterial growth and isolation of BacL49. Unless otherwise stated, bacteria were propagated aerobically at 28 °C in heart infusion broth (HIB) or agar (HIA) produced by the addition of 1.5% technical agar to HIB. Bacterial lawns were made by seeding HIA plates with 1ml overnight growth of bacteria, removing excess culture and allowing lawns to dry at room temperature. To produce cell-free supernatant (cfs) containing BacL49, L. lactis L49 was grown aerobically at 28 °C for 10-12h, then centrifuged at 4300g for 5min and filtered through 0.45|im. Aliquots of cfs were stored at 4 °C.
135 Assays for antagonistic activity. The activity of L. lactis L49 against 48 isolates of S. iniae (Table 1) was determined by an altered deferred antagonism method [55]. Briefly, an overnight L. lactis L49 culture was streaked in a single line on an HIA plate with a sterile loop. Bacterial isolates and a control of uninoculated broth were then streaked with sterile loops in parallel at right angles to L49. Zones of inhibition were measured after incubation for 16h. For interest, streak plates were made to determine the activity of L. lactis L49 against B antibiotic resistant human pathogens including E. coli B597, E. coli 53e, community acquired methicillin-resistant Staphylococcus aureus and Streptococcus pneumoniae. For these human isolates, one plate was incubated at 37 °C with CO2 and the other was incubated aerobically at 37 °C to ensure sufficient growth of the pathogens. Zones of inhibition were measured after 24h.
146 Antagonistic activity of BacL49 was detected qualitatively on solid media using a spot-on-lawn assay [56]. Antagonistic activity was quantified in liquid media using a modified microtitre plate assay [57]. The indicator culture was grown to an optical density of approximately 0.2 measured at 540nm, and added to two-fold dilutions of the growth medium or cfs (treated or untreated) in duplicate 96-well round bottom plates. Plates were incubated aerobically for 3h at 28 °C and the optical density measured. Antagonistic activity was defined as the reciprocal of the dilution causing 50% growth inhibition (determined by optical density) relative to the control culture without cfs (AU = arbitrary units). S. iniae S23 was used as the indicator strain for all spot-on-lawn and microtitre plate assays due to its high level of sensitivity to BacL49.
Effect of heat, pH and enzymes on BacL49 activity. To determine the heat stability of BacL49 activity, cfs samples (pH 5) were heated at 100 °C for 10, 20, 30 and 60min. Samples were cooled to room temperature before spot-on-lawn and microtitre plate assays. To determine the effect of pH on BacL49 activity, cfs samples were adjusted to pH levels between 1.5 and 9.5 using 1N NaOH or HCl. Samples were incubated with agitation for 2h, then readjusted to pH 5 (the pH level of untreated cfs following incubation) before spot-on-lawn and microtitre plate assays. To determine the effect of different enzymes on BacL49 activity, cfs samples were adjusted to pH 7.0 and treated to a final concentration of 2mg ml-1 with the following enzymes: proteinase K (40 units mg-1), a-chymotrypsin (59.3 units mg- 1), trypsin (2.6 units mg-1), pepsin, papain (19 units mg-1), and catalase (1340 units mg-1). Samples were incubated at 37 °C with agitation for 2h, then at 100 °C for 5min to deactivate enzymes. Remaining antagonistic activity was measured using the spot- on-lawn assay. An untreated cfs sample was used as a control in all assays.
170 Kinetics of production and activity. The kinetics of BacL49 production by L. lactis L49 were investigated by measuring the growth of the bacterium and activity of BacL49 produced over the same period. Overnight growth of L. lactis L49 was added to HIB (3.75% volume) and the culture was incubated with agitation. The optical density of the culture was measured at 600nm every hour until 12h, then periodically to 28h. At each reading, 1ml culture was removed to produce cfs, which was stored at 4 °C. Antagonistic activity was measured using a spot- on-lawn assay following the collection of all cfs samples.
The activity of BacL49 was determined as either bacteriostatic or bactericidal by measuring the growth of indicator strain S. iniae S23 after the addition of BacL49. Early log-phase growth of the indicator strain was distributed into triplicate 10ml aliquots. One ml of cfs was added to two indicator cultures and HIB was added to the remaining control culture. Optical density was measured at 600nm over 24h. To measure cell viability in a treated culture, mid log-phase growth of the indicator strain was distributed into duplicate 10ml aliquots. One ml cfs was added to one aliquot and HIB was added to the control. Optical density measurements at 600nm were taken over time and 10-fold serial dilutions were grown on HIA to measure cell forming units (cfu) of the indicator strain in both cultures at 48h.
Protein purification. L. lactis L49 was grown overnight in HIB previously filtered through Millipore type HA filters (to remove unwanted proteins from the media). A portion of the cfs produced from this culture was treated with ammonium sulphate in two stages. For the primary precipitation, saturated ammonium sulphate solution was slowly added to 100ml cfs while stirring to 60% saturation at room temperature. The solution was agitated 12h at 4 °C, then centrifuged at 4500g for 30min at 4 °C. The precipitate was resuspended in 10ml sterile distilled water. A small portion was removed and stored at 4 °C for the activity assay. Saturated ammonium sulphate solution was added to the remaining primary solution while stirring to 80% saturation at RT. This solution was agitated 12h at 4 °C, then centrifuged at 4500g for 30min at 4 °C. The secondary precipitate was resuspended in 1ml (1% original volume) sterile distilled water and stored at 4 °C. The activity of the ammonium sulphate precipitated (primary and secondary) proteins was tested with a microtitre plate assay.
Approximate molecular size of BacL49 was determined by tris-tricine sodium dodecyl sulfate- polyacrylamide gel electrophoresis (SDS-PAGE). Aliquots of the partially purified protein samples and untreated cfs were prepared with TruSep tricine SDS sample buffer and run on 16% tris-tricine gels with a low MW prestained protein ladder (Fermentas, Australia) at a constant 150V. Gels were silver stained using a Silver Stain Plus staining kit (BioRad, Australia) according to the manufacturer's protocol 208.
Proteins separated by SDS PAGE were eluted from the gel using a modified protocol from Busarcevic et al. [58]. Following agitation at room temperature overnight, the eluted samples were centrifuged at 10,000g for 5min and the supernatants concentrated by vacuum at 33 °C for 20min. Two controls were used: one elution made with a slice of gel from an unused well lane (containing no protein) and one with elution buffer only. Eluted samples were assayed for antimicrobial activity with a spot-on-lawn assay.
DNA purification. Isolation of plasmid DNA was carried out using the Wizard® Plus SV Minipreps DNA Purification System (Promega, Australia). Low-copy number plasmids were assumed for all strains. Genomic DNA isolations were carried out using the High Pure PCR Prep Kit (Roche, Australia) for the detection of nisin structural genes. DNA isolation procedures were performed according manufacturer specifications with the addition of a lysozyme step for Gram-positive bacteria. Negative control preparations contained no bacterial culture.
DNA products were resolved by electrophoresis on agarose gels stained with GelRedTM and then visualised under UV light. Since L. lactis strains often harbour a wide size-range (2kb to about 100kb) of plasmids (Teuber and Geis, 2006), plasmid DNA products were visualised using two different DNA ladders. These included the 1kb GeneRulerTM (Fermentas, Australia) used with 1% (w/v) agarose gels at 90V and the Lambda Mix Marker 19 (Fermentas, Australia) used with 0.5% (w/v) agarose gels at 40V.

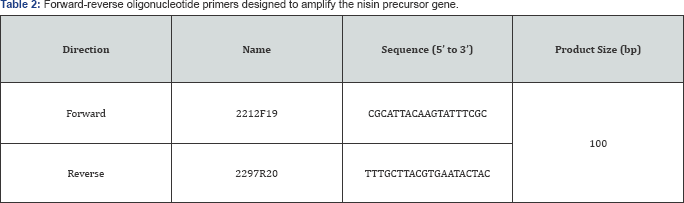

PCR analysis of the nisin gene. Oligonucleotide primers (Macrogen, Korea) were designed using the NCBI-ORF Finder and OLIGO 7 primer analysis software (Table 2) to target the nis A structural gene. Genomic DNA samples were prepared for PCR using GoTaq® Green master mix (Promega, Australia). As L. lactis L53 was found to contain a plasmid (results not shown), this isolate was included in the procedure. For negative controls, a tube of reaction mix containing indicator strain S. iniae S23 and one without sample DNA were included for the nisin structural gene protocol, and for the PCR protocol, respectively. DNA was amplified in a thermocycler (Eppendorf, Australia) set for denaturation at 94 °C, annealing at 55 °C and extension at 72 °C. PCR products were visualised on 2% (w/v) agarose gels at 120V, along with a 50bp GeneRulerTM (Fermentas, Australia). Sequence information (Macrogen, Korea) of the PCR products was analysed using Sequencher® 5.0 software. The resulting consensus sequences were compared to DNA and protein sequences contained in the National Center for Biotechnology Information (NCBI) database via BLAST search of "highly similar" sequences.

Results
L. lactis L49 produced antagonistic activity against 93.75% (45/48) of S. iniae isolates in the JCU library (Figure 1). L. lactis L49 failed to inhibit the growth of isolates S32, S39, S47 and the human pathogens tested. Antagonistic activity of BacL49 remained following 60min at 100 °C and over a broad pH range (pH 2.5-9.5), though activity was weaker at pH levels higher than 5.5 (Table 3). The cfs also showed antagonistic activity against the indicator after exposure to pepsin and catalase, but lost activity when exposed to proteinase K, a-chymotrypsin, trypsin and papain. L. lactis L49 began producing BacL49 at the end of the log growth phase (Figure 2). BacL49 production reached a maximum at early stationary phase, but began to drop following600min growth and continued to decrease to the end of 24h.



Activity measured as present (+) or absent (-) for enzyme tests. Absence antagonistic activity (-) correlates to senstivity (s) to the enzyme tested, and antagonism of the indicator (+) correlates to resistance (r) to the enzyme tested; Cfs: Cell Free Supernatant.
A Growth of the indicator strain was not only inhibited following the addition of BacL49, but the optical density of the culture continued to drop steadily over time without recovery, while the control culture grew normally to a high optical density. The cell viability of the treated indicator culture dropped 10fold in the first 30min following the addition of BacL49 and continued to drop over 70min while the control culture cfu increased 10-fold.
Ammonium sulphate precipitation successfully concentrated the bacteriocin (Table 3). The primary precipitate showed 8 times the activity (in AU) of the untreated cfs and the secondary precipitate showed at least 64 times the activity of the untreated cfs (1/512 was the highest dilution made of the substances tested in the microtitre assay).
Tris-tricine SDS PAGE allowed separation of the low molecular weight proteins, and multiple protein bands were clarified after silver staining of the gel (Figure 3). Following elution of proteins from the tris-tricine gel slices, only minor antagonistic activity was produced on the indicator strain by the small molecular weight band (5kDa) but strong antagonism was produced by the large molecular weight (54kDa) band.

Following plasmid extraction, DNA samples of L49 showed faint bands that were too unremarkable to be denoted as plasmids (Figure 4). Based on this data, further plasmid experimentation was not pursued. PCR for the nisin structural gene resulted in products just over 100bp for isolates L49 and L53 (Figure 5). No bands were detected for S23 or the control. Sequence analysis of the L49 PCR product yielded a consensus sequence of the nisin structural gene (Figure 6) that was 99% homologous to the nis A structural gene and 100% homologous to the nisZ structural gene (Table 4). The protein BLAST search showed 100% homology with the Nisin Z precursor, followed by that of nisins F and A, and then nisin Q (Table 4). A deduced amino acid sequence of BacL49 was also obtained from the BLAST search, which showed that BacL49 was identical to nisin Z.




Discussion
The inhibitory substance BacL49 produced by L. lactis L49 has been identified as a bacteriocin due to meeting the criteria of being a biologically active protein moiety with a bactericidal mode of action [33]. BacL49 can be produced in anaerobic conditions and is capable of diffusing through solid media (results not shown), which rules out hydrogen peroxide and phage activity, respectively, as the cause of antagonism. The protein nature of BacL49 was confirmed by its sensitivity to a number of proteases and the mode of action was confirmed as bactericidal by optical density and cell viability experiments.
BacL49 is heat and pH stable, though antagonistic activity was weaker when the bacteriocin was incubated in an alkaline environment. An acidic pH can be necessary for the retention of the cationic properties of bacteriocin peptides, which appear to be crucial for their antagonistic activity [59]. Most L. lactis bacteriocins, including nisin, are heat stable and tolerant to acidic conditions [21,60-62] but many show different enzyme sensitivities. A review of publications describing Nisin Z production by L. lactis strains isolated from various sources found that nisin Z is consistently sensitive to proteinase-K, but varies in sensitivity to trypsin, a-chymotrypsin, and papain. A few published descriptions of nisin exactly matched the protease sensitivity profile of BacL49 [63-65]. Interestingly, the only other described nisin isolated from fish differs from BacL49 in sensitivity to trypsin and a-chymotrypsin [37].
A bactericidal mode of action was confirmed by the reduction over time in optical density and Viable cell count of the BacL49 treated indicator culture. It is known that many antibiotics kill bacteria by targeting lipid II, thus blocking cell wall synthesis and leading to cell lysis by pore formation [44,66,67], and it is possible that BacL49 performs in a similar manner. The bactericidal mode of action of BacL49 not only confirms this substance is a bacteriocin, it indicates that BacL49 could reduce bacterial loads in fish or the environment by destroying S.iniae cells.
Production of antagonistic activity by the two differently sized peptide bands eluted from SDS PAGE gels (54kDa, and 5kDa) suggests that two different inhibitory substances are being concurrently produced by L. lactis L49. The two component lantibiotic lacticin 3147 consists of two 3-4kDa peptides, but both are required for antagonistic activity [68]. This required cooperation is apparently not the case with the two BacL49 peptides, as evidenced by their independent production of antagonism. It is also possible that cleaving of BacL49 is occurring; the large molecular weight peptide may be an unseparated quaternary structure of the small peptide.
The results of the plasmid extraction do not support the hypothesis that L49 contained plasmids. The faint bands observed after electrophoresis were not indicative of a typical plasmid profile. Chromosomal DNA extraction results suggest that L49 possesses the structural gene encoding the nisin precursor. Interestingly, equally strong bands for the structural gene were evident for isolate L53. Whilst this result was not expected due to isolate L53 only inhibiting 30% of S. iniae isolates in the JCU library (results not shown), it was also not surprising since various strains of L. lactis have been observed to produce nisin.

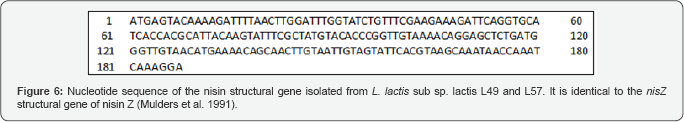

Based on the NCBI BLAST search results, BacL49 is likely nisin Z. The DNA sequence was shown to differ from that of nisin A exactly as stated in Mulders et al. [48], varying at position by a C to A transversion. Comparison of the deduced amino acid sequence with those of the other nisin variants, coupled with the protein BLAST results, substantiates the nucleotide results. Nisin Z is a natural nisin variant that has only been produced by strains of L. lactis, however these strains have been isolated from a variety of sources from different environments.
Producers of nisin Z have previously been derived from dairy [51,69] and vegetables products [70,71]. Recently, it has been shown that they are also associated with mangroves [72], marine fish [37], and now with freshwater fish. The source of the producing strain could have an impact on how and in what context it can be used most effectively.
Based on the results of this study, it is likely that BacL49 is encoded on a conjugative transposon. Like plasmids, some conjugative transposons can possess a very broad host range [73], allowing for the dissemination of various traits (e.g. antibiotic resistance) across different species [53,74,75]. Further research following this study should focus on isolating this mobile genetic element from L49, characterising it, and assessing its potential novelty and uses by genetic manipulation.
Other bacteriocin-producing L. lactis strains have been isolated from freshwater fish in the past [47,60] however these studies tested bacteriocin activity against S. aureus, L. monocytogenes, and other pathogens important in food spoilage and human infection. This study reports similar findings to that in Heo et al. [37], in which a strain of L. lactis subsp. lactis was isolated from the intestine of a marine olive flounder (Paralichthys olivaceus) and was found to inhibit S.iniae during in vitro experiments. Heo et al. [37] examined the in vitro effects of nisin Z against S. iniae by combining it with varying concentrations of NaCl. The authors concluded that the ability of nisin Z to inhibit the growth of S. iniae was synergistically improved when applied in conjunction with NaCl. This is significant for marine- based aquaculture. The producer of BacL49 was isolated from a freshwater fish species, thus it would be interesting to look for any significant differences in activity between BacL49 and nisin Z originating from a marine source BacL49 could have important applications in the aquaculture industry with regard to S. iniae.
The ability to retain its activity through heating processes would allow this bacteriocin to be readily incorporated into commercial fish food. The fact that BacL49 remains active over a broad pH range is also advantageous because S. iniae can establish in a variety of organs and tissues in infected fish. BacL49 could also be added directly into the culture water as a non-toxic means of biological control of S. iniae in the culture environment and be a supplement to vaccination procedures. This environmental treatment could address the issue of S. iniae cells surviving freely in the water and evading the immune responses of vaccinated fish. Differences in activity, such as increased inhibitory specificity, distinguish bacteriocins from classical antibiotics and are another advantage to their use in a cultured environment [76]. This specificity can reduce the risk of non-target bacteria (particularly beneficial ones) being antagonized and minimize the threat of resistance development. However, the broad activity spectrum of BacL49 on different isolates of S. iniae would prove to be an advantage due to the large variation that exists between strains of this pathogen [76,77].
The pathological effects of bacteriocins must be considered before they are used in an in vivo situation, and it would be beneficial to determine whether the bacteriocin is strongly antigenic [33]. However, most bacteriocins are not toxic to animals at effective antimicrobial concentration due to their specificity [78]. Despite the results of this study showing that high concentrations of BacL49 are easy to achieve, bacteriocin delivery or retention in fish tissues could prove difficult in vivo. If this were the case, L. lactis ssp. lactis L49 could be trialed as a probiotic. Great interest has been shown towards LAB as potential probiotics, as they are well-recognised for their bacteriocinogenic capabilities and presence within the normal microbiota of fish (typically the intestine) [30,79]. Not only can they withstand acidic stomach conditions, but they can grow and colonise the intestine of fish [80]. The piscine origins of L49 may contribute to its survivability and efficacy as a potential probiotic, though there are few studies examining L. lactis as a probiotic specifically against fish pathogens. Though L. lactis has not been documented as a fish pathogen and is regularly present in the aquatic environment and the intestinal tract of both freshwater and marine fish [71,81-84], it would be necessary to confirm isolate L49 as non-pathogenic to the species of fish undergoing treatment. The elucidation of the L. lactis genome and the fact that products from the bacteria are generally regarded as safe make the bacterium a unique candidate for genetically engineered live vaccines as well [85].
BacL49 is significant because it displays a broad activity spectrum for S. iniae isolates, implicating it as a new therapeutic or preventative agent for infections caused by this economically important fish pathogen. Nisin has had a long history as a safe food additive in the manufacturing of various foods for human consumption, thus BacL49 may also be integrated with fish food without serious concern over chemical residues. Purified BacL49 should be tested in vivo to determine antigenicity of the substance in fish, and the bactericidal action of the bacteriocin should be studied in depth to identify problems that may arise with bacterial resistance.
Acknowle dgements
This work was funded by James Cook University. The authors would like to acknowledge Dr. Gabriel Padilla and Dr. Jennifer Elliman for their invaluable assistance.
References
- Shoemaker CA, Klesius PH, Evans JJ (2001) Prevalence of Streptococcus iniae in tilapia, hybrid striped bass, and channel catfish on commercial fish farms in the United States. Am J Vet Res 62(2): 174-177.
- Bromage ES, Owens L (2002) Infection of barramundi Lates calcarifer with Streptococcus iniae: effects of different routes of exposure. Dis Aquat Organ 52(3): 199-205.
- Buchanan JT, Stannard JA, Lauth X, Ostland VE, Powell HC, et al. (2005) Streptococcus iniae phosphoglucomutase is a virulence factor and a target for vaccine development. Infection and Immunity 73(10): 69356944.
- Creeper JH, Buller NB (2006) An outbreak of Streptococcus iniae in barramundi (Lates calcarifera) in freshwater cage culture. Aust Vet J 84(11): 408-411.
- Bromage ES, Thomas JA, Owens L (1999) Streptococcus iniae, a bacterial infection in barramundi Lates calcarifer. Dis Aquat Organ 36(3): 177-181.
- El Aamri F, Padilla D, Acosta F, Caballero MJ, Roo J, et al. (2010) First report of Streptococcus iniae in red porgy (Pagrus pagrus L.). J Fish Dis 33(11): 901-905.
- Eldar A, Ghittino C (1999) Lactococcusgarvieae and Streptococcus iniae infections in rainbow trout Oncorhynchus mykiss: similar, but different diseases. Dis Aquat Organ 36(3): 227-231.
- Park YK, Nho SW, Shin GW, Park SB, Jang HB, et al. (2009) Antibiotic susceptibility and resistance of Streptococcus iniae and Streptococcus parauberis isolated from olive flounder (Paralichthys olivaceus). Vet Microbiol 136(1-2): 76-81.
- Russo R, Mitchell H, Yanong RPE (2006) Characterization of Streptococcus iniae isolated from ornamental cyprinid fishes and development of challenge models. Aquaculture 256: 105-110.
- Yuasa K, Kitancharoen N, Kataoka Y, Al-Murbaty FA (1999) Streptococcus iniae, the Causative Agent of Mass Mortality in Rabbitfish Siganus canaliculatus in Bahrain. Journal of Aquatic Animal Health 11(1): 87-93.
- Colorni A, Diamant A, Eldar A, Kvitt H, Zlotkin A (2002) Streptococcus iniae infections in Red Sea cage-cultured and wild fishes. Dis Aquat Organ 49(3): 165-170.
- Zlotkin A, Hershko H, Eldar A (1998) Possible transmission of Streptococcus iniae from wild fish to cultured marine fish. Appl Environ Microbiol 64(10): 4065-4067.
- Ferguson HW, St John VS, Roach CJ, Willoughby S, Parker C, et al. (2000) Caribbean reef fish mortality associated with Streptococcus iniae. Vet Rec 147(23): 662-664.
- Keirstead ND, Brake JW, Griffin MJ, Halliday-Simmonds I, MA Thrall, et al. (2013) Fatal Septicemia Caused by the Zoonotic Bacterium Streptococcus iniae During an Outbreak in Caribbean Reef Fish. Vet Pathol 51(5): 1035-1041.
- Lau SKP, Woo PCY, Luk Wk, Fung AMY, Hui Wt, et al. (2006) Clinical isolates of Streptococcus iniae from Asia are more mucoid and [beta]- hemolytic than those from North America. Diagn Microbiol Infect Dis 54(3): 177-181.
- Agnew W, Barnes AC (2007) Streptococcus iniae: An aquatic pathogen of global veterinary significance and a challenging candidate for reliable vaccination. Vet Microbiol 122(1-2): 1-15.
- Abutbul S, Golan-Goldhirsh A, Barazani O, Zilberg D (2004) Use of Rosmarinus officinalis as a treatment against Streptococcus iniae in tilapia (Oreochromissp.). Aquaculture 238(1-4): 97-105.
- Cabello FC (2006) Heavy use of prophylactic antibiotics in aquaculture: a growing problem for human and animal health and for the environment. Environ Microbiol 8(7): 1137-1144.
- Bachrach G, Zlotkin A, Hurvitz A, Evans DL, Eldar A (2001) Recovery of Streptococcus iniae from diseased fish previously vaccinated with a Streptococcus vaccine. Appl Environ Microbiol 67(8): 3756-3758.
- Lahav D, Eyngor M, Hurvitz A, Ghittino C, Lublin A, et al. (2004) Streptococcus iniae type II infections in rainbow trout Oncorhynchus mykiss. Dis Aquat Organ 62(1-2): 177-180.
- Komar C, Sheehan B, Tan Z, Enright W (2006) Intervet Norbio Singapore: An Integral Part of the Asian Aquaculture Industry. Aquaculture Health International 6: 25-28.
- Cheng S, Yh Hu, Jiao Xd, Sun L (2010) Identification and immunoprotective analysis of a Streptococcus iniae subunit vaccine candidate. Vaccine 28(14): 2636-2641.
- Pridgeon JW, Klesius PH (2011) Development and efficacy of a novobiocin- resistant Streptococcus iniae as a novel vaccine in Nile tilapia (Oreochromis niloticus). Vaccine 29(35): 5986-5993.
- Shoemaker CA, La Frentz BR, Klesius PH, Evans JJ (2010) Protection against heterologous Streptococcus iniae isolates using a modified bacterin vaccine in Nile tilapia, Oreochromis niloticus (L.). Journal of Fish Diseases 33(7): 537-544.
- Son VM, Chang CC, Wu MC, Guu YK, Chiu Ch et al. (2009) Dietary administration of the probiotic, Lactobacillus plantarum, enhanced the growth, innate immune responses, and disease resistance of the grouper Epinephelus coioides. Fish Shellfish Immunol 26(5): 691-698.
- Balcazar JL, I De Blas, I Ruiz-Zarzuela, Vendrell D, Girones O, et al(2007) nhancement of the immune response and protection induced by probiotic lactic acid bacteria against furunculosis in rainbow trout (Oncorhynchusmykiss). FEMS Immunol Med Microbiol 51(1): 185-193.
- Nguyen HT, Kanai K, Yoshikoshi K (2002) Ecological investigation of Streptococcus iniae in cultured Japanese flounder (Paralichthys olivaceus) using selective isolation procedures. Aquaculture 205: 7-17.
- Perera RP, Johnson SK, DH Lewis (1997) Epizootiological aspects of Streptococcus iniae affecting tilapia in Texas. Aquaculture 152: 25-33.
- Hagi T, Hoshino T (2009) Screening and characterization of potential probiotic lactic acid bacteria from cultured common carp intestine. Biosci Biotechnol Biochem 73(7): 1479-1483.
- Jack RW, Tagg JR, Ray B (1995) Bacteriocins of gram-positive bacteria. Microbiol Rev 59(2): 171-200.
- Riley MA, Wertz JE (2002) Bacteriocins: evolution, ecology, and application. Annu Rev Microbiol 56: 117-137.
- Tagg JR, Dajani AS, Wannamaker LW (1976) Bacteriocins of gram-positive bacteria. Bacteriol Rev 40(3): 722-756.
- De Vuyst L, Leroy F (2007) Bacteriocins from Lactic Acid Bacteria: Production, Purification, and Food Applications. J Mol Microbiol Biotechnol 13(4): 194-199.
- Brook I (1999) Bacterial Interference. Crit Rev Microbiol 25(3): 155172.
- Reid G, Howard J, Gan BS (2001) Can bacterial interference prevent infection? Trends Microbiol 9(9): 424-428.
- Heo WS, Kim EY, Kim YR, Hossain M, Kong IS (2012) Salt effect of nisin Z isolated from a marine fish on the growth inhibition of Streptococcus iniae, a pathogen of streptococcosis. Biotechnol Lett 34(2): 315-320.
- Kim DH, Austin B (2008) Characterization of probiotic carnobacteria isolated from rainbow trout Oncorhynchus mykiss intestine. Lett Appl Microbiol 47(3): 141-147.
- Guinane CM, Cotter PD, Hill C, Ross RP (2005) Microbial solutions to microbial problems; lactococcal bacteriocins for the control of undesirable biota in food. J Appl Microbiol 98(6): 1316-1325.
- Dufour A, Thuault D, Boulliou A, Bourgeois CM, Pennec JPL (1991) Plasmid-encoded determinants for bacteriocin production and immunity in a S. iniae strain and purification of the inhibitory peptide. J Gen Microbiol 137(10): 2423-2429.
- Holo H, Nilssen O, Nes IF (1991) Lactococcin A, a new bacteriocin from Lactococcus lactis subsp. cremoris: isolation and characterization of the protein and its gene. J Bacteriol 173(12): 3879-3887.
- Martinez B, Fernández MA, Suárez JE, Rodríguez A (1999) Synthesis of lactococcin 972, a bacteriocin produced by Lactococcus lactis IPLA 972, depends on the expression of a plasmid-encoded bicistronic operon. Microbiology 145(pt 11): 3155-3161.
- Morgan S, Ross RP, Hill C (1995) Bacteriolytic activity caused by the presence of a novel lactococcal plasmid encoding lactococcins A, B, and M. Appl Environ Microbiol 61(8): 2995-3001.
- Breukink E, de Kruijff B (1999) The lantibiotic nisin, a special case or not? Biochim Biophys Acta 1462(1-2): 223-234.
- Delves-Broughton J, Blackburn P, Evans RJ, Hugenholtz J (1996] Applications of the bacteriocin, nisin. Antonie van Leeuwenhoek 69(2): 193-202.
- Klaenhammer TR (1993) Genetics of bacteriocins produced by lactic acid bacteria. FEMS Microbiol Rev 12(1-3): 39-85.
- de Kwaadsteniet M, Ten Doeschate K, Dicks LM (2008) Characterization of the structural gene encoding Nisin F, a new lantibiotic produced by a Lactococcus lactis subsp. lactis isolate from freshwater catfish (Clarias gariepinus). Appl Environ Microbiol 74(2): 547-549.
- Mulders JWM, Boerrigter IJ, Rollema HS, Siezen RJ, de Vos WM (1991] Identification and characterization of the lantibiotic nisin Z, a natural nisin variant. Eur J Biochem 201(3): 581-584.
- Zendo T, Fukao M, Ueda K, Higuchi T, Nakayama J, et al. (2003] Identification of the Lantibiotic Nisin Q, a New Natural Nisin Variant Produced by Lactococcus lactis 61-14 Isolated from a River in Japan. Biosci Biotechnol Biochem 67(7): 1616-1619.
- Horn N, Swindell S, Dodd H, Gasson M (1991) Nisin biosynthesis genes are encoded by a novel conjugative transposon. Molec Gen Genet 228(1-2): 129-135.
- Olasupo NA, Schillinger U, Narbad A, Dodd H, Holzapfel WH (1999] Occurrence of nisin Z production in Lactococcus lactis BFE 1500 isolated from wara, a traditional Nigerian cheese product. Int J Food Microbiol 53(2-3): 141-152.
- Rauch PJ, De Vos WM (1992) Characterization of the novel nisin-sucrose conjugative transposon Tn5276 and its insertion in Lactococcus lactis. J Bacteriol 174(4): 1280-1287.
- Salyers AA, Shoemaker NB, Stevens AM, Li LY (1995) Conjugative transposons: an unusual and diverse set of integrated gene transfer elements. Microbiol Rev 59(4): 579-590.
- Melancon D, Grenier D (2003) Production and properties of bacteriocin- like inhibitory substances from the swine pathogen Streptococcus suis serotype 2. Appl Environ Microbiol 69(8): 4482-4488.
- Mata AI, Blanco MM, Dominguez L, Fernandez-Garayzabal JF, Gibello A (2004) Development of a PCR assay for Streptococcus iniae based on the lactate oxidase (lctO) gene with potential diagnostic value. Vet Microbiol 101(2): 109-116.
- Hoover DG, Harlander SK (1993) Screening methods for detecting bacteriocin activity. In: Hoover DG, Steenson LR (Eds.), Bacteriocins of lactic acid bacteria. Academic Press, San Diego, USA.
- Geis A, Singh J, Teuber M (1983) Potential of Lactic Streptococci to Produce Bacteriocin. Appl Environ Microbiol 45(1): 205-211.
- Busarcevic M, Kojic M, Dalgalarrondo M, Chobert JM, Haertlé T, et al.(2008) Purification of bacteriocin LS1 produced by human oral isolate Lactobacillus salivarius BGHO1. Oral Microbiol Immunol 23(3): 254258.
- Mortvedt-Abildgaard CI, Nissen-Meyer J, Jelle B, Grenov B, Skaugen M, et al. (1995) Production and pH-Dependent Bactericidal Activity of Lactocin S, a Lantibiotic from Lactobacillus sake L45. Appl Environ Microbiol 61(1): 175-179.
- Campos CA, Rodríguez Ó, Calo-Mata P, Prado M, Barros-Velázquez J (2006) Preliminary characterization of bacteriocins from Lactococcus lactis, Enterococcus faecium and Enterococcus mundtii strains isolated from turbot (Psetta maxima). Food Research International 39: 356364.
- Fang TJ, YS Yang (1995) Production and property of a bacteriocin-like inhibitor from Lactococcus lactis DY11212. Food Science 22: 479-493.
- Rodríguez JM, Cintas LM, Casaus P, Horn N, Dodd HM, et al. (1995) Isolation of nisin-producing Lactococcus lactis strains from dry fermented sausages. J Appl Bacteriol 78(2): 109-115.
- Matsusaki H, Sonomoto K, Ishizaki A (1998) Some Characteristics of Nisin Z, a Peptide Antibiotic Produced by Lactococcus lactis IO-1. Food Science and Technology International, Tokyo 4: 290-294.
- Mitra S, Chakrabartty P, S Biswas (2005) Production and Characterization of Nisin-Like Peptide Produced by a Strain of Lactococcus lactis Isolated from Fermented Milk. Curr Microbiol 51(3): 183-187.
- Park SC, Nakai T (2003) Bacteriophage control of Pseudomonas plecoglossicida infection in ayu Plecoglossus altivelis. Dis Aquat Organ 53(1): 33-39.
- Breukink E (2006) A lesson in efficient killing from two-component lantibiotics. Mol Microbiol 61(2): 271-273.
- Hasper HE, Kramer NE, Smith JL, Hillman JD, Zachariah C, et al. (2006) An Alternative Bactericidal Mechanism of Action for Lantibiotic Peptides That Target Lipid II. Science 313(5793): 1636-1637.
- McAuliffe O, Hill C, Ross RP (2000) Each peptide of the two-component lantibiotic lacticin 3147 requires a separate modification enzyme for activity. Microbiology 146(Pt 9): 2147-2154.
- de Vos WM, JW Mulders, Siezen RJ, Hugenholtz J, Kuipers OP (1993) Properties of nisin Z and distribution of its gene, nis Z, in Lactococcus lactis. Applied and Environmental Microbiology 59: 213-218.
- Cai Y, Ng LK, Farber JM (1997) Isolation and characterization of nisin- producing Lactococcus lactis subsp. lactis from bean-sprouts. J Appl Microbiol 83(4): 499-507.
- Park SH, Itoh K, Kikuchi E, Niwa H, Fujisawa T (2003) Identification and Characteristics of Nisin Z-Producing Lactococcus lactis subsp. lactis Isolated from Kimchi. Curr Microbiol 46(5): 0385-0388.
- Hwanhlem N, Biscola V, El-Ghaish S, Jaffres E, Dousset X, Haertle T, et al. (2013) Bacteriocin-Producing Lactic Acid Bacteria Isolated from Mangrove Forests in Southern Thailand as Potential Bio-Control Agents: Purification and Characterization of Bacteriocin Produced by Lactococcus lactis subsp. lactis KT2W2L. Probiotics & Antimicro Prot 5(4): 264-278.
- Clewell DB, Flannagan SE, Jaworski DD (1995) Unconstrained bacterial promiscuity: the Tn916-Tn1545 family of conjugative transposons. Trends Microbiol 3(6): 229-236.
- Mathur S, Singh R (2005) Antibiotic resistance in food lactic acid bacteria-a review. Int J Food Microbiol 105(3): 281-295.
- Scott KP (2002) The role of conjugative transposons in spreading antibiotic resistance between bacteria that inhabit the gastrointestinal tract. Cell Mol Life Sci CMLS 59(12): 2071-2082.
- Defoirdt T, Sorgeloos P, Bossier P (2011) Alternatives to antibiotics for the control of bacterial disease in aquaculture. Curr Opin Microbiol 14(3): 251-258.
- Eyngor M, Tekoah Y, Shapira R, Hurvitz A, Zlotkin A, et al. (2008) Emergence of novel Streptococcus iniae exopolysaccharide-producing strains following vaccination with non-producing strains. Applied and Environmental Microbiology 74(22): 6892-6897.
- Kvitt H, Colorni A (2004) Strain variation and geographic endemism in Streptococcus iniae. Dis Aquat Organ 61(1-2): 67-73.
- Kobayashi S, Hirakura Y, Matsuzaki K (2001) Bacteria-selective synergism between the antimicrobial peptides a- helical magainin 2 and cyclic ß- sheet tachyplesin I: toward cocktail therapy. Biochemistry 40(48): 14330-14335.
- Ringo E, Gatesoupe FJ (1998) Lactic acid bacteria in fish: a review. Aquaculture 160: 177-203.
- Gildberg A, Johansen A, Bogwald J (1995) Growth and survival of Atlantic salmon (Salmo salar) fry given diets supplemented with fish protein hydrolysate and lactic acid bacteria during a challenge trial with Aeromonas salmonicida. Aquaculture 138(1-4): 23-34.
- Hagi T, Tanaka D, Iwamura Y, Hoshino T (2004) Diversity and seasonal changes in lactic acid bacteria in the intestinal tract of cultured freshwater fish. Aquaculture 234: 335-346.
- Itoi S, Abe T, Washio S, Ikuno E, Kanomata Y, et al. (2008) Isolation of halotolerant Lactococcus lactis subsp. lactis from intestinal tract of coastal fish. Int J Food Microbiol 121(1): 116-121.
- Michel C, Pelletier C, Boussaha M, Douet DG, Lautraite A, et al. (2007) Diversity of Lactic Acid Bacteria Associated with Fish and the Fish Farm Environment, Established by Amplified rRNA Gene Restriction Analysis. Appl Environ Microbiol 73(9): 2947-2955.
- Sugita H, Ohta K, Kuruma A, Sagesaka T (2007) An antibacterial effect of Lactococcus lactis isolated from the intestinal tract of the Amur catfish, Silurus asotus Linnaeus. Aquaculture Research 38(9): 10021004.
- Lan CQ, Oddone G, Mills DA, Block DE (2006) Kinetics of Lactococcus lactis growth and metabolite formation under aerobic and anaerobic conditions in the presence or absence of hemin. Biotechnol Bioeng 95(6): 1070-1080.
