Upper Tract Transitional Cell Carcinoma (UTUC)
With Sarcomatoid Change and Inferior Vena Cava Invasion: Imaging Findings of a Rare Entity
Mehak Raja1*, Sushila B Ladumor2 and Maneesh Khanna2
1Resident Radiologist, Clinical Imaging Department, Body Imaging, Hamad Medical Corporation, Hamad General Hospital, Qatar
2Consultant Radiologist, Clinical Imaging Department, Hamad Medical Corporation, HGH, Assistant Professor in Clinical Radiology, Weil Cornel Medical College, Qatar
Submission: October 23, 2017; Published: November 10, 2017
*Corresponding author: Mehak Raja, Resident Radiologist, Clinical Imaging Department, Body Imaging, Hamad Medical Corporation, Hamad General Hospital, Qatar, Email: firstname.lastname@example.org
How to cite this article: Mehak R, Sushila B L, Maneesh K. Upper Tract Transitional Cell Carcinoma (UTUC) With Sarcomatoid Change and Inferior Vena Cava Invasion: Imaging Findings of a Rare Entity. Open Access J Surg. 2017; 6(5): 555699. DOI: 10.19080/OAJS.2017.06.555699
Upper tract urothelial carcinomas (UTUC) are generally uncommon and account for less than 3% of primary renal tumors . UTUCs with IVC extension is rare, with only 27 cases reported in literature and a UTUC with sarcomatoid change is even rarer, with only 21 cases known in literature to date. We report on a case of a 70-year-old male patient of African descent, who presented with an incidentally detected right renal mass on ultrasound of the urinary tract performed for lower urinary tract symptoms secondary to benign prostatic hyperplasia. CT scan showed a right renal midpole mass associated with contiguous renal vein and inferior vena cava (IVC) tumour thrombosis and regional lymphadenopathy. MRI demonstrated an infiltrative mass invading the renal pelvis, extending along the right renal vein into the IVC with no definite vascular wall invasion.
With a preoperative diagnosis of RCC due to the presence of renal mass and contiguous tumour thrombus, the patient underwent right robotic nephrectomy, converted to open surgery with tumor thrombus clearance from the IVC. Histopathology revealed a high grade papillary urothelial carcinoma with sarcomatoid differentiation. Staging PET CT showed distant lymph node metastasis denoting stage IV disease. Following this the patient was started on three cycles of chemotherapy, comprised of gemcitabine and carboplatin.
Herein, we aim to exhibit the imaging findings in our rare case, which has not been elaborated in literature before.
Urothelial carcinomas, also known as transitional cell carcinomas are the most common malignancy of the overall urinary tract. They commonly involve the bladder and urethra (90-95%) and uncommonly involve the renal pelvis, calyces and ureters (5-10%.) . At diagnosis, 60% of UTUCs are invasive and concomitant bladder cancer is present in 33% of patients . The most common presenting symptom is macro or microscopic hematuria . CT urography is highly specific in high-risk patients and is generally preferred over Magnetic Resonance Urography (MRU).
A 70 years old male, known to have DM, HTN and benign prostatic hyperplasia (BPH) on treatment, attended a regular follow up urology clinic for BPH. He had symptoms of urinary urgency pertaining to his BPH. Ultrasound of the urinary
tract showed an incidental right renal solid mid-pole mass, demonstrating mixed echogenicity and peripheral vascularity, causing a focal contour bulge (Figure 1). A suspicion of primary renal malignancy was raised. Laboratory evaluation revealed iron deficiency anemia (Hgb: 8.6 gm/dL MVC 75.6 fL, MCH 22.3 pg), WBC: 6.9. Normal renal function (BUN: 4.9 mmol/L, Cr: 92 nmol/L) and normal liver function. Urinalysis was normal with no RBCs, 4 uL WBCs and high blood glucose of 5.5 mmol/L. Urine cytology was not performed.
A subsequent contrast enhanced CT scan was performed on a 64-slice CT scanner (LightSpeed; GE Healthcare, 436 mA, 100 kV, 1.5-mm section thickness, 0.5-second rotation time). The CT scan examination was protocoled for renal mass, which entailed three phases including a pre-contrast run, a post contrast venous phase (70s delay) and a urography phase (5 mins delay) from the top of the kidneys down to the pelvic cavity.
CT demonstrated a right renal hypodense lesion
predominantly involving the antero-lateral aspect of the mid
part of the right kidney measuring 6 x 3 cm. Peri-renal fascia
appeared thickened with minimal surrounding fat stranding.

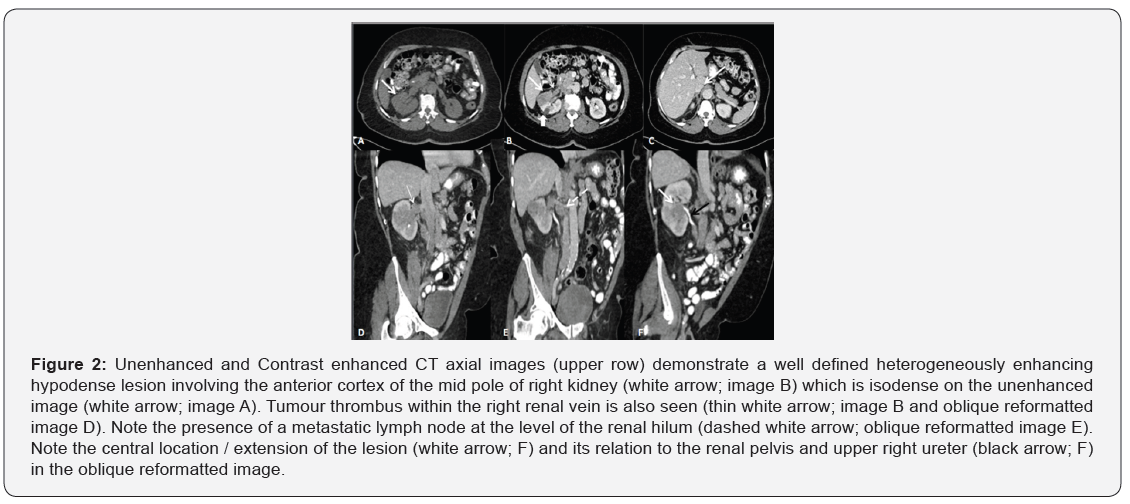

Focal filling defects were noted in the right renal vein and IVC in
continuity with the tumour denoting direct tumour extension/
thrombosis (Figure 2). Multiple enlarged retrocaval and aortic
lymph nodes were additionally noted, suggesting metastatic
involvement, cT3a N1 M0.
Left kidney, ureters and the urinary bladder were preserved.
An MRI abdomen with intravenous contrast was performed
for further characterization and assessment of the renal vein/
IVC wall invasion. On MR, an ill-defined heterogeneously
enhancing infiltrative right renal mass was noted in the mid to
lower pole of the right kidney. The mass was seen extending into
the renal hilum and invading the renal pelvis. Tumoral thrombus
was seen extending along the entire course of the right renal
vein and projecting into the right side of the lumen of inferior
vena cava without definite wall invasion (Figure 3). Considering
direct extension of the tumour into the renal vein and IVC, a
diagnosis of renal cell carcinoma was inferred. However, in view
of the central location of the tumor involving the renal pelvis,
upper tract transitional cell carcinoma was also listed in the
With a most likely preoperative diagnosis of RCC, the patient
went in for a right robotically assisted nephrectomy. At surgery,
the right kidney demonstrated significant perinephric adhesions
and soft tissue edema. It was mobilized and the renal vessels
dissected. Upon dissection of the renal vein, extensive renal vein
and IVC thrombus was seen reaching up to the hepatic veins. The procedure was converted to open laparotomy (Figure 4). Tumor
thrombus retrieval from the IVC was successful. However, a
dense mass posterior to the IVC was observed, that could only
be partially excised. On macroscopic examination of the radical
nephrectomy specimen cut section, a 5.5 x 4.4 x 4.5 cm tumor
was seen in the renal pelvis growing towards and pushing the
renal capsule but not infiltrating it. The tumor margins were
0.2 cm from the Gerota’s fascia sparing the perinephric fat. Soft
tissue extracted from the intra-caval tumor thrombus appeared
hemorrhagic and friable.
Histopathology demonstrated a uni-focal high-grade
papillary urothelial carcinoma containing urothelial cells with
large hyperchromatic nuclei, frequent atypical mitotic figures,
frank anaplasia and spindle cells representing high-grade
sarcomatoid features. The spindle cell component accounted
for greater than 60 % of the tumor. Urothelial carcinoma in-situ
was also noted. Extensive invasion of the renal parenchyma,
renal sinus adipose tissue, renal vein, inferior venal cava and
associated lymphovascular invasion by the tumor was seen.
No lymph nodes were identified in the surgical specimen.
A pathological stage of pT4 pNx was given. The patient had a
long intraoperative course followed by SICU admission for gradual weaning from intubation. He was extubated the second
day and had an uneventful post-operative recovery. A staging
PET CT post-surgery revealed metabolically active metastatic
regional retroperitoneal LNs and a solitary mediastinal LN
with left supraclavicular LNs suspicious for distant metastasis.
Categorically, the malignancy was labeled as a stage IV disease

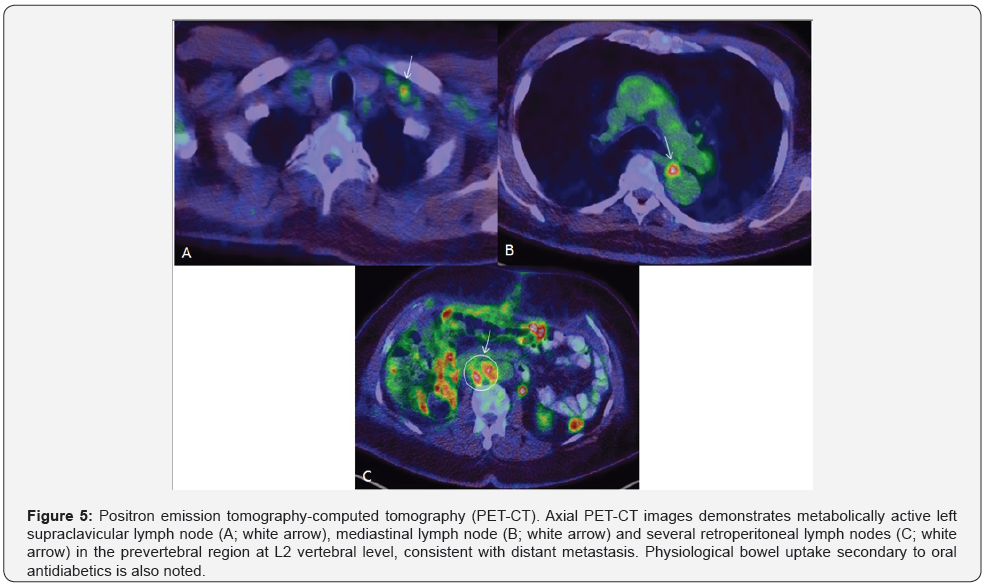

(Figure 5). Radiotherapy was not undertaken for reasons of
advanced tumoral stage. The patient was started on carboplatin
and gemcitabine for 3 cycles of chemotherapy.
Upper tract urothelial carcinoma is a malignancy arising from
the urothelium lining the renal calyces up to the distal ureter.
UTUC of the renal pelvis has been frequently misdiagnosed
as RCC on imaging. It was first described as a renal pelvic
carcinoma in 1841 by a French pathologist named Rayer .
Diagnostic differentiation between a UTUC of the renal pelvis
and its greatest mimic, a centrally located RCC is imperative
in planning the surgical approach and management strategy.
For instance, centrally located RCC is surgically treated with
often minimally invasive nephrectomy, whereas UTUC requires
nephroureterectomy and wider lymphadenectomy owing to its
greater invasiveness. Follow-up strategies also differ. Patients
with UTUC are started on an intensive surveillance plan because
they have a lifelong increased risk of developing urothelial
tumors in the contralateral upper urinary tract or bladder [6,7].
Of all cases of UTUC known in literature, 57% had been
preoperatively misdiagnosed as RCC . On cross-sectional
imaging, as renal UTUCs infiltrate centrifugally into the renal
parenchyma, they demonstrate features similar to centrally
located renal cell carcinomas. In addition, the greater incidence
of RCCs with renal vein or IVC extension (4-36%) compared to
UTUCs with tumoral venous thrombus (5 to 7%) further adds to
the difficulty in diagnostic differentiation between an RCC and
renal UTUC with venous invasion [9,10].
UTUCs of the pelvis can be recognized with high accuracy
on CT. A previous retrospective cross-sectional study, evaluated
the diagnostic performance of individual CT features and
their reliability in differentiating UTUCs of the renal pelvis
from centrally located RCC. Six CT signs most helpful in the
differentiation were, tumor center in collecting system, focal
filling defect in renal pelvis, renal shape preservation, absence of
cystic or necrotic change, homogeneous enhancement of tumor
and extension towards ureteropelvic junction. These signs
identified UTUC of the renal pelvis with a sensitivity of 68-82%
and specificity between 79-89% . Our case demonstrated five
of the six CT signs with the differing sign being heterogeneous
The usefulness of MRI in UTUC detection and characterization
is demonstrated by its greater soft tissue delineation ability
over CT. Of particular interest in a series of MR sequences
is the diffusion weighted functional imaging sequence. This
sequence demonstrates good contrast between the tumor and
the surrounding tissues, such that a positive DW-MRI is strongly
indicative of UTUC, whereas a negative DW-MRI nearly excludes
a diagnosis of UTUC in patients with negative urinary cytology . Additionally, ADC value could be a biomarker of UTUC and
reflect its aggressiveness, including histological grading and
proliferative potential. In one study, ADC value was significantly
lower in grade 3 cancers than in grade 1–2 cancers, potentially
influencing the surgical management .
On histology, UTUCs in the renal pelvis are known to
frequently display unusual morphological features unlike the
UTUCs of the ureter. In a study of 108 high-grade urothelial
carcinomas of the renal pelvis, up to 40% demonstrated unusual
features. Some of the unusual morphological features were:
micropapillary areas (4%), lymphoepithelioma-like carcinoma
(2%), sarcomatoid carcinoma (6%), squamous differentiation
and squamous cell carcinoma (14%), clear cells (4%), glandular
differentiation (2%), rhabdoid, signet-ring or plasmacytoid
cells (4%), pseudosarcomatous stromal changes (4%) and
intratubular extension into the renal pelvis (3%) .
Sarcomatoid change in a UTUC has been seen in twentyone
cases known in literature [1,13-17] to date. Piscioli et
al reported the first case in a 62-year old male in 1984 .
However, only one known case in literature has shown IVC
extension whilst exhibiting sarcomatoid changes  with our
case being the second in line. We have demonstrated US, CT and
MRI findings in our case, making ours the only case in literature
with a comprehensive radiologic evaluation of sarcomatoid
variant UTUC with IVC extension. Sarcomatoid carcinoma is a
biphasic malignant neoplasm whose cells have morphologic
and/or immunohistochemical properties of both epithelial
tumours (“carcinoma”) and mesenchymal tumours (“sarcoma”)
. Microscopically, the carcinomatous component is mostly
transitional cell carcinoma and the sarcomatous component
is largely composed of spindle cells [16,17]. These cells show
positivity of the spindle tumor cells for cytokeratin AE1/AE3
and vimentin on immunohistochemical staining .
Currently, open radical nephroureterectomy with bladder cuff
excision is the standard for high-risk UTUC (i.e. hydronephrosis,
tumour size > 1 cm, high-grade cytology, high-grade URS biopsy,
multifocal disease, previous radical cystectomy for bladder
cancer). Kidney-sparing surgery is considered for low-risk UTUC
(sparing the morbidity associated with open radical surgery)
and in all imperative cases with renal insufficiency or a solitary
functional kidney. In patients with advanced metastatic disease,
radical nephroureterectomy may play a palliative role; however,
there are no proven benefits. Such patients are usually started
on platinum based chemotherapy regimens similar to urothelial
bladder cancer therapies .
In conclusion, the greater incidence of RCCs in centrally
located renal pelvic tumors should not preclude the differential
of a UTUC of the renal pelvis on imaging. Differentiation of these
malignancies is challenging on imaging, but necessary because
the management strategies and standard of treatment differs.
