Hepatoprotective and Histologic effects of Lactic
Acid Bacteria on Carbon Tetrachloride – Induced Liver Injury in Albino Rats (Rattus Albus)
Hinay Alfredo Jr*, Bandoy Anna-Lee, Sagsagat, Hannah Andrea, Allen Czanille June, Ratilla Aina and Roble Deborah Esther
Faculty of Medical Laboratory Science, University of the Immaculate Conception, Davao City, Philippines
Submission: November 26, 2018;Published: January 18, 2019
*Corresponding author: Alfredo A Hinay, Division of Virology, Faculty of Medical Laboratory Science, University of the Immaculate Conception, Davao City, Philippines
How to cite this article: Hinay AJr, Bandoy AL, Sagsagat HA, Allen CJ, Ratilla A, Roble DE. Hepatoprotective and Histologic effects of Lactic Acid Bacteria
on Carbon Tetrachloride – Induced Liver Injury in Albino Rats (Rattus Albus). Dairy and Vet Sci J. 2019; 9(2): 555756. DOI:10.19080/JDVS.2019.09.555756
Liver disease has long been a problem to the public health. There are different etiologic agents to this problem such as hepatotoxins and alcoholism, which contribute to liver damage or necrosis, biologic factors such as bacteria, parasites and viruses, metabolic diseases, and even drug exposure to paracetamol or carbon tetrachloride etc. Hence, a growing need to provide an effective and safe drug has become a trend because current modern available drugs have side effects and bring about inherent toxicities. Two locally known commercially fermented products were used as the source of lactic acid bacteria. These were the coconut toddy (tuba) and Visayan fermented fish (guinamos). Three distinct colonies were isolated – two from the guinamos coded as GUI – 01 and GUI – 02, and one from the tuba coded as TUB – 01. However, only the colony isolated from tuba was subcultured in MRS broth as it was stipulated in the delimitations of the study to use only bacteria of genus Lactobacillus. The colony isolated from the tuba was characterized as Gram positive, catalase negative, oxidase negative, non – spore forming bacilli in single and clusters. The MRS broths incubated for 72 hours at 37ºC were pelleted by centrifugation and re-suspended in 0.1M Phosphate Buffer Solution (pH 7.4).
The isolates were investigated for their hepatoprotective and histologic effects on carbon tetrachloride – induced liver injury in Albino rats (R. albus), along with Silymarin as the positive control. For four days, the albino rat test groups were administered with a single dose lactic acid bacteria suspension, while positive control group was induced with a single dose silymarin. Results showed only slight elevations of serum ALT and AST on group induced with LAB, as compared to the levels of serum ALT and AST on group induced with silymarin. Using One – way Analysis of Variance, it was suggested that lactic acid bacteria has comparable effects to the hepatoprotective effects of Silymarin against carbon tetrachloride. This result was supplemented by the histopathologic exams of rat liver sections showing normal histology.
The progression of liver disease begins with hepatitis followed by cirrhosis and leads to liver failure or hepatoma. But the precise pathological mechanisms of chronic disease progression are still unclear . Moreover, recent data showed that different agents can be contributors to the damage such as biological factors (examples are Fasiola hepatica, Hepatitis A virus and Helicobacter spp.) and autoimmune diseases (immune hepatitis and primary biliary cirrhosis), as well as by the action of different chemicals, such as some drugs and their metabolites (high doses of paracetamol and antitubercular drugs), toxic compounds (carbon tetrachloride, thioacetamide, dimethylnitrosamine, D-galactosamine/Lipopolysaccharide, and tert-butyl hydroperoxide), and certainly, excessive consumption of alcohol. This makes chronic liver disease and cirrhosis ranked 5th as the leading causes of death after heart disease, stroke, chest disease, and cancer .
However, even with the advances in modern medicine, there are no completely effective drugs that can initiate hepatic function,
provide complete protection to the organ, or aid in the regeneration of hepatic cells. They have potential adverse effects especially when taken sub – chronically or chronically . Moreover, journals quoted that synthetic drugs have little contribution for the improvement in hepatic disease . Hence, probiotics have been adapted to treat liver disorders, with the aim that these agents must be more effective and less toxic. Lactic acid bacteria are important intestinal microflora and are traditionally used in the production of fermented foods and beverages such as in cheese, wine coconut toddy, and fermented fish . Moreover, giving the importance of intestinal flora in liver disease, lactic acid bacteria (which is a probiotic) can also provide an effective dietary approach to improve hepatic encephalopathy and to decrease the risk of liver cancer.
Though many pharmacological benefits of lactic acid bacteria have postulated such as maintaining intestinal microbial system and improving immune function, still, little work has been done to explore the hepatoprotective effects of lactic acid bacteria to date
. This study aimed to know the hepatoprotective and histologic
effects of lactic acid bacteria isolated from commercially available
fermented food products. This will also help pharmaceutical industries
to provide a solution for the increasing mortality rates
of liver disease by providing them ideas so that they can generate
new and more effective drug to protect the liver from further
The study engaged purposive sampling method were the samples
taken only from Bankerohan Public Market, Davao City. The
guinamos utilized in this study had dilis as the type of fish, and
was 30 days old. Having a pale gray to white color, this indicated
that fermentation is present . On the other hand, the coconut
toddy used was a Bahal (60 days old), a type of coconut toddy
wherein the fermentation process lasted 2-3 months. The coconut
toddy contained a color dye which provided its reddish-brown or
To prepare 2.5 X 106 bacterial suspensions, 4 mL of LAB pellet
was suspended with 16mL 0.1M Phosphate buffer solution (pH
7.4). Neubauer counting chamber was used to count the LAB. Both
the five inner squares of the two counting chambers were counted.
Each inner square contained 25 smaller squares. After counting
the bacteria, the total number was solved using this formula:
Before starting the said experimentation, the researchers had
complied all the requirements given by the Institutional Animal
Care and use Committee (IACUC) and had received a certification.
With the guidelines set by the IACUC, the albino rats (R. albus)
were placed in the animal house in the University of the Immaculate
Twenty – five (25) male albino rats (R. albus), weighing 150
to 250 grams (ages 8 to 12 weeks) were used in this study. They
were subjected for a 7-day acclimatization and were individually
housed in clean acrylic cages for 12 days at 20 to 26 °C room temperature,
and regular light cycles of 12/12 hours light/dark for the
entire experimentation. The albino rats (R. albus) were fed with
commercial pelleted rat chow and water ad libitum. These animals
received care according to the guidelines set by the Institutional
Animal Care and Use Committee (IACUC).
The twenty – five (25) albino rats (R. albus) were divided into
5 groups coded with the following:
Group 1 (Negative Control) – No administration of Lactic Acid
Bacteria, Silymarin and carbon tetrachloride.
Group 2 – albino rats orally administered with isolated Lactic
acid bacteria strains (4 days, once a day)
Group 3 – albino rats orally administered with 0.85% Normal
saline Solution (4 days, once a day), carbon tetrachloride induced
(one hour after last administration of 0.85% normal
Group 4 (Positive Control) – albino rats orally administered
with Silymarin (4 days, once a day), carbon tetrachloride induced
(one hour after last administration of Silymarin)
Group 5 (Test) – albino rats orally administered with isolated
Lactic acid bacteria strains (4 days, once a day), carbon tetrachloride
induced (one hour after last administration of lactic
Before the administration of the different agents, the albino
rats (R. albus) were subjected to acclimatization for 7 days. This
allowed them to adjust to their new environment. The researchers
used bent metal oral gavage measuring 3 inches long, with a
gauge of 14 to aid in the administration of the said substances and
a 1.0ml capacity tuberculin syringe without needle.
The albino rats (R. albus) under group 2 and group 5 were
orally given 1.0 ml of 2.5 x 106 suspension of the isolated lactic
acid bacteria (400μl per 16 ml of 0.1M PBS buffer) for four days.
The preparation of the lactic acid bacteria was based from the
study of Han  with slight modifications.
The albino rats (R. albus) under group 2 (positive control) were
orally given 1.0ml of the silymarin suspension (210 mg pure silymarin/
16 ml of 0.85% NSS) for four days. This preparation was
based from the study of Chu Chyn with slight modifications.
After an hour of the final administration of the different substances,
20 albino rats (R. albus) were orally administered with
carbon tetrachloride and olive oil (2ml/kg 50% v/v). The dose administered
depended on the weight of each albino rats (R. albus).
Blood samples were taken via cardiac puncture after 18 hours.
The samples collected were placed on red tap evacuated tubes and
were allowed to clot at room temperature for 60 minutes. Centrifugation
was done at 2000rpm for 10 minutes to allow serum separation.
The serum samples were tested for the biochemical parameters
– Aspartate aminotransferase and Alanine aminotransferase.
The following procedures were done under the supervision and aid of the research adviser and the veterinarian to ensure proper performance of the methodologies.
After the blood collection, the albino rats (R. albus) were sacrificed
via cervical dislocation. After which, liver tissues were excised
and were immediately stored in a sterile screw cap container
having 10% Neutral Buffered Formalin to start the fixation.
To measure the hepatoprotective effects of lactic acid bacteria,
AST and ALT levels in serum samples of albino rats (R. albus) were
measured. The reference value for the albino rat (R. albus) ALT is
18 – 45 U/L, while the reference value for AST is 7 – 143 U/L .
The liver tissues were processed and embedded in paraffin after
fixing with 10% Neutral Buffered Formalin. Sections were cut
and were stained with hematoxylin and eosin. All of the tissues
were viewed under light microscope by a pathologist to analyze
any altered architecture of the liver tissues due to carbon tetrachloride,
or if there were improvement in the liver architecture in
those induced with lactic acid bacteria and silymarin .
In isolating lactic acid bacteria, the two samples – the Visayan
fermented fish and the coconut toddy, from which three colonies
of distinct morphology were isolated. Subculture in duplicates
using de Man Ragosa and Sharpe (MRS) agar were performed to
ensure that only one kind of bacteria were isolated. Table 1 shows
the data regarding the colonies isolated from tuba and guinamos
sample. Upon proceeding to the presumptive identification of the
bacterial isolates, the researchers performed gram staining, catalase
test, and oxidase test. API 50 CH was used for the species
identification of the bacteria.
Gram staining revealed gram-positive, non-spore forming bacilli.
No bubble formation was observed when the 3% hydrogen
peroxide was added to the bacteria. Absence of purple coloration
was also observed in the oxidase test. These results indicate that
the organism was non – catalase and non – oxidase producing bacteria.
The researches also confirmed the specific type of bacteria
using the API. The bacteria isolated was Lactobacillus plantarum.
However, even if three lactic acid bacteria were isolated from guinamos
and tuba, only the LAB isolated from tuba were used due to
the delimitations of the study to use only lactic acid bacteria with
According to Khemariya , Lactobacillus plantarum are gram
– positive, non-spore forming lactobacilli that are usually isolated
from fermented foods (such as fermented meat, fermented vegetables,
and silage beverages), and are non - catalase producers.
These characteristics strongly confirm that the isolated lactic acid
bacteria were really Lactobacillus plantarum . Moreover, the
studies of Kadere, Kutima & Wambugu [9,10] also cited that Lactobacillus
plantarum are present in coconut toddy.

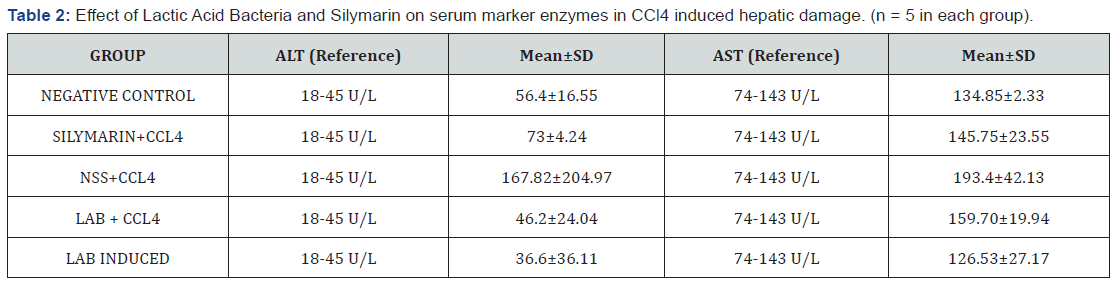

The hepatoprotective effects of lactic acid bacteria strains by
using the activities of serum hepatic markers, aspartate aminotransferase
and alanine aminotransferase were measured. The
overall results of the aspartate aminotransferase and alanine aminotransferase
are presented in Table 2.
The group one (negative control) served as the researchers’
basis for the initial levels of serum ALT and AST of the different
rat groups. The test revealed 56.4±16.55 as a result for serum ALT
levels which indicated a slight elevation, with 134.85±2.33 levels
of AST which fell within normal range. This means that generally,
the condition of the albino rats’ (R. albus) livers were in good
shape. However, significant changes were seen in the results of
albino rats induced with 0.85% NSS with carbon tetrachloride as
compared to the negative control. Massive increase in both of the
serum ALT and AST were shown which indicated that the albino
rat livers were damaged by the carbon tetrachloride. As cited by
Afzal , liver cells contain high concentrations of ALT and AST,
that when hepatocytes are damaged, this causes the leaking – out
of those liver specific enzymes into the serum, causing an increase
in their normal levels. They also added that an increase in the two
enzymes are good indicators of cellular damage and loss of functional
integrity of the liver cell membrane .
An increase in the serum marker ALT was also observed on
the group treated with silymarin and carbon tetrachloride. Slight
elevation was also observed in the result of the group’s serum AST
levels. This may be due to the length of the application time of the
silymarin. The treatment time was just too short for the silymarin
to exhibit its hepatoprotective effect. The groups of Albino rats (R.
albus) induced with lactic acid bacteria (group 2 and group 5) significantly
altered the levels of serum ALT and AST. Comparing the
results to the positive control which is the silymarin, there is only
a slight elevation of the serum ALT in the group treated with lactic
acid bacteria. This is also the same to the study of Zedan ,
wherein the capacity of Lactobacillus plantarum to protect the liver
was elucidated by the low levels of AST and ALT in the serum
of mice .
Testing the significant difference on the mean value of ALT
and AST in rats treated with Lactic Acid Bacteria and control drug
– Silymarin in CCL4 induced hepatic damage shows that the ALT
(p=0.261) and AST (p=0.457) signifies that there is no significant
difference between the mean value of ALT and AST in rats
treated with Lactic Acid Bacteria and control drug – Silymarin in
CCL4 induced hepatic damage. Statistically, the isolated lactic acid
bacteria suspension has a comparable effect to the control drug –
Figure 1 shows the histopathological effects of the 5 different
groups, absence of pathological abnormalities was seen in the
groups 1, 2, 4, and 5, even if groups 2 and 4 were administrated
with a single dose 2ml/kg carbon tetrachloride and olive oil (50%
v/v). However, the administration of a single dose carbon tetrachloride
and olive oil (2ml/kg 50% v/v) in group 3 (albino rats
induced with NSS) brought histological changes to their liver tissues.
According to the histological analysis, edema was observed in
the liver tissues of the group 3 albino rats (R. albus). In the study of
Afzal , liver tissue treated with a single dose carbon tetrachloride can cause several centrolobular necrosis, hepatocyte ballooning,
and infiltration of inflammatory cells. However, it was evident
that treatment with silymarin and lactic acid bacteria prevented
any of those from happening.
Results signify that the isolated lactic acid bacteria were able
to protect the albino rats’ livers. This may be greatly attributed to
the features cited by Chu-Chyn, that the lactic acid bacteria’s ability
to protect the hepatocytes begin when the LAB orally administered
interacts with the digestive enzymes present in the digestive
tract and follow their components after intestinal absorption
to the liver where they exhibit their probiotic effects. This is also
similar to the study of Levkut & Herich , wherein they stipulated
that lactic acid bacteria creates the barrier effect against
pathogens and other hepatotoxic agents and produces regulatory
factors such as short-chain fatty acids and bacteriocins . Basing
from the results of the AST and ALT levels, and the histological
examination of the albino rats (R. albus) liver tissue, the effectiveness
of lactic acid bacteria was comparable to that of the positive
control, which is silymarin.
The hepatoprotective effect of Lactobacillus plantarum 2 on
carbon tetrachloride (CCL4) induced liver injury in albino rats is
that it lowered the levels of serum Aspartate Aminotransferase
and Alanine Aminotransferase, and showed a normal liver tissue
when viewed microscopically. Further, there is no significant
difference between the effects of the silymarin, a commercial
hepatoprotective agent and the lactic acid bacteria in CCL4
induced hepatic damage on serum marker enzymes.
