Tumor Metabolism and Neuroimaging: Proton Magnetic Resonance Spectroscopy in Cerebral Glioma
Brandon Muncan* and Liliana Nussbaum
Stony Brook University, USA
Submission: July 17, 2017; Published: July 28, 2017
*Corresponding author: Brandon Muncan, Stony Brook University, New York, USA, Tel: 9175863385; Email: firstname.lastname@example.org
How to cite this article: Brandon M, Liliana N.Tumor Metabolism and Neuroimaging: Proton Magnetic Resonance Spectroscopy in Cerebral Glioma. Glob J Intellect Dev Disabil. 2017; 2(3): 555589. DOI: 10.19080/GJIDD.2017.02.555589
The advent of nuclear neuroimaging techniques has vastly changed neurobiology and neuroscience from a bench-research oriented practice to a clinical sub discipline with diagnostic and therapeutic implications. In particular, magnetic resonance spectroscopy (MR spectroscopy) began as a tool in understanding cellular metabolism in tissues of the prostate gland, kidney, and brain, and has since evolved into a useful diagnostic and prognostic tool in clinical neurology . In this review, the use of proton MR spectroscopy in the diagnosis and grading of glioma is summarized.
Keywords: Glioma; Magnetic resonance spectroscopy; Neuroimaging; Metabolism
Abbreviations: MRS: Magnetic Resonance Spectroscopy; NMR: Nuclear Magnetic Resonance; PMRS/HMRS: Proton Magnetic Resonance Spectroscopy.
Magnetic resonance spectroscopy, abbreviated MRS is a biochemical technique used to identify the concentration of various cellular metabolites in tissue. The origins of MRS lie within the physical sub discipline of nuclear magnetic resonance spectroscopy (NMR), which was used as early as the 1950's for identification of nuclear magnetic moments of nuclei. Since the introduction of NMR to clinical medicine in the form of magnetic resonance imaging (MRI), many improvements have been made to quantify metabolite concentrations rather than just to provide anatomical images. In particular, proton magnetic resonance spectroscopy (proton MRS or 1HMRS) was developed as an accurate and highly sensitive neuroimaging technique to assess metabolic changes in brain tumors and other degenerative central nervous system diseases.

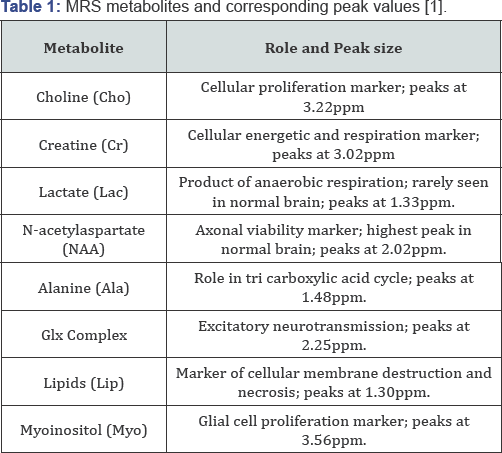

Proton MRS technology is based on the chemical shift of hydrogen atoms in targeted tissues, according to the Larmor equation [1,2]. f= ϒHB0. where the resonance of the hydrogen nuclei, f, is equal to the product of the gyro magnetic ratio constant of the species (in this case 1H), ϒH, and the external magnetic field applied by the MRS apparatus, B0. Interactions between the hydrogen atoms and surrounding particles produces the chemical shift: a change in magnetic field, thereby emanating a frequency within the MRS spectrum. Frequencies can be measured in parts-per-million, and are shown on the x-axis of an MRS graphic plot. The vertical, y-axis of an MRS plot is the relative magnetic field strength, or amplitude generated by a particular metabolite, See Figure 1. Metabolite with normal spectra peaks are listed in Table 1.
Along with anatomical imaging provided by MRI, proton MRS has been shown to have value in the characterization, preoperative grading, and prognosis of cerebral gliomas . Whereas conventional imaging is especially adept at identifying tumor location, size, and hemorrhage, proton MRS can aid in further evaluating the cellular metabolism of the tumoral microenvironment and thereby present insight into the invasiveness of such neoplasm. The biochemistry and molecular physiology of the tumor and peritumoral areas can be evaluated for extent of micro necrosis and gross cell differentiation, and can be useful in cancer grading and prognostic outlook calculations [3,4].
It is agreed on, and accepted in the literature that the hallmark of many cerebral neoplasms have the following conglomerate of metabolite levels on proton MRS imaging [2-9]:
i. N-acetylaspartate (NAA) decrease, secondary to loss of axonal viability.
ii. Choline (Cho) increase, secondary to neo plastic cell proliferation.
iii. Lipid (Lip) increase, secondary to peritumoral necrosis (if lesion is of a higher grade).In differentiating between low and high-grade gliomas metabolites such as choline, Glx complex and myoinositol can be used [1,3-5]:
i. Choline (Cho) peak heights are generally proportional to aggressiveness of a glioma.
ii. High myoinositol peak height generally corresponds to higher-grade dysplastic or anaplastic glioma.
iii. High Glx complex (glutamine, glutamate, and GABA) peak height corresponds to a higher-grade glioma.

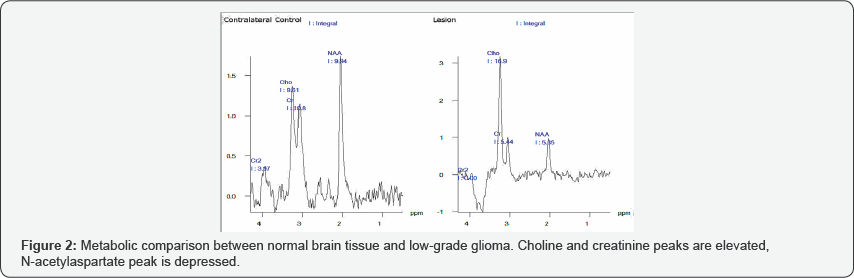

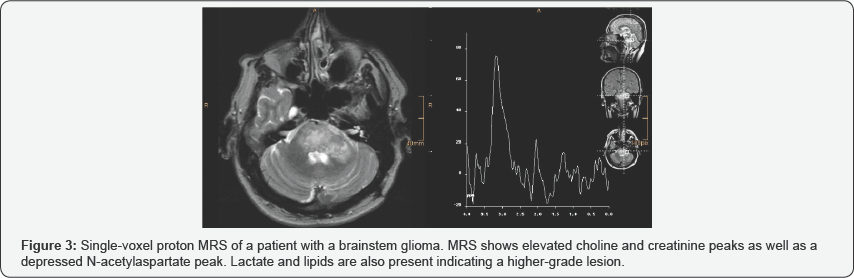

In addition to the grading of a cerebral glioma, proton MRS is a useful tool in delineating tumoral margins non-invasively. In areas around a given neoplasm, higher proton MRS peaks of choline and Glx-complex indicate positive margins, information which is crucial for neurosurgeons in the operating room. Overall, the adjuvant employment of proton MRS in glioma evaluation, along with conventional neuroimaging and neuropathology increases physician awareness, and improves subsequent quality of care. Case-examples of proton MRS use in glioma are shown in Figures 2 & 3.
