Biodiesel Production by Methanolysis of Soybean Oil over Sro Loaded Coal Fly Ash
Stuti Katara, Deepak Karsolia and Ashu Rani*
Department of Pure & Applied Chemistry, University of Kota, India
Submission: October 30, 2017; Published: March 19, 2018
*Corresponding author: Ashu Rani, Department of Pure & Applied Chemistry, University of Kota, 2-M-1, Rangbari scheme, Kota-324005, Rajasthan, India, Tel: +91 9352619059; Email: ashu.uok@gmail.com
How to cite this article: Stuti K, Deepak K, Ashu R.Biodiesel Production by Methanolysis of Soybean Oil over Sro Loaded Coal Fly Ash. Recent Adv Petrochem Sci. 2018; 4(4): 555643. DOI: 10.19080/RAPSCI.2018.04.555643.
Abstract
Coal fly ash is converted into an efficient solid base catalyst by suitable mechanical and thermal activation followed by deposition of 15 wt% strontium carbonate to generate catalytic active sites. The activity of the catalyst was tested for biodiesel production by soybean oil methanolysis (transesterification). The physico-chemical properties of catalyst were investigated by N2 adsorption-desorption study, FTIR and SEM analytical techniques. The catalyst could be easily regenerated and reused up to three reaction cycles with almost similar efficiency.
Keywords: Fly ash; Transesterification; Biodiesel
Introduction
Base catalysis is an important area of fundamental industrial importance in fine chemical, petrochemical, agrochemical and pharmaceutical industries. Commercially the base catalyzed reactions are largely carried out by using homogeneous bases like NaOH, Ca(OH)2, KOH etc. [1]. Transesterification of triglycerides catalyzed by both acid and base has been reported. Base catalyst is more effective than acidic because in acidic condition there is more possibility to form undesired product which decreases the conversion of biodiesel. But in case of homogeneous catalysis it is far difficult to separate catalyst from reaction mixture and their reuse, regeneration are not possible generally and also have an extra step to separate , therefore the cost of production slightly increases [2]. These homogeneous base catalysts are harmful, required in more than the stoichiometric amount and have high operating cost. Solid base catalyst seems to be a promising candidate for replacing a homogeneous process for solving the above said problems. Sr based catalysts are important due to high basicity and insolubility in organic solvents, vegetable oil, FAMES (fatty acid methyl ester) [3]. In this work strontium carbonate deposited fly ash catalyst has been reported as reusable solid base catalyst for transesterification reaction. Fly ash not only provides uniform dispersion of the strontium salt but also makes strong interaction with deposited species.
Experimental
Fly ash was collected from Jamshedpur Thermal Power Station, Jamshedpur (Jharkhand). All chemicals Sr(CO3)2 (98%), methanol were purchased from Sigma Aldrich and soybean from Alfa Aser. Mechanically activated fly ash (30h at 250 rotation/ minute speed) was thermally activated at 800 °C for 3h to form thermally activated fly ash (TFA) consequently C, S, moisture and other impurities also get removed [4]. An aqueous solution of strontium carbonate (for 15 wt% loading) was added into 10g TFA at constant stirring. Resultant slurry was aged for 1h then filtered and washed with double distilled water until pH 7 to remove leached compounds, air dried at 110 °C for 24h and calcined at 430 °C for 3h in a muffle furnace under static conditions to form strontium oxide loaded thermally activated fly ash (Sr/TFA). Pure SrO was formed by calcination of strontium carbonate at 430 °C for 3h in muffle furnace.
Specific surface area and average pore diameter of samples are determined by N2 adsorption-desorption, done by using Thermo ScientificTM Surfer surface area analyzer. The FTIR spectra of the synthesized materials were recorded using IR Tensor 2 7 Brucker in DRS (Diffuse Reflectance Spectroscopy) by mixing the sample with KBr in 1:20 weight ratio in the range 550-4000cm-1 with a resolution of 4cm-1. The detailed imaging information about the morphology and surface texture of the samples were provided by SEM (Model-JEOL-JSM 5600).
Results and Discussion

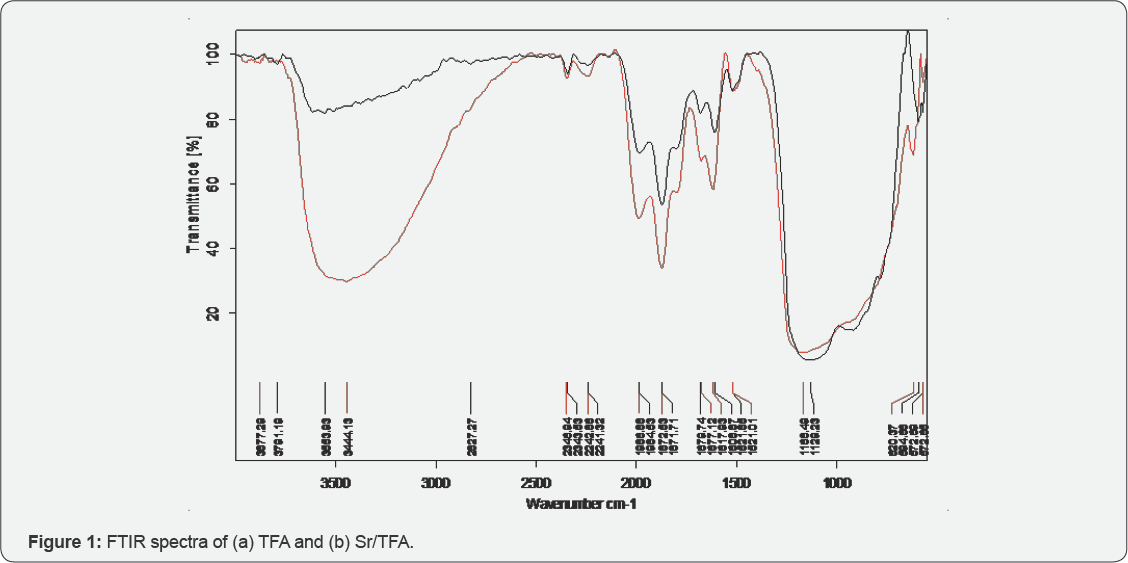

Specific surface area of TFA and Sr/TFA are 28.47 and 23.54 (m2/g) respectively. FTIR spectra of TFA and Sr/TFA show a broad band between 3000-3600cm-1,which is attributed to -O-H stretching vibration of surface silanol groups (Si-OH), [5]. A peak centered at 1608-1617cm'1, present in all samples is assigned to bending mode (5o-H) of water molecule (Figure 1a) [6]. A small peak around 2830cm-1 is assigned to -C-H stretching vibration of organic contaminants present in TFA [7]. Peaks at 1986 and 1872cm-1 are assigned to SiO2 as possible quartz [8]. Peaks centered at 1521 and 1681cm-1 are due to (CO3)2- stretching vibration, visible in both spectra [7,9].A broad band between 1103-1168 cm-1 is attributed to Si-O-Si asymmetric stretching vibration [7]. A peak at approx ~ 600cm-1 is attributed to Si-O-Al stretching vibration [10]. FTIR spectrum of Sr/TFA (Figure 1b) shows the broader and much intense band in the region of 30003600 cm-1 as compared to TFA. The increased intensity could be assigned to generation of Si-OH groups as well as to Si-O-Sr- OH groups during the chemical activation while H- bonding is responsible for the broadness of the band between these groups. There is also possibility of SrO, Sr(OH)2 and SrCO3 formation on TFA surface [11]. Some of the basic sites generated by SrO, would be due to the presence of Sr2+-O2- ion pairs in different coordination environments [12].

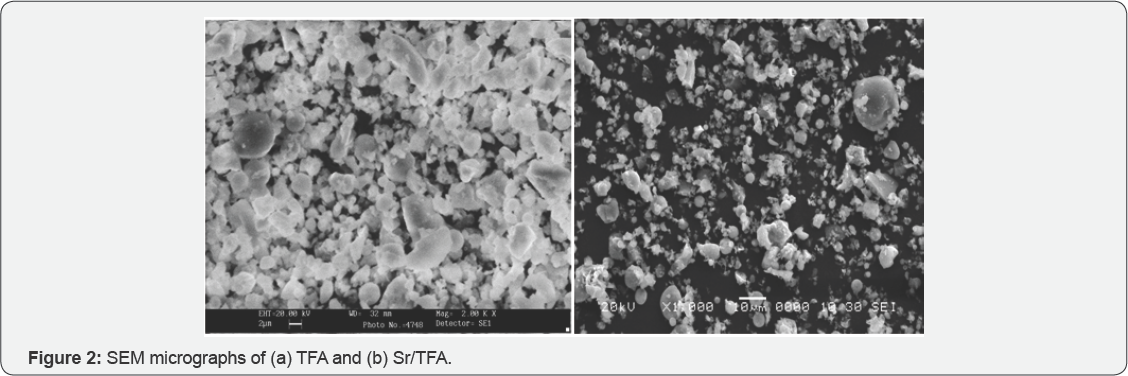

It is observed from Figure 2a that fly ash mainly consist of spherical particles with smooth outer surfaces and irregularly shaped unburned carbon particles. The smooth alumina silicate spherical particles, also known as cenospheres, are formed as a result of thermo chemical transformations of mineral particles during coal combustion process, where the minerals melt to form small droplets, which upon sudden cooling and action of surface tension forces adopt the spherical shape [13]. Shiny clumps of strontium oxide on TFA surface (Figure 2b) confirm effective chemical activation, Catalytic activities of different catalytic materials were measured by transesterification reaction of soybean oil (Triglyceride) with methanol (Scheme 1). In this study refined soybean was used as a feedstock for transesterification with methanol, which was operated in 250ml round bottom flask on a magnetic stirrer with water cool condenser. The reaction was carried out for time ranging from 30-120min at temperature 45 °C and 65 °C maintaining MeOH: oil ratio 12:1 and substrate to catalyst weight ratio 2.7:1.

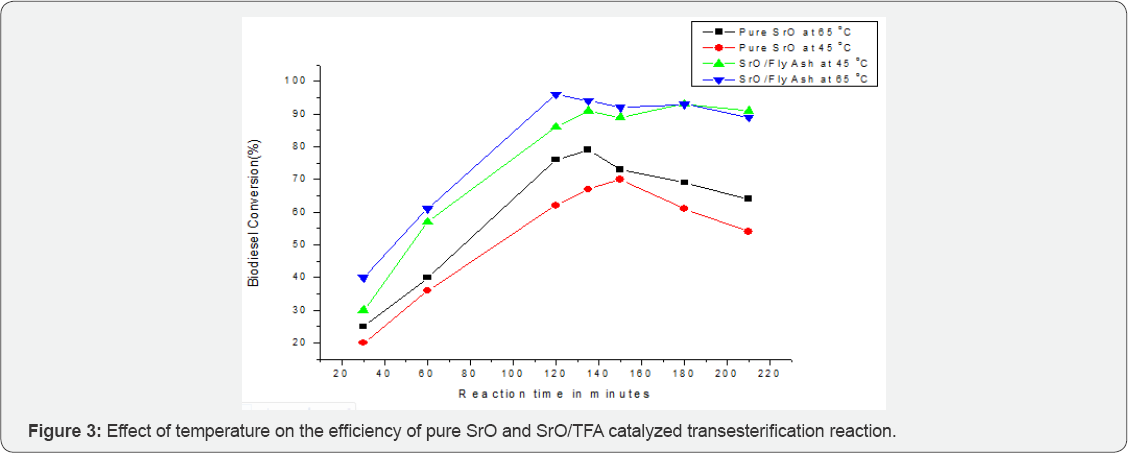

The conversion yield of biodiesel with pure SrO catalyst was about 80% at 65 °C in reaction time 135 minutes. On extending the reaction time the conversion yield decreases due to reverse reaction (Figure 3). Transesterification reaction of vegetable oils with alcohol might be in reverse direction, therefore, catalyst not only catalyze the transesterification in forward direction but also catalyze in reverse direction, which accelerated with the formation of FAMEs (Biodiesel) and glycerol [14]. Moreover Free fatty acid formed due to the reverse reaction reacts with Sr2+ ions to form soap, which decrease the yield of biodiesel with increasing reaction time.
In using Sr/TFA catalyst the maximum yield of biodiesel conversion was obtained 86% at 65 °C (methanol to oil ratio 12:1and substrate to catalyst ratio 2.7:1) in 121 minutes. The Sr/ TFA catalyst was reused upto 3 reaction cycles under the same reaction conditions after washing with acetone, drying at 110 °C for 12h and thermally activation at 430 °C for 2h. At the end of reaction resulting mixture was transferred in separating funnel and aged for 6hrs, two layers were appeared in which upper layer was FAMEs and bottom layer was glycerol which is by product of the reaction, both layers were collected separately.
FAMEs till now have some amount of glycerol and un reacted methanol. Removal of excessive methanol was done using rotatory evaporator, subsequently, obtained FAMEs washed three times with hot water to remove remaining glycerol. Hence pure FAMEs is obtained. The properties of the prepared biodiesel at the optimal process conditions have been found to similar with the ASTM (D6751) standards [15].
Conclusion
In summary, we have synthesized the efficient, reusable strontium carbonate activated fly ash catalyst for transesterification reaction. The better conversion % in comparison to pure SrO enable competitive use of fly ash based catalyst in bulk production of biodiesel thus reducing cost of production. The salient features of this protocol are reusability, cost effectiveness, eco-friendly nature, and conventional reaction condition. This investigation brings into light the structural aspects of a novel fly ash supported solid base catalyst for transesterification reaction.
