Comparative Assessment of Carbon Preference Index and Degree of Waxiness in Different Crude Oils as Indicator of Maturity and Organic Matter Input: A Case Study of Ebocha and Kwali Crude Oil Niger Delta, Nigeria
Theresa N Alumona1, Andrew G. Dautimiebi2, Charles C Chime2 and Oguejiofo T Ujam1,2*
1Department of Pure and Industrial Chemistry, University of Nigeria, Nigeria
2Department of Industrial Chemistry, Enugu State University of Science and Technology Agbani, Nigeria
Submission: December 11, 2017; Published: January 08, 2018
*Corresponding author: Oguejiofo T Ujam, Department of Pure and Industrial Chemistry, University of Nigeria, Nsukka 410001, Enugu State, Nigeria, Email: oguejiofo.ujam@unn.edu.ng
How to cite this article: Theresa N A, Godwin D A, Charles C C, Oguejiofo T U. Comparative Assessment of Carbon Preference Index and Degree of Waxiness in Different Crude Oils as Indicator of Maturity and Organic Matter Input: A Case Study of Ebocha and Kwali Crude Oil Niger Delta, Nigeria. Recent Adv Petrochem Sci. 2018; 4(1): 555630. DOI: 10.19080/RAPSCI.2018.04.555630
Abstract
Chemical fingerprinting of two crude oil samples (Ebocha and Kwali) crudes from Niger Delta region of Nigeria were carried out and hydrocarbon range of n-C8H18 to n-C40H82 were obtained. In this study, the Carbon Preference Index (CPI) and the Degree of Waxiness of the two crude oil samples were calculated. The results of the American Petroleum Institute (°API) gravity Ebocha 38.45o and Kwali crude 47.07o show that the crudes are light crudes. The viscosity Ebocha 3.68 and Kwali 3.46 correlate with °API gravity suggesting light crudes while the results from the Carbon Preference Index (CPI) 0.99 and 1.0 which indicate the two crude oil blends are mature crudes. The degree of waxiness of the two crudes is equal, Ebocha 4.4 and Kwali 4.4 which indicate that the two crudes are derived from terrestrial organic source. The geochemical analyses of the two crudes from different exploration well in Niger Delta are an indicator that both crudes have a common geological and formative history.
Keywords: Chemical fingerprinting; Carbon preference index; Degree of waxiness; Maturity; Terrestrial organic source
Introduction
Chemical fingerprinting of Niger Delta crude oil to ascertain the degree of waxiness and Carbon Preference Index (CPI) value is important because it gives information on the organic matter input. CPI is the first maturity indicator applied to crude oil [1]. Crude oil varies widely in appearance, behaviour and viscosity from field to field, therefore characterization and source identification from various fields cannot be over emphasized. The properties and composition of any petroleum systems is controlled by complex geological, physiochemical and biological processes during generation as well as accumulation in reservoirs. Niger Delta, as a case study for this research is one of the major hydrocarbon provinces of the world with an estimated reserve of 183 trillion cubic feet of natural gas and about 23 billion barrels of oil [2]. Generally the ratio of abundance of odd number paraffins, specifically calculated over the C24-C34 range has significance in the maturity of crude oil. Hydrocarbons derived predominantly from terrestrial sources and/or at low maturity exhibit a predominance of odd-numbered alkanes resulting in a high CPI; this feature disappears with increasing maturation level as CPI approaches 1.0 [3]. A waxy crude oil usually consists of a variety of light and intermediate hydrocarbons (paraffin, aromatics, naphthenic etc), a variety of other heavy organic non-hydrocarbon compounds even though at very low concentration includes resins, asphaltenes, diamondoids, merceptans, organo-metalics etc.
The distribution of n-alkanes in crude oils can be used to indicate the organic matter source [4]. This research work aims at determination of some bulk properties of the crude oil such as oAPI gravity, viscosity, density and geochemical parameter such as degree of waxiness and carbon preference index of the two crude oil (Ebocha and Kwali) from Niger Delta in order to understand the type and quality of the crude oils. Moreover, their correlation studies, degree of thermal maturity, organic matter source and depositional environment were ascertained.
Materials
The two crude oil samples (Kwali and Ebocha crude) which are collected from two oil well heads of Nigerian A gip Company limited, Niger Delta, Nigeria.
The Methodology
Physical properties of the crude oils
The physical properties of the crude oils were determined using ASTM methods, i.e density, specific gravity (ASTM D 129895), viscosity (ASTM D445-01) and API gravity (ASTM D287-92).
Precipitation of asphaltenes
N-pentane was added to crude oil sample in the ratio of 40mL of n-pentane to 1g of the crude oil sample. The mixture was thoroughly agitated with a magnetic stirrer and left to equilibrate for 48hour (flocculation time). The samples were centrifuged for lhour at a speed of 2000rpm for 2hour after pouring it into various centrifuge tubes. After which as phaltene precipitates were removed from the crude.
Maltene fractionation
The deasphalted crude oil samples were weighed again and were fractionated by column chromatography on activated silica gel. Slurry method was used in packing the column in order to avoid voids, bubbles and crack saturate fractions of the crude oil was eluded using (100ml) n-heptane. The saturate fractions were recovered after rotary evaporation of the solvents.
Gas Chromatography (GC-FID) analysis of the saturate
Gas chromatograph in line with ASTM D 3328-00 standard test method equipped with flame ionization detector (FID) and Restek 15m MXT-1 columns. Injection volume was 1μL with helium as the mobile phase. Injection and detection temperatures of 250 °C and 280 °C respectively were adopted to obtain their profiles, carbon number ranges and major compounds of distribution patterns.
Results and Discussion

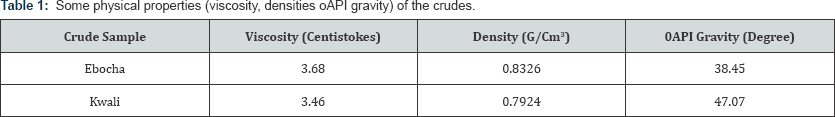

Some physical properties determined for the two crudes are as shown on Table 1. 0API gravity, density and viscosity show the quality of the crude oil in terms of the presence of light molecular weight hydrocarbons. The relative density value of Ebocha crude (0.8326) and Kwali crude (0.7924) which is less than 1.0 show that the crudes are light and hence can float in water. The API values are 38.45 and 47.07 for Ebocha and Kwali crude oil respectively which interprets that the crude is light crude. Generally, crude oil samples with API gravity greater than 31 are classified aslight crudes, those with API gravity of between 22.3 are classified as medium crude while those with API gravity 20 and less are referred to as heavy crudes [5] (API,2011). Viscosity results give valuable information concerning the composition of crude oils. This is a measure of the shear strength of the liquid and therefore indicates the flowing ability of crude oil [6]. The results show that crude oil blende sampled from Ebocha (3.46) and Kwali (3.68) are light crudes and can flow rapidly during spillage, shipment or pipes. The viscosity results also show bacteria effect on crude oil and infer that crudes used for this study are biodegradable. The occurrence of biodegradation in a reservoir affects the fluid properties like density, viscosity, etc [7]. The viscosity results summarizes that Ebocha crude oil is slightly more viscous than Kwali crude oil.

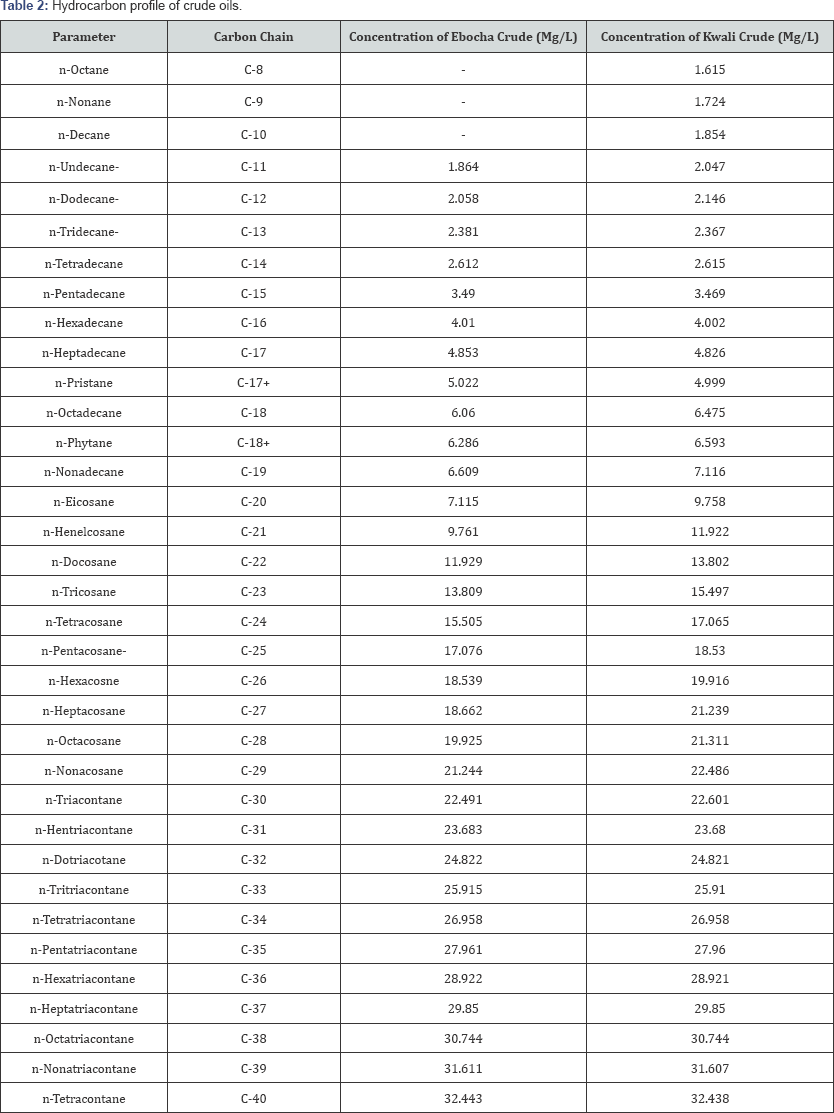

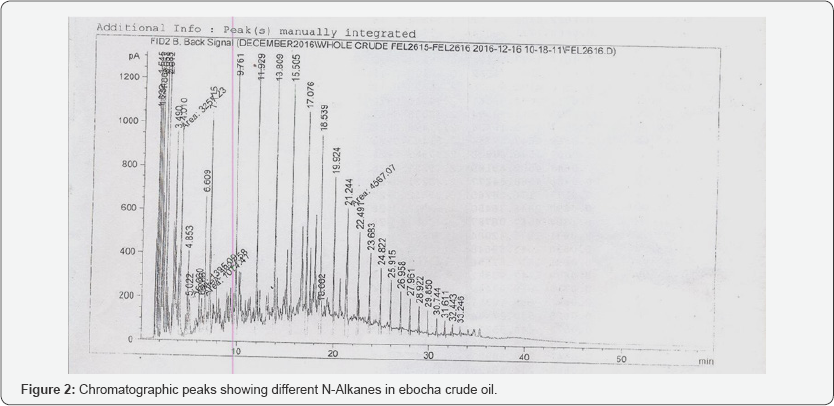

Gas chromatographic analysis data of the hydrocarbon profile of the various crude oil is shown in Table 2 and Figure 1 & 2. The results of the total concentrations Table 2 show that Kwalicrude has the highest concentration (528.864mg/L) of n-alkanes while Ebocha crude has the least (504.206mg/L). The n-alkanes determined in the chromatogram ranges from C8-C40. Low molecular weight hydrocarbons (n-C8) were not observed probably because of evaporative loss during sample processing. The results of the carbon preference index and the degree of waxiness are shown in (Table 3).
The carbon preference index (CPI) value of Ebocha (0.99) and Kwali crude oil (1.0) show that the two crude oil blendes are mature crude. CPI is affected by source and maturity of crude oils [8]. CPI of petroleum oils of about 1.00 indicate mature samples and also can be used in source identification. The results of the degree of waxiness of the two crudes are equal, Ebocha (4.4) and Kwali (4.4) which indicates that the two crudes are derived from mixed organic matter with high contribution of aterrigenous organic matter input. Crude oil with degree of waxiness greater than 1 is said to be terrestrial organic source.
Conclusion
The maturation levels of samples and organic matter input obtained from calculations of degree of waxiness and carbon preference index (CPI) on Table 3 and some physical parameters of the crudes were determined Table 1. The two crude oisl under study showed similar characteristics in terms of maturity and organic matter source. Saturated hydrocarbon molecular composition of these crude oils revealed that the crudes were formed in source rocks containing mixed kerogen (marine and terrestrial) deposited in a toxic environment. In this research, saturated hydrocarbons fractions were extracted from crude oil and different fractions of n-alkanes were analysed using gas chromatographic analyses. The bulk properties of the crudes (density and viscosity) reveal that both crudes are light crudes (biodegraded) and this correlate with the result of Carbon Preference Index (CPI) which indicate that the crudes are mature. Oil source correlation studies based on degree of waxiness which records the digenetic evolution of the parent materials of crude oil indicate that the crudes are formed from source rock containing kerogen of terrestrial origin deposited in a toxic environment. The two crude oil under study (Ebocha and Kwali) have similar characteristics in terms of maturity, parent material and formation environment. Determination of these parameters in crude is important in oil and gas industry because it gives information on the flow rate, maturity and deposition environment of the crudes. The lower the value of density, viscosity, CPI and degree of waxiness, the higher the flow rate of the crude and the lesser it will create problem in refinery Heavy and immature crudes may contain heavy organics such as asphaltenes which has detrimental impacts in petroleum operation such as refining and transportations. The knowledge of the degree of waxiness will help a geochemist or petroleum geologist to identify the source of oil spillage and also to identify crudes of similar origin with the information of diagenetic evolution of the parent material.
Acknowledgement
The authors are sincerely grateful to the Agip company for granting access to the crude oil samples used for this study FUGRO consultants Nigeria limited, Port-Harcourt, for the Gas Chromatographic (GC) analysis and Department of Pure and This work is licensed under Creative Commons Attribution 4.0 Licens Industrial Chemistry; University of Nigeria, Nsukka for provision of laboratory space and facilities.
References
- Adedosu TA, Sonibare OO (2005) Characterization of Niger Delta Oil by Infrared Spectroscopy. J App Sci 5(5): 906-909.
- Sonibare O, Alimi H, Ehihola OA (2008) Origin and occurrence of crude oil in the Niger delta, Nigeria. J Pet Sci Eng 61(2-4): 99-107.
- Tissot PB, Welte DH (1984) Petroleum Formation and occurrence. In: (2nd edn), Springer Verky, Berlin, Germany, pp. 370-478.
- Peters KE, Waters CC, Moldower JN (2005) The Biomaker Guide. In: (2nd edn), Cambridge University Press, New York, USA.
- Kurt, Schmidt AG, Sergio F, Quinones-Cisneros, JouraKumm B, et al. (2005) Article density and viscosity behaviour of a north sea crude oil, natural gas liquid and their mixtures. Energy Fuels 19(4): 1303-1313.
- Barma BN (1996) Hydrocarbon type analysis of base oils and other heavy distillates by thin-layer chromatographic with same ionization detection. Journal of Chromotographic Science 34(5): 219-225.
- Al-Areeq NM, Maky AF (2015) Organic geochemical characteristics of crude oils and oil-source rock correlation in the Sunah oilfield, Masila Region, Eastern Yemen. Marine and Petroleum Geology 63: 17-27.
- Peters KE, Modowa T (1993) The biomarkers guide interpreting molecular fossils in petroleum and ancient sediments. Engle Woods Cliffs, NJ: Prentice Hall, USA, p. 363.
