Partial Nitrification to Nitrite using Activated Sludge Entrapped in Polymerized Gel: Continuous and Batch Operation in an Airlifting Reactor

**Lina Chi¹, Xiaofeng Ye²*, Jun Li³, Zhirong Li¹, Zheng Jiang**⁴ and Zhenjia Zhang¹*

¹School of Environmental Science and Engineering, Shanghai Jiao Tong University, China

²Novozymes (China) Investment Co., Ltd., China

³School of Municipal and Environmental Engineering, Shenyang Jianzhu University, China

⁴Faculty of Engineering and the Environment, University of Southampton, UK

Submission: October 02, 2017; Published: November 30, 2017

*Corresponding author: Zhengjia Zhang, School of Environmental Science and Engineering, Shanghai Jiaotong University, China. Email:zjzhang@ sjtu.edu.cn; Xiaofeng Ye, Novozymes (China) Investment Co., Ltd., Email: xiaofengyip@gmail.com

How to cite this article: Lina C, Xiaofeng Y, Jun L, Zhirong L, Zheng J , et al. Partial Nitrification to Nitrite using Activated Sludge Entrapped in Polymerized Gel: Continuous and Batch Operation in an Airlifting Reactor. Recent Adv Petrochem Sci. 2017;4(1): 555626. DOI:10.19080/RAPSCI.2017.04.555626

Abstract

Partial nitrification to nitrite using activated sludge entrapped in polymerized gel was investigated in an air-lifting reactor in both continuous and batch operations. High-rate partial nitrification to nitrite was achieved under non-limiting dissolved oxygen conditions during the start-up of the reactor. After the stable operation was established, HRT was optimized to achieve the effective ammonium conversion to nitrite and provide the effluent suitable potential for anaerobic ammonium oxidization (ANAMOX). The influences of process parameters, including dissolved oxygen concentrations, temperatures, and initial NH₄⁺-N conditions, on partial nitrification kinetics were studied in batch operation. Data of the batch experiments indicate that it is feasible to achieve 95% ammonium removal with dominant nitrite accumulation under non-limiting DO conditions at the temperature of 24 °C or higher Reaction time affected the nitrite accumulation and the NH₄⁺-N/NO₂^--N ratio in batch operation. These data demonstrate the potential of using immobilized activated sludge for partial nitrification in continuous and sequencing batch reactors and its applicability as the pretreatment for anaerobic ammonium oxidization process.

Keywords: Partial nitrification; Nitrite; Activated sludge entrapped in polymerized gel; HRT; Dissolved oxygen

Highlights

A. High rates oxidization of ammonium to nitrite under non-limiting bulk DO conditions

B. Optimization of operational parameters for effective partial nitrification

C. Dominant nitrite accumulation when 95% of ammonium was removed

D. Effective nitrification under low temperature of 8 °C

E. Effluent suitable for the ANAMOX by controlling the HRT and the batch reaction time

Introduction

Due to increasingly stringent effluent discharge requirement, population growth, and the growing desire to reuse wastewater, wastewater treatment plants are expanding all over the world. However, in many countries, especially in metropolitan areas, limited space is a major challenge for the expansion projects [1]. Various immobilized cell technologies have been developed to address this challenge with minimal additional footprint such as moving bed bioreactors and integrated fixed film in activated sludge process [2-4]. The gel-immobilized activated sludge process is one of the newly developed immobilized cell technologies that has been previously demonstrated to achieve high rates degradation of COD and nitrification in over 11 wastewater treatment plants in Japan and the USA [5-7]. Gel-immobilized biomass can be directly added to aeration basins with additional screens to keep the gel pellets inside the tank [5]. A number of advantages are associated with immobilized-cell treatment systems, including small footprint, high biomass concentration, reduction of excess sludge production, and dissociation of solid and liquid retention times [5,6].

Immobilized activated sludge has potential in nitrification processes due to the retention of biomass, which can overcome the relatively slower growth rates for nitrifying autotrophs [8]. Biological ammonia oxidation involves two steps: ammonia conversion to nitrite by ammonium oxidizing bacteria (AOB) and the subsequent nitrite conversion to nitrate by nitrite oxidizing bacteria (NOB) [9]. In most cases nitrite seldom accumulates in the environment due to a low S_min . (minimum substrate concentration capable of supporting steady-state biomass) value and relatively higher substrate utilization rates of nitrite oxidizers [9,10]. Partial nitrification to nitrite has been attracting increasing attention, not only due to its potential saving of oxygen consumption and electron donor requirement in subsequent denitrifying process, but also because it is the prerequisite for anaerobic ammonium oxidization processes [11-14]. Partial nitrification has been suggested to be the rate limiting step for the combined partial nitrification-ANAMOX process to remove nitrogen via nitrite [15].

Partial nitrification to nitrite can be achieved by optimizing process parameters, including HRT, dissolved oxygen, temperature and influent ammonium-nitrogen concentration [10,16]. Limiting the dissolved oxygen concentration has been reported to be effective in accumulating nitrite, since the oxygen saturation coefficient of Monod kinetics was significantly lower for ammonium oxidization than that for nitrite oxidization [16-18]. However, DO limitations could potentially sacrifice the overall kinetics of nitrification [19]. Partial nitrification to nitrite has been previously reported at relatively higher temperatures, since AOB have higher growth rate than NOB at elevated temperature (>15 ⁰C) (Sinha & Annachhatre [20]); however, limited information is available on the influence of temperature on the nitrite accumulation of immobilized activated sludge system.

In this study, we investigated the partial nitrification performance of immobilized activated sludge in the air-lifting fluidized reactor in both continuous and batch operations. Highrate ammonium conversion to nitrite under non-DO limiting conditions was achieved during the start-up of the reactor. The influence of HRT on the ammonium oxidization rates and the nitrite accumulation was studied in continuous operation after the stable operation was established. Other factors including dissolved oxygen concentrations, temperatures and initial NH₄⁺-N concentrations were investigated in batch operation to determine appropriate conditions for partial nitrification of immobilized activated sludge. The potential of using partial nitrification immobilized activated sludge process as the pretreatment of anaerobic ammonium oxidization (ANAMOX) is also discussed.

Materials and Methods

Experimental set-up

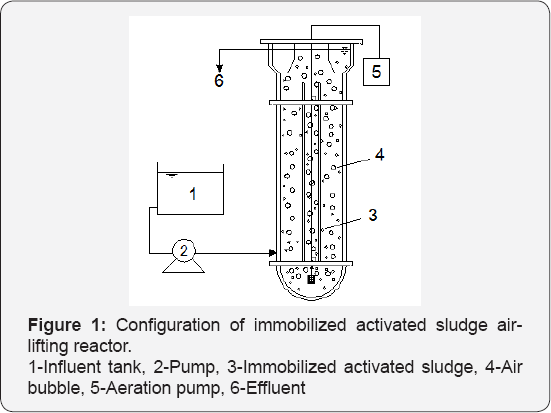

A schematic diagram of the experimental set-up is presented in Figure 1. The air-lifting reactor had a working volume of 18L with 8-10% (v/v) immobilized activated sludge. The air was supplied from the bottom through an air sparger to create inner circulation. Temperature within the reactor was measured on-line and maintained at different levels by a water jacket.

Waste water composition

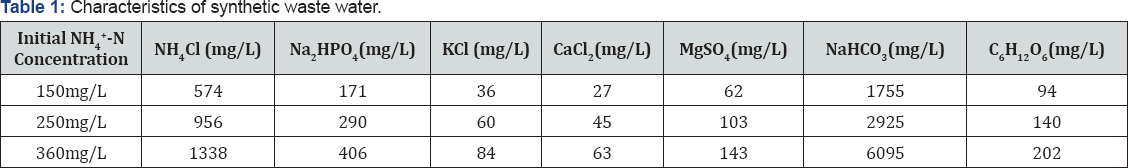

Synthetic wastewater was composed of NH₄Cl as the nitrogen source and glucose as the carbon source. Other chemicals such as KCl, Na₂HPO₄, CaCl₂, and MgSO₄ were added as nutrients. NaHCO₃ was also added as a buffering agent. The specific compositions of wastewater at different initial NH₄⁺-N concentrations are shown in Table 1.

Immobilized activated sludge

Immobilized activated sludge was provided by Hitachi Plant Engineering and Construction Co. Ltd, Japan. Gel pellets were composed of 10% (w/v) PEG (Polyethylene glycerol), 0.5% (w/v) promoter (N,N,N',N'-tetramethylenediamine), 0.25% initiator (potassium per sulfate) and around 10⁷-10⁹ cells/ml- pellets (Hashimoto & Sumino [5]). The immobilization process started with dissolving the PEG polymer and the promoter in water, followed by adding activated sludge and the initiator The polymerized gel was then cut into 3*3*3mm cubes.

Acclimation and start-up of the reactor

Temperature was controlled at 28 ± 1 ⁰C and DO was kept at 6.0 ± 0.5mg/L. Influent NH₄^⁺-N concentrations were increased step-wise from 100 to 300mg/L within 5 weeks. After the acclimation process, the reactor was then operated in continuous mode to develop nitrite accumulation. DO was kept at 5-6mg/L in the first stage of continuous operation and then lowered to 1-2mg/L to increase the nitrite accumulation in the second stage. After stable nitrite accumulation was established, dissolved oxygen was then increased to 3-4mg/L at the third stage. The influent NH₄⁺-N concentration was maintained around 300mg/L; pH and temperature were controlled at 7.8 and 28 ^oC, respectively, during continuous operation.

Continuous experiments

HRT was controlled by adjusting the flow rates of the feed to the reactor. At each HRT, the reactor was operated for a minimum of two weeks to ensure that steady state was achieved; this was also demonstrated by a standard deviation of three consecutive samples of less than 5%.

Batch experiments

Batch experiments were conducted in the fluidized reactor after over one month of stable continuous operation. Experiments utilized synthetic wastewater with an initial NH₄⁺-N concentration of about 250mg/L. DO concentrations and temperatures were varied to study their influences on ammonium oxidization kinetics and nitrite accumulation in the batch reactor. The influence of different initial NH₄⁺-N concentrations on nitrification kinetics and nitrite accumulation was investigated by operating the reactor at pH=8.0, DO=4mg/L, and temperature at 24 ^oC pH variations in the ammonia oxidation process were minimal due to abundant buffering capacity in the influent.

Analytical methods

NH₄⁺-N, NO₂^--N and NO₃^--N concentrations were measured daily by standard methods (APHA [21]). DO levels were measured twice per day with an oxygen electrode (ORION 830A, Thermo Orion company) pH and flow rates were monitored on a daily basis.

Results and Discussion

Acclimation and start-up of partial nitrification continuous reactor

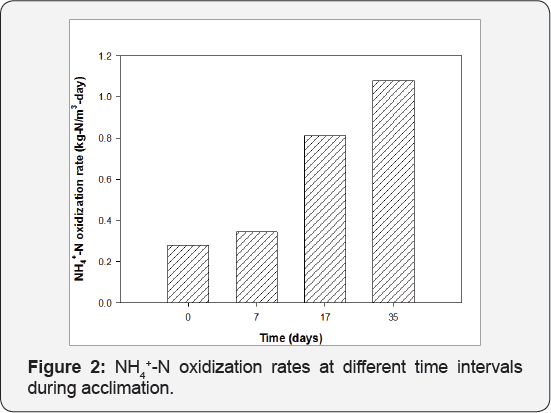

Acclimation of immobilized activated sludge: Immobilized activated sludge was stored under anaerobic conditions at 4 °C with little nutrients for 4 months due to international transportation. NH₄⁺-N oxidization rates was 0.28kg-N/m³-dayafter long term anaerobic storage and increased to 1.08kg-N/m³-day at 35 days, 3.9 times the original rates prior to acclimation (Figure 2). These results suggest that the activity of immobilized activated sludge can be recovered within five weeks after long time storage under minimal nutrient and low temperature conditions.

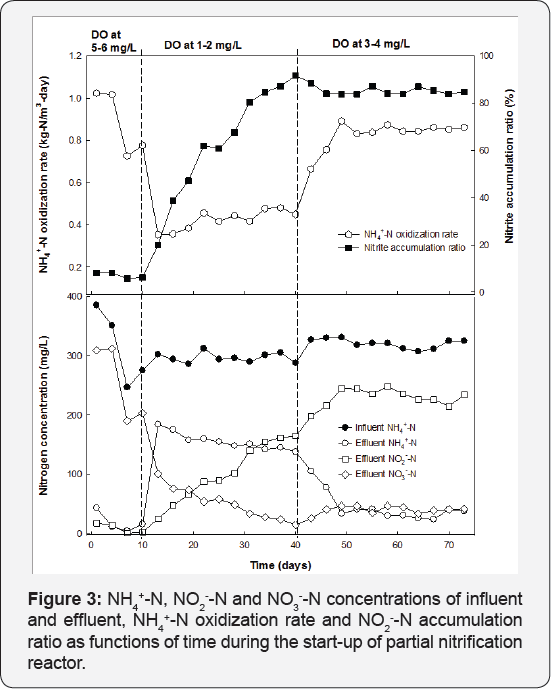

Start-up of partial nitrification continuous reactor: Figure 3 shows the NH₄⁺-N concentrations in the influent and effluent and NO₂^--N accumulation ratio at different stages of the startup process. Immobilized activated sludge effectively converted NH₄⁺-N to NO₃^_-N during stage one of continuous operation at dissolved oxygen concentration of 5-6mg/L. Between 5-7% of oxidization products were accumulated in the form of NO₂^--N at this time. The dissolved oxygen concentration was then decreased to 1-2mg/L during stage 2 to develop nitrite accumulation. NH₄⁺-N oxidization rates dropped from 0.8 to 0.35-0.5kg-N/m³-day. Nitrite concentrations in the effluent concurrently increased to 160mg/L; the NO₂^--N accumulation ratio increased from below 10% at 10 days to over 90% at 40 days. Despite high nitrite accumulation, NH₄⁺-N concentration stayed above 100mg/L in the effluent due to inefficient NH₄⁺-N oxidization rates under oxygen- limited conditions. Thus, at the third stage, dissolved oxygen concentrations were further increased to 3-4mg/L to stimulate ammonium removal. NH₄⁺-N oxidization rates were significantly improved from 0.3-0.5 to above 0.8kg-N/m³-day. Nitrite accumulation ratio decreased slightly but could be maintained above 80%.

Effective oxidization of NH₄⁺-N to NO₂^--N was achieved in continuous operation with NH₄⁺-N oxidization rates of 0.8-0.9kg- N/m³-day and over 80% of all products accumulated in the form of nitrite, even though the activated sludge immobilized inside the gel had not been pre-selected for ammonium oxidizing bacteria. Limiting DO concentrations has been previously demonstrated to be an effective strategy in accumulating nitrite in the nitrification process [10,18,22], which was successfully applied in the immobilized activated sludge system to achieve partial nitrification to nitrite in this study; however, the ammonium oxidization kinetics were also inhibited under DO-limitation conditions. Increasing dissolved oxygen concentrations from 0-1.5mg/L to 3-4mg/L improved the ammonium oxidization rates by approximately 60-70%, while only decreased NO₂^--N accumulation ratio by around 10% during stage 3. These data suggested that partial nitrification to nitrite was feasible in the immobilized activated sludge reactor under non-limiting dissolved oxygen conditions, which could be important to achieve dominant nitrite accumulation in the effluent while maintaining efficient oxidization of NH₄+-N.

Influence of HRT on NH₄⁺-N removal and NO₂^--N accumulation

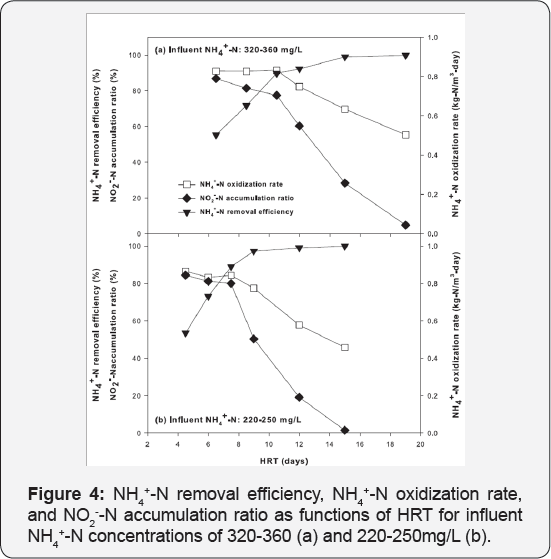

NH₄⁺-N removal efficiency was improved significantly, but the nitrite accumulation ratio declined as the HRT increased from 4 to 15 hours and from 6 to 19 hours for influent NH₄⁺-N concentrations of 220-250mg/L (Figure 4a) and 320-360mg/L (Figure 4b), respectively. For influent NH₄⁺-N concentrations of 220-250mg/L, only 50-80% NH₄⁺-N removal was achieved when the HRT was less than 8 hours. Nitrite composed 80% of the oxidization products. Increasing the HRT to 8 hours improved NH₄⁺-N removal to 85% without negatively influencing the NO₂^--N accumulation (83%). NH₄⁺-N oxidation rates remained almost constant at 0.86-0.83kg- N/m³-day when the HRT was maintained at 4, 6 and 8 hours. Increasing HRT to 10 hours continuously improved the NH₄⁺-N removal to over 98% but decreased the nitrite accumulation ratio to about 50%. Additional HRT increases did not change the NH₄+-N removal yet significantly decreased the NO₂^--N accumulation ratio in the effluent and NH₄⁺-N oxidation rates of the reactor. Similar trends were observed with the influent NH₄⁺-N concentration of 320-360mg/L, except that it required around 2-4 hours longer of HRT to reach similar levels of NH₄+-N removal and nitrite accumulation.

These results demonstrate the importance of HRT in achieving effective ammonium oxidization to nitrite using immobilized activated sludge. Running the reactor with a short hydraulic retention time could not effectively remove NH₄⁺-N in the effluent despite high NH₄⁺-N oxidization rates. When the HRT was too long, NH₄⁺-N oxidization rates and nitrite accumulation were sacrificed; at full-scale, longer hydraulic residence times translate into larger effective volumes and larger footprints. In this study, the data showed that the HRT could be controlled at around 8 hours for influent NH₄⁺-N of 220-250mg/L, and 10 hours for influent NH₄⁺-N of 320-360mg/L to achieve high rates of ammonium removal (NH₄⁺-N oxidization rates exceeded 0.8kg-N/m³-day) with about 80% oxidation products accumulated in the form of nitrite. Meanwhile, controlling the HRT in the partial nitrification immobilized activated sludge reactor could also potentially provide an effluent suitable for anaerobic ammonium oxidization processes. An NH₄⁺-N/NO₂^--N ratio close to 1:1 was previously reported for optimal anaerobic ammonium oxidization process [6,15]. HRT can be controlled around 9 and 13 hours for influent NH₄⁺-N concentrations of 220-250 and 320-360mg/L, respectively, to keep NH₄⁺-N/NO₂^--N ratio close to 1:1 in the effluent.

Factors affecting the NH₄⁺-N removal and NO₂^-- N accumulation

The influences of dissolved oxygen, temperature, and initial NH₄⁺-N concentration on NH₄⁺-N oxidization kinetics and NO₂^--N accumulation were investigated in batch operation and discussed as below.

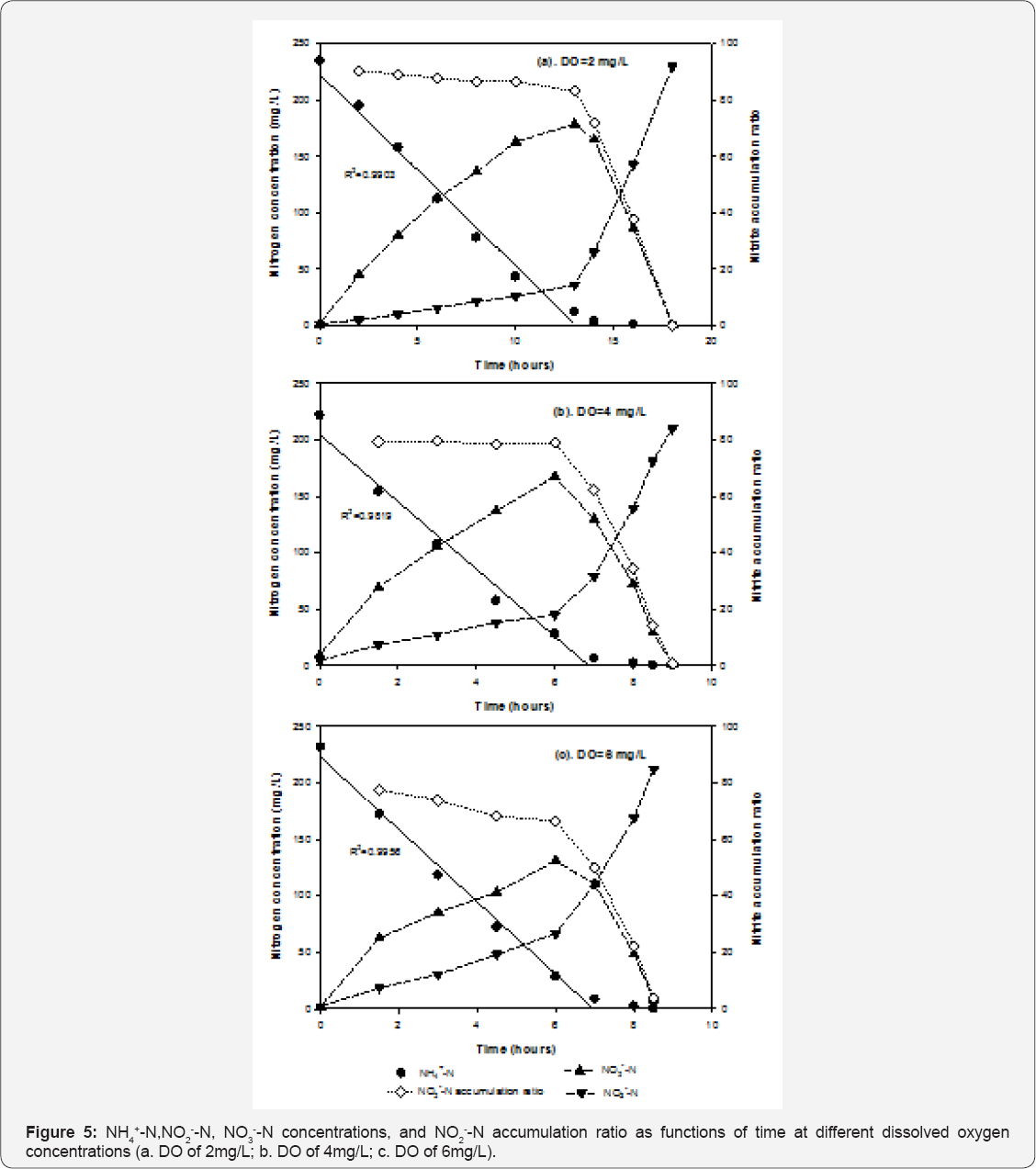

Influence of dissolved oxygen on NH₄⁺-N removal and NO₂"-N accumulation: Figure 5 presents the concentrations of NH₄⁺-N, NO₂^-- N and NO₃^-- N and the nitrite accumulation ratio over time under different DO conditions. When DO was controlled at 2mg/L, it took 13 hours until NH₄⁺-N concentration reached below 10mg/L. Nitrite was the major oxidization product (levels exceeded 80%) until 13 hours, and was then oxidized to nitrate. Increasing DO to 4mg/L shortened the time from 13 hours to 6-7 hours for NH₄⁺-N concentrations to decrease below 10mg/L. NO₂^--N composed around 60-80% of the oxidization products at 6-7 hours, and then was oxidized to NO₃^--N after the depletion of NH₄⁺-N. When DO was controlled at 6mg/L, it took around 6-7 hours for NH₄⁺-N concentration to reach below 10mg/L; however, the NO₂^-- N accumulation ratio was significantly lower than those at DO concentrations of 2 and 4mg/L.

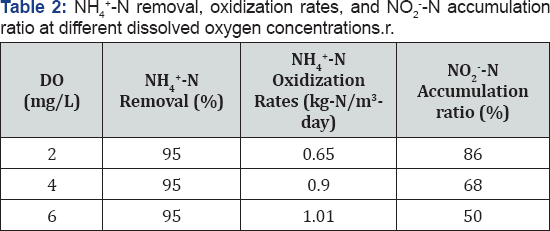

NH₄⁺-N oxidation rates was obtained using a linear regression method to fit the first 6 data points of NH₄⁺-N concentration. Since the values of coefficient determination (R2) in the regression were all above 0.98, the nitrification process of immobilized activated sludge virtually followed zero order kinetics. Table 2 summarizes the NH₄⁺-N oxidization rates and nitrite accumulation ratios when NH₄⁺-N removal reached above 95% (NH₄⁺-N concentration<15mg/L). Increasing DO concentration from 2 to 4mg/L significantly improved the NH₄⁺-N oxidization rates by 38%, suggesting that partial nitrification was limited by dissolved oxygen as a co-substrate. Even though the dissolved oxygen profile inside the PEG gel is not sufficiently understood, it is possible that increasing the bulk dissolved oxygen concentrations from 2 to 4mg/L was beneficial for bacteria encapsulated inside the gel to uptake more oxygen, which led to increased NH₄⁺-N oxidization rates. The NO₂^--N accumulation ratio decreased from 87% to 80% and then to 66% when dissolved oxygen increased from 2 to 4 and then to 6mg/L, respectively. These results are consistent with several published results of bio film partial nitrification reactors (Okabe et al. [15]). Okabe et al. demonstrated that both nitrite and nitrate production rates increased with increased air flow rates, and nitrate production was not significant when air flow rate/ Ammonium loading rate was kept below 0.15 [(m³/day)/(kg-N/ m³-day)] (Okabe et al. [15]).

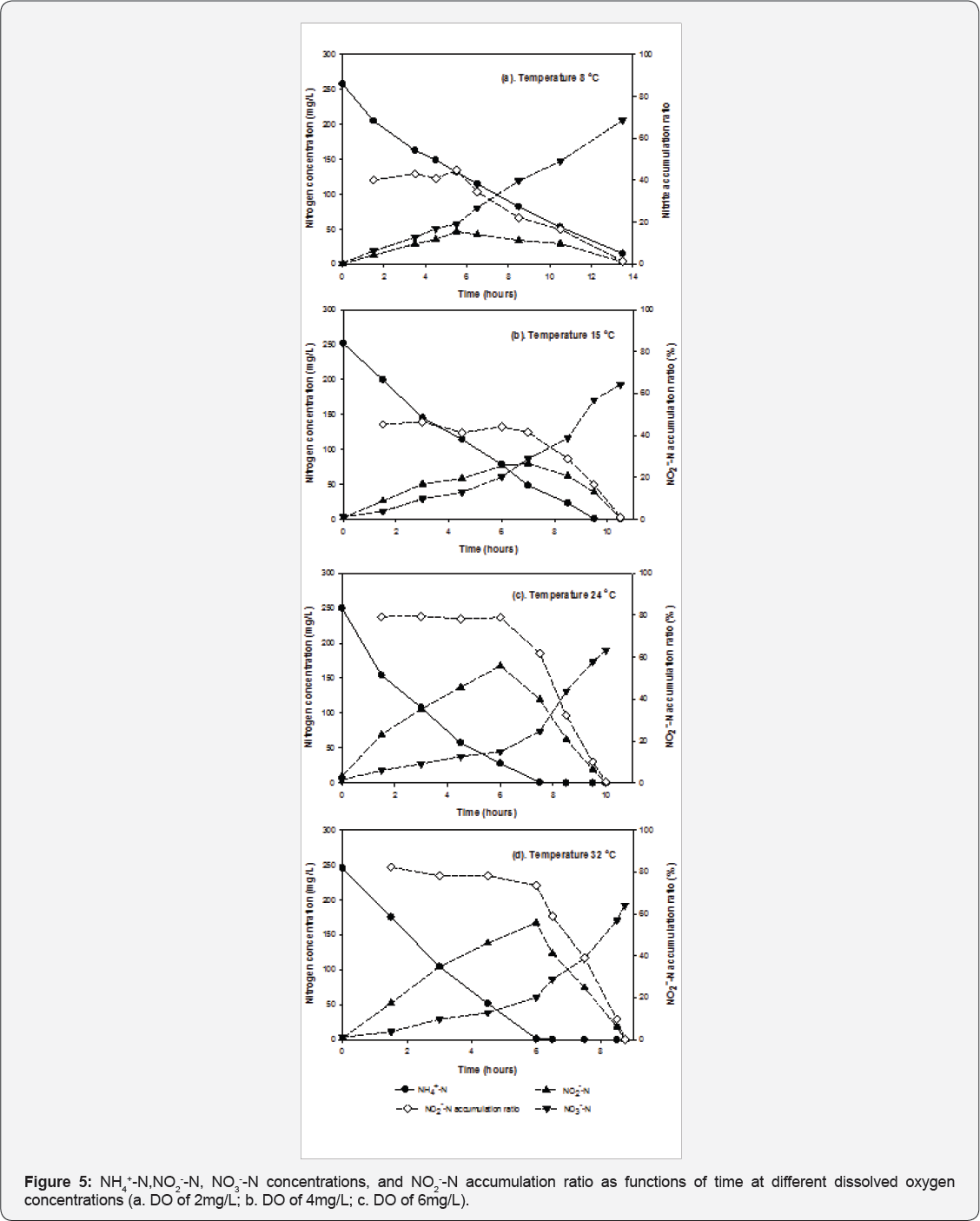

Influence of temperature on NH₄⁺-N removal and NO₂^- -N accumulation: Figure 6 shows the concentrations of NH₄⁺-N, NO₂^--N and NO₃^--N and the nitrite accumulation ratios over time under different temperature conditions. When temperature was controlled at 8 °C, 45% of the maximum oxidization products accumulated as nitrite for the first 5.5 hours with 50% removal of NH₄⁺-N. Nitrite and ammonium were simultaneously oxidized to nitrate after 5.5 hours, and little nitrite accumulation was observed at the end of the batch experiment. Similar trends were observed at 15 °C. 42% of maximum oxidization products stayed in the form of nitrite at 7 hours with 81% NH₄⁺-N removal. Increasing the temperature to 24 and 32 °C increased nitrite production. NO₂^- -N composed 75% of the oxidization products, with above 95% NH₄⁺-N removal at 24 and 32 °C.

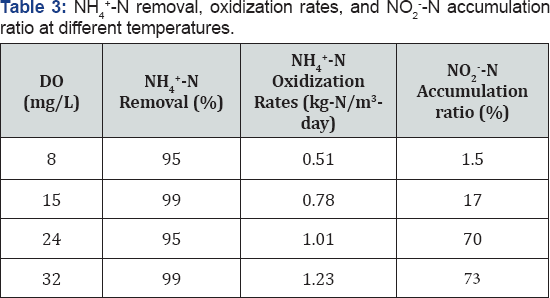

Table 3 summarizes the NH₄⁺-N oxidization rates and NO₂^--N accumulation ratios when NH₄⁺-N removal exceeded 95% (NH₄⁺-N concentration<15mg/L) at different temperatures. Increasing temperature from 8 to 32 °C improved the NH₄⁺-N oxidization rates by 139%. When temperatures were maintained at 8 and 15 °C, nitrite accumulation was not significant; less than 20% of oxidization products were in the form of nitrite when over 95% of NH₄^⁺-N removal was achieved. Due to slower growth rates of Nitrosomonas than Nitrobactor at relatively lower temperatures, it is difficult to achieve 95% ammonium oxidization to nitrite under lower temperatures [13,23]; however, at 8 °C immobilized activated sludge can oxidize NH₄⁺-N at the rate of 0.5kgN/m³-day, which is higher than a number of reported results [10,24]. It is also possible to combine this process with an aerobic ammonium oxidization at 15 °C by controlling the batch reaction time at 6 hours, which gave a NH₄⁺-N/NO₂^--N ratio of 1:1 in the reactor (Figure 6a) [6,15].

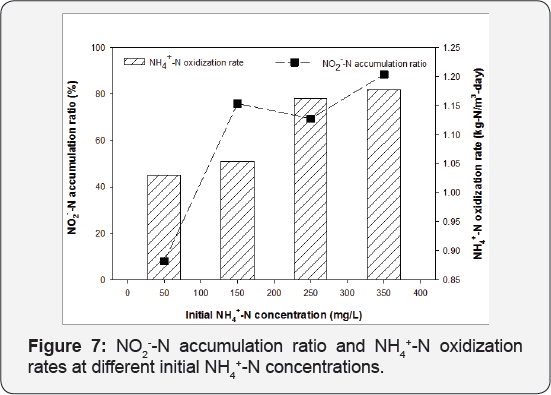

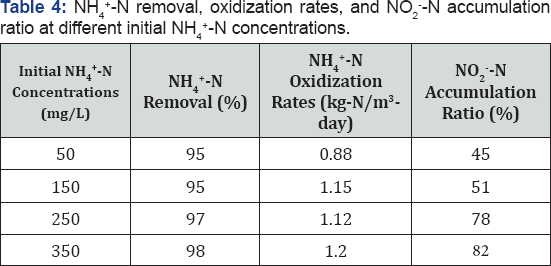

Influence of initial NH₄⁺-N concentration on removal and NO₂^-- N accumulation: Table 4 presents the NH₄^⁺- Noxidization rates and NO₂"-N accumulation ratios when NH₄⁺- Nconcentration reached below 15mg/L for different influent NH₄^⁺-N concentrations, ranging from 50 to 350mg/L. Increasing the initial NH₄⁺-N concentration from 50mg/L to 150mg/L increased the NH₄⁺-N oxidization rates from 0.88 to 1.15kg- N/m³-day, which remained relatively constant as the initial NH₄⁺-N concentration increased from 150 to 350mg/L. Nitrite accumulation was more significant at higher initial NH₄⁺-N concentrations. When over 95% of ammonium removal was achieved, 78-82% of oxidization products stayed in the form of nitrite at initial NH₄⁺-N concentrations of 250 and 350mg/L; while only 45-51% products accumulated as nitrite when initial NH₄⁺-N concentrations were 50 and 150mg/L. These results suggested that effective partial nitrification to nitrite can be achieved with initial NH₄⁺-N concentration exceeding 150mg/L in the immobilized activated sludge air-lifting reactor; this is consistent with previous findings that nitrite accumulation was more significant at higher initial NH₄⁺-N conditions in suspended activated sludge system [10]. Increased NH₄⁺-N concentrations resulted in higher free the activity of nitrite oxidizing bacteria more severely than that of ammonium concentrations, which have been reported to inhibit ammonium oxidizing bacteria (Antoniou et al. [25]).

Practical implication of batch experiments: Batch experiments investigated could potentially provide relevant information for future utilization of immobilized activated sludge in sequencing batch reactors (SBR). It has been shown in this study that it is possible to keep effluent NH₄⁺-N concentrations low (<15mg/L) with most oxidization products present as NO₂^--N by controlling the batch reaction time in SBR operations to treat high strength ammonium wastewater (initial NH₄⁺-N concentration >150mg/L) when the temperature was above 15 °C. Dissolved oxygen concentrations maintained at 4mg/L maximized NH₄⁺-N oxidization rates without affecting nitrite accumulation. For example, a batch aeration time of 7 hours with an influent NH₄⁺- Nconcentration of 250mg/L, DO of 4mg/L, and temperature of 24 °C effectively removed ammonium to below 1mg/L with over 65% oxidization products accumulated in the form of NO₂^--N (Figure 6b).

In addition, it is promising to connect the immobilized activated sludge partial nitrification reactor with anaerobic ammonium oxidization processes. Effluent NH₄⁺-N/NO₂^--N ratios can be maintained at 1:1 by optimizing the batch reaction time for different operating conditions. For example, the batch process can be operated for 3 hours to treat influent NH₄⁺-N concentrations of 250mg/L at 24 °C to maintain a NH₄⁺-N/NO₂^--N ratio of 1:1 with only 10% of total nitrogen in the form of nitrate in the effluent (Figure 6c). Even at low temperatures of 15 °C, it is possible to reach the ideal NH₄⁺-N/NO₂^--N ratio of 1:1 in the effluent by extending the batch reaction time to 6 hours (Figure 7).

Conclusion

The potential of using immobilized activated sludge for partial nitrification to nitrite was investigated in an air-lifting reactor operated in both continuous and batch modes. We have successfully achieved partial nitrification to nitrite under non- DO limiting conditions, while maintaining high oxidization rates. Even though only 80% of oxidization products stayed in the form of nitrite when 95% of ammonium removal was achieved, the nitrification rates of close to 1kg-N/m³-day were achieved under non bulk dissolved oxygen limiting conditions. We also demonstrate that the immobilized activated sludge partial nitrification process could be potentially linked to anaerobic ammonium oxidization operated either continuously or as a batch reactor Since the ammonium conversion to nitrite was considered as the rate-limiting step for the Partial nitrification-ANAMOX process, the high rates conversion of ammonium to nitrite using immobilized activated sludge was of special interest to potentially debottleneck the kinetic limitation of partial nitrification process and promote the full-scale application of Partial nitrification- ANAMOX for nitrogen removal.

Acknowledgement

We acknowledge financial support from Shanghai Jiao Tong University, China and the Newton Research Collaboration Award from Royal Academy of Engineering, UK (Reference: NRCP/1415/261).
