Liquid - Liquid Equilibria of Methanol + Toluene + Hexane Ternary System at 278.15, 283.15, 288.15 and 293.15K
Jonatan H Veliz, Alicia Cases, Diego A Gonz&3225;lez, Constanza Geraldine Varas Gutierrez, Geraldine Galvez and Mónica B Gramajo*
Instituto de Fisica del Noroeste Argentino, National University of Tucum&3225;n, Argentina
Submission: April 25, 2017 Published: September 19, 2017
*Corresponding author: Mónica B Gramajo, Instituto de Física del Noroeste Argentino (INFINOA-CONICET) Facultad de Ciencias Exactas y Tecnología, National University of Tucuman, Tucuman, Argentina, Email: mgramajo@herrera.unt.edu.ar
How to cite this article: Jonatan H V, Alicia C, Diego A G, Constanza G V, Geraldine G, et al. Liquid - Liquid Equilibria of Methanol + Toluene + Hexane Ternary System at 278.15, 283.15, 288.15 and 293.15K. Recent Adv Petrochem Sci. 2017; 3(1): 555602. DOI:10.19080/RAPSCI.2017.03.555602
Abstract
Liquid-liquid equilibria of methanol + ethylbenzene + methylcyclohexane ternary system at 278.15, 283.15, and 293.15K are reported. The effect of the temperature on liquid-liquid equilibrium is discussed. All chemicals were quantified by gas chromatography using a thermal conductivity detector. Experimental data for the ternary system are compared with values calculated by the NRTL and UNIQUAC equations. It is found that the UNIQUAC equation fitted to the experimental data is more accurate than the NRTL model for this ternary system
Keywords: Liquid- liquid; Methanol; Toluene; Hexane; Equilibria
Introduction
There are increasing demands for use oxygenated compounds to produce reformulated gasoline. For this reason, we are studying the phase equilibrium of systems containing hydrocarbons and oxygenated compounds. Within the oxygenated compounds, ethers and alcohols are the most important, and among these, methanol is receiving much current attention [1-6]. Methanol presents partial miscibility with aliphatic hydrocarbons, but not with aromatic hydrocarbons. Therefore, it is of great importance to study systems composed by methanol and representative hydrocarbon of gasoline, establishing the concentration ranges and the temperature of hydrocarbons and methanol in which the two-phase region does not exist [7].
In order to obtain the behaviour of blends of hydrocarbons and methanol at four temperatures, liquid- liquid equilibrium data have been obtained for methanol + toluene + hexane ternary system at 278.15, 283.15, 288 [8]. 15 and 293.15K with constancy in temperature of ±0.05K. The equilibrium concentration for each component was determined by gas chromatography, using the internal standard method. The plait point coordinates at each temperature are reported. The experimental results were compared with those correlated with the NRTL [9] and UNIQUAC [10] models fitted to those experimental results.
Experimental Sections
Materials
Methanol, toluene and hexane were supplied by Merck. The purity of the chemicals was verified chromatographically using a HP 6890 gas chromatograph with a TCD detector coupled to a Chem Station and nitrogen as gas carrier, showing that their mass fractions were higher than 0.99. Therefore, they were used without further purification.
Apparatus and Procedures
The experimental procedure used is the same as that reported in a previous work [11]. All components in the conjugated phases were quantified by chromatography applying the internal standard method. Acetone (Merck, chromatographic quality) with a mass fraction purity >0.999(GC) was the standard compound used for this purpose. A Hewlett Packard 6890 gas chromatograph with an automatic injector (Agilent G2613A) directly connected to a Chem Station (HP G2070AA) was used. Good separation of the three components was obtained on a 30m long|i 0.25mm id|i0.5|im film thickness capillary column (INNO Wax, crosslinked polyethylene glycol, HP 19091N-233). The temperature program used was: initial temperature 343K for two minutes, ramp 50Kmin-1, and final temperature 473K for another one minute. The nitrogen carrier gas flow rate was electronically kept constant working with a split ratio of 20:1 and with the injector maintained at 453K. Detection was carried out by a thermal conductivity detector at 52 3K. Three analyses were performed for each sample in order to oDtain a mean mass fraction value with repeatability better than one percent.
We prepare several ternary mixtures with very well known concentrations by mass in order to obtain the uncertainty in the equilibrium mass fraction values. These mixtures were analysed with the chromatographic method, and their chromatographic concentrations were compared with those obtained by mass. This comparison shows that the reported mass fraction values have an uncertainty of §0.004.
Results and Discussion
"Zero" means that the component is absent.
aEstimated plait point by the UNIQUAC model.
bEstimated plait point by the NRTL model.

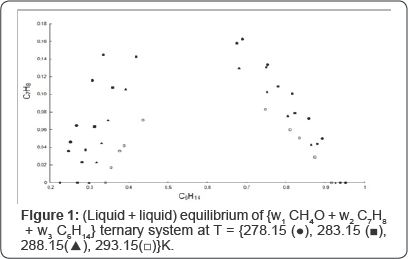

(Table 1) report the liquid - liquid equilibrium (LLE), expressed in mass fraction, of (w1 methanol+ w2 toluene+w3 hexane) ternary system at (278.15, 283.15, 288.15 and 293.15 ± 0.05) K. Figure 1 shows experimental ternary equilibrium data at the four temperatures studied here. As can be seen, a good trend agreement is achieved among all temperatures. In this plot binodal curve and tie lines were omitted in order to avoid confusion. Experimental, correlated results at 283.15K are shown in Figure 2 for comparison. For the other temperatures, similar plots were obtained. Therefore, they were not shown.Figure 1 shows that this ternary system can be classified as type1 in the Treybal's classification [12].
Since the concentrations of the three components were individually determined, the sums ofthe mass fractions for each phase in Table 1 may slightly differ from unity. Material balances [13] were performed for each tine line at each temperature in order to check the consistency of the equilibrium experimental data reported in Table 1. These calculations show that our data satisfy the mass balance within an average absolute deviation of 1.8, 2.0, 1.8 and 0.3 percent at (278.15, 283.15, 288.15 and 293.15) K with a greatest deviation of 2.3, 2.8, 2.4 and 0.5 percent, respectively.
The LLE data for the ternary system studied here were correlated by the UNIQUAC and NRTL activity coefficient models, using an iterative computer program developed by Sørensen [14] that minimizes the values of the following objective functions:
Here, ai,kI,II are the activities obtained from the experimental concentrations, I and II are the phases, xijk and are the experimental mole fraction values of the liquid phase and of the calculated tie line lying close to the considered experimental line, respectively, where i represents the components, j the phases, and k the tie lines. Pn and Q are the parameter and the constant values in the penalty term, respectively.

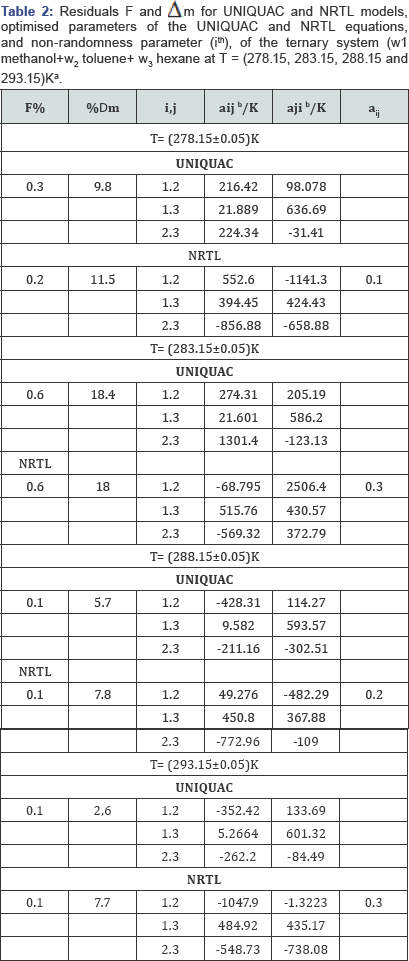

This penalty term was established to reduce the risk of multiple solutions associated with high parameter values. The values of the penalty terms were chosen taking into account Sorensen's recommendation [14]. Table 2 shows the structural parameters of the pure components taken from literature [15] and the optimised binary interaction parameters of the UNIQUAC and NRTL models, for the ternary system. The nonrandomness parameter for the NRTL equation is also given.
Goodness of fit, as measured by the r.m.s. deviation in mole fraction F, is given by
Where n is the number of components in the system. The r.m.s. relative error in the solute distribution ratio Δ is given by
These residuals are listed in Table 2 for these two models. Here, xijk is the experimental mole fraction of the ith component in the jth phase on the kth tie line, is the corresponding calculated value, mk and and are the experimental and calculated solute distribution ratios, respectively, given by w"2 /w'2 . The goodness of fit in terms of the residuals F and §m was satisfactory for the UNIQUAC and NRTL models, although this last residual shows relatively high values due to the large relative error associated with low concentrations of some compounds in both phases. Taking into account both residuals, the UNIQUAC equation fitted to the experimental data is more accurate than the NRTL model for this ternary system, as can be seen in Table 2.
Conclusion
LLE of the ternary system methanol + toluene + hexane was investigated at 278.15, 283.15, 288.15 and 293.15K. From LLE results, we conclude that the mutual solubility of methanol in hexane is larger than that of hexane in methanol at four temperatures. This ternary system also shows that the solubility increases when temperature increases as can be seen in Figure 1. Consequently, this blend could be used as a summer reformulated gasoline since it would not show separation of phases.
As can be seen, the solubility of this ternary system is sensitive to changes in a short range of temperature. The UNIQUAC and NRTL models show low values of both residuals, particularly for the residual F, although for Am is high at 283.15K (Table 1) due to low concentrations of some compounds in both phases. Furthermore, taking into account both residuals, the UNIQUAC equation is more accurate than the NRTL one, except at 283.15K.
Acknowledgement
Financial support from the Consejo de Investigaciones de la Universidad Nacional de Tucuman, Argentina (CIUNT, Grant 26/E518) and Secretaria de Politicas Universitarias de la Nacion Argentina "Proyecto Jorge Sabato” Res. N° 1150 SPU, 20/02/2016 are gratefully acknowledged.
References
- Arce A, Blanco M, Soto A (1999) Determination and correlation of liquid-liquid equilibrium data for the quaternary system 1-octanol+2- methoxy-2-methylbutane+water+methanol at 25 °C. Fluid Phase Equilibria 158-160: 949-960.
- García-Flores BE, Aguilar GG, Rincón ER, Trejo A (2001) Liquid-liquid phase diagrams of ternary systems as a function of temperature: isooctane+aromatic+methanol with and without water. Fluid Phase Equilibria 185(1-2): 275-293.
- Gramajo MB, Bonatti CM, Solimo HN (2003) Liquid-Liquid equilibria of ternary and quaternary systems with two hydrocarbons, an alcohol, and water at 303.15K-Systems Containing 2,2,4-Trimethylpentane, toluene, methanol, and water, or 2,2,4-trimethylpentane, toluene, ethanol, and water. Fluid Phase Equilibria 205(1): 53-67.
- Chen J, Li-Pin D, Guo MJ, Yang FW, Cheng LZ, et al. (2000) Liquid-liquid equilibria of multi-component systems including n-hexane, n-octane, benzene, toluene, xylene and sulfolane at 298.15K and atmospheric pressure. Fluid Phase Equilib 173(1): 109-119.
- Gramajo MB, Bonatti CM, Solimo HN (2003) (Liquid + liquid) equilibria of ternary and quaternary systems with two hydrocarbons, an alcohol, and water at 303.15K. Systems containing cyclohexane, benzene, ethanol, and water. The Journal of Chemical Thermodynamics 35(12): 2055-2065.
- Gramajo MB, Bonatti CM, Solimo HN (2005) Liquid-liquid equilibria for the quaternary system water plus methyl tert-butyl ether plus benzene plus cyclohexane and its constituent partially miscible ternary systems at 303.15K. Energy and Fuels 19(5): 1977-1983.
- Flores BEG, Doz MBG, Trejo A (2005) Liquid-liquid equilibria for pseudoternary systems: isooctane-benzene-(methanol + water). Fluid Phase Equilibria 230(1-2): 121-130.
- Renon H, Prausnitz JM (1968) Local compositions in thermodynamic excess functions for liquid mixtures. AIChE Journal 14(1): 135-144.
- Abrams DS, Prausnitz JM (1975) Statistical thermodynamics of liquid mixtures: A new expression for the excess Gibbs energy of partly or completely miscible systems. AIChE Journal 21(1): 116-128.
- Gramajo MB, Cases AM (2009) (Liquid+Liquid) equilibria of methanol+isooctane+methylcyclohexane+ethylbenzene quaternary system at T =303.15K. Fluid Phase Equilibria 304(1-2): 68-73.
- Gramajo MB, Cases AM, Bonatti CM, Solimo HN (2009) Influence of temperature on the (liquid + liquid) equilibria of {3-methyl pentane + cyclopentane + methanol} ternary system at T = (293.15, 297.15, and 299.15)K. Journal Of Chemical Thermodynamics 41(11): 1279-1283.
- Treybal RE (1963) Liquid Extraction (2nd edn), McGraw Hill, New York, USA.
- Gomis V, Ruíz F, Asensi JC, Saquete MD (1997) Procedure for checking and fitting experimental liquid-liquid equilibrium data. Fluid Phase Equilibria 129(1-2): 15.
- Sørensen JM (1980) ESTM Phase Equilibria and Separation Processes MAN 8106 ESTM: Estimation of UNIQUAC and NRTL Parameters from Ternary LLE Data, Instituttet for Kemiteknik, Lyngby, Denmark.
- Sørensen JM, Arlt W (1980) Liquid-Liquid Equilibrium Data Collection. Ternary and Quaternary systems. Dechema Chemistry Data Series, Germany, 5(3).
