Research Article

Endoscopic Port Surgery for Paraventricular Brain Metastases Using an Inexpensive Device

Joel Caballero-García¹*, Iosmill Morales-Pérez¹, Adolfo Michel Giol-Álvarez², Misael López Sánchez¹, Bismark Rafael Barcia Sánchez¹ and Carlos Aparicio-García¹

¹Department of Neurosurgery, National Institute of Oncology and Radiobiology, Cuba

² Department of Neurosurgery, Juan Manuel Marquez paediatric hospital, Cuba

Submission: May 21,2018; Published: August 09, 2018

*Corresponding author: Joel Caballero García, Department of Neurosurgery, National Institute of Oncology and Radiobiology, Apto C-12. Vedado. La Habana. Cuba; Tell: 053226881; Email: joelcg@infomed.sld.cu

How to cite this article: Joel Caballero-García, Iosmill Morales-Pérez, Adolfo Michel Giol-Álvarez, Misael López Sánchez, Bismark Rafael Barcia Sánchez, Carlos Aparicio-García. Endoscopic Port Surgery for Paraventricular Brain Metastases Using an Inexpensive Device. Open Access J Neurol Neurosurg. 2018; 8(2): 555731. DOI: 10.19080/OAJNN.2018.08.555731.

Abstract

Objectives:During last years a number of tubular retractor systems were described for endoscopically removal of ventricular and periventricular brain tumors. However, these methods are too expensive for underdevelopment countries. In a previously report an inexpensive and simple cylindrical channel retractor was described. We describe the results of this alternative method with some technical variations in a cohort of patients with deep brain metastases and discuss the technical aspects.

Methods: During last years a number of tubular retractor systems were described for endoscopically removal of ventricular and periventricular brain tumors. However, these methods are too expensive for underdevelopment countries. In a previously report an inexpensive and simple cylindrical channel retractor was described. We describe the results of this alternative method with some technical variations in a cohort of patients with deep brain metastases and discuss the technical aspects.

Results:A total of 6 patients underwent surgical resection of an intraaxial periventricular brain metastases. There were 4 women and 2 men with a mean age of 64,2 years (range, 58-72 years). Clinical presentation was: headache (n=2), seizures (n=2) and hemiparesis (n=2). Lesion location was as follows: frontoparietal (n=4), frontal (n=1) and parietal (n=1). Primary site was as follows: breast (n=3), lung (n=2) and thyroid (n=1). The average six was 2,9 cm (range, 2,5-3,5 cm). There was gross total resection in all patients. Two patients suffer transient hemiparesis withought other complications. Surgical time average was 135,7 minutes (range, 90-190 minutes). The mean blood loss was 116 ml (range, 50-240ml). The mean hospital stay was 6,2 days (range, 5-9 days). The mean following was 6,8 months (range, 4-12 months).

Conclusions:In suitably selected patients with brain metastases, Endoscopic Port Surgery offers a viable option to achieve the goals of tumor surgery with low morbidity and fast recovery. The modified 20-ml syringe can be used as a transparent tubular retractor and it is simple, lightweight, inexpensive and effective. In combination with stereotaxic system and endoscopy can be a good alternative in centers of underdevelopment countries and limited resources.

Keywords: Cylindrical retractor; Endoscopy; Periventricular tumors; Brain metastases; Tumor; Finger glove; Stereotactic; Bone flap; Fashion; Brain spatulas; Manipulation; Stereotactic cannula; Homogeneous; overlying brain; Vascular damage; Complications; Dynamic; Magnification; Skull bone; Bipolar; Meticulous

Introduction

Intraventricular and periventricular tumors have conventionally been resected through transcortical routes, habitually requiring the use of brain retractors which consist in various types of spatulas to keep the surgical corridor and ensured the microsurgical resection. Nevertheless, this technique does not apply equally distributed pressure and complications as vascular damage, brain edema, seizures and focal neurological deficits are not uncommon [1-4].

To solve this problem a number of tubular retraction systems have been developed with equally distributed pressure which are combined with an endoscopic visualization method to ensure better surgical field illumination and angular vision [5-14]. However, these methods are too expensive for underdevelopment countries. In a previously report Sinhg & Agrawal [15] described an inexpensive and simple cylindrical channel retractor. We describe the results of this alternative method with some technical variations in six patients with deep brain metastases and discuss the technical aspects.

Methods

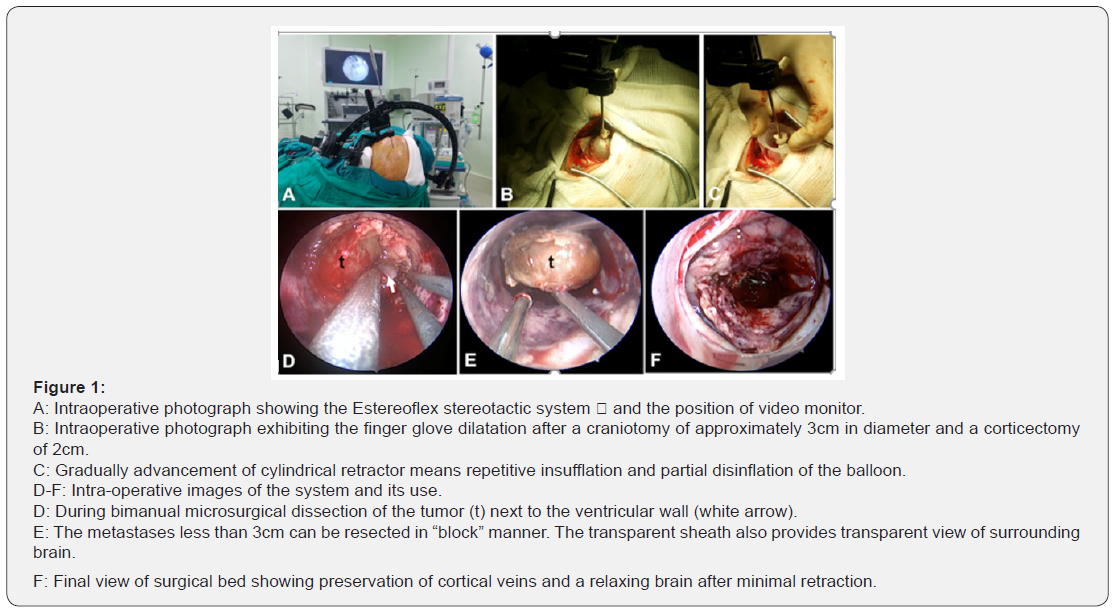

The procedure included general anesthesia, lineal incision and 3cm diameter craniotomy based on frame stereotactic guide (Estereoflex system ) followed by cruciform dural opening (Figure 1 A &B). Transcortical approach was performed by means transgyral way (2cm corticectomy) according to the stereotactic planned route. Using a finger glove mounted on stereotactic cannula as balloon device, the cannula tip was advanced to the pre-calculating external lesion point. Them, a dilatation of corticectomy and white subcortical fibers was performed with inflation of balloon using normal saline until it was converted into round opening. The channel retractor was advanced gradually by means repetitive insufflation and partial disinflation of the balloon which put the brain away (Figure 1 B &C).

The channel retractor was made of an adapted 20-ml syringe which length was estimating measuring the distance between the outer table and the external surface of the tumor in coronal RMI or CT reconstruction, so the retractor was rested on skull bone. The working channel have a 2cm diameter. Scope, suction cannula and take-apart bipolar device have 4, 3 and 5mm respectively, so we had 8mm of free space for working (Figure 1 D &E).

All lesions were resected under full endoscopic visualization using a 0° and 30°, 4mm, 18cm rigid scope (Karl stortz, Germany) and stereotactic guide. The second surgeon hold the scope at 12 o’ clock position while the first surgeon performed a standard microsurgical resection with the suction cannula and bipolar or dissection instruments around the seventh and fifth hours respectively. We don’t use any scope holder because we prefer a dynamic magnification similar to endonasal endoscopic approach. All lesions were resected in a “in block” fashion due their small size (Figure 1 E & F & Figure 2 A & E).

Finally, a meticulous hemostasis of surgical field was performed, then the cavity was irrigated with warm saline and the retractor was carefully retired identifying and cauterizing any bleeding of the surgical corridor (Figure 1 F). The cortical entry site was lined with Surgicel, and the dura was then closed in watertight fashion. The bone flap was replaced, and the wound was closed in standard fashion. Patients were extubated in the operation room and stay in the Intensive Care Unit overnight. A 24 hours CT scan was performed to detected any complications (Figure 2 D & E). Sutures were removed at post-operative day 7.

Results

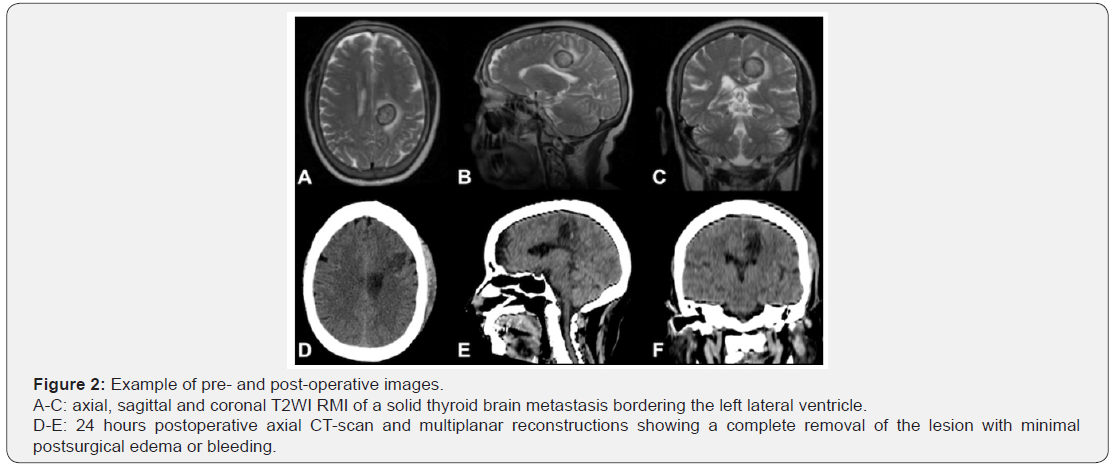

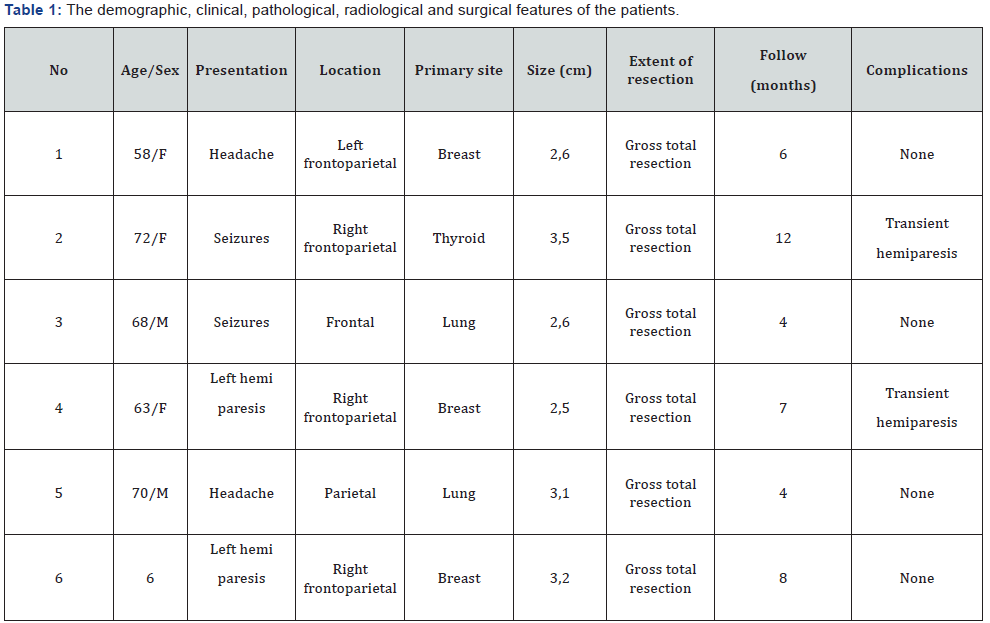

A total of 6 patients underwent surgical resection of an intraaxial periventricular brain metastases. There were 4 women and 2 men with a mean age of 64,2 years (range, 58- 72 years). Clinical presentation was headache (n=2), seizures (n=2) and hemiparesis (n=2). Lesion location was as follows: frontoparietal (n=4), frontal (n=1) and parietal (n=1). Primary site was as follows: breast (n=3), lung (n=2) and thyroid (n=1). The average sixe was 2,9 cm (range, 2,5-3,5cm). There was gross total resection in all patients. Two patients suffer transient hemiparesis without other complications (Table 1).

Duration of surgery ranged from 90 to 190 minutes, with an average 135,7 minutes. The mean blood loss was 116 ml with a range from 50 to 240 ml. The mean hospital stay was 6,2 days with a range from 5 to 9 days. The mean following was 6,8 months with a range between 4 and 12 months.

Discussion

Advantages and disadvantages of tubular retractors and endoscopic visualization

Since the microscope uses a funneling cone of light for binocular visualization, removal of deep intraparenchymal lesions can require extensive dissection of the overlying brain by using of conventional brain spatulas. In fact, many complications have been reported with the use of brain spatulas like vascular damage, brain edema, seizures and focal neurological deficits [1-4]. Removal of intra-axial brain tumors using stereotactic guidance and endoscopic visualization was first described in Shelden, et al. [16] and Jacques et al [17]. Otherwise, the first description of the use of a tubular retractor system stereotactic guided for the treatment of the deep-seated intracranial tumors have been attributed to Kelly et al. [18]. In Otsuki, et al. [14] reported the use of a bullet-shaped dilator for stereotacticguides endoscopic tumor resection. This method has enabled neurosurgeons to endoscopic approach deep-seated intraaxial lesions due the fact that the intraparenchymal space not provides natural medium for light dispersion. Subsequently, many groups have published their experience [5-14]. Numerous potential advantages has been reported was as follow:

a) Minimizes the scalp incision associated with small craniotomy size

b) Decreasing white matter disruption as the tip design minimizes the risk of fascicles injury during cannulation;

c) Allowing homogeneous radial dispersion of the pressure on the surrounding tissue;

d) Guaranteeing stability as the rigidity prevents inadvertent expansion of the initial diameter of the corticectomy and white fiber tract dissection throughout surgery;

e) Shielding the surrounding tissues against iatrogenic injuries caused by instrument entry and reentry;

f) Affording constant visualization of the tissue traversed given the transparent conduit design;

g) Offering a wide angle of view and an excellent magnification.

We don’t found major complications with this method. In fact, only two patients with brain metastases next to motor eloquent areas suffer transient hemiparesis, possibly related to post operatory edema. The surgical time and blood loss were minimal. However, this method remained limited in their ability to handle larger and more vascular tumors, as they lacked the versatility of the operating microscope as well as its ability to provide multiple angles of tumoral visualization and instruments manipulation. We observed that hemostasis was obtained in somewhat more difficult fashion, but this fact is compensated with the minimized dural opening and white matter manipulation.

The goals of Endoscopic Port Surgery are related to the goals of conventional microsurgical tumor resection: maximal tumor resection with functional neurologic conservation. Tumors with a significant overlying cuff of normal brain parenchyma (> 1cm), soft consistency (thus favored piecemeal removal), and low or moderate vascularity are the ideal candidates for Endoscopic Port Surgery like primary brain tumors, metastases and cavernous malformations. Renal cell carcinoma metastases are the only exception due their high vascular component. In case of most brain metastases the firm consistency can help to circumferentially spiral dissection and “in toto” resection, which is ideal in these circumstances. Nevertheless, it is necessary to take account that if a resection “in toto” is a goal, the lesion maximum diameter can’t extent more than the diameter of the cylindrical retractor. That’s why we believe that small brain metastases are the ideal candidates for Endoscopic Port Surgery. On the other hand, lesions much larger than the port itself can be remove adjusting the port angles to 360° rotation throughout the resection in order to facilitate dynamic lesion visualization. Otherwise, if the long axis of the tumor is perpendicular to the skull, the port can be advantageous by limiting the amount of white matter dissection required for tumor removal.

Commercials and alternatives systems

There are three main technologic components of any Endoscopic Port Surgery:

a. An image guidance (such as neuronavegation, ultrasound or frame stereotactic system)

b. A cylindrical brain retractor (commercials or alternatives)

c. A magnification method (usually the endoscopy)

Kassam, et al. [19] reported the use of cylindrical retractor relatively similarly to the manner of Dr. Kelly’s pioneering work but with a smaller port size (11.5mm), completely endoscopic visualization and the use of frameless image-guidance. Some alternatives systems have been described. Kutlay, et al. [20] described a commercially available transparent plastic pediatric anoscope with an inner diameter of 18 mm and a length of 54mm (Sapimed, S.p.A. Alessandria, Italy). Singh & Agrawal [15] reported the use of simple method of using a cylindrical channel retractor custom made out of 20cc plastic syringe and a finger glove mounted on brain canula as a balloon device. Corticectomy was performed with the help of ultrasound guidance. It is transparent therefore early detection of haematoma to the surrounding brain is possible. We were using this method with some technical variations. First, our image guidance was a frame stereotactic system, with the balloon device attached to the stereotactic cannula. Second, we advanced the canula with the deinflated balloon attached until the tip was arrived to the external tumor surface and them the canula was gradually dilated and deinflated while the cylindrical channel retractor was advanced. With this simple, lightweight, transparent, freely movable and inexpensive method, effective resection of lesions could be achieved, and the preoperative goals of surgery were seen in all our patients.

Conclusion

In suitably selected patients with brain metastases, Endoscopic Port Surgery offers a viable option to achieve the goals of tumor surgery with low morbidity and fast recovery. The modified 20-ml syringe can be used as a transparent tubular retractor and it is simple, lightweight, inexpensive and effective. In combination with stereotaxic system and endoscopy can be a good alternative in centers of underdevelopment countries and limited resources.
