Case Report

An Intradural Extramedullary Bronchogenic Cyst in the Lumbar Spine

Viswapathi Kandula¹, Sayed Samed Talibi¹*, Olivia Walsh², Hammad Qureshi¹, Martyn Carey³ and Nikolaos Tzerakis¹

¹Department of Neurosurgery, University Hospital of North Midlands, United Kingdom

²University of Keele Medical School, United Kingdom

³Department of Cellular pathology, University Hospitals Birmingham, United Kingdom

Submission: October 15, 2016; Published: November 22, 2016

*Corresponding author: Sayed Samed Talibi, Department of Neurosurgery, University Hospital of North Midlands, Newcastle Road, United Kingdom, Tel: 00447761831297; Email:sstalibi@gmail.com

How to cite this article: Viswapathi Kandula, Sayed Samed Talibi*, Olivia Walsh, Hammad Qureshi, Martyn Carey and Nikolaos Tzerakis. An Intradural Extramedullary Bronchogenic Cyst in the Lumbar Spine. Open Access J Neurol Neurosurg 2016; 1(5): 555572. DOI: 10.19080/OAJNN.2016.01.555572.

Abstract

Background context: Bronchogenic cysts are rare congenital abnormalities of the central nervous system, identified as an epithelial endodermal cyst and can present as intradural extramedullary lesions

Purpose: Intradural extramedullary lumbar bronchogenic cysts present as a seldom cause of cauda equina syndrome. We discuss a case of a 51-year-old male presenting with sciatica and lower limb neurology, with the aforementioned cyst compressing both the conus medullaris and cauda equina.

Study Design/Setting (Patient Sample and Outcome Measures must be used in all Clinical Studies)

Results: Total surgical resection was curative and histology confirmed a bronchogenic cyst. The lesion is a rare congenital malformation thought to derive from remnants of primitive foregut.

Conclusion: Bronchogenic cyst should be considered as a differential in patients presenting with an intradural extramedullary lesion in the lumbar spine. Surgical excision offers cure with good results, and in our patient as exhibited in the post-operative MRI and clinical outcome

Keywords: Bronchogenic cyst; Cauda equina syndrome; Intramedullary cyst; Intraspinal cyst; Lumbar spine

Introduction

A 51-year old male presented initially with a three-month history of numbness in the buttocks radiating down to the right leg in the S1-dermatomal distribution. The numbness was associated with pain mostly at the buttock area. There was no perianal paraesthesia nor was there difficulty voiding his bladder, however the patient did complain of difficulty evacuating his bowels. The patient was otherwise medically fit. On clinical examination the patient had weakness of the right ankle in both dorsi and plantar-flexion, with Medical Research Council (MRC) scale for muscle strength of four in both. Straight leg raise was positive on the right at around 30 degrees.

The ankle jerk reflex was bilaterally absent and right knee reflex was decreased but the left was normal. Sensation was decreased in S1-S4 dermatomes distribution bilaterally and his anal tone was normal, however, voluntary constriction was decreased. The peripheral pulses were found to be normal.

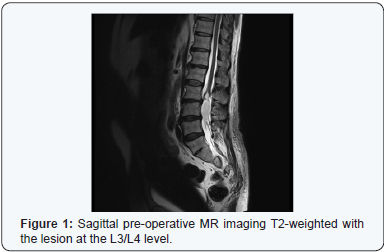

The Magnetic Resonance (MR) image of the patient’s spine showed there to be an intradural extramedullary mass lesion centered at the level of L3, below the conus medullaris, and expanding almost the entire length of the L4 vertebra. It was causing significant compression of the cauda equina nerves and was shown to be expanding the conus medullaris (Figure 1).

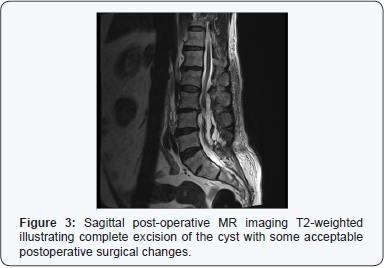

The lesion was initially thought to represent a dermoid or epidermoid cyst of the conus, causing tethering of the spinal cord. The patient underwent a midline osteotomy and laminectomy with subsequent durotomy performed, therefore gaining access at the levels of L2-L4 for the extensive surgical excision of this lesion guided by neurophysiology. Cystic fluid and tissue samples were sent for histopathological analysis (Figure 2 & 3). The patient in the immediate post-operative period had residual inability to evacuate his bowels and at follow-up this has been slowly improving.

Discussion

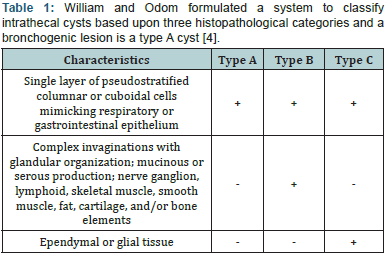

Bronchogenic cysts are rare congenital abnormalities of the central nervous system, identified as an epithelial endodermal cyst. Neuroenteric cysts are a more common type of endodermal cyst than the bronchogenic variety accounting for 0.7-1.3% of all spinal cord tumours [1]. Endodermal cysts are described as a combination of gastrointestinal and/or respiratory type epithelium with the absence of other germinal layers including non-intestinal components, a vertebral anomaly, and a classical cervical or upper thoracic location [2,3]. A lesion is termed a bronchogenic cyst if the endodermal lining is predominated with respiratory tract epithelium, illustrated in (Figure 2) with pseudo stratified ciliated columnar epithelia that is normally found in the tracheobrhonhial tract. These cysts are therefore remnants of primitive foregut from which the respiratory system originates and, more commonly located in the mediastinum [2] (Table 1).

Mesoderm separates the first two embryonic layers endoderm and ectoderm, and grows forward from both sides of the primitive streak. Originating from the cephalic end of the primitive streak, the mesodermal notochord grows forward in the central axis. The growing notochord becomes transiently incorporated into the dorsal endoderm wall that later becomes the foregut. The endoderm extrudes it, moving dorsally between the endodermal tube and ectoderm. Somites form both sides of the notochord rod are segments of the paraxial mesoderm, with the vertebral bodies and inter vertebral discs forming from the sclerotomes fusing around the notochord. The notochord induces the surface ectoderm to form the neuro-ectoderm which forms the neural tube and subsequently the brain and spinal cord. The neural tube closes cranially too caudally, with the former opening (neuropore) closing at day 26 and latter by day 27, with failure in closure resulting in anencephaly and spina bifida, respectively. Vertebral structures, meninges and skin from the remaining ectoderm develop around the closed neural tube [3,5].

The pathogenesis and mechanism for development of Bronchogenic cysts is unknown, but three hypothesis have been proposed, including [1]; ecto-endodermal adhesion which results in incomplete germ cell layer separation [2]. The cysts are of ectodermal origin, and being part of the primitive streak they are capable of differentiation to both endoderm and mesoderm [3]. The notochord syndrome theory more commonly seen in the lumbrosacral level, where partial duplication and separation of the notochord leads to a ventral herniation of the yolk sac or remnant gut endoderm through the notochord and subsequent fistula with the amniotic cavity. A cystic mass forms from closure of the fistula as the embryo grows from differentiated cells from the remnant of the foregut/endodermal cell origin [3,5].

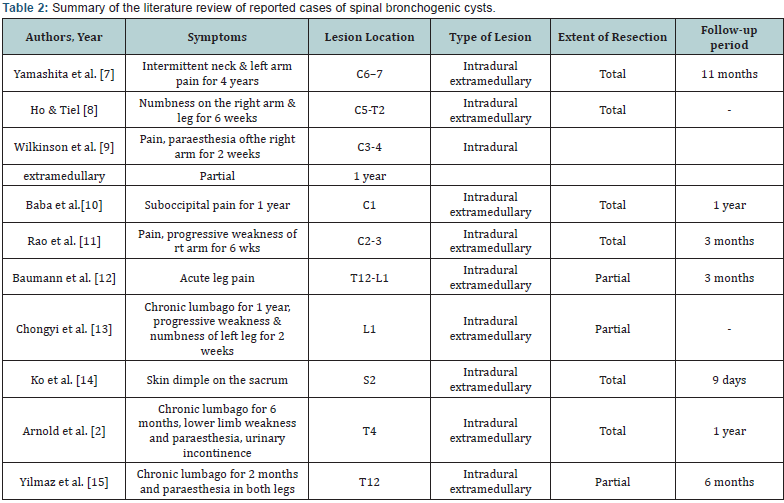

The most common MR imaging findings associated with intradual extramedullary epithelial endodermal cysts are noncontrast enhancing lesions that are isointense on T1-weighted sequences and hyperintense on T2-weighted imaging. The appearance of epithelial endodermal cyst, neuroenteric or bronchogenic, on diagnostic imaging is that of a lobulated homogenous mass without an associated mural nodule [2,6]. Surgical resection appears to be the most effective treatment of symptomatic spinal bronchogenic cysts and recurrence is attributed to partial resection, with a rate of 11.6% reported in the literature [2]. It should also not be ignored that the presence of spinal development anomalies such as spina bifida may indicate further developmental spinal or vertebral malformations including spinal cysts [3,5]. Nine cases of spinal bronchogenic cysts reported in the English literature, all the lesions were intradural extramedullary, and 5 of these arose in the cervical or upper thoracic region, 1 in the lower thoracic spine, 1 in the thoracolumbar region, 1 in the lumbar region, and 1 in the sacral region [6]. In our case report the patient is fifth decade of life and the clinical presentation is an indolent progressive deficit in lower limb neurology and with constipation, a reflection of the lesion compressing his cauda equine. The bronchogenic cyst is a slowly growing lesion owing to the cell micro-architecture including the tight junction between cells [3,5] (Table 2).

We conclude that bronchogenic cyst should be considered as a differential albeit a rare differential with only 10 reported cases in the literature, in patients presenting with an intradural extramedullary lesion in the lumbar spine [2,7-9,10-15]. Surgical excision offers cure with good results, and in our patient as exhibited in the post-operative MRI and clinical outcome.

Acknowledgement

The authors have no disclosures or have received any funding for the aforementioned works. The title and report is a project of the authors.

References

1. Fortuna A, Mercuri S (1983) Intradural spinal cysts. Acta Neurochir (Wien) 68(3-4): 289-314.
2. Arnold PM, Neff LL, Anderson KK, Reeves AR, Newell KL (2009) Thoracic Myelopathy Secondary to Intradural Extramedullary Bronchogenic Cyst. J Spinal Cord Med 32(5): 595-597.
3. Bentley JFR, Smith JR (1960) Developmental posterior enteric remnants and spinal malformation. The split notochord syndrome. Arch Dis Child 35(179): 76-86.
4. Wilkins RH, Odom GL (1976) Spinal intradural cysts. In: Vinken PJ, Bruyn GW (Eds). Handbook of Clinical Neurology. North Holland: Amsterdam 20: 55-102.
5. Rhaney K, Barclay GPT (1959) Enterogenous cysts and congenital diverticula of the alimentary canal with abnormalities of the vertebral column and spinal cord. J Pathol Bacteriol 77(2): 457-471.
6. Savage JJ, Casey JN, McNeill IT, Sherman JH (2010) Neurenteric cysts of the spine. J Craniovertebr Junction Spine 1(1): 58-63.
7. J, Maloney AF, Harris P (1973) Intradural spinal bronchogenic cyst. Case report. J Neurosurg  39(2): 240-245.
8. Ho KL, Tiel R (1989) Intraspinal bronchogenic cyst: ultrastructural study of the lining epithelium. Acta Neuropathol 78(5): 513-520.
9. Wilkinson N, Reid H, Hughes D (1992) Intradural bronchogenic cysts. J Clin Pathol 45(11): 1032-1033.
10. Baba H, Okumura Y, Ando M, Imura S, Morioka K, et al. (1995) A high cervical intradural extramedullary bronchogenic cyst. Case Report Paraplegia 33: 228-232.
11. Rao GP, Bhaskar G, Reddy PK (1999) Cervical intradural extramedullary bronchogenic cyst. Neurol India 47(1): 79-81.
12. Baumann CR, Konu D, Glatzel M, Siegel AM (2005) Thoracolumbar intradural extramedullary bronchogenic cyst. Acta Neurochir (Wien) 147(3): 317-319.
13. Chongyi S, Meng Y, Dejun Y, Yingjie L, Qingpeng L (2008) Lumbar intradural extramedullary bronchogenic cyst. Eur Surg Res 40(1): 26-28.
14. Ko KS, Jeun SS, Lee YS, Park CK (2008) Sacral intraspinal bronchogenic cyst: a case report. J Korean Med Sci 23(5): 895-897
15. Yilmaz C, Gulsen S, Sonmez E, Ozger O, Unlukaplan M, et al. (2009) Intramedullary cyst of the conus medularis. J Neurosurg Spine 11(4): 477-479.
