Utilization of Melon and Snail Shell Waste Mixtures in the Carburization of Mild Steel
Adzor S Abella1*, Ihom P Aondona2 and Edibo S3
1* Department of Industrial Metallurgy and Foundry Engineering, Metallurgical Training Institute, Nigeria
2 Department of Mechanical Engineering, University of Uyo, Nigeria
3 Department of Metallurgical Engineering Technology, Delta State Polytechnic, Ugwashi-uku, Nigeria
Submission: March 14, 2018; Published: March 23, 2018
*Corresponding author: Adzor S Abella, Department of Industrial Metallurgy and Foundry Engineering, Metallurgical Training Institute PMB 1555, Onitsha, Nigeria, Email: adzorabella@gmail.com
How to cite this article: Adzor S A, Ihom P A, Edibo S. Utilization of Melon and Snail Shell Waste Mixtures in the Carburization of Mild Steel. JOJ Material Sci. 2018; 4(2): 555634. DOI: 10.19080/JOJMS.2018.04.555634
Abstract
As long as industrial and agricultural activities go on, wastes will continue to be generated. In view of this, wastes recycling/or conversion to other reusable materials that can be utilize by another industrial set-up is fast receiving worldwide attention. In this research work, the assessment of the suitability of melon and snail shell wastes mixtures in enhancing the surface hardness of mild steel via the pack carburization method has been investigated. The carburization process was carried out at the temperatures of 9000C, 9200C and 9400C for the soaking times of 15, 30, 45 and 60 minutes respectively, and then quenched in water to harden. Thereafter, they were tempered at 2500C for 1 hour to relieve the residual stresses introduced into the steel specimens as a result of quenching. Standard method was adopted to determine the surface hardness of the carburized and un-carburized test specimens. Micro-structure examination was also performed using standard metallographic techniques to observe the microstructures formed. The results of the study showed increase in the surface hardness of all the carburized steel specimens in the different carburizing media. The steel specimens carburized with 80% snail shell wastes plus 20% melon shell wastes mixture had higher hardness values than those carburized with 100% snail shell wastes only. The maximum surface hardness values of 118VHN, 128VHN and 129VHN were obtained at the carburizing temperatures of 9000C, 9200C and 9400C respectively, for the soaking time of 60 minutes with the specimens carburized with snail and melon shell wastes mix. It was observed that the process variables (temperature and soaking time) significantly impacted on the quantity of carbon absorbed at the steel surface as depicted by the surface hardness values. The results of the research work have established the viability of melon and snail shell wastes mixture as an alternative source of carburizers in enhancing the surface hardness of mild steel.
Keywords: Carburization; Surface Hardness; Mild Steel; Melon shells; Snail Shells
Introduction
The selection of materials for any given application demands that such materials should possess the requisite mechanical properties to enable it withstand the stresses it is likely to encounter in the proposed service condition. This is very key and should not be compromise as long as safety and proper functioning of engineering facility is concern, and also to avoid premature failure of the facility in service. For instance, components like gears, bearings, cams, crank shaft, rock drilling bits, etc., are expected to have unique balance of properties, where the outer surface is expected to be hard and the inner core to be tough in order to withstand wear and inhibit cracks propagation, respectively [1-5]. Materials for these applications cannot be produced from medium carbon steels because it is through-hardened and brittle, as such unsuitable. Therefore, by locally enriching the surfaces of low carbon steels, followed by quenching in water, a hardened surface and tough inner core can be obtained [6,7].
Carburization is a heat treatment technique through which certain desirable mechanical properties can be imparted into a metallic material to enable it function properly in the proposed service condition. There are several carburization methods that have been utilized to achieve a hardened surface with a tough inner core. The effectiveness of each method is based on the potential of the diffusing species in the carburizing material and furnace temperature [8]. The carburizing materials that are most often used to achieve this purpose are agricultural wastes, animal wastes or hydrocarbon compound while the energizing materials are usually inorganic chemicals. The most commonly used of these materials are barium carbonate, sodium carbonate and calcium carbonate [3,9]. The high cost of these materials has necessitated the search for alternative carburizing materials that are cheap, readily available and abundant. Results of the proximate analysis carried out by Abdulrazak et al. [10] showed that melon shells contain 17.02% carbohydrate. Ademolu et al. [11] in their study revealed that snail shells contain high amount of carbohydrate in the range of 83.53-92.76g/100g depending on the species. The relatively high amount of carbohydrates presence in this waste materials have made them good sources of carbonaceous materials that could be utilize to achieve improved surface hardness of mild steel for use in stringent service condition requiring higher surface hardness. Research carried out by Ihom et al. [9], Adzor et al. [10], Olanike et al. [11-13] on the utilization of some waste materials generated from household, industrial and agricultural activities in the carburization of mild steel have shown that the waste generated from these sources have significantly enhanced the surface hardness of mild steel. Therefore, to properly harness what nature has endowed us with, it is paramount that we begin to take advantage of the numerous waste materials that are generated in our various communities for conversion into new products that could be used by another industry. This will in turn create jobs for the teeming youth, and also help solve environmental problems arising from waste disposal. Waste is defined as anything unused or not used to full capacity or excess of what is required or garbage, rubbish or trash [14-16]. There are wide varieties of waste that are generated from one industry and community to another as a result of industrial and agricultural activities. Waste cannot be eliminated totally from the environment as long as consistent industrial and agricultural activities go on. Therefore, waste should be recycled or simply converted to other products usable by another industrial set- up as a source of raw materials.
Available researches have shown that extensive work has been carried out on different agricultural wastes and marine materials to establish their suitability as carburizing materials for the surface hardness improvement of mild steel but it is realized that there are numerous other waste materials especially of agricultural products whose viability as alternative source of carburizing material in the carburization of mild steel for improved surface hardness are yet to be adequately explored. The continued search for waste materials with high carbon potential for utilization as carburizing materials in enhancing the surface hardness of mild steel will not only reduce the existing high cost of carburizing mild steel using the highly priced conventional energizers along with existing carbonaceous materials, but also solve waste pollution problem. Ihom et al. [9] investigated the used of egg shell wastes as an enhancer in the carburization of mild steel Adzor et al. [12] investigated the suitability of periwinkle shells as carburizing material for the surface hardness improvement of low carbon steel. Olanike et al. [13], studied the effect of carburizing temperature and time on the mechanical properties of AISI/SAE 1020 Steel using carbonized palm kernel shell. The results obtained by these researchers have proven that some solid wastes has promising carbon potential for enhancing the surface hardness of mild steel. This research work is aimed at ascertaining the efficacy of utilizing two carbon bearing materials that are considered waste (melon and snail shell) in the carburization of mild steel. The concern here is as a result of the rising cost of the conventional energizers that are widely used by industrialist to raise the carbon potential of many carburizing materials for the surface hardness improvement of mild steel. The base approach consists of correlation of the microstructure with the mechanical property (hardness) and measure of the surface hardness of the carburized steels to establish the carburizing success.
Report [17] show that melon seeds are grown in large quantities in different part of Nigeria. The seeds are used in the preparation of soup among different communities in Nigeria. Report [18] posited that land snails are used as food by humans in various cultures worldwide. In Nigeria, land snails are edible delicacy in the southern and eastern part of Nigeria. However, after the consumption of the melon seeds and the meat of the land snails, their shells are discarded as wastes, thereby creating major issue of environmental pollution. The shell of the snail contains calcium carbonate just like eggshell. It is as a result of this, that the authors have devoted special effort in investigating the possibility of utilizing melon and snail shell wastes mixture as carbonaceous materials in the carburization of mild steel, thereby adding value to these waste materials and at the same time solving solid wastes disposal problem.
Materials and Method
Materials and Equipment
The materials and equipment utilized for the study were; mild steel, melon shell wastes, snail shell wastes, BS sieve(75 microns), steel boxes, muffle furnace, optical microscope, weighing balance, dynamic hardness tester (VHN), water, fireclay, tong, bench vice and hack saw.
Method

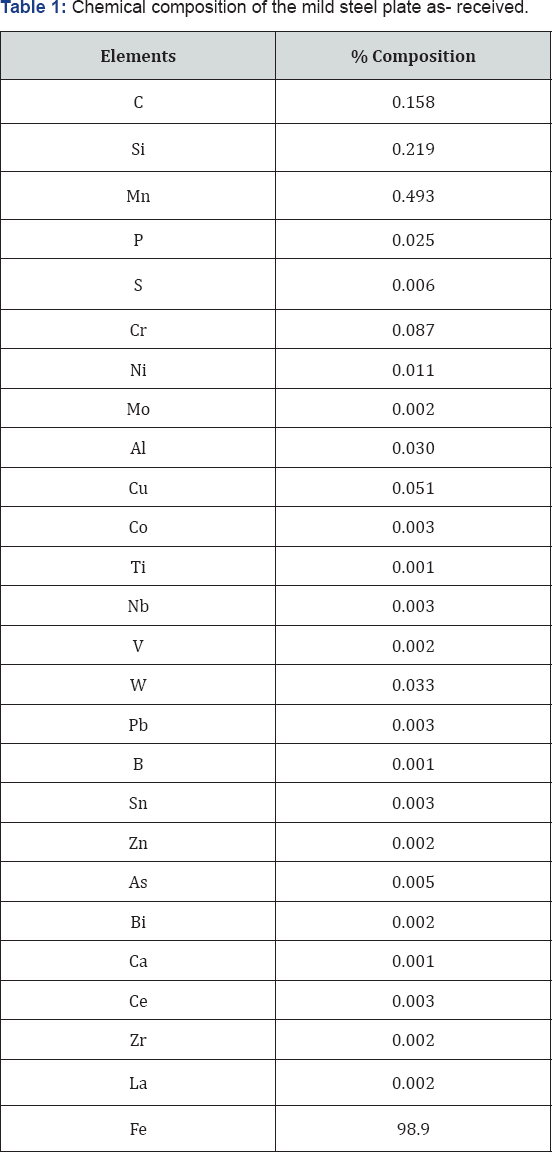

The commercial grade of the mild steel used in the study was sourced from the central store of the Metallurgical Training Institute, Onitsha. The chemical composition of the mild steel as-received is shown in Table 1 and Figures 1 & 2 represent the photographs of the melon and snail shell wastes. They were sourced locally in Ikpayongo, Gwer East local government of Benue State, Nigeria. The snail shell and the melon shell wastes after cleaning them, they were packed separately in metal boxes and then calcined in a muffle furnace at 500oC and 550oC respectively, to carbonized them and thereafter grinded and sieved through BS sieve (75 microns). A total of 24 test specimens prepared according to standard specification as per ASTM standard were used for the study. The carburization operation was performed in two stages. In the first stage, 12 test specimens packed separately in metal boxes and embedded in 100% powdered snail shell wastes only. In the second stage, 12 test specimens were also packed separately in metal boxes containing mixtures of 80% snail shell wastes and 20% melon shell wastes. Each of the metal boxes were sealed with fireclay made into paste with water and allowed to dry under the sun before placing each box in turn into the heating chamber of the muffle furnace where they were heated to the temperature of 900oC, 920oC and 940oC and soaked for 15, 30, 45 and 60 minutes respectively. After the carburization, they test specimens were removed from the metal boxes and then quenched in water to harden, thereafter, they were tempered for 250oC for 1 hour to relieve the residual stresses introduced into the carburized specimens as a result of quenching. For effective examination of the internal structures of the carburized steel specimens, standard metallographic techniques were adopted. They specimens were placed on a metallurgical microscope which was adjusted to focus the specimens and the microstructures were photographed, using a magnification of x400. The hardness values were taken at three different spots on each of the specimen and the average value calculated.
Results and Discussion

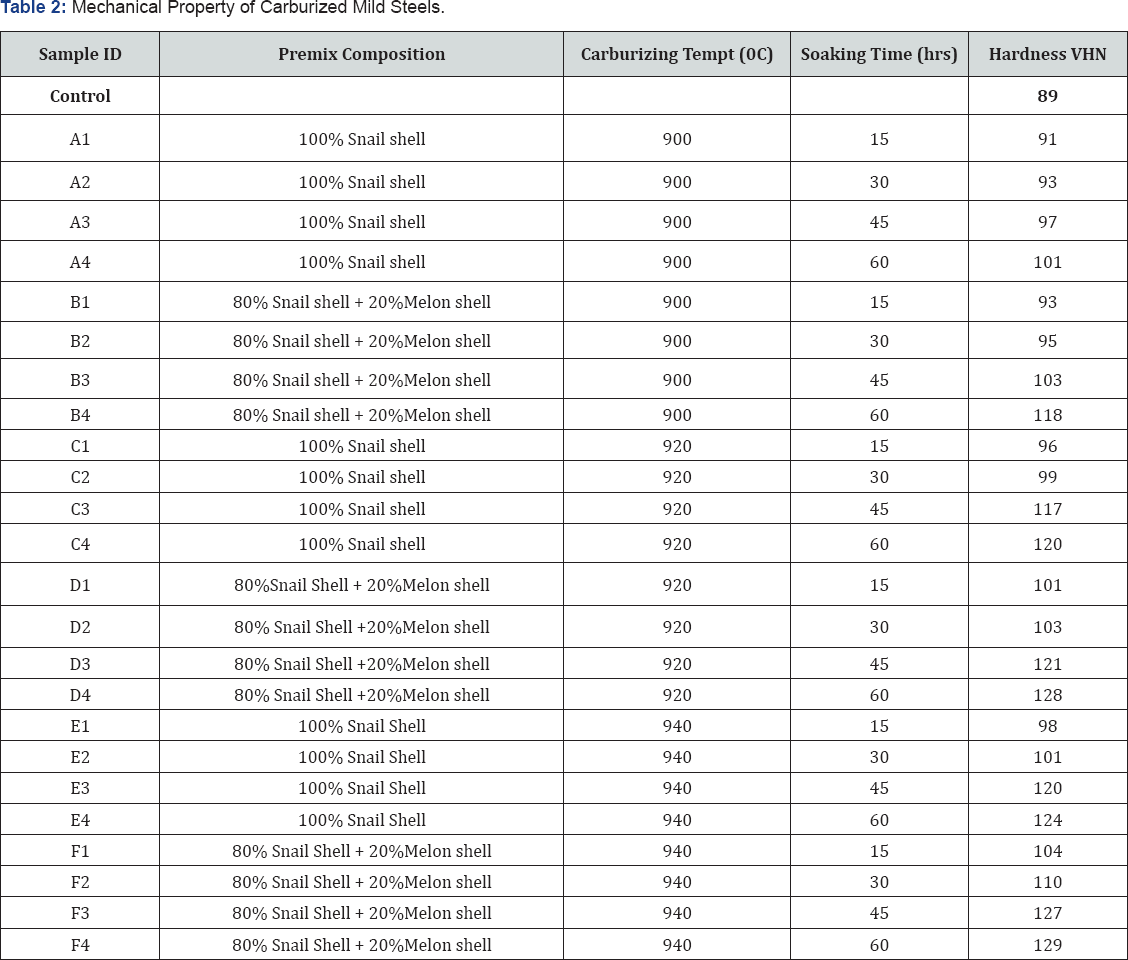

The results obtained from the study are shown in Table 2 and Figure 3 & 4 show the variation of the surface hardness with the process variables (carburizing temperature and soaking time). The micrographs of the un-carburized test specimen and some of the carburized steel specimens are shown in Figures 5-8 and Table 2 shows the effect of carburizing temperature and soaking time on the surface hardness of the carburized mild steel. It is clearly evident in Table 2 that as the carburizing temperature and soaking time was increased from 900 to 9400C at the time intervals of 15, 30, 45 and 60minutes, there was a progressive increase in the surface hardness of all the carburized steel specimens. However, the steel specimens carburized with 80% snail shell wastes plus 20% melon shell wastes had higher surface hardness values than those carburized with 100% snail shell wastes only. This implies that the melon and snail shell wastes mixtures enhances the carbon potential of the carburizing medium which resulted in the higher surface hardness obtained. The melon waste provides carbon while the calcium carbonate in the snail shell gets decomposed at high temperature to play the role of energizer leading to higher carburizing potential [9]. The variation in the surface hardness of the carburized steel specimens is expected since the enrichment of the surface layer of the steel with carbon increases exponentially with temperature and the case depth increases with time although not in direct proportion [3,9,19,20]. Also, the higher the amount of carbon absorbed into the steel, the higher the hardness of the martensite formed. Therefore, the amount of carbon absorbed into the steel at the different carburization temperatures affected the amount, proportion and morphology of the martensite formed during quenching. This is in consonance with reports [12,21,22].

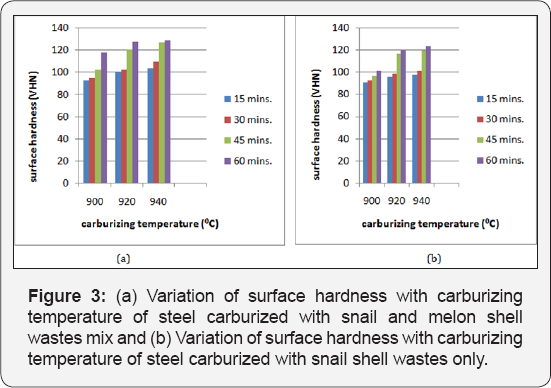

Figures 3a & 3b show the variation of surface hardness with carburizing temperature of the steel specimens carburized with snail and melon shell wastes mix, and snail shell wastes only, respectively. The Figures indicates that as the carburizing temperature was increased from 9000C-9400C, there was a steady increase in the surface hardness values of all the carburized steel specimens. However, it was observed that the steel specimens carburized with the snail and melon shell wastes mix, exhibited higher surface hardness increase than those carburized with snail shell wastes only. The higher surface hardness exhibited by the steel specimens carburized with the melon and snail shell wastes mixtures indicates that the melon and snail shell wastes enhances the carbon potential of the carburizing medium, which in turn resulted in the higher surface hardness obtained. Report [7] stated that the maximum surface hardness that could be attain by any carburized steel depends on the carbon potential of the carburizing material and the quantity of carbon that is absorb at the steel surface. This quantity increases with increase in temperature. The variation in the surface hardness with carburizing temperature implies that temperature has a strong influence on the rate of diffusion. According to report [19] the higher the temperature of heating, the higher the solubility of carbon in austenite iron, and the higher the surface hardness that will be attain by the steel when it is quench in water. This is in agreement with reports [23,24].

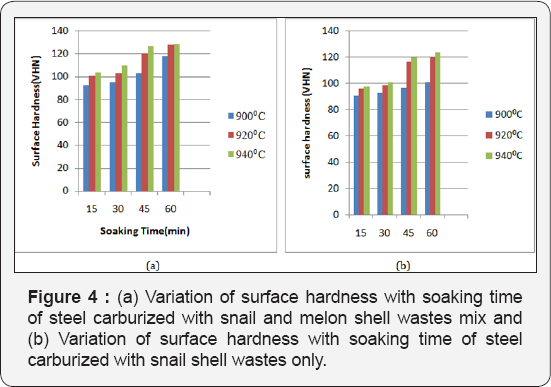

Figures 4a & 4b shows the variation of surface hardness with soaking time of the steel specimens carburized with melon and snail shell wastes mix, and with snail shell wastes only, respectively. The Figures clearly show that at any given carburizing temperature as the soaking time was increased from 15-60 minutes, the surface hardness of the carburized steel specimens' increases. The variation in the surface hardness with soaking time is expected since report [24] stated that at any given temperature, the quantity of carbon absorbed by any carburized steel increases with time. Report [25] stated that, the amount of carbon that could be picked up by steel is a function of time and the available carbon potential in the furnace atmosphere. Therefore, the high carbon potential arising from the snail and melon shell wastes mix is largely responsible for the highly improved surface hardness obtained by the steel specimens carburized in the snail and melon shell wastes mix carburizing medium compared to those carburized in the snail shell wastes carburizing medium. Figure 5 revealed the micrograph of the un- carburized (untreated) as-received. The micrograph indicates the presence of pearlite in ferrite matrix. The coarse grain size of the microstructure clearly accounts for the lower surface hardness of the un-carburized steel specimens as compared to the carburized steel specimens.
Figures 6-8 show the micrographs of the steel specimens carburized at 9000C, 9200Cand 9400C, and soaked for 60 minutes. Theymicrographs consist of tempered martensite and dispersed carbide in ferrite matrix. However, the micrographs of the steel specimens carburized with 80% snail shell wastes plus 20% melon shell wastes revealed the presence of more proportion of tempered martensite with varying degree of dispersed carbide along the ferrite grain boundary as compared to the micrographs of the steel specimens carburized with 100% snail shell wastes only. Hence, the higher surface hardness values obtained by the specimens carburized with snail and melon shell mix.
Conclusion
On the basis of the overall results of the study, the following conclusions have been drawn:
a) The study observed that the surface hardness of all the carburized steel specimens' increases steadily as the carburizing temperature and soaking time was increased. This implies that temperature and soaking time had strong influences on the rate of absorption and diffusion of carbon into the steel surface.
b) It was also observed that the steel specimens carburized with snail and melon shell wastes mixtures exhibited higher surface hardness values than those carburized with snail shell wastes only. This suggests that the melon and snail shell wastes mixtures raised the carbon potential of the carburizing medium.
c) The study has open a new door for the utilization of melon and snail shell wastes mixture as a cheap, readily available and good alternative source of carbonaceous materials to be used alone, without the addition of the highly priced conventional energizers for the surface hardness improvement of mild steel for use in stringent service condition requiring higher surface hardness.
