Quasi-Elastic Determination of Polymeric Material Moduli Using Vibrational OCT
Frederick H Silver*
Department of Pathology and Laboratory Medicine, RWJMS, Rutgers, the State University of New Jersey, USA
Submission: January 01, 2018; Published: January 18, 2018
*Corresponding author: Frederick H Silver, Department of Pathology and Laboratory Medicine, Robert Wood Johnson Medical School, Rutgers, the State University of New Jersey, Piscataway, NJ 08854, USA, Email: silverfr@rutgers.edu/fhsilver@hotmail.com
How to cite this article: Frederick H Silver. Quasi-Elastic Determination of Polymeric Material Moduli Using Vibrational OCT . JOJ Material Sci. 2018; 3(5): 555623. DOI: 10.19080/JOJMS.2018.03.555623
Abstract
The need to non-invasively and non-destructively measure the mechanical properties of tissues and implants has been a goal of researchers for many years. A variety of methods have been used to evaluate the mechanical properties of tissues over the last 40 years including uniaxial and biaxial tensile testing, indentation and rotational tests, ultrasound elastography (UE), optical cohesion tomography (OCT), optical cohesion elastography (OCE), and vibrational analysis combined with OCT. We have developed a test using vibrational OCT to image and estimate the elastic modulus of tissues and implant materials non-invasively and non-destructively. Using images generated by OCT, maps of the estimated elastic modulus as a function of position can be generated that will be useful in marking the margins of scars and tumors as well as to evaluate surface defects on polymeric materials.
Keywords: Collagen; Extracellular matrix; Polymer; Optical coherence tomography (OCT); Vibrational analysis; Vibrational OCT; Modulus; Mechanical properties
Introduction
The need to measure the mechanical properties of tissues and implants has been a goal of researchers since the 1970s. The pioneering work of Yamada [1] and Fung [2] illustrated how difficult this goal would be since the behavior of human extracellular matrix (ECM) depends on strain-rate, Poisson's ratio, direction of testing and is time-dependent [3]. A variety of methods have been used to evaluate the mechanical properties of tissues over the last 40 years including uniaxial and biaxial tensile testing, indentation and rotational tests, ultrasound elastography (UE), optical cohesion tomography (OCT), optical cohesion elastography (OCE), and vibrational analysis combined with OCT [4-6]. Many ofthese techniques require the assumptions that the material is linearly elastic, Poisson's ratio is close to 0.5 and that viscoelasticity does not dramatically affect the resulting properties. However, the behavior of most tissues is that of a non-linear viscoelastic material that has upward curvature to the stress-strain curve. These concerns makes determination of the stiffness (tangent to the stress-strain curve) and other mechanical properties very difficult to quantitatively analyze since the tangent to the stress-strain curve is constantly changing [3,5,6]. However, despite all of these problems, there is a need to be able to characterize the mechanical properties of tissues and implants, since this would give researchers valuable information about the properties of tissues and implants used as medical devices. In this paper, we will discuss the use of vibrational optical coherence tomography to determine the quasi-elastic modulus of implants and tissues.
Measurement of the Modulus of Decellularized Dermis and Implant Materials
The non-linearity of the stress-strain curves of tissues makes determination of the modulus very difficult because the material is non-linear and is viscoelastic. The modulus of a number of extracellular matrices (ECMs) in the past was tested invasively by determination of incremental stress-strain curves. Using incremental stress-strain curves the total stress is divided into elastic and viscous components [3,7]. The results indicate that the elastic modulus is independent of strain-rate for strain rates up to 10,000% per minute [7]; however, to determine the modulus using incremental stress-strain measurements required up to 24hrs between addition of individual strain increments [3,7]. Therefore, this approach is not practical especially in clinical applications. In addition, the test is destructive and invasive since the samples must be cut into strips and tested until failure.
Development of Vibrational Optical Cohesion Tomography (OCT)
Recently, we have reported the use of vibrational analysis and OCT to characterize the mechanical behavior of decellularized human dermis, pig skin, bovine articular cartilage, subchondral bone and silicone rubber [5,6]. Our results indicate that the modulus measured using vibrational OCT and that determined from tensile incremental stress-strain curves for decellularized dermis and silicone rubber had correlation coefficients in excess of 0.95 demonstrating that the modulus measured using vibrational OCT was very similar to the tensile modulus measured using incremental stress-strain curves [5,6].

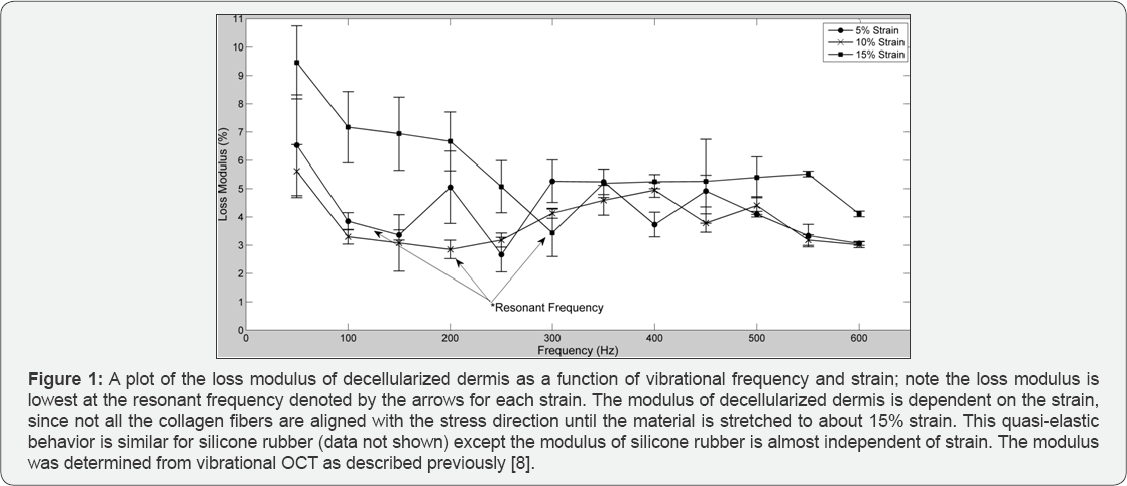

The measured value of the moduli did not depend on an assumed value of Poisson's ratio. Results of studies on decellularized dermis and silicone rubber at frequencies of between 50 and 1000Hz suggested that the viscous component of the modulus measured at frequencies at or above the resonant frequency was 3%-4% [8] (Figure 1). Based on these results the modulus measured using vibrational OCT was considered to be an approximation of the "elastic modulus” and the viscous component was negligible [8]. While the modulus determined from vibrational OCT is an approximation of the elastic modulus it depends on the strain for tissues since not all the collagen fibers are recruited to bear loads at low strains [5,6].
Use of Vibrational OCT to Measure the Moduli of Skin in Vivo
Vibrational OCT has been used to image and measure the mechanical properties of skin and scar tissue in vivo. Results of in vivo vibrational OCT studies suggest that the resonant frequency and modulus of normal skin is lower than that of scar tissue (Figure 2) [9] and that of the margins of a healed scar have a resonant frequency different than that of normal skin. Recent results indicate that the margins of a scar can be mapped using vibrational OCT since the resonant frequencies and moduli seen at the interface reflect both the resonant frequency of normal skin and that of the scar tissue [9].
Conclusion
Using vibrational OCT the resonant frequency and moduli of tissues and implants can be measured non-invasively and non-destructively. The numbers generated reflect to a first approximation a quasi-elastic modulus and do not depend on measurement of other parameters. The loss modulus is only 3 to 4% of the total modulus at frequencies above the resonant frequency. Measurements made using vibrational OCT are calibrated using incremental tensile measurements made on the same sample. Using images generated by OCT, maps of the modulus as a function of position can be generated that will be useful in marking the margins of scars and tumors, stress- concentrations at implant-tissue interfaces, and imperfections on the surface of polymeric materials.
