Post-Surgical Prosthetic Rehabilitation of a Patient after Partial Maxillectomy: A Case Report Report
A Nehir Özden, Mohammed Abujalala*, Ammar Kayssoun and Şifa Atabek
Department of Dentistry, Near East University School of Dentistry, Turkey
Submission: December 28, 2018; Published: January 04, 2019
*Corresponding author: Mohammed Abujalala, Near East University School of Dentistry, Turkey
How to cite this article: A Nehir Ö, Mohammed A, Ammar K, Şifa A. Post-Surgical Prosthetic Rehabilitation of a Patient after Partial Maxillectomy: A Clinical Case Report. JOJ Case Stud. 2019; 9(4): 555769. DOI: 10.19080/JOJCS.2019.09.555769.
This clinical case report describes a method for prosthetic rehabilitation of a patient with malignant cancer of the palate following partial maxillectomy. These findings suggest that an obturator significantly contributes to minimizing postoperative complications and improving the quality of life of maxillectomy patients. In prosthetic treatment, the satisfaction of the patient is related to great understanding and co-operation of the dentist with regard to gaining the necessary confidence of the dentist.
Maureen  clarified that treatment for head and neck cancers has evolved in the last few decades with multiple modality treatments, including radiation and chemotherapy, to improve regional and local disease control, preserve anatomic structures, reduce distant metastasis, and enhance quality of life and overall survival. He also viewed surgery as the first preferred choice for early cancers as well as cancers unresponsive to chemotherapy and radiation and in the salvage form. However, according to Kantas & Rogers  surgery can result in psychological, functional and cosmetic impairment and therefore severely impacting the quality of life for patients. On the other hand, Moser et al.  emphasized that rehabilitation goals are focused on the restorative, supportive, palliative and preventive aspects of treatment.
Keyf  indicated that advanced cancers or trauma destroy structures, which include hard and soft tissues of jaws, oral tissues, facial skeleton, cheeks, lips, eyes, nose and can negatively affect the maxillofacial region. Keyf  remarked that the main objectives of maxillofacial rehabilitation and prosthetics are to construct a prosthesis to cure the defect, improve the function, enhance esthetics, engage the patient in society, and in doing so improve the spirit of the cancer patient, thus contributing to his/her quality of life.
McGregor  suggested that there are three main types of maxillectomy: maxillectomy with loss of orbital support; maxillectomy with preservation of the orbital floor; and maxillectomy with orbital exenteration and ethmoidectomy. Rodrigues  highlighted that the selection of rehabilitation depends on the site, etiology, size, age, severity and the patient’s desires. Goiato et al.  illustrated that nearly 5% of all cancers affect mouth structures: the oropharynx, tongue, nasopharynx and
larynx. After the removal of these lesions, problems relevant to speech, swallowing and chewing may emerge. Moreover, changes in psychosocial function, appearance, and vocational status may negatively affect the patients’ quality of life after surgical intervention.
Beumer & Marunick  clarified that the Surgical obturators may be classified as immediate and delayed surgical obturators. Daniel & Vinod  explained that the defect may appear as a small opening caused by communication of the oral cavity into the maxillary sinus, or it may involve portions of the soft and hard palate, the floor of the nasal cavity and the alveolar ridge. A maxillary obturator was the name given by Danial & Vinod  to the prosthesis constructed to repair the defect. Its placement rehabilitates oronasal separation to increase intraoral pressure and decrease nasal airflow rate.
According to Kanazawa et al. , obturators provide immediate enhancement in intelligibility and speech articulation, voice quality and swallowing that approximates pre-surgical function, enabling the patient to drink and eat immediately. Kanazawa  clarifies that obturator fabrication for edentulous patients is considered a major challenge due to lack of suction and support from the teeth. Therefore, Kornblith  said that the obturator prostheses must achieve certain functions such as protecting the wound or keeping the defective area clean, facilitating food, increasing trauma healing, promoting speech, and improving aesthetics, and helping the remodeling and rebuilding of the palatine contour.
Rodrigues & Saldanha  suggested many different materials used for the fabricating of the hollow obturator. The first material is silicone rubber, which is advantageous in certain clinical situations, although it is porous in nature and has poor durability,
requiring replacement on a regular basis. The second material
is visible light-polymerized resin, but the maximal strength and
long-term durability of these obturators have not been assessed
yet. The third material is heat-processed acrylic resin, which is
one of the most durable, tissue-compatible materials presently
for the fabrication of the prosthesis.
A 66-year-old male patient, diagnosed with malignant
cancer of the maxilla, had undergone a partial maxillectomy and
was referred to the Department of Prosthodontics, Near East
University, Faculty of Dentistry, North Cyprus (Figure 1).
On examination of the defect, it was noted that the partial
maxillectomy was done and we found that the defect included hard
and soft tissue of the maxilla, presence of anterior residual ridge
(canine to canine) and tooth #12, #13. The patient had difficulty
in speaking and could not eat or swallow properly. To minimize
postoperative complications, the first prosthesis was placed.
The second phase of treatment included an interim obturator.
When the patient was examined four weeks later, the healing
was satisfactory for the placement of the interim obturator. The
interim obturator functional prosthesis facilitates proper healing.
When the surgical site had completely healed (3-6 months postsurgically)

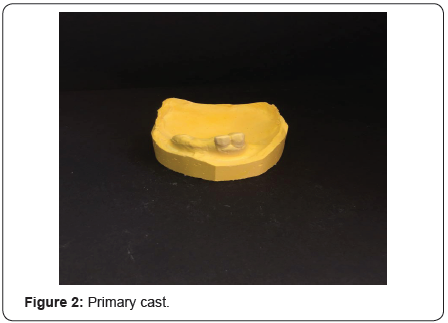

a definite prosthesis was placed (Figure 2).
It was decided to use a heat-polymerizing acrylic resin
prosthesis, the expectations of this prosthesis were explained to
the patient and to prevent any trauma to the underlying tissue,
undercuts at the surgical site were blocked with vaselinized gauze.
An irreversible hydrocolloid was used to make an impression of
the defect area. The impression was removed and poured into a
Type III dental stone and the final cast was obtained, on which a
custom tray was made using a self-curing auto-polymerizing resin.
All undercuts on the cast were blocked out with plaster
and wax. The final denture base and occlusal wax rims were
prepared to record maxillomandibular relations. The record was
articulated, and teeth arrangement was performed (Figure 3). All
the undesired undercuts were blocked, jaw relation was recorded,
and tooth arrangement was completed.
The pressure areas were relieved, and the peripheral seal of
the prosthesis was tested by making the patient drink and eat
without any resultant leakage into the nose. The prosthesis was
delivered to the patient and he was instructed on home care and

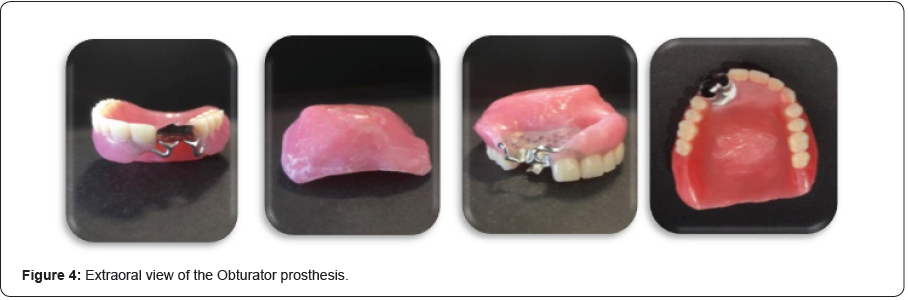

prosthesis maintenance (Figure 4 & 5). The patient was instructed
to gently remove any exudates with a wet cotton tip soaked with
a 5% Betadine solution and to clean the intaglio surface of the
prosthesis once a day. Post treatment photographs showed a
marked improvement of the patient in the aesthetics sense due to
replacement of the missing teeth and the solution of the maxillary
This clinical report describes a method for prosthetic
rehabilitation of a patient with malignant cancer of the palate
following partial maxillectomy. Maxillectomy, the total or
partial removal of the maxilla, creates a challenging defect for
the maxillofacial prosthodontist when attempting to provide
an effective obturator. These findings suggest an obturator
significantly contributes to improving the quality of life of
The literature says, that both types of obturators allow for
the fabrication of a lightweight prosthesis that is readily tolerated
by the patient, while effectively closing the defect. In prosthetic
treatment, the satisfaction of the patient is related to the dentist’s
psychological attitude in regard to gaining his confidence “but
great understanding and cooperation on the patient’s part is
