Review Article

Short and Medium-Terms Outcomes of Endovascular Treatment of Atheromatous Lesions of the Femoral Artery Bifurcation: A Systematic Review

Gaye M¹*, Diatta S¹, Diop MS¹, Sow NF¹, Diagne PA¹, Ba Salmane¹, Dieng PA¹, Boufi M², Ndiaye A¹ and Ciss AG¹

¹Department of Thoracic and Cardiovascular Surgery- Fann CHNU, Senegal

²Department of Vascular Surgery, North Hospital of Marseille, France

Submission: August 29, 2019;Published:September 16, 2019

*Corresponding author: Magaye Gaye, Department of Thoracic and Cardiovascular Surgery, Fann CHNU BP 5035, Senegal

How to cite this article:Gaye M, Diatta S, Diop MS, Sow NF, Diagne PA, Ba Salmane, Dieng PA, Boufi M etc all. Short and Medium-Terms Outcomes of Endovascular Treatment of Atheromatous Lesions of the Femoral Artery Bifurcation: A Systematic Review. J Cardiol & Cardiovasc Ther. 2019; 14(5): 555900. DOI: 10.19080/JOCCT.2019.14.555900

Abstract

The objective of this literature review is to evaluate the short- and medium-term results of endovascular treatment of atheromatous lesions of the femoral arterial bifurcation. To do this, we used the PRISMA method. This last allowed us to collect 13 articles.

The average age was 70-11 years with 67.7% claudicants. Stenting was performed in 40% of patients. In the short term, the technical failure rate is 5% and the 30-day mortality rate is 1.2%. In the medium term, the overall primary patency rate at 1 and 2 years was 78% and 75%, respectively.

These results of endovascular surgery of the femoral tripod should be interpreted with caution because of the variety of procedures adopted by the different teams.

Keywords: Femoral artery bifurcation; Endovascular; Atheromatous; Outcomes; Stenting

Abbreviations:TLR: Target Lesion Revascularization; TER: Target Extremity Revascularization; CFA: Common Femoral Artery; SFA: Superficial Femoral Artery; PFA: Profound Femoral Artery.

Introduction

Endovascular treatment has become, in the last two decades, as an alternative to conventional surgery for the treatment of both aortic and peripheral arterial diseases. The limits of these endovascular therapies are constantly being repulsed and the femoral arterial bifurcation (femoral tripod) is one of the examples that illustrates the extension of indications to territories previously considered to be contraindicated. Although femoral tripod open surgery is the gold standard for atheromatous lesions [1], it remains associated with a postoperative mortality of 3.4% [2] and a significant local complication rate, ranging between 6.6%. and 28.3% according to the literature, with type of surgical site infection, hematoma, lymphorrhaea and paresthesia [2-4] requiring reintervention in more than one third of cases [5].

The postoperative morbidity and mortality associated with this surgery on the one hand and the minimally invasive character of the endovascular treatment on the other hand, have led some authors to seek an alternative to surgery and to report the results of their endovascular approach experiments, at the level of the femoral tripod. Actually, the respective place of endovascular treatment and surgery, in the management of occlusive lesions of the femoral tripod, remains controversial between the proponents of surgery who argue for a better long-term permeability: primary and primary patency assisted at 5 years of age respectively by 91% and 100% [6]; and advocates of endovascular treatment who emphasize the reduction of mortality, morbidity and length of stay [1]. Different endovascular approaches (simple angioplasty, cutting balloon, atherectomy, stenting) have been proposed but no consensus exists on the optimal technique. Thus, this work aims to take stock of the outcomes of endovascular treatment at the level of the femoral tripod, through a systematic review of the literature.

Materials and Method

This review of the literature was performed in accordance with the P.R.I.S.M.A recommendations (Preferred Reporting Items for Systematic Review and Meta-Analyzes). The studies are identified through an electronic search on the “Embase” and “MEDLINE” databases between 2000 and 2017.

The following terms: “atherosclerosis”, “peripheral artery disease”, “intermittent claudication”, “limb ischemia” , “Stenosis”, “occlusion”, “endovascular”, “angioplasty”, “balloon”, “stent”, “common femoral artery”, were used in combination with the Boolean operators AND or OR. Two independent observers reviewed the abstracts of the publications to determine the eligibility of the studies for inclusion.

Inclusion criteria include:
1) studies reporting 10 or more patients treated.
2) for atheromatous lesions of the common femoral artery.
3) endovascular.
4) These lesions may be isolated or associated with iliofemoro- popliteal lesions.
5) Short-, medium- or long-term results should be clearly described.

Exclusion criteria include:
1) Clinical cases and series of fewer than 10 patients,
2) Treatment of restenosis or traumatic injury,

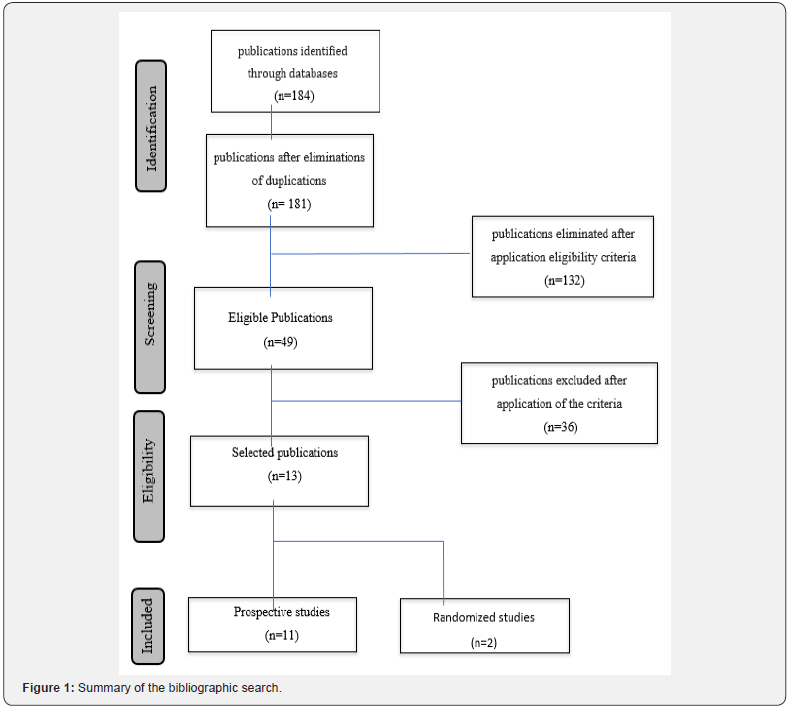

3) Series reporting a mix of femoral, iliac and femoropopliteal lesions (Figure 1).

The following data is collected from each selected article: a. Age,
b. Preoperative data including indication, topography, length of lesions, proportion of complete occlusion and proportion of severe calcification;
c. Intraoperative data including: the percentage of stenting and the type of stent used;
d. Short-term results: technical failure rate, mortality and morbidity at 30 days;
e. The results in the medium or long term: duration of follow-up, primary permeability rate, assisted primary and secondary, re-intervention rate at the target lesion (TLR), restenosis rate and stent fracture.

Results

From the 184 abstracts initially identified by the electronic bibliographic search, 49 were eligible. After careful analysis of the corresponding articles, 12 publications fulfilling all of our inclusion criteria were selected for this systematic review. We had as a result of our research 184 publications on the surgery of the common femoral artery. Forty-nine publications dealt with endovascular surgery of the common femoral artery. According to our exclusion criteria, we selected 13 publications. The latter consisted of 11 retrospective studies and two prospective randomized studies; with a total of 2011 procedures.

Pre and intraoperative results:

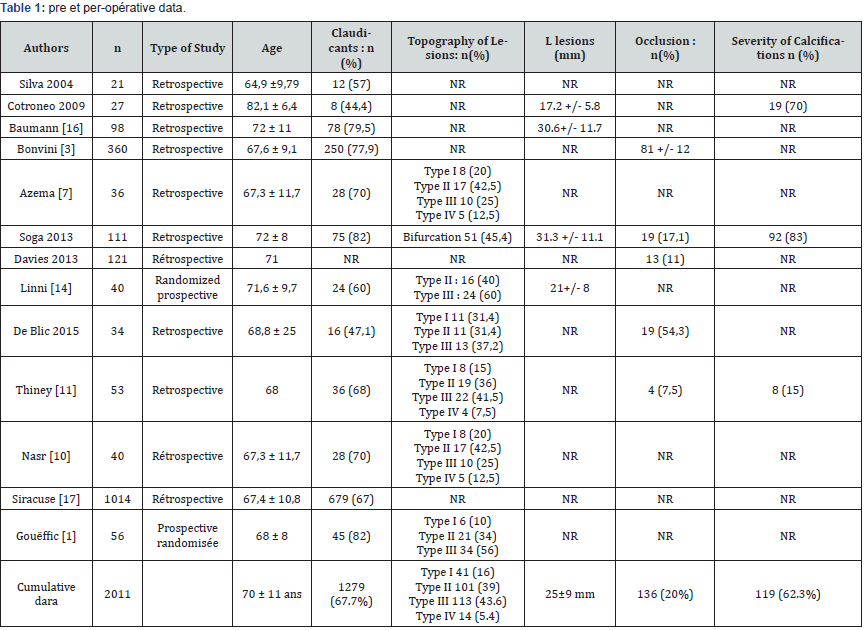

The average age was 70 ± 11 years old. The claudicant population accounted for 67.7%. The average lesion length of the femoral tripod was 25 ± 9mm. According to our modified classification of Azema et al. [7] 50% of the lesions are classified as type III and IV (interesting femoral artery bifurcation) (Table 1).

NR: not reported; BE: balloon-expansible; AE: auto-expansible; BioA: bioabsorbable.

With the exception of two studies reporting cutting-balloon angioplasty results and angioplasty-associated atherectomy, the technique used in most studies was angioplasty with or without stenting. In total the proportion of stenting is 40% of procedures. Four studies consistently performed angioplasty plus stent for all treated patients.

Short and medium terms results

In total, the technical failure rate is 5% ranging from 0 to 10%, with a 30-day mortality rate of 1.2% (0 to 5%).

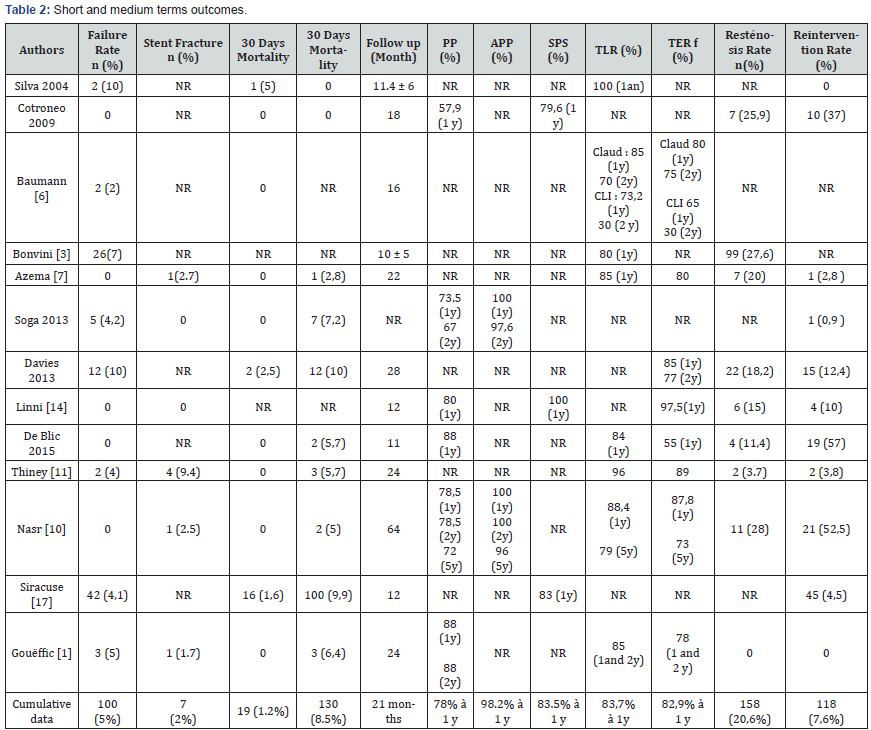

During the follow-up period, which averaged 21 months (10 to 64 months), stent fractures were observed in 2% of cases and restenoses noted in 20.6%. The reoperation rate reported at the end of this follow-up period is 7.6%. Thus, the overall primary patency rate at 1 and 2 years was 78% and 75%, respectively. The overall primary assisted patency rate at 1 and 2 years was 98.2 and 98%, respectively, while the secondary patency was 83.5% at 1 year (Table 2).

Discussion

Endovascular treatment of femoral tripod lesions is a recent approach advocated by some authors but not yet commonly accepted as the technique of choice for these lesions. The advantages of this technique demonstrated by the two randomized studies [1,8] and confirmed by our review of the literature, are lower mortality and morbidity compared to conventional surgery. Our work reports an overall mortality rate of 1.2% and morbidity of 8.5% after endovascular treatment, whereas they are respectively 3.4% and 37% for endarterectomy [2,9]. However, in the medium term, the results of primary, assisted primary and secondary permeabilities seem to favor surgery. Indeed, our systematic review shows a primary and primary assisted patency rate at 2 years respectively of 75% and 98% and a secondary patency rate at 1 year of 83.7%. These data contrast with those of endarterectomy whose primary patency at 1 year is 100% and that at 5 years of 82.5% [5]. It should be noted that the duration of follow-up of the “endovascular” series is relatively short (mean <2 years) with the exception of the Nasr et al. [10] study which reports results at 64 months [11]. In addition, TLR (Target Lesion Revascularization) and TER (Target Extremity Revascularization), which are used by most “endovascular” series, are not used in open surgery. According to this systematic review, the percentage of intervention following endovascular treatment is 7.6%. The latter are mainly related to thrombosis of the common femoral artery after angioplasty or intra-stent restenosis [8]. The rate of restenosis is not often evaluated after endarterectomy. Those found are relatively weak: Kuma et al. [12] reported 0.8% of restenosis and Nishibe et al. [13] evaluated it at 5.2%. The rate of reintervention in relation to postoperative complications, technical failures and restenosis are important after endovascular surgery. Nasr et al. [10] has recovered more than half of its series with 52.5% of reinterventions and Linni et al. [14] with 57%. Moreover, the reintervention, after endarterectomy, is weak with 1.8% for Kechagias et al. [15], 10.8% for Nguyen et al. [2] and 5% for Kang et al. [6].

These results of endovascular surgery of the femoral tripod should be interpreted carefully because of the variety of procedures adopted by the different teams. Azema et al. [7] advocate the eviction of stent deployment on the segment of the common femoral artery with respect to the hip-femoral joint, to avoid stent fracture hence its classification. Thus, type III should benefit from first-line angioplasty. The use of a single stent is recommended in the treatment of lesions of the femoral artery bifurcation. On the other hand, for Bonvini et al. [3], the use of the stent is identified as the only independent protective factor against the failure of the procedure, the TER and restenosis, at 1 year. Baumann et al. [16] found more satisfactory results in the group that benefited from stent implantation in terms of clinical improvement. Linni K [14] concludes that bioabsorbable stents are not a good option for calcified occlusive lesions of the femoral tripod due to the lack of satisfactory radial force. In addition, the frequent presence of osteoid metaplasia in the femoral tripod, which is a mature bone structure, often compromises the procedure [1]. Indeed, the dexterity of the endovascular surgeon, his equipment and the technical choice are independently related to the reduction of the risk of technical failure with an odds ratio of 0.2 [3]. In addition, the use of new generations of Nitinol stents should make it possible to treat periarticular vascular segments because of their resistance to compression and fracture, under the constraint of physiological torsion [8]. In total, the indication of stenting has no consensus in the literature. It should be noted that the stenting technique concerning the bifurcation has not been clearly defined by the quasi-majority of authors. Only Thiney et al. [10] describe their technique with the use of a single stent between Common Femoral Artery (CFA) and Superficial Femoral Artery (SFA) covering Profound Femoral Artery (PFA) or between CFA and PFA covering SFA; and their two-stent technique: one in the CFA extending into the SFA and one in the PFA without overlap [17].

Conclusion

The less satisfactory outcomes of endovascular treatment in the medium term are related to the lack of technical consensus on the choice between angioplasty and/or stenting and the anatomical particularity of the femoral tripod. The latter should be taken into account when considering therapeutic choices, like coronary bifurcations for interventional cardiology.

References

1. Gouëffic Y, Della Schiava N, Thaveau F, Rosset E, Favre JP, et al. (2017) Stenting or surgery for de novo common femoral artery stenosis. JACC Cardiovasc Interv 10(13): 1344-1354.
2. Nguyen BN, Amdur RL, Abugideiri M, Rahbar R, Neville RF, et al. (2015) postoperative complications after common femoral endarterectomy. J Vasc Surg 61(6): 1489-1494.
3. Bonvini RF, Rastan A, Sixt S, Noory E, Schwarz T, et al. (2011) Endovascular treatment of common femoral artery disease: medium term outcomes of 360 consecutive procedures. J Am Coll Cardiol 58(8): 792-798.
4. Ballota E, Gruppo M, Mazzalai F, Da Giau G (2009) Common femoral artery endarterectomy for occlusive disease: an 8-year single center prospective study. Surgery 147(2): 268-274.
5. Wieker CM, Schonefeld E, Osada N, Lührs C, Beneking R, et al. (2016) Results of common femoral artery thromboendarterectomy evaluation of a traditional surgical management in the endovascular era. J of Vasc Surg 64(4): 995-1001.
6. Kang JL, Patel VI, Conrad MF, Lamuraglia GM, Chung TK, et al. (2008) Common femoral artery occlusive disease: Contemporary results following surgical endarteriectomy. J Vasc Surg 48(4): 872-877.
7. Azema L, Davaine JM, Guyomarch B, Chaillou P, Costargent A, et al. (2011) Endovascular repair of common femoral artery and concomitant arterial lesions. Eur J Vasc Endovasc Surg 41(6): 787-793.
8. Zhang F, Doug L, Ge J (2009) Simple versus complex stenting strategy for coronary artery bifurcation lesions in the drug-eluting stent era: a meta-analysis of randomized trials. Heart 95(20): 1676-1681.
9. Stricker H, Jacomella V (2005) Stent-assisted angioplasty at the level of the common femoral artery bifurcation: midterm outcomes. J Endovasc Ther 11(3): 281-286.
10. Nasr B, Kaladji A, Vent PA, Chaillou P, Costargent A, et al. (2017) Long-term outcomes of common femoral artery stenting. Ann Vasc Surg 40: 10-18.
11. Thiney PO, Millon A, Boudjelit T, Della Schiava N, Feugier P, et al. (2015) Angioplasty of the common femoral artery and its bifurcation. Ann Vasc Surg 29(5): 960-967.
12. Kuma S, Tanaka K, Ohmine T, Morisaki K, Kodama A, et al. (2015) Clinical outcome of surgical endarterectomy for common femoral artery occlusive disease. Circ J 80(4): 964-969.
13. Nishibe T, Maruno K, Iwahori A, Fujiyoshi T, Suzuki S, et al. (2015) The role of common femoral artery Endarterectomy in the endovascular era. Ann Vasc Surg 29(8): 1501-1507.
14. Linni K, Ugurluoglu A, Hitzl W, Aspalter M, Hölzenbein T (2015) Bioabsorbable stent implantation vs common femoral artery endarterectomy: early results of a randomized trial. J Endovasc Ther 21(4): 493-502.
15. Kechagias A, Ylonen K, Biancari F (2008) Long-term outcome after isolated Endarterectomy of the femoral bifurcation. World J Surg 32(1): 51-54.
16. Baumann F, Ruch M, Wilenberg T, Dick F, Do DD, et al. (2011) Endovascular treatment of common femoral artery disease. J Vasc Surg 53(4): 1000-1006.
17. Siracuse JJ, Van Orden K, Kalish JA, Eslami MH, Schermerhorn ML (2017) Endovascular treatment of the common femoral artery in the Vascular Quality Initiative. J Vasc Surg 65(4): 1039-1046.
