Research Article

First Experience with Cryo-Balloon Ablation of Atrial Fibrillation. A Case Report

Samir Rafla*, Ahmed Mokhtar, Eman El Sharkawy, Tarek El Zawawy and Moustafa Nawar

Faculty of Medicine, Alexandria University, Egypt

Submission: April 23, 2019; Published: May 24, 2019

*Corresponding author: Samir Rafla, Faculty of Medicine, Alexandria University, Egypt

How to cite this article:Rafla S, Mokhtar A, El Sharkawy E, El Zawawy T, Nawar M. First Experience with Cryo-Balloon Ablation of Atrial Fibrillation. A Case Report. J Cardiol & Cardiovasc Ther. 2019; 14(1): 555877. DOI: 10.19080/JOCCT.2019.14.555877

Abstract

We compared the efficacy and safety of radiofrequency with cryothermal energy in catheter ablation of patients with paroxysmal AF. The study included 24 consecutive patients with highly symptomatic paroxysmal AF (PAF) refractory to at least 1 class of antiarrhythmic drugs. Group I radiofrequency ablation and group II cryoballoon ablation (each group consists of 12 patients). Exclusion criteria: Patients <18 years, Structural heart disease (hypertrophic cardiomyopathy, left ventricular ejection fraction < 35%, significant valvular heart disease, LA size >50 mm), reversible causes of AF, intracardiac thrombus, inability to take oral anticoagulants, additional ablation lines other than cavotricuspid isthmus (CTI) and Repeat AF ablation. Transseptal puncture was performed under fluoroscopic guidance, one for the cryoballoon and two for the RF ablation.

Results: The two groups were matched regarding the demographic data and pre-procedural risk factors. PVI was successfully achieved in all cases; there was a significant difference in procedure duration and fluoroscopy time between the two groups. Mean procedural time for the RF group was 171.2 ± 17.4 min and it was significantly longer than the CB group in which the mean procedure time was 127.9 ± 23.5 min (P >0.001). Regarding the fluoroscopy time, it was significantly longer in the RF group compared to the CB group (61.42 ± 17.6 min vs. 45.7 ± 9.8 min, P=0.014). Regarding the efficacy defined as freedom from Atrial fibrillation and atrial tachycardia lasting more than 30 secs after the blanking period, 3 cases 25% had recurrence in the form of AF in two cases and AT in one case in the RF group, while in the CB group one case 8.3% have recurrence in the form of AF (P not significant). Regarding to the safety, transient Phrenic nerve palsy (PNP) occurred in one case (8.3%) in the CB group compared to 0% in the RF group. Symptomatic PV stenosis occurred in one case (8.3%) in the RF group compared to 0% in the CB group. Vascular access complications in the form of hematoma not requiring blood transfusion or intervention were the same in both groups, 16.7 % of cases in each group- (P=1.00), no major vascular complication occurred. Among the 4 cases with recurrence of AF and AT, the most important predictors of recurrence were LA dimension and AF duration before the procedure.

Conclusion: Radiofrequency ablation and cryoballoon are effective in treating paroxysmal AF with similar success rate and similar safety profile. Cryoballoon is a good alternative that has a short learning curve and can result in more standardized results. Cryoballoon significantly reduces the AF ablation procedure time and radiation exposure. Longer AF durations and larger atrial dimensions are strong predictors of AF recurrence regardless the ablation source used.

Keywords: AF ablation; Cryoballoon; Radiofrequency ablation

Introduction

Atrial fibrillation (AF), the most common form of cardiac arrhythmia, is associated with a risk of associated complications such as stroke and heart failure, in addition to a higher rate of mortality [1]. The economic burden of AF is expected to increase dramatically [2].

The pathophysiology of AF is complex and multifactorial. Triggers from inside the pulmonary veins (PV) are accepted as source of paroxysmal AF [3]. Pulmonary vein isolation (PVI) represents the basis of catheter ablation of paroxysmal AF [1]. Catheter ablation of AF is recommended for symptomatic improvement in patients with recurrent highly symptomatic drug refractory paroxysmal AF when done by experienced operators [1-3]. The aim is to have complete durable transmural isolation ablation line.

Radiofrequency (RF) and cryo-energy are the most commonly used energy sources for AF ablation [1]. RF results in ablation by conduction of alternating electric current into the tissues resulting in its dissipation as heat. This heating will cause coagulative necrosis of the tissues and fibrous tissue formation [1]. Cryothermal energy is an alternative energy source. The mechanism of tissue injury originates from tissue freezing with ice crystals formation inside the cell causing cell membranes disruption and cell death [1]. Several trials have compared both technologies in ablation of paroxysmal and persistent forms of AF with comparable efficacy and safety results.

The aim of the current study was to compare the two source of energy in patient with paroxysmal AF as an initial experience in AF ablation in the electrophysiology unit, cardiology and angiology department, Alexandria University.

Materials and Methodology

The study included 24 consecutive patients with highly symptomatic paroxysmal AF (PAF) refractory to at least 1 class of antiarrhythmic drugs, referred for catheter ablation in the electrophysiology unit, department of cardiology and angiology, Alexandria university hospital.

They were assigned into either of the following two groups: group I for radiofrequency ablation and group II for cryoballoon ablation (each group consists of 12 patients). Patients were eligible for the study if they were able and willing to give written, informed consent, had a history of symptomatic paroxysmal AF, were refractory to at least 1 of class I or III antiarrhythmic drug and were undergoing a first PVI procedure.

Exclusion criteria

Patients <18 years, Structural heart disease (hypertrophic cardiomyopathy, left ventricular ejection fraction < 35%, significant valvular heart disease, LA size >50 mm), reversible causes of AF, intracardiac thrombus, inability to take oral anticoagulants, additional ablation lines other than cavotricuspid isthmus (CTI) and Repeat AF ablation.

Preprocedural: All patients were subjected to History taking, clinical examination, electrocardiographic evaluation, transthoracic echocardiographic evaluation and transesophageal echocardiographic (TEE) evaluation.

PVI procedure

Procedures were performed under mild sedation or general anaesthesia. Deflectable decapolar catheter was placed in the coronary sinus (CS) through transfemoral venous access. Transseptal puncture was performed under fluoroscopic guidance, one for the cryoballoon and two for the RF ablation. A bolus of unfractionated heparin 70IU/kg followed by continous IV infusion to maintain activated clotting time (ACT) more than 300 s.

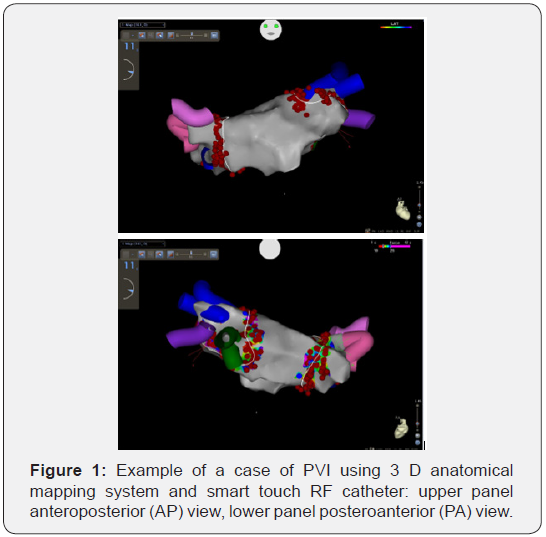

Group I (RF ablation): Circular mapping catheter was placed sequentially within each of the 4 PV antra to record baseline electric activity (PV potentials). Irrigated 3.5 mm tip mapping and ablation catheter (Ezsteer or Smart touch catheter, Biosense Webster) was used to create wide antral circumferential RF ablations across ipsilateral PVs without additional LA ablation lines (Figure 1). Assessment of PVI using circular mapping catheter was checked 20 minutes after ablation with pacing maneuver to confirm exit and entrance block.

Group II (cryoballoon CB ablation): Flex Cath sheath was advanced into the LA through the traansseptal puncture. Second generation cryoballoon catheter was introduced through the sheath, inflated and advanced to the ostium of each PV. Assessment of complete PV occlusion using venous angiogram and confirmed by absence of leak (Figure 2). Freezing was applied in each vein to reach a temperature less than -400C and continued for at least 120 msec from the documented PV isolation time. Monitoring of phrenic nerve palsy during ablation of right PV was done by pacing of the right phrenic nerve using quadripolar catheter in the superior vena cava. Assessment of PVI using Achieve circular mapping catheter and was checked 20 minutes after ablation (Figure 3 & 4).

Postablation Follow-Up and Outcomes: All patients were discharged home next day after the procedure. Patients continued anticoagulation with NOAC or warfarin for a minimum of 3 months. Further anticoagulation was decided according to the individual patient CHA2DS2 VASC score. Antiarrhythmic medications (class I or class III AADs) were continued for 3 months post ablation. Patients were followed up in the outpatient clinic with clinical, 12-lead ECG and 24-h Holter monitoring at 3- and 6-months post ablation and upon symptomatic events. The procedure end point was PV isolation confirmed with entrance and exit block. The short and intermediate term efficacy was the freedom from AF or atrial flutter/tachycardia lasting more than 30 secs in the absence of antiarrhythmic drug therapy. A blanking period of 3 months after the initial ablation was used during which any tachycardia occurrence was noted counted as recurrence. The safety endpoints were comparison of significant adverse effects between the two groups.

Statistical Methods

Data were analyzed using the Statistical Package for Social Sciences (SPSS ver.20 Chicago, IL, USA). Quantitative data were described using mean, standard deviation. Qualitative data were described using number and percent. Comparing quantitative normally distributed variables between 2 groups was done using Independent samples t test, and Mann Whitney U test was used for non-parametric data. Pearson Chi square used to compare 2 × 2 categorical variables, and Fisher’s Exact test when if >20% of cells had expected cell count less than 5. And in > 2×2 table we used Monte Carlo significance test if >20% of cells had expected cell count less than 5. In all statistical tests, level of significance of .05 used, below which the results considered to be statistically significant.

Results

The two groups were matched regarding the demographic data and pre-procedural risk factors. Table 1 shows demographic data of the patients and preoperative risk factors.

PVI was successfully achieved in all cases; there was a significant difference in procedure duration and fluoroscopy time between the two groups. Mean procedural time for the RF group was 171.25± 17.468 min and it was significantly longer than the CB group in which the mean procedure time was 127.92± 23.593 min (P >0.001). Regarding the fluoroscopy time, it was significantly longer in the RF group compared to the CB group (61.42± 17.625 min vs. 45.75± 9.891min, P=0.014).

Regarding the efficacy defined as freedom from Atrial fibrillation and atrial tachycardia lasting more than 30 secs after the blanking period, 3 cases 25% had recurrence in the form of AF in two cases and AT in one case in the RF group, while in the CB group one case 8.3% have recurrence in the form of AF and this was statistically insignificant (P=0.590).

Regarding to the safety end points, Table 2 describes the important procedure related complications. Transient Phrenic nerve palsy (PNP) occurred in one case (8.3%) in the CB group compared to 0% in the RF group, (P=1). Symptomatic PV stenosis occurred in one case (8.3%) in the RF group compared to 0% in the CB group, (P=1). Vascular access complications in the form of hematoma not requiring blood transfusion or intervention were the same in both groups, 16.7 % of cases in each group- (P=1.00), no major vascular complication occurred.

Among the 4 cases with recurrence of AF and AT, the most important predictors of recurrence were LA dimension and AF duration before the procedure (Table 3). The mean left atrial dimension associated with AF recurrence was 48.25±2.217 mm compared to 41.95±4.478 mm in those who remained in sinus rhythm, P value= 0.020. AF duration longer than 10 years was strongly associated with AF recurrence, mean duration in cases with AF recurrence was 10.75±3.594 years compared to 4.45±2.502 years in case with sinus rhythm, P value=0.007.

Discussion

In this study, 24 cases of paroxysmal AF refractory to medical treatment were non-randomly assigned to either RF or CB ablation of AF. Both ablation technologies were equal regarding the safety and efficacy with insignificant difference in incidence of AF and AT. Freedom from AF and AT was 75% and 91.7% in the RF and CB groups respectively with no statistical significance. These data are consistent with a lot of data from previous trials and meta-analysis.

In our study, there was a significant difference between both technologies regarding the procedure duration and fluoroscopy time. This could be explained by the more rapid single application of the balloon compared to point by point energy application in the RF technology. Another important cause for shorter duration is the easier learning curve required for the cryoballoon that leads to rapid acquisition of the skills and more standardized results. In the contrary, RF AF ablation needs more sophisticated technical skills and more cumulative learning experience that usually acquired with larger number of procedures and longer training periods to be familiar with the 3-D anatomical mapping system and quicker in effective durable ablation line formation.

In Wasserlauf et al. [4], procedure times were shorter with CBA (192.9 ± 44.0 minutes vs 283.7 ± 78.0 minutes in the RFA, P < 0.001).

In Aryana et al. [5], CB ablation was associated with shorter procedure time (145± 49 minutes vs. 188± 42 minutes in the RFA, P < 0.001).

In the FIRE AND ICE trial Kuck KH [6], the mean total procedure time was shorter in the cryoballoon group than in the radiofrequency group (124 vs. 141 minutes, P<0.001), as was the left atrial dwell time (the length of time the catheter was present in the left atrium during the procedure) (92 vs. 109 minutes, P<0.001).

In Hunter et al [7], Procedure time was 211 minutes for RFCA compared to 167 minutes for CRYO and 278 minutes for COMBINED (P < 0.001).

In the Meta-analysis by Cardoso et al. [8], procedural time was significantly lower among patients who underwent CB ablation (P < 0.01).

Chen et al. [9] found that compared with non-CF-RF, CB1 and CB2 both showed a significant reduction in procedural time, while when comparing CB with CF-RF no statistically significant difference was found in procedural time.

In contrast, Jourda et al. [10] found that the duration of the procedure was significantly lower in the CF group compared to CB2 (110.7+ 32.5 vs. 134.5+ 48.3 min, P > 0.001).

When it comes to the fluoroscopy time, a large heterogeneity was found among the published data. Some authors reported shorter duration in the RF compared to CB. Others reported shorter duration with the CB. We think that the cause of the variability of the fluoroscopy time is strongly related to operator’s experience in both systems. In other words, we think that those who are expert in 3-D anatomical mapping systems rely more on the 3-D map rather than the Fluoroscopy. Operators who are in the early steps of 3-D anatomical mapping training tend to rely more on the Fluoroscopy.

In the view of the rapid learning curve in the CB compared to RF, we expect operators that initiate both technologies in the same time will have shorter fluoroscopy time in the CB procedures. The reverse is expected in those with previous experience in the RF systems before initiating CB program.

In our study, the fluoroscopy time was significantly longer in the RF group compared to the CB group (61.42± 17.625 min vs. 45.75± 9.891min, P=0.014). We think that this is linked to our primitive steps in the RF AF ablation program.

In Wasserlauf et al. [4] total fluoroscopy times were shorter in the CBA compared to RFA (46.0 ± 22.4 minutes vs 73.0 ± 30.1 minutes, P < 0.001). They stated that the main findings of this study were that an early experience with CBA for AF was associated with decreased procedure and fluoroscopy times compared to RFA. Of note, although operators were early in their experience with CBA and already experienced with RFA, CBA was still associated with shorter procedure and fluoroscopy times.

In a meta-analysis by Junxia et al. [11] the overall analyses indicated that cryoballoon ablation significantly reduced fluoroscopic time and total procedure time by a weighted mean of 14.13 (P = 0.014) minutes and 29.65 (P = 0.006) minutes compared with radiofrequency ablation, respectively.

On the other hand, Aryana et al. [5] found that CB was associated with greater fluoroscopic utilization compared to RFA (29 ± 13 minutes vs. 23 ± 14 minutes; P < 0.001).

Jourda et al. [10] found that CF-RF was associated with a lower duration of fluoroscopy compared to CB (21.5+ 8.5 vs. 25.3+ 9.9 min, P = 0.017).

In the FIRE AND ICE trial, the mean total fluoroscopy time was shorter in the radiofrequency group than in the cryoballoon group (17 vs. 22 minutes, P<0.001).

Other data suggest that there is no significant difference in the fluoroscopy duration between both technologies. In the FreezeAF trial [12], the x-ray duration was very similar in both groups (median, 24 minutes in RF and 25.5 minutes in CB; P=0.632). In the meta-analysis done by Cardoso et al. [8] fluoroscopy duration was not significantly different between both groups. In a metaanalysis by Chen et al. [9] there was no statistically significant difference in the fluoroscopy duration between CF-RF and CB2. In the meta-analysis done by Buiatti et al. [13], Ablation procedures performed with CB vs. RF displayed a comparable fluoroscopy duration (range 17 – 61 min vs. 18 – 73 min; P = 0.60). There was a high heterogeneity for this risk estimate.

In the current study, AF recurrence was strongly associated with longer AF duration and larger left atrial dimension. The mean left atrial dimension associated with AF recurrence was 48.25±2.217 mm compared to 41.95±4.478 mm in those who remained in sinus rhythm, P value= 0.020. regarding AF duration, the mean duration in cases with AF recurrence was 10.75±3.594 years compared to 4.45±2.502 years in case with sinus rhythm, P value=0.007.

These findings are consistent with data from Quan et al. [14]. Quan et al. [14] published a meta-analysis titled “ Predictors of late atrial fibrillation recurrence after cryoballoon-based pulmonary vein isolation: a meta-analysis”. They found that early recurrence in the blanking period, increased left atrial size, a long duration of AF before ablation and persistent AF are independent predictors of late recurrence after cryoballoon ablation.

Conclusion

From the present study, we concluded that:

1. Radiofrequency ablation and cryoballoon are effective in treating paroxysmal AF with similar success rate and similar safety profile.

2. Cryoballoon is a good alternative that has a short learning curve and can result in more standardized results.

3. Cryoballoon significantly reduces the AF ablation procedure time.

4. Longer AF durations and larger atrial dimensions are strong predictors of AF recurrence regardless the ablation source used.
