Procedural Review of Percutaneous Coronary Intervention against Chronic Total Occlusions in Anomalous Origin of the Right Coronary Artery from the Left Sinus of Valsalva
Department of Cardiology, Kyoto Okamoto Memorial Hospital, Japan
Submission: March 19, 2017; Published: June 05, 2017
*Corresponding author: Masaki Tanabe, Department of Cardiology, Kyoto Okamoto Memorial Hospital, Kyoto, 58 Sayama Nishinokuchi,Kumiyama, Kyoto, 611-0034, Japan, Tel: +81(774348-5500; Fax: +81(774)48-5522; Email: email@example.com
How to cite this article: Masaki T. Procedural Review of Percutaneous Coronary Intervention against Chronic Total Occlusions in Anomalous Origin of the Right Coronary Artery from the Left Sinus of Valsalva. J Cardiol & Cardiovasc Ther 2017; 5(5): 555671. DOI: 10.19080/JOCCT.2017.05.555671
Coronary arteries of anomalous origin are uncommon and encountered in 0.2-1.2% of patients undergoing percutaneous coronary intervention and represent a marked deviation of the normal anatomic pattern [1,2]. An anomalous origin of the right coronary artery (RCA) from the left sinus of Valsalva (LSOV) has been reported in 6-27% of patients with coronary anomalies. Moreover, the anomalous origin of the RCA from the LSOV is associated with early development of coronary artery disease and it can cause sudden cardiac death .
However, PCIs of anomalous right coronary artery (ARCA) from the LSOV pose considerable technical challenges to the interventionalist due to unusual location and course of this anomaly. Still, CTO-PCIs against ARCA from the LSOV require more technical conditions for appropriate back-up support of guiding catheters to overcome problems such as anatomical anomaly and procedural approach to facilitate successful delivery of appropriate devices.

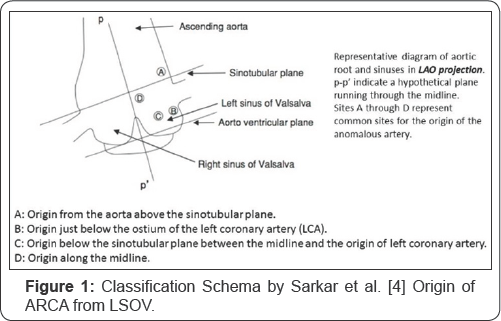

We reviewed the procedural characteristics of CTO-PCIs against ARCA from LSOV which had been undergone in our cardiac catheterization laboratory. Total 5 CTO lesions with ARCA from LSOV were underwent PCI without any complications. The origins were adjudicated with a schema (Figure 1) based on anatomical landmarks as described by Sarkar et al.  in LAO view. Procedural characteristics were summarized in the Figure 2.
One lesion had origin above the ostium of the left coronary artery (LCA) (Type A), two lesions had origin just below the ostium of the LCA (Type B), the remaining two lesions had origin along midline (Type C). All PCI procedures were performed by transfemoral approach and were successfully cannulated guide catheters using the Amplatz Left type in four cases and the Judkins left type in remaining one case. Interventional revascularization was succeed in four cases (80.0%), however was failed in one case because of inability to pass guidewire.Regarding procedural characteristics, four cases (80.0%) were performed by bilateral approach, except one case by successfully antegrade approach by single wire manipulation. Moreover, these all four cases had utilized anchoring balloon technique as well as child-in-mother technique to overcome inadequate guide catheter support due to inability to maintain coaxial position in anatomical condition.
There are disadvantages of prevent selective cannulation and inadequate coaxial support of guide catheters regarding CTO-PCI to ARCA from LSOV. However, development of devices or utilization of procedural means including bilateral approach, various anchoring balloon technique, and child-in-mother technique might make possible interventional revascularization to overcome these disadvantage of anatomical condition now at last (Figure 3 & 4).
- Yamanaka O, Hobbs RE (1992) Coronary artery anomalies in 126595 patients undergoing coronary angiography. Cathet Cardiovasc Diagn 21(1): 28-40.
- Kaku B, Shimizu M, Yoshio H, Ino H, Mizuno S, et al. (1996) Clinical features of prognosis of Japanese patients with anomalous origin of the coronary artery. Jpn Circ J 60(10): 731-741.
- Jim MH, Siu CW, Ho HH, Miu R, Lee SW (2004) Anomalous origin of the right coronary artery from the left coronary coronary sinus is associated with early development of coronary artery disease. J Invasive Cardiol 16(9): 466-468.
- Sarkar K, Sharma SK, Kini AS (2009) Catheter selection for coronary angiography and intervention in anomalous right coronary arteries. J Interv Cardiol 22(3): 234-239
