Controlling Digital Dermatitis: Copper Sodium Hypochlorite Versus Copper Sulfate Footbath

Barbara Jonesa W¹*, Joey Clarkb D¹, Jeffrey Bewleye M¹, Kristen McQuerryc J², and Sarah Jansed W²

¹Department of Animal and Food Sciences, University of Kentucky, USA

²Department of Statistics, University of Kentucky, USA

Submission: May 05, 2017; Published: July 21, 2017

*Corresponding author: Barbara Jones, Department of Animal and Food Sciences, University of Kentucky, Lexington, USA, Tel: 207-749-2766; Email: barbara.wadsworth@uky.edu

How to cite this article: Barbara J W, Joey C D, Jeffrey B M, Kristen M, Sarah J. Controlling Digital Dermatitis: Copper Sodium Hypochlorite Versus Copper Sulfate Footbath. Dairy and Vet Sci J. 2017; 3(1): 555602. DOI: 10.19080/JDVS.2017.03.555602

Abstract

The objective of this study was to compare the odds of having a digital dermatitis (DD) lesion between a copper sodium hypochlorite solution (treatment; 2.5% copper sulfate footbath with 1.4L of sodium hypochlorite solution added) and 5% copper sulfate footbath (positive control). Holstein cows (n=66) were housed in two free stall barns (A and B). Footbath solutions were administered through two polyethylene footbaths. Cows in barn A passed through the positive control ten times per week and the solution was refreshed every other day. Cows in barn B passed through the treatment ten times per week and the solution was refreshed every day. Left and right rear hoof DD lesions were scored weekly for active or non-active DD lesions. The GENMOD procedure of SAS was used to analyze the odds of having an active lesion with each footbath solution for each hoof. The odds ratio of having an active lesion was 2.66 times greater (P=0.08; 95%CI=0.86 to 8.17) for the treatment compared to the positive control for the left rear hoof. The odds ratio of having an active lesion was 0.92 times lesser (P=0.89; 95%CI=0.30 to 2.91) for the treatment compared to the positive control for the right rear hoof. No differences were observed for active digital dermatitis lesions between the positive control and treatment footbath solutions.

Keywords: Digital dermatitis; Footbath; Copper sulfate

Abbreviations: DD: Digital Dermatitis; CS: Copper Sulfate

Introduction

Digital dermatitis (DD] is a relatively new disease, first described in 1974 in Italy [1]. Digital dermatitis is a painful disease caused by a bacterial infection that leads to inflammation and skin damage that mainly affects the heel skin of cattle [2] and is a main cause of lameness [3]. However, the infection is hard to control because DD is poly microbial. The bacteria identified are typically Spirochetes of the genus Treponema [4-6]. Though the main cause has been identified, determining mode of DD transmission has proven difficult to determine. Studies have pinpointed treponemes in the dairy cow environment [7], in the oral and rectal tissues of cattle [8] and in the rumen and feces of cattle.

Somers [9] reported that cow-level prevalence of DD was 27.3% for cows that were housed on pasture and 28.5% for cows housed in confinement showing high prevalence rates for DD on farms overall [10] reported that cow DD prevalence was 33% [11] revealed that DD prevalence was 21.2%. The national animal health monitoring system also found high prevalence rates in cows with 49.1% of all lame cases being caused by DD [12].

On-farm prevention is key to controlling DD. Footbaths are a common practice to prevent DD. The NAHMS stated that 20% of all operations used footbaths year round. Common footbath solutions are copper sulfate (CS) or formalin solutions [13]. Copper sulfate and formalin were used on 66.6% and 10.9% of operations that used footbaths, respectively [14]. Whereas these footbath solutions are useful in prevention, the solutions may be detrimental to the environment or human health [15]. Copper sulfate has detrimental environmental effects when the footbath waste is disposed of into manure handling systems [16]. Best estimates elude that copper is being applied to fields at a rate of 45 to 50 times above the needed amount. Copper overload in fields could be poisonous to plants and microbes in the soil and can reduce plant productivity. Formalin is a known carcinogen [17]. Studies evaluating alternative footbath solutions besides CS and formalin are needed. Finding new footbath solutions that do not include CS is the best long-term goal.

Smith reported that a 3% tea tree oil foot bath solution was an effective means to prevent DD compared to a 5% CS footbath solution. Teixeira reported that Dragonhyde solution was also an effective means to prevent DD compared to a 10% CS footbath solution and Laven & Hunt [18] found that peracetic acid solution also prevented DD at the same rate as a 5% CS. These different studies emphasizes that other footbath solutions can be as effective as CS. However, literature surrounding footbath solutions is scarce. A copper sodium hypochlorite solution could potentially reduce the amount of CS used in a footbath solution while still sanitizing the hooves simultaneously. Therefore, the objective of this study was to compare a copper sodium hypochlorite footbath solution to a 5% CS footbath solution on preventing the frequency and severity of DD.

Materials and Methods

This study was approved through the University of Kentucky Institutional Animal Care and Use Committee (IACUC protocol number: 2013-1143) and was conducted at the University of Kentucky Cold stream Research dairy farm from May 11, 2015 to June 26, 2015. Holstein dairy cows (n=66) were housed in two free stall barns and cows were randomly assigned to the free stall barns and were balanced for parity and days in milk. One barn was equipped with sawdust covered Dual Chamber Cow Waterbeds (Advanced Comfort Technology, Reedsburg, WI; barn A) and another with sawdust covered rubber-filled mattresses (Promat Inc., Woodstock, Ontario, Canada; barn B). Each barn received different footbath solutions. One footbath solution was a copper sodium hypochlorite footbath (treatment; 2.5% CS footbath with 1.4L of sodium hypochlorite solution added at a 12% concentration) and the other solution was a 5% CS footbath (positive control). Footbath solutions were administered through two polyethylene footbaths (J&D Manufacturing, Eau Claire, Wisconsin) in separate locations.

Each foot bath measured 15.24cmx81.28cmx198.12cm and held 94.64L of footbath solution. Cows in barn A passed through the positive control footbath five days a week, two times per day, and the footbath solution was discarded and refreshed every other day (which allowed for up to 200 cow passes). Cows in barn B passed through the treatment footbath five days a week, two times per day, and the footbath solution was discarded and refreshed every day (which allowed for up to 100 cow passes). The treatment footbath solution was changed daily because the reaction time of the treatment solution was lesser than positive control solution. Both barns received the same free stall cleaning, the same stall sawdust application, and same alley floor scraping once daily. Before the study, cows walked through a 5% CS preventative maintenance bath weekly and hoof trimming occurred on March 13, 2015.

Left and right rear hoof DD lesions were scored weekly in the parlor by the same observer. For logistical reasons, the scorer was not blinded to which cows received the treatment or positive control foot baths. A headlamp was used to ensure sufficient lighting was available and hooves were washed before scoring to ensure accurate scoring. Stokes [19] determined that scoring hooves for DD in the parlor was a reliable method of scoring. A M0 to M4 scoring system was employed: M0 indicated no lesion; M1 represented an early growth <2cm in size; M2 indicated an ulcerative lesion>2cm in size; M3 represented a healing growth; and M4 indicated a chronic growth [20]. The DD lesions were further separated into active lesions (M1 and M2) or non-active lesions (M0, M3, and M4) for statistical analysis.

For the analysis, cows that were not on the study for the entirety were deleted. Eighty-nine cows were scored through the study and reasons for removal were drying off, culling, freshening after the study started, and being placed on other research projects. The GENMOD procedure of SAS (SAS Institute, Inc., Cary, NC) was used to analyze the odds ratio of having an active lesion with each treatment on both left and rear hooves. A chi-square analysis was performed using the FREQ procedure to compare prevalence rates of all DD lesions across the study for each footbath solution for each hoof. A chi-square analysis was performed using the FREQ procedure to evaluate prevalence rates of DD lesions between the left and right rear hooves.

Results

1. Hooves were scored weekly for the duration of the study by the same observer.

2. Left and right rear hoof digital dermatitis lesions were scored weekly in the parlor using a M0 to M4 scoring system: M0 indicated no lesion; M1 represented an early growth <2cm in size; M2 indicated an ulcerative lesion >2cm in size; M3 represented a healing growth; and M4 designated a chronic growth [20]. The digital dermatitis lesions were further separated into active lesions (M1 and M2) or non-active lesions (M0, M3, and M4).

3. Treatment footbath solution=2.5% copper sulfate footbath with 1.4L of sodium hypochlorite solution added).

4. Positive control=5% copper sulfate footbath.

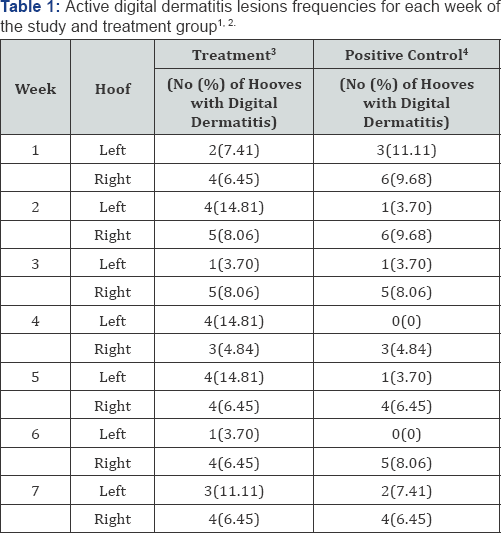

Active DD scores for each week, each hoof, and footbath solution are shown in (Table 1). A chi-square test performed indicated that no active lesion differences were observed between the two footbath solutions for the left hooves (P=0.49; χ²value=5.42] and for the right hooves (P=0.99; χ² value=0.35). Active and non-active DD scores for each footbath solution are shown in (Table 2). No difference in active lesions were observed between treatment and control groups for the left rear hoof (P=0.08) and for the right rear hoof (P=0.89). The odds ratio of having an active lesion was 2.66 times greater (P=0.08; 95% CI=0.86 to 8.17) for the treatment compared to the positive control for the left rear hoof. The odds ratio of having an active lesion was 0.92 times lesser (P=0.89; 95%CI=0.30 to 2.91) for the treatment compared to the positive control for the right rear hoof. A chi-square test performed indicated that no differences were observed between left and right hooves (P=0.83; χ² value=2.77).

1. Hooves were scored weekly for the duration of the study by the same observer.

2. Left and right rear hoof digital dermatitis lesions were scored weekly in the parlor using a M0 to M4 scoring system: M0 indicated no lesion; M1 represented an early growth<2cm in size; M2 indicated an ulcerative lesion >2cm in size; M3 represented a healing growth; and M4 designated a chronic growth [20]. The digital dermatitis lesions were further separated into active lesions (M1 and M2) or non-active lesions (M0, M3, and M4).

3. Treatment footbath solution=2.5% copper sulfate footbath with 1.4L of sodium hypochlorite solution added).

4. Positive control=5% copper sulfate footbath.

Discussion

Overall, no differences were observed between the two footbath solutions. The treatment footbath solution was a viable option as a footbath solution. Copper sulfate waste that is applied to fields could be environmentally detrimental. Therefore, finding alternatives to CS is important. The treatment solution reduces the use of CS in the footbath solution. Using this solution in the footbath could potentially reduce the amount of CS waste applied to fields.

Neither footbath solutions showed a DD improvement over the seven-week study. Whereas this may be concerning, the percentage of DD in the study (0 to 14.81%) was lesser compared to other studies (21.2 to 33%). Footbaths are meant to be a preventative measure rather than a cure for DD. Therefore, not reducing DD frequency from beginning to end of the present study is not surprising. Rather the effectiveness is shown in the footbaths ability to prevent new DD infections.

Although numerical differences were shown between the left and right hind hooves, no statistical differences were observed [21] also reported no significant differences between the left and right hind hooves concerning DD presence [22] showed numerical differences between the right and left rear hoof, but no statistical analysis was performed in this study to show statistical differences.

The present study did not reduce the CS level used in the treatment footbath as it needed to be refreshed daily. This frequent changing compared to the positive control resulted in the same amount of CS used in both footbath solutions. However, no differences were observed between the two foot bath solutions. Future studies where the treatment solution efficacy could be evaluated by changing the bath less frequently should be conducted. While these results are promising toward reducing CS waste, power may have been an issue. Future studies where power is not an issue should be conducted.

Conclusion

In this study, no differences were observed for active digital dermatitis lesions between the control and treatment footbath solutions. The treatment footbath solution is a viable option for a footbath solution. Although these results are promising, the authors caution that power may have been an issue in the current study

Acknowledgement

We wish to thank GEA Farm Technologies for their support of the study. We also wish to thank Taylor Reiter for her technical support during the study. We would also like to thank the Cold stream Dairy farm staff for their continuous dedication to the project. We also wish to thank Brandon Beavers for his help with the project.
