Heavy Metals Contamination of Soils and Plants in the Vicinity of Barite Mines in Parts of Oban Massif and Cretaceous Sediments of Southeastern Nigeria
GE Ikpi, G Eyong, CI Adamu and TN Nganje*
Department of Geology, University of Calabar, Nigeria
Submission: December 11, 2020;Published: January 20, 2021
*Corresponding author: TN Nganje, Department of Geology, University of Calabar, P.M.B.1115 Calabar, Nigeria
How to cite this article: GE Ikpi, G Eyong, CI Adamu, TN Nganje. Heavy Metals Contamination of Soils and Plants in the Vicinity of Barite Mines in Parts of 02 Oban Massif and Cretaceous Sediments of Southeastern Nigeria. Int J Environ Sci Nat Res. 2021; 27(1): 556201. DOI:10.19080/IJESNR.2021.27.556201
Abstract
This work focused on the influence of barite mining on heavy metals in soils and plants in the vicinity of barite mines in Southeastern Nigeria. Soil (0-30cm and 30-60cm depths) and plant samples were collected from cultivated farm lands in and around three barite mines (Ibogo, Ekukunela and and Iyametet) and analyzed for some heavy metals (As, Ba, Cr, Cu, Fe, V, Mn, Ni, Pb and Zn). Control soil samples collected from nearby forests were also analyzed for the heavy metals using inductively coupled Plasma Mass Spectrometry (ICP-MS). Some physical properties (PH, LOI and Clay content) of the soil samples were also determined. Results show that soils from cultivated farm lands have acidic pH values (5.00-5.7) and (4.70-5.32) for the surface and subsurface soils respectively. Organic matter contents for the surface and subsurface soils were somehow < 2% with low clay values for surface soils (0.6-5.1%) and sub surface soils (0.9-4.3%). Levels of heavy metals in cultivated soils were higher than the concentrations obtained from the control site. These heavy metals are most probably sourced from mining activities in the study area. Metal concentrations measured in plant parts revealed that leafy crops (Cassava leaves and pineapple leaves) tend to be accumulated heavy metals more than tuber crops (Cocoyam and cassava tubers). But the heavy metals were found in plant parts at average concentrations normally observed in plants grown in uncontaminated soils when compared with results from the control area. A step wise linear regression analysis identified soil metal contents, pH and LOI as some of the factors influencing soil - plant metal uptake.
Keywords: Heavy metals; Contamination; Barite mining; ICP-MS; Regression
Introduction
Barite mining like other metals mining is an important source of metals contamination in soils. This is because of the processes that are involved such as the open cast mining as used in the study area. This inevitably produces major environmental degradation since vegetation, topsoil and underlying materials have to be removed in order to gain access to the mineral deposit. The tones of rocks removed during mining are disposed on the earth’s surface as mine spoils. At the exhaustion of the barite deposits, the mine spoils and mine pits are abandoned without proper demobilization. The pulverized rocks consisting of fragments of barite, sulphides and host rocks are exposed to weathering in two stage processes that can cause environmental pollution either singly or in association. One is the generation of acidic mine drainage from the oxidation of pyrite from the waste rocks [1-3]. The second is the mobilization of potential toxic metals in the surface environment stimulated by the oxidizing weathering environment under acid conditions from pyrite oxidation [4].
Mine wastes are point sources of potential toxic metals to the ecosystem as elements are released to the biosphere at a faster rate than would have occurred by the natural weathering of underlying parent materials [5]. Once potential toxic metals are mobilized into the (Sub) surface, they may have detrimental effects on the environment. Generally, barite as a mineral is not considered as a major source of environmental contamination because it is an insoluble compound [6]. However, Dogan [7] has revealed that the problem of mining is a complex function of lithology, climate, hydrology and the local inventory of acid generating sulphides and acid-neutralizing carbonates. Thus, contamination is not only associated with the mineral deposit. Globally, limited studies have been carried out on trace metal contamination around barite mine dump sites [8,9]. In Nigeria, studies on the impact of barite mining on soil, sediment and water is limited to that of Adamu et al. [10-12]. There is thus, scarcity of information on the impact of barite mining activities soil and plant in the study area and, indeed the whole of Nigeria. The objective of this study was therefore, to assess the degree and extent trace metal contamination of soil and plants around the barite mine dump sites in parts of the area of study.
Study Area Description
The study area lies between latitude 050 371 and 050 581N and longitude 080 061 and 080 381E and covers part of Oban Massif and the Cross River Plain. It is located within the sub equatorial climate of Nigeria with a total annual rainfall of between 180 and 200cm. the annual temperature is between 250 and 300C [13]. The area experiences two seasons the wet season which last from April to October and the dry season which last from November to March. The mean humidity drops from 80% in the rainy season to as low as 60% in the dry season. The elevation of the study area ranges from 100m in the Cross River Plain to more than 500m above sea level in Oban Massif. The relief is characterized by rugged and undulating topography of alternating hills and plains. The relief of the area varies from the low-lying northern fringes in the sedimentary areas to high elevations towards Oban Massif in the south. The principal land forms are upland, plains and valleys.
The study area is located within the thick equatorial rainforest which is inhabited by tall trees and Wildlife. The vegetation hinders easy access to geological features and structures in the area. Mine sites are only accessible by footpaths and stream channels because of the thick vegetation and rugged topography. Geologically, the study area falls within the Mamfe Embayment and the Oban Massif in southeastern Nigeria (Figure 1). The Ekukunela and Iyametet mines which falls within the sedimentary cover of Mamfe Embayment ranged in age from Cretaceous to Tertiary an consist mainly of conglomerates, sandstone, shale, silt stone, mud stone, limestone, marl, clay and loose sand [14]. The Ibogo mine falls within the Precambrian basement province of Western Oban Massif (Nganje 1985) [15]. Rocks this area are dominantly Schists and gneisses [16]. The Schists of the area are characterized by well-developed biotite and Muscovite Crystals. Where weathering activity is severe on these rocks, numerous Muscovite flaks can be seen glittering on the surface of the ground. Regional tectonic trend obtained from measured foliation and fracture planes indicate a NE - SW trend of the pan African Orogeny [17,18].

Brief Description of the Mines
Ibogo mine
This is located about 100km away from Calabar along Calabar Ikom highway. The mine is situated about 12km east of the major settlements. Schists, Phyllites and Pegmatites dominate the lithology of western parts of Uwet which cover part of the mine area. The mine is located on a hill with high gradient. Three barite veins occur in this mine which trend E-W and they appear to have been emplaced at the contact of the Schist and sandstone. The soils here are reddish, reddish – brown to brownish red due to un-hydrated Fe – Oxides including good drainage [4].
Ekukunela mine
This mine is located about 50km from Ikom along Calabar- Ikom high way. The geology of this mine is dominated by sandstone of the Albian Mamfe formation. There are also shale and limestone intercalations. Three extensive barite veins (> 2km) occur at Ekukunela. The largest vein cuts across the Calabar- Ikom road and is intensively mined.
Iyametet mine
This mine is located at the hill slope close to cultivated farmland. The geology consists of black backed, fractured slat shale that is intruded by dolerite sills. The sills contain spherules of magmatic rock and trends N –S. At this mine, only the top part of the shale sequence with siltstone /sandstone intercalations is observable at the top of the mine pit because the pit is now full of water all year round. Detailed description of the mines is contained in Adamu et al. [11,12].
Materials and Methods
Composite soils and plant samples were collected randomly within and around the three barite mines (Ibogo, Ekukunela and Iyametet) under study. A total of thirty composite soil samples were collected from the three mine locations using a hand auger from cultivated farm lands near the mine dumps at depths of 0-30cm and 30-60cm to reflect the surface and sub-surface soils respectively. In addition, three soil samples (0-30cm and 30- 60cm) were collected about 1km away from the mines to serve as control samples. The control locations were considered to have suffered little anthropogenic inputs. The samples were put into polythene bags and labeled accordingly using paper tape and marker pen.
Random samples of cassava leaves and tubers, pineapple leaves cocoyam tubers were taken from cultivated fields in the three mine locations and properly labeled to reflect the locations from which they were collected. Soil samples were air dried at room temperature of about 250C-300C, disaggregated using mortar and pestle and then sieved to < 2mm. After quartering, the samples were ground to 80 meshes (< 180μM) in a stainless steel blender. The resulting powered samples were collected into properly labeled separate envelopes for chemical analysis. Plant samples were thoroughly washed with deionized water and dried in a clean room at 250C for 5days, grounds to fine powder and repackaged in sealed plastic bags. The cassava and cocoyam tubers were carefully peeled and rinsed with tap water to remove surface dirt before drying the tubers. After the preparation stage, 0.5g of soil samples was digested in 4:1 ratio of concentrated nitric perchloric acids and heated to dryness. The residue was leached with 5ml of 2m HCl [19] and the solution made up to 10ml with deionized water in already calibrated and labeled test-tubes. The samples were analyzed for As, Ba, Cr, Cu, Fe, V, Mn, Ni Pb and Zn using a Perkin Elmer Elan 6000/9000 Inductively couple plasma mass spectrophotometer (ICP- MS) in Acme laboratory, Canada. 0.5g of powered plant samples were digested in fuming HN03 followed by Mg (N03) 2, leached with the same procedure as that used for soil and analyzed using the same inductively coupled plasma Mass Spectrometry (ICP – MS) for As, Ba, Cr, Cu Fe, V, Mn, Ni, Pb and Zn. Soil pH was determined by using a pH meter in the field, soil organic matter content was estimated from loss – on – ignition (LOI) and the clay content was measured [20].
A rigorous quality control programme was used to assess the accuracy and precision of the chemical data for the soils and plants. The programmes included regent blanks, replicate and duplicate samples as well as in-house and standard materials.
Results
Physical parameters
The soils from the study area are generally characterized by low PH, low organic matter content (LOI) and low clay content. The results of the physical properties of the soils are presented in Table 1. The soil pH at Ibogo mine ranges from 5.46 to 5.76 with an average of 5.60 for the surface soils. The sub-surface pH ranged from 4.98 to 5.60 with an average of 5.16. at Ekukunela Mine, soil pH ranged from 5.45 to 5.68 with an average of 5.56 for the surface soils whereas the sub-surface pH ranged from 4.70 to 5.32 with an average of 4.50. At Iyametet mine soil pH ranged from 5.00 to 5.42 with an average of 5.24 for the surface soils while sub-surface pH ranged from 4.70 to 5.32 with an average of 4.50. soil pH from the three mine locations have acidic pH values including soil pH from the control area with values of 6.1 and 5.8 for Ibogo, 5.8 and 5.6 for Ekukunela, 6.0 and 5.8 for Iyametet respectively for surface and sub-surface soils. The organic matter content of cultivated soils was generally very low, less than2% (loss-on-ignition, LOI). Whereas the soils from the control area had relatively high organic matter content with the highest values of 5.9% at Ibogo. The clay contents were also low in all the three mine sites (less than 5%).
Concentration of heavy metals in soils
Mean concentration, minimum, maximum and standard deviation values of all the heavy metals considered in this study for the three mine locations are presented in Table 2. At Ibogo mine As for instance had a mean concentrations of 79.2mg/kg and 21.6mg/kg for the surface and sub-surface soils respectively while much lower concentrations 9.3/kg and 8.5 mg/kg are found in the soils from the control area underlain by the same geology as the mine site but without mining activities. Same was noticed of all other metals; Ba, Cr, Cu, Fe, V, Mn, Ni Pb and Zn with elevated concentrations when compared with results from the control area. At Ekukunela mine for example. As mean concentration was 29.81mg/kg and 23.78mg/kg for the surface and sub-surface soils respectively whereas the mean concentration of the same As from the control are was 9.73mg/kg and 8.17mg/kg respectively for the surface and sub-surface soils. The concentrations of these metals from the control areas fall within the recommended range of metals in soils by Brady & Weil [21]. Metal concentrations in soils from Iyametet mine also show elevated concentrations in surface soils than in sub-surface soils. For instance, As mean concentration for surface soil here was 24.06mg/kg whereas the sub surface mean concentration was 18.24mg/kg. In the control As recorded 9.20mg/kg and 8.94mg/kg for the surface and subsurface respectively. In all the three mine locations in this study, all the metals show elevated concentrations at the surface soils (0-30cm) than the sub-surface soils (30-60cm) respectively.


Although, soils from the control area revealed much lower concentrations of metals for both the surface and sub-surface soils which invariably falls within the recommended range of heavy metals in soils by Brady & Weil [21].
Concentration of heavy metals in plants

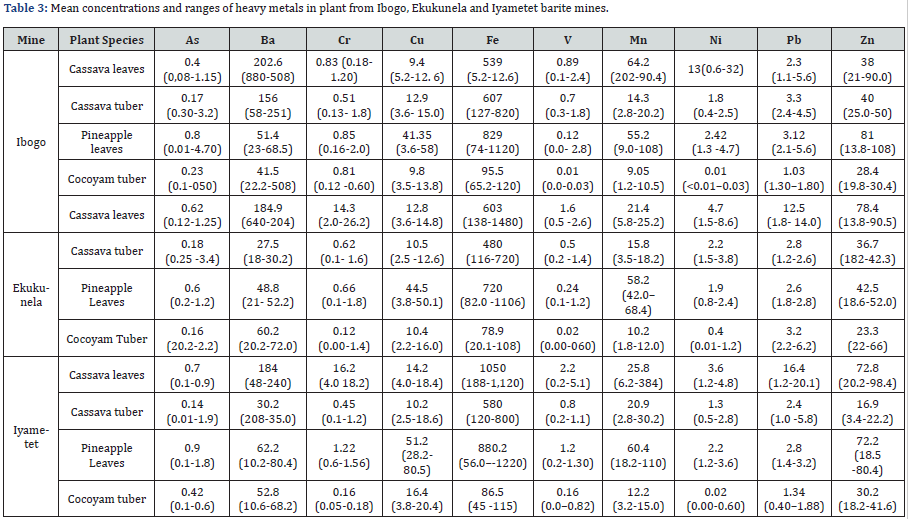

The mean and range concentration of As, Ba, Cr, Cu, Fe, V, Mn, Ni, Pb and Zn in crop plants (Cassava, Cocoyam and Pineapple) grown on agricultural soils in the different mine location of Ibogo, Ekukunela and Iyametet mines are presented in Table 3 while Table 4 shows the results of the different plant parts from the control area. The concentrations of heavy metals were different in the same plant species in the different mine locations. But in all the three locations, leafy plants of the crops tend to accumulate higher metals concentrations than the root tubers. For mean concentration at Ibogo mine, As was lowest 0.4mg/kg (dry Wt) in cassava leaves and 0.17mg/kg (dry Wt) in cassava tubers, whereas V tend to be the lowest 0.12mg/kg (dry Wt) in pineapple leaves and 0.01mg/kg in Cocoyam tubers. At Ekukunela mine, As was lowest 0.62mg/kg(dry Wt) in cassava leaves and 0.18mg/kg (dry Wt). in cassava tubers, whereas V was lowest 0.5mg/kg (dry Wt) in pineapple leaves and 0.02mg/kg (dry Wt) in cocoyam tuber. At Iyametet mine, As was lowest 0.7mg/kg (dry Wt) in cassava leaves but V became lowest 0.8mg/kg (dry Wt) in cassava tubers while As became lowest 0.9mg/kg (dry Wt) in pineapple leaves, Ni was lowest 0.02mg/kg (dry Wt) in cocoyam tubers.


Discussion
The soil in the three mine locations (Ibogo, Ekukunela and Iyametet) are weakly to moderately acidic with mean pH values 5.60 & 5.16, 5.56 & 4.50, and 5.24 & 5.07 for surface and subsurface soils respectively. This acidic nature of the soils in the three locations could be attributed to the decomposition of organic matter content in the soils, a process which is often rapid in tropical environment such as the area of study. It can also be attributed to sulphides oxidation associated with the mines. The soils also recorded low organic matter contents (LOI) in all the locations with mean values of 1.13 & 0.92 at Ibogo, 1.16 & 0.76 at Ekukunela and 0.82 & 0.97 at Iyametet for the surface and sub-surface soils respectively which are also less than 10%. In addition the soils in the three mine areas show low clay contents with mean values of 1.44 & 1.50 at Ibogo, 2.60 & at Ekukunela and 4. 1 & 3.06 at Iyametet respectively for surface and sub-surface soils and this can have low sorption capacity for metal ions.

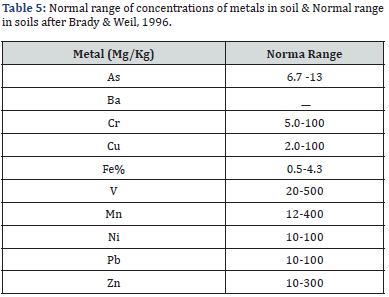

At Ibogo mine, agricultural soils are contaminated by As, Cr, Cu, Mu, Pb and Zn at both surface (0-30cm) and sub-surface (30 -60cm) soils when compared with the normal range of metals in soils by Brady & Weil [21], Table 5 and when compared with the levels of metals from the control area. The contamination could be attributed to mine drainage and contents of heavy metals in the soil. Jung & Thornton [22] reported that large amount of metals in mine waste and associated soils provided an important source for continuing dispersion downstream and have led to a moderate degree of contamination of soils used for crop production. In the study area, the heavy metals in surface soils (0-30cm) depth were higher than those in sub-surface soils (30-60cm) depth. This concentration could be due to the effects of mining activities and mineralization. The contamination levels of the heavy metals are different depending on the distance mineralization. The contamination levels of the heavy metals are different depending on the distance from the mine.

At Ekukunela mine, elevated concentrations of As, Cu and Zn were observed in both surface (0-30cm) soils and sub-face soils (30-60cm) when compared with the normal range of metals in soils by Brady & Weil [21] but when compared with result from the control area, all the metals considered in this study show enhanced concentrations of metals with the heavy metals in surface soils being higher than metals in subsurface soils. At Iyametet mine, agricultural soils were contaminated by heavy metals like As, Cu, and Pb for both surface soils and sub-surface soils when compared with the normal range of metals in soils by Brady & Weil [21]. But when compared with heavy metal contents in soils from the control area, all the metals considered in this study show enhanced concentrations both for surface and subsurface soils respectively. This is reasoned to be as result of the effect of mine drainage in the area.
For the purpose of metal comparison between heavy metals in soils from the three mine locations, Ibogo barite mine recorded the highest level of metals contaminations this is evident by the elevated concentrations of As, Cr, Cu, Mn, Pb and Zn little above the recommended range of metals in soils by Brady & Weil [21]. This highest level of contamination in soils of this mine location could be attributed to several factors among which includes the geology of the area which is the basement complex of the Oban Massif, the nature of barite which seemed to be stained and coloured by its association with other minerals. Other factors are the size of the mine and the location of the mine. Next in terms of contamination are soils from the Ekukunela barite mine with As, Cu, Pb and Zn bing above the normal range of metals in soils and finally soils from the Iyametet barite mine with As, Cu, and Pb with concentrations little above the recommended range by Brady & Weil [21]. Both the Ekukunela and Iyametet barite mines falls within the Cretaceous sediment of the Mamfe Embayment of the study area and the barite found in these two locations were cleaner when compared with the one from Ibogo barite mine. Ba recorded the highest concentrations in soils from the three mine locations for the surface and sub-surface soils including the control area. This is because barite (BaS04) in soils has very low mobility due to its insolubility and inability to form soluble complexes with humic Organic matter [23].
Nevertheless, agricultural soils do not seem to have been seriously contaminated because of the properties of the soils such as low clay contents, mild acidic pH, low organic matter contents as well as Fe and Mn which are known to absorb and retain metals [24]. Plants can accumulate heavy metals in or on their tissue due to their great ability to adapt to variable chemical properties of the environment. It is well known that heavy metals concentrations vary with plant species [19,22,25] and that leaves tend to accumulate higher concentrations than roots or tubers and grains or fruits [26]. Results from this study show that metal concentrations were higher in cassava and pineapple leaves than in cassava and cocoyam tubers confirming that leaves tend to concentrate more metals than tubers. Though, it may reflect accumulation between plant species. Concentration levels of heavy metals determine in plants from the different mine location were compared with those from the control and were observed to be of higher concentrations implying that plants can absorb metals when planted within mining areas. In the Ibogo mining area, metal concentrations in plants varied with plant species. For example, the average concentration of As ranged from 0.40mg/ kg (dry Wt) in cassava leaves, 0.8mg/kg (dry Wt) in pineapple leaves, 0.17mg/kg (dry Wt) and 0.2mg/kg (dry Wt) of cassava and cocoyam tubers respectively. Whereas in the control area, As ranged from 0.18mg/kg (dry Wt) and 02mg/kg (dry Wt) and 0.14 mg/kg (dry Wt) of cassava and cocoyam tubers respectively confirming that mining activities, geology, nature of barite among others had impacted in the metal content of plants in the area. Plant parts also show variation of other metals within the same location.
In Ekukunela mining area, concentration of heavy metals in plant parts also varies. For example, the mean concentration of As in cassava leaves was 0.62mg/kg (dry Wt) and 0.06mg/kg (dry Wt) for pineapple leaves whereas cassava and cocoyam tubers had 0.18mg/kg (dry Wt) and 0.16mg/kg (dry Wt) respectively. In the control area, As concentration in cassava and pineapple leaves was 0.16mg/kg (dry Wt) and 0.17mg/kg (dry Wt) while cassava and cocoyam tubers had 0.12mg/kg (dry Wt) and 0.10mg/kg (dry Wt) respectively. Similar results were found in Iyametet mining area where mean As level in plant parts was 0.70mg/kg (dry Wt) and 0.90mg/kg (dry Wt) for cassava and pineapple leave while cassava and cocoyam tubers had 0.14mg/kg (dry Wt) and 0.42mg/kg (dry Wt) respectively. This was different in the result from the control area. Here As level in cassava and pineapple leaves recorded 0.16mg.kg (dry Wt) and 0.14mg/kg (dry Wt) respectively while cassava and cocoyam tubers recorded 0.11mg/ kg (dry Wt) and 0.12mg/kg. A similar metals levels variation in the different plant parts applies to all other metals like Ba, Cr, Cu, Fe V, Mn, Ni, Pb and Zn that are in focus in this study. Generally, most elements were found in plant parts in the study area at concentrations found in crops grown in uncontaminated soils [3].
Relationship Between Soils and Plant Metal Content
Heavy metals concentrations in plant parts are highly comparable with those of soil, although this can differ between plant species and parts. It is well known that total metal content in soils is an important factor influencing the uptake of metals into plants [19]. However, the uptake is affected by so many factors including soil texture, pH, Eh, CEC, organic matter content, Fe-Mn- Al-oxides and hydroxides, presence of other metals, amount and rate of fertilizer and biocide applications as well as plant species, parts, cultivars and age [27,28] accounting for the variable relationship between soil heavy metal contents and plant.
A Stepwise multiple linear regression analysis was applied in the study to find the dominant factors influencing metal uptake in plants and to also predict metal levels in plants. A step-by-step procedure was used to obtain the best fit regression equation. The independent variable was always total metal content in the surface soils. The regression equation was calculated using statistical package for the soil sciences (SPSS). At each stage the significance of the equation was tested by the Coefficient of determination (r2) and probability (P < 0.05). The equation was considered significant for r- squared values ≥ 0.50 at P< 0.05. The result of the linear multiple regressions are presented in Table 6. It can be seen that total metal concentrations in surface soils are the main factor affecting those in plants. Other factors that contributed to the prediction of heavy metal concentrations in plants in this study are pH and clay content.

Environmental Implications
The distribution of heavy metals in soils from the three mine locations under study reveal enhanced concentrations of metals in surface soils (0-30cm depth) than in subsurface soils (30-60cm depth). This implies that surface soils (agricultural soils) in the areas have high metal enrichment even when compared with soils from the control areas. This enhanced concentration of metals could be attributed to mine drainage in the areas and contents of heavy metals in surface soils among others.
The locations of the three mine areas are rural communities and a good percentage of the inhabitants are farmers, therefore agriculture is their main occupation. Land is intensively cultivated, and animals are reared for food production. These animals feed directly from the locally grown crops and these metals are ingested into their systems from these unwashed crops. There is the possibility that shallow crop feeders will accumulate these metals more than the deep feeders since surface soils have metal concentrations than the subsurface soils. Although animal tissues from the study area locations were not sampled due to limited resources, it is likely that animals in the area may be accumulating heavy metals through feeding on crops grown on contaminated soils which may have some health implications on the animals, though this may not result in direct increasing intake in humans. Contamination of useable water is more direct way of ingestion by human being [3].
Residents of the area under study feed from crops grown on the soils and use water from the mines. The long-term metal exposures by regularly feeding on locally grown crops from within and around the mine sites can give rise to health related problems in both animals and human beings in the vicinity of the mine areas.
Conclusion
Heavy metal contaminations of soils and plants in the vicinity of three barite mines in cross River State, Nigeria were investigated and the results of each of the mines were compared between sites. It was revealed that agricultural soils were contaminated by heavy metals that are mostly sourced from mine waste materials. Although the degree and extent of contamination varied with each mine sites, the dispersion of metals may be controlled by factors such as the distance from the mines, prevailing wind in the area and possibly the geology. The degree of contamination was assessed by comparing heavy metal contents in soils with acceptable standards and also with results from the control areas. The main source of contamination was attributed to be from mine waste materials that were abandoned without proper cover system and metals have been continuously released by wind or drainage from the source to the surrounding environment. Analysis of metals in plants from the study areas indicated that leafy plants; cassava and pineapple leaves tend to accumulate higher metal concentrations than the cassava and cocoyam tubers. This was observed in all the sampled plants from the three mine locations.
Recommendation
It is very obvious that high levels of heavy metals in soils around the mines and in the mine dump materials will continuously migrate and disperse into agricultural soils. As a result, soils and plants in the vicinity of the mines will continue to be contaminated. It is therefore necessary to recommend timely environmental reclamation techniques such as revegetation, neutralization of soil acidity and enhancement of metal adsorption using clay materials which if properly implemented can lead to adequate loss of heavy metals from the mine and dump sites.
Acknowledgement
This article is part of the M.Sc. thesis of the first author. The authors are very grateful for the support and assistance received from the traditional and youth leaders of Ibogo, Ekukunele and Iyametet communities for their assistance during the field work. We sincerely thank Mr. Ojen of Iyamoyong community for accommodating us in his house during the field work.
references
- Duriube JO, Ogwuegbu MD, Egwumgwu JN (2007) Heavy metal pollution and human biotoxic effects. International Journal of Physical Sciences 2(5): 112-118.
- Nganje TN,Hurthouse AS, Edet A, Stirling D, Adamu CI (2017)Hydrochemistry ofsurface water and groundwater in the shale bedrock, Cross River Basin and Niger Delta Region,Nigeria. Applied Water Science 7: 965-985.
- CoxPA (1995)The Elements on Earth: Inorganic Chemistry in the Environment. Oxford University Press. New York.
- Siegel FR (2002) Environmental Geochemistry of potential toxic metals. Heidelberg: Springer, p. 217.
- Nganje TN, EdetA, Cuthbert S, Adamu CI, HursthouseAS (2020)The concentration, distribution and health risk from potentially toxic elements in the soil-plant-water system developed on black shales in SE Nigeria. Journal of African Earth Sciences,165: 103806.
- Hem JD(1985) Study and interpretation of the chemical characteristics of natural waters (3rd). US Geol. Survey water supply paper 1473 Massachusetts: Harvard University Press, p. 263.
- Dogan PA (1999) Characterization of mine waste for production of acid mine drainage. In JM Azcue (Ed), Environmental impact of mining activities. New York. Springer Heidelberg, pp. 19-40.
- Bilinski SF (2006) Barium anomaly in Kupa River Drainage Basin. Journal of Geochemistry and Exploration 88(1-3): 106-109.
- Nagaraju A, Suresh S, Killam K, Edward KH (2006) Hydrogeochemistry of waters of Mangompeta barite mining area, Cuddapah Basin, Andhra Prodesh, India. Turkish Journal of Environmental Science 30: 203-219.
- Adamu CF, Nganje T, EdetA(2014) Hydrochemical assessment of pondand stream water near abandoned barite mine sites in parts of Oban massif and Mamfe Embayment, Southeastern Nigeria. Environmental Earth Sciences 71: 3793-3811.
- AdamuCI,Nganje TN, Edet AE(2015a) Major and trace elements pollution in sediments associated with abandoned barite mines in parts of Oban massif and Mamfe embayment, Southeastern, Nigeria.Journal of Geochemical exploration 151: 17-33.
- AdamuCI,Nganje TN, Edet AE(2015b) Heavy metal contamination and health risk assessment associated with abandoned barite mines in Cross River State, southeastern Nigeria. Environmental Nanotechnology, Monitoring and Management 3: 10-21.
- Ileoji NP (1991)A New Geography of Nigeria. Benin: Longman publishing, Nigeria.
- PettersSW, Okereke CS, Nwajide CS (1987) Geology of the Mamfe Rift, SE Nigeria. In: CU Mathais, HS Schandlmer (Eds.), Current Research in African Earth Sciences, Botherdam: Balkema, pp. 299-302.
- Nganje TN, EkwuemeBN (1996)Occurrence,Petrography and structure of UwetGranodiorite Southeastern Nigeria. Global Jour. of the Pure and Applied Sciences (2): 213-218.
- Eshiet AS (1999) The Geology of Akpet and Environs. Unpubl. B.Sc. Project, University of Calabar, pp.1 -52.
- Egeh EU, Dominic AO, Olagundoye OO (2002)Regional tectonic effects on the composition and mode of distribution of barite mineralization in Akpet Area, Southeastern Nigeria. J MinGeol (in Press).
- Ekwueme BN(1987) Structural orientation and precambrian deformational episode of Uwet Area. Oban Massif, Southeastern Nigeria. Precambrian Res 34(3-4): 269-289.
- Alloway BJ (1990) Heavy Metals in soils. Blackie and Sons Ltd.
- Chukwuma C(1195) Evaluating baseline data for Cu, Mn, Ni and Zn in rice, yam, cassava and guinea grass from cultivated soils in Nigeria. Agric Ecosyst Environ 53(1): 47-61.
- BradyNC, Weil RB(1996)The nature and properties of soils. New York: Macmillan Public Co. Inc.
- JungMC, Thornton I(1996)Heavy metal contamination of soils and plants in thevicinity of lead – zinc mine Korea. Applied Geochem11(1-2): 53-59.
- USEPA (United States Environmental Protection Agency) (1997) Federal Register Document. (2): 959 -1001.
- Adamu CI, Angisto JI, Nyiategher T (2003) Metal contamination at dump sites in Makurdi, Nigeria. Glob J Geol Sci 1: 85-93.
- Lee JS, Chon HT, Jung MC (2004)Toxic risk assessment and environmental contamination of heavy metals around abandoned metal mine sites in Korea. Key Eng Materials 277-279: 542-547.
- Jung MC (2001) Heavy metal contamination of soils and water in and around theinacheon Au-Ag mine, Korea. Applied Geochemistry 16: 1369-1375.
- Voutsa D, Grimanis A, SamaraC (1996)Trace Elements in vegetables grown in anindustrial area in relation to soil and air particulate matter. EnvironPoll94(3): 3325-3335.
- Li X, Thornton I (1993) Multi – element contamination of soils and plants in oldmining areas, UK. Applied Goechem Supply8(Supplement 2): 51-56.
