Evaluation of Evaporation Paradox at Tharandt
Antensay Mekoya*
Ethiopia Environment and Forest Research Institute, Bahir Dar Environment and Forest Research Center, Ethiopia
Submission: April 24, 2020; Published: May 12, 2020
*Corresponding author: Antensay Mekoya, Ethiopia Environment and Forest Research Institute, Bahir Dar Environment and Forest Research Center, P.O. Box: 2128 Bahir Dar, Ethiopia
How to cite this article: Antensay M. Evaluation of Evaporation Paradox at Tharandt. Int J Environ Sci Nat Res. 2020; 24(4): 556142. DOI: 10.19080/IJESNR.2020.24.556142
Graphical Abstract
In the past decades evaporation of water has been generally decreasing in most parts of the world with increasing air temperature, which is called the ‘evaporation paradox’. At Tharandt, Germany from 2004 to 2013 on annual basis the so-called ‘evaporation paradox’ had not existed because air temperature had not shown increasing trend. However, when we exclude Class A pan evaporation (Ep) in to consideration, indeed, it had existed on the summer half-year (Figure 1).
Highlights
a) Consideration of the warmer times of a year in a cold climate site.
b) Use of methods very suitable for a very humid climate.
c) Consideration of both measured and estimated evaporation schemes.
Abstract
In the past decades pan water evaporation has been generally decreasing in most parts of the world with increasing air temperature; which is called the ‘evaporation paradox’. In this article, evaporation paradox was checked at Tharandt, Germany for the years from 2004 to 2013. The annual as well as summer half-year trends of air temperature as well as Class A pan evaporation (Ep), potential evapotranspiration (PET), and reference evapotranspiration (ETo) was analyzed using liner regression model. Generally, the so-called ‘evaporation paradox’ had not existed at Tharandt on annual basis. Because although PETs and ETo had shown annual as well as summer half-year decreasing trends, air temperature had not shown increasing annual trends. However, when we had not considered Ep, indeed, it had existed on the summer half-year based on PETs and ETo estimates. Decreasing trend of shortwave or solar radiation and increasing trend of relative air humidity might have caused the decreasing trends of PETs and ETo. The summer half-year Ep had shown nearly constant trend over the ten years; however, the cause for the nearly constant trend of summer half-year Ep was not understood. Also, when 2013 was excluded, the annual as well as the summer half-year trends of PETs remained decreasing; however, the summer half-year trend of Ep and ETo showed changes. Moreover, in all cases, the trends were not statistically significant. Thus, if data is available, using more than ten years of data is needed to evaluate the exact trends of ETo and Ep.
Keywords: Evaporation paradox; Class A pan evaporation; Potential evapotranspiration; Reference evapotranspiration; Tharandt
Abbreviations: Ep: Class A Pan Evaporation; SHY: Summer Half-Year (April-SEptember); PETs: Potential Evapotranspiration (PET) estimated according to Haude, Wendling, and Penman; Ep: Evaporation Schemes: ETo: Reference Evapotranspiration
Introduction
A literature review of different articles [1-5] for the past decades had shown that pan water evaporation has been generally decreasing in most parts of the world instead of increase with increased air temperature, which is called the ‘evaporation paradox’ or ‘evaporation fallacy’ [6]. Roderick et al. [1] have made comprehensive study on the trend of pan evaporation conducted by large numbers of international studies in many parts of the world such as USA, Former Soviet Union, India, China, Australia, Thailand, New Zealand, Tibetan Plateau, Israel, Turkey, Canada, Kuwait, Ireland, and UK for different periods (ranging from 1948 to 2005) and for different sites (ranging from 1 site to 746 sites).
On the other hand, pan evaporation in the semiarid Loess Plateau in China showed a unique and significant upward trend, with a normalized value from approximately -1 to 1 [2]. Zhang et al. [2] have also shown that although they have different time-length series, pan evaporation in other regions of the world exhibited clear decreasing trends. Thus, pan evaporation trends are not entirely consistent in the context of increased air temperature. “It may decrease in most areas but can increase in some areas” [2]. In another similar study, Abtew et al. [4] recommended studying pan evaporation trend in every region to evaluate the validity of the trend and water management implications.
Therefore, in this article whether this decreasing trend of pan evaporation has been evident or not in a very humid city (Tharandt, Germany) is investigated together with trends of reference and potential evapotranspiration.
Data and Methodology
The study area was Tharandt, Germany (altitude: 220ma.s.l., latitude: 50°58’42.06” N, longitude: 13°34’52.69” E). Ten years (01.01.2004 to 31.12.2013) daily and ten-minutes climate data of Tharandt meteorological station was the basis of the data set. See Figure 2 for the 2004-2013 average values of part of the data set.
The pan used for measurement of pan evaporation was the World Meteorological Organization (WMO) standard Class A pan evaporimeter. Mainly the following data were used:
a) Air temperature in °C at 2p.m.,
b) Relative humidity (RH) in % at 2p.m.,
c) Wind speed in m s-1 at 3 m above ground (u3),
d) Precipitation in mm (P) (measured at 7a.m.),
e) Precipitation in mm (RF) (automatic measurement at midnight),
f) Global or shortwave radiation in Wm-2 at 3m above ground (Rs); in Figure 3, half of the shortwave radiation is shown,
g) Water table height in mm (automatic measurement at every 10-minutes interval using pressure sensor instrument),
h) Maximum air temperature in °C (Tmax),
i) Minimum air temperature in °C (Tmin),
j) Maximum relative air humidity in % at 2m above ground (RHmax),
k) Minimum relative air humidity in % at 2m above ground (RHmin),
l) Water level height values in mm (7a.m. to 7a.m. of the next day),
m) Air temperature in °C (T); T = (Tmax + Tmin)/2,
n) Relative air humidity in % (RH); RH = (RHmax + RHmin)/2,
o) Wind speed in m s-1 at 2m above ground (u2); u2 was calculated from u3 using the equation of Allen et al. [7].
Potential evaporation (PET) was estimated using three methods:
a. Haude (2005) [8],
b. Wendling (1991) [9], and
c. Penman (1963) [10].
Whereas, reference evapotranspiration (ETo) was estimated according to Allen et al. [7]. Class A pan evaporation (Ep) was calculated for the summer half-year as described in Antensay et al. [11]. Then, trends of evaporation schemes were analyzed using linear regression model and evaluated using error evaluation statistics such as R2 and RMSE [12]. Finally, a significant test was performed using p-value at 95% confidence interval.
Result and Discussion
Evaluation of annual evaporation paradox

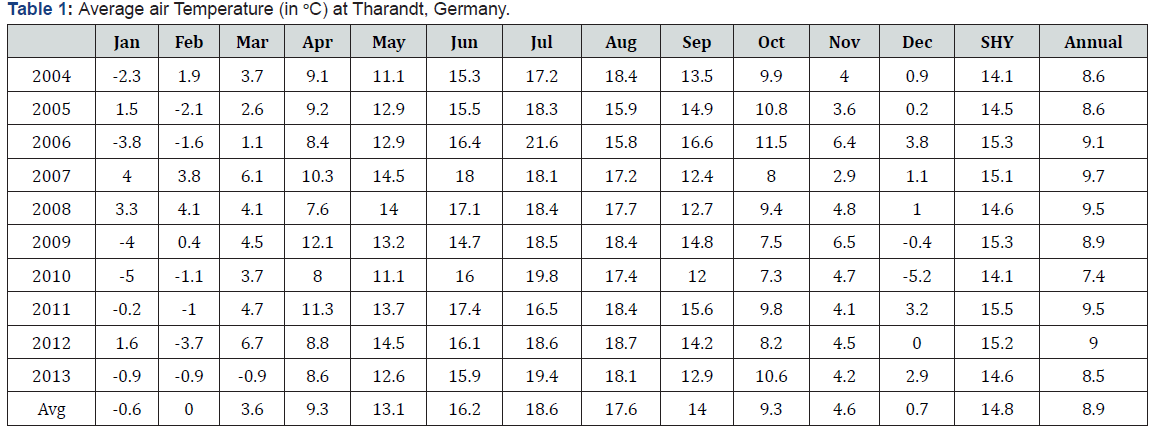

For evaporation paradox to exist, the temperature should show an increasing trend. However, the annual air temperature showed slightly decreasing trend; decresed about 0.25 oC over the ten years (see Figure 3 ‘A’). Therefore, from 2004 to 2013 evaporation paradox did not exist at Tharandt on annual basis inspite of the fact that PETs and ETo had shown an annual decreasing trends (not shown).
On the other hand, the summer half-year (SHY) air temperature showed increasing trend; showed an increse of about 0.5 oC over the ten years (see Figure 3 ‘B’). Therefore, from 2004 to 2013 evaporation paradox could exist at Tharandt on the SHY basis if PETs, ETo and Ep had showed a SHY decreasing trends.
Evaluation of summer half-year evaporation paradox
The summer half-year (SHY) total PET according to Haude, Wendling, and Penman showed decreasing trends; decreased by about 45, 30, and 33 millimeters over the ten years, respectively (see Figure 4). Similarly, the SHY total ETo showed decreasing trend; decreased by about 14mm over the ten years (see Figure 5 ‘A’). However, the SHY total Ep showed approximately constant trend (see Figure 5 ‘B’).

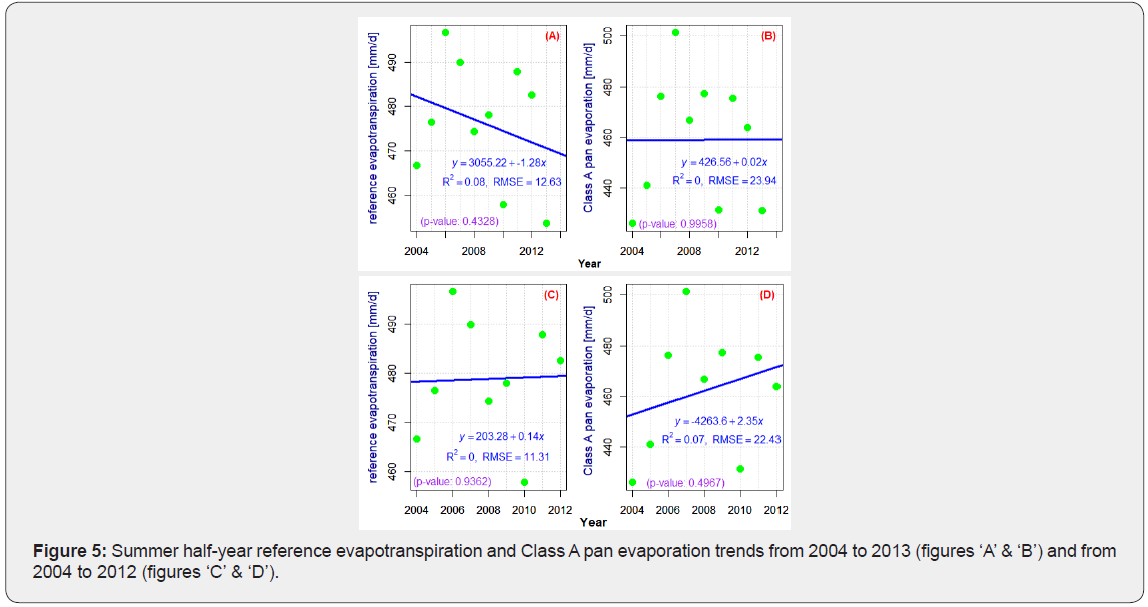

When only one year 2013 was excluded, the SHY PETs showed decreasing trends again (not shown). However, the SHY total ETo showed negligibly very weak increasing trend; increased by about 2 mm over the ten years (see Figure 5 ‘C’). Whereas, the SHY total Ep showed increasing trend; increased by about 20 mm over the ten years (see Figure 5 ‘D’).
At Tharandt from 2004 to 2013, the annual trend of shortwave or solar radiation (Rs) had shown a decreasing trend; note that evaporation or evapotranspiration at Tharandt was mainly deriven by Rs. Similarly, the annual trend of relative air humidity (RH) and wind speed at 2m (u2) had shown increasing and decreasing trends, respectively; note the inverse relationship between evaporation and RH; note that the effect of u2 in deriving evaporation or evapotranspiration at Tharandt was negligibly too low. The summer half-year trend of Rs, RH and u2 was the same as the annual trend excEpt that the summer half-year air temperature had shown an increasing trend. These could be the possible causes for the decreasing annual as well as summer halfyear trends of ETo and PETs.
However, the cause for the nearly constant or very slightly increasing trend of summer half-year Ep was not understood. Note however that Ep was mainly driven by solar radiation and vapor pressure deficit (T and RH). Note also that the correlation between Ep (n = 1709) as well as Rs (n = 1830) with air temperature was low (R2 ≤ 0.34).
Last but not least, in all cases, R2, RMSE, and p-values of the linear regression model revealed that the trends of Ep, PETs, and ETo had statistically insignificant and very low correlation with time (see Figure 3-5) [13-16].
Conclusion
Although potential evapotranspiration according to Haude, Wendling, and Penman (PETs) and reference evapotransipiration (ETo) had shown annual as well as summer half-year decreasing trends, the so-called ‘evaporation paradox’ had not existed on annual basis because air temperature had not shown increasing annual trend at Tharandt. Class A pan evaporation (Ep) had shown nearly constant trend for summer half-year. When we had not considered Ep, indeed, evaporation paradox had existed at Tharandt on the summer half-year based on PETs and ETo estimates.
When 2013 was excluded, the annual trend of PETs for the remaining nine years remained decreasing; however, the summer half-year trends of ETo and Ep were changed. Thus, it can be concluded that ten years are not enough to evaluate the summer half-year evaporation paradox on the basis of Class A pan evaporation at Tharandt. Particularly, trend determination of ETo and Ep needs to be performed over longer time span of more than ten years, if data is available; preferably over 30 years and above as stated by the World Meteorological Organization.
The causes for the nearly ‘no trend’ of summer half-year Ep need further investigations for better explanation because excEpt the trend of air temperature, the trends of shortwave or solar radiation (Rs), relative air humidity (RH), and wind speed at 2m (u2) were in favor of a decreasing trend of Ep.
Acknowledgment
First of all, I do praise GOD and GOD’s Mother above all. I particularly thank Virgin Mary’s or ‘Tsadiqane Mariam’ (‘ፃድቃኔ ማርያም’) monastery of Ethiopia. Next, I thank Technische Universität Dresden, Faculty of Environmental Sciences, Institute of Hydrology and Meteorology, Chair of Meteorology for providing me all the data used for the study. I also thank DAAD, the National Meteorology Agency of Ethiopia (NMA), and the Ethiopian Meteorology Society for giving me financial support during my master’s study. Very special thanks to my official supervisors Dr. Uta Moderow and Prof. Dr. Christian Bernhofer for their excellent supervision during my master thesis (finished in 2017). I am also grateful to my friend Mr. Abebe Guadie and to my brother’s friend Mr. Shambel Abdi; they supported me in the publication of my previous research article. Last but not least, I would like to thank my wife and my family and friends for their crucial support and for sharing love and happiness.
Data Availability Statement
All data used during the study were provided by a third party. Direct requests for these materials may be made to the provider as indicated in the Acknowledgements. Also, all models or code generated or used during the study are available from the corresponding author by request.
ORCID
Antensay Mekoya https://orcid.org/0000-0002-2895-4581.
