Comparative Study on Various Animal Manures and Process Parameters During Anaerobic Digestion of Food Waste
Tanuja Gharge, Vishwajit Chavan, Sayali Kodak and Sibi G*
Department of Biotechnology, Indian Academy Degree College-Autonomous, India
Submission: November 12, 2019; Published: January 24, 2020
*Corresponding author: Sibi G, Head of the Department, Department of Biotechnology, Indian Academy Degree College-Autonomous, Bengaluru, India
How to cite this article: Tanuja Gharge, Vishwajit Chavan, Sayali Kodak and Sibi G. Comparative Study on Various Animal Manures and Process Parameters During Anaerobic Digestion of Food Waste. Int J Environ Sci Nat Res. 2020; 23(3): 556111. DOI: 10.19080/IJESNR.2020.23.556111
Abstract
Food waste management is a difficult task which leads to food safety issues as disposal of food waste is major problem. Some traditional methods are used for disposal of food waste but are inferior. The anaerobic digestion has significance approach in food waste management. This method generally involves hydrolysis, acidogenesis, acetogenesis and methanogenesis. Mainly thermophilic and mesophilic conditions are required for the anaerobic digestion process. For efficient process and stability in operational status, physiological parameters play immense role. The goal of given review is to produce biofuels by using various animal dungs for human welfare with respect to anaerobic digestion of food waste. This review covers the comparative study of different animal manures, bioreactors and process parameters involving in anaerobic digestion process.
Keywords: Anaerobic digestion; Thermophilic; Mesophilic; Bioreactors; Physiological parameters
Introduction
Over the entire globe, generation of enormous environmental, economical and social issues has been occurred due to food waste through food chain supply [1,2]. Food waste is generating increasingly from residential, commercial, institutional and industrial areas [3,4]. Food waste management is very challenging because of its high moisture content and simple deterioration [5,6]. Disposal of food waste is a major problem which is leading to food safety issues due to its incomplete management [7,8]. There are some traditional approaches for the disposal of food waste such as heat treatment, animal feed, incineration and land filling. But these methods are moderately good but less than excellent due to high moisture content, less calorific value and greater liability with respect to environmental impact [4,9]. Whereas, for proper food waste management there exists an effective approach called as anaerobic digestion. It has environmental significance that includes production of renewable energy, soil amendments, alcohol, volatile fatty acids and other valuable materials [9-12].
The process of anaerobic digestion involves four vital steps namely acidogenesis, acetogenesis, methanogenesis and hydrolysis [13]. Digestion of food waste at higher rate is often a challenging optimization problem as food waste is a heterogeneous substrate which includes lipids, carbohydrates, proteins and fibers that contains both easily fermentable and refractory complex organics. To overcome this problem, pretreatment of both inoculum and substrate and improvement of bioreactor configuration has been under focus by researchers [14-16]. The sources of bioaugmentation which involves the use of bacteria to speed up the digestion process are mainly found in animal manures as they contain microbes and enzymes in their digestive system which breakdown complex organic compounds in diet and microbial consortia is co-diversified with their host [17,18]. Distinctly, high rate of protein and lipid degrading microbes and enzymes are present in digestive track of carnivores whereas digestive track of herbivores contain enzymes and microbes which can breakdown the recalcitrant fibers and carbohydrates and omnivores involves both in their digestive system [19]. According to research study, the investigation of effect of bioaugmentation of various animal manures with respect to anaerobic digestion of food waste was done. Various animals involving tiger, giraffe, cow, llama, sloth bear, koala, were selected for the study and anaerobic sludge was used as inoculum [20]. Microbial consortia plays vital role in anaerobic digestion process in which thermophilic and mesophilic bacterial conditions are most widely used methods.

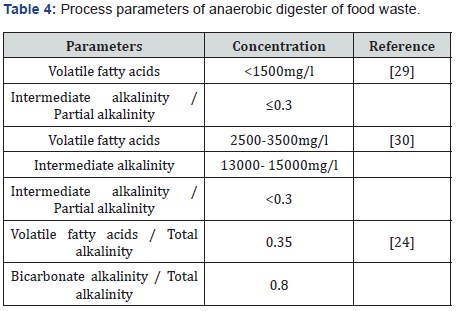

There are various parameters of the anaerobic digester which reflects the operational status of the process; these parameters involve pH, gas production, volatile fatty acids, alkalinity. The study at a greater extent has been carried out to detect these process indicators mainly physiological parameters [21-26]. For improvement of stability and efficiency of anaerobic digester, control and monitoring the process of anaerobic digestion plays an immense role [21,24,27].
Methodology
A systematic search was carried out in PubMed, Scopus and Web of Sciences using a combination of Boolean operators. Peer reviewed papers in English on the Anaerobic digestion of food waste were retrieved and evaluated based on titles and abstracts. The retrieved papers were managed using Mendeley and the data were consolidated.
Steps involved in the process
The process of anaerobic digestion of food waste involves the microbial consortia which carry out the digestion in sequential stages. The steps involved are Acidogenesis, acetogenesis and methanogenesis. All the given processes are carried out in single stage batch reactor as all the waste is loaded simultaneously (Figure 1).
Hydrolysis
Hydrolysis process involves the breakdown of complex polymers or macro molecules into simpler, smaleer components. This process involves vital role of hydrolytic bacteria and also certain enzymes. In case of certain components, like lignin, cellulose and hemicellulose which are not easily accesible for degradation due to their complex structure,so in order to degrade them, certain hydrolytic enzymes are involved in order to make them easy for hydrolysis. Optimum temperature needed for the hydrolysis process is between 30 - 50°C and optimum pH is around 5-7 (Table 1).
Acidogenesis
This process also called as fermentation process and it involves acidogenic bacteria. After utilization of products of the hydrolysis, acidogenic bacteria produce intermediate volatile fatty acids and other products. Volatile fatty acids constitute a class of organic acids such as acetates, and larger organic acids such as propionate and butyrate also ethanol and lactate are also present. The condition of the anaerobic digester plays immense role with respect to the concentration of intermediate products during the process. This process is considered as one of the fastest process of anaerobic digestion of food waste as the regeneration time of acidogenic bacteria is fewer than 36hrs. There is another process which is similar to the given one, named as Bokashi composting, a composting technique in which anaerobic digestion of food waste is carried out with the help of microbial community which gives highly acidic final product and is used as dry and liquid fertilizer.
Acetogenesis
This process involves the conversion of Volatile fatty acids and intermediates into acetate and hydrogen as a byproduct. Lipids follow another pathway of acetogenesis via acidogenesis and beta oxidation.
Acidogenesis: Glycerol Acetate
Beta oxidation: Long chain fatty acids Acetate
Methanogenesis
It is the last and finalized step in anaerobic digestion process. It involves the production of methane from intermediates produced in previous stages by methanogenic bacteria. The habitat of methanogens involves freshwater and marine water, sewage digesters, herbivores, wood and humus feeding insects etc. Methanogenic bacteria are classified into 4 groups. Each group requires a specific substrate in order to produce methane. Methanogenic bacteria class I requires acetate as a substrate and bacterial spp. is Methanosaeta. It produces methane from acetic acid and carbon dioxide as a byproduct. Class II uses hydrogen and formate as substrate and bacterial strains are Methanobrevibater spp. and Methanogenium spp. In this process, carbon dioxide and water produce methane and H2O as a byproduct. Class III involves Methylated compounds as a substrate and the microbes involved are Methanolobus spp. and Methanococcus spp. The first one spp. converts methanol into methane and CO2 and H2O as a byproducts. Also, Methanococcus spp. converts methylamine and H2O into methane and CO2 and ammonia as byproducts. Class IV involves acetate, hydrogen and methylated compounds and the bacterial spp. is Metahanosarcina. It involves combinations of all the previous reactions of methane production (Table 2).
Dung from various animals was taken to which food waste was added as substrate. Anaerobic sludge was used as inoculum which was added to it. Pretreatment involved the dislodging of undesirable matter manually and homogenization of remaining dung in which addition of tap water to it was done to match their volatile solid content with volatile solid of anaerobic sludge. Then the whole mixture is sieved through mesh no. 20 (0.85 mm) to withdraw any undesirable debris or particles [20] (Table 3 & 4).
Conditions required in anaerobic digestion process
The study done by Chao et al. [31] involves the effect of organic loading rate and anaerobic digestion of food waste under thermophilic and mesophilic conditions. The obtained results of anaerobic digestion showed that the process majorly involves the temperature, organic loading rate (ORL), in order to produce biogas. Food waste was collected from a canteen of an institute which was then treated to remove the impurities manually which again was smashed to 2-5mm with a pulverizer. 12 laboratory scale bottles of 500mL were used as a digester with 400mL working volume of which 6 were kept in thermophilic condition and 6 were kept in mesophilic condition for 23 days prior to production of biogas. Biogas (CH4 and CO2) compositions were measured by a gas chromatograph [31]. The Organic loading rate provided was 2.5 g of volatile solids (VS)/L/day and 1.5g of volatile solids (VS)/L/day for thermophilic and mesophilic respectively. Results obtained says that under thermophilic condition the methane yield was 33-49% higher than that of the mesophilic condition it also suggests that the thermophilic condition is more efficient for anaerobic digestion. The other work done by Guo et al. [32] involves the use of same mesophilic and thermophilic conditions. In this work the use of mesophilic and thermophilic reactor was done in order to study the anaerobic digestion of the food waste. In this study the comparison was based on the response of microbial population to increasing Organic loading rate. Both the reactors were provided with same range of organic loading rate of 1.0 to 2.5g VS L-1 d-1 at which mesophilic reactor showed more stable performance than the thermophilic reactor in terms of methane yield.
Tojo et al. [33] worked on the anaerobic digestion of food waste mixed with cardboard mixtures which was subjected to batch digestion using three different inocula. They mainly focused on the archeal community of the inocula. The test started with inocula rich in Methanosarcina which brought about efficient methane production Volatile fatty acids accumulated in the reactors where inocula initially were poor in these archaea and no methane was produced. Also, the higher substrate load was tolerated by the Methanosarcina they were the dominant methanogens in the digestate from experiment that produced methane. So, the conclusion was the initial composition is important in order to obtain stable anaerobic digestion. In one more study, usefulness of two step processes using non-airtight fermentation of potato peels with dairy manure followed by struvite precipitation was done. The non-airtight fermentation for 6 days in the vessel lead to acidification and hydrolysis and which resulted in decrease in pH upto 6.4 also the ratio of reactive phosphorous to total phosphorous increased from 49.6 to 93.7% by adjusting the pH to 8.0 and 9.5 the struvite formation was successfully induced. The struvite formation was analysed for scanning electron microscopy as well as energy dispersive spectrometry (SEM-EDS) the results obtained shoed that there should be appearance of both struvite and calcium phosphate. The pH 8 contains about 75% struvite and pH 9.5 contains 90% of the same [34].
In another study [35], garden waste and food wastes were fermented together in two step process hyperthermophilic dark-fermentation and mesophilic anaerobic digestion coupled together. In first stage the matter was digested using pure culture of Caldicellulosiruptor saccharolyticus as inoculum for production of biohydrogen. Food waste concentrations in volatile solids above 2.9g L-1 caused a lag phase of 5 days on biohydrogen production there was no lag phase for garden waste concentrations up to 25.6g L-1. The co-fermentation experiments led to the highest hydrogen yield up to 46±1 L kg-1 for Garden waste: Food waste 90:10% (w/w). During the second stage, a biomethane yield of 682±14 L kg-1 was obtained using the end products of Garden waste: Food waste 90:10% co-fermentation. According to Treu et al. [36], when a continuous stirred tank reactors fed with cheese whey at different operational conditions such as themophilic (54°C) and mesophilic (37°C) to enquire productivity of methane production at lab scale. The conclusion was that when whey is mono digested it was feasible at mesophilic condition which in case of thermophilic condition leads to frequent acidification. When the cheese whey was co-digested with cattle manure it maintained the pH levels higher than 7.0 and therefore there was a stable rate of methane production without exploration of volatile fatty acids. The increase in methane production was achieved by dispersion of hydrogen in situ at mesophilic and thermophilic conditions. Hydrogenotrophic methanogens were the dominant archaea during the whole experiment.
According to Borowski et al. [37] the food waste was digested an aerobically with slaughterhouse waste and municipal sewage sludge waste. The digestion was carried out in 3-dm3 laboratory reactors as well as in 50 dm3 reactors which were operated in semi continuous condition. The combination of food waste with slaughterhouse waste gave more methane yield. 63m3 CH4/ kg Volatile solidfed when was digested in laboratory digester for around 30 days. Whereas the digestion of food waste with municipal sewage sludge waste gave methane yield of 0.46m3 CH4/kg Volatile solidfed. The conditioning tests with the digestates from reactor experiments revealed the highest efficiency of inorganic coagulants among all investigated chemicals, which applied in a dose of 10g/kg allowed to reduce capillary suction time of the digestate below 20s. The conditioning of combination of coagulants with bentonite further did not shown any reduction in Capillary suction time value but it showed the improvement in the quality of the digestate supernatant. In other words, the suspended solids concentration, chemical oxygen demand and the metals in the supernatant faced the reduction. After production of edible mushrooms, the residue is remained called as spent mushroom substrate which occurs in huge amount which can be digested for production of biogas in mesophilic condition in an anaerobic condition. The digestion of spent mushroom substrate in thermophilic anaerobic condition was inspected and also interconnected microbial population structure changes were taken under examination [38]. This digestion was carried out for 12 days and it gave methane yield of 177.69mL/g volatile solid (VS). Hydrolytic activities during the process of digestion increased the methane production 4days to 6 days. The most common archaea were Crenarchaeota. Both Methanothermobacter and Methanobacterium were the most commanding general of the archaea but there was sharp decline in number with time.
Conclusion
The instability in performance of anaerobic digester is a major problem in the process of digestion. To overcome this problem, microbial management, process control and monitoring are useful methods. Also, improvement in bioreactors plays vital role and is efficient. Anaerobic digestion using animal manure is more efficient than traditional approaches. In the given review, comparative study of process has done by using various animal dungs which are having the ability to stimulate biomethane production from food waste. Among these, giraffe dung showed high yield of biomethane. Thermophilic conditions showed greater potential than mesophilic conditions for anaerobic digestion process. Physicochemical parameters mentioned in the given review are efficient to achieve stability and improved performance.
