Absorption of Sulphur Onto Organoclay
Habiba Mohammed*
Department of Chemical Engineering, Nigeria
Submission: October 14, 2018; Published: January 18, 2019
*Corresponding author: Habiba Mohammed, Department of Chemical Engineering, Nigeria
How to cite this article: Habiba Md. Absorption of Sulphur Onto Organoclay. Int J Environ Sci Nat Res. 2019; 16(3): 555939. DOI:10.19080/IJESNR.2019.16.555939
Abstract
Due to the abundance of sulphur found in soil under Aerobic condition the main element is being absorbed by the plant and it is brought from three major sources weathered they compose organic matter and atmospheric precipitation. Modified clay is suitable absorbent for the removal of sulphate from contaminated water in terms of natural and commercial absorbent. The maximum sulphate was found to be 119mg/L and 13mg/L for modified and unmodified clay at pH of 7.5 in three hours with 580mg/L of initial concentration.
Introduction
Sulphate is the most abundant form of sulfur found in soils under aerobic conditions and the main ionic species of this element that is absorbed by plants. The sulfate interactions with the soil solid phase influence not only its mobility, but also its availability to plants. The study of the reactions and mechanisms of the sulfate-ion adsorption by soils is of great theoretical and practical importance. The adsorption and exchange of anions in soils are significantly less understood than the adsorption and exchange of cations. The practical aspect of this problem is related to the large effect of the soil capacity to adsorb sulfates on the removal of bases from the soil J Environ. Qual. The sorption parameters of soils the buffering properties of soils for acid reagents RK Xu, G L Ji [1], and the toxicity of Al compounds in solution CJ Asher [2]. It was noted that the significant decrease in the atmospheric emission of acidic reagents reached in some economically developed countries does not always result in an expected increase in the soil pH and a decrease in the sulfate concentration in the soil solution [3]. This is related to the complexity and inter relation of diverse reactions with the participation of sulfates in the “soil solid phase–soil solution” system, which is difficult to adequately describe by mathematical models. It is well recognized that the adsorption of sulphate by soils and soil materials occurs by replacement of M-OH or M-OH groups Parfitt [4]. Sulphur is brought into the soils of forest ecosystems from three major sources: weathered minerals, decomposed organic matter, and atmospheric precipitation. Metal sulfides (predominantly iron sulfides) and gypsum are the main carriers of Sulphur [5-12].
The content of sulphur in the upper horizons of non-saline soils varies from 0.01–0.02 to 0.2–0.4%. The lowest concentrations and reserves of sulphur are found in low-humus sandy and loamy sandy soils. The highest sulphur content is typical for peat soils and peats. In the upper humus horizons, the organic compounds of sulfur make up to 70–80% of the total sulphur pool. Sulphur occurs in soils in both organic and inorganic forms. Their ratio depends on the soil type and the occurrence depth of the horizon under study. Elementary – sulphur is also found in soils, especially in the areas of recent volcanic activity. Sulphur is accumulated in soils predominantly as adsorbed sulphates in soil solutions, living plant tissues, and soil organic matter. Equilibrium is established in this system under natural conditions; it is shifted under the effect of acid precipitation, and the new equilibrium takes different time periods in different soils to become established [13-22].
Research Methodology
Materials and reagents
Materials:
a) DR/2000, Direct reading spectrophotometer.
b) Filter paper.
c) Spatula and Stirrer.
d) Beakers.
e) Conical flask.
f) pH meter.
g) Reagent Bottles.
h) Funnels.
i) Beam Balance.
Chemicals and reagents:
a) Sulfate (SO2- ) 5mM concentration.
b) Hydrochloric Acid (HCl).
c) Sodium Hydroxide (NaOH).
d) Distilled Water.
e) Raw Clay.
f) Modified Kaolin with surfactant HDTMA-Br (Picture 1).
All chemicals were obtained from Soil and Science Department Laboratory. Distilled water obtained from Maiduguri Water Treatment Plant. Used for the preparation of all samples and standard solutions [22-30].
Experimental procedure preparation of organoclay
The organoclay sample was prepared from raw kaolin by the addition of HDTMA-Br, (hexadecyltrimetylammonium bromide) solution. 69.2455g of HDTMA-Br was weighed with a beam balance from the department of Soil and Science Laboratory University of Maiduguri and dissolved in 250ml of distilled water to prepare solutions of HDTMA-Br 100% CEC of Kaolin clay. 100g of clay was also weighed and dissolved in HDTMABr solutions and transferred into a batch reactor. The aqueous mixtures were then shaken laterally at room temperature for 24 hours. After centrifugation, the organoclay sample were filtered and washed several times with distilled water, dried and stored for use in the experiment [31-38].
Sulfate-organoclay interaction
Organoclay sample prepared from kaolin clay was treated with solutions of known initial concentrations of 5mM and continuously stirred for about 15-30 minutes. The amount of clay used for this experiment was approximately 100g for each. Samples were taken within intervals of 1 hour for each solution for the sulfate sorption. Final sulfate concentrations in the supernatant solutions were determined by D.R. Spectrophotometer. The effect of pH on sulfate sorption was also investigated by adjusting the pH to 7.5 using NaOH and HCl. After 15-30 minutes of stirring, the sulfate concentrations of the solutions were determined by D.R Spectrophotometer.
Preparation of aqueous sulfate solution
Stock Sulfate Solution, 5mM: Aqueous solution of hexavalent sulfur was prepared by dissolving appropriate grams of sulfate (SO42-) in distilled water and completed to 1000mL stock solution. 25mL of stock solution was dissolved in 500mL distilled water for a concentration of 5mL. Desired pH of solution (7.4) was adjusted with NaOH and HCl [39-44].
Sulfate determination
DR 2000 Model adsorption Spectrophotometer was used for sulfur measurements.
Using the Dr 2000 spectrophometer to measure sulfate ion
a) The stored programme number for sulfate ion was entered (i.e 90).
b) The wavelength was rotated to 540nm.
c) ‘READ/ENTER’ was pressed and mg/l Cr6+ was displayed.
d) Then the sample cell was filled with 25ml of sample.
e) Content of 1 chromaver 3 sulfate powder pillow was added to the cell (the prepared sample) and was swirled to mix.
f) The shift timer was pressed when the time beeped, and a 5 minute reaction period started.
g) Another sample cell was filled with 25ml of sample (the blank).
h) When the timer beeped, it showed mg/L of sulfur and the blank was placed into the cell holder and the light shield was closed.
i) Zero was pressed, and the display showed wait, and then 0.0mg/l sulfur.
j) The stopper was removed, and the prepared sample was placed into the cell holds. The light shield was then closed.
k) Read/enter was pressed, and the display showed wait, and then the result in mg/l of sulfur was displayed.
Result and Discussion
Result

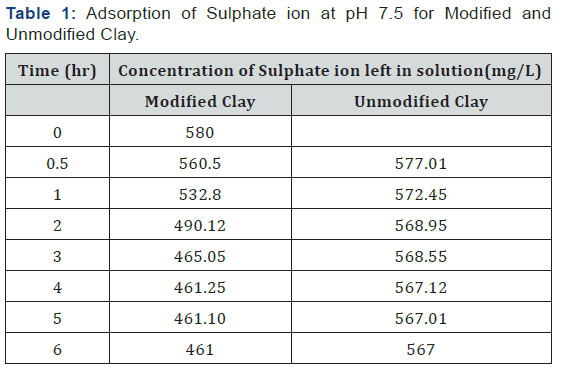

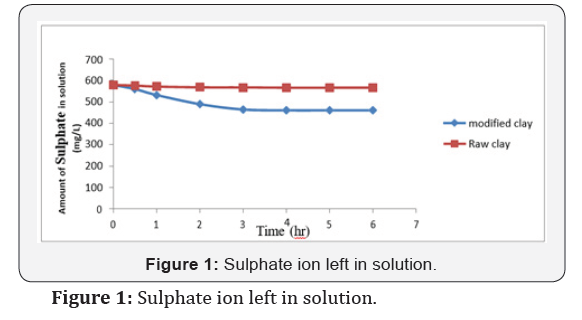

Table 1: Adsorption of Sulphate ion at pH 7.5 for Modified and Unmodified Clay.

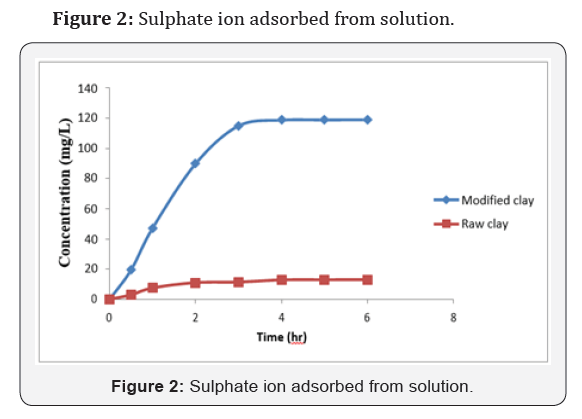

Table 2: Amount of Sulphate ion adsorbed (mg/L) at pH 7.5.
Conclusion
The data obtained from the study on the adsorption of sulphate onto organoclay provided a fundamental information in terms of optimum concentration for maximum removal of sulphate from solution. The maximum sulphate removal was found to be 119mg/L and 13mg/L for modified and unmodified clay at a pH of 7.5 in 3 hrs. with 580mg/L of initial concentration. The study also indicated that modified clay can be used to develop high capacity adsorbent material for the removal and recovery of heavy metal ions from the dilute industrial waste water streams. It can be concluded that the modified clay is a suitable adsorbent for the removal of sulphate from contaminated water in terms of natural and valuable alternatives for commercial sorbents. Further studies should be carried out in order to know the exact amount of the adsorbent and the exact pH solution that should be used for the effective removal of contaminants from a specific environment concerned.
