Fungal Spores of Cladosporium in the Air of Tetouan Meteorological Parameters and Forecast Models
Farah Filali Ben Sidel1, Hassan Bouziane1*, Maria del Mar trigo2, Fatima el haskouri1 and Mohamed kadiri1
1Laboratory of Ecology, Biodiversity and environment, Morocco
2Department of Plant Biology, University of Malaga, Spain
Submission: June14, 2017; Published: June 30, 2017
*Corresponding author: Hassan bouziane, Laboratory of Ecology, Biodiversity and environment, Morocco, Tel: (212)0539972423; Email: hasbouz@hotmail.com
How to cite this article: Farah F B S, Hassan B, Maria d M t, Fatima el h . Fungal Spores of Cladosporium in the Air of Tetouan Meteorological Parameters and Forecast Models. Int J Environ Sci Nat Res. 2017;3(2): 555609. DOI: 10.19080/IJESNR.2017.03.555609
Abstract
Cladosporium is fungal taxa whose spores are included in aerobiological studies of outdoor environments. This spore type is present in the atmosphere of Tetouan (Morocco) throughout almost the entire year, although they reach their highest concentrations during spring to autumn. Fungal spore's concentrations were monitored during 2009-12 using Burkard volumetric spore traps. Stepwise multiple regressions were constructed taking into account meteorological and biological parameters with data from 2009 to 2011 and tested on data from 2012. Differences between observed and expected values were examined using Wilcoxon test.
Cladosporium showed maximum daily values in March, August, September or October depending on year. The forecast models explained 64.5 to 66.9% of the variation of daily spore concentrations when previous day or week concentration (Cladot-1 )and mean concentration of the same day or week in other years (Cmean), frequency of the wind first quadrant, rainfall and maximum relative humidity were introduced in the regression equations. The predictive models based on weekly values achieved 65.4 to 67.3% of variance. The Wilcoxon test demonstrated that there were no significant differences when model 4 was selected for main spore season and pre-peak and model 2 for weekly concentration, validated therefore satisfactory for predicting Cladosporium spore in the atmosphere of Tetouan. This study demonstrates that the input of meteorological and biological (Cmean and Cladot-1 ) parameters increased the goodness of models fitting.
Keywords: Fungal Spores; Cladosporium; Aerobiology; Meteorological Parameters; Modeling; Tetouan; Morocco
Introduction
Conidia of Cladosporium species represent the most common fungal component isolated from air [1,2]. Their small conidia, usually formed in branched chains are well adapted to be spread easily in large numbers over long distances [3]. A number of studies have confirmed that Cladosporium spores are an important aeroallergen and exposure to high concentrations affects human health by increasing the incidence of bronchial ailments [4,5] and they can cause several respiratory diseases in man such as asthma and rhinitis when inhaled [6,7]. They act saprophytically on dead organic material or as plant pathogens, infecting all stage of plant growth, causing plant diseases, prompting considerable economic losses worldwide [8], or they occur as hyperparasites on other fungi [9]. In view to establish preventive measures against such allergies and the fungal infection of crops, different groups of aerobiologists have studied the relationship between the daily atmospheric concentration of fungal spores and meteorological parameters making use of correlations, linear and multiple regressions analysis. Most common aerobiological models use almost uniformly meteorological data as the main controlling variables [10]. Environmental factors such as temperature, humidity, wind, nutrients availability, circadian periodicity and seasons play an important role on fungal spore's production, dispersion and/or transport in the air for short and long distances. When spores deposited on solid or wet surface and if appropriate conditions are met, they germinate [11,12]. Multi-factorial effect of climatic conditions and delayed effect are poorly understood.
Aerobiologists are concerned to develop forecast models providing prediction of atmospheric particles concentrations. Forecast of airborne fungal spores are few and with limited accuracy [13-17].These predictive models for both short-and long-term variation in spore concentrations provide accurate information in order to take preventive measures against exposure to these particles and to improve diagnostics therapy.In this study, an attention was paid to the spore concentration mean value for that day or week as do Recio et al. [18]. According to Rodriguez-Rajo et al. [19], daily mean pollen concentration substantially improve the prediction accuracy. As demonstrated in the previous paper for Alternaria [10], lagged values from the series of daily or weekly spore concentrations fit quite well into the regression models and should be taken into account. The aim of this study was to examine the annual and seasonal dynamics of atmospheric Cladosporium spores in Tetouan (Morocco) during 2009-2012 and the relationship between spore levels and some meteorological factors. As no predictive models has been developed up to date for Cladosporium in Morocco, this work aims also to construct forecasting models enabling accurate predictions of the daily and weekly spore concentrations of Cladosporium.
Materials and Methods
The province of Tetouan is located in the eastern sector of the Tingitan Peninsula in the northwest of Morocco (Figure 1), covering an area of 2,574 km2. In bioclimatic terms, it belongs to the thermo mediterranean climate. It is characterized by two seasons, the first humid and fresh from October to April and the second drier and hot from May to September. For the years 2009-2012, the average mean temperature was 19.2°C and mean annual rainfall was 765.5mm. The mean annual maximum temperature varied between 22.3 and 23.1°C, whereas in the case of the minimum temperature, the averages ranged from 14.3 to 17.6°C. The coldest months are January, February or December, respectively. The warmest month corresponds to July or August. The city, far 10 km from the Mediterranean Sea, is located between two mountain ranges; therefore, the prevailing winds are those blowing from the NE (known locally as "Chergui") and SW (locally known as "Gharbi") [20].
Fungal spores sampling was performed during 2009-2012 using Burkard 7-day volumetric spore traps located on the flat roof of the Department of Biology of the Faculty of Sciences of Tetouan 15 m above ground level. The sampler was calibrated to aspirate an air flow of 10 l/min. To collect daily airborne spores, a trapping surface of Melinex film coated with 2% silicon solution was mounted on the drum rotating inside the sampler at a speed of 2 mm/h. The drum was changed weekly and the exposed tape was cut into seven segments for daily spore counts. The spores were counted in the microscope slide using two longitudinal transects according to the Spanish Aerobiological Network (REA) [21]. Daily mean concentrations were expressed as the number of spores per cubic metre of air. The main spore season (MSS) was determined by the 90% method of Nilsson and Person [22] taking the beginning and end of the MSS as 5 and 95% of the annual accumulated sums.
The correlation coefficient between mean daily spore concentrations and meteorological parameter values was calculated using Spearman's correlation test for statistical significance p<0.01 and p<0.05. Values were computed by the program Statistica (Softwear program). The meteorological parameters used were maximum temperature (Tmax), mean temperature (Tmean ), minimum temperature (Tmin ), maximum relative humidity (RHmax), mean relative humidity (RHmean), minimum relative humidity (RHmin), precipitation, mean and maximum wind speed (WSmean and WSmax), frequencies of four directions of wind (NE, SE, NW, SW) and calm. For each wind direction, total hours per day were expressed as a percentage.
Meteorological data were obtained from the Physics Department of the Faculty of Science, which has an automatic meteorological station located 500 m from the sampling site. A multiple stepwise regression by backward elimination was made to evaluate the parameters forming part of the mathematical model that enables us to predict Cladoporium spore concentrations using data from 2012 as external values to validate the forecast model. This analysis was applied between dependent variable (daily Cadosporium spore concentrations of the MSS, weekly means of the year and averaged daily values of the second pre-peak period) and 15 independent variables. The pre-peak was defined as the period when the daily spore concentration curve starts to increase accumulating 1000 sp/m3 until a maximal value is reached. The 15 independent variables were firstly the lagged values from the series of spore concentrations, previous day or week concentration (Cladt-1) and mean concentration for the same day or week of other years 2009-2011 (Cmean) and secondly the same meteorological parameters selected above for the correlation analysis at the exception of Tmean . The Wilcoxon test was made to select the reasonable predictor variables by comparing positive or negative rankings of differences between observed and predicted series. Spearman's correlation test was also performed to estimate the degree of association between these two series.
Results
Spores Data

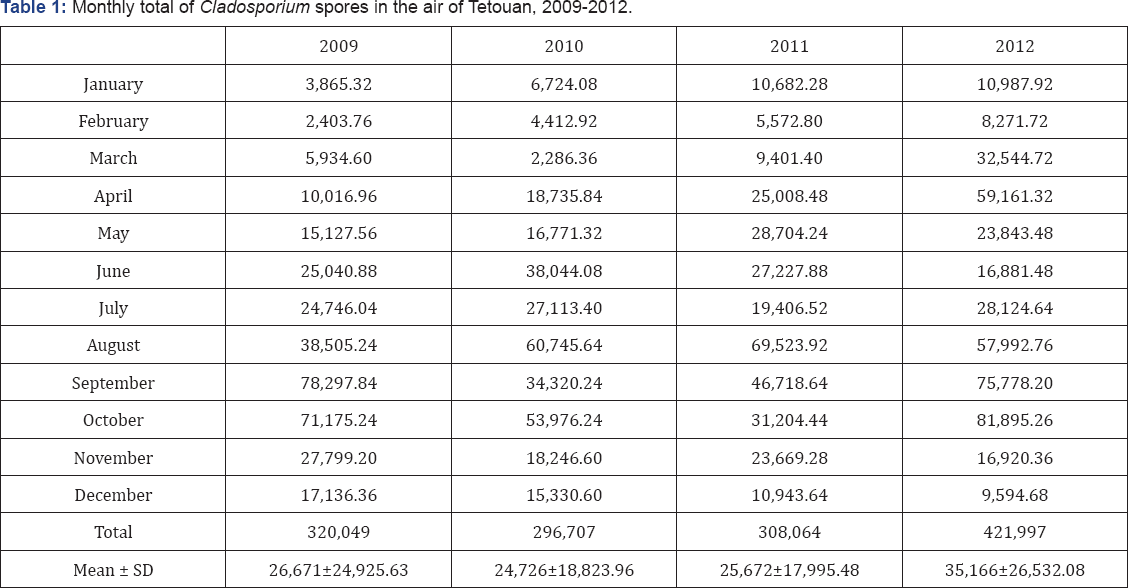

Spores of Cladosporium were found in the air of Tetouan throughout the whole study period with very important concentrations. The highest number of spores was recorded in 2012 with 421,997 spores, while the lowest value occurred in 2010 with 296,707 spores (Table 1). The monthly spore levels showed the highest spore concentrations during spring to autumn. Thus, the maximal load of Cladosporium is found in September for 2009, August for 2010 and 2011 or October for 2012 (Table 1).
During the four analyzed years, the MSS lasted between 244 and 295 days. Start dates of the spore season varied from February to April. End dates were in the first fortnight of December in 2009 and 2010, and in 20th November and 06th November in 2011 and 2012, respectively (Table 2). The maximum daily spore concentration reached 6,242 sp/m3 on 19th August in 2011, 7,712 sp/m3 on 16th September in 2009, 7,753 sp/m3 on 30th October in 2010 and 11,276 sp/m3 on 31th March in 2012 (Table 2), (Figure 2).
MSS-start: starting date of MSS, MSS-end: end date of MSS.
Correlation with meteorological parameters

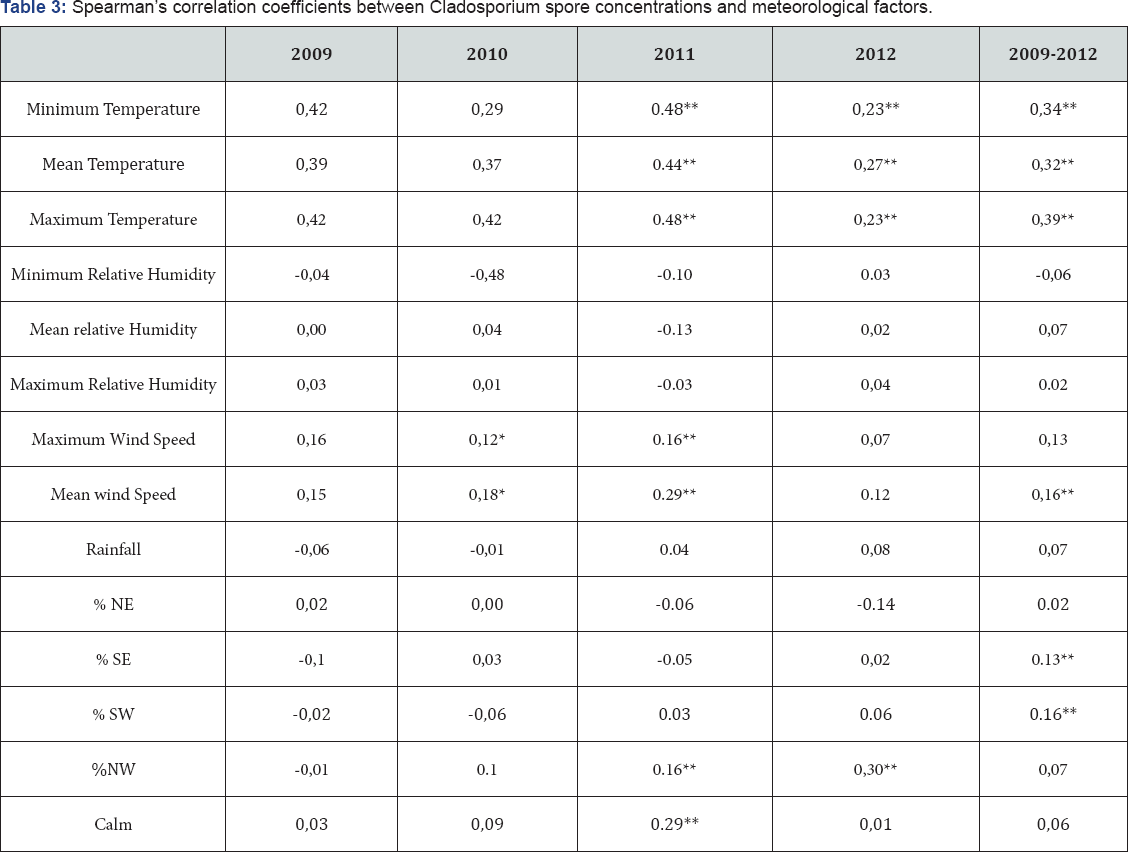

During the seasons concerned, the correlation between Cladosporium spore concentration and Temperature showed a positive correlation with a significance level of p<0.01 (Table 3). Only in one year (2011), it was observed that the mean relative humidity correlated negatively with a significant coefficient. The association between wind speed and Cladosporium spore concentration was often positive and significant. A negative and significant correlation was found between first quadrant wind direction (NE) and spore concentrations of Cladosporium in 2012, whereas the positive influence of fourth quadrant wind direction (NW) was noted in 2011, 2012 and all the period in 2009-2012.
Stepwise multiple regression

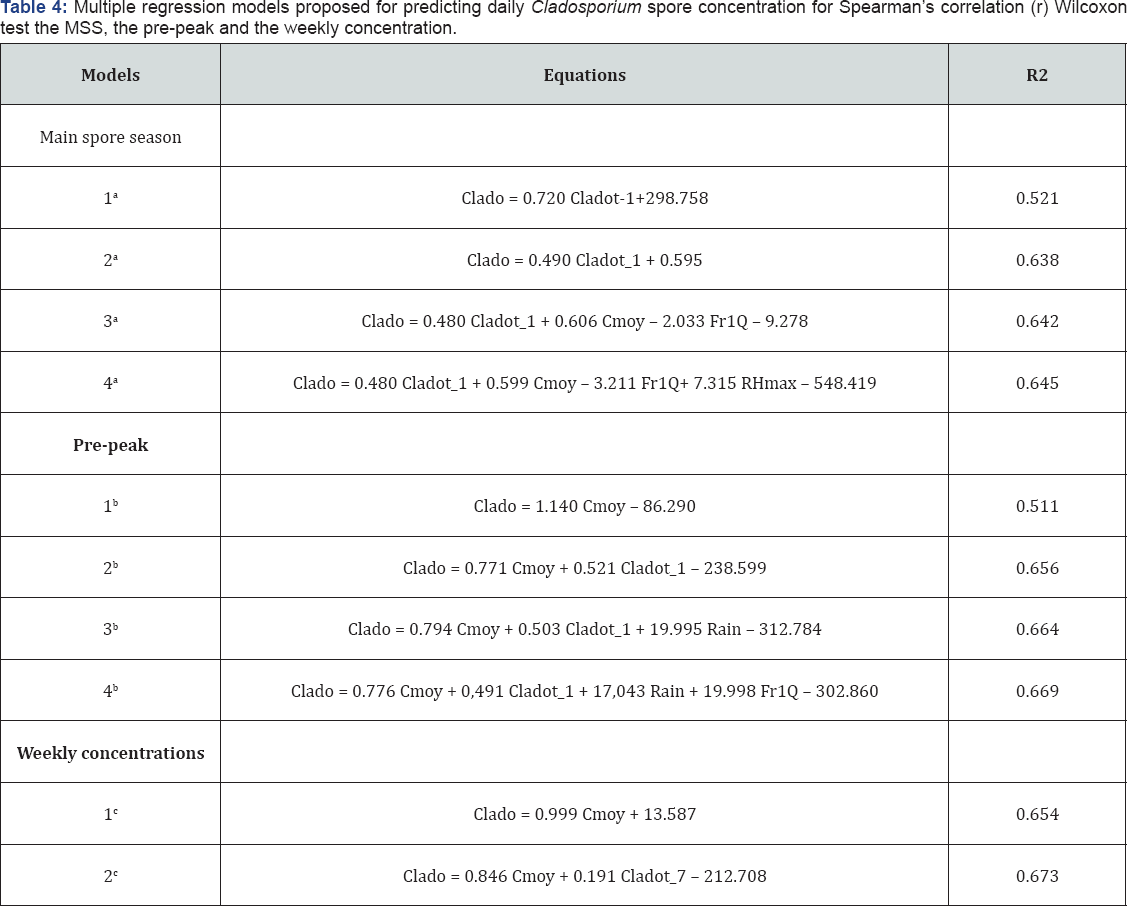

In the stepwise backward elimination regression, which not included Tmean (model 1), the percentage variance explained up to 52.1% for the MSS, 51.1% for the pre-peak and 65.4% for the weekly values (Table 4). When more meteorological parameters were eliminated from the equation, the resulting R2 satisfactory predicts future concentration with an adjusted regression coefficient ranging from 66.9 to 67.3% when averaged daily data for the pre-peak and averaged weekly data were used (Table 4). As regards the Wilcoxon test, it was used to compare the results from the expected values and observed data for 2012 of MSS, pre-peak and weekly values of the year.
R2: regression coefficient; Cladot-1: Cladosporium spore concentration recorded one day before; Cmean: mean concentration for the same day; Fr 1Q: frequency of the wind 1st quadrant; RHmax: maximum relative humidity; Rain: Rainfall; Cladot-7: Cladosporium
Ium spore concentration recorded seven days before.
a) Parameters eliminated for Main Spore Season
1: Tmean; 2: Tmean and Tmin; 3: Tmean, Tmin and WSmax; 4: Tmean, Tmin, WSmax and WSmean
b) Parameters eliminated for pre-peak:
1: Tmean; 2: Tmean and Tmin; 3: Tmean, Tmin and WSmax; 4: Tmean, Tmin, WSmax and WSmean
c) Parameters eliminated for weekly concentrations
d) 1: Tmean and Tmin; 2: Tmean, Tmin, WSmax and WSmean

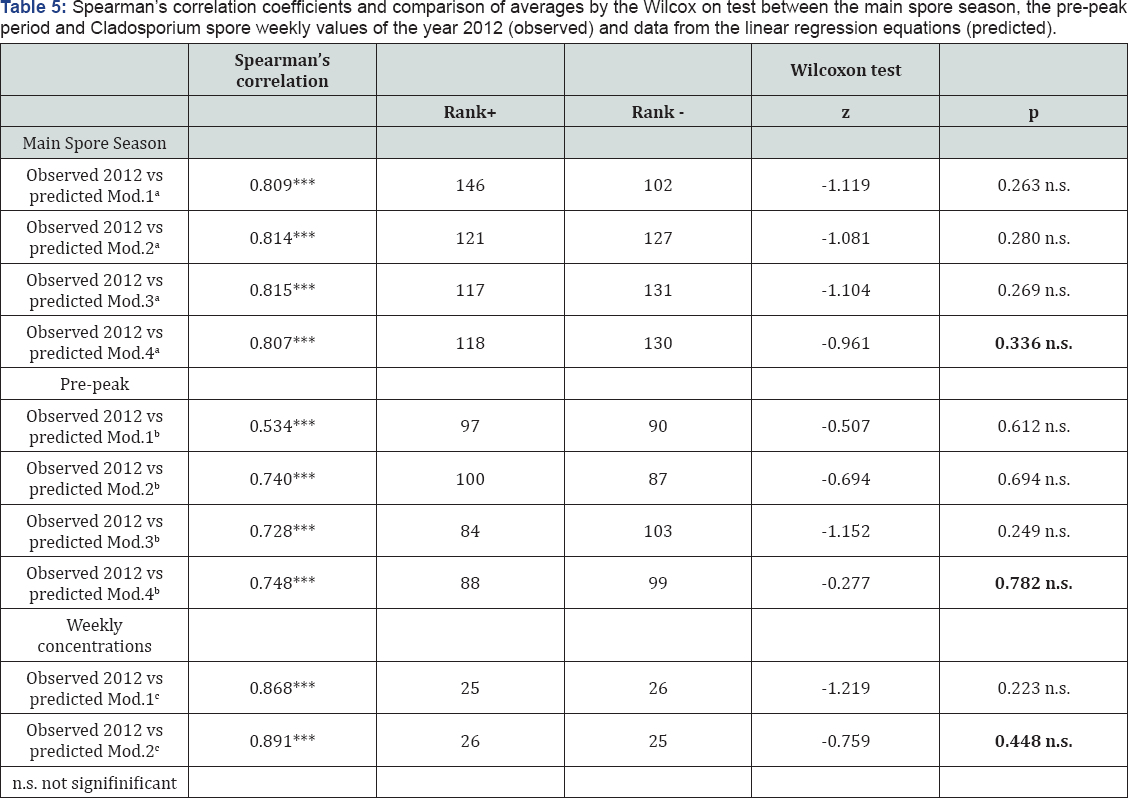

The test indicates that there were no significant differences between series compared when model 4 was selected for MSS and pre-peak and model 2 for weekly values (Table 5).The meteorological parameters that the stepwise regression analysis selected were Fr1Q and RHmax in the case of MSS, and Rain and Fr1Q for the pre-peak period (Table 4). In the stepwise backward elimination regression modeling approach performed with weekly values, the variables Cmean and Clado, . were maintained in the second model and R2 reached 67.3% (Table 4). The Spearman's correlation test indicated a very high degree of association (r = 0.782) between the observed and expected series showing model 4 (Clado = 0.776 Cmean + 0,491 Cladot1 + 17,043 Rain + 19.998 Fr1Q - 302.860) as the most efficient to predict the overall trend of the pre-peak Cladosporium spores in the air (Table 5). Figure 3 shows the predicted spore season for 2012. Compared to the observation, the pattern fits quite well.
Discussion
Cladosporium spores are the most prevalent spores to occur in the air of Tetouan accounting around 64% of the annual total [23] . Atmospheric Cladosporium spore concentrations registered maximum emissions in spring, summer and early autumn. The monthly total spore spectrum had generally two relevant peaks, the first in March-April and the second in August-October. In the south of the Iberian Peninsula, a similar pattern was observed [24] The spore season shows that the annual spore index varies between 296,707 and 421,997. In Malaga (south Spain), annual spore totals showed a high differences between the years studied, being lower in 1996 than 1997 (16,501 and 241,288, respectively) [24]. Based on data from 12 sampling stations in the Iberian Peninsula, mean annual total spores ranged from 54,459 inCartagena to 933,485 in Sevilla [25]. In other sampling sites in Portugal and Spain, this annual load varies from 70,000 spores/year [26] to 285,000 [27]. These differences could be explained by geographical characteristics, climatological conditions of each locality, plant substrates colonized, fungal sources and farmer activities.
Spearman’s correlations performed between daily spore concentrations and meteorological parameters indicated that air temperature is the most potential factor. Similar results were found by other authors in other countries [27-30]. Our results showed significant correlations between Cladosporium spore and wind speed. In the same way, wind speed was clearly associated with spore dispersal in Finland [31], in Turkey [32] and in Portugal [26]. Daily spores variations are related to variations in temperatures, relative humidity, rainfall and wind. In Tetouan, gradual increase of temperature starting from spring and the resulting dry conditions favour liberation of Cladosporium conidia into the atmosphere. Rainfall and relative humidity have a negative effect on the release, dispersion and suspension of the spores in the atmosphere. Dry conidiospores of Cladosporium grow in an exposed position on conidiophores and are releases passively when disturbed by wind.
The forecast model constructed using the mean spore concentration for the same day in other years and spore concentration on the previous day or week, as well as frequency of the first quadrant, maximum relative humidity and rainfall seemed to be very effective as they explained 64.5 to 67.3 % accuracy. When the observed and expected numerical series were correlated, higher coefficient of correlations were obtained and selected independent variables were considered as potential model variables. When model 4 was applied for MSS and prepeak and model 2 for weekly concentration, no significant differences were revealed between actual and predicted values in 2012. Stepwise multiple regression model 4 used to predict daily variation of spore concentrations reached a high percentage of forecast (66.9%), validated with data from 2012 (Table 5).
The presence of spores in the outside air is related to climatic factors, making it possible to design predictive models for spore concentrations in centers with an extensive database. Different authors have indicated mean temperature as the most influential meteorological factor on this fungal type, meaning that it is the most suitable parameter for designing predictive models of atmospheric concentrations of Cladosporium [33] at the opposite of our results. In the same way Angulo et al [14] obtained the best results when they used the mean temperature accumulated over one week. In Tulsa (USA), researchers also indicated temperature as being the most consistent meteorological variable for the prediction of high spore concentrations in the atmosphere [16,34]. Ballero et al. [35] founded the mean temperature, maximum temperature and relative humidity as the appropriate predictive variables. Damialis & Gioulekas [36] obtained the efficient models when they used solar radiation in the daily prediction models. According to Burge [37], Cladosporium seems to have a relationship with temperature and dew point. In the models proposed by Aira et al. [38], rainfall and mean temperature, in the case of Cladosporium cladosporioides, proved to have the best predictive goodness. However, the percentage of variance explained increases considerably when the concentration of spores from the previous day is introduced into the model. It may be considered that this variable reflects the conditions on that the concentration of spores in the air depends, both for their formation, release and transport.
In the present study, the mean concentrations of spore of the same day or week in other years and the previous spore concentrations recorded 1 day or week before and meteorological parameters mainly frequency of the wind first quadrant, rainfall and maximum relative humidity best fitted the models and are highly satisfactory. These meteorological parameters are determinants from a mycological and physiological point of view on the growth and spore production and release of Cladosporium.These results are specific to biogeography characteristics and climatic conditions of Tetouan.
Conclusion
The highest number of Cladosporium spores was recorded in spring to autumn. Cladosporium spores are dispersed passively by the wind and found in greatest abundance when temperature rises and wind speed increases. The daily fluctuation in spore concentrations is positively associated to inland winds from NW.
From the results of predictive models using spore and meteorological variables, it was concluded that daily or weekly spore concentrations can be predicted using the mean concentrations of spore of the same day or week in other years and the previous spore concentrations recorded 1 day or week before and meteorological parameters mainly frequency of the wind first quadrant, rainfall and maximum relative humidity.
References
- Flannigan B (2001) Microorganisms in indoor air. In: (Flannigan B, Samson RA, Miller JD, eds), Microorganisms in Home and Indoor Work Environments: Diversity, Health Impacts, Investigation and Control Taylor& Francis, London, UK, p. 17-31.
- Mullins J (2001) Microorganisms in outdoor air. In: Microorganisms in Home and Indoor Work Environments: Diversity, Health Impacts, Investigation and Control (Flannigan B, Samson RA, Miller JD, eds). Taylor& Francis, London, UK, p. 3-16.
- Bensch K, Braun U, Groenewald JZ, Crous PW (2012) The genus Cladosporium. Stud Mycol 72(1): 1-401.
- Tariq SM, Matthews SM, Stevens M, Hakim EA (1996) Sensitization to Alternaria and Cladosporium by the age of 4 years. Clin Exp Allergy 26(7): 794-798.
- Barnes C, Tuck J, Simon S, Pacheco F, Hu F, Portnoy J (2001) Allergenic materials in the house dust of clinical patients. Ann Allergy Asthma Immunol 86(5): 517-523.
- Dutkiewicz J (1997) Bacteria and fungi in organic dust as potential health hazard. Ann Agric Environ Med 4: 11-16.
- Bush RK, Portnoy JM (2001) The role and abatement of fungal allergens in allergic diseases. J Allergy Clin Immunol 107(3): 430-440.
- Hjelmroos M (1993) Relation between airborne fungal spore presence and weather variables. Grana 32(1): 40-47.
- Heuchert B, Braun U, Schubert K (2005) Morphotaxonomic revision of fungicolous Cladosporium species (hyphomycetes). Schlechtendalia13: 1-78.
- Filali Ben Sidel F, Bouziane H, Trigo MM, El Haskouri F, Bardei F et al (2015) Airborne fungal spores of Alternaria, meteorological parameters and predicting variables. Int J Biometeorol 59(3): 339-346.
- Bennett JW (2010) An Overview of the Genus Aspergillus. In: (Machida M and K. Gomi Eds.), Aspergillus: Molecular Biology and Genomics, Horizon Scientific Press, Wymondham, Norfolk, UK, pp. 238-255.
- Goncalves FLT, Bauer H, Cardoso MRA, Pukinskas S, Matos D et al. (2010) Indoor and outdoor atmospheric fungal spores in the Sao Paulo metropolitan area (Brazil): Species and numeric concentrations. Int J Biometeorol 54(4): 347-355.
- Katial RK, Zhang YM, Jones RH, Dyer PD (1997) Atmospheric mold spore counts in relation to meteorological parameters. Int J Biometeorol 41(1): 17-22.
- Angulo-Romero J, Mediavilla-Molina A, Domínguez-Vilches E (1999) Conidia of Alternaría in the atmosphere of the city of Cordoba, Spain in relation to meteorological parameters. Int J Biometeorol 43(1): 45-49.
- Mitakakis TZ, Clift A, McGee P A (2001) The effect of local cropping activities and weather on the airborne concentration of allergenic Alternaria spores in rural Australia. Grana 40(4-5): 230-239.
- Troutt C, Levetin E (2001) Correlation of spring spore concentrations and meteorological conditions in Tulsa, Oklahoma. International Journal of Biometeorology 45(2): 64-74.
- Stennett PJ, Beggs PJ (2004) Alternaria spores in the atmosphere of Sydney, Australia, and relationships with meteorological factors. Int J Biometeor 49(2): 98-105.
- Recio M, Trigo MM, Docampo S, Cabezudo B (2002) Modelos predictivos para las concentraciones diarias del polen de Olea y gramíneas en Málaga. Abstract of the XIV Simposium of APLE, Salamanca, p.29.
- Rodríguez-Rajo FJ, AstrayG, Ferreiro-Lage JA, Aira MJ, Jato-Rodriguez MV et al. (2010) Evaluation of atmospheric Poaceae pollen concentration using a neural networkapplied to a coastal Atlantic climate region. Neural Netw 23(3): 419-425.
- Aboulaich N, Trigo MM, Bouziane H, Cabezudo B, Recio M et al. (2013) Variations and origin of the atmospheric pollen of Cannabis detected in the province of Tetouan (NW Morocco): 2008-2010. Sci Total Environ 443: 413-419.
- Galán C, Cariñanos GP, Alcázar TP. Domínguez VE (2007). Manual de calidad y gestión de la Red Española de Aerobiologia. Service of publications of the University of Córdoba 1-39.
- Nilsson S, Persson S. (1981). Tree pollen spectra in the Stockholm region (Sweden), 1973-1980. Grana 20(3): 179-182.
- Bardei F, Bouziane H, Trigo Perez MM, Ajouray N, El Haskouri F et al (2013) Incidence des spores fongiques de l'air de Tétouan (NW du Maroc) et influence des paramètres météorologiques. Rev Fr Allergol 53: 576-584.
- Recio M, Trigo MM, Docampo S, Melgar M, García-Sánchez J, Bootello L, Cabezudo B (2012) Analysis of the predicting variables for daily and weekly fluctuations of two airborne fungal spores: Alternaria and Cladosporium. Int J Biometeorol 56(6): 983-991.
- Aira MJ, Rodríguez-Rajo FJ, Jato V (2008) 47 annual records of allergenic fungi spore: predictive models from the NW Iberian Peninsula. Ann Agr Env Med 15(1): 91-98.
- Oliveira M, AbreuI, Ribeiro H, Delgado L (2007) Fungal spores in the atmosphere in the city of Porto and its allergological implications. Rev Port Imunoalergologia 15(1): 61-85.
- Sabariego S, Díaz de la Guardia C, Alba F (2004) Estudio aerobiológico de los conidios de Alternaria y Cladosporium en la atmósfera de la ciudad de Almería (SE de España). Rev Iberoam Micol 21: 121-127.
- Díaz G, Tormo R, Silva I, Muñoz AF (2001) Esporas de Cladosporium y Alternaria en la atmósfera de la ciudad de Cáceres. In M. A. Fombella, D. González & R. Valencia R. (Eds), Palinología: Diversidad y aplicaciones (pp. 277-286). Léon: Secretariado de Publicaciones, Universidad de León
- Perez-Gorjón S, Rodríguez de la Cruz D, Suarez-Gonzalez R, Sánchez- Sánchez J (2003] Variación anual de esporas en la atmósfera de Salamanca durante los años 1995 y 2000. Polen 13: 289-297.
- Morales J, Candau P, González FJ (2004) Relación entre la concentración de algunas esporas fúngicas del aire de Sevilla (España) y los índices bioclimáticos. In J. C. García, C. Diego, P. Fernández, C. Garmendía & D. Rasilla (Eds), El clima entre el mar y la montana (pp. 671-680). Santander: Asociación Española de Climatología y Universidad de Cantabria.
- Kurkela T (1997) The number of Cladosporium conidia in the air in different weather conditions. Grana 36(1): 54- 61.
- Çen B, Asan A (2001] Airborne fungi in vegetable growing areas of Edirne, Turkey. Aerobiologia 17(1): 69-75.
- Mediavilla A, Angulo J, Infante F, Comtois P, Domínguez E (1998) Preliminary statistical modeling of the presence of two conidial types of Cladosporium in the atmosphere of Córdoba, Spain. Aerobiologia 14: 229-234.
- Burch M, Levetin E (2002) Effects of meteorological conditions on spore plumes. Int J Biometeorol 46(3): 107-117.
- Ballero M, de Gioannis N, Goretti G, Lombardi S, Frenguelli G (1992) Comparative study about airborne spores in Cagliari and Perugia. Aerobiologia 8(1): 141-147.
- Damialis A, Gioulekas D (2006) Airborne allergenic fungal spores and meteorological factors in Greece: Forecasting possibilities. Grana45:122-12936-Burge HA (2002) An update on pollen and fungal spore aerobiology. J Allergy Clin Immunol 110:544-552.
- Burge HA (2002) An update on pollen and fungal spore aerobiology. J Allergy Clin Immunol 110(4): 544-552.
- Aira MJ, Rodríguez-Rajo FJ, González MF, Seijo C, Elvira-Rendueles B et al (2012) Cladosporium airborne spore incidence in the environmental quality of the Iberian Peninsula. Grana 51(4): 293-304.
