Lateralized Middle Ear Internal Carotid Artery: a Case Report
Ahmad Yahya Al Ahmary1*, Mohamed Khamis Tolba Mahmoud Abdalla2* Mohamed Gamal Aly3 and Tamer Marey4
1Department of Otorhinolaryngology-Head and Neck, Imam Abdulrahman Al Faisal Hospital (IABFH), Kingdom of Saudi Arabia
2Department of Otorhinolaryngology-Head and Neck, Imam Abdulrahman Al Faisal Hospital (IABFH), Kingdom of Saudi Arabia
3Department of Otorhinolaryngology-Head and Neck, Imam Abdulrahman Al Faisal Hospital (IABFH), Kingdom of Saudi Arabia
4Department of Radiology, Imam Abdulrahman Al Faisal Hospital (IABFH), Kingdom of Saudi Arabia
Submission: January 02, 2018; Published: January 09, 2018
*Corresponding author: 1Ahmad Yahya Al Ahmary, Consultant, Department of Otorhinolaryngology-Head and Neck, Imam Abdulrahman Al Faisal Hospital (IABFH), Dammam, Ministry of National Guard, Health Affairs, Kingdom of Saudi Arabia, Tel: +966 555203372; Email: AhmaryA@ngha.med.sa
How to cite this article: Ahmad Y A A, Mohamed K.T.M.A, Mohamed G A,Tamer M. Lateralized Middle Ear Internal Carotid Artery: a Case Report. Glob J Oto 2018; 12(5): 555848. DOI:10.19080/GJO.2018.12.555848
Abstract
48 year old Saudi female presented to the in ENT clinic in Imam Abd Alrhman Bin Faisal hospital with history of right side tinnitus pulsatile since childhood no history of hearing loss, vertigo, or any other otological symptoms. The patient was medically free with no history of any regular medication. No abnormalities was detected in clinical examination however the pure tone audiogram showed they showed bilateral mild high frequency sensor neural hearing loss. CT scan was and showed the reason of pulsatile tinnitus which was the laterally located bony canal of the right internal carotid artery.
Keywords: Pulsatile Tinnitus; Lateralized Internal Carotid Artery; Aberrant Carotid Artery; Sensorinural Hearing Loss
Introduction
The lateralized internal carotid artery is a variant position the course of the horizontal internal carotid artery (ICA). Lateralized petrous ICA is identified on CT by its extreme postrolateral entrance to the base of the skull and protrusion to the anterior mesotympanum. It can be differentiated from the aberrant ICA that enters the posterior hypotympanum by an enlarged inferior tympanic canaliculus, after that it courses across the inferior cochlear promontory to communicate with the normal horizontal petrous ICA. Lateralized ICA is considered a variation of incidental petrous ICA. Awareness of this variation is crucial in the pre-operative evaluation and planning to avoid fatal vascular injuries [1].
Case Presentation
a) History: 48 year old female presented to the in ENT clinic in Imam Abd Alrhman Bin Faisal hospital With history of right side tinnitus pulsatile since childhood no history of hearing loss, vertigo, or any other otological symptoms. The patient was medically free with no history of any regular medication.
b) Examination: Bilateral intact tympanic membrane was normal appearance, positive Rinne test bilaterally and Weber central. Examination of nasopharynx and tempromandibular joint was normal. Pure tone audiogram and tyampanogram were done and they showed bilateral mild high frequency sensor neural hearing loss and type A tymapanogram bilaterally.

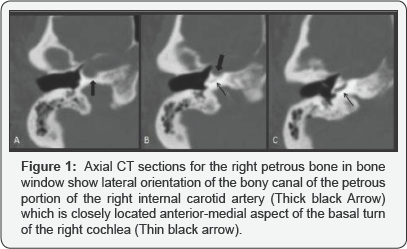

c) Investigations: CT temporal, MRI petrous and MRA were done and they confirm the presence of lateralized internal carotid artery as it shown in (Figures 1-4).




Discussion
The normal carotid artery course inside the cranium starts by entering the cranium by ascending through the vertical part of the carotid canal in the petrous bone. After that it turns anteromedially to cross the horizontal segment and at the end it ascends again above the foramen lacerurn to go inside the cavernous sinus. The ascending part is infracochlear in its location and carotid plate separates it laterally from the tympanic cavity, a bony shield normally less than 0.5 mm in its thickness [2]. The normally small caroticotympanic branch of the internal carotid, a remnant of the embryologic hyoid artery, pierces the carotid plate to go inside the tympanic cavity [3]. The inferior Tympanic branch of the ascending pharyngeal artery passes through the inferior tympanic canaliculus to enter the Tympanic cavity. This canaliculus is usually very tiny and it is located on the caroticojugular spine [4]. In the majority of cases, the inferior tympanic canaliculus is not visible CT even those with high resolution.
The caroticotympanic and the inferior tympanic arteries are the suppliers of the medial wall of the tympanic cavity, and they anastomose on the surface of the cochlear promontory [4,5]. Lateralized internal carotid artery is an extreme rare vascular variant. In this case, the ICA entering anterior part of the petrous bone and extends lateral to usual normal anatomical position. The genu of the petrous part locates lateral to a line drawn perpendicular to the cochlear basal turn and dehiscence may be found [1]. In the presented case the middle ear internal carotid artery enters the right middle ear more posterolaterally leading to right side pulsatile tinnitus since childhood. Radio logically; there is lateral orientation of the genu of the petrous portion of the right internal carotid artery. Although the lateralized right ICA does not extend lateral to the line drawn perpendicular to the basal turn of the cochlea, it has close proximity to the antero-medial aspect of the basal turn of cochlea. Thus it deems responsible for the patient symptoms.
Important Differential Diagnosis
Retro tympanic pulsatile tissues such as the aberrant carotid artery, the exposed jugular bulb and the glomus tumor can give the same presentation [6].
