Review Article

Labyrinthine and Cortical Concussion: Treatment with Vestibular and Cognitive Rehabilitation

Gans RE and Darren Kurtzer*

The American Institute of Balance, Largo, Florida

Submission: March 02, 2016; Published: March 09, 2017

*Corresponding author: Darren Kurtzer, The American Institute of Balance, Largo, Florida, USA, Tel: 727-398-5728;Email: dkurtzer@dizzy.com

How to cite this article: Kurtzer DA & Gans, RE. Labyrinthine and Cortical Concussion: Treatment with Vestibular and Cognitive Rehabilitation. Glob J Oto 2017; 5(1): 555653. DOI: 10.19080/GJO.2017.05.555653

Abstract

The gelatinous brain freely floating in the skull can have multiple impact points during head trauma. On the same side of the impact is the coup injury to the brain; on the opposite side of the impact is the contra-coup injury; and the vectors of force that travel through the entire brain can also cause tearing or shearing of neurons, leading to injury. The American Institute of Balance - Vestibular Cognitive Integration (AIB-VCI) recognizes research showing that creating too much cognitive demand, including during therapy sessions, can have devastating and long-lasting effects on the cognitive abilities of the patient, suggesting that adequate rest periods can be of utmost importance in terms of an efficacious rehabilitation strategy [1]. Thus, being able to independently adjust for cognitive and vestibular activities leads to a safe and effective means of cognitive and vestibular rehabilitation post-concussion.

Abbreviations: AIB-VCI: American Institute of Balance - Vestibular Cognitive Integration; TBI: Traumatic Brain Injury; RTA: Return-To-Activity; BVMT: Brief Visuospatial Memory Task; HVLT: Hopkin’s Verbal Learning Task; SDMT: Symbol Digit Modalities Test

Introduction

There has been an increase in the rate of traumatic brain injury (TBI) occurrence from 2001 through present of approximately 824 patients per 100,000 (CDC, 2016). Concussions were thought to only involve a specific set of symptoms; namely, unconsciousness, memory impairment, or confusion [2]. As we are now aware, concussions can be much more diverse than the aforementioned symptoms suggest. The gelatinous brain freely floating in the skull can have multiple impact points during head trauma. On the same side of the impact is the coup injury to the brain; on the opposite side of the impact is the contra-coup injury; and the vectors of force that travel through the entire brain can also cause tearing or shearing of neurons, leading to injury. The gelatinous nature of the brain makes it particularly susceptible to these shearing and tearing forces [3].

This kind of damage can impair the metabolic functions of neurons causing them to struggle to release, reabsorb, or utilize neurotransmitters at the same rate they did prior to being damaged. This leads to metabolic strain of the impaired neurons and allows for an increased amount of byproducts to build up inside of the nerve cell. These byproducts are toxic to cells at high levels. For example, impaired calcium metabolism can lead to cellular death post-concussion [4]. When a nerve cell dies, the linking cells mustcompensate for the lost neuronal activity. This can result in added demand and cause the cycle of byproduct build-up to occur in the once healthy nerve cells, leading to cell death in the extreme case of overuse.

Since no surgical intervention, or pharmacological management can heal nerve cells, low-level cognitive activity, or cognitive rest, is one of the best recommendations to ensure proper nerve cell recovery [5]. Due to the idiopathic nature of concussions, individual and graduated return-to-activity (RTA) management that incorporates initial cognitive rest may prove to be the most beneficial [6]. As recent research has shown that a human nerve cell can die within 6-hours post-concussive force [7], there should be a minimum of 6 hours of cognitive rest post impact to ensure the best possible chance of healing. If nerve cells are not given adequate rest, then proper healing may not occur, and the added cognition of daily tasks, or therapeutic intervention, may further impair nerve function. One hour of intense cognition daily has been shown to be a safe strategy to reduce the likelihood of placing too much demand on nerve cells and causing further impairment [8].

The goal of this protocol is to incorporate clinicians and patients in an integrated approach to achieve successful vestibular and concussion management. The protocol utilizes psychometrically analyzed cognitive assessment and management tools and integrates them with well-established vestibular rehabilitation protocols developed at The AmericanInstitute of Balance. This allows for longitudinal assessment as well as an objective RTA decision at the program’s conclusion. We present the following patient as an example of the usefulness of the protocol at rehabilitating both cortical and labyrinthine aspects of concussion.

History

A 46-year-old female was seen at our facility for concussion management. Shereports sustaining a head injury during a motor vehicle accident 3 weeks ago. The impact to the head occurred on the left frontal area. The patient noticed immediate vertigo post-impact, lasting for approximately 24-hours. Currently, she remarks of blurred vision with active head rotation as well as difficulty ambulating on dynamic surface. She reports brief vertigo episodes when laying down at night. The patient also notices short-term memory impairment, especially for numbers. She gives the example of having problems remembering phone numbers at work, which used to be a regular task pre-impact. She states that paying attention to people speaking, or written instructions on the computer screen for more than a few minutes is now an issue for her. When the patient attends her regular exercise class, she finds the experience overwhelming, specifically when her heart rate begins to increase. Of note, CT and MRI studies performed post-impact were negative for significant findings.

Vestibular Assessment

Hallpike and positional testing: positive for bilateral posterior canal benign paroxysmal positional vertigo (PC-BPPV), subjectively worse on the left side

Gaze testing: No nystagmus
Rotary Chair testing: Asymmetric gain to step velocity leftward
Head Thrust: corrective saccades with leftward head thrusts
Optokinetic studies: Symmetric gain bidirectionally
Gans SOP testing: fall on condition 6, right turn on condition 7

Cognitive Assessment

Woodcock-Johnson Tests of Cognitive Abilities showing deficits:

Block rotation
Retrieval fluency
Numbers reversed
Verbal attention

AIB - Vestibular-Cognitive Integration Assessment and Management Tools

Brief Visuospatial Memory Task (BVMT)
Hopkin’s Verbal Learning Task (HVLT)
NAB Digits Forward/Backward
Stroop Test
Symbol Digit Modalities Test (SDMT)

Management Strategy

Canalith repositioning: left PC first, then right PC
VRT for uncompensated left vestibulopathy using hybrid techniques for: substitution, gaze stabilization, adaptation, and habituation protocols focusing on 0.5 - 1 Hz head movements
Cognitive management strategies:

Block rotation
Retrieval fluency
Numbers reversed
Verbal attention

Patient should reduce cognitive load to 1 hour of cognition daily
Vitamin C at 1-2,000 mg daily in AM or after physical activity to reduce cortisol
Vitamin E at up to 1,000 mg daily as neuro and vascular protectant
Omega 3-6-9 supplementation (either increasing 3 with supplementation or decreasing 6 in diet) for neuro and vascular protectant

Management Protocol (Figure 1)

Our protocol consists of a combination of vestibular rehabilitation exercises and cognitive training exercises. The former consists of adaptation, habituation, gaze stabilization, and substitution based on the patient’s symptoms and test findings; the latter consists of training material that relates to the cognitive tests that show deficit. Due to the complaintof exercising provoking symptoms, heart rate (HR) will be incorporated in the rehabilitation process (Figure 2).

One of the selected exercises for the patient based on her vestibular complaints of oscillopsia with active head rotation as well as her cognitive complaints of digit memory issues. During this exercise, the patient would make a circle pattern of movement with her body and head while focusing on a ball with a cue card attached, or with the cue card alone, in addition to performing a forward/backward digit memory task.

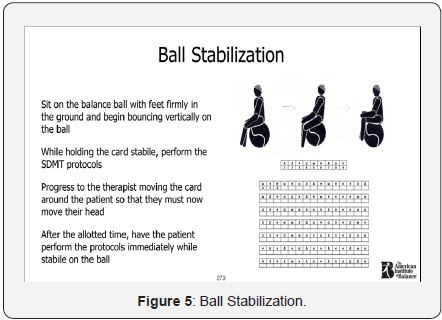

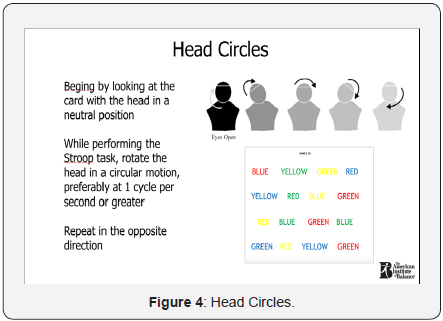

Following are more examples of AIB-VCI exercises used with the patient (Figures 3-5). All of the exercises were completed 3-5 days per week for one hour per session. Of the 3-5 days per week sessions, 2 of them were done with elevated heart rate. Our protocol, adapted from the Buffalo Concussion Treadmill test [9,10], required the patient to first elevate her heart rate to her symptom-limited maximum (88 BPM in this case). Then, 80% of this value was used as a starting point, gradually progressing to her target of 100 BPM. During the heart rate training sessions, the patient completed the AIB-VCI exercises as described previously after elevating her heart rate to 80% of the symptomlimited maximum. Every 3 weeks, the heart rate was increased by 10 BPM if her vestibular and cognitive scores were improving, as measured by the 3-week re-assessment period.

A. First Follow-up

Vestibular assessment

Hallpike and positional testing: negative for BPPV bilaterally Gaze testing: No nystagmus Rotary Chair testing: Symmetric gain to step velocity bidirectionally Head Thrust: corrective saccades with leftward head thrusts Optokinetic studies: Symmetric gain bidirectionally Gans SOP testing: fall on condition 6

AIB - Vestibular-Cognitive Integration Assessment and Management Tools

Brief Visuospatial Memory Task (BVMT) - Improvement
Hopkin’s Verbal Learning Task (HVLT) - Decline
NAB Digits Forward/Backward - Improvement
Stroop Test - Improvement
Symbol Digit Modalities Test (SDMT) - Decline

Management Strategy

VRT for uncompensated left vestibulopathy using hybrid techniques for: substitution, gaze stabilization, adaptation, and habituation protocols focusing on 1 Hz - 1.5 Hz head movements
Cognitive management strategies:

Since SDMT and HVLT declined, we need to either reduce the time spent on the cognitive exercises or reduce the cognitive load
This was done by reducing the difficulty of the cognitive tasks as well as the paired vestibular tasks

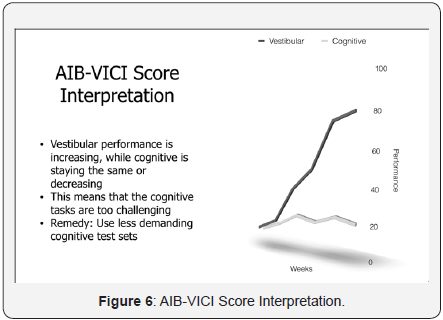

Heart rate will be increased by 10 BPM for all exercises except those using adaptations from the SDMT and HVLT (Figure 6)

The graph depicts the relationship between vestibular and cognitive performance. In this case, the patient is making progress with vestibular compensation but not with select cognitive performance. Unlike the increased intensity needed for vestibular therapy, cognitive therapy can be negatively influenced by too demanding of tasks. As such, the remedy is to decrease the intensity of the cognitive tasks, or the divided attention task.

B. Second Follow-up

Vestibular Assessment

Gaze testing: No nystagmus
Head Thrust: No corrective saccades with leftward head thrusts
Gans SOP testing: fall on condition 6

Cognitive Assessment

B. Second Follow-up

Brief Visuospatial Memory Task (BVMT) - WNL
Hopkin’s Verbal Learning Task (HVLT) - Improvement
NAB Digits Forward/Backward - WNL
Stroop Test - WNL
Symbol Digit Modalities Test (SDMT) - Improvement

Management Strategy

Management Strategy

using hybrid techniques for: substitution, gaze stabilization, adaptation, and habituation protocols focusing on 1 Hz - 2 Hz head movements
Cognitive management strategies:
Since BVMT, NAB Digits, and Stroop tests have returned to normal, we can focus on completing exercises for these tasks at the target heart rate of 100 BPM
HVLT and SDMT have improved, thus we will increase the HR by 10 BPM and increase the difficulty of the cognitive task as well as the paired vestibular task

C. Third Follow-up

I. Vestibular Assessment

Gaze testing: No nystagmus
Head Thrust: No corrective saccades with leftward head thrusts
Gans SOP testing: Normal 1-7

II. Cognitive Assessment

AIB - Vestibular-Cognitive Integration Assessment and Management Tools

Brief Visuospatial Memory Task (BVMT) - WNL
Hopkin’s Verbal Learning Task (HVLT) - WNL
NAB Digits Forward/Backward - WNL
Stroop Test - WNL
Symbol Digit Modalities Test (SDMT) - WNL

a. Management Strategy (Self-Directed Maintenance)

VRT for uncompensated left vestibulopathy
using hybrid techniques for: substitution, gaze stabilization, adaptation, and habituation protocols focusing on 1 Hz - 2 Hz head movements

b. Cognitive management strategies:

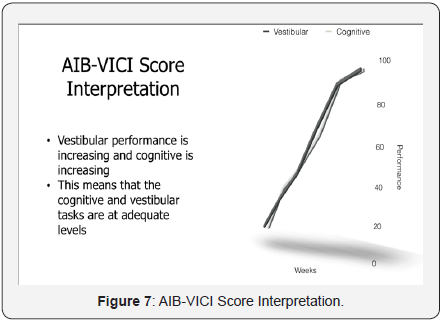

All cognitive tests have returned to normal; we can focus on completing exercises for these tasks at the target heart rate of 100 BPM (this can be adapted as a self-directed maintenance schedule) (Figure 7)

This graph illustrates the intended results of the AIB-VCI. The patient has centrally compensated for the unilateral peripheral vestibulopathy and has reached agecorrected normative cognitive scores. Thus, the patient has been successfully rehabilitated for cortical and labyrinthine aspects of the concussion.

Discussion

In this case, successful cognitive and vestibular management was completed using a strict stepwise progression, which has been shown as a successful concussion rehabilitation strategy [11]. The AIB-VCI recognizes research showing that creating too much cognitive demand, including during therapy sessions, can have devastating and long-lasting effects on the cognitive abilities of the patient, suggesting that adequate rest periods can be of utmost importance in terms of an efficacious rehabilitation strategy [1]. Improper rehabilitation strategies that do not allow for adequate cognitive rest often cause patients to have ongoing symptoms of cognitive decline for many years. This is done in contrast to the intensity needed for effective, and timely, vestibular rehabilitation [12]. Although the cognitive and vestibular tasks are performed together during sessions, they can be manipulated individually, allowing for adjustment of time and intensity of each category.
Cortical and labyrinthine concussions have traditionally been managed as a dichotic problem. However, the combination of therapeutic regimes with a single strategy (AIB-VCI) can differentially adjust for difficulty of training sessions on two levels: vestibular task difficulty and cognitive task difficulty. Thus, we can counterbalance for a patient who may need different levels of cognitive versus vestibular training. It has been mentioned previously thattoo intense, or too time-consuming, cognitive load can create a cascade of events in the central nervous system that lead to neuronal cell death [4]. Thus, being able to independently adjust for cognitive and vestibular activities leads to a safe and effective means of cognitive and vestibular rehabilitation post-concussion [13-15].

Conclusion

Conclusion research is still in its early stages. The AIB-VCI is not intended to be an all-inclusive treatment method. Rather, it is part of an interdisciplinary medical approach towards successful rehabilitation [16-20]. Be it cervical spine injuries, hormone imbalances, visual changes, personality differences, or motor neuron changes, the collaborative approach to concussion management will yield the most benefit to the patient.
