**Buckling Analysis and Design of
Guyed Transmission Poles**

### Sriram Kalaga^{1}*, Prema Kumar WP^{2}, Supreeth AR^{3} and Mahendra Kumar P^{4}

^{1}Professor, Consulting Structural Engineer, USA

^{2}Professor, School of Civil Engineering, Reva University, India

^{3}Department of Civil Engineering, Global Academy of Technology, India

^{4}Royota Engineering, Pvt Ltd., India

**Submission:** April 19, 2019; **Published:** May 10, 2019

***Corresponding Author:** Sriram Kalaga, Consulting Structural Engineer, Glen Burnie, Maryland 21060, USA

**How to cite this article:** Sriram Kalaga, Prema Kumar WP, Supreeth AR, Mahendra Kumar P. Buckling Analysis and Design of Guyed Transmission Poles. Civil Eng Res J. 2019; 8(1): 555735.DOI: 10.19080/CERJ.2019.08.555735

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Abstract
**

The buckling loads of guyed tubular steel transmission poles of various heights and classes are computed using the Gere and Carter Method (GCM) and Linear Buckling Analysis using ANSYS finite element software. Four (4) specific end conditions are investigated: fixed-free, fixed-pinned, pinned-pinned and fixed-fixed ends. The buckling loads obtained by the two methods are compared. It is observed that there is good agreement between the values for buckling loads obtained by two approaches for all the end conditions, the maximum average discrepancy being about 4.73%. Design reference values based on lower- and upper- bound buckling capacities are proposed and suggestions for further extension of the study are made.

**Keywords: **Buckling; Convergence; End conditions; Finite element; Guyed; Pole; Transmission; Steel; Wood

**Notation: **d=diameter; da=diameter at point of guy attachment; dg=diameter at ground line; de=diameter at pole butt; k=effective length factor ; De=depth of embedment; E=modulus of elasticity; I=moment of inertia; IA=moment of inertia at A; L=length of pole or column; LAG=height of pole above ground; Mg= Ultimate moment capacity at ground line; P*=multiplier in Equation (2); PA=critical load for a uniform column of diameter d; PE=Euler buckling load for a uniform column; Pcr=critical buckling load; t=pole thickness; α=exponent in Equation (3)

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article >

**Introduction**

Guyed transmission poles are commonly used in transmission lines at turning angle locations and at dead ends (See Figure 1). Although guying is routinely employed in wood pole systems owing to a lack of bending strength of wood, it is also occasionally used for poles of other materials too such as steel, concrete, laminated wood and composite or FRP [1].

As can be seen from Figure 1, the purpose of the guy wires is to back up the wire tension resultants from the conductors and the ground wires and transmit them to the anchors. Figure 1a shows a single anchor associated with all four guy wires; but Figure 1b,c show multiple anchors. Bending moments in the pole are generally minimal since each guy location acts as a partial lateral support, restraining movement in a specific direction. A single set of guy wires can be adequate for small line angles depending on the imposed wire tensions. But a 90-degree dead end shown in Figure 1d requires guys and anchors in both orthogonal directions. The most common slope for a guy wire is 45 degrees. One result of the guy wire tensions is the vertical load component at each guy location and this component –cumulative for multiple guy wires–acts as an axial load on the pole/ column. For 90-degree dead ends the axial loads come from both directions. Therefore, design involves check for pole buckling [2].

From analysis perspectives, a transmission pole is basically a tapered beam-column with constantly varying cross section from base to top. Design of steel poles in USA is governed by various codes and standards [3-8]. Most steel poles are either galvanized or weathered; so, no maintenance is required. Steel is generally a stable material with little or no variation in physical properties and therefore there is no imposition of a strength reduction factor in design, unlike wood.

Past research included several landmark studies on guyed wood poles, including the FE Method (FEM). Non-linear stiffness matrices were developed for various shapes; but little effort was made to systematically analyse guyed poles of different structural materials. In addition to wood, guyed poles currently include tubular steel, pre-stressed concrete, laminated wood and fibre-reinforced polymer (composite) poles. This study is part of an undertaking towards that larger goal which comprises of several papers on guyed transmission poles.

The aim of this paper is to investigate the buckling behaviour of guyed steel transmission poles employing the FEM and verify the values of the buckling loads with theoretical estimates. A set of 20 tubular steel poles representing the most common sizes and classes of poles utilized in guying situations, together with four kinds of end conditions, were considered. Only linear elastic buckling is studied. Although initial out-of-straightness is often important in buckling patterns, it is not considered here. This paper is intended to be the second of a series of papers on guyed poles; others will be on wood, pre-stressed concrete, laminated wood and composite poles.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

##
**Literature Review**

Theoretically, a transmission pole of any material is a tapered beam-column with constantly varying cross section from base to top. As such, analytical modelling involves the challenge of incorporating stiffness matrices into analysis algorithms. A significant amount of work had been directed therefore towards formulating finite element stiffness matrices to handle tapered beam-columns [9-17]. The earliest study on tapered beam-columns is contained in the classic 1968 paper by Gere & Cater [18] where expressions were derived for the buckling strength of various steel beam-columns for different end conditions. This study provided the foundation for estimating the buckling capacity of wood poles.

Peabody & Wekezer [19] investigated the buckling strength of transmission and distribution poles using the FEM. Buckling capacities were determined with an Eigenvalue approach using elastic and geometric stiffness matrices of beam elements. One important conclusion drawn in this study is that assuming the unbraced length of the beam-column as the distance from the lowest guy to the ground can lead to a dangerous overestimation of the buckling strength. This implies that a more rational approach would be to consider the entire pole above the ground as a candidate for buckling.

The ASCE Manual 91 [4] is another design reference for guyed transmission structures. This Manual also refers to the Gere- Carter Method and discusses the difficulties associated with real-life boundary conditions. Idealized end conditions rarely exist in real poles. An important point made in the Manual is that most theoretical methods, including the Gere-Carter Method, lead to large errors in situations where the capacity of the pole is controlled by bending stresses amplified by large compressive loads (i.e.) a true nonlinear beam-column behaviour. Based on a nonlinear finite element analysis of a guyed pole, including guy wires modelled as cable elements, it is shown that theoretical estimates are ½ to 2½ times that predicted by the FEM. It is therefore left to the design engineer to adopt a reasonable factor of safety in using theoretical procedures.

The RUS Bulletin 153 [20] also contains another procedure to compute elastic buckling loads of wood poles. It is based on the American Institute of Timber Construction (AITC) approach which suggests that the critical section for a guyed wood pole is located at 2/3 the distance of from the ground to the bottommost guy attachment. It also recommends a minimum factor of safety of 1.50 to be applied to the computed loads. Subsequent studies suggested that the RUS procedure is more conservative than the Gere-Carter Method (GCM). Commercial computer programs such as PLS-Pole [21] include both the GCM and RUS options for users. Despite a number of theoretical and analytical investigations, no full-scale tests were performed to confirm and generalize the observations from those studies.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**End Conditions of Guyed Poles**

IEEE 751 [7] discusses the issue in detail. The end restraints in guyed poles are difficult to evaluate. Poles with bi-sector guys, as seen in Figure 1a-c, approximate a condition of being pinned at the point of guy attachment and fixed at the base, in plane of the guy wire. However, at 90 degrees to this plane, the pole is basically a free cantilever. Also, it is generally believed that the conductors also offer some kind of restraint. Therefore, the overall effective boundary conditions may be between the fixed-free (k=2) and fixed-pinned (k=0.7). For 90 degree guyed dead ends as shown in Figure 1d, the fixed-pinned condition occurs in both planes (k=0.7). Some engineers question whether the guy wires restrain lateral motion sufficiently to justify a k=0.7. Due to this, routine designs assume k=1. (See Figure 1e for configuration of various boundary conditions).

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Euler’s Elastic Buckling Theory**

A column is considered stable only if the critical elastic buckling load (or Euler load) is not exceeded. The elastic buckling load of a column is defined as the axial load that is just sufficient to keep an initially straight, perfectly elastic bar in a slightly bent form. This load is usually taken as the ultimate load that the column can support, assuming the column is relatively slender and buckling occurs in the elastic range. The Euler’s critical buckling load for long slender columns of uniform section is given by:

where PE = critical buckling load

k = effective length factor

L = actual length of column

E = modulus of elasticity of column material

I = least moment of inertia of the column cross-section

Equation (1) is obviously applicable only to uniform, homogenous columns where the axial load is concentrically applied at the end of the column. This assumption is not valid for a guyed tapered wood pole: constantly varying cross section aside, a typical wood pole has internal imperfections and axial loads from guy wires are applied intermittently at various heights along the pole. Hence Euler theory cannot be directly used for such poles.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Gere and Carter Method**

The Gere & Carter Method (GCM) [20] is commonly used in practice for calculating critical buckling loads for guyed tapered wood poles. This method proposes modification to the Euler’s critical buckling equation as follows:

where:

PA = Critical load for a uniform column with circular section having diameter d (at guy attachment)

P* = A multiplier dependent on the end conditions of the column

α = An exponent that is a function of shape of the column

da= Diameter at point of guy attachment

dg= Diameter at the ground line

L = Distance from ground line to the point of guy attachment

Equations for PA and P* for various end conditions are summarized in Table 1 [17].

The Gere and Carter Method assumed that the column is initially perfectly straight, elastic and compressed by an axial load. It is a theoretical method verified by limited tests on steel shapes for tapered poles of various open and closed cross sections subject to only axial load. When using this method for NESC ice and wind loads with specific load factors, it is recommended to use a factor of safety between 2.50 and 3.0 [8]. For extreme wind loads, where all load factors are 1.0, the resulting factors of safety will be between 1.5 and 2.0. For pure dead ends, higher safety factors must be used due to larger axial loads.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Application to Selected Wood Poles**

As opposed to round wood poles where the cross section is solid and round, all laminated wood poles are solid but rectangular in cross section. Each lamina is about 1 inch thick (25mm). The cross section is larger at the bottom and tapers to a smaller size at the top. As shown in Figure 2, it has properties about both the orthogonal X and Y axes. The depth of the section LW is constant but the width varies from GD at the bottom to TD at the top

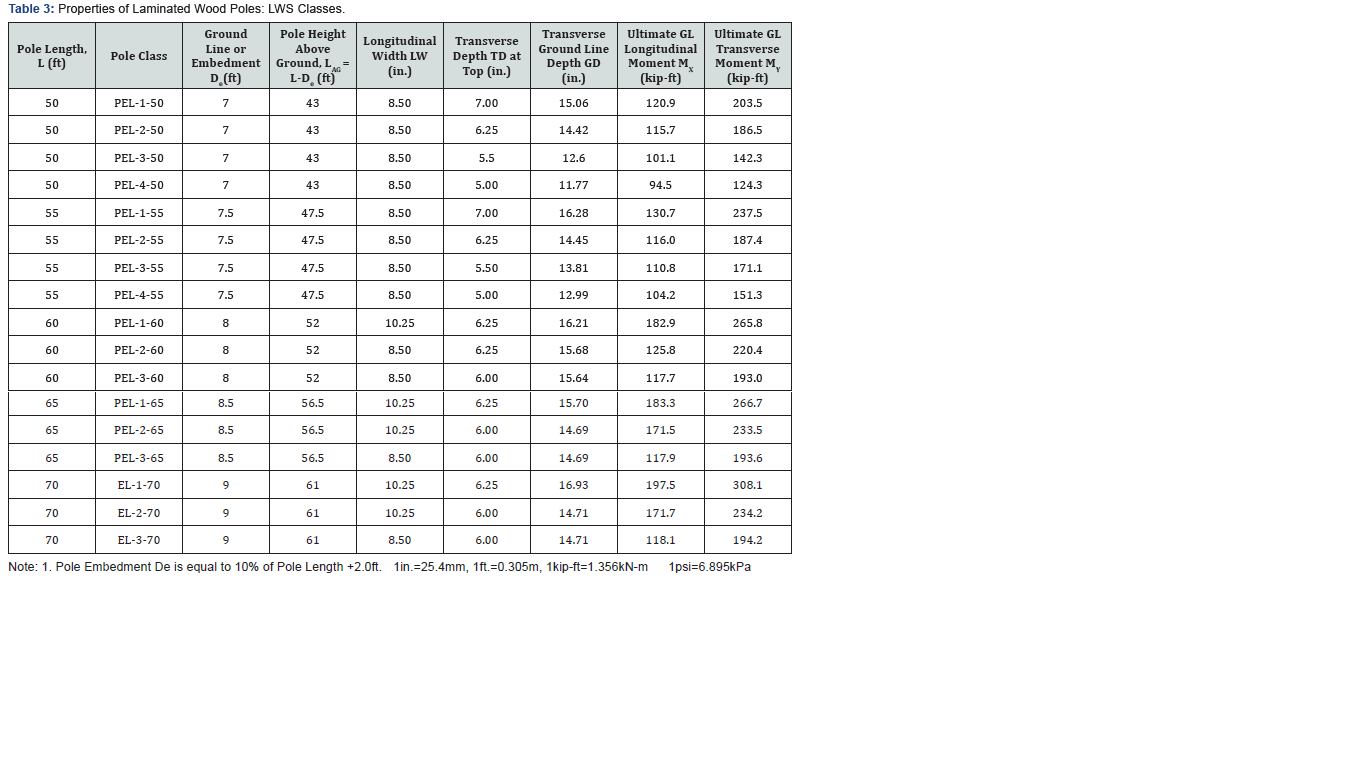

Five (5) laminated wood poles ranging in length from 50ft. to 70ft. (15.2m to 21.3m), involving four (4) pole classes and four (4) specific boundary conditions are studied. This set of 17 poles of Southern Pine material represent the most common sizes of poles utilized in guying situations. The definition of a pole class is illustrated in Figure 2 while Table 2 shows the numerical values of lateral loads associated with laminated wood pole classes [9,10]. Other design properties of these poles are shown in Table 3. Note that 4 pole classes are considered for 50ft. and 55ft. poles while 3 pole classes were considered for 60ft., 65ft. and 70ft. poles. The values of the critical buckling load obtained by the Gere and Carter Method are given in Table 4. These values are computed using a custom spreadsheet developed for the purpose. In all cases, the effective length for buckling is taken as the pole height above ground LAG.

2. Minimum 28-day Concrete Strength f’c= 10000 psi 1 psi = 6.895kPa

3. Modulus of Elasticity based on ACI 318 = 57000*(sqrt(fc) GL=Ground Line

* Based on RUS/USDA and StressCrete standard concrete pole classes

4. Pole Taper=0.180in/ft

Pre-stressed concrete poles in USA are manufactured using high strength concrete. Therefore, a 28-day strength of fc’ =10, 000 psi (68.95 GPa) is used for concrete in this paper. Modulus of Elasticity E is computed on the basis of ACI-318 [24] as E = 57000 (fc’)1/2. The values of the critical buckling load obtained by the Gere and Carter Method are given in Table 4. These values are computed using a custom spreadsheet developed for the purpose. In all cases, the effective length for buckling is taken as the pole height above ground LAG.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Buckling Analysis using FEM**

In the present study, ANSYS software [22] is used to perform linear or classical finite element buckling analysis of tapered wood poles. The finite element used is a Beam-188 element that has two end nodes with 3 translational and 3 rotational degrees of freedom at each node. This element is based on Timoshenko beam theory, includes shear deformation effects, well-suited for both linear/non-linear applications and flexural, lateral and torsional stability (using Eigenvalue buckling) problems. All FE models are planar beam-columns in the X-Z plane (with movement out-of-plane restrained (see Figure 1e).

**Convergence study
**

A convergence study was made to determine the number of elements which yields accurate result. A tapered wood pole was discretized using uniform two-node Beam 188 elements. The results are provided in Table 5 for fixed-free end conditions, indicating that 9 elements would give sufficiently accurate result for buckling load. Hence, in all further work, a finite element model having 9 elements is used. (In comparison, Peabody & Wekezer [18] used 14 equal length beam elements in their FE studies).

LAG=43 ft. (13.11m)

dA=8.59in. (21.82cm)

dG=14.19in. (36.04cm)

E =1.92*106 psi (13.24*106 kPa)

1 inch=2.54cm, 1ft.=0.3048m, 1kip=4.45kN, 1psi=6.89kPa

**Buckling loads from FEM**

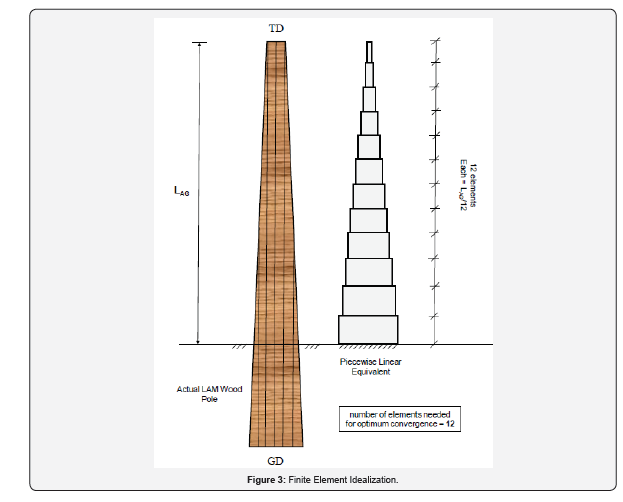

The adopted FE idealization is shown in Figure 3 (n=9 since 9 elements are proven adequate for convergence). To maintain consistency with the GCM, the effective length of the pole FE model is taken as the pole height above ground, LAG. Table 6 gives the critical buckling loads obtained by ANSYS for the 20 wood poles.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Comparison of Results and Discussion**

The critical buckling loads obtained by Gere and Carter Method and linear buckling analysis are compared and the computed percentage discrepancy is shown in Table 7. There is excellent agreement between the two sets of values. From the table, it is observed that the discrepancy is minimum in the case of pinned-pinned end condition and maximum for fixed-fixed end condition. The maximum value of percentage discrepancy is +3.34 for the fixed-fixed end condition. The average % discrepancy values for the four boundary conditions investigated were +2.17, -1.70, -1.06 and -2.52, respectively. The main inference that can be drawn – pending validation with full-scale testing– is that the Gere and Carter Method is adequate for calculating nominal buckling loads, subject to application of factor of safety. Laboratory testing will help establish what rational factors of safety are needed for various loading situations. Peabody & Wekezer [26] obtained similar results for their FE analysis of an 80ft. (24.4m)-long wood pole where they compared FE results with those of Gere and Carter. The % discrepancy values for the same four boundary conditions were +4.43, -1.74, -0.35 and +0.36, respectively. The paper recommended GCM for calculating buckling strength of transmission and distribution poles; but suggested performing a series of full-scale tests to validate GCM.

- Research Article
- Abstract
- Introduction
- Literature Review
- End Conditions of Guyed Poles
- Euler’s Elastic Buckling Theory
- Gere and Carter Method
- Application to Selected Wood Poles
- Buckling Analysis using FEM
- Comparison of Results and Discussion
- Upper and Lower Bounds of Buckling Capacities
- Conclusion
- Research Article

**Upper and Lower Bounds of Buckling Capacities**

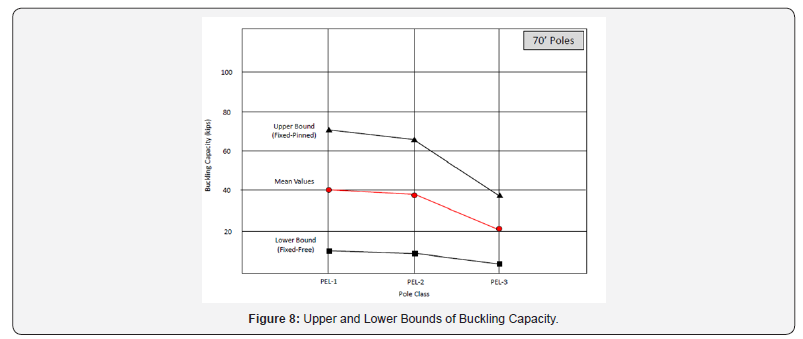

As stated earlier, it is generally believed that the overall effective boundary conditions for a guyed pole may be between the fixed-free (k=2) and fixed-pinned (k=0.7). Therefore, these two situations may be treated as lower and lower bounds related to the buckling capacity. It is possible to obtain a mean value in-between the two bounds as a design reference. Figures 4-8 show the buckling capacities bounds–and their mean values – for the 17 poles considered in the study. The values refer to GCM. For example, the mean value of buckling strength for a 60ft. PEL- 2-60 pole is 29.8kips (132.6kN). Assuming a factor of safety of 2.0 and extreme wind loads, the allowable buckling load on the pole is 29.8/2=14.9kips (66.3kN). This value may be considered as a design reference while checking buckling.
