Design on Rehabilitation of Landslide and Intake Waterproof Barrier of SHPP Nakra
Teodor Dimitrievski*, Dragan Dimitrievski, Atanas Strasheski Boris Bogoevski and Ljupco Dimitrievski
University of Ss Cyril and Methodius-Skopje, Macedonia
Submission: January 08, 2019; Published: January 29, 2019
*Corresponding Author:Teodor Dimitrievski, Geing Krebs und Kiefer international, Skopje, Macedonia
How to cite this article:Teodor D, Dragan D, Atanas S, Boris B. Design on Rehabilitation of Landslide and Intake Waterproof Barrier of SHPP Nakra. Civil Eng Res J. 2019; 7(2): 555706. DOI: 10.19080/CERJ.2019.07.555706
- Research article
- Abstract
- Introduction
- Concept for Rehabilitation of the Landslide in the Vicinity of the Penstock Alignment
- Preliminary Concept for execution of the Grouting works for Construction of Waterproof Screen
- The Final Design on Landslide Rehabilitation
- The final design on waterproof barrier
- Conclusion
- References
Abstract
During the construction of small hydro power plant (SHPP) Nakra it was concluded that there is a need for developing of additional designs. The additional designs are related to the rehabilitation of landslide affecting the cut slopes near the future penstock and construction of waterproof barrier in front of the intake structure of the hydro power plant. This paper deals with some aspects related to the additional designs which are out of the original scope of the design works.
Keywords: Waterproof barrier; Landslide; Small hydropower plant; Piles; Grouting
- Research article
- Abstract
- Introduction
- Concept for Rehabilitation of the Landslide in the Vicinity of the Penstock Alignment
- Preliminary Concept for execution of the Grouting works for Construction of Waterproof Screen
- The Final Design on Landslide Rehabilitation
- The final design on waterproof barrier
- Conclusion
- References
Introduction
The project site of the SHPP Nakra is located near to the village of Nakra in north region of Georgia. According to the original design developed by Macedonian company Akvavat (Skopje, R. Macedonia) the small hydropower plant should be constructed on the Nakra River. During the execution of the construction works due to various reasons additional designs was needed to be developed. One of the reasons for new designs was the instability of the cut slopes of the existing unpaved road which leads to the village of Nakra and the intake of the hydro power plant. According to the original design the penstock should be constructed very close to the toe of the road cut slopes. One of the cut slopes was affected by landslide before works for construction of the penstock started. In order to provide conditions for construction of the penstock first task was to rehabilitate the landslide. Hence, one of the additional designs is related to the stabilization of this landslide (Figure 1).
The second issue which was raised during the construction works was related to the construction of separate waterproof barrier under the intake. According to the available geotechnical data the ground under the intake has relatively high hydraulic conductivity which can further lead to seepage beneath the intake and losses of significant quantities of water needed for proper functioning of the SHPP. In order to improve the ground conditions and to decrease the hydraulic conductivity of the ground it was decided to construct a waterproof barrier in front of the intake. Considering the available construction equipment, the access to the site and the local geology execution of grout curtain was most feasible design option.
- Research article
- Abstract
- Introduction
- Concept for Rehabilitation of the Landslide in the Vicinity of the Penstock Alignment
- Preliminary Concept for execution of the Grouting works for Construction of Waterproof Screen
- The Final Design on Landslide Rehabilitation
- The final design on waterproof barrier
- Conclusion
- References
Concept for Rehabilitation of the Landslide in the Vicinity of the Penstock Alignment
The concept for rehabilitation of the landslide in the beginning was based only on the site geology data, geodetic map of the landslide area developed before landslide occurred, photos of the landslide and the proposed penstock alignment and penstock invert level. The site visit was held later before developing of the final design. The general idea was to stabilize the unstable section of the cut slope and to prevent safe ground conditions for excavation of the penstock trench and installation of the penstock. As per available data on ground topography it was detected that limited area of the considered cut slope is unstable but before site inspection the designers were not certain about the depth of the slip surface. Based on the borehole logs and geodetic data it seemed that it might be a deep-seated landslide. Anyway, in order to be on safe side, the preliminary design was developed assuming that the potential slip surface is deep-seated and the existing road which leads to Nakra village and the intake structure is affected (Figure 2&3).
The initial design concept involved construction of reinforced concrete pile wall fully embedded in the ground. The designed length of the piles was 8,0m and the last section of the piles in length of 4,0m was designed to be embedded in the sound bedrock. The diameter of piles was 1,0m and the axial spacing of the piles was 2,0m. The piles are connected with reinforced concrete cap beam. The pile wall was segmented in separate sections divided by construction joints. In case of extension of the landslide area such approach helps to construct additional wall section without significant modifications of the design. The concept of the design was further developed in detail which is discussed in following chapters.
- Research article
- Abstract
- Introduction
- Concept for Rehabilitation of the Landslide in the Vicinity of the Penstock Alignment
- Preliminary Concept for execution of the Grouting works for Construction of Waterproof Screen
- The Final Design on Landslide Rehabilitation
- The final design on waterproof barrier
- Conclusion
- References
Preliminary Concept for execution of the Grouting works for Construction of Waterproof Screen
The preliminary concept for the execution of the waterproof barrier was consisted of several steps:
A. The waterproof barrier should be done as a separate structure without obstruction of the construction works on the intake and other structures;
B. The procedure for grouting was planned to be carried out in several steps:
a. Construction of reinforced-concrete raft as a platform for execution of the grouting;
b. Drilling of non-core grout boreholes;
c. Execution of the “in situ” permeability test in each borehole;
d. Grouting of all boreholes;
e. Performance of inclined (subvertical) core boreholes (core drilling with sampling) for checking the grouting quality. The boreholes are to be performed through the grouted portion of the ground;
f. Performance of “in situ” permeability test in each subvertical borehole to verify the permeability characteristics and functionality of the waterproof screen;
The method of grouting is one of the major issues for the grouting works therefore special attention is paid to this matter. Also, the construction schedule was very tight so some of the structures had to be constructed in parallel. Before completion of the waterproof barrier design the works for construction of the intake were in progress. Therefore, it was very important to provide a proper access to the upstream side of the intake in order not to obstruct the construction works on the intake (Figure 4).
- Research article
- Abstract
- Introduction
- Concept for Rehabilitation of the Landslide in the Vicinity of the Penstock Alignment
- Preliminary Concept for execution of the Grouting works for Construction of Waterproof Screen
- The Final Design on Landslide Rehabilitation
- The final design on waterproof barrier
- Conclusion
- References
The Final Design on Landslide Rehabilitation
As mentioned before the concept for landslide rehabilitation was mostly based on geotechnical and geodetic data and photos provided by the Client. Such data were sufficient for establishing a concept for landslide rehabilitation but not even remotely sufficient for developing of detailed design. Some of the data which were not available and are important for proper developing of detailed design are: detailed geotechnical investigations, mapping of the ground at the landslide area, location of the landslide boundaries and landslide elements such as primary and secondary cracks, head crack, toe crack, indications of slip surfaces etc. To be on safe side one of the essential design assumptions in this particular case was that the future landsliding will occur on a deep-seated slip surface. According to the available geotechnical report the geological boundary between the soil materials and the rock formations which are underlying the soil is located at the depth of approximately 5, 0m. Considering the governing ground and site conditions and the location of the penstock that will be built in the immediate vicinity of the landslide the worst case scenario was to consider that the future landsliding will occur at the contact between the soil and rock formations. The maximum level of the penstock invert in the area of the landslide is approximately 3, 0m below the road surface which is 2, 0m above the anticipated deepseated slip surface. This actually means that such landsliding will affect the penstock and it will have adverse effect on the operation of the hydro-power plant. Another design assumption related to the location of the slip surface was that the landsliding cannot occur through the rock formations, so the deepest area that can be affected by landsliding is the contact between soil and rock formations. In order to provide all necessary data for proper developing of the design first step was to conduct a site reconnaissance. The site reconnaissance was held in the end of November 2018 and based on the site reconnaissance findings following data were summarized:
A. The initial landsliding was shallow (no more than 2,5m at the deepest point) and the area which was affected has irregular shape with size approximately 20, 0x30m.
B. The landslide affected one portion of the road cut slope;
C. The shape of the existing slip surface is curved and irregular probably consisted of several smaller slip surfaces;
D. The ground is highly saturated;
E. Almost all of the cut slopes of the existing road are prone to instability, landsliding and rockfalls which means that special attention should be paid during the construction of the penstock;
F. The space for construction of the penstock and the pile wall is very limited, therefore from construction point of view the pile wall is more feasible to have one row of piles;

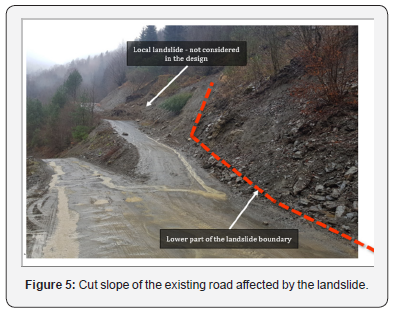

G. Extended geotechnical investigation works should be done; (Figure 5)
Based on the findings from the site reconnaissance and the previously provided data the final design on landslide rehabilitation was developed. Unfortunately, at that moment there was no possibility to conduct extended geotechnical investigation works. The proposed rehabilitation measures involve construction of retaining pile wall in the toe of the cut slope affected with landsliding, drainage system of the retaining wall and surface water channel located behind the crest of the pile wall. The pile wall is divided in sections and each section is consisted of one row of reinforced concrete piles with diameter of 1000mm and length of L=12,0m. The piles of each wall section are connected with reinforced concrete cap beam (0,8x1,2m). Above the cap beam a wall stem (H=3,5m) will be constructed in order to provide conditions for backfilling of the space between the cut slope and the wall stem. The backfilling will increase the local stability of the cut slope in the portion of the slopes close to the pile wall. The total length of the retaining structure is L=35,0m and the length of each wall section is L=6,0m with expectation of the last one which is shorter. The sections of the wall are separated by construction joints (Figure 6).
One of the findings during the site visit was that ground in the landslide area is very saturated, so in order to avoid building up of hydrostatic pressure which will act on the wall a drainage system is proposed to be constructed. The drainage system of the wall is consisted of drainage pipe embedded in the ground, drainage geocomposite installed behind the wall stem and two rows of weep holes which will be installed through the RC wall stem before concreting. The outlet (full pipe) of the drainage pipe will evacuate the captured drainage water out of the landslide area. The surface water channel is located behind the crest of the wall along the entire length of the wall. It will collect the surface water and will evacuate the water out of the landslide body.
The analyses
Different type of analyses was performed in order to provide proper design on the landslide rehabilitation measures. The designing phase started with back analyses which gave indications of the ground conditions which can lead to new landsliding. As mentioned before, the shallow slip surface occurred but the general idea was to assess the ground conditions which will trigger deep-seated slip surface. The results from the back analyses shows that if the cohesion of the soil drops from c=22kPa to c=16kPa the factor of safety of the deep-seated slip surface located at the contact between soil and rock formations will be Fs=1 (neutral state of the slope equilibrium). This actually means that very small variation of the cohesion will be led to instability and will trigger deep-seated slip surface. The material properties of soil provided for neutral state of equilibrium of the anticipated slip surface (Fs=1) are later used to model the deepseated slip surface in the stability and stress-strain analyses. In these analyses the deep-seated slip surface is modeled as a thin soil layer with same shape and position as it was assessed in the back analyses. The material properties assigned to the slip surface layer are: φ=24o, c=16kPa and Υ=20kN/m3. The values of angle of internal friction (φ) and the unit weight (Υ) are provided from the geotechnical report. The value of the cohesion of the slip surface layer is back calculated. The back analyses are performed in Slide, a program for slope stability analyses which is based on limit equilibrium theory. Upon completion of the back analyses and providing the material properties of the anticipated deep-seated slip surface next step was completion of stress-strain analyses. The stress-strain analyses are carried out in Plaxis 2DAE program based on finite element method (FEM). The same ground model and material properties of the soil and rock used for back analyses are used for stress-strain analyses. The material properties used in the calculation model are tabulated in Table 1.

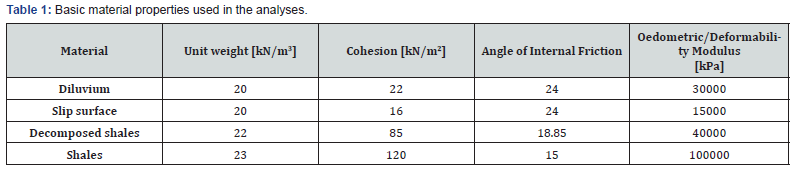

The stress-strain analyses are performed in several sequences starting with generation of initial stress-strain state which involves the site and ground conditions before commencement of the works for rehabilitation of the landslide. In this stage the material properties of the anticipated deep-seated slip surface are same as the material properties of the diluvium. The following sequences of the analysis involve construction of the pile wall and backfilling of the space between the pile wall and the cut slope. For the phase which involve construction of the structure the displacement of the structure is assessed as well as the bending moments, shear and axial forces in the structure. The stability analysis (c-phi reduction method) is done for each stage of the analysis. All described sequences of the analyses are performed for static and seismic loading. In the next step of the analyses the anticipated deep-seated slip surface is introduced in the model. As mentioned before in this stage reduced value for the cohesion is assigned to the slip surface layer. The analysis is then run for static and seismic loading and stability analysis is also performed for both load cases. Also, the bending moments, shear and axial forces generated in the pile wall are estimated in case of deep-seated landsliding. The established results of the stress-strain analyses are tabulated in Table 2.
