**Abstract**

Recent proposals for very long span bridges, such as those proposed for the Straights of Messina and Gibraltar, have reopened the questions as to which forms provide feasible solutions and within those forms what particular geometries will result in the most efficient solution - in terms of both material volume and cost? While these questions can now be approached using sophisticated optimization software it would seem that simple engineering reasoning still has much to offer. The following rehearses some simple analytical approaches to the question of assessing the relative efficiencies of different bridge geometries considered in an earlier paper and uses this approach to widen the discussion and address the issues of what parametric choices within each of these different geometric classes of bridge would provide the most materially efficient solution.It compares the material efficiency of the common forms of catenary-type and cable-stay suspension bridges, and assesses the relative merits of the so called harp and fan forms of cable-stay bridges. It also extends past analyses to various classes of multi-pylon cable stay bridges and shows how these relate to the theoretical optimal Mitchell structure. Finally, it suggests that the simple physically based models developed in relation to bridges might form a template for future conceptual design for which computers can be relied upon to carry-out the detailing.

**Keywords: **Structural efficiency; Suspension bridges; Catenary

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Background**

Some years ago the author had occasion to ponder the question as to which form of suspension bridge, the traditionally preferred catenary-type or the increasingly popular cable- stayed, provided the best solution for bridging large spans. This work, outlined in Reference [1], was undertaken while sailing up the River Seine on route to the Mediterranean. At the time the Pont du Normandie had just been completed and the wonderfully slender lines of its stiffening girder and cables contrasted strongly, when viewed at an equal distance, to the stockier cables and girder of the Tancarville catenary-type bridge having a very similar span but completed some 35 years earlier. Having to complete the first leg of this sail to Rouen on a single tide I found myself with time on my hands to attempt to prove that the more daring slenderness of the new Pont du Normandie must result from the of use of higher strength steels. After all for a uniformly distributed load the parabolic form of the Tancarville bridge, in following the shape of the moment distribution, must surely provide the most efficient solution? Or so I thought. Because the results of these musings proved so counter to my intuitive understanding the results were sent in the form of a letter to the editor of The Structural Engineer; to my surprise this was subsequently published as a feature article [1] which attracted an agreeable range of enlightening discussion [2].

Subsequently the methodology that had been developed formed the basis of a teaching module [3] encouraging students to use similarly simple calculations to make rational decisions for more general forms of structure. This encouraged the use of non-computer based analyses to allow assessment of the structural forms most likely to provide materially efficient solutions for a given function and which would not. And inevitably such comparisons allowed consideration of the extent to which aesthetics should or should not be separated from issues of material and mechanical efficiency and cost.

For the classes of bridge structure considered in the original article the primary load paths involved membrane behaviour with individual members carrying their loads through axial tensions and compressions. In contrast, many recently proposed bridges involve primary load paths requiring the development of bending action. To be able to make meaningful comparisons of their relative efficiencies it was necessary, as part of the teaching course developed, to extend the original methodology to allow treatment of structures for which bending is involved in the primary load paths. In this regard the bridges of Calatrava [4] made instructive case studies. And having a simple treatment of bridges involving both membrane and bending actions allowed the approach to be extended to the treatment of wider classes of buildings and structures. This in turn enabled consideration of the structural efficiencies of some of the new styles of building favoured for example by the so called High Tech architecture movement [5] relative to more conventional buildings. Like many of the more recent bridge forms these examples from recent trends in building provided equally compelling illustrations of how the choice of an inappropriate structural form can lead to very inefficient use of material and spiraling costs - see for example Refs [6,7]. And of course this provided the material for much wider discussion of whether aesthetics and form in structures should follow material and mechanical efficiency, or whether they can be considered separately. Or whether, as Guest, Draper and Billing to night put it, whether a particular structure embodies "structural art" or merely "art in structures" [7].

Recent efforts to revive the proposals for bridges across the Straights of Messina and Gibraltar [8,9] have reopened questions relating to the relative efficiencies of various bridge forms. In the following a brief summary is given of the method developed to assess relative efficiencies of competing structural forms in which the primary load paths do not involve bending. This will be used to illustrate the main conclusions on the relative efficiencies of the parabolic cable and cable stay suspension bridges contained in Refs [1,2]. This is followed by some further calculations which illustrate the relative efficiencies of the so called harp and fan forms of cable-stay bridges. And because they have been proposed as possible solutions for longer span bridges a final section will deal with cable stay bridges having multiple pylon supports. Increasing the number of multiple pylons will be shown to eventually converge to the "optimum" Mitchell structure [10]. Relative to their more conventional counterparts these will be shown to often embody very efficient use of material. Finally, brief consideration will be given to the wider socio-economic factors at work in many recent developments in structural engineering and how these fit into a global agenda where waste and profligacy should be and are increasingly challenged.

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Basis for Calculating Material Efficiency**

**Member volumes for axially loaded members**

A member *i* carrying a tensile axial force *F _{ti}* constructed from a material having a characteristic material tensile strength

σ_{t} will require a cross section area If the force remains constant over the length l_{i} of the member i then the volume of material required to carry this tensile force will be *V _{i} = A_{i} .l_{i}* or

In a similar way the volume of a member i carrying a constant compressive force *F _{ci}* having a characteristic compressive strength

*σ*will be

_{c}In a situation such as for the cable of a catenary type suspension bridge the axial force will vary over its length so that eq. (1) would become

While for the volume of a compression arch would similarly be

In a related way a flat plate of area *A* carrying a uniaxial stress resultant *n* will require a thickness of t = *n /σ _{t}* so that the volume required would be given by

In many cases where cable nets are involved it will be convenient to replace the individual cables with an equivalent continuous thin membrane plate having the thickness of the smeared out areas of the cables allowing the total cable volumes to be expressed in the form of eq. (5).

For a structure consisting of an assemblage of m individual members, such as that shown in Figure 1, the total volume of material required will be

Where, in line with current terminology forces *F _{i}* will be taken as positive when tensile

*F*and negative in compression

_{ti}*F*

_{ci}**Maxwell's Lemma:** In the following it will be helpful to recall one of Maxwell's lesser known lemma, which in paraphrase states that:

"any structure made up of assemblage of members *i* carrying axial forces *F _{i}* that are in a state of overall equilibrium with applied and reactive external forces

*P*which are fixed in both position and orientation, will have the algebraic sum of the product of the axial forces and their lengths equal to a constant"

_{j}In terms of the present notation this lemma could be written as

Where *M _{k}* is the Maxwell constant and again forces

*F*will be taken as positive when tensile and negative in compression. It does not matter what form the structure takes, this statement remains true. The proof of this was elegantly presented by Maxwell [11] but because it was seemingly not sufficiently well recognized was given new life in Ref. [12]. Perhaps the simplest method of proving this lemma is the following; this is given since it will provide a simple conceptual way of evaluating the Maxwell constant

_{i}*M*.

_{k}Consider the arbitrary if somewhat contrary structure of Figure 1, and imagine that it is uniformly contracted down until it becomes infinitesimally small and lies at the origin point O. In doing so the axial forces *F _{i}* will have undergone a relative movement of

*l*with the compressive forces doing positive work on account of their relative deformations being in the same sense as the forces while the tensile forces will do negative work. With the work done by the internal forces equaling the work done by the external forces, the Maxwell constant

_{i}*M*in eq. (7) can be seen to represent the positive work done by the external forces in undergoing the deformation required for them to be acting at the point

_{k}*O*. With

*d*representing the distance from the original position of the external force component

_{j}*P*to the point on the line of action

_{j}*P*of from which a normal drawn from this line of action of

_{j}*P*passes through the point

_{j}*O*, then the Maxwell constant is given by

Reflecting the convention of his time, Maxwell adopted the convention of compression being positive. Were this the present case there would be no negative sign on the right side of eq. (7). It is understood that *d _{j}* in eq. (8) are positive when

*d*is in the positive direction of the external force

_{j}*P*.

_{j}Allowing the total material volume of eq. (6) to be rewritten in terms of just the tension members

Provided the Maxwell *M _{k}* constant is known the use of Maxwell's lemma allows the work required to calculate the volumes of primary elements in a structure to be halved. For the sake of brevity this will be the approach adopted in the following. However, as previously illustrated [1,2] it may be prudent to calculate the volumes of both the tension members and the compression members and use the Maxwell lemma of eq. (6) as a check on the voracity of the calculations.

**Applications to conventional suspension bridges**

To eliminate the difficulties of comparing relative efficiencies when there are different requirements for the foundations, previous comparisons assumed that for both the catenary and harp cable-stay bridges the end supports needed to develop the horizontal thrust conventionally required of the catenary- type suspension bridge. This meant that for the cable-stay bridge the deck needed to develop both tension and compression in equal measure. Because this is perhaps unrealistic in terms of conventional practice for cable stay bridges the calculations will here be repeated under the assumption that there is no horizontal thrust developed at the end supports for all the cases to be considered. While this requires a compression force to be transmitted through the deck of the catenary-type suspension bridge, it has the merit of eliminating the need for horizontal forces at the end supports. Although not the usual practice for catenary-type suspension bridges this assumption provides another perfectly valid way of comparing the relative efficiencies when using conventional practice for cable-stay type bridges.

**Catenary-type suspension bridge**

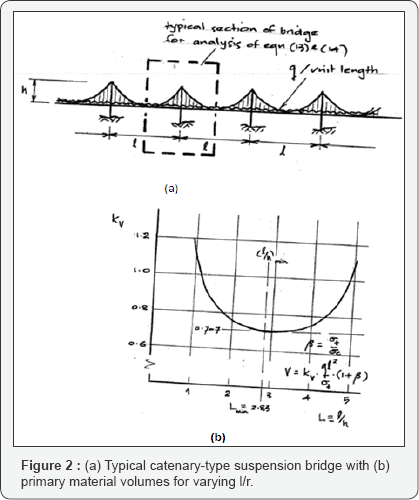

Figure 2a highlights the equivalent of a typical span *l* of a multi-span catenary-type suspension bridge (it being understood that the term catenary is here being used loosely to describe what of course would normally be a second order parabolic cable) having pylons of height *h* above deck and carrying an assumed uniformly distributed load ** q** . In this case we could integrate the volume of the cable to account for its variable tension force and similarly integrate the volume of material required for the hangers. In this case this would be a rather long winded process, so instead the consideration of material volumes will be approached via the compression members. There are just two compression members each having a constant compressive force. The pylon carries a constant compression of

*ql*while the deck transmits a constant compression of . Hence the sum of the compression forces times their respective lengths will in this case be given by

Because there are no externally applied horizontal forces and the applied downward vertical force of *ql* is at the same vertical elevation as the equal and opposite reactive force, the Maxwell constant will for this system be zero, implying that the total material volume could be written

As shown in Figure 2b, it is noteworthy that the valueof associated with the minimum primary structural material volume does not depend upon the choice of characteristic tensile and compressive stresses (σ_{t},σ_{c})although of course this is not the case for total material volume required.

**Harp-type cable-stay bridge**

Consider a typical span *l* of a multi-span harp-type cable- stay bridge having pylons of height *h* above deck level, as shown in Figure 3a, subject to a uniformly distributed load of intensity *q* over each of its spans. Instead of considering individual cables it is perhaps more convenient to assume the cable net acts as if it is a continuous thin membrane plate having a maximum principal membrane stress resultant *n* in the direction of the cables and a minor principal membrane stress of zero in the direction normal to the cables. Vertical equilibrium of a typical element from this continuous plate shown in Figure 3b requires

Where, *α* is the inclination of the cables. Horizontal equilibrium of this same typical cable element shown in Figure 3b will be provided by the horizontal shear stress resultant *n _{τ}* where

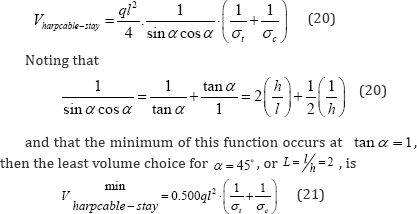

The volume of the tensile steel required for the cable net may then be determined by multiplying the thickness *t* required of the equivalent membrane plate of the cable net, given as

by the vertically projected area 0.5l *h* of the cable net, which on account of tana gives a total tensile steel volume of

In eq. (18) the expression when the characteristic tension stress *α _{t}* is removed represent the sum of the product of the tensile forces times the lengths of the members. Since for this structure the applied deck force of

*ql*is at the same level as the reactive support force

*ql*, and there are no other external forces, the Maxwell constant is again zero, so that

*M*0. It follows from Maxwell's lemma that

_{k}=The total material volume required to carry the primary loads for the harp cable-stay is therefore

As shown in Figure 3c & 3d, it is noteworthy that this least material volume for the harp-type cable stay requires around 30% less material than the equivalent catenary bridge of eq. (14).

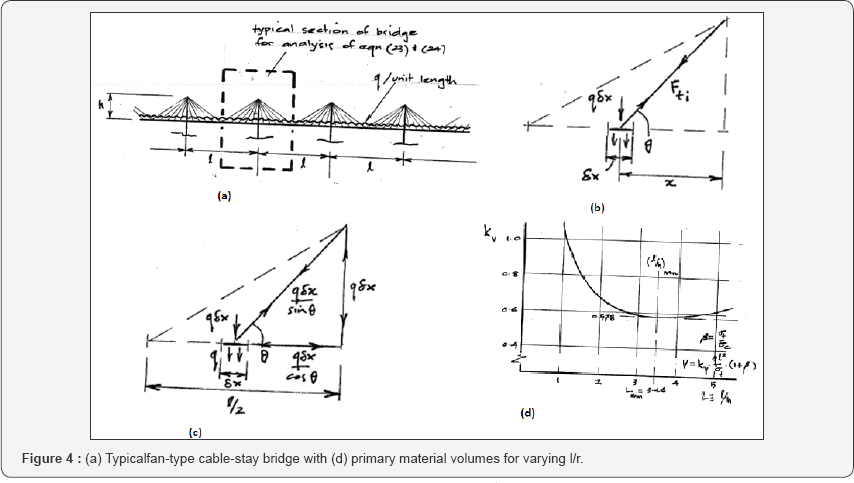

**Fan-type cable-staybridge**

Which on account of eq. (20a) and the consideration that tanϑ=h/x may be written for a typical span l

Allowing the total material volume to be written

will occur when as depicted in Figure 4c & 4d. This form of fan-type cable-stay bridge is therefore less efficient than the least weight harp-type cable-stay of Figure 3, requiring around 15% more primary material volume, but more efficient than the least weight catenary-type suspension bridge of Figure 2, requiring 18% less material. However, it should be recalled that the catenary-type suspension bridge considered here requires the horizontal component of tension force in the cables to be equilibrated through the development of an equal and opposite compression force over the entire length of the stiffening girder. This is not of course the usual practice in catenary-type suspension bridges. The more representative case of the horizontal thrust being equilibrated by end supports will be treated in a later section.

**Applications to non-conventional suspension bridges**

There have been suggestions that instead of just a single pylon at each support there may be advantage in using a number of radially directed pylons. Because they are a step towards the optimal Mitchell-type structure (10) it is certainly probable that these multi-pylon structures would have advantages over the single pylon case. In the following a number of alternatives are considered and shown to converge to the Mitchell optimum structure as the number of pylons increases. Consideration of their practicality will be deferred to a later section.

**Two pylon cable-stay**

As a first example of a multi-pylon solution consider the case shown in Figure 5a. Taking as an illustrative example the pylons having length equal to the half span of the deck, but allowing the inclination of the pylon to be variable at *ϑ* , implies that the inclination of the cables at the deck are (90-ϑ/2) so that the stress resultant n1 equivalent to the action of the cables in the lower cable net is

Resolving the forces normal to the inclined pylon requires that the stress resultant *n*^{2} equivalent to the action of the cables in the upper cable net be given by

With the area of the lower and upper cable nets being respectively

the total volume of tension steel in the 3 cable nets will be given by

and on account of Maxwell's lemma the total volume of steel will be

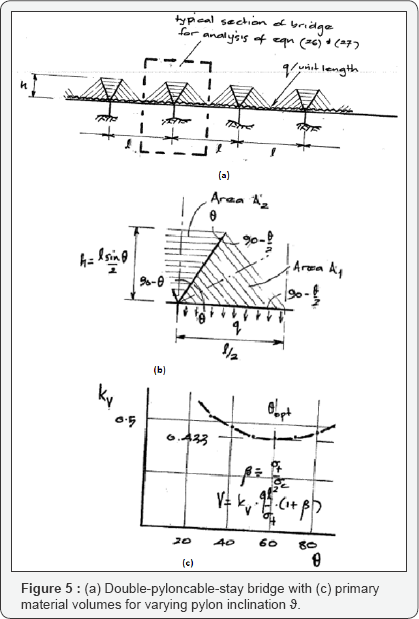

For varying *ϑ* the total volumes of primary steel shown in Figure 5b & 5c can be seen to exhibit a minimum of

When *ϑ =* 60°. This represents a 13% reduction in primary structural material required compared with the harp cable stay of eq. (21).

**Three-pylon cable-stay**

As a second example of multi-pylon cable-stay consider the 3 pylon case of Figure 6 for which the inclined pylons are taken to have a variable inclination of ϑ Again for illustrative purposes it is assumed that the pylon has length equal to the half span of the deck making the inclination of the cables at the deck again , so that the stress resultant _{n}^{1} equivalent to the action of the cables in the lower cable net is

Resolving the forces normal to the inclined pylon requires that the stress resultant n^{2} equivalent to the action of the cables in the upper cable net be given by

With the area of the lower and upper cable nets case in this being respectively

The total volume of tension steel in the 3 cable nets will be given by

and on account of Maxwell's lemma the total volume of steel will be

For varying *ϑ* the total volumes of primary steel shown in Figure 5c can be seen to exhibit a minimum of

When,ϑ = 45°. This represents a 17% reduction in primary structural material required compared with the harp cable stay of eq. (21).

**Multi-pylon cable-stay**

It is generally the case for multi-pylon cable stay bridges that the v least volume will be displayed when the pylons are separated by equal angles. Adopting this a multi-pylon cable- stay having n pylons shown in Figure 7a will have the first pylon. at an inclination angle of the cables at the deck will be with the stress resultant n1 equivalent to the action of the cables in the lower cable net given by

Resolving the forces normal to the inclined pylon requires that the stress resultant equivalent to the action of the cables in the next cable net must also be equal to ^{n}1 , so that all cable-nets have the same stress resultant ^{n}1 equivalent to the action of the cables.

For varying n the total volumes of primary steel shown in Figure 7b & 7c can be seen to include the one, two, and three pylon cases considered separately in eq. (21), (27), (30). In the limit as *n*≚∞

This limiting case represents more than 21% reduction in total primary structural material compared with the harp cable stay of eq. (21). Furthermore, this limiting case which represents an infinite number of concentric semi-circular members being intersected by an infinite number of radial members is often referred to as the "Mitchell optimum"[10]. Whether it is practical is of course another story. But in this context the use of multiple pylons emanating from each of the support piers can be viewed as an approach to this Mitchell optimum.

**Hybrid cable-stay**

As a variant on the multi-pylon solution for the cable stay is the case where the radially emanating pylons are concentrated about the centre line of the support, as shown in Figure 8a. Adopting this hybrid multi-pylon cable-stay having n pylons shown in Figure 8a the lowest pylons will be taken to subtend an angle *ϑ* to the deck. Assuming pylons to be equally spaced the jangle between adjacent pylons will be L I. Following the above analysis, for which the use Maxwell's lemma allows the total volume to be inferred from just an analysis of the volume required for the tension steel, the equivalent membrane stress resultants in the two forms of cable net are

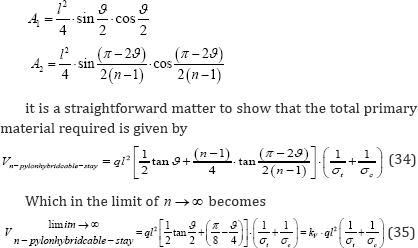

Where, n relates to the lower and larger cable net of Figure 8b, and *n*^{2} to any one of the smaller upper cable nets shown in detail in Figure 8c. With the respective areas of these two cable nets being

Figure 8d shows the variation of total primary material volume for varying *ϑ* reaching a minimum value of ^{l}/_{h}»^{20} at ϑ *=* 0" (which is the condition for stationarity of eq. (34) and also of course identical to the Mitchell optimum of eq. (33)and exhibiting a very flat variation as ϑincreases. With the first pylon chosen to have an inclination of 45" for example the total material volume would be

Which is just a little over 6% higher than the Mitchell optimum. Figure 8e shows for the case of *ϑ =* 45- the variation in the total material volumes required as the number of pylons n for the hybrid case increases -note the minimum number for this case would be *n =* 2 . Again, this variation shows very little change as n increases. For *n*=3 for example *k _{v} =* 0.423 which is a little under 8% higher than the Mitchell optimum and around 15% lower than the harp cable-stay of eq. (21).

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Suspension Bridges with Horizontal Foundation Thrust**

Clearly the various possible bridge forms considered above represent just a small sample of the possible designs for bridge structures. One of the aims in presenting this limited range of alternative designs is to demonstrate that simple hand calculations have considerable merit in comparing the relative structural efficiencies of various alternatives. The supports have been chosen to conform to those typical of cable-stay bridges, in that there is no horizontal thrust requirement at the end supports. To allow direct comparisons the catenary type suspension bridge was also taken to have no horizontal thrust requirement at its end supports, with the cable horizontal tension being instead equilibrated by a compression force over the entire length of the deck. This of course adds considerably to the total structural volume required and perhaps misrepresents the merits of the catenary-type suspension bridge relative to those of the various forms of cable-stay bridges considered. The following makes similar comparisons but with the horizontal thrust being provided by the end supports; it is this situation that was described in Ref [1,2].

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Catenary-Type Suspension Bridge with Horizontal Foundation Thrust**

To represent conventional practice Figure 9 shows the same multi-span catenary-type bridge as that of Figure 2 with the difference that the horizontal thrust is now generated at the end supports. For this situation considered in greater detail in Ref [1,2], there is just one compression member - that of the pylon - so that for the typical section of the bridge shown eq. (12) now becomes

In this case the Maxwell constant is which represents the negative work done by the outward horizontal reaction of moving through the distance *l* of the single span but in the opposite sense to the force. On the basis of eq. (9) the sum of the products of the tension forces times their lengths would for this case be

Notice that through the use of the Maxwell lemma it is not here necessary to calculate separately the volumes of the tension members, as was done in Ref. [1]. It follows that the total material volume will be given by

Introducing the non-dimensional pylon height *L = l/h *a minimum of this volume will occur when

Where *β≡σ _{t} + σ_{c}*is the ratio of the characteristic tensile to compressive strength. Figure 9b shows the

*L≡l/h*resulting in the minimum material volumes for variations of

_{1}^{β}, and Figure 9c plots the corresponding minimum volumes. Taking as an example the characteristic tensile and compressive strengths to be equal,

*β =*1 it can be seen that the total volume of primary structural material for the catenary-type bridge, having foundations capable of reacting the horizontal cable force, is

*k*= 1.0 compared with the value of

_{v}*k*=14 when the horizontal thrust is resisted by a compressive force over the length of the deck as summarized in eq. (14). It is also noteworthy that this reduced value of material volume for the catenary-type bridge is the same as the

_{v}*k*=1.0 for the harp-type cable-stay given by eq. (21), and just 30% greater than the

_{v}*k*=0.786 needed for the Mitchell optimum when

_{v}*β =*1 . However, it must be remembered that this super-structural material volume for the catenary-type suspension bridge does not include consideration of the cost of providing the foundation horizontal thrust capacity. For a small number of spans this foundation costs averaged out would nullify the equality in the provision of super-structural material as compared with the harp-type cable-stay. However, the added foundation cost will represent a diminishing span averaged cost when the bridge has multiple spans. These issues will be considered later in relation to a discussion of optimization based upon cost rather than as at present the material volumes.

Eq. (37) also makes clear that the choice of say *l/h* ≈^{20} chosen for the "blade of light" that comprises the millennium bridge in London, will require 2.6 times the volume of primary structural steel as that for the above minimum material volume, not to mention the 5-fold increases in the horizontal thrusts required to be generated at the end abutments.

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Harp-Type Cable-Stay Bridg E Foundation Thrust**

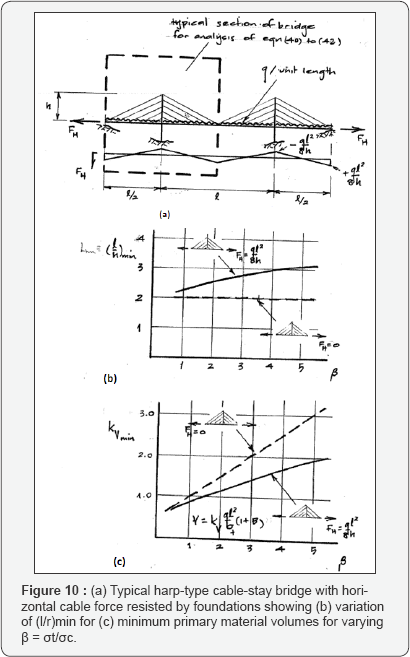

Consider again the multi-span harp-type cable-stay bridge of Figure 3a but constructed in such a way as to require the same horizontal thrust at the end foundations as the catenary-type bridge of Figure 9a. This situation is summarized in Figure 10a with the changes to the deck axial force shown in Figure 10b. Over a typical span l the compressive force will vary linearly from a maximum tension of to a maximum compression of . Hence the total product of compression forces integrated over their lengths consists of two contributions - the pylon and the reduced value from the deck - and is given by

with the Maxwell constant again On the basis of eq. (9) the sum of the product of the tension forces times their lengths is in this case

Notice again that through the use of the Maxwell lemma it is not here necessary to calculate separately the volumes of the tension members, as was done in Ref. [1]. It follows that the total material volume will be given by

of the material strength parameter For typical ratios of the high strength steels used for the tension cables and the lower grade steels used for the compression members, the least material volume will occur for values of *β* in the range 1 to 3, for which the optimal would be in the range 2.3 to 2.8; this contrasts with the least volume solution of when the full horizontal thrust is resisted by the deck.

Reductions in optimal material volumes for the harp-type cable-stay when the horizontal thrust of are taken by end support reactions as compared with those for which the thrust is resisted fully through deck compression can be seen in Figure 10c to be considerable, but far less extreme than those for the catenary type bridge shown in Figure 9c. Given that the cost of providing foundations capable of resisting the horizontal thrusts of will be the same for both the systems of Figure 9c &10c, it can be seen that for values of the optimal harp-type cable-stay requires less super-structural steel than that required for the optimal catenary-type. However, for the situation is reversed and the catenary-type bridge would likely be more materially efficient.

While it may be feasible to construct cable-stay bridges for which the horizontal components of cable tension due to dead load are resisted by a combination of deck tension and compression this could not be possible for the subsequent application of live loading. To achieve this situation for the dead loading would require a deck connection similar to a typical expansion joint for which no horizontal force could be transmitted. This form of construction joint would be inconsistent with the needs of flexural continuity required to resist loads that have an anti- symmetrical component applied to adjacent spans. For this reason the situation discussed in Figure 10 must be considered impractical for the components of live loading.

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Some Further Practical Considerations**

The above analyses ignore many factors likely to influence the design of suspension bridges. First, it assumes that the material volumes required for what one might regard as secondary structural action will be little influenced by the changes in the structural material volumes needed to carry the primary loads. These secondary structural actions would include the structural members required to transmit the local deck loads back to the locations where cables pick-up the reactions. And they would include bracing members required to limit the effective buckling lengths of compression members in the deck and pylons. So long as the cable spacing and forms of bracing are held fairly constant over the various designs these secondary structural components could be anticipated to require comparable amounts of secondary steel. For this reason the above limitation to consider just the volumes of primary structural components should provide realistic comparisons of relative efficiency.

However, the levels of the overall bending in the stiffening decks will depend upon the relative stiffness of the deck and the cable support systems which will in turn be very dependent upon the various design parameters. This would impact upon the material requirements for the stiffening girder that could have a secondary influence upon the total volumes of structural material required. Secondly, while dead load would conform to the assumed restriction of equal uniformly distributed loads over adjacent spans this may not be the case for live loading. Unequal live load distributions on adjacent spans will induce considerable bending moments in both the decks and possibly pylons. However, it can be shown that the purely anti-symmetric components of loading will induce roughly equal bending moments in the spans of all the bridge forms considered, requiring similar volumes of material required to provide these bending moment distributions. This would have the effect of making the determination of the optimal designs relatively insensitive to the non-uniform distributions of live load. Thirdly, and related to this, the dynamic response to wind and earthquake loadings have not been considered. These too could impact upon the stiffness required of the deck and therefore on the amounts of material needed for the deck. Fourthly, as the spans increase some of the individual components will require additional structural material just to support their own weight. For example the stay cables will increase in length in direct proportion to the increasing span. Rather than being able to carry the primary loads by direct tension the catenary action within each separate cable will require additional structural material to carry the additional tension and bending caused by the cable weights. This is likely to be more important for most of the cable-stay bridges than for catenary-type bridge since for the latter most of the components will have their characteristic lengths kept relatively constant as the spans increase. For example, the distances between vertical hangers will not generally be increased in direct proportion with the increasing span, so that local bending in the deck or the local self-support of the cable will not be a major fact in determining the sizes of members required. For this reason most of the feedback effects for the self-weights of components can simply be incorporated in an adjustment to the dead load component of the distributed load .

In assessing the impacts on required material volumes arising from different characteristic strengths of materials in tension and compression no allowance has been made for the use of different grades of material for different components. For example, it is likely that considerably higher grade steels would be adopted for the tension cables than those used for the deck. So where there is tensile action occurring in the deck it is likely that the volumes of steel required would be underestimated compared with those required had a lower grade steel been assumed. To keep the presentation simple, as is consistent with the approach being adopted, this has not been considered in the above presentation. However, it would be a relatively straight forward adjustment to the calculations presented to include these effects. In any case a potentially even more important factor that has seemingly been neglected is to base the considerations of which structures provide the most efficient choice purely on material volumes - or equivalently weight given that most steels have roughly the same density. The costs of materials, their fabrication and erection are likely to be highly dependent upon the grades of steel adopted and the nature of the components and especially the connections for which these materials are being used. The unit cost of fabricating and erecting the high strength steels used for the tension cables is likely to be considerably greater than the material, fabricating and erection costs for mild steel used for the compression members, whose dimensions are likely to be more critically controlled by buckling. Because buckling capacities will be much more dependent upon the elastic modulus and because the modulus of elasticity for high grade and low grade steels are broadly the same, there is likely to be much less advantage for compression components in adopting the high strength steels.

A simple way of modifying the above discussion of relative efficiencies based upon material volumes to the consideration of cost optimization is to consider that the cost of tension components is say ct per unit volume (or weight) and that for compression components the unit cost is cc. This means that replacing the parameter with .the alternative compound material and cost parameter will allow all the expressions derived above to be adjusted to cover the combined consideration of differences between the strengths in tension and compression as well as the differences in cost of the different grades of steel and their fabrication as expressed by whether they are in tension or compression. Bringing all of the above calculations together the results could be summarised in the following Figure 11. For each of the different classes of structure the total costs *C* minimized with respect to each of the parameters considered above are expressed in the form

In terms of the material and cost parameter is . Again, fabrication costs do not just depend upon the grade of steel but also on the type of fabrication and erection involved. For example the cost of on-site fabrication and erecting of a high compression strength steel pylon might be considerably different to the costs of erecting a pre-fabricated deck from the same material. Again, if nuances are required it would be possible to incorporate these within a modified form of the above calculations.

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Conclusion**

One of the aims of this paper has been to provide sufficiently simple analyses of structural behaviour to allow estimates of material volumes or costs to help make rational decisions between the relative merits of different structural forms. Although confined to restricted classes of structure used for long span bridges, the methodology described could equally be applied to other classes of structural system. There are a number of issues that stand out from this analysis. These will be drawn together with the aid of Figure 11 which shows, for each of the classes of bridge form considered, the material volumes and cost estimates for providing the super-structural steel as functions of the compound material and cost parameter*,B* . Compound parameter B encapsulates an allowance for the different material characteristic strengths in tension and compression, and the different material, fabrication and erection costs for the elements in tension compared with those in compression. There are a number of potentially important conclusions that have emerged:

As would be expected, there is considerable advantage in reducing the required super-structural material volumes by including end foundations capable of resisting all or part of the horizontal force otherwise resisted by the deck. For the catenary-type suspension bridge having low values of the material strength and cost parameter B, there is around 40% saving in material volumes for each span when the horizontal component of the main cable is absorbed by the end support foundations. The savings become even greater for higher values of B. Whether for bridges having a small number of spans the additional cost of providing the horizontal capability in the foundations would be offset by the savings in super-structural weight would require separate costing of foundation provision and superstructure. But what is certain is that as the number of spans increase it is likely that the added foundation costs would be more than compensated by the considerable savings in super- structural costs.

While it is not the usual practice to do so there would be similar savings to super-structure cost for cable-stay bridges were they to incorporate horizontal load capacity in the end foundations equivalent to those usually provided for the catenary-type bridge. This is especially true for higher values of the material strength and cost parameter ** B** . However, to enable a multi-span cable-stay bridge to resist live load components that display anti-symmetry with respect to adjacent spans this strategy would be possible for just the dead load contributions to the deck loading.

With the same foundation requirements in terms of both vertical and horizontal load capacity, the harp cable-stay is marginally more efficient than the catenary-type bridge for values of *B <* 3 , while the reverse is true for*B >* 3 . Hence the use of very high strength steel for the cables is likely to favour the adoption of the catenary-type bridge as compared with either the harp or the fan cable-stay bridges; although this advantage is likely to be reduced when cost optimization is considered.

For the situation where the end supports are not able to provide horizontal force capacity, both the fan and harp cable- stay bridges provide considerably more efficient structures than the catenary-type bridge over the entire range of material and cost parameter *B*. In all cases the harp system is marginally more efficient than that of the fan configuration.

The use of radially directed multi-pylons at each support provides considerably more efficient cable-stay bridge solutions than any of the alternative cable-stay systems. When optimized in terms of inclination angle even 3 radial pylons at each support result in total material volumes very close to theoretical minimum volume provided by the somewhat impractical Mitchell-type truss.

The optimal multi-pylon supports systems for low values of *B <* 2 require less super-structural material volume than either the catenary-type or harp cable-stay bridges for which end supports provide horizontal capacity. Even for higher values of *B <* 2 the multi-pylon solutions offer very competitive super-structural weights without the need for the provision of horizontal capacity at the end support foundations. This suggests that for future economic design serious consideration be given to the use of multi-pylon supports to the cable nets.

Use of Maxwell's lemma is shown to provide an efficient shortcut to the calculation of required material volumes. In cases where the Maxwell constant is zero the total volumes of tension and compression members are inversely proportional to their respective characteristic strengths.

For very long span bridges it is likely that the added material required for the individual members, responsible for providing the primary load paths, to support themselves will be more keenly felt for the various cable-stay solutions. In these circumstances the catenary-type bridge will likely provide the most effective solutions provided end supports are capable of resisting the inevitably high horizontal thrusts.

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**Final Remarks**

Over the past few decades it has become a matter of concern that the conceptual design of even bridge structures has decreasingly been undertaken by engineers. The reasons for this are many but one factor that has contributed is suggested to be the dominance of analysis in engineering education and over the past 50 years or so and the overwhelming emphasis on analyses directed towards the development and use of computer algorithms. While it is questionable whether the more traditionally taught hand calculation methods did a lot more to enhance physical and intuitive understanding of structural behaviour, so vital for effective design, it has always seemed to the writer that we have not exploited sufficiently the fact that analysis can now be so effectively performed with readily available software. This could have liberated those involved in engineering education to spend more time on the fundamentals of structural behaviour as well as providing simple but reliable methods of analysis which being more directly founded in physics would develop the intuitive skills so vital to creative design. It would have reduced the worrying trend that when faced with a novel problem the response from too many engineers is not to sit down and think about how this could be understood and approximated using simple conceptual models, like those discussed here, but instead to consider how the problem might be interfaced with whatever brand of software happens to be available within the office. Little wonder that others are too often in the driving seat of structural creativity.

Traditionally, bridges were perhaps the purest expression of structural rationality in which the basic principles of mechanics directed the engineer to the most appropriate form for a given situation and choice of structural material. Over time our perceptions of what looked right and consequently pleasing to the eye were most likely what was right for the particular situation - just as in natural structures formed through eons of evolutionary optimization what is right becomes accepted as looking right. This theme has recently been developed in Ref. [7] where a detailed analysis of the Alamillo bridge in Seville showed this to be a classic example of structures being used as a piece of art rather than the art being a consequence of the structure representing a true expression of the best use of material based upon the application of sound and rational principles of mechanics. Now it seems this process has been hijacked with many bridge forms having a closer affinity to sculpture than with rational engineering. It is hoped that this theme will be taken up in subsequent publications.

Perhaps if we are to reverse this trend it will be even more important that future engineers spend more time developing an ability to undertake simple scoping calculations. Only through a sound understanding of how structures work and an ability to translate this into simple models to allow the flow of forces through our structures to be understood will it be possible for engineers to recover the conceptual lost ground. In an age when waste and its contribution to global warming are high on the agenda it is likely that clients will require their structures to be part of the solution rather than part of the problem. To this end it is to be hoped that the simple models, like those outlined in this paper, will find an increasing role in engineering education and professional design.

- Review Article
- Abstract
- Background
- Basis for Calculating Material Efficiency
- Suspension Bridges with Horizontal Foundation Thrust
- Catenary-Type Suspension Bridge with Horizontal Foundation Thrust
- Harp-Type Cable-Stay Bridg E Foundation Thrust
- Some Further Practical Considerations
- Conclusion
- Final Remarks
- References

**References**

- Croll JGA (1997) Thoughts on the structural efficiency of cable-stayed and catenary suspension bridges. The Structural Engineer 75(10): 173-175.
- Dalton HC, French MJ, Croll JGA (1997) Correspondence on "Thoughts on the structural efficiency of cable-stayed and catenary suspension bridges”. The Structural Engineer 75(19): 345-347.
- Croll JGA (1993) Qualitative analysis for civil engineers, final year teaching course, UCL, 1993 to 2015.
- Frampton K, Webster AC, Tischhauser A (1993) Calatrava bridges. Atremis, Zurich, Switzerland.
- Davies C (1988) High-tech architecture. Thames and Hudson, London, UK.
- Croll JGA (2002) High-Tech or Mock-Tech: Structural Rationality of the High-Tech Movement, in Advances in Building Technology. Elsevier Science pp. 1059-1073.
- Guest JK, Draper P, Billington DP (2013) Satiago Calatrava's Alamillo bridge and the idea of the structural engineer as artist. J of Bridge Engineering 18(10): 936-945.
- Meier U (1987) Proposal for carbon fibre reinforced composite bridge across the Straights of Gibraltar at its narrowest site, Proceedings of the Institution of Mechanical Engineers, Part B. J of Engineering Manufacture 201: 73-78.
- Xiong W, Cai C, Zhang Y, Xiao R (2011) Study of super long span cable- stayed bridges with CFRP components. Engineering Structures 33: 330-343.
- Michell AGM (1904) The limits of economy of material in frames structures. Philosophical Magazine 8(47): 589-597.
- Maxwell JC (1890) Scientific Papers, Cambridge University Press 2: 1964.
- Croll JGA (2003) James Clark Maxwell and the pertinacity theorem. The Structural Engineer p. 15-16.
- Fairclough H, Gilbert M, Pichugin A, Tyas A (2017) Structural efficient forms for very long span bridges. Proceedings Royal Society A, to be published.
- Brohn D (2005) Understanding structural analysis, New Paradigm Solutions.
