Recent Advances in Synthetic Applications of Polyvinylpyrrolidone Supported Reagents and Catalysts
Masoud Mokhtary*
Department of Chemistry, Rasht Branch, Islamic Azad University, Iran
Submission: August 23, 2018; Published: November 05, 2018
*Corresponding author: Masoud Mokhtary, Department of Chemistry, Rasht Branch, Islamic Azad University, Iran.
How to cite this article: Masoud Mokhtary. Recent Advances in Synthetic Applications of Polyvinylpyrrolidone Supported Reagents and Catalysts. Academ J Polym Sci. 2018; 2(1): 555580. DOI: 10.19080/AJOP.2018.02.555580
Abstract
This review summarized recent progresses in the application of polyvinylpyrrolidone supported reagents and catalysts in organic synthesis.
Keywords: Polyvinylpyrrolidone; Supported reagents; Supported catalysts; Multi-component reactions
Introduction
The use of solid-supported reagents and catalysts in solution-phase chemistry has emerged as a leading strategy that exploits the advantages of both solid- and solution-phase synthesis. The approach essentially combines the benefits of product isolation and purification in solid-phase synthesis with the high-speed development and flexible choice of chemistry from the vast repertoire of solution phase organic reactions. The organic molecules synthesis using polymer-supported reagents and catalysts is highly attractive because the work-up involves only simple filtration and evaporation of the solvent [1]. Polyvinylpyrrolidone (PVP) is an amorphous polymer having broad applications in biomedical field due to its special properties such as low toxicity and good solubility in water and most organic solvents, good adhesion characteristics, and great physiological compatibility [2]. Also, PVP has good biocompatibility and has been applied for many years as a biomaterial or additive to drug compositions, e.g. as a blood plasma expander [3]. Polyvinylpolypyrrolidone (PVPP, crospovidone, or crospolividone) is a highly cross-linked polyvinylpyrrolidone (PVP). The cross-linked form of polyvinylpyrrolidone is insoluble in water, though it still absorbs water and swells very rapidly generating a swelling force. This property makes PVPP useful as a disintegrant in pharmaceutical tablets [2]. Polyvinylpyrrolidone shows a strong binding affinity to small molecules. Furthermore, its iodine complex, povidon-iodine, is widely used as an anti-infective agent in clinical treatments [4].
Polyvinylpyrrolidone Supported Reagents
A range of polyvinylpyrrolidone-supported reagents has been developed for applications in organic synthesis. In general, these reagents are employed in stoichiometric excess to drive the reaction to completion. Simple filtration removes the spent resin from the reaction solution and, thus, eliminates the need for any time-consuming chromatographic work-up.
Iranpoor and coworkers [5] have prepared iodine supported on polyvinylpyrrolidone (betadine) as catalysts for ring opening of epoxides and as reagent for ring opening dimerization of thiiranes in alcohols, water and acetic acid (Scheme 1). In this report, the reaction of R-(+)-styrene oxide with I2 supported on PVP in methanol was found to be very stereospecific and the product isolated in 93% ee.

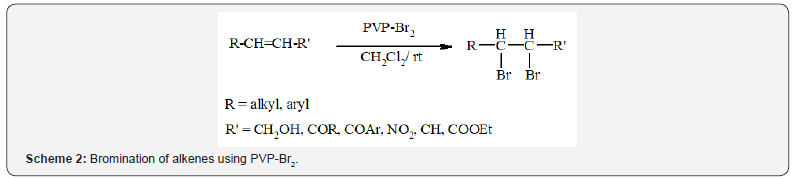

In another research, Lakouraj et al. [6] described the preparation of polyvinylpyrrolidone-bromine complex (PVP-Br2) as a mild and convenient reagent for selective bromination of alkenes (Scheme 2) [6].

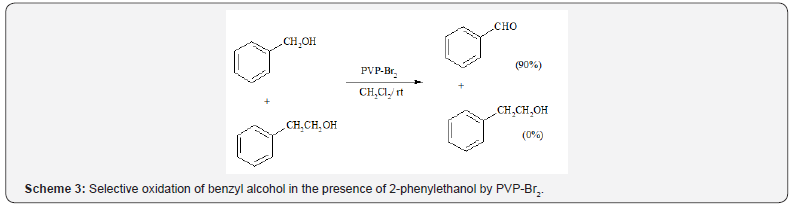

Selective oxidation of benzyl alcohol in the presence of 2-phenylethanol was also achieved at room temperature in the presence of PVP-Br2 (Scheme 3).
In the next research, Lakouraj and Mokhtary have developed a convenient method for deprotection and direct oxidative deprotection of silylethers to the corresponding hydroxy and carbonyl compounds using polyvinylpolypyrrolidonebromine complex (PVPP-Br2) (Scheme 4) [7]. Selective oxidative deprotection of benzylic silyl ethers in the presence of primary aliphatic alcohols was also achieved at room temperature.
Also, PVPP-Br2 has been used for bromination of electron-rich aromatic compounds [8]. The reaction proceeded smoothly with phenols and N, N-alkylated amines to afford the corresponding mono brominated product in good yields at ambient temperature (Scheme 5).

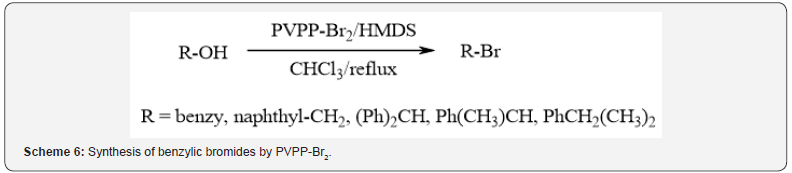

Furthermore, Mokhtary and Lakouraj synthesized benzylic bromides in high yields by the reaction of the corresponding alcohols with cross-linked polyvinylpyrrolidone-bromine complex (PVPP-Br2) in the presence of hexamethyldisilane in chloroform at reflux condition (Scheme 6) [9]. Selective conversion of benzyl alcohol to benzyl bromide in the presence of 2-phenylethanol was also achieved.
Surya Prakash et al. have prepared solid polyvinylpyrrolidonehydrogen peroxide complex and used as solid hydroxylating reagent [10]. This solid hydrogen peroxide is found to be much safer, convenient and efficient reagent system for the ipsohydroxylation of arylboronic acids to the corresponding phenols in highyields at a faster rate (Scheme 7). The versatility of the reagent has been further expanded for the one-pot synthesis of halophenols.
Lakouraj et al., [11] have demonstrated polyvinylpolypyrrolidone- phosphorous oxychloride as a versatile polymeric Vilsmeier reagent that exhibits excellent selectivity for oxygenation of sulfides to sulfoxides, and oxidation of aldehydes to carboxylic acids in the presence of hydrogen peroxide under mild reaction conditions (Scheme 8) [11]. This polymeric Vilsmeier reagent was found to retain its activity after months and is stable in a glass bottle at room temperature.

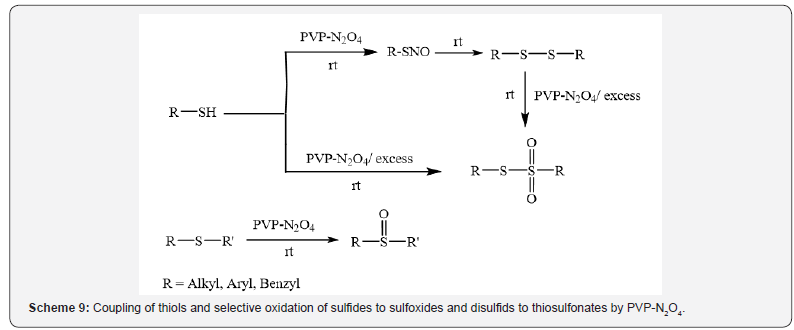

Iranpoor et al. [12] have reported dinitrogen tetraoxide supported on polyvinylpyrrolidone (PVP-N2O4) as a nitrosating and coupling agent for thiols and selective oxidation of sulfides to sulfoxides and disulfids to thiosulfonates (Scheme 9) [12].

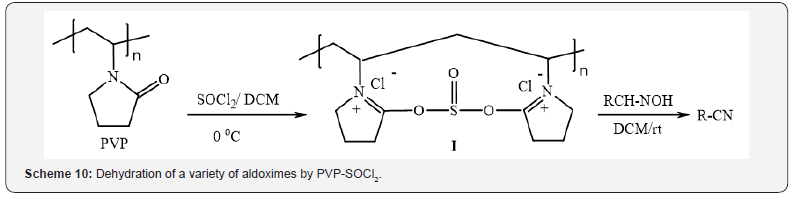

Tamami and Kiasat have reported [13] a polyvinylpyrrolidonethionyl chloride complex by the reaction of thionyl chloride with two equivalents of polyvinylpyrrolidone in dichloromethane at 0 ͦC. The polymer-bound complex I was used for the rapid dehydration of a variety of aldoximes to produce the corresponding nitriles in high yields (Scheme 10).
Also, Tamami et al. [14] have reported rapid ring opening of epoxides to afford β-chlorohydrins with cross-linked polyvinylpyrrolidone/thionyl chloride complex (PVP-SOCl2), under mild reaction condition in high yields (Scheme 11).
Polyvinylpyrrolidone Supported Lewis Acidic Catalysts
Replacement of conventional, toxic and unstable Lewis acidic catalysts with eco-friendly reusable solid acid catalysts is an essential requirement in the development of green chemistry. For example, boron trifluoride is widely used in organic syntheses as a Lewis acid. However, boron trifluoride is highly water sensitive, irritant, and has to be used in a carefully dried apparatus. Moreover, all work must be carried out in an efficient fume hood, and its recovery from the reaction mixture results in a main source of waste, which on an industrial scale is environmentally unacceptable.

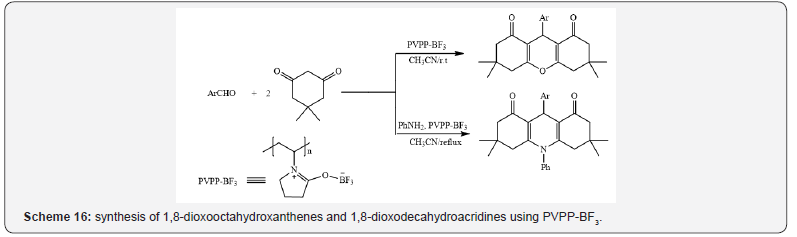

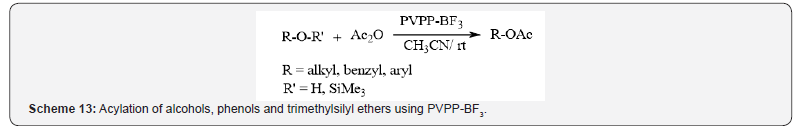

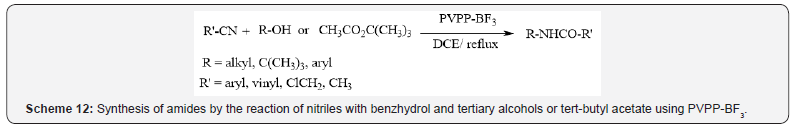

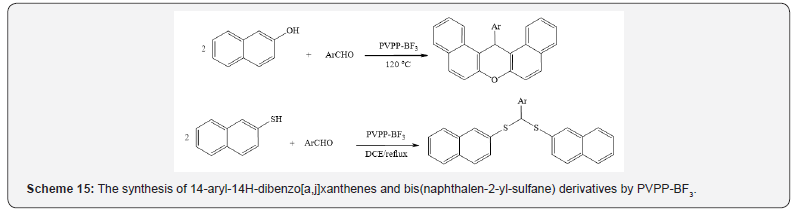

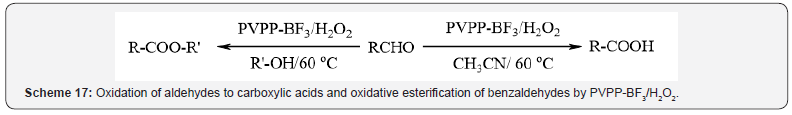

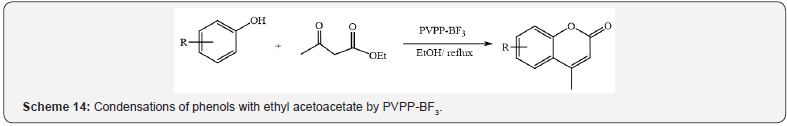

Mokhtary et al. have reported several papers on the application of the polyvinylpolypyrrolidone-bound boron trifluoride (PVPPBF 3) as a stable polymeric Lewis acid catalyst in some organic reactions such as synthesis of amides by the reaction of nitriles with benzhydrol and tertiary alcohols or tert-butyl acetate via Ritter reaction (Scheme 12) [15, 16], the acylation of alcohols, phenols and trimethylsilyl ethers with acetic anhydride (Scheme 13) [17], the synthesis of coumarins via Pechmann condensations of phenols with ethyl acetoacetate (Scheme 14) [18], the synthesis of 14-aryl-14H-dibenzo [a,j] xanthenes and bis(naphthalen- 2-yl-sulfane) derivatives (Scheme 15) [19], the synthesis of 1,8-dioxooctahydroxanthenes and 1,8-dioxodecahydroacridines via condensation of aromatic aldehydes and dimedone in acetonitrile at room temperature, and aromatic aldehydes, dimedone, and aromatic amines in acetonitrile at 80 °C respectively (Scheme 16) [20], the oxidation of aldehydes to carboxylic acids and oxidative esterification of benzaldehydes in the presence of 35% hydrogen peroxide (Scheme 17) [21] and the oxidation of sulfides to sulfones in the presence of 35% hydrogen peroxide at room temperature (Scheme 18) [22]. Excellent yields, easy work-up and reusability and stability of the catalyst are some advantages of these methods.

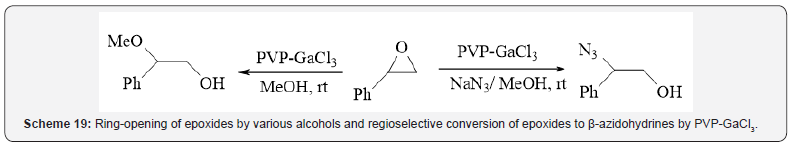

Pourali and et al. prepared cross-linked polyvinylpyrrolidone supported GaCl3 for efficient and regioselective ring-opening reaction of epoxides by various alcohols under solvent-free conditions at room temperature (Scheme 19) [23]. Furthermore, regioselective conversion of epoxides to β-azidohydrines was accomplished by sodium azide in MeOH in the presence of GaCl3/ PVP at room temperature. GaCl3/PVPP is a non-hygroscopic and recoverable catalyst and is easily separated from reaction mixture by a simple filtration and reused repeatedly
In the next research, an efficient synthesis of chromenylphenylpropanone derivatives as warfarine-like analogues was developed by the Michael addition of 4-hydroxycoumarin to α, β-unsaturated compounds in the presence of polyvinylpolypyrrolidone supported antimony (III) chloride (PVPP-SbCl3) as a new polymeric Lewis acid catalyst in chloroform at reflux conditions (Scheme 20) [24].
Polyvinylpyrrolidone Supported Brönsted Acidic Catalysts
Polymer-supported Brönsted acidic catalysts have gained considerable importance due to their low cost, high efficiency, easy work-up, and reusability. Ghorbani-Choghamarani et al. reported trimethylsilylation and formylation of alcohols in the presence ofpolyvinylpolypyrrolidoniume tribromide in acetonitrile at room temperature (Scheme 21) [25].
Khaksar et al. have prepared polyvinylpolypyrrolidonesupported triflic acid (PVPP.OTf) as an environmentally friendly and efficient catalyst for the synthesis of bis-indolyl methane derivatives by the reaction of indole or N-methyl indole with aldehydes (Scheme 22) [26].

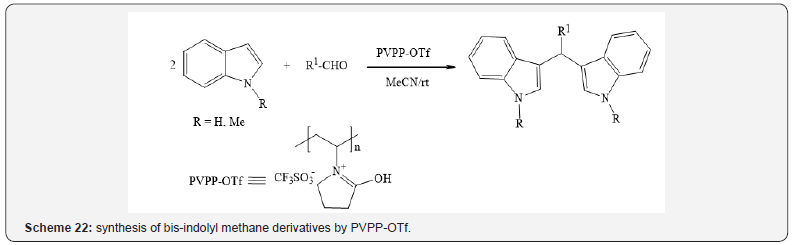

Furthermore, PVPP.OTf was found to be useful as a recyclable heterogeneous catalyst for the rapid synthesis of quinoxaline derivatives (Scheme 23) [27].
Also, polyvinylpolypyrrolidone-supported triflic acid has been used as a recyclable catalyst for synthesis of a series of 7-hydroxy- 10-aryl-10Hindeno[1,2-b]chromen-11-one derivatives, 13-phenyl indeno[1,2-b]naphtho[1,2-e]pyran-12(13H)-one and 12-phenyl- 12H-indeno[1,2-b]naphtho[3,2-e]pyran-5,11, 13-triones (Scheme 24) [28].

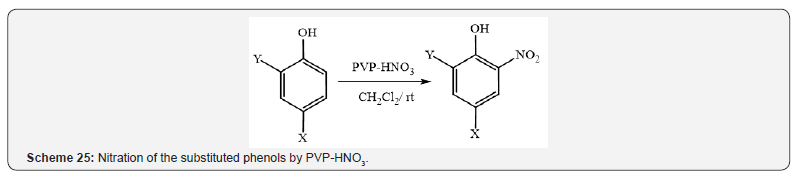

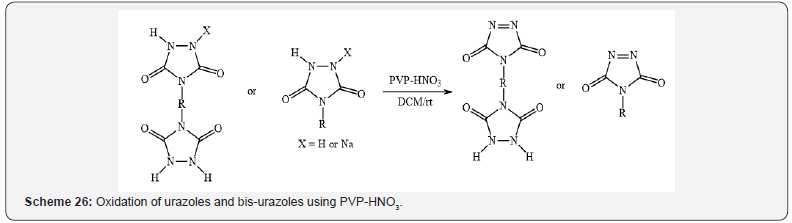

Nitration of the substituted phenols (Scheme 25) [29] and oxidation of urazoles and bis-urazoles to the corresponding triazolinediones (Scheme 26) [30] were reported by Nikoorazm et al. and Ghorbani-Choghamarani et al. respectively in dichloromethane at room temperature using supported nitric acid on polyvinylpyrrolidone as an efficient, environmentally friendly, mild catalyst.
Furthermore, Zolfigol et al. was described chemo selective oxidation of sulfides to sulfoxides using PVP-HNO3 in the presence of a catalytic amount of KBr or NaBr (Scheme 27) [31].

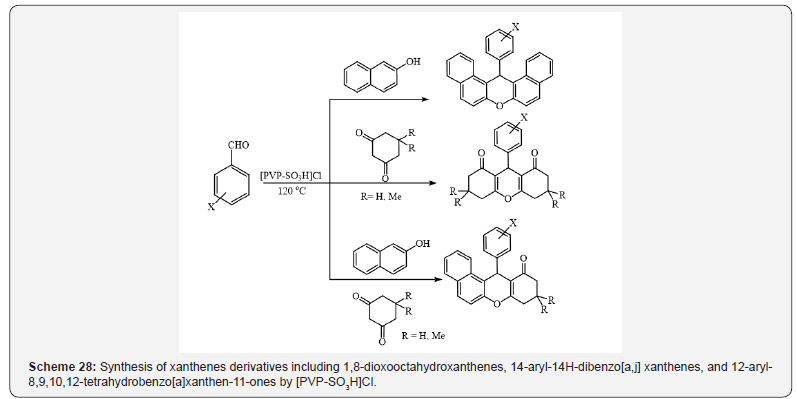

The synthesis of xanthenes derivatives including 1,8-dioxooctahydroxanthenes, 14-aryl-14H-dibenzo[a,j] xanthenes, and 12-aryl-8,9,10,12-tetrahydrobenzo[a]xanthen-11-ones reported by Shirini et al, using O-sulfonated poly(4-vinylpyrrolidonium) chloride [PVP-SO3H]Cl as a polymeric solid acid catalyst (Scheme 28) [32].

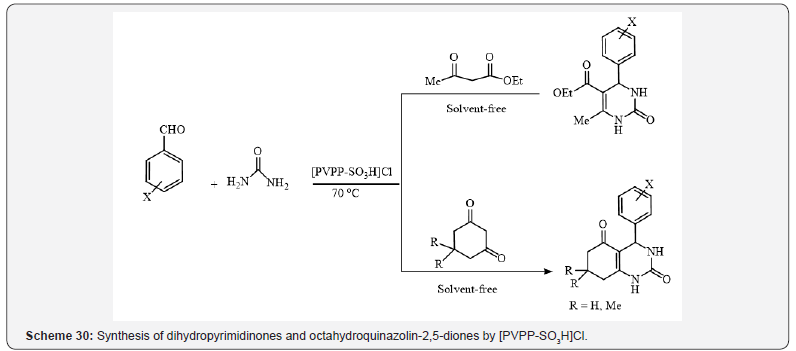

Also, polyvinylpolypyrrolidone supported chlorosulfonic acid ([PVPP-SO3H]Cl) was evaluated by Mokhtary et al, as a recoverable catalyst for the one-pot synthesis of hexahydroquinolines (Scheme 29) [33], dihydropyrimidinones and octahydroquinazolin-2,5- diones (Scheme 30) [34].

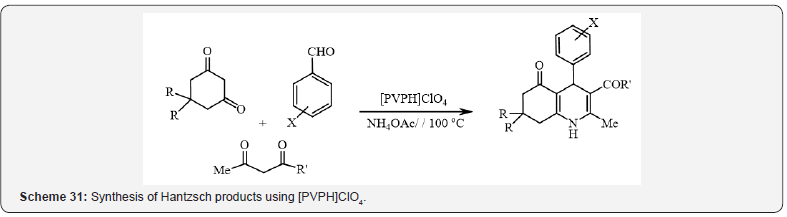

In another research, Abedini et al. have described a green approach for the promotion of the synthesis of Hantzsch products using polyvinylpyrrolidinium perchlorate ([PVPH]ClO4) as a new modified polymeric catalyst (Scheme 31) [35].
In the next research, Shirini et al., have introduced polyvinylpyrrolidonium hydrogen phosphate ([PVP-H]H2PO4) as a heterogeneous, and reusable catalyst for the synthesis of 2-amino- 3-cyano-5-oxo-5,6,7,8-tetrahydro-4H-benzopyrans (Scheme 32) [36].

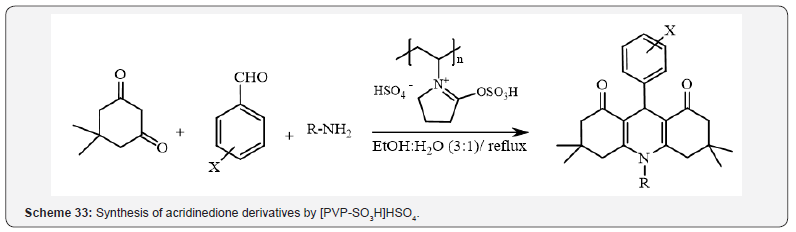

In another study, sulfuric acid-modified polyvinylpyrrolidone ([PVP-SO3H]HSO4) was prepared by Safaei et al. as an efficient reusable polymeric catalyst for the one-pot multi component synthesis of acridinedione derivatives as an important class of heterocyclic compounds (Scheme 33) [37].
Polyvinylpyrrolidone Supported Pd Catalyst
A series of poly(N-vinyl-2-pyrrolidone) immobilized Pd nanoparticles (PVP-Pd) with varying particle size have prepared by Li et al., [38] using the stepwise growth reaction. The effect of Pd particle size on the Suzuki reaction between phenylboronic acid and iodobenzene was investigated by the use of four Pd catalysts (Scheme 34). The catalytic activity of the Pd nanoparticles expressed in terms of the initial turnover frequency (moles of the biphenyl product per mole of total surface Pd atoms per min) was found to be in the order of Pd (3.9nm) > Pd (3.0nm) ~ Pd (5.2nm) > Pd (6.6nm), indicating that surface Pd atoms do not all have the same reactivity in this reaction. The general trend of increased catalytic activity with the decrease in the particle size suggests that the low-coordination number vertex and edge atoms on the particle surface are active sites for the Suzuki reaction. The lower catalytic activity for the smallest Pd nanoparticles may be due to stronger adsorption of the reaction intermediates on the particle surface, in which the strongly adsorbed species act as a poison to the reaction thereby decreasing the rate of the reaction.
In another work, Tamami et al., [39] was prepared a catalytic system based on palladium nanoparticles supported on poly(Nvinylpyrrolidone) grafted silica (Scheme 35).
The complexation of PVP-grafted silica with PdCl2 was carried out to obtain the heterogeneous catalytic system. Transmission electron microscopy (TEM) image showed that palladium dispersed through the support in nanometer size (Figure 1).
This catalytic system exhibited excellent activity in crosscoupling reactions of aryl iodides, bromides and also chlorides with olefinic compounds in Heck-Mizoraki reactions in short reaction time and high yields (Scheme 36).
Conclusion
Polymer-supported reagents and catalysts have emerged as important tools for the rapid preparation of chemical compounds in solution-phase. Clean methodologies, easy preparation of the catalysts, simple work-up procedures, good to high yields, environmentally friendly and reusable catalysts are some advantages of polyvinylpyrrolidone supported catalysts and reagents in organic multi-step synthesis. Further progresses in the development of new PVP-bound reagents, and catalysts will continue to attract innovative application of this strategy in multicomponent synthesis.
Acknowledgements
Financial support by Rasht Branch, Islamic Azad University is gratefully acknowledged.
References
- Bhattacharyya S (2000) Polymer-supported reagents and catalysts: recent advances in synthetic applications. Comb Chem High Throughput Screen 3(2): 65-92.
- Bühler V (2005) In: Polyvinylpyrrolidone excipients for pharmaceuticals: povidone, crospovidone and copovidone. Springer, Berlin Heidelberg New York, USA, pp. 1-254.
- Teodorescu M, Bercea M (2015) Poly(vinylpyrrolidone)-a versatile polymer for biomedical and beyond medical applications. Polym Plast Technol Eng 54(9): 923-943.
- Liu C, Cui S, Wang Z, Zhang X (2005) Single-chain mechanical property of poly(N-vinyl-2-pyrrolidone) and interaction with small molecules. J Phys Chem B109:14807-14812.
- Iranpoor N, Tamami B, Niknam Kh (1997) Iodine and iodine supported on polyvinylpyrrolidone as catalysts and reagents for alcoholysis, hydrolysis and acetolysis of epoxides and thiiranes. Can J Chem 75(12): 1913-1919.
- Lakouraj M M, Tajbakhsh M, Mokhtary M (2005) Poly(vinylpyrrolidone)- bromine complex; a mild and efficient reagent for selective bromination of alkenes and oxidation of alcohols. J Chem Res 2005(8): 481-483.
- Lakouraj M M, Mokhtary M (2007) Polyvinylpolypyrrolidonebromine complex, mild and efficient polymeric reagent for selective deprotection and oxidative deprotection of silylethers. Lett Org Chem 4(1): 64-67.
- Mokhtary M, Lakouraj M M (2011) Polyvinylpolypyrrolidone–bromine complex: mild and efficient polymeric reagent for bromination of activated aromatic compounds. Chin Chem Lett 22(1): 13-17.
- Mokhtary M, Lakouraj M M (2012) Polyvinylpolypyrrolidone–bromine complex: an efficient polymeric reagent for selective preparation of benzyl bromides in the presence of hexamethyldisilane. Bull Chem Soc Ethiop 26(2): 305-309.
- Surya Prakash GK, Chacko S, Panja Ch, Thomas TE, Gurung L, et al. (2009) Regioselective synthesis of phenols and halophenols from arylboronic acids using solid poly(N-vinylpyrrolidone)/hydrogen peroxide and poly(4-vinylpyridine)/hydrogen peroxide complexes. Adv Synth Catal 351: 1567-1574.
- Lakouraj M M, Aghajani B, Mokhtary M (2010) Polyvinylpolypyrrolidonesupported hydrogen peroxide for selective oxidation of aldehydes to carboxylic acids and sulfides to sulfoxides. Phosphorus Sulfur Silicon Relat Elem 185(12): 2393-2401.
- Iranpoor N, Firouzabadi H, Pourali A R (2002) Dinitrogen tetraoxide supported on polyvinylpyrrolidone (PVP-N2O4): a new nitrosating and coupling agent for thiols and selective oxidant for sulfides and disulfids. Tetrahedron 58(25): 5179-5184.
- Tamami B, Kiasat A R (1999) Dehydration of aldoximes to nitriles using a polymeric reagent. J Chem Res(S) 444-445.
- Tamami B, Ghazi I, Mahdavi H (2002) polyvinylpyrrolidone/ thionylchloride complex as a new polymeric reagent for facile conversion of epoxides to β-chlorohydrins. Synth Commun 32(24): 3725-3731.
- Lakouraj MM, Mokhtary M (2009) Polyvinylpolypyrrolidonesupported boron trifluoride: a high-loaded, polymer-supported Lewis acid for the Ritter reaction. Monatsh Chem 140: 53-56.
- Mokhtary M, Najafizadeh F (2012) Polyvinylpolypyrrolidonesupported boron trifluoride; highly efficient catalyst for the synthesis of N-tert-butyl amides. E-J Chem 9(2): 576-582.
- Mokhtary M, Qandalee M, Najafizadeh F (2012) Polyvinylpolypyrrolidone-bound boron trifluoride: A highly efficient catalyst for acylation of alcohols, phenols and trimethylsilyl ethers by acetic anhydride. CR Chim 15(5): 389-393.
- Mokhtary M, Najafizadeh F (2012) Polyvinylpolypyrrolidone-bound boron trifluoride (PVPP-BF3); a mild and efficient catalyst for synthesis of 4-metyl coumarins via the Pechmann reaction. C R Chim 15(6): 530- 532.
- Mokhtary M, Refahati S (2013) Polyvinylpolypyrrolidone-supported boron trifluoride (PVPP-BF3): Mild and efficient catalyst for the synthesis of 14-aryl-14H-dibenzo[a,j] xanthenes and bis(naphthalen- 2-yl-sulfane) derivatives. Dyes Pigm 99(2): 378-381.
- Mokhtary M, Mirfarjood Langroudi S A (2014) Polyvinylpolypyrrolidone-supported boron trifluoride: a mild and efficient catalyst for the synthesis of 1,8-dioxooctahydroxanthenes and 1,8-dioxodecahydroacridines. Monatsh Chem 145: 1489-1494.
- Mokhtary M, Rastegar Niaki M (2013) Polyvinylpolypyrrolidonesupported boron trifluoride (PVPP-BF3); highly efficient catalyst for oxidation of aldehydes to carboxylic acids and esters by H2O2. Iran J Chem Chem Eng 32(1): 43-48.
- Mokhtary M, Lakouraj M M, Rastegar Niaki M (2012) Polyvinylpolypyrrolidone-supported boron triflouride (PVPP-BF3); highly efficient catalyst for chemoselective oxygenation of sulfides to sulfones by H2O2, Phosphorus Sulfur Silicon Relat Elem 187(3): 321- 326.
- Pourali A R, Ghayeni S, Afghahi F (2013) Efficient and regioselective ring-opening of epoxides with alcohols and sodium azide by using catalytic amounts of GaCl3/polyvinylpyrrolidone. Bull Korean Chem Soc 34(6): 1741-1744.
- Nabatchi Ahmadi V, Mokhtary M (2018) Polyvinylpolypyrrolidone supported antimony(III) chloride (PVPP-SbCl3): an efficient catalyst for the synthesis of chromenylphenylpropanones. Iran Catal 8(1): 53- 58.
- Ghorbani-Choghamarani A, Goudarziafshar H, Zamani P (2011) Polyvinylpoly pyrrolidoniume tribromide as new and metal-free catalyst for the formylation and trimethylsilylation of hydroxyl group. Chin Chem Lett 22(10): 1207-1210.
- Khaksar S, Tajbakhsh M, Gholami M (2014) Polyvinylpolypyrrolidonesupported triflic acid (PVPP-OTf) as a new, efficient, and recyclable heterogeneous catalyst for the synthesis of bis-indolyl methane derivatives. C R Chim 17(1): 30-34.
- Khaksar S, Tajbakhsh M, Gholami M, Rostamnezhad F (2014) A highly efficient procedure for the synthesis of quinoxaline derivatives using polyvinylpolypyrrolidone supported triflic acid catalyst (PVPP-OTf). Chin Chem Lett 25(9): 1287-1290.
- Sheik Mansoor S, Ghashang M (2015) Synthesis of a novel series of 7-hydroxy-10-aryl-10Hindeno[1,2-b]chromen-11-ones, indeno[1,2-b] naphtho[1,2-e]pyran-12(13H)-one, and indeno [1,2-b]naphtha [3,2-e] pyran-5,11,13-trione catalyzed by reusable polyvinylpolypyrrolidonesupported triflic acid. Res Chem Intermed 41: 9085-9100.
- Nikoorazm M, Ghorbani-Choghamarani A, Goudarziafshar H (2011) Supported nitric acid on polyvinylpolypyrrolidone as an efficient and mild nitrating agent for the selective preparation of nitrophenols. Sci Iran 18: 1353-1355.
- Ghorbani-Choghamarani A, Chenani Z, Mallakpour S (2009) Supported Nitric Acid on Silica Gel and Polyvinyl Pyrrolidone (PVP) as an Efficient Oxidizing Agent for the Oxidation of Urazoles and Bis-urazoles. Synth Commun 39: 4264-4270.
- Zolfigol M A, Amani K, Ghorbani-Choghamarani A, Hajjami M, Ayazi- Nasrabadi R, et al. (2008) Chemo and homoselective catalytic oxidation of sulfides to sulfoxides with supported nitric acid on silica gel and poly vinyl pyrrolidone (PVP) catalyzed by KBr and/or NaBr. Catal Commun 9(8): 1739-1744.
- Shirini F, Najafi Moghadam P, Moayedi S, Seddighi M (2014) Introduction of O-sulfonated poly(4-vinylpyrrolidonium) chloride as a polymeric and reusable catalyst for the synthesis of xanthene derivatives. RSC Adv 4: 38581-38588.
- Yosefzadeh M, Mokhtary M (2016) Polyvinylpolypyrrolidone supported chlorosulfonic acid: An efficient catalyst for the one-pot synthesis of hexahydroquinolines. Iran J Catal 6(2): 153-159.
- Goudarzvand Chegini M, Mokhtary M (2017) Polyvinylpolypyrrolidonesupported chlorosulfonic acid: an efficient catalyst for one-pot synthesis of dihydropyrimidinones and octahydroquinazolin-2,5- diones. Polycycl Aromat Comp 37(1): 63-72.
- Abedini M, Shirini F, Mousapour M (2016) Poly(vinylpyrrolidinium) perchlorate as a new and efficient catalyst for the promotion of the synthesis of polyhydroquinoline derivatives via Hantzsch condensation. Res Chem Intermed 42(3): 2303-2315.
- Shirini F, Goli-Jolodar O, Akbari M, Seddighi M (2016) Preparation, characterization, and use of poly(vinylpyrrolidonium) hydrogen phosphate ([PVP-H]H2PO4) as a new heterogeneous catalyst for efficient synthesis of 2-amino-tetrahydro-4H-pyrans. Res Chem Intermed 42: 4733-4749.
- Safaei M A, Safaei M, Shekouhy M (2015) Sulfuric acid-modified poly(vinylpyrrolidone) ((PVP-SO3H)HSO4): a new highly efficient, bio-degradable and reusable polymeric catalyst for the synthesis of acridinedione derivatives. RSC Adv 5: 6797-6806.
- Li Y, Boone E, El-Sayed M A (2002) Size effects of PVP-Pd nanoparticles on the catalytic Suzuki reactions in aqueous solution. Langmuir 18: 4921-4925.
- Tamami B, Allahyari H, Ghasemi S, Farjadian F (2011) Palladium nanoparticles supported on poly(N-vinylpyrrolidone)-grafted silica as new recyclable catalyst for Heck cross-coupling reactions. J Organometallic Chem 696(2): 594-599.
