Microalgae as Potential for Wastewater Treatment: Removal Mechanisms of Nitrogen (N) and Phosphorus (P)
Lucas Guimarães Cardoso1*, Andrade BB1, Druzian JI2 and Chinalia FA1
1Department of Biotechnology, Federal University of Bahia, Institute of Health Sciences, Brazil
2Department of Food Science, Faculty of Pharmacy, Federal University of Bahia, Brazil
Submission: January 12, 2019; Published: March 27, 2019
*Corresponding author: Lucas Guimarães Cardoso, Department of Biotechnology, Institute of Health Sciences, Federal University of Bahia (UFBA), Salvador, Bahia, Brazil
How to cite this article: Lucas Guimarães C, Andrade B, Druzian J, Chinalia F. Microalgae as Potential for Wastewater Treatment: Removal Mechanisms of Nitrogen (N) and Phosphorus (P). Adv Biotech & Micro. 2019; 13(3): 555864. DOI: 10.19080/AIBM.2019.13.555864
Abstract
The present study is a brief review approaching the potential of microalgae cultivation, its applications as a bioremediation solution for the treatment of wastewater and the current state of the art. The research reveals the main problems that make traditional techniques expensive and inefficient as the use of three stages of treatment and several repetitions of biological stages involving the nitrification and denitrification processes. As an alternative to mitigate the adverse effects of wastewater discard, microalgae present efficient mechanisms for the removal of N and P, such as phosphorylation and photodiode, based on mechanisms of active membrane transport, besides the mechanisms of precipitation and formation of phosphate for the removal of P. In this way, the cultivation of microalgae in wastewater enables biomass production with low costs and with differentiated biotechnological characteristics to support the exploration of several industrial sectors.
Keywords: Cultivation; Microalgae; Biomass production; Biotechnological; Nitrogen; Air pollution; Several anaerobic; European union; Bioremediation; Adenosine triphosphates; Carbon dioxide; Renewable energy; Toxicity; biomass; Phycocyanin; Aquaculture; pigments
Mini Review
Most wastewater treatment technologies cover chemical, physical and biological processes, consisting essentially of three stages: primary (clarification and removal of stabilized and floating materials), secondary (degradation of organic matter and removal of nutrients) and advanced or tertiary (use of chemical agents to eliminate viruses and bacteria) [1]. Mainly because the Nitrogen (N) is in the form of ammonia (NH3) being transferred from the solution to the air through the use of aerators. Meanwhile, this process has high operation and maintenance costs and can cause air pollution [2]. Most of the wastewater sources contain N and P and the mean permissible concentrations in indoor water bodies are Total Nitrogen (TN) <10 ppm and Total Phosphorus (TP) <0.5 ppm. These low concentrations represent an obstacle and disadvantage of conventional processes, because the lower the concentration of nutrients the more costly the separation of N and P from the effluent. In contrast, the concentrated form of nutrients prevents its reuse and causes the potential formation of harmful by-products, creating the need for the safe disposal of any waste generated [3].
The removal of N and P in wastewater is mainly removed in the tertiary treatment stage. The most commonly used methods include biological processes such as anaerobic digestion followed by nitrification and denitrification. Meanwhile, several anaerobic and nitrification and denitrification cycles are required to achieve the levels of nutrients accepted by European Union (EU). In addition, these methods require multiple tanks and internal recycling of activated sludge, resulting in an overall increase in process costs, complexity, and energy input [4].

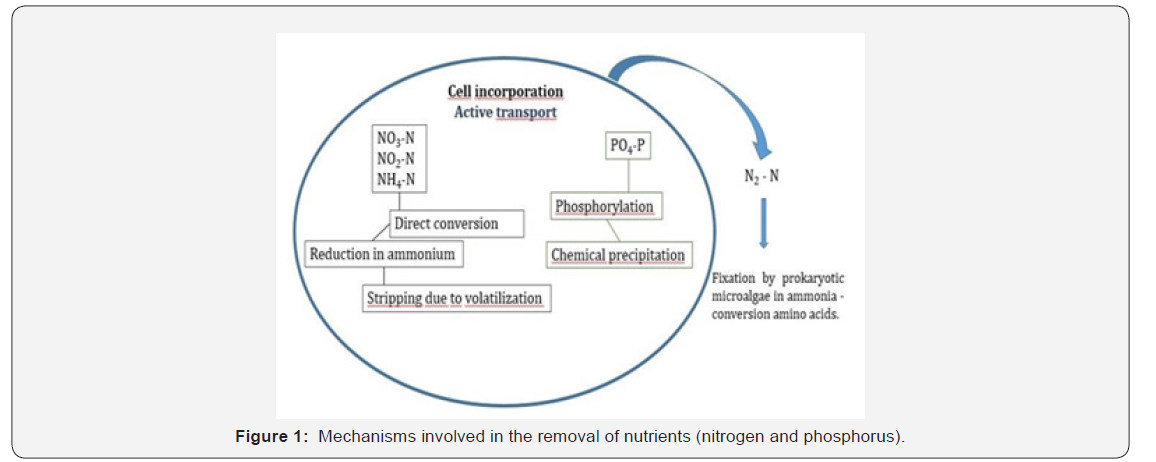

As an alternative, the use of microalgae enables a significant reduction of the nutrient load in effluents, mainly the removal of N and P. The use of a biological agent in this process is named bioremediation, its efficiency depends on the selection of appropriate species and the metabolic processes performed in the removal (Figure 1). For this reason, microalgae cells are able to absorb these chemical species as relevant nutrients to metabolic activities and biomass synthesis, through the organization and storage of N and P for the synthesis of proteins, lipids, Adenosine Triphosphates (ATP), enzymes, nucleic acids, chlorophyll and other biomolecular forms, besides to consuming carbon dioxide (CO2), renewable energy, fuels and chemicals [5].
The mechanism and rate of N removal depends on the system and treatment conditions, the microalgae are adapted to assimilate N based on the form and concentration available. The preferred source of N are nitrogenous forms; ammonia (NH4+) can be removed by volatilization, since the ammonia (NH3), due to its stability, is removed through the mechanism of photophosphorylation or increase of the direct diode under basic conditions. The toxicity will depend on pH, since the nonionized form of ammonia can be transported faster through the cell membrane. In this way, there is a direct proportional relation: the higher the N available in the wastewater the higher N uptake and the greater N amount being transported and assimilated by the cells, producing more vital components for growth and cellular activity [3-10].

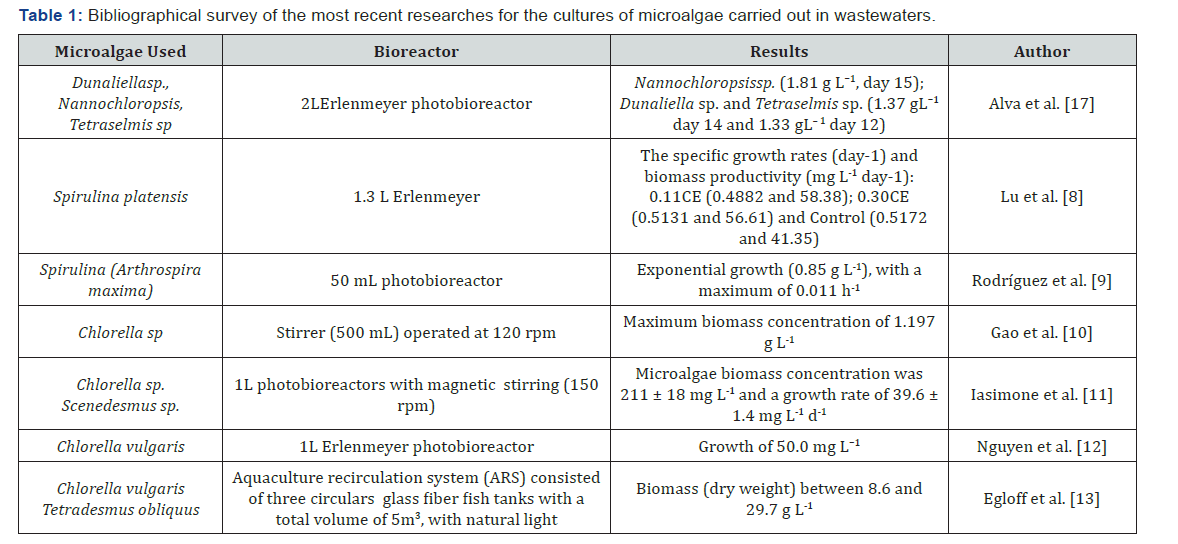

Phosphorus is fundamental for the cellular energy cycle, meanwhile, the mechanism of removal of P may not depend on the system or treatment conditions [1]. The mechanisms can be classified in two: direct assimilation, where the additional absorption of P occurs besides the necessary for the cellular growth, stored in the form of polyphosphate; and PO4 3- precipitation, which occurs when pH is basic due to cell growth [6]. Both cited mechanisms function through active transport on the cell membrane. Due to these mechanisms’ microalgae have been the focus of several current research (Table 1), aiming at the application of new technologies for the biomass production, starting from the laboratory scale to the cultivation on an industrial scale, betting on simple and low-cost methods. Because microalgae can be exploited for a variety of applications, such as the generation of bioenergy, pigments, bioactive compounds, human nutrition, animal feed, aquaculture and the synthesis of various interest compounds to the pharmaceutical, nutraceutical and cosmetic industries, such as Phycocyanin, combining the obtaining of biomass of low cost and different properties to its cultivation in wastewater, bringing diverse economic and environmental benefits [11-13] (Table 1).
References
- Cai T, SYP, Y Li (2013) Nutrient recovery from wastewater streams by microalgae: status and prospects. Renewable Sustainable Energy Review19: 360-369.
- Santos FM, Pires JCM (2018) Nutrient recovery from wastewaters by microalgae and its potential application as bio-char. Bioresource Technology 267: 725-731.
- Kube M, Jefferson B, Fan L, Roddick F (2018) The impact of wastewater characteristics, algal species selection and immobilization on simultaneous nitrogen and phosphorus removal. Algal Research 31: 478-488.
- Gonçalves AL, Pires JCM, Simões M (2017) A review on the use of microalgal consortia for wastewater treatment. Algal Research 24: 403- 415.
- Zeng X, Guo G, Su MK, Danquah S, Zhang Y, et al. (2015) Bioprocess considerations for microalgal-based wastewater treatment and biomass production. Renewable and Sustainable Energy Reviews 42: 1385-1392.
- Procházková IG, Brányiková V, Zachleder T (2014) Effect of nutrient supply status on biomass composition of eukaryotic green microalgae. Journal Applied Phycology 26(3): 1359-1377.
- Alva MS, Pabello VML, Ledesma MTO, Gómez MJC (2018) Carbon, nitrogen, and phosphorus removal, and lipid production by three saline microalgae grown in synthetic wastewater irradiated with different photon fluxes. Algal Research 34: 97-103.
- Lu W, Asraful Alam Md, Luo W, Asmatulu E (2019) Integrating Spirulina platensis cultivation and aerobic composting exhaust for carbon mitigation and biomass production. Bioresource Technology 271: 59- 65.
- Rodríguez RJ, Espada J, Moreno G, Vicente J Dufour (2018) Environmental analysis of Spirulina cultivation and biogas production using experimental and simulation approach. Renewable Energy 129: 724- 732.
- Gao F (2018) Simultaneous nutrient removal and biomass/lipid production by Chlorella sp. in seafood processing wastewater. Science of the Total Environment 641: 943-953.
- Iasimone F, Taleb A, Olkiewicz M, Font J, Bengoa C (2018) Effect of light intensity and nutrients supply on microalgae cultivated in urban wastewater: Biomass production, lipids accumulation and settle ability characteristics. J Environ Manage 223: 1078-1085.
- Nguyen TDP, Le TVA, Show PL, Nguyen TT, Tran MH, et al. (2019) Bio flocculation formation of microalgae-bacteria in enhancing microalgae harvesting and nutrient removal from wastewater effluent. Bioresource Technology 272: 34-39.
- Egloff S, Tschudi F, Schmautz Z, Refardt D (2018) High-density cultivation of microalgae continuously fed with unfiltered water from a recirculating aquaculture system. Algal Research 34: 68-74.
