Medial Collateral Ligament Reconstruction in Multi-Ligament Knee Injury: Introducing a Simple Technique
Abolfazl Bagherifar, Mahmood Jabalameli, Hosseinali Hadi, Salman Ghafari, Ali Shahsavari Poor* and Mehrdad Bahrabadi
Bone and Joint Reconstruction Research Center, Iran University of Medical Sciences, Iran
Submission: October 27, 2017; Published: November 13, 2017
*Corresponding author: Ali Shahsavaripour, Shafa Orthopedic Hospital, Mojahedin Islam Avenue, Shohada Sq, Tehran, Iran, Tel: +98(21)33542000-8; Fax: +98(21)33542020; Email: Ali.shahsavari2@gmail.com
How to cite this article: Abolfazl B, Mahmood J, Hosseinali H, Salman G, Ali S , Mehrdad B . Kienböck’s Disease: Diagnosis and the Different Ways of Management. Ortho & Rheum Open Access 2017;9(1): 555753. DOI: 10.19080/OROAJ.2017.09.555753.
Abstract
Background: Surgical reconstruction of medial collateral ligament, (MCL), of the knee joint can be performed by different methods, each with some advantages, and some disadvantages. Due to the good results of conservative treatment of MCL injury, and the high complication rate of complex reconstructions, the need for a simpler method of reconstruction felt.
Objectives: The aim of this study was to assess the results of MCL reconstruction in multiligament knee injuries by a simple and fast method.
Patients and Methods: Nineteen patients with multiligament knee injuries, with the average age of 35.73 (Range 22 to 50) were treated by Ligament reconstruction, and included in our study. All patients treated by a simple method of transferring a semitendinosus around the adductor magnus tendon. In the last follow-up visit, physical examination including a valgus stress test, was performed for all patients, and International Knee Documentation Committee (Subjective, and Objective), and Tegner Lysholm questioners were filled for them.
Results: The average follow-up time was 21.36 months. The pattern of ligament injury was seven MCL and anterior cruciate ligament, (ACL), two MCL and posterior cruciate ligament,(PCL), eight MCL+ACL+PCL, and two patients with MCL+ACL+PCL+ lateral collateral ligament, (LCL). The group of patients with ACL plus MCL injuries had better results than other groups. No patient had more than ten millimeters of valgus stress test. One patient had knee stiffness, and another one had hypoesthesia of leg.
Conclusion: This technique is a simple yet effective method of MCL reconstruction which can be easily learned. The time of surgery is short, and the incision needed is small. It has lower rate of knee stiffness, with good functional results.
Keywords: Medial collateral ligament; Multiligament knee injury; Reconstruction
Abbreviations: ACL: Anterior Cruciate Ligament; PCL: Posterior Cruciate Ligament; LCL: Lateral Collateral Ligament; MCL : Medial Collateral Ligament
Introduction
MCL tear is the most common ligament injury of the knee [1]. Most isolated injuries are treated conservatively. Combined ligament injuries of the knee may need more than conservative care. This combination might be quite often up to 78% in one series of grade III MCL injuries [2]. One of the most common reasons for surgery in MCL injury is association of cruciate ligament tear [3]. Conservative treatment of MCL tear in multiligament injuries had a good outcome in different studies [4-8].
MCL reconstruction is necessary for the treatment of chronic instability, or prevention of valgus overload on the reconstructed cruciate ligaments, if MCL fails to heal after conservative treatment [9-10]. There are different techniques of MCL reconstruction including semitendinosus autograft with tibial attachment preservation [11-14], allograft [15,16], or double bundle reconstruction [13,15-18]. The reconstruction technique which is performed in this study is a kind of tendon transfer, which is a simple method. The objective of this study is to assess the functional result of this method of MCL reconstruction.
Methods
Inclusion criteria were all patients with multiligament knee injuries who were treated surgically with at least MCL reconstruction. Exclusion criteria were:
i. MCL reconstruction with other surgical techniques
ii. Patients who lost to follow-up and
iii. Patients with associated fracture around the knee.
Surgical Technique

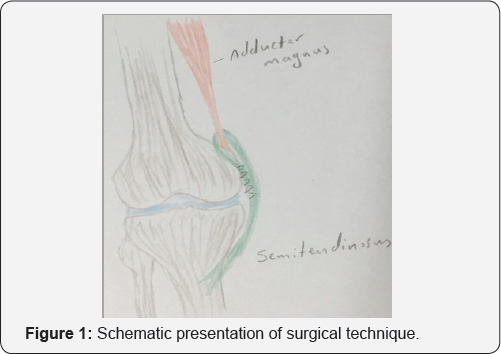

A four centimeter incision posterior to adductor tubercle, running two centimeters above and below it was performed. After incising deep fascia, the first tendon to be seen is semitendinosus. Distal insertion of semitendinosus is remained intact, but proximal part of the tendon is detached from muscle tendon insertion. At the proximal extent of the incision, just above the adductor tubercle, tendon of adductor magnus is identified. Free end of the semitendinosus tendon is passed around adductor Magnus tendon, from posterior to anterior direction and re attached on itself with non-absorbable sutures in full knee extension (Figure 1) the tension of the graft was around 10 newtons at the time of fixation.
Postoperatively, patients were on a partial weight bearing with a hinged knee brace protocol for 6 to 8 weeks. Range of motion was started with a hinged knee brace in place two weeks after surgery, under supervision of a physiotherapist, and gradually increased to full range, 8-12 weeks after the operation. Hinged knee brace was discontinued after three months from the time of surgery. The amount of medial gap, was assessed based on the opening of medial joint space, and was graded as zero (02mm), one plus (2-5 mm), two plus (6-10 mm), and three plus (more than 10 mm).
The method of surgery, in all patients included arthroscopic ACL, and PCL reconstruction, and open reconstruction of collaterals. In the last follow-up visit, patients were assessed for any complication after surgery, and subjective and objective IKDC, and Tegner Lysholm questioner were filled. Valgus stress test in full extension, and 30° flexion were performed. The results are evaluated by the SPSS version 22. Written consent was obtained from all patients to publish the results of their treatment, and the study was approved by ethical committee of our center.
Results

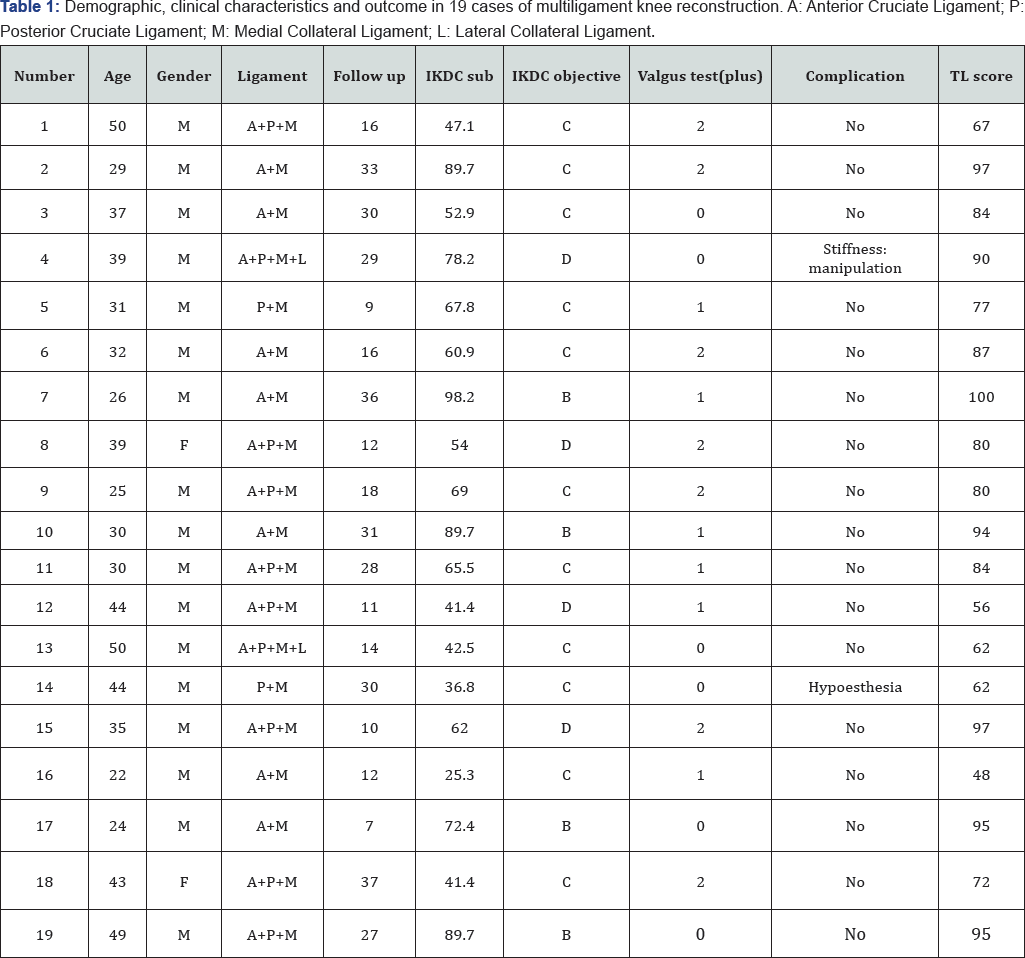

Twenty-one patients with multiligament knee injuries were surgically treated. Two patients were lost to follow-up, remaining nineteen patients including two women, and seventeen men with, with the average age of 35.73 years ±9.06 (22 to 50 years) for the last follow-up. The average follow-up time was 21months (range 7 to 37 months). The pattern of ligament injury was: seven patients with MCL + ACL injuries; two patients with MCL + PCL; eight patients with MCL+ACL+PCL; and two patients with MCL+ACL+PCL+LCL injuries. All patients treated by a simple method of transferring a semitendinosus around the adductor magnus tendon. (Table 1).
The range of IKDC score was between 25.3 to 98.2±10.1 (mean 62.34). The mean Tegner Lysholm score was 80.36±15.44 (range 48 to 100). The group of patients with ACL plus MCL injuries had better results than other groups, but the difference was not statistically significant (P=0.332) (Figure 2). The results of IKDC, and Tegner Lysholmscores were better in younger patients than older individuals, but there was not statistically significant (P= 0.184). Valgus stress test in extension was less than two millimeters in six patients, two to five millimeters in six patients, between six and ten millimeters in seven patients, and no patient had more than ten millimeters of valgus stress test. This test was repeated in 30° flexion, and the results were one plus higher. Complications were seen in two patients. One patient suffered from post-operative hypoesthesia at medial leg which might be due to the injury to the saphenous nerve during surgery, and the other one had knee stiffness which relieved by manipulation under general anesthesia.
Discussion
Conservative Treatment
Conservative methods of treatment in grade III MCL injuries have had good results even in professional athletes in some report [4]. In another study, with 18 patients having ACL, and MCL injuries, MCL tears have been treated conservatively after early surgical reconstruction of ACL tear, and authors described good results with this treatment strategy [6]. Shelbourne et al. [5] reported on 68 patients with combined ACL and MCL tears who were treated by late ACL reconstruction and conservative MCL treatment. All patients reported satisfactory outcome and 95% of patients returned to pre-injury activities. In a RCT study, 47 patients with primary ACL reconstruction, half of patients were treated by surgical method, and another half by conservative treatment. There was no difference in functional stability, ROM, strength, and return to activity, and medial gap during valgus stress test was not statistically different from uninjured side [8]. Results of these studies show that even conservative methods of treatment can return MCL to good function. Based on these results, we assumed that for the reconstruction of MCL, patients do not need more than a simple method.
Surgical Treatment
Results of our study shows a good medial side knee stability, demonstrated by zero to one plus valgus instability. Seven patients had two plus valgus instability, and no patient had more than this instability. We had only one knee stiffness which was relieved by knee manipulation under anesthesia. Surgical treatment of medial structures of the knee is very invasive, with some potential complications. The most common complication of MCL reconstruction is knee stiffness [19]. The stiffness may be more severe with anterior mobilization of posteromedial capsule [18]. In using allograft tissue for reconstruction, there are other draw backs such as infection, extra cost, and lack of tissue availability [20]. Autograft harvest has also its own tradeoffs, including donor site morbidity, potential weakness of dynamic medial stabilizers, and questionable quality of autograft after the patient experiences trauma [21].
Anatomic reconstruction of the MCL by a double bundle technique, can restore original proximal and distal MCL attachment anatomy, and lead to individual tensioning of superficial MCL, and POL [22,23]. These methods obviously have better results, but at the same time two major complications:
a. They are more demanding techniques needing more extensive exposures, more tunnels through bone; and more hardware. Some of these procedures with a large medial incision results a restricted knee motion in 20% of patients [14].
b. Distal attachment of the graft on tibia is not strong enough. In addition, double bundle construct may be significantly stronger and stiffer than a native MCL, which theoretically can lead to altered knee biomechanics [24].
We used a tendon transfer technique in which semitendinosus tendon can satisfy the need for allograft tissue, and an additional bone tunnel and fixation side for the superficial MCL on the tibia. Due to the small size of the incision used in our technique resulting in a less aggressive surgery, and suturing the tendon in full knee extension, we did not have any restricted knee ROM. Our technique is simple, and fast, and can be learned easily. Due to the time consuming procedures of ACL, or PCL reconstruction in multiligament injuries, our technique which can be performed very fast, relieves the need for long standing tourniquet time, a main concern in knee ligament reconstruction.
However, maintenance of the existing distal semitendinosus insertion results in an excessively anterior tibial position for the reconstructed superficial MCL. In our patients we did observe mild medial insufficiency of the knee ligaments. Most of the patients (12 patients) had a 0 to 1 plus valgus stress test. This fact shows the efficiency of this method for medial side stabilization. A complication of the knee surgery such as knee stiffness which is a common problem in anatomical reconstructions, seen up to 20% of the time, is rare in our patients. This may be related to smaller incision and less aggressive method of surgery needed in this technique [14]. La Prade explained that if distal attachment of graft be positioned anterior to pes anserinus leads to more failure [22]. The limitation of this method of treatment is the inevitable anterior attachment of the reconstructed ligaments, which theoretically can lead to failure. Having said that, we did not observe any failure using this method.
Conclusion
This technique is a simple and effective method of MCL reconstruction which can be easily learned. The time of surgery is short, with no fear of longstanding tourniquet time and the incision needed is small compared with more complex techniques of reconstruction. It has lower rate of knee stiffness, with acceptable functional results.
