Patients and methods

Analyzed data

The present analyzed data were obtained from a cohort of patients referred to the department of rheumatology of the North Franche-Comté hospital (Belfort, France) for symptomatic knee OA between February and August 2016. The French Authorities recommend using viscosupplementation in patients suffering from knee OA, only if pain is not sufficiently relieved by analgesics, non-steroidal anti-inflammatory drugs (NSAIDs) and non-pharmacological modalities. In our rheumatology department all patients who require viscosupplementation are followed using the same procedure. At time of injection(s) and at each follow-up visit, whenever the time interval between the visits and whatever the viscosupplement used, a standardized questionnaire is administered before clinical examination, after patients had given agreement to the scientific and anonymous usage of the data collected during consultations.

The standardized questionnaires includes demographic and anthropometric data, prior and present treatments for knee OA, Western Ontario & McMaster Universities Osteoarthritis Index (WOMAC index) [29] using a 11-box numerical rating scale (NRS, range 0–10) for each of the 24 items (0-240), patient’s global assessment (PGA) of knee pain (0-10 NRS). All values are normalized to scores with a 0–10 range. The evaluation of the target knee X-rays, available at the time of injection, includes Kellgren-Lawrence [30]. The names and daily doses of concomitant therapies, analgesics, NSAIDs, symptomatic slow acting drugs for OA (SYSADOA) are reported into the medical file.

The present work, being a retrospective analysis of data obtained in daily practice conditions in a single rheumatology center, did not need the National Ethics Committee approval. The procedure of follow-up (i.e. questionnaire, agreement form, statistics) was approved by the Hôpital Nord Franche-Comté scientific and ethics committee.

Treatment consisted in a single injection of HAnox-M-XL, a marketed viscosupplement made of 35.2 mg of cross-linked HA and 77 mg of mannitol, giving the gel a very high viscosity (i.e. 2560 Pa. s at 0.01s-1) [31]. The content of a 2.2 ml syringe was injected into the target knee using a 21-gauge needle, after removal of synovial fluid effusion if present, using a lateral midpatellar approach, by experienced rheumatologists.

Efficacy outcome measures

The primary efficacy criterion was the decrease throughout the follow-up for normalized WOMAC pain sub-score (0-10). Other efficacy criteria were the absolute and relative changes in normalized WOMAC total and function scores, and PGA, between injection and month 6. Patient Acceptable Symptom State (PASS) and Minimum Clinically Important Improvement (MCII) [32] were calculated from WOMAC pain sub-score. At end-point, patients were also asked to self-assess the treatment efficacy (0= null, 1=mild, 2= good, 3=very good). The decrease in analgesic/ NSAIDs intake was also self-assessed by the patient using a 5 point scale (0; ≤ 25%; 26-50%, 51-75%; >75%).

Safety evaluation

The follow-up procedure planned to record adverse events (AEs) in accordance with the European standard EN ISO 14155: 2011. A particular care was applied for AEs occurring immediately and the very next days after injection.


The XLstats® 2015 (Addinsoft) software was used for carrying out the statistical analyses. A descriptive analysis was performed on all the collected data. Qualitative variables were described using frequencies and percentages. Quantitative variables were describes using mean, standard deviation (SD) and distribution (minimum, maximum and median). PASS and MCII were calculated from WOMAC pain sub-score absolute values at end-point and variations respectively. Predictive factors of response were searched using univariate comparison (chi-2 or Fischer’s exact test, t-test or Mann and Whitney) regarding demographic and clinical characteristics of the patients.


Fifty-three patients, 35 women and 18 men, received one injection of HAnox-M-XL for painful knee OA during the selected period of time. Full data were available in all subjects with an average follow-up duration of 28 weeks (range 18 to 32). Mean (SD) age was 62.6 (12.3) years and BMI 27.5 (5.2) kg/m2. The average time from OA diagnosis and HAnox-M-XL injection was 54.0 (36.5) months. Knee OA was a bilateral in 35 patients (66%). Kellgren- Lawrence grade was I, II, III and IV in 2, 18, 23 and 10 cases respectively. Fifty patients (94.3%) were regular analgesics or NSAIDs consumers. Twenty-eight (52.8%) subjects were treated with SYSADOA. Thirty-three (62.2%) and 35 (66%) patients have previously been treated with IA corticosteroid and/or HA, respectively. At time of injection the normalized WOMAC pain sub-score was 4.6 (1.2) ranging from 2.6 to 7.2. The average normalized WOMAC function and total scores were both 3.9 (1.2). Mean PGA was 6.0 (1.1). Throughout the 6month follow-up, WOMAC pain, function and total scores decreased by 58%, 51.2% and 52.5% respectively (all P=0.0001) (Figure 1).

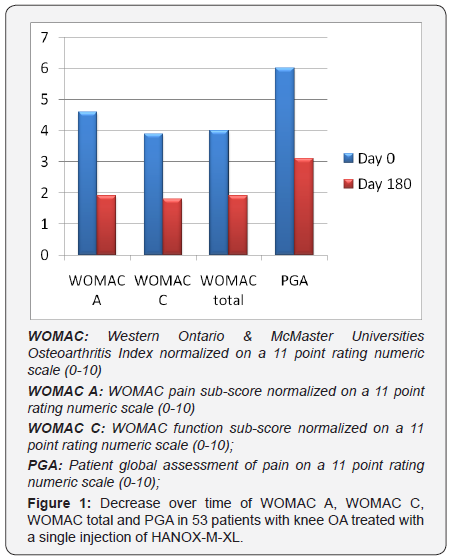

The mean PGA variation was -48.5%. All outcome variations were highly correlated between themselves (all P<0.0001). At end-point efficacy was self-rated by patients as “good or very good” by 77.3% of patients. Eighty-two percent fulfilled the PASS and 86.8 % the MCII criteria. The decrease of WOMAC pain over time was not statistically correlated with age, gender, BMI, X-ray grade and disease duration (all P>0.05). However when comparing patients with Kellgren grade I-II versus Kellgren grade III-IV, P value was close to the statistical significance (P= 0.07). Similarly there was a trend for a negative relationship between BMI and the decrease in WOMAC function (P=0.10) and total (P=0.06). This trend was confirmed by the percentage of obese patients (BMI>30) reaching the PASS threshold that was significantly lower than that of non-obese subjects (P=0.03). A decrease in analgesics/NSAIDs intake was reported by 86% of patients. By the end of the study, 60% of patients had reduced their intake by half or more. Regarding the safety, 3 target knee AEs were reported (5.7%). All were characterized by transient worsening of pain occurring a few hours after injection. All resolved within 36 and 72 hours without other treatment than usually analgesics. There was no occurrence of joint effusion, no systemic AE and no severe AE related to treatment.


The main relevance of the present work is that it has been achieved from daily practice by using the same tools of evaluation than that of interventional trials, giving the study a greater scientific value than that of a simple observational study. Our results showed that a single injection of HAnox-MXL alleviates pain and improves joint function significantly, over at least 6 months, in a wide majority of patients, without safety concern. Indeed, the present data confirmed that local and systemic tolerability of HAnox-M-XL was similar to that of regular viscosupplement not containing mannitol. These results were consistent with those of previous studies showing a good tolerability of viscosupplement combined with mannitol [25- 28,33] or its isomer, sorbitol [34,35].

Our study also highlights the fact that a single injection of HAnox-M-XL allows to reduce the use of analgesics by half or more in a majority of patients. In economic terms, this is an important point to take into account when assessing the cost effectiveness of viscosupplementation, seeing the direct cost of painkillers, and the indirect costs related to the potential problems of intolerance, common in an elderly population [36]. Our study suffers from several limitations. In real life conditions, patients were allowed to take NSAIDs, analgesics, SYSADOA and non-pharmacological therapies for OA.

We are not able to precisely assess their influence on pain and function changes. However as the study showed that a majority of patients decreased dramatically their intake of painkillers, their influence on the clinical results seems to be limited. The second limitation is the relatively small sample size that may explain the lack of statistically significant relationship between radiographic features and clinical response that has been demonstrated recently in 166 patients with knee OA [37]. Another limitation is the relative homogeneity of the patients’ sample. Indeed patients with very severe disease, those with major risk factors of treatment failure (i.e. patients with both Kellgren grade IV and obesity, with large knee effusion or major joint malalignment, or those waiting for knee replacement) and those with failure of a previous viscosupplementation, were not eligible for viscosupplementation. This may explain the relatively low level of pain and disability scores at baseline as well as the high percentage of patients who reached the PASS definition.

In summary, in daily practice conditions, treatment of symptomatic knee OA with a single IA injection of HAnox-M-XL allows to alleviate pain and disability by more than 50% and to dramatically decrease painkillers consumption, in a large majority of patients, over a minimum period of time of 6 months, without safety concern.

Disclosure of Interest in Relation with this Work

Thierry Conrozier: Received honorarium from Labrha for expert and consultant services

Ana-Maria Bozgan: None

Matthieu Monet: None
