Research Article

Electrochemical Determination of Ascorbic Acid in Pharmaceutical Tablets using Carbon Paste Electrode

Zelalem Bitew and Meareg Amare*

Department of Chemistry, Bahir Dar University, Bahir Dar, Ethiopia

Submission: July 08, 2019;Published: August 30, 2019

*Corresponding author: Meareg Amare, Department of Chemistry, Bahir Dar University, Bahir Dar, Ethiopia Organic &

How to cite this article: Zelalem Bitew and Meareg Amare. Electrochemical Determination of Ascorbic Acid in Pharmaceutical Tablets using Carbon Paste Electrode. Organic & Medicinal Chem IJ. 2019; 8(5): 555749. DOI: 10.19080/OMCIJ.2019.08.555749

Abstract

Cyclic voltammetry was used to study the electrochemical behavior of ascorbic acid at carbon paste electrode. Ascorbic acid showed an irreversible oxidation peak at about +470 mV. While the observed peak potential shift with pH in the range 0.5 to 6.0 indicated the participation of protons during the oxidation of ascorbic acid, the peak potential shift with scan rate in the range10–300 mV/s confirmed the irreversibility of the oxidation reaction. Under optimized method and solution parameters, an excellent linear dependence of the oxidative peak current on concentration of ascorbic acid was observed in the range 10-100 μM with limits of detection (LOD) and quantification (LOQ) of 1.76 and 5.86 μM, respectively. Detection of 93.33 to 97.58% of the expected ascorbic acid content in two local tablet formulations analyzed using the method confirmed the accuracy of the method. Recovery results in the range 91.65-91.83% for spiked standard ascorbic acid in pharmaceutical tablets further confirmed the potential applicability of the developed method for the determination of ascorbic acid in real samples.

Keywords: Ascorbic acid Square wave voltammetry Carbon Paste Electrode Phosphate Buffer Solution Pharmaceutical Tablets.

Introduction

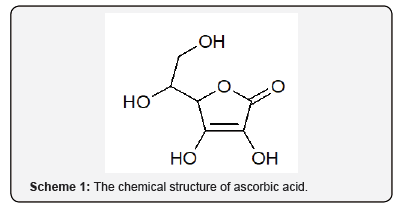

Ascorbic acid, a water-soluble vitamin (Vitamin C), is important in forming collagen, a protein that gives structure to bones, muscles and blood vessels. It is the most common ubiquitous electroactive vitamins ever discovered. Ascorbic acid plays a paramount role as an antioxidant and free radical scavenger [1,2] and hence is a vital component in human diet with the highest concentrations in animal organs like liver, leukocytes, and anterior pituitary [3]. It is widely used in the treatment of certain diseases including scurvy, common cold, anemia, hemorrhagic disorders, wound healing as well as infertility [4,5].

Ascorbic acid (AA) known for its reductive properties is used as an antioxidant agent in foods and drinks, for therapeutic purposes and biological metabolism [6-8]. The human body cannot produce ascorbic acid, and so it must be obtained entirely through one’s diet. Therefore, humans depend on exogenous sources of the vitamin which include fruits and vegetables as well as food supplements and pharmaceutical preparations [5]. The physicochemical and biochemical actions of vitamin C (scheme 1) are accounted for its action as an electron donor [9-11].

The amount of vitamin C required in a healthy diet varies with age and gender. According to Natural Health Product Monograph, children ages 1-3 require 15 mg/day, adult females 75 mg/day, and adult males need 90 mg/day [12]. Although toxicity of AA is very rare, an intake of AA greater than 2,000 mg/day is not recommended for it may lead to stomach upset and diarrhea. A link between the high dose of AA in human body and increased risk of calcium oxalate kidney stones have also be reported although refutal studies are also reported [12,13].

Titration [5], chromatography [14], fluorimetry [15], and spectrophotometry [16] are among the analytical methods commonly reported for determination of AA in real samplesincluding pharmaceutical formulations, foods, fruits, and biological fluids. However, some of these methods are timeconsuming, while others are costly, require special training for operators of the equipment, or suffer from insufficient sensitivity or selectivity [14,17].

On the other hand, recently developed electrochemical methods are more promising because they possess quick response times, low cost, simplicity of instrumentation, high sensitivity, and the possibility of miniaturization [18,19]. Considerable efforts have been made on the development of electrochemical methods for determination of AA in pharmaceutical formulations using Pt electrode [2], aluminum modified with nickel hexacyanoferrate film [6], glassy carbon electrode [19], and Bi2O3 /Glassy carbon electrode [20]. Although the reported electrochemical methods are sensitive with low detection limit, most of them have used expensive electrodes/modifiers. Thus, the development of simpler, cost effective, and sensitive method is needed for the determination of ascorbic acid in pharmaceutical formulations. In this study, square wave voltammetry determination of ascorbic acid in tablet samples using carbon paste electrode, which is the simplest and cheapest electrode material, is presented

Material and Methods

Chemicals and Apparatus

Ascorbic acid (Blulux chemicals Ltd., India), graphite powder (BDH-Laboratory supplies Poole, England), Vitamin C tablets of two Ethiopian brands (EPHARM, and APF), paraffin oil (Abron Chemicals), disodium hydrogen phosphate, sodium dihydrogen phosphate, NaOH, and HCl all (Blulux laboratories (p), Ltd) were used . Distilled water was used throughout the work.

A BAS 100B electrochemical analyzer [bioanalytical systems (BAS), USA] with carbon paste electrode as working electrode, platinum coil wire as auxiliary electrode and Ag/AgCl as reference electrode was used. A Jenway model 3310 pH meter and electronic balance (Denver instrument) were used for measuring the pH of the buffer solutions and mass of chemicals, respectively.

Procedure

Preparation of Standard Solution

Phosphate buffer solutions (PBS) in the pH range 0.5-6.0 were prepared from a mixture of 0.1 M NaH2PO4 and 0.1 M Na2HPO4 in distilled water. 1 M NaOH and 1 M HCl solutions were used to adjust the pH of the buffer solutions. Stock solution of 0.01 M ascorbic acid was prepared by dissolving 0.1761 g of ascorbic acid in 100 mL of the phosphate buffer solution (pH 2) from which working standard solutions were prepared through serial dilution.

Pharmaceutical Tablet Sample Preparation

Vitamin C tablets of two Ethiopian brands, Ethiopian Pharmaceuticals Manufacturing (EPHARM) and Addis Pharmaceutical Factory (APF) were purchased from a local pharmacy. Five tablets (500 mg Ascorbic acid/tablet) from each brand were accurately weighed and finely powdered in a porcelain mortar. An adequate amount of this powder corresponding to a stock solution of 1*10-2 mol L-1 ascorbic acid was weighed, transferred into a 100 mL flask, and diluted to the mark with pH 2 PBS. After filtering with Watmann No 1 filter paper, tablet samples with 60, 100, and 300 μM tablet sample.

Preparation of Working Electrode

Carbon paste electrode was prepared following the reported procedure [21]. Briefly, 1 g of carbon paste was prepared by mixing graphite powder with paraffin oil in a ratio of 70:30 (w/w), respectively. The mixture was homogenized with mortar and pestle for 30 minutes and allowed to rest for 24 hrs. The homogenized paste was packed into the tip of a plastic tube of a diameter about 3.5 mm. A copper wire was inserted from the backside of the plastic tube to provide electrical contact. The surface of the electrode was smoothed manually against a smooth white paper until a shiny surface is emerged and the electrode was made ready for use.

Electrochemical Procedure

The electrochemical behavior of AA at CPE, effect of scan rate in the range of 10 to 300 mV s-1 on the peak current and peak potential, and the influence of pH in the range 0.5 – 6.0 on the peak potential and peak current of ascorbic acid were investigated using cyclic voltammetry in the potential window -100 to 1000 mV and scan rate of 50 mV s-1. Square wave voltammetry in the potential range -100 to +1000 mV was also used for quantitative determination of ascorbic acid. External standard addition method was employed for quantification of the ascorbic acid content in two brands of tablet formulation

Result and Discussion

Cyclic Voltammetric Investigation of Ascorbic Acid at CPE

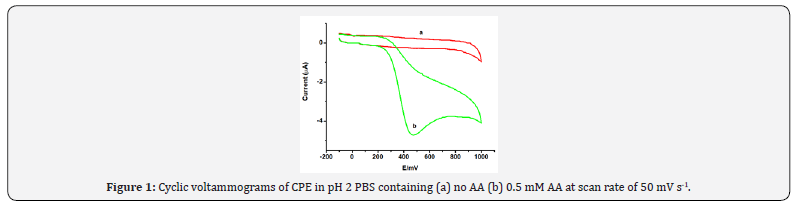

Electrochemical Behavior of Ascorbic Acid at CPE Cyclic voltammetry was used to investigate the electrochemical behavior of AA at carbon paste electrode. Figure 1 presents the cyclic voltammograms of CPE in pH 2 PBS containing (a) no AA and (b) 0.5 mM AA. While no peak was observed in the absence of AA (curve a of Figure 1), appearanceof an intensive peak centered at about +470 mV in the oxidative scan direction without a peak in the reductive scan direction implied an irreversible oxidation of AA at carbon paste electrode.

Effect of Scan Rate

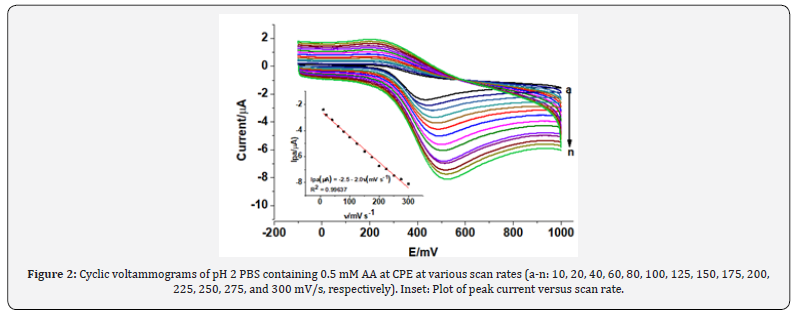

Figure 2 describes the cyclic voltammograms of 0.5 mM AA in pH 2 at the scan rate range of 10 to 300 mV/s. As can be seen from the figure, the increase in anodic peak current (Ipa) with scan rate accompanied by peak potential shift in the positive direction confirmed the irreversibility of the oxidation reaction of AA.

In order to investigate whether the oxidation process of ascorbic acid at CPE is predominantly diffusion controlled or surface confined process, the dependence of peak current on the scan rate and square root of scan rate was compared. A better correlation coefficient for the dependence of peak current on the scan rate (R = 0.99637) (Inset of Figure 2) than on the square root of scan rate (R = 0.99105) (figure not shown) indicated that the oxidation of AA at CPE is predominantly governed by surface-adsorption [22].

Effect of pH

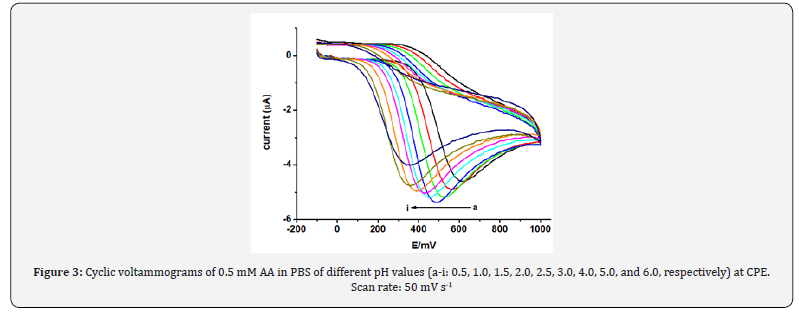

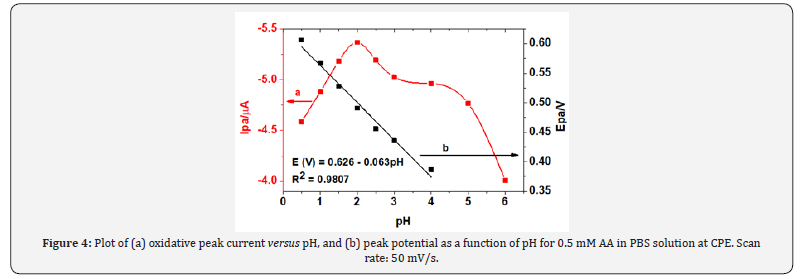

The effect of pH on the oxidation peak current and peak potential of AA at CPE was studied in the pH range 0.5-6.0. The cyclic voltammograms of 0.5 mM of AA in PBS of various pH are shown in Figure 3. As can observed from Fig. 4a, the anodic peak current increased sharply from pH 0.5 to 2 which then gradually decreased at pH higher than 2. Thus, pH 2 was selected as the optimum pH of the buffer solution in the subsequent experiments which agrees with previously reported works [22].

The influence of pH on the oxidative peak potential of ascorbic acid was also examined. The oxidation peak potential shift in the negative potential direction with increase of pH indicates participation of protons during oxidation of AA at CPE (Figure 4). As can be observed from the figure, the potential shift showed linear dependence with the pH in the range 0.5 to 4.0 with a slope of 0.063 V/pH indicating that the number of protons and electrons taking part in the electrode reaction were in a 1:1 ratio [23]. Hence, a reaction mechanism (scheme 2) was proposed for the oxidation of ascorbic acid at carbon paste electrode which agrees with previous reports [24].

Square Wave Voltammetric Investigation

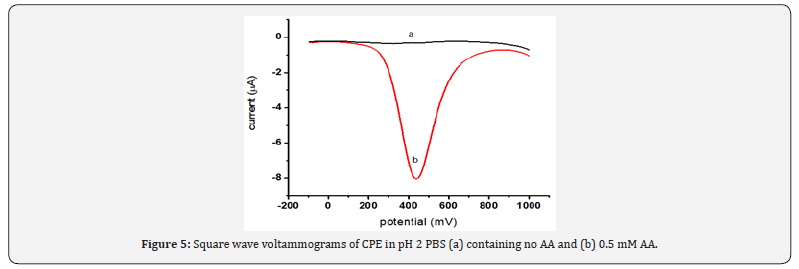

Square wave voltammetry, which is one of the most sensitive voltammetric techniques, was used for the quantitative determination of ascorbic acid. The electrochemical oxidation of ascorbic acid at carbon paste electrode was studied by square wave voltammetry in the potential range from -100 to 1000 mV. Figure 5 represents the square wave voltammograms of CPE in pH 2 PBS in the absence (a) and presence (b) of 0.5 mM AA. The oxidative peak centered at about +410 mV in the presence of AA (curve b) while no peak in the absence of AA (curve a) was assigned for oxidation of AA.

Optimization of Method Parameters

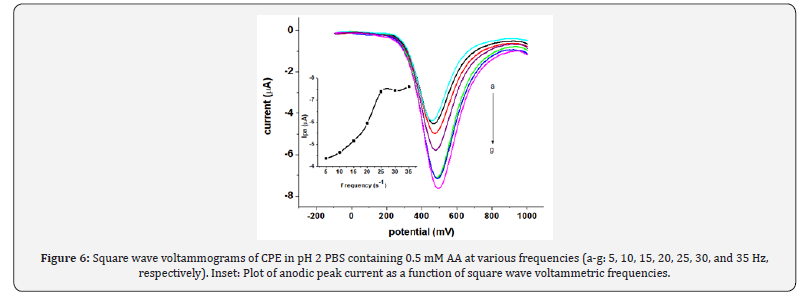

The effects of the square wave parameters frequency, amplitude and step potential, and accumulation parameters (Eacc and tacc) on the oxidative peak current of AA at CPE were investigated. As can be seen from the Inset of Figure 6, the magnitude of the peak current increased with increasing the square wave frequency. However, the peak current increment was accompanied by peak broadening and peak potential shift in the positive direction besides the peak current instability which affected the reproducibility of the measurement. As a compromise between the increased peak current and accompanied poor current reproducibility, frequency of 25 Hz was chosen as the optimum value in the subsequent experiments. Figure 7 demonstrates the effect of the amplitude on the oxidative peak current of AA at CPE. As expected, the peak current increased linearly with amplitude. However, the peak width also increased with square wave amplitude.

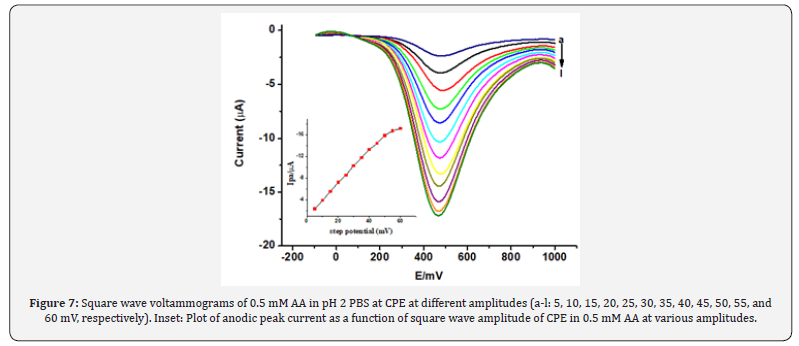

The effect of square wave amplitude on peak current is shown (Figure 7). Upon increasing the square wave amplitude, a linear increase in the peak current was observed accompanied by peak broadening when the amplitude was greater than 50 mV. Thus, 50 mV was chosen as the optimum square wave amplitude which is a compromise between the peak height and the peak shape. The effect of square wave step potential on the peak current response of CPE for ascorbic acid was studied by varying the step potential from 2 mV to 22 mV (Figure 8). Hence, as a compromise between the peak current enhancement with increasing step potential (Inset of Fig. 8) accompanied by peak broadening, a step potential of 14 mV was chosen as the optimum square wave step potential for further work.

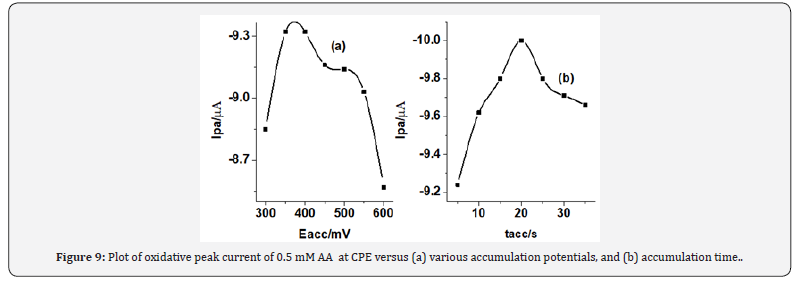

Since the oxidation of ascorbic acid at CPE is governed predominantly by surface confined kinetics, the effects of accumulation time and accumulation potential were investigated, by varying one of them and maintaining the other constant. Figure 9a shows the effect of accumulation potential (Eacc) on the square wave peak current for 0.5 mM AA over the range of 300-600 mV. As can be shown from the figure, the peak current increased with increasing the accumulation potential from up to 350 mV.

A peak current decrease was observed at accumulation potentials higher negative than 350 mV and hence, a preconcentration potential of 350 mV was taken as the optimum accumulation potential throughout the present work. Figure 9b presents the effect of accumulation time on the oxidative peak current of 0.5 mM AA at constant accumulation potential of 350 mV. As can be seen from the figure, the peak current increased with the increase in accumulation time up to 20 s and then almost leveled off. The increase of peak current with increase in accumulation time indicated that AA can be accumulated at the surface of the CPE. The leveling off peak current after 20 s could be ascribed to the saturation of the surface of the electrode. So, the accumulation time of 20 s was selected as an optimum accumulation time for this work (Figure 9) (Table 1).

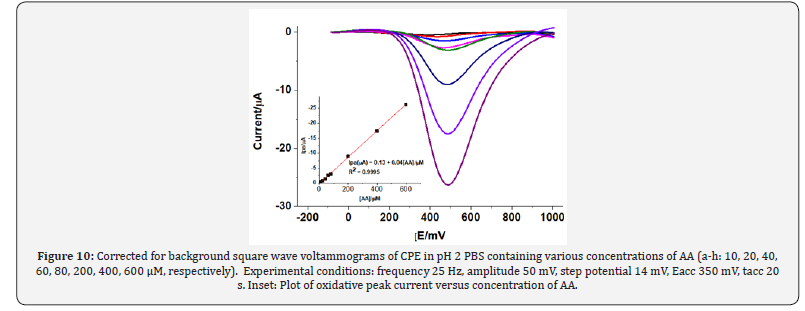

Under the optimum experimental conditions, the dependence of square wave voltammetric oxidative peak current on the concentration of AA and inherited sensitivity of the method was investigated in the range 1 * 10-5 – 6 * 10-4. While Figure 10 presents the square wave voltammograms of various concentrations of AA in pH 2 PBS at CPE, Inset of Fig. 10 shows the linear dependence of the oxidative peak current on concentration of AA in the studied range with regression equation, and correlation coefficient (R2)) of Ipa (μA) = 0.1343 - 0.0442 C (μM), and 0.99978, respectively. The corresponding method limit of detection (LOD = 3s/m) and limit of quantification (LOQ = 10s/m) were calculated to be 1.76 *10-6 and 5.86 *10-6, respectively where s is the mean blank standard deviation for n = 8 and m is the slope of the regression equation.

The performance of the developed method for the detection of AA was compared with other reported methods. The developed method using CPE, which is the cheapest carbon-based electrode material, showed a comparable LOD and hence sensitivity with other reported works which have used expensive electrode materials (Table 2).

Real Sample Analysis

The applicability of carbon paste electrode for determination of AA was demonstrated by applying it to determine the AA content in some pharmaceutical preparations. In this work, two brands of vitamin C tablets (APF, and EPHARM) prepared following the procedure described under the experimental section were selected for the analysis of AA. Finally, 70, 100, and 400 μM tablet sample solutions were prepared from the corresponding stock solution. Square wave voltammograms were recorded (Figure 11) following the outlined voltammetric procedure and optimized conditions as described earlier. Mean of triplicate measurements was taken for the determination of AA in these samples.

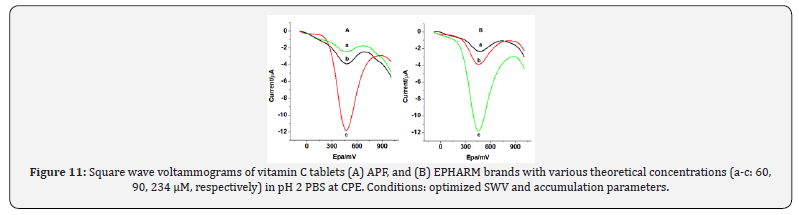

The amount of AA found in the different concentrations of the two brands of tablets is summarized in Table 3. For EPHARM and APF tablets the prescribed levels of AA were 500 mg per tablet whereas the amount of AA detected relative to the level were about 91.105% and 91.173%, respectively. Detected values lower than prescribed value may be due to the oxidation of AA during preparation or sort of degradation during storage or may contain lower levels of AA in tablets.

To further evaluate the performance of the method, the recovery 100 μM standard AA from spiked tablet samples of the two brands each of 100 μM AA as per to the label. As can be seen from Table 4, excellent recovery results in the range of 91.65% to 91.83% with low RSD in the range 0.04-1.14 confirmed the potential applicability of the developed method for AA analysis in real samples.

Conclusion

Cyclic voltammetric investigation of Ascorbic acid at CPE showed that the oxidation of Ascorbic acid over the studied range of scan rates is irreversible. While peak potential shift with the scan rate confirmed the irreversibility of the reaction, peak potential shift with pH also indicated the involvement of protons in the oxidation process. The ease of preparation of the electrode in combination with the relatively low detection limit, better selectivity and sensitivity, very good recoveries relative to previously reported works which have used expensive electrodes illustrated the potential applicability of the developed method as an alternative method for the determination of Ascorbic acid in real samples like pharmaceutical formulations.
