Evaluation of Selected Numerical Weather Prediction Models for a Case of Widespread Rainfall over Central and Southern Nigeria
Chibuzo N Agogbuo1*, Moses O Nwagbara2, Endalkachew Bekele3 and Aremu Olusegun4
1National Weather Forecasting and Climate Research Center, Nigeria
2Michael Okpara University of Agriculture Umudike, Nigeria
3NOAA Center for Weather and Climate Prediction, USA
4National Weather Forecasting and Climate Research Center, Nigeria
Submission: July 14, 2017; Published: August 17, 2017
*Corresponding author: Chibuzo N Agogbuo, National Weather Forecasting and Climate Research Center, Abuja, Nigeria; Tel: +2348035813534; Email: email@example.com
How to cite this article: Chibuzo N A, Moses O N, Endalkachew B, Aremu O. Evaluation of Selected Numerical Weather Prediction Models for a Case of Widespread Rainfall over Central and Southern Nigeria. Open Acc J of Toxicol. 2017;1(4): 555569. DOI: 10.19080/OAJT.2017.01.555569
Precipitation forecasts from four Numerical Weather Prediction (NWP) models are evaluated for a case of widespread rainfall event over Central and Southern Nigeria on the 21st of March 2015. The four models evaluated are the European Centre for Medium Range Weather Forecast (ECMWF) with a resolution of 25 km, The UKMET model 20km, NCEP Global Forecast System (GFS) 50km and the Weather Research and Forecast Model (WRF) with 10km resolution. Precipitation forecasts are compared with observed precipitation at station and gridded observation points for different rainfall amount thresholds using the Method of Objective-based Diagnostic Evaluation (MODE), Grid statistics and Point Statistics.
The global models ECMWF, UKMET and GFS underestimated the rainfall amount when compared to the WRF regional model. The global models recorded a critical success index (CSI) of less than 10% while the regional WRF model recorded a critical success index of 40% for rainfall amount greater than 25mm. MODE analysis showed that the WRF model also recorded a 93% relationship between observed and forecast precipitation events of 21st March 2015 over Nigeria when compared with the ECMWF, UKMET and GFS models which showed 88%, 88% and 87% relationship respectively. Our findings suggest that dynamically down scaling a global model using the WRF model added value and gave a better skill of precipitation forecast for the event under study.
Keywords: Numerical weather prediction; Global modeling; Regional model; Method of objective-based diagnostic evaluation (MODE); Dynamic downscaling
Precipitation forecast especially during the onset period is not a very easy task for weather forecasters owing to the fact
that rainfall is a dichotomous weather variable. Numerical
weather prediction models have been used since 1946 to forecast precipitation and other atmospheric variables . The use of these NWP models has lead to a considerable advancement in precipitation forecasting. This is largely due to the horizontal grid spacing of a few kilometers of these NWP models expected to reduce further in the coming years . Accurate precipitation forecast is very important considering the fact that extreme rainfall events could lead to devastating effects such as flooding, aviation hazards amongst others. The principal aim of this research is to compare precipitation estimates from 3 global models and a regional model, referenced against satellite estimates combined with station data and to ascertain if a dynamically downscaled global model added value to the precipitation forecast. NWP models show different performance skills for various regions and domains. Therefore, the evaluation of a Numerical Weather Prediction model forecast by comparing it with observed data is key to ascertaining its reliability over a particular place. Ghelli et al.  have also noted that forecast verification provides the forecast users with uncertainty information that helps them in their decision making. However, before evaluating a weather forecast, two key things are considered, the first is the type of weather parameter and the second is the evaluation method to be used . In this study user oriented and model oriented evaluation methods are used. While the user oriented evaluation method which compares model forecast directly with station data is subjective, the model oriented evaluation which compares model forecast against a gridded observation is objective. Validation of model forecast against observed data is considered essential to ascertain the reliability of the modeled data at regional scale . However, comparing model forecast and station data alone does not yield reliable result. Several studies have revealed that incorporation of satellite observations improves the accuracy of evaluation results . Satellite observations are also important to compensate for areas having a poor density of synoptic stations. Burkhardt Rockel et al. confirmed that dynamic downscaling does not necessarily retain or increase simulation skill of global model fields. Also, Castro et al.  did a work on dynamic downscaling and found out that only high-resolution landscape features could actually bring new information into regional model integration. In this paper, the WRF ems model is used to dynamically downscale the global model with the poorest performance skill using the type 1 downscaling technique proposed by Castro et al. . In type 1 dynamic downscaling, the initial and lateral boundary conditions are used for simulation of the regional model. Three crucial issues are usually considered when dynamically down scaling a global field, these are, domain size, lateral boundary conditions and grid spacing . It is also important that the circulation patterns at different levels of the atmosphere as predicted by the NWP models are verified against a reliable data assimilation system. The Global Data Assimilation System (GDAS) is used in this study. The GDAS shows the actual state of the atmosphere at the time of occurrence of the weather event and therefore, gives a diagnostic evaluation of the event.
The data used in this study consist of observed rainfall data collected from 42 gauge stations across Nigeria for the 21st of March 2015 and precipitation forecast from the European Centre for Medium Range Weather Forecast (ECMWF), UK Met

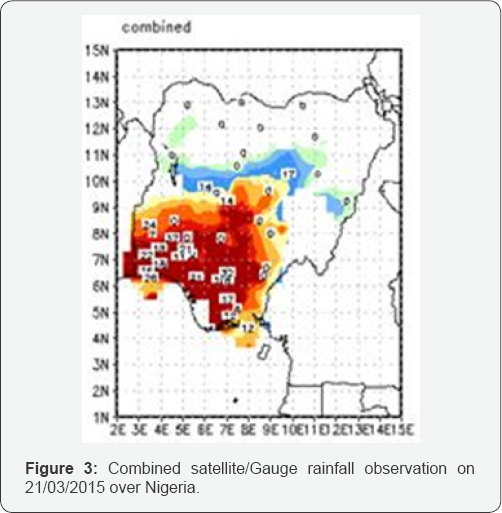

office, Global Forecast System of NCEP (GFS) and the Weather Research and Forecast (WRF version 3.4.1) models for the 21st of March 2015 (Table 1). The available gauge stations are unevenly distributed and sparse as seen in Figure 1, this usually brings a limitation to the quality of data. To overcome this limitation, satellite proxies particularly rainfall estimates are better used as alternatives because of their availability even over remote areas [6,9]. There were gaps in the gauge observation when compared to widespread heavy rainfall on satellite estimate (Figure 2). To compensate for the observed gaps CPC rainfall estimate was combined with the gauge observation. The combined observation data (Figure 3) are used for the model oriented evaluation of this study.
The performance skill of Numerical Weather Prediction (NWP) precipitation forecast varies in space and time. Therefore, any evaluation of NWP precipitation forecast should be aimed at reflecting this attribute . It is recommended by World Weather Research Program (WWRP 2008) that evaluation of NWP models is done both against gridded observations which is model oriented and station observations which are user oriented. Model oriented evaluation involves processing observation data to match the temporal and spatial scales of the model while user oriented evaluation uses station observation to evaluate model forecasts. This study adopts a similar approach by evaluating the NWP model forecasts against station and gridded observations. Station-based evaluation was done by comparing the station rainfall amount and NWP precipitation amounts using the nearest neighbor approach (The NWP grid cell nearest to the rainfall Station). This method is simple but suffers limitations due to unevenly and irregularly spaced measurement stations which may create some bias . However, this direct comparison facilitates the understanding of performance skill of NWP models from a user's perspective. Also, the GFS global model which recorded the least performance skill was dynamically downscaled using the WRF model. The dynamic downscaling technique used in this study is the type 1 proposed by Castro et al.  where the initial and lateral boundary conditions of the global model are used to initialize the regional model. Also, the WRF simulation was done without a cumulus scheme while the microphysics scheme used is the Lin et al scheme which is suitable for high resolution simulations less than 15km.

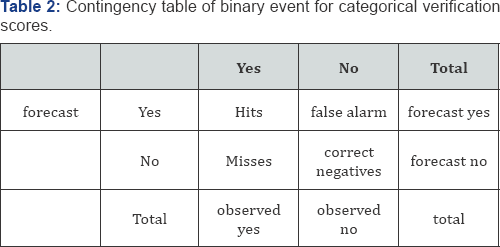

The user oriented evaluation method used in this study is represented by the contingency table as shown in Table 2 from which some evaluation scores such as Accuracy and bias were obtained. The verification scores that are obtainable from the contingency table above are defined below:
1. Accuracy: The level of agreement between forecast and observed
2. Bias: Compares the forecast and observed frequency of YES events
Critical Success Index (CSI) was also used in this study. The CSI answers the question on how well the forecast "yes" events corresponds with the observed "yes" events (WWRP 2008). Since precipitation forecast is a dichotomous (yes/no) forecast, the CSI is a good metric for this verification.
The model oriented evaluation methods used in this study are the Grid statistics which compares a grid point in the observation field against a grid point in the forecast field and the Method of Objective-based Diagnostic Evaluation (MODE). The Mode evaluates the forecast and observation in terms of spatial bias and also gives the level of relationship between forecast and observed events. The MODE tool addresses the problem of double penalty commonly associated with forecast verification. The MODE defines matches and compares weather events in the observation and forecast fields and then uses a fuzzy logic to establish a relationship in percentage between these events. The MODE also gives a Post Script plot containing a summary of the features and matching between forecast and observed events.
The first step in this evaluation involves the user oriented evaluation where the forecast fields of the Numerical Weather Prediction Models are compared directly with the Observation field while in the second approach, Model oriented evaluation, and Model Evaluation Tools (MET) are used.

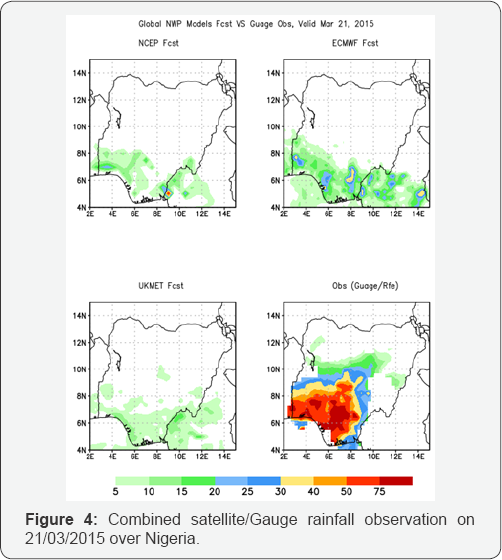

Figure 4 shows the map of 24-hour NWP precipitation forecast of three global models (NCEP-GFS, ECMWF and UKMET) and the observation. The areas in red are areas of high rainfall
while the areas in green are areas of relatively low rainfall. The figure reveals that the three global models failed to predict heavy rainfall over Central and Southern Nigeria. They underestimated the rainfall event over the region. However, the ECMWF did better than the other two models in predicting light to moderate rainfall in the region
The GFS forecast was dynamically downscaled using the WRF model with resolutions of 20km, 15km and 10km as shown in Figure 5. The Kain-Fritsh convective parameterization scheme was used for WRF 15km and WRF 20km while convection was turned off for the 10km simulation as recommended in the WRF model configuration set up. Dynamical downscaling was done using the same initial and lateral boundary condition of the GFS model but with increased resolution. The figure shows that the rainfall forecasts were improved using the WRF model. Also, the figure reveals that WRF at 10km resolution was able to predict heavy rainfall in some places within the region. Further analysis reveals that the WRF model at the top of the boundary layer showed higher upward motion when compared to the global models. This is a possible reason why the WRF was able to predict the high intensity rainfall over the region. Figure 5 however are for eye ball verification and therefore is subjective to an extent. A more objective and quantitative approach is discussed later in this work in section.
Table 3 shows the verification scores for the Numerical Weather Prediction models evaluated in this study. The table shows that though the ECMWF and the WRF 10km have the highest bias of 74%, the recorded the highest accuracy of 69%.

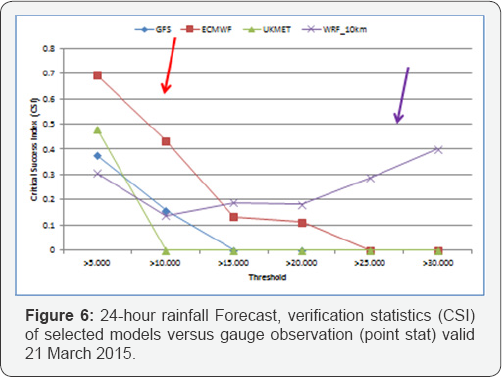

The point statistics match points on the forecast field to points on the observation field. It generates some metrics such as accuracy, Bias, Critical Success Index (SCI) among others. The point statistics metric that was used in this study is the CSI. This is considered a good metric for yes or no events such as precipitation. Figure 6 shows the point Statistics map of the NWP models when compared with the gauge observation. The map shows the Critical Success Index (CSI) values of the models for different rainfall amount thresholds. Rainfall thresholds of 5, 10, 15, 20, 25 and 30mm were used. The figure reveals that the GFS and the UKMET showed poor skills in predicting rainfall amount in excess of 5mm for the case under study while the ECMWF (red) was better for rainfall thresholds between 5-15mm. Also, the WRF model was better in predicting rainfall above 20mm having recorded a critical Success index of 40% when compared with the other models.

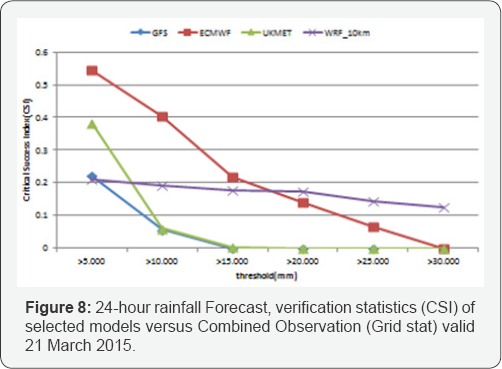

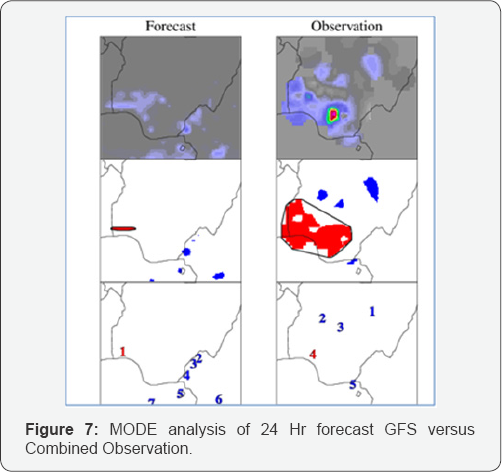

The grid statistics match events on the forecast grid against events on the observation grid box. Figure 7 shows the grid statistics map of Critical Success Index of the Numerical weather prediction Models when compared with the combined observation. From the Figure 7 & 8, The ECMWF has a higher CSI for rainfall threshold between 5 and 18mm while the WRF model was better for heavier rainfall values greater than 18mm.
The MODE matches events on the forecast field against events on the observation field and establishes a relationship in percentage between forecast and observation using a fuzzy logic. This Tool is objective and unique for the fact that it's never in a hurry to discard a forecast model if it fails to predict an event over a particular place. It looks out for possibility of spatial misplacement of events and tries to generate a correction for that. Different rainfall thresholds are considered in this analysis. For the GFS and UKMET models rainfall of over 10mm was chosen. Figure 6 shows the MODE analysis plot for the NCEP-GFS forecast of 21st March 2015.

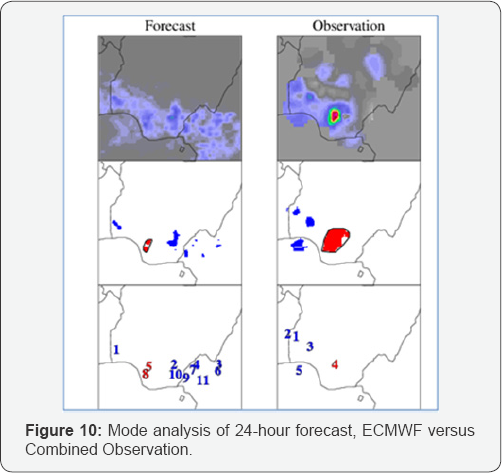

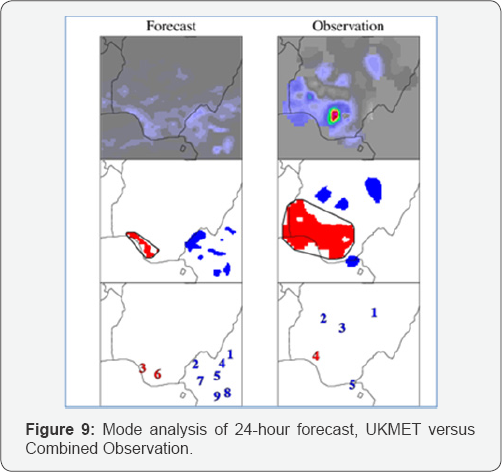

The red polygons (middle left and middle right) are areas of 10mm and above rainfall in the forecast and observation events. Despite the difference in the sizes of the polygons, MODE analysis found 87% relationship between the forecast and the observed. In Figure 9, the Mode analysis for the UKMET model forecast for rainfall of 10mm and above reveals that there is 88% relationship between forecast and observed event. Figure 10 shows the MODE analysis for the ECMWF model precipitation forecast for rainfall amount of 25mm and above. Despite the differences in size and orientation of the polygons, 88% relationship between forecast and observed was established. The 30mm and above rainfall events in WRF 10km forecast and observation are shown in red shaded polygons (middle left and middle right) of Figure 11. The figure shows that the size and orientation of the red
polygons in the observation and forecast field are almost the same. The MODE analysis also found 93% relationship between forecast and observed events. This relationship of over 90% implies that the WRF 10km did well in forecasting rainfall of over 30mm in the region. This is in agreement with the earlier metric (CSI) used in this study. The higher updraft produced by the WRF 10km when compared with the global models at the top of the boundary layer is responsible for the high intensity rainfall as forecast.
This study evaluated the performance of precipitation forecast from four Numerical Weather Prediction (NWP) models, NCEP-GFS, UKMET, ECMWF global models and the WRF regional model for a case of heavy and widespread rainfall over Central and Southern Nigeria on 21st March, 2015. The model forecasts were compared directly with gauge observation and also with combined gauge and satellite observation. A number of model evaluation tools were used for the evaluation.
The results showed that the ECMWF and the WRF models recorded the highest accuracy of 69% in terms of categorical forecast when the model precipitation forecasts were compared directly with gauge observations. However, the global models were not able to forecast the event in terms of intensity, even though the ECMWF model was relatively better than the GFS and the UKMET having forecast light to moderate rainfall over the area. The NCEP-GFS model which showed a poor prediction skill for the event under study was dynamically downscaled using the WRF regional model. The initial and lateral boundary conditions of the NCEP-GFS were retained while the resolution was increased to 10km. Lin et al. microphysics scheme was used while convection was turned off. The WRF regional model at 10km resolution showed a remarkable improvement of the GFS in predicting the event in terms of intensity. Also the point and grid statistics showed that the WRF regional model was better in predicting rainfall amount greater than 30mm over the region under study.
The MODE analysis indicates that the WRF model gave a better relationship between forecast event and observed event with the highest relationship of 93%. Further analysis also revealed that the WRF model at 10km showed a higher vertical motion at the top of the boundary layer when compared with the global models. This is a reason why the WRF was able to predict high intensity rainfall over the region. The implication is that, down scaling a global model using a regional model such as the WRF is likely going to give a better performance skill of precipitation forecast. It is worthy to note that these results were for a case study of heavy rainfall over Central and Southern Nigeria as a single event is not enough to make a categorical statement regarding the overall performance and skill of these models. Therefore, a study of several cases of widespread rainfall over Nigeria is recommended for better evaluation of these models.
The Authors are thankful to the Nigerian Meteorological Agency (NIMET) for providing the observation data used in this work. We also thank Igado Nicholas GIS experts for their contributions in the area of GIS/RS analysis (correction and digitization).
