Optical Coherence Tomography Angiography (OCTA) in Ophthalmology; Technology, Pros, Cons and Commercial Prototypes
Joobin Khadamy *
Iran University of Medical Sciences (IUMS), Iran
Submission : February 21, 2017; Published : April 19, 2017
*Corresponding author : Joobin Khadamy, MD, Eye Research Center, Rassoul Akram hospital, Iran University of Medical Sciences (IUMS), Sattarkhan- Niayesh Street, Tehran 14456-13131, Iran, Tel: +989125394802, Fax: +982166509162; Email: joobin_kh@hotmail.com
How to cite this article : Khadamy J. Optical Coherence Tomography Angiography (OCTA) in Ophthalmology; Technology, Pros, Cons and Commercial Prototypes. JOJ Ophthal. 2017; 2(5): 555598. DOI: 10.19080/JOJO.2017.02.555598
- Mini Review
- Abstract
- Introduction
- Optical Coherence Tomography Angiography Technology
- Optical Coherence Tomography Angiography vs. Fluorescein Angiography
- Is it possible to Upgrade SD-OCT Devices to OCTA Device?
- Commercial Prototypes Comparison
- Future of Optical Coherence Tomography Angiography
- References
Abstract
The OCTA is a novel evolving imaging technology which utilizes motion contrast to visualize retinal and choroidal vessels. It showed promises to be used in predicting, grading, guiding and following treatment of important ocular vascular diseases. The main advantages of the OCTA are being non-invasive; being blue light and dye free and providing high quality images in a relatively short time. It has alleviated important limitations of Fluorescein Angiography (FA), but still it is not considered as a complete substitute of FA, by experts. The Combined FA/ICGA and OCTA imaging systems are introduced to the market. It may have the advantages of the both systems, while having the least limitations. Resolution of images, field of view, depth of images and scan speed are important factors when choosing a device. But one should also take into account that higher image quality needs more time to be acquisitioned. It could be challenging in busy clinics. In this article we compared FA and OCTA and also compared widely available commercial prototype of OCTA devices.
- Mini Review
- Abstract
- Introduction
- Optical Coherence Tomography Angiography Technology
- Optical Coherence Tomography Angiography vs. Fluorescein Angiography
- Is it possible to Upgrade SD-OCT Devices to OCTA Device?
- Commercial Prototypes Comparison
- Future of Optical Coherence Tomography Angiography
- References
Introduction
Optical Coherence Tomography Angiography (OCTA) is a novel imaging technology which has considerable advantages over older angiograms token by Fluorescein Angiography (FA) or Indocyanine Green Angiogarphy (ICGA). On top of them, one may list advantages like being non-invasive; no needs for dye; high resolution simultaneous visualization of the both retinal and choroidal vasculatures; simultaneous 3 dimensional (3D) visualization of retinal and choroidal structure; and possibility of segmentation of retinal layers and capillary plexuses in 3 layers including Superficial (SCP), Middle (MCP) and Deep (DCP) [1]. One of the promising features of this technology is that beside qualitative data, it provides quantitative data regarding retinal and choroidal structural and vascular indices like Vascular Density (VD), Foveal Avascular Zone (FAZ), etc. Feasible Quantitative data provided by OCTA; may revolutionize current ophthalmic practice in regards of predicting [2,3], grading [4,5], following up treatment in patients with important vascular diseases like diabetic retinopathy, retinal vein obstruction, choroidal neovascularization, etc. [6-10]. However, currently the quantitative data are mostly used for researches, But it seems that in the future when some cut off points are available by large scale studies. Then, these data could be used for everyday clinical practices. For an instance, quantitative assessment of Foveal Avascular Zone (FAZ) could be useful in optimal selection of therapy in patients with Diabetic Macular Edema (DME) [11] or even grading the severity of Diabetic Retinopathy (DR) [5,12]. It has also shown that FAZ April 19, 2017metrics could change in response to treatment [6] so it could be used in following up patients. But a recent study has challenged these changes [13]. It should be emphasized that FA could also provide data regarding FAZ, but OCTA is more reliable, precise and also much more feasible. In FA, frequently dye leakage or DCP and SCP overlaps may influence the FAZ measurement [14]. Hereby, the OCTA technology, advantages, disadvantages and some commercial prototypes are discussed.
- Mini Review
- Abstract
- Introduction
- Optical Coherence Tomography Angiography Technology
- Optical Coherence Tomography Angiography vs. Fluorescein Angiography
- Is it possible to Upgrade SD-OCT Devices to OCTA Device?
- Commercial Prototypes Comparison
- Future of Optical Coherence Tomography Angiography
- References
Optical Coherence Tomography Angiography Technology
The principal of this imaging system is detecting motion contrasts. This device record and compare multiple fast B-Scans of each vascular layer of retina. It simply presumes that the only motion inside retina is related to red blood cells (RBC) within vasculatures. These decorrelation signals are mapped in an OCT angiogram. Lastly, OCT B-Scan and OCT angiogram join together to visualize the both histological and vascular structures at the same time [15].
- Mini Review
- Abstract
- Introduction
- Optical Coherence Tomography Angiography Technology
- Optical Coherence Tomography Angiography vs. Fluorescein Angiography
- Is it possible to Upgrade SD-OCT Devices to OCTA Device?
- Commercial Prototypes Comparison
- Future of Optical Coherence Tomography Angiography
- References
Optical Coherence Tomography Angiography vs. Fluorescein Angiography
Currently, FA and ICGA are gold standard in assessment of retinal and choroidal vasculatures. But the FA has considerable shortages like being invasive; being dye dependent; putting patients at possible dye mortal side effects (however, rare); clinical contraindications of dye; putting retina at risk of blue light toxicity; relative long picture acquisition time (some 15 minutes); disability in assessing deeper retinal or choroidal layers; disability in providing 3D pictures, disability in providing structural details of retina and choroid; and not providing quantitative data. It seems that OCTA has alleviated all above FA's limitations. However, as any other device, it has inherited some technical limitations [16,17]. One may count: more limited field of view; not providing functional data regarding vessels like not showing leakages; being more sensitive to small eye movements; needs for more patients' cooperation and ability to maintain proper fixation [18]. This later may make the acquisition time in real practice much longer than official announcements by manufacturers. Different commercial devices utilize various technologies to improve quality of picture by reducing motion artifacts [19]; through special algorithms (amplitude decorrelation algorithm, OCT-based or optical microangiography (OMAG) [20], split-spectrum amplitude decorrelation angiography (SSADA), etc.) [21]; and also improving the field and depth of pictures [22]. In this technology, we encounter day to day evolution of imaging system in terms of eye tracking systems; speed of picture acquisition; artifact reduction solutions [23]; field and depth of images [22]. Table 1 compares FA and OCTA. The invention of the combined imaging systems which provide a hybrid FA/ICGA and OCTA images may have the least limitations.

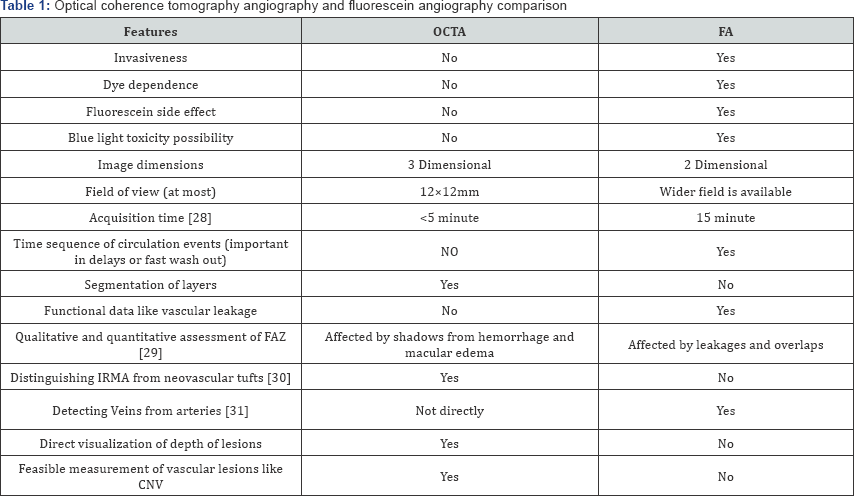

FA: Fluorescein Angiography; FAZ: Foveal Avascular Zone; OCTA: Optical Coherence.
