Blast Design for Controlling Some of Environmental Nuisances during Deep Hole Blasting in Surface Overburden Benches
B S Choudhary* and Anurag Agrawal
Department of Mining Engineering, Indian Institute of Technology (ISM) Dhanbad, India
Submission: February 12, 2019; Published: September 17, 2019
*Corresponding author: B S Choudhary, Department of Mining Engineering, Indian Institute of Technology (ISM) Dhanbad, India
How to cite this article: B S Choudhary, Anurag Agrawal. Blast Design for Controlling Some of Environmental Nuisances during Deep Hole Blasting in Surface Overburden Benches. Insights Min Sci technol. 2019; 1(2): 555557. DOI: DOI: 10.19080/IMST.2019.01.555557
Abstract
The present study suggesting a safe methodology to control blast induced ground vibration and air overpressure within the safe limits specifying the safe permissible explosive charge per delay and per round along with the blast design parameters which should be used while blasting mainly to protect vulnerable structures in the vicinity. Keeping in view the above-mentioned requirements, 11 rounds of deep hole trial blasts were studied constituting all together 19 blast events recorded by seismographs. While selecting the blast monitoring stations all the sensitive points have been covered which mainly included, dwellings and structures belonging to owner and a few other places within the mine in order to study the blast induced wave propagation and attenuation for various scaled distance. Safe charges have been recommended after regression analysis and suitable blast patterns were recommended for safe and productive blasting.
Keywords: Ground vibration, Fly rock, Air overpressure, Deep hole, Overburden benches
Introduction
In blasting operation, the local geological conditions must be considered first. Rock competency and fracture patterns have a significant impact on the success of a blasting operation [1]. Due to widely varying nature of rocks, geological structure and explosive materials, blast design parameters are optimized by field testing but monitoring of blast vibrations during actual excavation helps to ensure the safety of the concerned structures as well as to provide necessary data to improve the blasting patterns if required [2]. Venkatesh [3] concluded that the total charge in a blast influences insignificantly on the intensity of the ground vibrations for distances between 100m and 3000m. With the combination of delay detonators and proper blast design, large scale blasts are possible without any significant increase in the vibration levels.
The author Wiss & Linehan [4] made studies to evaluate the influence of 14 blast variables considered to influence the amplitude of ground vibrations. Monjezi et al. [5] observed from the sensitivity analysis that distance from the site of blast, number of holes per delay and maximum charge per delay are the most influential parameters towards generation of ground vibration in the blasting operation. The ground vibration characteristics depend on maximum charge per delay in any one of the delay intervals instead of total charge used in blast [6]. They found that the charge weight per delay and length of delay to have the most significant influence on ground vibrations. Charge weight per delay is a very important parameter which controls the intensity of ground vibrations. The intensity of vibrations increases as the quantity of charge detonated per delay increases. The selection of a suitable delay interval is extremely important in multi-row blasts. The function of delay detonation is to separate the pressure front into bundles of energy delivered to rock mass to make the events occur in series, independent of breaking. Proper burden relief should be provided to each row for effective movement of the burden rock [7]. If the delay between rows is not enough, the front row burden cannot move forward to enough distance to provide free face to the next subsequent row to move out [8,9]. This adds to more confinement of charges in subsequent rows leading to increased ground vibrations and fly rock. It was found that the ground vibration levels could be reduced effectively by arranging delays between rows in such a manner to separate the wave fronts emanating from corresponding charges avoiding the superimposition of waves [10]. Due to higher scattering in Nonel initiation system, it is found that the percentage of seismic energy dissipation during blasting using Nonel initiation system is higher in comparison to blasting using an electronic initiation system. The overlapping of holes leads to improper utilization of explosive energy during blasting with Nonel initiation system than an electronic initiation system [11]. Data evaluation is not solely based on peak particle velocities, as it is for conventional methods. Seismic waveforms, their frequency content, and their time-duration are also considered [12].
The probability study made by Dowding [13] revealed that no cosmetic or threshold cracking takes place below a particle velocity of 12mm/s. The data considered by him for the study included the low frequencies of below 4 Hz collected by Dvorak [14]. Residential structures typically resonate at frequencies in the range of 3Hz to 8Hz indicating a problem. However, the above study indicated no danger even upto 12mm/s PPV with such low frequencies. To substantiate this Siskind et al. [15] conducted studies and observed no blast-induced cracking upto 19mm/s PPV. The probabilistic data provided above may not be valid in specific cases as total time history of vibration event is more important for response spectrum of the structure. The damage that results from vibration will depend on the nature of source, transmission characteristics of the intervening medium/strata, inherent strength of the subject structure, height and rigidity of the structure and foundation design etc. Damage caused by ground vibration is dependent on the amplitude of the ground velocity and on the frequency of the ground motion. All the vibration standards till date are based on the resultant peak particle velocity of ground vibration because this is accepted as the best criterion for assessing levels of vibration damage. The recent trend is to refer to the frequency of the ground motion also. Low frequency waves cause more damage to structure particularly in case of multi-storied buildings. Different countries adopt different standards of safe limits of vibration in terms of peak particle velocity (PPV) for various types of structures. In India DGMS suggested standards of blast vibrations vide their circular No.7 of [16] are being implemented. Accordingly, the permissible peak particle velocity (PPV) at the foundation level of structures in mining area is detailed in Table 1.
![Click here to view Large Table 1 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.T001.png)
Objective
The objective of the study was to suggest the maximum explodable charge per delay (MCPD) and per round for limiting the Peak Particle Velocity (PPV) of ground vibration within permissible limits for NONEL system of blasting with emulsion explosives considering the existing surface structures in the vicinity of the mine.
![Click here to view Large Figure 1 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.G001.png)
Case Description
To meet the stated objectives, a field study was conducted on sandstone overburden formation of an opencast coal mine of BCCL, a subsidiary of Coal India Ltd. (CIL). The mine is being worked by mechanized drilling and deep hole blasting method. Crawler mounted DTH pneumatic drill of 150mm diameter is being used to drill blast holes. The holes are made near vertical. Staggered pattern of drilling is to be followed for optimum distribution of explosive energy. However, pattern of drilling was found to be not very consistent on a few occasions leading to improper burden relief affecting fragmentation and causing boulder generation. Lack of proper bench face is also seen on a couple of occasions due to new opening of benches. The strata are also found to be disturbed due the presence of old depillared/caved workings. Numerous free faces caused low vibrations levels and improper fragmentation due to loss of explosive energy. This needs a special attention of mine management for realizing the fruits of good blast design. All the 11 trial blasts utilized Nonel system of initiation with trunk line delays of 17/25ms between the holes in a row and 25/42ms between the rows. Down the hole initiation systems of 250/300ms (of varying length depending on hole depth) were used with deck charging. Details of tie-ins and initiation arrangement are given in Figure 1 and according to figure the MCPD of suggested firing pattern having quantity of individual blast hole as compare to another pattern.
Depth of blast holes, in various round of blasts, in general, varied from 6 to 7 m. The effective burden varied from 2.5 to 3.0m and spacing varied from 3.0 to 3.5m. The charge per round varied from 400kg to 2115kg and the maximum charge per delay varied from 30kg to 130kg. Blasting was carried out using cartridge explosives and site mixed emulsions (SME) explosives and cartridge booster Explosives. It was found that powder factor varied between 1.0-2.2m3/kg of explosive depending on formation (compact /cracked), type of initiation sequence and other blast design variations.
Methodology
To meet the above stated objective field reconnaissance was done to identify the different formations and fragile locations such as benches facing human habitat and nearby the villages. During the study 11 trial blasts with non-electric delay (NONEL) were conducted and ground vibration and air overpressure were monitored (Figure 2) with the help of Minimate/ Minimate plus seismographs. A total of 19 events were recorded by these seismographs at various blast monitoring stations nearest to the blast site as shown in Table 2 & 3.
![Click here to view Large Figure 2 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.G002.png)

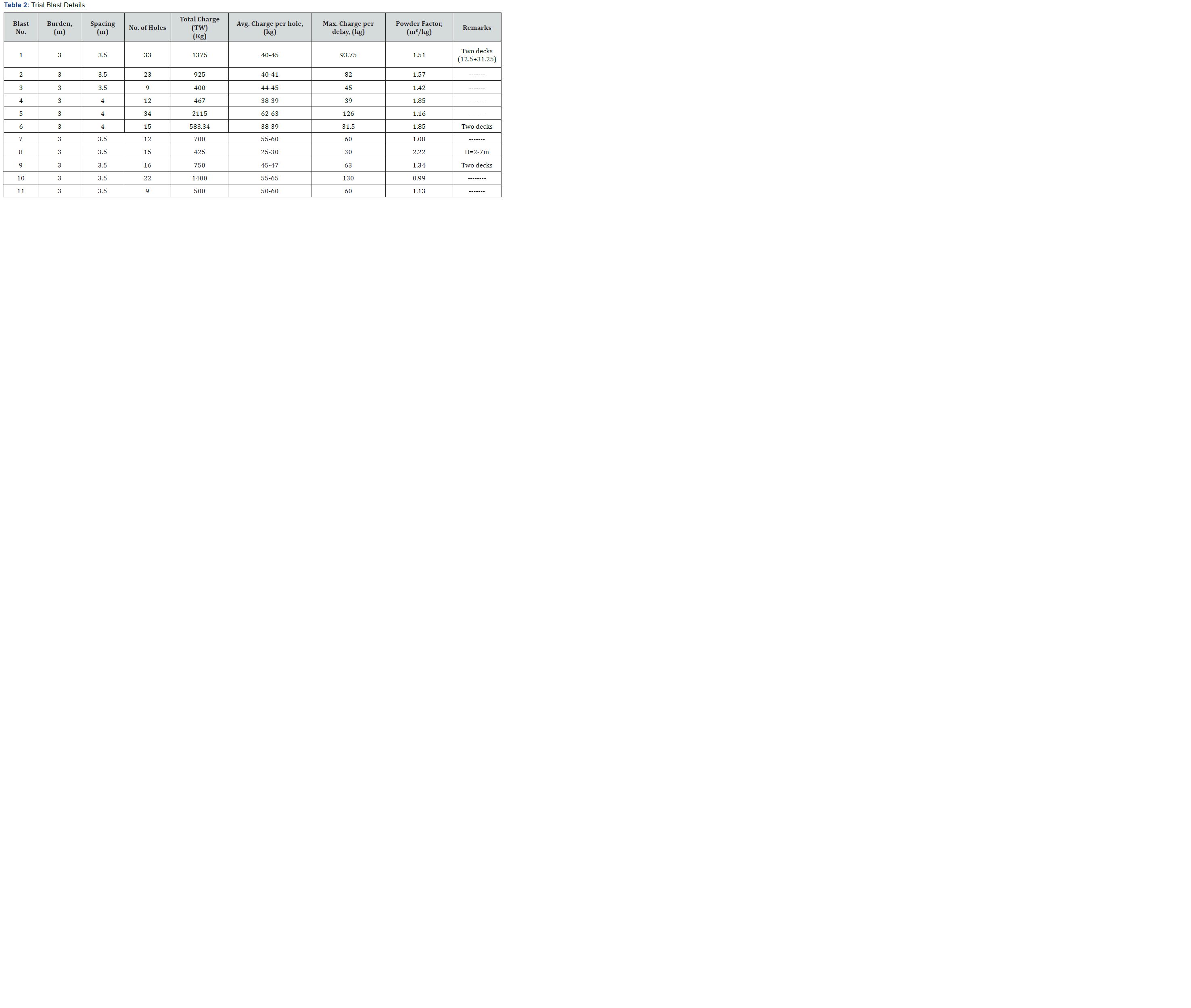

![Click here to view Large Table 2 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.T002.png)
Analysis and Discussions
The analysis of ground vibration records as presented in Table 4 reveals that the dominant frequencies of the ground vibration in the mine varied from 3.5 to 32.5Hz. It may be noted that most of the frequencies were ranging between 8-25Hz (74 %). Considering the surface structures (brick houses on cement belonging to owner) as the critical structure to be protected, the maximum allowable Peak Particle Velocity (PPV) is fixed at 15mm/s based on the trial blasts and the ground vibration monitoring near structures during blasting (refer to Table 1 on DGMS guidelines).
![Click here to view Large Table 3 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.T003.png)
![Click here to view Large Table 4 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.T004.png)
Ground Vibration Predictor
Applying the method of least square regression analysis, an empirical equation is established relating resultant peak particle velocity, V (mm/sec) of the ground, the distance of blasting site from the point of monitoring, R (m) and the maximum charge per delay, W (kg) (Figure 3). The derived empirical ground vibration predictor equation for the mine with Non-electric (NONEL) initiation system is given below (Eq. 1):
![Click here to view Large Eq 1 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.E001.png)
![Click here to view Large Figure 3 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.G003.png)
Coefficient of determination (R2) = 0.63
Equation 2 depicts the relation among resultant peak particle velocity, V (mm/sec) of the ground, the distance of blasting site from the point of monitoring, R (m) and the total charge per round, TW (kg) (Figure 4).
![Click here to view Large Eq 2 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.E002.png)
![Click here to view Large Figure 4 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.G004.png)
Coefficient of determination (R2) = 0.65
The scaled distance and peak particle velocity values are plotted on a log-log scale. Statistically, the above equations have reasonable index of determination and therefore can be accepted for prediction of ground vibration and estimation of safe maximum charge per delay and per round for various distances of structures from the blasting sites. The suggested maximum charge per delay using Nonel initiating systems (TLD & DTH) for the safety of surface structures is given in Table 5.

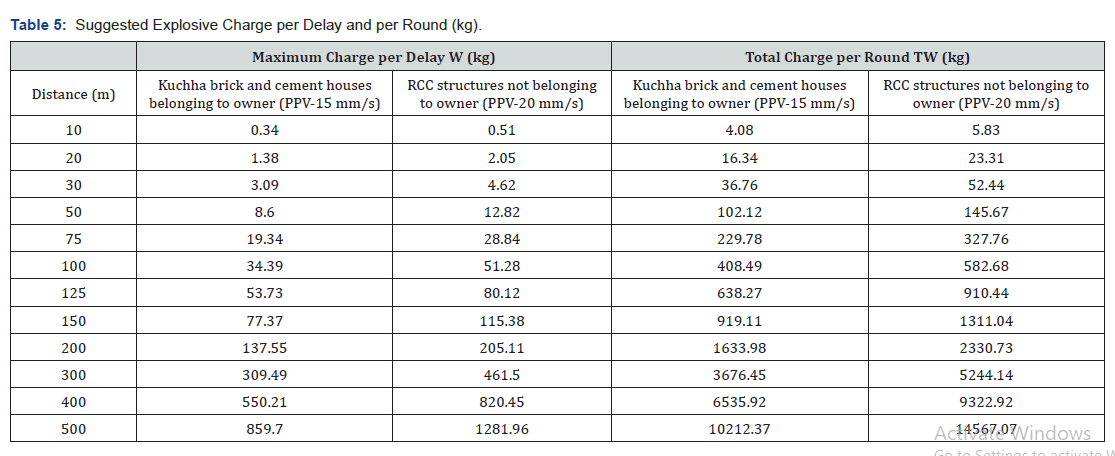

![Click here to view Large Table 5 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.T005.png)
Air Overpressure Monitoring
During trial blasts air overpressure (air blast) was also monitored and the details of measurements are given in Table 3 & 4. The values obtained were analyzed for a propagation equation and the same has been shown in Figure 5. All the observations were well within safe permissible limits.
![Click here to view Large Eq 3 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.E003.png)

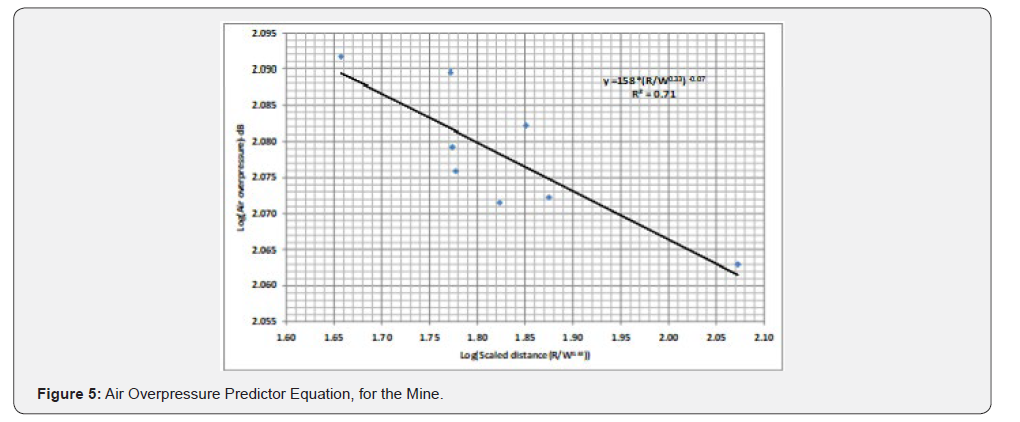

![Click here to view Large Figure 5 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.G005.png)
Coefficient of determination (R2) = 0.71
A good index of determination has been obtained by eliminating judiciously the offsets which are because of wind speed, RL difference, lack of bench face etc.
Conclusion
This paper presents the scientific investigations on the assessment of ground vibration and air overpressure while blasting in the mine. During the investigation period 11 rounds of blasts comprising a total of 19 events were recorded. Based on the analysis of data following conclusions may be drawn:
a) The site-specific empirical equation relating vibration, distance and maximum explosive quantity per delay for the overburden rock is
![Click here to view Large Eq 4 Insights in Mining Science & Technology](images/IMST.MS.ID.555557.E004.png)
Coefficient of determination (R2) = 0.63
The dominant frequencies of ground vibration in the 11 rounds of blasts recorded varied from 3.5Hz to 32.5Hz. However, most events (74%) recorded dominant frequency with more than 8Hz.
b) Assuming a safe level of ground vibration as 15mm/sec for safety of surface structures (kuchha brick houses with cement) near the mine belonging to owner and 20mm/sec for concrete structure not belonging to owner, the maximum permissible charge per delay is calculated using site specific empirical equations for various distances of surface structures from the blast site and the results are given in Table 5.
c) The AOP is in the safe limit and maximum percentage of noise is below 120db which causes minor harm to the habitats.
Acknowledgement
The authors express their gratitude towards the staff and management of BCCL, a subsidiary of Coal India Ltd. for granting permission to conduct the study.
