Novel route for Synthesis of Antihypertensive activity of Tetrazole analogues as a Carbamate and Urea Derivatives
Ramakrishna Vellalacheruvu1,2*, R Sai Leela3 and L K Ravindranath1
1Department in Chemistry, SK University, India
2GVKBio Science Pvt Ltd., IDA, India
3SK University, India
Submission: August 21, 2017; Published: March 01, 2018
*Corresponding author: Ramakrishna Vellalacheruvu, Department of Chemistry, SK University, India, Tel: 9493268448; Email: vellalacheruv@gmail.com
How to cite this article: Ramakrishna V, R Sai Leela L K Ravindranath. Novel route for Synthesis of Antihypertensive activity of Tetrazole analogues as a Carbamate and Urea Derivatives. Glob J Pharmaceu Sci. 2018; 5(1): 555653. DOI: 10.19080/GJPPS.2018.05.555653
Abstract
The Novel route was developed for synthesis of high potential tetrazole carbamate and urea derivatives by using conventional methods. (trifluoromethyl)phenyl)quinoline-5-carboxamide (3) was converted into chloroamidine derivative by using POCl3 and DMF (cat), then treated with sodium azide by [3+2] cycloaddition to give 8-(benzyloxy)-5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol-5-yl) quinoline (5). The tetrazolidine compound was debenzylated, then Alkylation with Ethyl Bromo acetate and converted to acid (8) by hydrolysis with LiOH. The acid was converted to acid azide by using DPPA, and then Treated with Alcohols and Amine to give substituted Carbamates and urea derivatives by using Curtius rearrangement.
Keywords: Tetrazolidine; Diphenyl phosphoryl azide; [3+2] Cycloaddition reaction; Curties re-arrangement; Combi-flash chromatography
Abbreviations: API: Active Pharmaceutical Drug Intermediates; SSNRIs: Selective Serotonin and Nor Epinephrine Reuptake Inhibitors; ABDD: Analogue-Based Drug Discovery; RAS: Renin Angiotensin System
Introduction
Tetrazole analogues have a potential pharmacological activity in medicinal chemistry division. Several Active pharmaceutical drug intermediates (API) of tetrazole derivatives played their role in pharmaceutical and agrochemical region. These compounds act as multidimensional biological active drug candidates such as inhibition of Angiotensin (AT1), Angiotensin (AT2) receptor (Hypertension), antifungal & antibacterial, corrosion inhibitor, anti-inflammatory, anticancer, antioxidant, antifungal, analgesic, Antiviral, protein-arginine deiminase inhibitor, antimicrobial, Anti allergic, dual Selective serotonin and Nor epinephrine Reuptake inhibitors (SSNRIs) and HIV inhibitors. When Drug model designing, tetrazole nucleolus consider as a co-sister of carboxylic acid and amide derivatives [1-12]. The pka value of tetrazole is correlated with amide and acid functional groups. The introduction of tetrazole ring in drug substrate prominently increases their bio-availability and prolonging biological action and also avoids acute toxicity of drug. In Analogue-based drug discovery (ABDD), introduce tetrazole nucleolus as an important descriptor. Several research works is progress based on synthesis of tetrazole amino acid analogues, and nucleotide and nucleoside analogues instead of acid and amide functional group.
Many Tetrazole analogs were available for treatment of hypertension, such as Losartan potassium, Valsartan, Irbesartan, Candesartan and Olmesartan medoxonil. These drugs played a vital role to inhibit Angiotensin converting enzyme. They block AT1 & AT2 receptors which is located in kidney, heart, vascular smooth muscle cells, brain, and adrenal glands. The renin angiotensin system (RAS) is a powerful regulator of Blood pressure. These drugs block renin-angiotensin system (RAS, enzyme) which is secretly produced in Kidney. Such few antihypertension drugs were described in Figure 1.
Tetrazole ring was widely used as a metabolically stable bioisostere for carboxy and amide functional groups in molecular design and synthesis of modified amino acids. Such analogs are described in Figure 2. The generations of Cephalosporin Antibiotics played a vital role in diagnosis process. Huge research work has been done for development of these drug analogs shown in Figure 3. Dave CG shah and coworkers synthesized 7,9-Disubstituted-7H-tetrazolo[1,5-c] pyrrolo[3,2-e] pyrimidines and evaluated their biological activity. Below compound exhibited better activity than ampicillin against all tested culture (Figure 3a). Venkataraman S et al. [10] developed a novel route for terazole analgous of Cl- Amidines and F- Amidines (Figure 3b). As a part of our research work, we synthesized a high potential tetrazolidine analogous were synthesized as a urea and carbamate derivatives using conventional methods of cycloaddition reactions and curtius rearrangement reactions. Present method we avoid toxic and hazard reagents during synthesis of urea and carbamate derivatives.
Materials and Methods
All Amines and alcohols and Reagents collected from commercial sources (Aldrich, Alfa Aesar). THF and Toluene were thoroughly dried using sodium metal and benzophenone before conduct reaction. DMF was dried using CaH. Alcohols (EtOH, MeOH) were super dried using Grignard method (Mg, I2). The Curtius rearrangement reactions were conducted in sealed tube. These derivatives were characterized by using Analytical methods like IR, NMR (400mHz, Bruker). The melting points were recorded using on a WRS-1A Digital Melting Point Apparatus without correction. Infrared spectra were taken using an AVATAR 370 FT-IR spectrometer. 1H NMR, 13C NMR spectra were recorded with a Bruker spectrometer operating at 400MHz used as a trimethylsilane as a reference and values were recorded in ppm. The progress of reaction was monitored using TLC system and I2 spray and KMnO4 TLC strain. The crude compounds were purified using column chromatography (100-200 mesh silica) and Combi-flash chromatography. The hydrogenation process was carried out using parr shaker.
Objective of this research
Present work is corresponding to develop novel synthetic route for preparation of the quinoline attached tetrazolidine urea and N-carbamate derivatives and characterized by IR and 1HNMR.
Experimental Methods
In this research work, we prepared below compounds and mentioned in step wise manner. The detailed scheme was given in Scheme 1. The Reaction mechanism for step 4 was mentioned.
o Step-1: 8-(benzyloxy)quinolme-5-carboxylic acid (2)
o Step-2: 8-(benzyloxy)-N-(4-(trifluoromethyl)phenyl) quinoline-5-carboxamide (3)
o Step-3: (E)-8-(benzyloxy)-N-(4-(trifluoromethyl) phenyl) quinoline-5-carbimidoyl chloride (4)
o Step-4: 8-(benzyloxy)-5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolme (5)
o Step-5: 5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol- 5-yl) quinolin-8-ol (6)
o Step-6: Ethyl-2-((5-(1-(4-(trifluoromethyl)phenyl)- 1H-tetrazol-5-yl)qumolm-8-yl)oxy)acetate (7)
o Step 7: 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)acetic acid (8)
o Step 8: 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl) quinolm-8-yl)oxy)acetylazide (9)
o Step 9: Substituted(((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)qumolin-8-yl)oxy)methyl) carbamate (10 a-e)
o Step 10: substituted-3-(((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolm-8-yl)oxy)methyl)urea (11 a-e)
Scheme 1: (Figure 3 c)
Reaction Conditions:
Step 1: CrO3/H2SO4, 0 °C, 3h,
Step 2: HBTU /DIPEA (3eq), DMF. Rt, 16h
Step 3: POCl3/DMF (cat), 0 °C-50 °C, 3h
Step 4: NaN3/DMF, 80 °C, 4h
Step 5: 10% Palladium on Carbon, H2/90psi
Step 6: Ethyl Bromo Acetate, NaH, 0 °C- RT, 6h
Step 7: LiOH, THF/H2O (1:4), 16h
Step 8: DPPA / Toluene, 0 °C, 8h
Reaction mechanism for Step 2: (Figure 4)
Step 1: 8-(benzyloxy) quinoline-5-carboxylic acid (2): (Figure 4a)
Zones Reagent: In a 1lit 3 neck round bottom flask fitted with mechanical stirrer, CrO3 (28g, 0.285mol) was dissolve in water (50mL) and cooled to 0 °C for 10min. Then added H2SO4 (5.5M, 130mL, 0.3eq) drop wise for 30min at -5 °C. The reaction mixture was stirred for 10min. In Another RBF 8-(benzyloxy) quinoline-5-carbaldehyde (25g, 0.09mol) was dissolve in Acetone (250mL) and cooled to 0 °C. The above reagent (Zones reagent) was added drop wise for 1h and stirred for 2h. The progress of reaction was monitored by TLC. After completion, Reaction mixture was poured in ice cold water and stirred for 30min. The reaction mixture was extracted with EtOAc (3x250mL). The reaction mixture was filtered on celite bed. The organic layer were separated and dried over anhydrous Na2SO4, filtered and evaporated under vacuum to give black crude product. The crude was purified by column chromatography (100-200 mesh silica, Eluent: Pure EtOAc) isolated 8-(benzyloxy) quinoline- 5-carboxylic acid (15g, Yield: 57%) as a white solid. M.P. 282285 °C. IR (KBr, cm-1): 3400, 3010, 1710, 1580, 1440, 770, 655. 1HNMR (d6-DMSO, 400mHz): 4.9 (s, 1H), 7.35-7.5 (m, 5H), 7.8 (t, 1H), 8.4 (d, 1H), 8.9 (d, 1H), 9.5 (d, 1H), 10.2 (brs, 1H).
Step 2: 8-(benzyloxy)-N-(4-(trifluoromethyl)phenyl) quinoline-5-carboxamide (3): (Figure 4b)
To a mixture of 8-(benzyloxy)quinoline-5-carboxylic acid (15g, 0.053mol), 4-(trifluoromethyl) aniline (8.6g, 0.053mol) in DMF (100mL ) was added Di-isopropyl ethyl amine (DIPEA) (25mL, 0.159mol) and cooled to 0°C. Then HBTU (22g, 0.06mol) was added and stirred at room temperature for 16h. The progress of reaction was monitored by TLC and iodine strain. After completion, reaction mixture was poured in ice cold water (300mL) and extracted with EtOAc (3x300mL). The organic layer was separated and washed with brine solution (100mL). The organic layer was collected and dried over anhydrous Na2SO4, filtered and evaporated under vacuum to give crude residue. The crude product was purified by Combi-flash column chromatography (230-400 meshsilica, Eluent: 10% MeOH- CHCl3) isolated 8-(benzyloxy)-N-(4-(trifluoromethyl)phenyl) quinoline-5-carboxamide (3) (16g, yield: 72%) as a white solid. M.p: 352-355°C. IR (KBr, cm-1): 3410, 3020, 1700, 1610, 1320, 1420, 780, 685. 1HNMR (d6-DMSO, 400mHz): 5.1 (s, 2H), 7.2 (d, 1H), 7.38-7.5 (m, 5H), 7.6 (d, 2H), 7.63 (d, 2H), 7.83 (t, 1H), 8.8 (br, 2H), 9.5 (d, 1H).

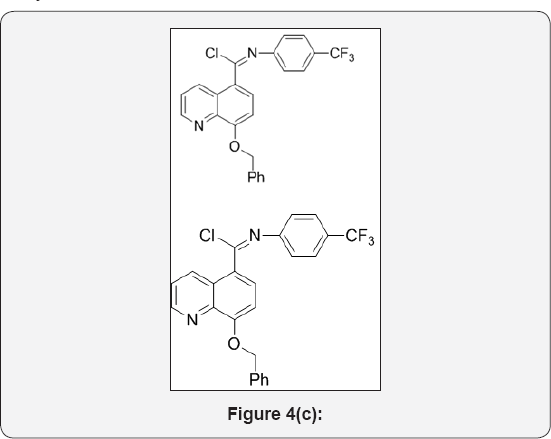

Step 3: (E)-8-(benzyloxy)-N-(4-(trifluoromethyl) phenyl)quinoline-5-carbimidoyl chloride (4): (Figure 4c)
8-(benzyloxy)-N-(4-(trifluoromethyl)phenyl)quinoline-5- carboxamide (3) (15g, 0.035mol) in POCl3 (150mL) was cooled to 0 °C. Then added DMF (cat, 1mL) drop wise and stirred at room temperature for 1h. The reaction mixture was heated at 60 °C for 3h. The progress of reaction was monitored by TLC. After completion, reaction mixture was cooled to room temperature. The POCl3 was evaporated under high vacuum to give crude residue. The residue was co-distilled with dry toluene (2x100ml) to give crude product. The crude was carried to next step without further purification. This compound data was not analyzed.
Step 4: 8-(benzyloxy)-5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinoline (5): (Figure 4d)
(E)-8-(benzyloxy)-N-(4-(trifluoromethyl)phenyl)quinoline- 5-carbimidoyl chloride (4) (15g, 0.035mol) in dry DMF (70mL) was cooled to 0 °C. Then sodium azide (3eq) was added portionwise and stirred at room temperature for 1h. After that, Reaction mixture was heated at 80°C for 4h. The progress of reaction was monitored by TLC. After completion, reaction mixture was cooled to 0°C and poured in ice cold water (200mL) and basified up to PH-8 with sat. aq. NaHCO3sol. The aqueous layer was extracted with EtOAc (3x100mL). The organic layer were collected and dried over anhydrous Na2SO4, filtered and evaporated under vacuum to give crude product. The crude was purified by column chromatography (100-200 mesh silica, Eluent: 50% EtOAc-Pet Ether) isolated 8-(benzyloxy)-5-(1-(4- (trifluoromethyl)phenyl)-1H-tetrazol-5-yl) quinoline (5) (8g, Yieild: 50%) as a pale yellow solid. M.p: 280-282°C. IR (KBr, cm- 1): 3010, 1550, 1510, 820, 655 1HNMR (d6-DMSO, 400mHz): 5.10 (s, 2H), 7.1 (d, 1H), 7.4-7.68 (m, 11H), 8.4 (d, 1H), 8.78 (d, 1H).
Step 5: 5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol- 5-yl)quinolin-8-ol (5): (Figure 4e)
8-(benzyloxy)-5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinoline (5) (8g, 0.012mol) in MeOH (100mL) was added 10% palladium on carbon and TFA (10mL) and hydrogenated at 80 Psi using parr shaker for 5h at room temperature. The progress of reaction was monitored by TLC. After completion, Reaction mixture was filtered on cellite bed and washed with MeOH (2x50mL). The organic layer was collected and evaporated under vacuum to give crude residue. The residue was purified by combi-flash column chromatography isolated 5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol-5-yl) quinolin- 8-ol (6) (5.5g, Yield: 88%). as a white solid.M.p: 310-315 °C. IR (KBr, cm'1): 3300, 3040, 1580, 1425, 1150,760, 691, 1HNMR (d6- DMSO, 400mHz): 7.2 (d, 1H), 7.5-7.62 (m, 5H), 7.8 (d, 1H), 8.4(d, 1H), 8.88 (d, 1H). 10.1 (brs, 1H).
Step 6: Ethyl 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)acetate (7): (Figure 4f)
To a solution 5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol- 5-yl)quinolin-8-ol (6) (5g, 0.014mol), in DMF (50mL) was cooled to 0 °C. Then added sodium hydride (1.7g, 0.042mol, 3eq) portion wise and stirred for 30min. To that Ethyl bromo acetate (1.71mL, 0.0154mol) was added drop wise and stirred for 6h at room temperature. The progress of reaction was monitored by TLC. After completion, reaction mixture was poured in ice cold water (100mL) and basified with aq Na2CO3 up to PH-8 and extracted with EtOAc (2x10mL). The organic layer were separated and washed with brine (25mL), and dried over anhydrous Na2SO4, filtered and evaporated under vacuum to give crude product. The crude was purified by column chromatography (100200 mesh silica, Eluent: 60% EtOAc- Pet ether) isolated ethyl 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol-5-yl)quinolin- 8-yl)oxy)acetate (4g, Yield: 64%) as a semi brown colour liquid. M.p: 255-258 °C. IR (KBr, cm-1): 3040, 1640, 1560, 1440, 1130, 780, 698, 1HNMR (d6-DMSO, 400mHz): 1.4 (t, 3H), 3.8 (q, 2H), 4.8 (s, 2H), 7.23 (d, 1H), 7.5-7.62 (m, 5H), 7.75 (d, 1H), 8.39 (d, 1H), 8.7(d, 1H).
Step 7: 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)acetic acid (8): (Figure 4g)
Ethyl 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol- 5-yl)quinolin-8-yl)oxy)acetate (8) (4g, 0.009mol) in THF/ H2O (40mL/10mL, 4:1) was added LiOH (4eq) and stirred at room temperature for 16h. The progress of reaction was monitored by TLC. After completion, reaction mixture was poured in ice cold water (100mL) and acidified with aq NaHSO3 (100mL) up to PH-4 and extracted with EtOAc (3x00mL). The organic layer were collected and dried over anhydrous Na2SO4, filtered and evaporated under vacuum to give crude product. The crude was purified by column chromatography (100-200 mesh silica, Eluent: 80% EtOAc- Pet ether) isolated 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol-5-yl)quinolin- 8-yl)oxy)acetic acid (3.5,Yield: 93%) as a white solid. M.p: 285288 °C. IR (KBr, cm'1): 3500, 3030, 1690, 1560, 1440, 760, 610, 1HNMR (d.-DMSO, 400mHz): 4.8 (s, 2H), 7.3 (d, 1H), 7.5-7.65 (m, 5H), 7.78 (d, 1H), 8.38 (d, 1H), 8.8(d, 1H), 10.4 (brs, 1H).
Step 8: 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)acetyl azide (9): (Figure 4h)
To a solution of 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy) acetic acid (3.5g, 0.008 mol) in toluene (35mL) was added DPPA (2.25mL, 0.014mol ) at 0 °C and stirred at room temperature for 8h. The progress of reaction was monitored by TLC. After completion, reaction mixture was evaporated under vacuum to give crude residue. The crude residue was co-distilled with Toluene (2x30mL) isolated 2-((5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol-5-yl)quinolin- 8-yl)oxy)acetyl azide (4.5g) as a liquid. The crude residue was carried to next step without further purification.
Step 9: Substituted (((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolin-8-yl)oxy)methyl) carbamate (10): (Figure 4i)
To a solution of 2-((5-(1-(4-(trifluoromethyl)phenyl)- 1H-tetrazol-5-yl)quinolin-8-yl)oxy)acetyl azide (9) (250mg, 0.568mmol) in Dry toluene (10mL) was added TEA (1.7mmol,3eq), Alcohol (1.1eq) and heated at 100 °C for 5h in sealed tube (50mL). The progress of reaction was monitored by TLC. After completion, reaction was evaporated under vacuum to give crude product. The crude was purified by Combi-flash column chromatography (100-200 mesh silica, Eluent: 70% EtOAc-Pet ether), isolated substituted (((5-(1-(4-(trifluoromethyl)phenyl)- 1H-tetrazol-5-yl)quino lin-8-yl)oxy)methyl)carbamate10 (a-e). The list of carbonate derivatives was given in Table 1.
Methyl(((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)methyl) carbamate (10a): (Figure 4j)
M.p: 280-283 °C. IR (KBr, cm'1): 3450, 3030, 1645, 1350,780, 645, 1HNMR (d.-DMSO, 400mHz): 3.5(s, 2H), 5.5(s, 2H), 7.2 (d, 1H), 7.5-7.64 (m, 5H), 8.1 (m, 3H), 8.4(d, 1H), 8.8(d, 1H). 13CNMR (d.-DMSO, 400mHz): 51, 75, 108, 122, 123, 124.5, 125,131,132, 135, 139, 149, 155, 157, 163.
Ethyl (((5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol- 5-yl)quinolin-8-yl)oxy)methyl) carbamate (10b): (Figure 4k)
M.p: 290-293 °C. IR (KBr, cm-1): 3450, 3035, 1650, 1350,785, 650, 1HNMR (d6-DMSO, 400mHz): 1.25 (t, 3H), 4.2 (q, 2H), 5.4 (s, 2H), 7.2 (d, 1H) 7.55-7.63 (m, 5H), 7.9 (m, 2H), 8.38 (d, 1H), 8.85 (d, 1H). 13CNMR (d6-DMSO, 400mHz): 15, 62, 77, 107.5, 122, 123, 124, 125, 131, 132, 135, 140, 150, 155, 156, 164.

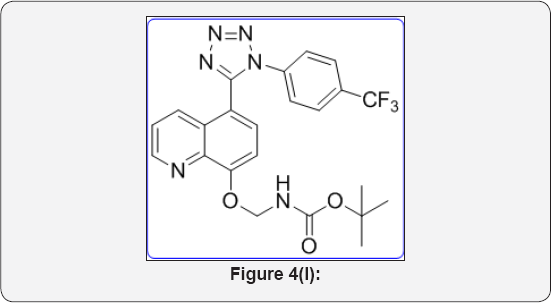

Tert-butyl(((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)methyl) carbamate (10c): (Figure 4l)
M.P: 250-253 °C, IR (KBr, cm-1): 3470, 3040, 1670, 1380,770, 640. 1HNMR (d6-DMSO, 400mHz): 1.5 (s, 9H), 5.5 (s, 2H), 7.18 (d, 1H) 7.55-7.63 (m, 5H), 7.8 (m, 2H), 8.37 (d, 1H), 8.83(d, 1H). 13CNMR (d6-DMSO, 400mHz): 30, 76, 79, 107, 121, 122.8, 124.9, 131, 132, 136, 139, 148, 155, 156, 163.8.

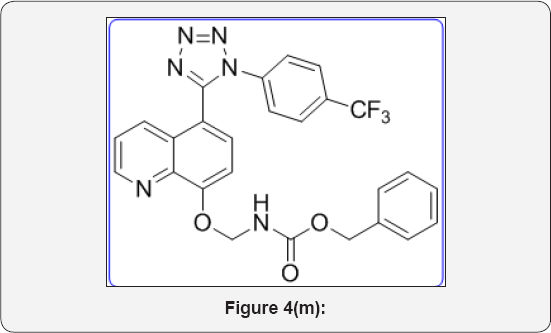

Benzyl(((5-(1-(4-(trifluoromethyl)phenyl)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)methyl) carbamate (10d): (Figure 4m)
M.p: 300-303 °C. IR (KBr, cm'1): 3490, 3030, 1650, 1380,780, 660. 1HNMR (d6-DMSO, 400mHz): 5.1 (s, 2H), 5.6 (s, 2H), 7.2 (d, 1H) 7.55-7.63 (m, 10 H), 7.85 (m, 2H), 8.39 (d, 1H), 8.85(d, 1H). 13CNMR (d.-DMSO, 400mHz): 68, 78, 108, 122, 123, 124, 124.5, 125.3, 127, 127.6, 129, 131, 132, 135.2, 136, 139, 148, 155, 156, 163.
6.16. 4-methoxybenzyl(((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolin-8-yl)oxy)methyl) carbamate (10e). (Figure 4n)
M.P.320-323 °C, IR (KBr, cm-1): 3460, 3050, 1640, 1370,785, 665. 1HNMR (d6-DMSO, 400mHz): 3.83 (s, 3H), 4.9 (s, 2H), 5.65 (s, 2H), 6.9-7.1 (m, 5H), 7.55-7.62 (m, 5 H), 7.85 (m, 2H), 8.38 (d, 1H), 8.87 (d, 1H). 13CNMR (d6-DMSO, 400mHz): 56, 67, 76, 108, 115, 122, 123, 123.8, 124, 124.1, 125.3, 128, 129,130, 131.9, 132, 135.2, 139, 149, 154, 156, 158, 164.
Step 10: 3-(((5-(1-(4-(trifluoromethyl)phenyl)- 1H-tetrazol-5-yl)quinolin-8-yl)oxy)methyl) urea derivative (11): (Figure 4o)
To a solution of 2-((5-(1-(4-(trifluoromethyl)phenyl)- 1H-tetrazol-5-yl)quinolin-8-yl)oxy)acetyl azide (9) (250 mg, 0.568mmol) in Dry toluene (10mL) was added Amine (1.3eq) and heated at 100°C for 5h in sealed tube (50mL). The progress of reaction was monitored by TLC. After completion, reaction was evaporated under vacuum to give crude product. The crude was purified by Combi-flash column chromatography (100-200 mesh silica, Eluent: (5-10% MeOH-CHCl3), isolated 1-(((5-(1-(4-(trifluoromethyl)phenyl)-1H-tetrazol-5-yl) quinolin-8-yl)oxy )methyl) urea derivatives 11 (a-e). The list of urea derivatives was mentioned in Table 2.
1,1-diethyl-3-(((5-(1-(4-(trifluoromethyl)phenyI)-1H- tetrazol-5-yl)quinolin-8-yl)oxy)methyl) urea (11a): IR (KBr, cm-1): (Figure 4p)
White solid, IR (KBr, cm'1): 3410, 3010, 1730, 1655, 1450, 1320,780, 650, 1HNMR (d6-DMSO, 400mHz) : 1.5 (t, 6H), 3.8 (q, 4H), 5.4 (s, 2H), 7.15 (d, 1H), 7.5-7.6 (m, 5H), 7.8 (m, 2H), 8.38 (d, 1H), 8.8(d, 1H). 13CNMR (d,-DMSO, 400mHz): 15, 45, 78, 108, 122, 123, 124, 124.5, 125, 131, 132, 135, 139, 149,155,157, 164.

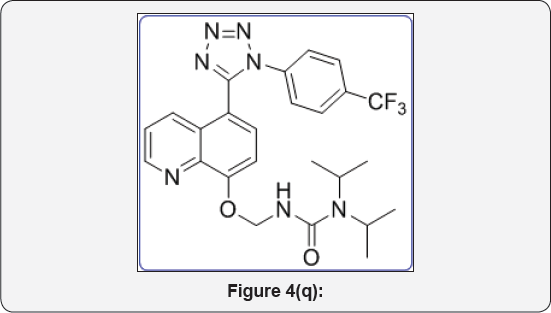

11,1-diisopropyl-3-(((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolin-8-yl)oxy) methyl) urea (11b): IR (KBr, cm-1): (Figure 4q)
Off white colour solid, IR (KBr, cm-1): 3430, 3020, 1720, 1645, 1440, 1330,760, 640.1HNMR (d.-DMSO, 400mHz): 1.4 (d, 12H), 3.8 (q, 2H),5.6 (s, 2H), 7.1 (d, 1H), 7.5-7.6 (m, 5H), 7.8 (m, 2H), 8.4 (d, 1H), 8.83(d, 1H). 13CNMR (d.-DMSO, 400mHz): 21, 55, 77, 107, 121, 123, 124, 124.5, 131, 132, 133, 135, 139, 148, 154, 158, 165.

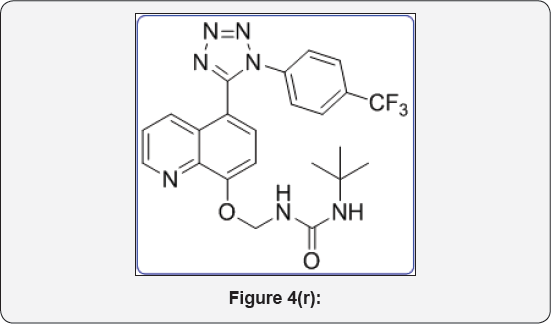

61-(tert-butyl)-3-(((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolin-8-yl)oxy) methyl) urea (11c): IR (KBr, cm-1): (Figure 4r)
White colour solid, IR (KBr, cm'1): 3460, 3040, 1650, 1460, 1380, 680, 620.1HNMR (d.-DMSO, 400mHz): 1.5 (s, 9H), 5.68 (s, 2H), 7.15 (d, 1H), 7.5-7.6 (m, 5H), 7.8 (m, 2H), 8.1 (brs, 1H), 8.43 (d, 1H), 8.84(d, 1H). 13CNMR (d6-DMSO, 400mHz): 30, 58, 76, 108, 122, 123, 124, 124.5, 131.8, 132, 133, 135, 139, 146, 155, 157, 164.
1-Cyclopropyl-3-(((5-(1-(4-(trifluoromethyl)phenyl)- 1H-tetrazol-5-yl)quinolin-8 yl)oxy)methyl)urea (11d): IR (KBr, cm1): (Figure 4s)
pale yellow colour solid , IR (KBr, cm'1): 3510, 3430, 3040, 1650, 1460, 1340, 690, 550. 1HNMR (d.-DMSO, 400mHz) : 0.9 (t, 2H), 1.1 (t, 2H), 2.5 (m, 1H), 5.7 (s, 2H), 3.8 (brs, 1H), 7.15 (d, 1H), 7.5-7.6 (m, 5H), 7.81 (m, 2H), 8.3 (brs, 1H), 8.4 (d, 1H), 8.80(d, 1H). 13CNMR (d.-DMSO, 400mHz): 8, 30, 76, 108, 122, 123.1, 123.5, 124, 125.3, 130.1, 132, 135, 139.1, 149, 155, 157, 164.
1-(4-methoxybenzyl)-3-(((5-(1-(4-(trifluoromethyl) phenyl)-1H-tetrazol-5-yl)quinolin-8-yl)oxy)methyl) urea (11e): (Figure 4t)
White colour solid, IR (KBr, cm-1): 3540, 3430, 3030, 1640, 1440, 1350, 730, .1HNMR (dfi-DMSO, 400mHz): 3.6 (s, 3H), 4.2 (s, 2H), 5.7 (s, 2H), 6.8 (d, 2H), 7.1 (d, 1H), 7.25 (d, 2H), 7.5-7.6 2(m, 5H), 7.83 (m, 2H), 8.25 (brs, 1H), 8.41 (d, 1H), 8.84(d, 1H). 13CNMR (dfi-DMSO, 400mHz): 45, 56, 77, 107.5, 115, 121, 122, 123, 124, 130, 130.5, 130.8, 132.2, 135, 140, 149, 155, 157, 158, 163.
Conclusion
Present research work we have developed a novel route for synthesis of high potential pharmacological carbamate and urea derivatives using conventional and scalable route. We avoid by products in curtius rearrangement by using dry toluene and reactions were executed under argon atmosphere. We avoid hazard reagents like (phosgene and acid chloride methods) for preparation of urea and carbamate derivatives. We employed very easiest method for preparation of urea and carbamate derivatives and avoid side products. We are planning to these derivatives check for biological evolution. The biological evolution details will include next journal.
Acknowledgement
I sincerely thankful to my guide (Dr LK Ravindranath), co-workers, Department of Chemistry, Sri Krishnadevaraya University, (Anantapur, Andhra Pradesh, India ) and Gvk Bio sciences for providing laboratory and analytical facilities.
