Preparation and Characterization of in-Situ Gelling Systems Containing Curcumin Loaded Solid Lipid Nanoparticles for Periodontitis
Pariksha Oberoi1, Joga Singh1, Garima Sharma1, Vishakha Grover2 and Indu Pal Kaur1*
1University Institute of Pharmaceutical Sciences, Chandigarh, India
2Dr. Harvansh Singh Judge Institute of Dental Sciences and Hospital, Panjab University, Chandigarh
Submission:September 17, 2021;Published:September 29, 2021
*Corresponding author:Indu Pal Kaur, UIPS, Panjab University, University Institute of Pharmaceutical Sciences, Panjab University, Chandigarh, India
How to cite this article: Pariksha O, Joga S, Garima S, Vishakha G, Indu Pal K. Preparation and Characterization of in-Situ Gelling Systems Containing Curcumin Loaded Solid Lipid Nanoparticles for Periodontitis. Curr Trends Biomedical Eng & Biosci. 2021; 20(2): 556032. DOI:10.19080/CTBEB.2021.20.556032
Abstract
Local delivery of curcumin (Cmn) in the form of site-specific periodontal formulations can open up newer option for the management of periodontal diseases. Efficacy of such delivery systems is dependent on the sustained release of Cmn from the device in a soluble form and its penetration into the base of the periodontal pocket and adjacent connective tissue. However, Cmn finds limited clinical applications in oral environment due to its poor aqueous solubility, poor permeability, high metabolism, and instability (hydrolytic, enzymatic and photodegradation). Nanotechnology could address these shortfalls of Cmn by allowing its delivery in a solubilized, bioavailable and photostable formulation amenable for periodontal application. Encapsulation of Cmn within solid lipid nanoparticles; SLNs (C-SLNs) in our previous work has shown an increase in its water dispersibility, chemical stability and bioactivity. In the current study, we have prepared in-situ gelling system incorporating C-SLNs using poloxamer 407 as in-situ gelling agent and Carbopol 934 as mucoadhesive agent. The in-situ gelling systems showed a prolonged and sustained release up to 8 days (192h). We also tested antioxidant potential of C-SLNs and compared it with ascorbic acid and raw Cmn using DPPH in-vitro antioxidant assay kinetics. C-SLNs showed higher IC50 with respect to free Cmn solution and also ascorbic acid. At the end of 5 days, IC50 of C-SLNS was 152.12 ± 0.20 mM which was lesser than that of ascorbic acid and Cmn. Kinetic analysis of ascorbic acid, Cmn and C-SLNS also established the superior antioxidant potential of C-SLNS in comparison to ascorbic acid and Cmn. Thus, the present investigation reports the development of a sustained release Cmn loaded solid lipid nanoparticles containing formulation with good antioxidant potential which can be employed as an effective treatment option for periodontitis.
Keywords: Antioxidant potential; Nanoparticles; Kinetics assay; Dental products
Abbreviations: Cmn: Curcumin; COX-2: Cyclooxygenase-2; C-SLNs: Cmn loaded Solid Lipid Nanoparticles; DSC: Differential Scanning Calorimeter; FTIR: Fourier Transform Infra-Red; HPH: High-Pressure Homogenization; HPMC E 5: Hydroxypropyl Methylcellulose E5; I.C 50 : Half-Maximal Inhibitory Concentration; IL: Interleukin; LPS: Lipopolysaccharide; MAPKs: Mitogen-Activated Protein Kinases; NF-κB: Nuclear Factor-Κb; PDI: Polydispersity Index; ROS: Reactive Oxygen Species; TDC: Total Drug Content; TNF-α: Tumor Necrosis Factor-Alpha; TPA : Texture Profile Analysis
Introduction
Periodontitis is a complex chronic immune inflammatory disease stimulated by long-term presence of subgingival periodontopathic biofilm (dental plaque) and is an underlying cause for loss of teeth at an early age. Severe periodontal diseases are estimated to affect nearly 10% of the global population. The red bacterial complex i.e P. gingivalis; T denticola; and T forsythia is responsible for progression of periodontitis. The bacterial lipopolysaccharide (LPS; endotoxin) stimulates immune responses elevating cytokines and other proinflammatory mediators viz. prostaglandins; matrix metalloproteinase (MMP); subsequently causing destruction and loss of periodontal connective tissues including bone [1]. Various research studies have shown that inflammation and oxidative stress are the crucial components in the initiation and progression of periodontitis. Conventional non-surgical/mechanical treatment with adjunct antibiotics (like doxycycline) therapy is reasonably successful [2]. However, antimicrobial resistance; cost and poor patient compliance due to side effects limit the use of antibiotics on a large scale. Cmn; a natural yellow phenolic compound has been extensively researched and successfully applied for the management of many chronic inflammatory diseases. It modulates the inflammatory response by down regulating the activity of cyclooxygenase-2 (COX-2) & lipoxygenase; inhibits the production of inflammatory cytokines e.g.; tumor necrosis factor-alpha (TNF-α); interleukin (IL) -1; -2; -6; -8; and -12; monocyte chemo attractant protein (MCP); and migration inhibitory protein; and modulates the activity of signaling pathways and transcription factors; especially nuclear factor- ΚB (NF- Κ B); activating protein- 1 (AP-1) and mitogen-activated protein kinases (MAPKs) [3-5]. It downregulates reactive oxygen species (ROS) and malondialdehyde but does the reverse on glutathione thus showing antioxidant property. Thus, it can find use in periodontitis due to its ability to inhibit P. gingivalis; Prevotella intermedia; Fusobacterium nucleatum; and Treponema denticola [6]. Researchers have documented its inherent potential in suppression of P. gingivalis homotypic and P gingivalis; S gordonii heterotypic biofilm formation mediated mainly through inhibition of bacterial quorum sensing systems [7]. Cmn is well known inhibitor of bacterial LPS induced cytokine expression. Further it is a promotor for collagen production and fibroblastic cell numbers [8]. However, Cmn finds limited clinical in oral environment applications due to its poor aqueous solubility; permeability; high metabolism; and instability in the physiological system as well as on storage. Nanotechnology could address these shortfalls of Cmn by allowing its delivery in a solubilized; bioavailable and photostable formulation. Encapsulation within SLNs developed previously in our lab has addressed the above-mentioned pit falls associated with Cmn [9]. In this study we propose to design suitable formulations by incorporating lyophilized Cmn loaded solid lipid nanoparticles to form a in-situ gelling system for periodontal application. Further the antioxidant potential of Cmn loaded solid lipid nanoparticles is evaluated so as it can be used in management of periodontitis.
Materials and Methods
Materials
Cmn extract (95%) was a kind gift from Sunpure Extract Pvt Ltd.; India; Compritol® 888 ATO was a gift sample from Gattefosse;France; and Phospholipon 90 G (soya lecithin) was gifted by Lipoid; Germany. Carbopol 934 was procured from Loba Chemie laboratory reagents and fine chemicals. Poloxamer 407 was gifted by BASF, Germany. Hydroxypropyl methylcellulose (HPMC E 5) was procured from Hyashibara Chemical; Mumbai; India. Pectin was procured from Herbstreith & Fox KG. Eudragit L 100 was procured from Evonik Industries, Germany. Sodium alginate and calcium chloride fused were procured from Central drug house, New Delhi. All reagents used in the research work were of analytical standard grade.
Methods

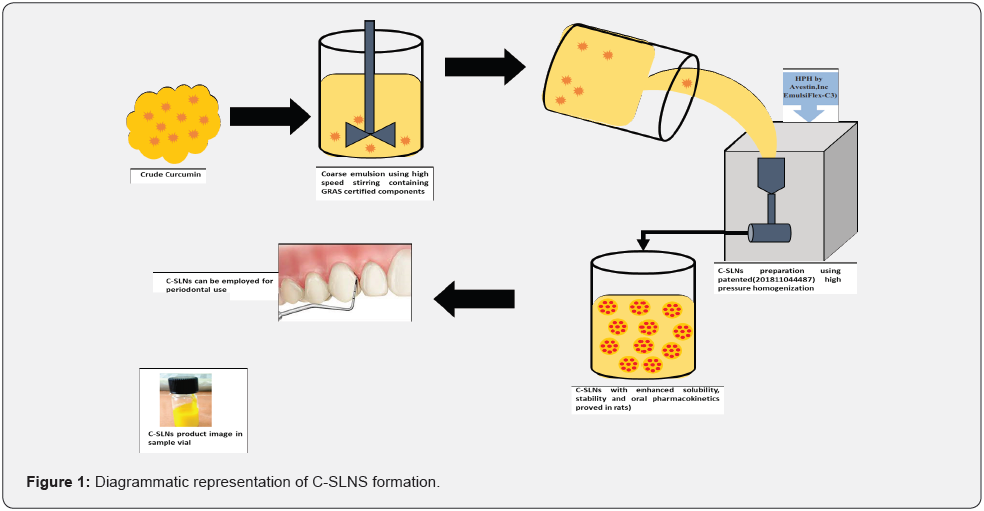

Preparation of Cmn loaded solid lipid nanoparticles (C-SLNs): Cmn SLNs were prepared using pre optimized formula by high pressure hot homogenization technique as shown in (Figure 1) [9;10]. Cmn (0.6% w/w in the final formulation) was dissolved in polyethylene glycol (PEG) 600 followed by addition of molten Compritol ® 888 ATO. A primary crude emulsion was prepared by emulsifying this hot lipid phase with the aqueous surfactant phase containing Tween 80 and Phospholipon 90G (soya lecithin) maintained at a temperature 5-10°C above melting point of Compritol® 888 ATO (70°C to 75°C) using high-speed stirrer (Wise Tis HD 15D; Germany) at 8;000 rpm for 8 min. The coarse emulsion was subjected to high-pressure homogenization (HPH) using Emulsiflex C3 Avestin (Canada) homogenizer at 1000 bars and three cycles. The dispersion thus obtained was allowed to cool to room temperature, forming lipid nanoparticles by recrystallization of the hot dispersed lipid.
Lyophilization of prepared C-SLNs: The prepared C-SLNs were weighed; and mannitol was added (15% w/w) to it as a cryoprotectant. The mixture was frozen overnight and then lyophilized for 2 cycles in lyophilizer (Alpha 2-4 LD plus) to obtain dry and free flowing C-SLNs as diagrammatically represented in (Figure 2).
Preparation of in-situ gelling system: Carbopol–poloxamer gel of C-SLNs was prepared by the cold method [11]. Carbopol 934 was first dissolved in deionized water over a magnetic stirrer at room temperature. Following complete dissolution; the solution was cooled in an ice bath and poloxamer 407 was added slowly to it with continuous stirring. The mixture was refrigerated at 4oC for 24 h to ensure complete wetting/ solution and removal of entrapped air bubbles. lyophilized C-SLNS were added in small increments to the prepared polymer solution and mixed under high-speed stirring (WiseTis HD 15D; Germany) at 5000 rpm for 10 minutes. The scheme is represented in (Figure 3). The prepared gel was transferred into amber bottles and stored in refrigerator.
Spectrophotometric method for Cmn analysis: Standard plot of Cmn was prepared by validated method previously used in our lab [9]. Stock solution of 100ug/ml of Cmn was prepared (n=6) in in methanol:water (1:1). and diluted to obtain concentrations ranging from 1.0μg/ml to 7.0 μg/ml, which were then analyzed spectrophotometrically at λ max of 425nm using methanol: water (1:1) as blank. The observed absorbance was plotted against corresponding concentration to obtain a straight line. The extinction coefficient; E1%1cm of Cmn was then calculated.
Characterization of prepared in-situ gelling systems
Determination of drug assay (total drug content [TDC]): A weighed amount of the gel was dissolved in 10 mL methanol. The solution was then analyzed at a wavelength of 425 nm spectrophotometrically and methanol was kept as blank. Total drug content in the formulation was calculated using below mentioned equation:
Particle size and polydispersity index (PDI): The mean particle size and PDI of in-situ gelling system (n=6) analysis was carried out after diluting the samples (100 times) with double distilled water. Instrument for analysis was DelsaTM Nano C Particle Analyzer (Beckman Coulter; USA).
Determination of pH: The pH of in-situ gelling system was determined using a calibrated pH meter at 4°C. The readings were taken for an average of 6 samples.
Syringe ability study: The ability of the prepared formulations to flow easily through a syringe of 21-gauge needle was assessed using the reported method [12]. One ml of the cold gel was filled in 21-gauge needle syringe and the ability of the gel to flow under normal handling pressure was assessed.
Gelation temperature: For the measurement of gelation temperature; 10 ml sample was taken and placed in 20 ml beaker. A magnetic stirring bar was placed in the beaker. The temperature of the sample was increased gradually at the rate of 1°C /min and the temperature at which the movement of the magnetic bar was hindered was recorded as the gelation temperature [13]. Alternatively, the gelation temperature was also determined using the test-tube inverting method. A volume of 2 ml of the insitu gel was placed in a test tube, which was then immersed in a water bath at 15°C. The temperature of the water bath was then gradually increased; samples were examined every 2minutes; and the gelation temperature was recorded when the gel stops flowing upon test tube inversion at 90°. The readings were taken for an average of 6 samples [14].
Texture analysis of in-situ gelling system: The mechanical property of in-situ gelling system was determined using a software-controlled penetrometer; texture analyzer (Stable Micro systems; Surrey; UK). The formulation was transferred to a bottle and kept in an ultrasonic water bath to remove air bubbles for 20min and the temperature was adjusted to 37°C. The probe was compressed into the CSLN in situ gel at a defined rate of 2mm s-1. Various mechanical parameters such as hardness; compressibility; adhesiveness; and cohesiveness of the gel formulation were estimated.
Rheological evaluation: The rheological properties of prepared in-situ gelling systems were measured using Rotational Rheometer (Model Rheolab QC from Anton Paar; Austria).
Differential scanning calorimeter (DSC): DSC thermograms of Cmn; lyophilized C-SLNS; prepared in-situ gelling system and blank gel were taken using Q20 differential scanning calorimeter instrument. Hermetic pans were used for analysis that was heated at a rate of 10°C/min covering the range of 30 to 300°C. This analysis is carried out in nitrogen atmosphere.
Fourier transform infra-red (FTIR): FTIR spectra of Cmn; lyophilized C-SLNS; prepared in-situ gelling system and blank gel were taken using KBr pellet technique. Instrument used was 60MHz Varian EM 360 (Perkin Elmer; USA). The peaks obtained after the sample run were evaluaed for any significant changes.
In vitro drug release: One ml of gel was filled in dialysis bag which was then tied from both ends. Bag was then suspended in 50 ml of methanol: water (1:1) preheated at 37 ± 0.5°C in shaking water bath at maintained 37°C and 80rpm. At predetermined time intervals, 2 mL sample was withdrawn and replaced with an equal volume of fresh medium. Samples were diluted and analysed using an UV spectrophotometer for Cmn concentration at λ max 425 nm. The cumulative amount of drug released was calculated based on a calibration curve of Cmn in methanol: water (1:1). All experiments were done in hex plicates.
DPPH in vitro antioxidant assay kinetics
DPPH calibration curve: A stock solution of 2.54 × 10- 2mM of DPPH (2; 2-diphenyl-1-picrylhydrazyl) was prepared; and serial dilutions were made to obtain six dilutions with concentrations of 1.27 × 10−2; 6.35 × 10−3; 3.18 × 10−3; 1.59 × 10−3; 7.95 × 10−4; and 3.98 × 10−4mM. The absorbance of the various concentrations was measured at a wavelength of 517 nm; being the wavelength of maximum absorbance using a UV−vis spectrophotometer; subsequently generating a graph of absorbance against concentration (calibration curve); where the slope of the graph represents the molar absorptivity (ε ) of DPPH according to the Beer−Lambert law.
DPPH scavenging activity: The antioxidant potential of Cmn; ascorbic acid and C-SLNS was determined based on their ability to scavenge the stable DPPH free radical adopting the methods o [15] with modifications. Stock solutions of Cmn; ascorbic acid and C-SLNS were prepared to obtain a concentration of 1000μg/mL. Dilutions were made to obtain concentrations ranging from 10- 1000μg/mL; 2 mL of each of these dilutions were mixed with 2 mL of methanol solution of DPPH at a concentration of 0.0254 mM. The mixture was then vigorously shaken and allowed to stand in the dark at room temperature. The absorbance of the mixture was measured at various time intervals at 517 nm with a mixture of methanol and DPPH solution used as control. The absorbance results were obtained in triplicate; and the average values were used as the actual absorbance. The scavenging activity of the DPPH radical can be expressed as inhibition percentage using the following equation according to [15].
where AB is the absorbance of the control (containing all reagents except the test compound); and AS is the absorbance of the mixture with the test compound. The IC50 value of the samples; which is the concentration of a sample required to inhibit 50% of the DPPH free radical; was calculated from the graph of percentage inhibition against extract concentrations.
Kinetic analysis: At different time intervals; the concentrations of the DPPH radical in the mixture samples were calculated using the Beer−Lambert law
Integration method
Then an integrated form of this type of second-order reaction rate equation was applied to the experimental results.
where {DPPH}0 and {DPPH}t are the DPPH concentrations at time zero and any time “t”; respectively. A plot of 1/{DPPH}t against time gives a slope k2.
Isolation method
This may be applied to the kinetics of scavenging the free radical; DPPH; by a pseudo-first order means. This method of obtaining the kinetics of antioxidant activity was adapted from [16] using DPPH and antioxidant concentrations of the mixture samples.
The second-order rate constant (k2) was determined by having the concentration of the antioxidant; {antioxidant}; to be in large excess compared to the concentration of the radical compound {DPPH}. This forces the reaction to vary only with the concentration of DPPH.
Where; k1=k2{antioxidant}
{antioxidant} is assumed to remain constant throughout the reaction and can be modified to obtain different k1 values. The change in {DPPH} with time gives k1. Determination of k1 was repeated at different antioxidant concentrations for each of the samples; and the mean gave the overall k1. We can; therefore; infer that DPPH was depleted from the medium under pseudo-firstorder conditions according to the following equation:
where {DPPH}t represents radical concentration at any time (t); {DPPH}0 corresponds to concentration at time zero; and k1 is a constant for pseudo-first-order rate. This rate constant (k1) is linearly dependent on the concentration of the antioxidant; and from the slope of these plots; k2 was determined.
Results and Discussion
Formulation development of in-situ gelling systems
In-situ gel-forming formulations help deliver drugs as a liquid dosage form; which then form strong gels after application at delivery site; thus, prolonging the residence time of the active substance [17]. Amongst in-situ gelling polymers; thermosensitive systems containing poloxamer have been investigated as a convenient dosage form for application into periodontal pocket [18]. Furthermore, semisolid formulations consisting of mucoadhesive polymers such as sodium alginate; polycarbophil; hydroxypropyl cellulose; polyvinylpyrrolidone; and carbopol have been proposedto improve the intimacy of contact and increase the residence time of the dosage form in the periodontal pocket. Based on these observations we chose poloxamer 407 and carbopol 934 presently for the proposed situ gelling system. Various formulations of in situ gelling systems were prepared in lab incorporating 40g of lyophilized C-SLNS (equivalent to approx 6mg per ml of Cmn/6mg per g of gel). The formulations were contained poloxamer 407 ranging from 5-30% and carbopol 934 ranging from 0.25-1% (Table1; Figure 4,5,6). Characterization of the developed in-situ gelling systems was done in terms of release behavior; physical stability; viscosity; and syringe ability to identify the most suitable formulation Formulatin F1 and F2 were very viscous and exhibited poor syringe ability (Table 2). Further negligible amount of Cmn was released from them in initial 4-5 h (they exhibited a lag period of > 4-5 h). In contrast formulations F3, F4 and F5 showed optimum viscosity; were easily syringe able and showed good release characteristics. Formulation F4 showed sustained release up to 8 days whereas formulation F3 and F5 did not exhibit sustained release.
Spectrophotometric method for Cmn analysis

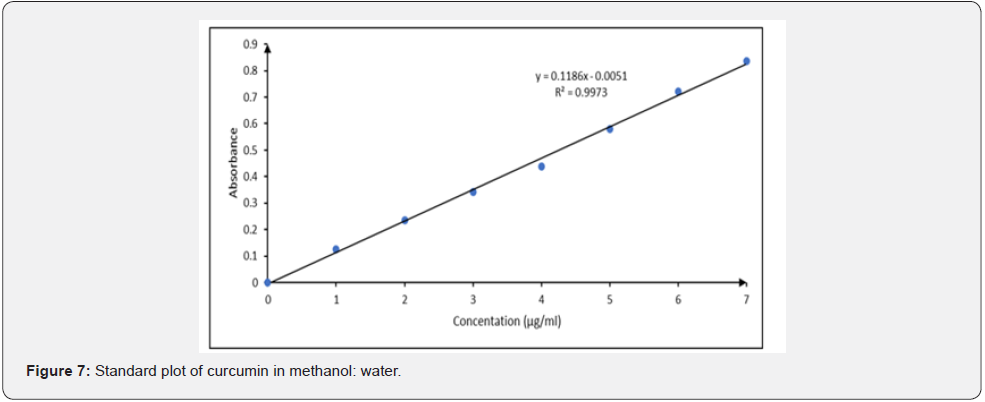

Cmn was spectrophotometrically analysed at λ max of 425nm and a standard curve (Figure 7) of Cmn was prepared in the range of 1-7 μg/mL in agreement with Beer-Lambert’s Law (Table 3).
Characterization of prepared in-situ gelling systems

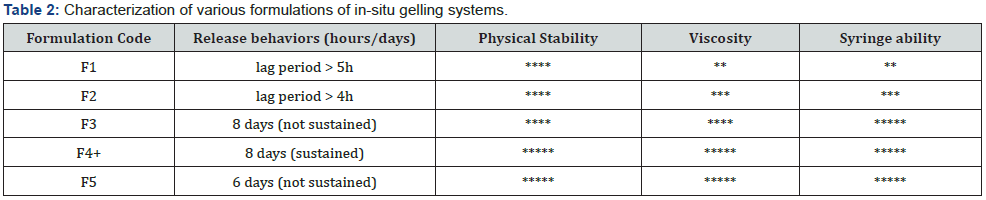

Determination of drug assay (total drug content [TDC]): The TDC of in-situ gelling system was found to be 5.82 ± 0.14 mg/ ml (97.00±0.01%) (n=6).
*****Good stability/less viscosity/easily syringeable, *least stability/high viscosity/difficult to syringe, +Most optimum formulation. Based on the characterization tests described above in Table 2, formulation F4 was selected for further development.

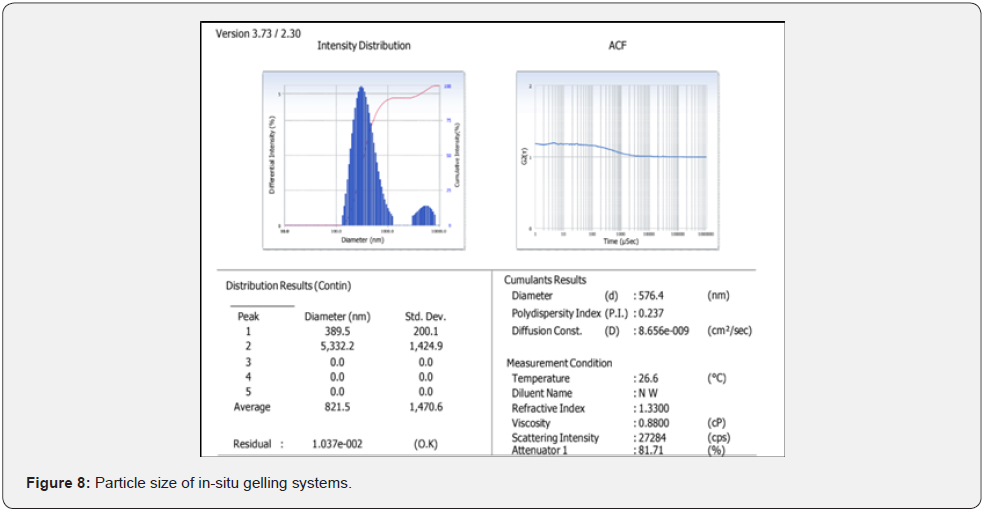

Particle size and polydispersity index (PDI) analysis: The average particle size of C-SLNs was 576.4 ± 45.1 nm and a significantly low PDI of 0.237 ± 0.026 was observed (n=6; Figure 8). A low PDI indicates a uniform distribution of particles around the mean.
Determination of pH: The pH of in-situ gelling system was 7.2±0.5 (n=6). Cmn is unstable at acidic and alkaline pH and the optimal pH should be between 6.2 to 7.4. The pH of in situ gel formulation should be such that Cmn is stable at that pH and at the same time patient should not experience any irritation or discomfort upon application. The developed in-situ gel formulations showed an optimal pH.
Syringeability study: The gelling system was syringe able and passed with ease through 24-gauge needle at 4°C.

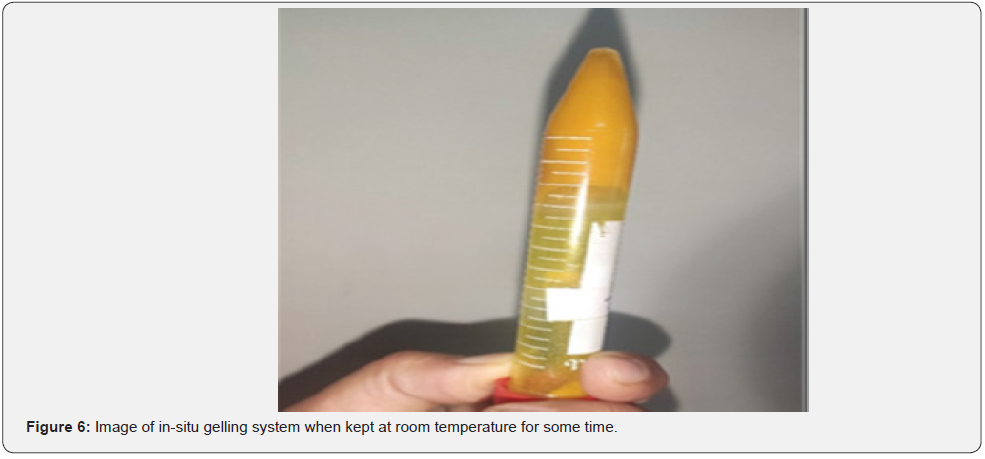

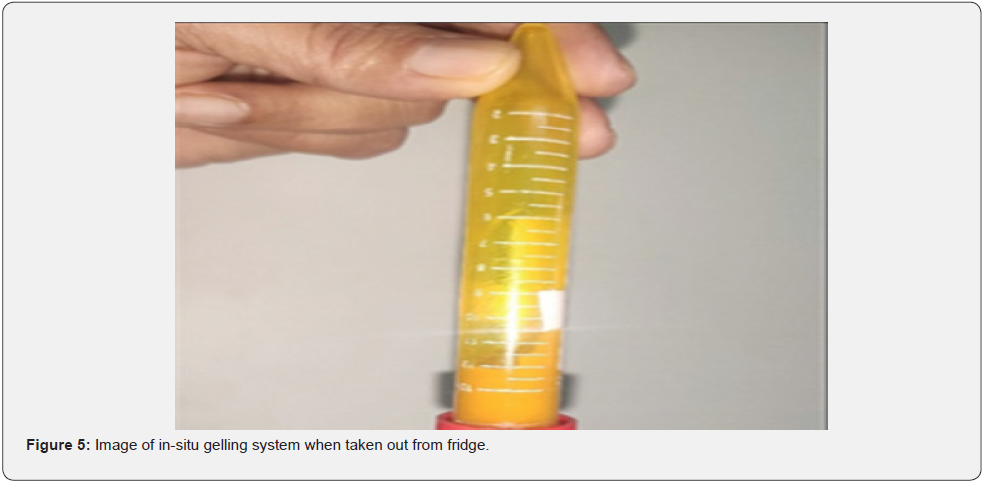

Gelation temperature: Gelation temperature of the formulation indicates the temperature at which the formulation undergoes phase conversion from liquid to solid. The gelation temperature of the prepared optimal formulation 32±0.9°C (magnetic bead method) and 34±0.6°C (inverted test tube method).

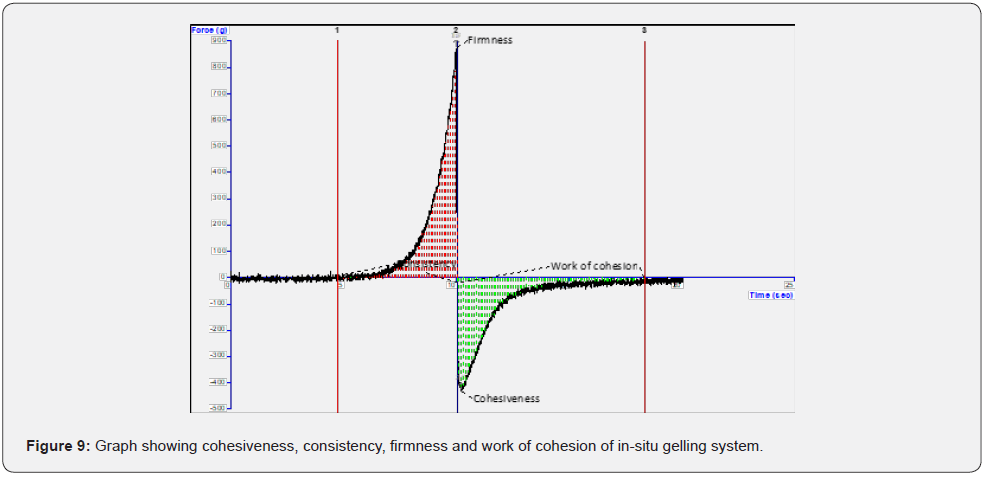

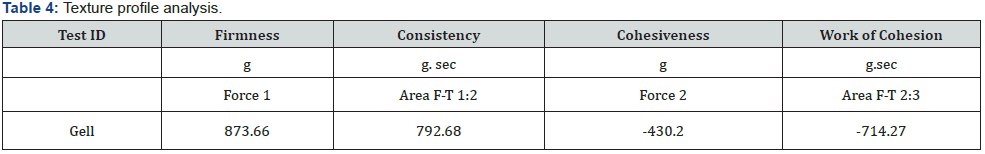

Texture analysis of in-situ gelling system: Texture profile analysis (TPA) is used to evaluate mechanical properties of the developed formulation i.e., in-situ gel. It tells about the physical structure of the formed gel. Basically, it predicts the behavior of the sample when placed under varied storage and physiological conditions. Various parameters viz; compressibility; hardness; adhesiveness; and elasticity can be determined using TPA. The altitude of the first peak in the graph is indicative of hardness value which is basically the force required to attain a given level of deformity. It is represented as positive peak in the graph; and it talks about the applicability of the gel to the application site. In general, more is the hardness value of the sample; better will be its consistency. As a rule, hardness increases on increase in the polymer concentration. The maximum force attained on the graph is a measure of the firmness of the sample at the specified depth (hardness). The maximum negative force was taken as an indication of the stickiness/cohesiveness of the sample. The work required to deform the gel in down movement of probe indicates cohesiveness. The adhesiveness of the sample is defined as amount of work required to surpass the attractive forces prevalent in-between the surfaces of the sample and the contacting surface of the probe. Hardness of the optimized formulation was 873.66 g (Table 4; Figure 9). It represents a negative peak in the graph and highlights the proper contact to the application site. It is indicative of enhanced bioavailability of the drug formulation. Adhesiveness value of the optimized formulation form the TPA analysis came out to be -714.27 g. sec (Table 4; Figure 9).
Rheological evaluation: Developed optimal gel formulation showed characteristic pseudoplastic flow with thixotropy. The analysis showed shear thinning phenomenon, which is good for the developed periodontal gel (Figure 10). This characteristic behavior allows the molecules present in the sample to remain entangled in the immobilized solvent. When shear is applied; the molecules disengaged themselves and get aligned into the direction of the flow. This results in lesser resistance to the flow and allows the release of entrapped water which corresponds to the lower viscosity of the developed system. The analysis proved that there was decrease in viscosity with increase of shear rate which is the characteristic feature of the non-Newtonian pseudoplastic behavior. The viscosity of in situ gelling system was 241000000 mPa·s at 37°C.

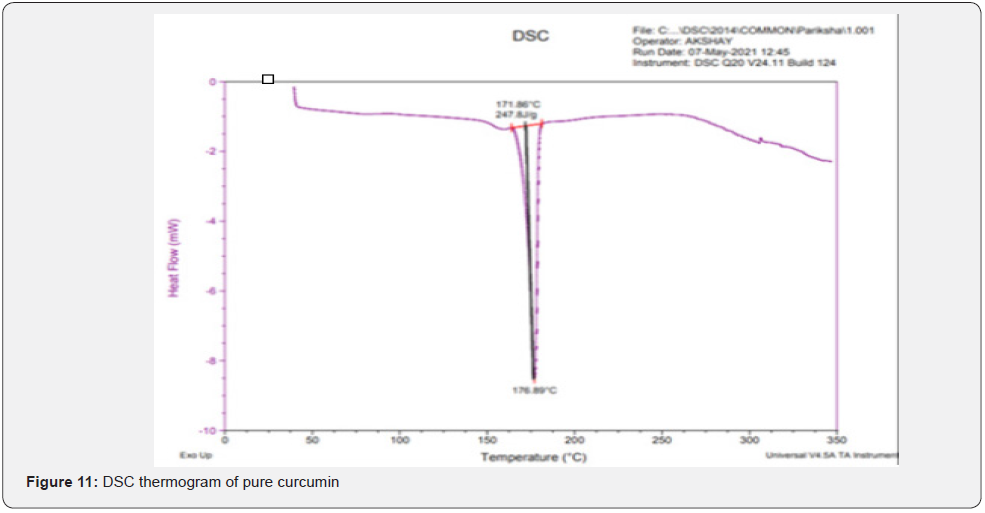

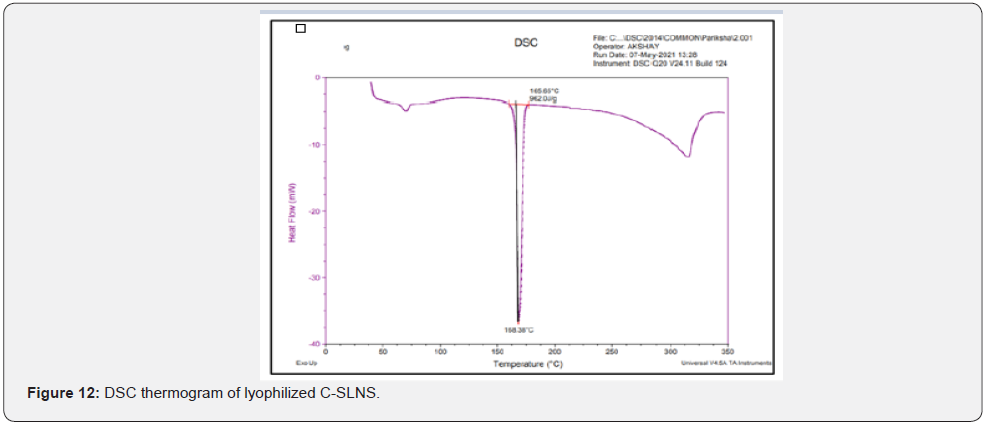

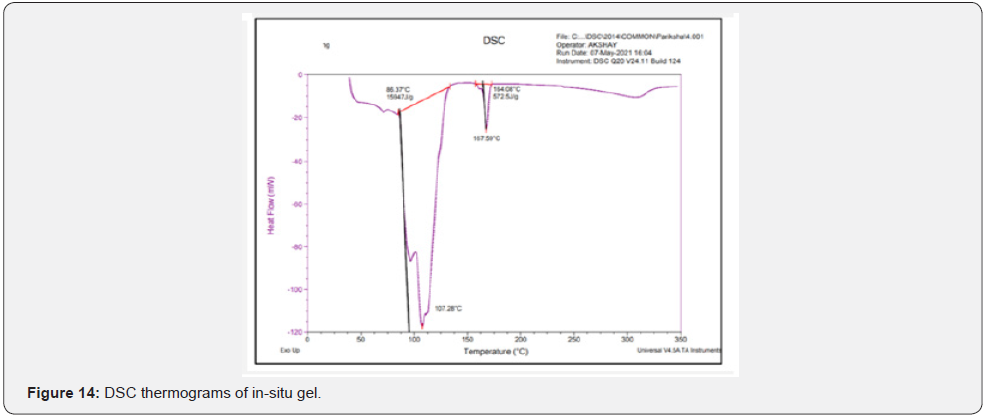

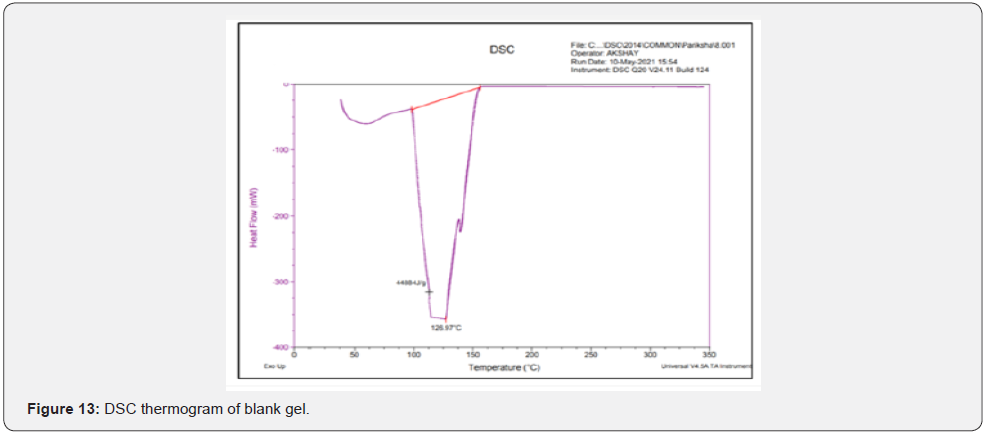

Differential scanning calorimeter (DSC): DSC is a thermoanalytical technique which is based on the principle for the differences in the amount of heat required to keep sample as well as reference standard at same temperature. The reading is noted as the function of temperature and time. In case of pure Cmn (Figure 11); a melting endotherm appeared at 176.89°C (247.8 J/g) corresponding to its melting point at 180-183°C. In case of lyophilized C-SLNs and the corresponding gel; the peak shifted to a lower temperature of 168.38°C and 167.59°C; respectively. Since, melting endotherm of Cmn in all these thermograms were in a close range; so it is concluded that the drug remains in the same state; in lyophilized C-SLNs and in the in-situ gelling system formulation and there is no interaction with polymers used in the formulation of latter (Figure 12-14).

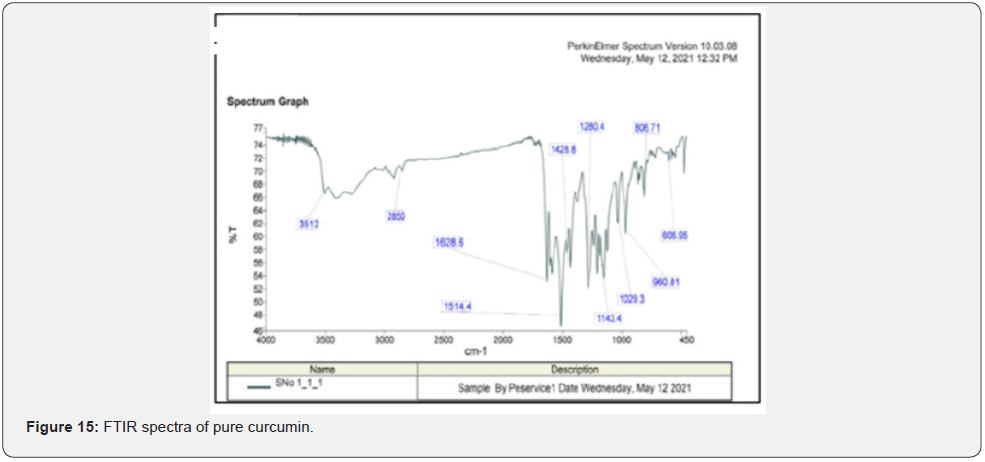

Fourier transform infra-red (FTIR) studies: FTIR spectra for pure Cmn; lyophilized C-SLNs; blank gel and in-situ gelling system are depicted in (Figure 15-18). For Cmn (Figure 15); the sharp peak at 3512 cm-attributes to the phenolic O-H stretching vibration. The bands at 1628.60 cm-1and 1514.40 cm-1 are related to carbonyl group C = O and stretching vibrations of the benzene ring: respectively. The bands at 1428.80 cm−1 are related to olefinic bending vibration of C–H bound to the benzene ring of Cmn. The bands at 1280.40 cm-1are due to aromatic C = O stretching. The 1514.4 cm-1ring peak is assigned to the (C=O); while enol C-O peak was obtained at 1280.40 cm-1; C-O-C stretching vibrations at 1029.30 cm-1 and benzoate trans-CH vibration at 960.81 cm-1. Further, absence of characteristic peaks of Cmn in the IR spectrum of the lyophilized C-SLNs (Figure 16); indicate encapsulation of Cmn in the SLNs. Observation of broad absorption peak of OH at 3287.18 cm-1in the FTIR spectrum of CSLNs (Figure 16) suggest that this peak is due to PEG 600 as also reported. IR spectrum of poloxamer 407 is characterized by principal absorption peaks at 2926.87 cm–1 (C H stretch aliphatic); 1298.30 cm-1(in plane O H bend); and 1095.53 cm-1(C O stretch) shown in (Figure 17). IR spectrum of Carbopol 934 is characterized by principal absorption peaks at 2926.87 cm-1(O H stretching); 1644.84 cm-1(carboxyl group) shown in (Figure 17). The interaction between the drug and the polymers often leads to identifiable changes in the FTIR profile of solid systems. The spectrum of in-situgelling system was equivalent to the spectrum of pure drug, indicating no interaction.
In vitro drug release: The release media for Cmn was selected keeping in mind its insoluble nature and tendency towards degradation in buffer solution. Cmn showed good solubility in methanol; so different proportions of methanol was mixed with solutions buffered to a pH ranging from 6.6-6.8 (as of gingival fluid). However, methanol precipitated electrolytes from the buffers. Further on trying with ethanol, electrolytes won’t get precipitated; but Cmn gets degraded in this buffer solution. Hence ratio of methanol: water (1:1) was finalized as the release media. Different concentrations of methanol (10-50%) were tested prior to finalization but it was found that 50% in water was sufficient for Cmn dissolution and maintenance of sink conditions. The drug release from in-situ gelling system is shown below in (Figure 19).

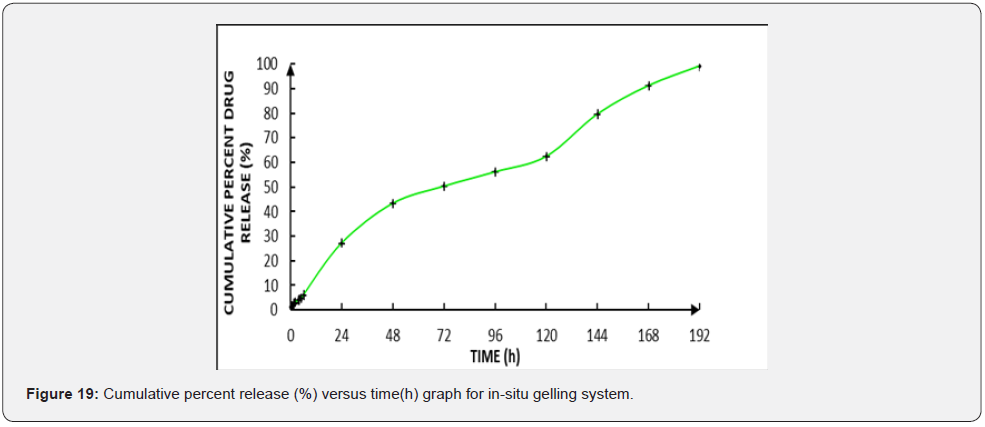

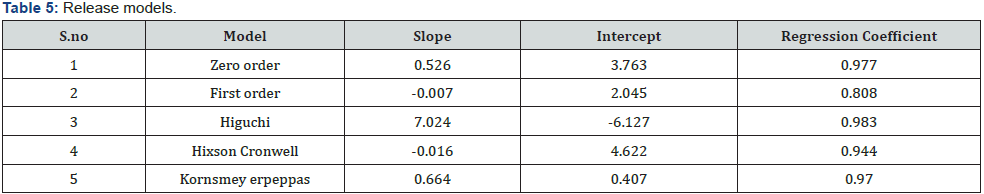

The release from in-situ gelling system extended upto 8 days with 99.182 ± 0.02 % release and followed Higuchi kinetics (Table 5). This type of kinetics is exhibited by matrix type delivery systems wherein the active is uniformly distributed throughout the matrix and is released by diffusion and/or matrix dissolution or erosion [19].
DPPH in vitro antioxidant assay kinetics

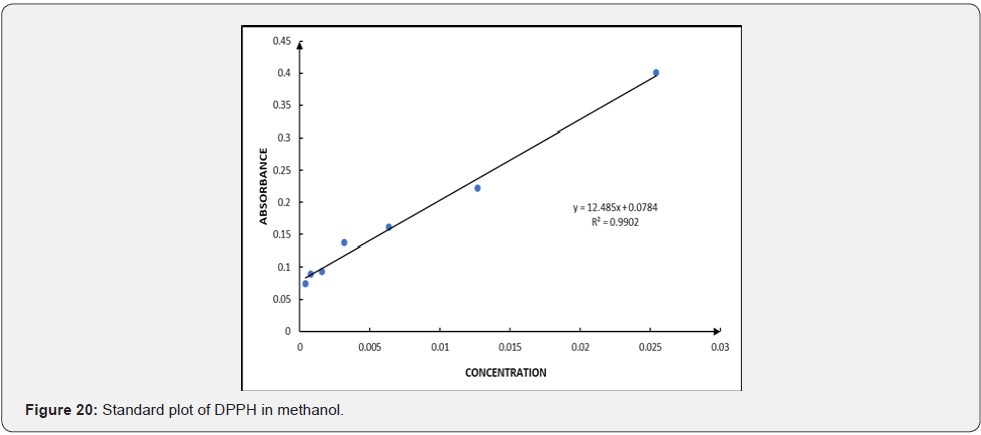

DPPH calibration curve: Absorbance of varying concentrations of DPPH solution at 517 nm was determined to generate a calibration curve; thereby; assigning the molar absorptivity of DPPH (12.485). A linear regression (R2 value) of 0.9902 was obtained from the curve (Figure 20).

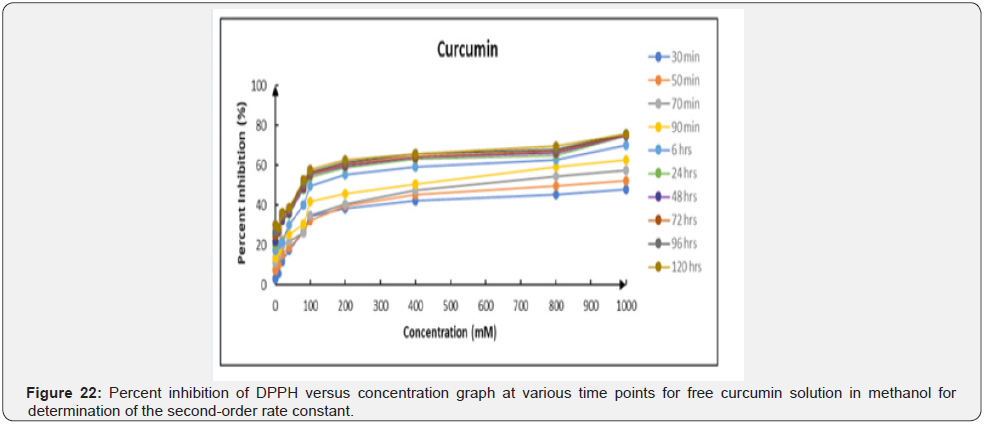

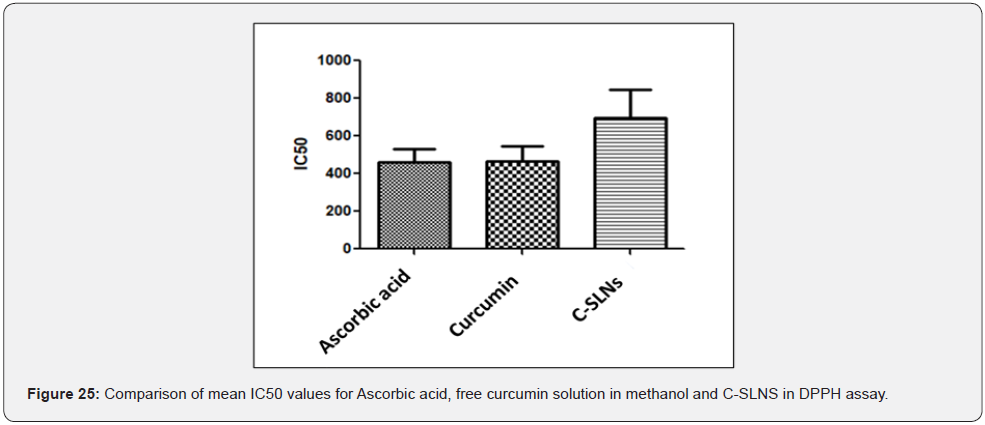

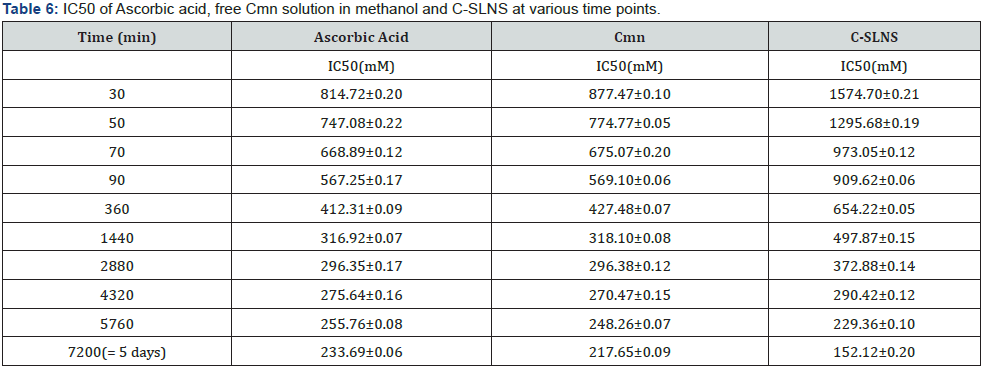

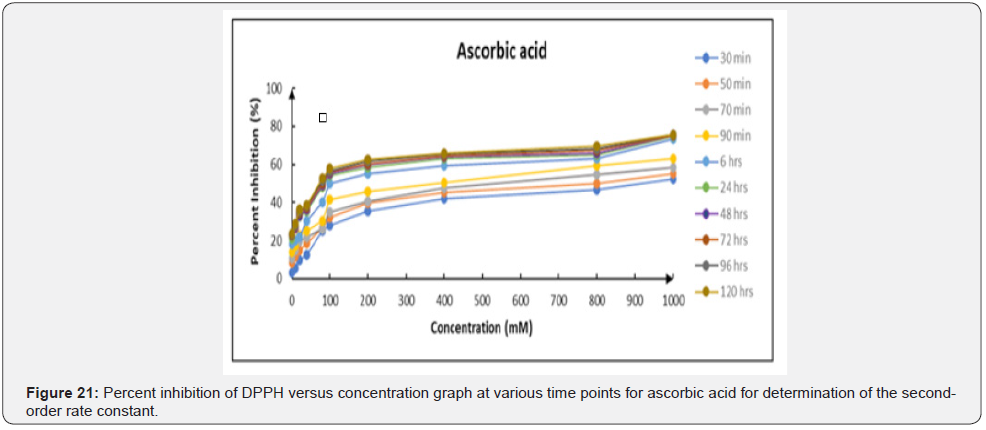

Antioxidant activity: The % inhibition of DPPH by Cmn; ascorbic acid and C-SLNS (Figure 21-23) shows that all three have good inhibition ability at the experimental concentrations, although the inhibition ability of C-SLNS is stronger than that of Cmn and ascorbic acid. IC50 values of C-SLNS; Cmn and ascorbic acid are given and compared in (Table 6; Figure 24). Using one way ANOVA it was found that there was no significant difference in IC50 of ascorbic acid; Cmn and C-SLNS (P<0.05) Figure 25. Although C-SLNs showed arithmetically higher IC50 during initial hours but it effects better than Cmn and ascorbic acid at later stages [20].

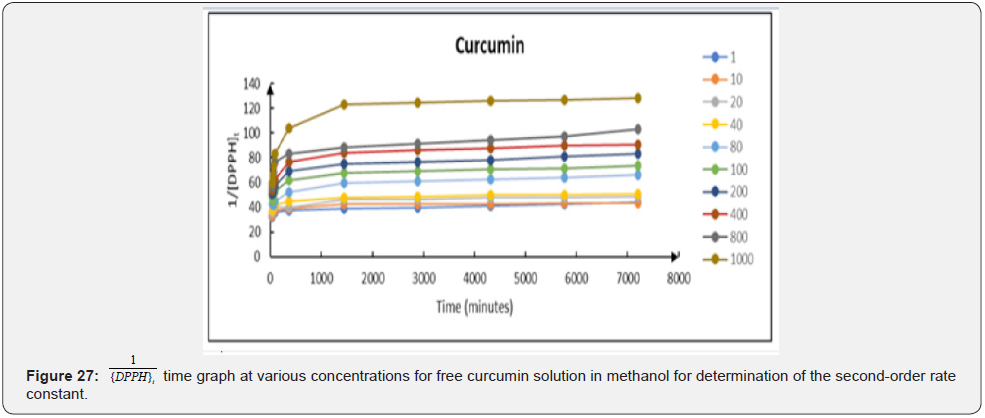

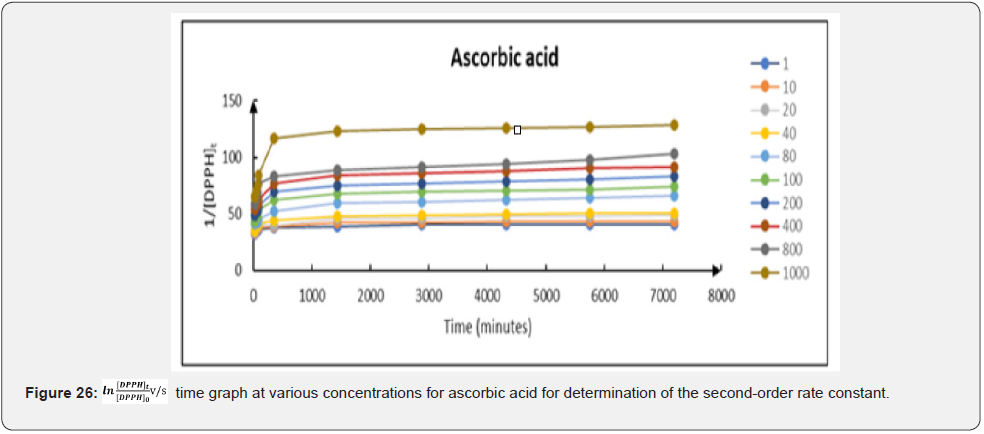

Integration method: The result of the second-order rate constant (k2) of the free radical scavenging activities of ascorbic acid; free Cmn solution in methanol and C-SLNs by the integration method is summarized in (Figure 26-28). This result was obtained from a plot of 1/[DPPH]t vs time. The second-order rate constant; k2; which is depicted by the slope of the plots; was averaged to obtain an overall second-order rate constant of the antioxidant activities of ascorbic acid; free Cmn solution in methanol and C-SLNs. An average k2 of 0.00278; 0.00293 and 0.00392 (mM)-1 min-1 were obtained for ascorbic acid; free Cmn solution in methanol and C-SLNS respectively. This observation of a higher k2 in C-SLNs leads to the inference that C-SLNS scavenges the DPPH radical faster than Cmn and ascorbic acid at the same concentration. The R2 values of the trend lines over all concentrations were averaged to obtain the overall R2 values in each case. The values are 0.6897; 0.7225 and 0.8798 for ascorbic acid; Cmn and C-SLNS respectively.
Isolation method: Different pseudo-first-order rate constants (k1) were obtained according to equation:

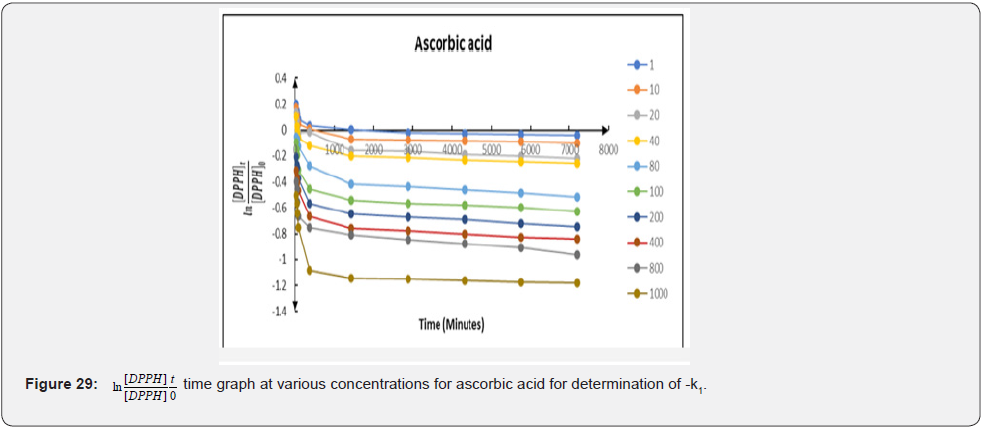

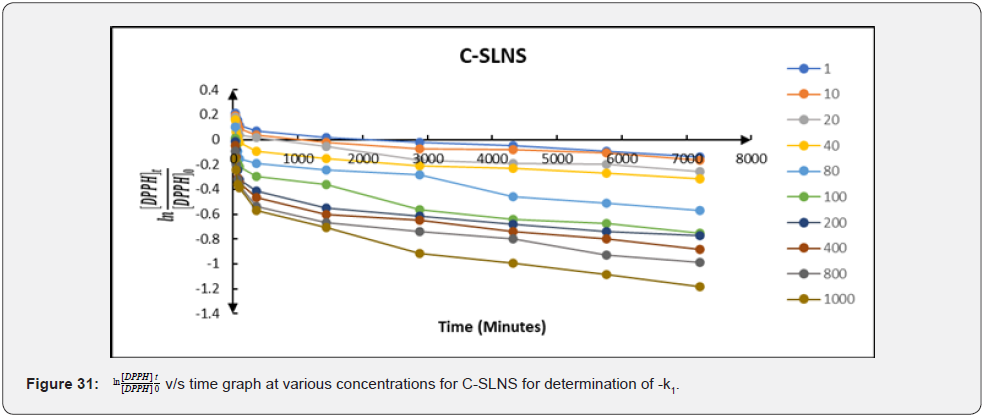

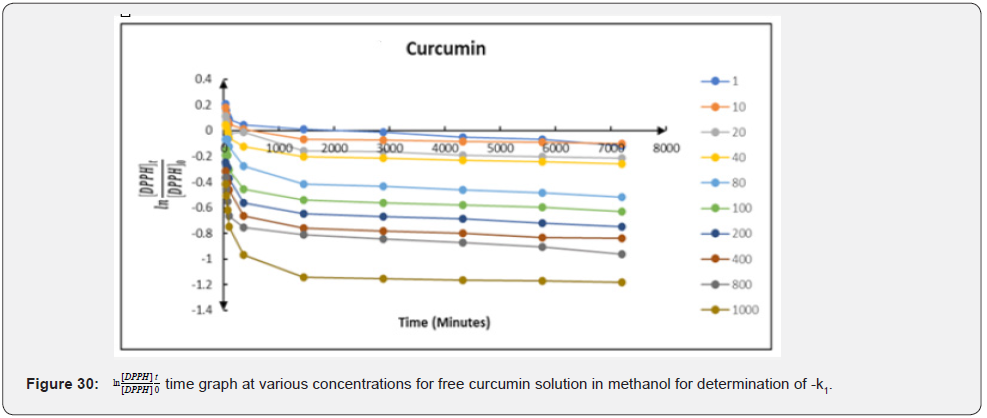

Therefore, a plot of against times (t) gave a slope equal to − k1 (Figure 29-31). The linear relationship between k1 and the concentration of the compounds; k1=k2 (antioxidant) allows us to obtain k2 from the slope of their respective graphs. The secondorder rate constants (k2) obtained from the pseudo-first-order rate reaction are 0.000052; 0.000054 and 0.000073 (mM)-1 min-1 for ascorbic acid; free Cmn solution in methanol and C-SLNS respectively. This observation of a higher k22 in C-SLNS confirmed the inference that C-SLNS scavenges the DPPH radical faster than Cmn and ascorbic acid at the same concentration. The linear regression coefficient (R2) of 0.8228 for C-SLNS revealed that it is more favored in the pseudo-first-order kinetics than ascorbic acid and Cmn with a regression coefficient of 0.6531 and 0.6846 respectively.
Conclusion
Local delivery of Cmn in the form of site-specific periodontal formulations can open newer option for the management of periodontal diseases. Efficacy of such delivery systems is dependent on the sustained release of Cmn from the device in a soluble form and its penetration into the base of the periodontal pocket and adjacent connective tissue. In the study, we have prepared periodontal formulations incorporating C-SLNs a previously established soluble; stable; and bioavailable form of Cmn. In-situ gelling systems showed a prolonged and sustained release up to 8 days (192h). This shows that Cmn has good compatibility with temperature sensitive polymer poloxamer depicting a favorable release profile. Further superior antioxidant potential of C-SLN was established in comparison with free Cm and ascorbic acid. This was evident due to the slow release of Cmn from the SLNs. Thus, the study highlighted the antioxidant action of Cmn in the developed in-situ gelling system that can be exploited in the better management of periodontitis.
Declaration of Competing Interest
There are no conflicts of interest.
Acknowledgement
Joga Singh is supported by the ICMR Senior Research Fellowship; New Delhi (45/78/2018-NAN/BMS). Garima Sharma is funded by DST SERB; CII (New Delhi) and Hitech Formulations Pvt Ltd (Chandigarh); under Prime Minister Fellowship scheme (DST/SSK/SERB-CII-Fell/2014).
