Journal of Biomedical Engineering

Research Article

Tattooing Vaccines Combining Biomedical Engineering for RNA Immunization

Wesley Luzetti Fotoran*, Nicole Kleiber and Gerhard Wunderlich

Department of Parasitology, Institute for Biomedical Sciences, University of Sao Paulo, Brazil

Submission: June 14, 2017; Published: June 27, 2017

*Corresponding author: Wesley Luzetti Fotoran, Department of Parasitology, Institute for Biomedical Sciences, University of Sao Paulo, Avenida Professor Lineu Prestes, 1374, 05508-000, Brazil, Email: wesleylfw@hotmail.com

How to cite this article: Wesley L F, Nicole K, Gerhard W. Tattooing Vaccines Combining Biomedical Engineering for RNA Immunization. Curr Trends Biomedical Eng & Biosci. 2017; 5(3): 555665.DOI: 10.19080/CTBEB.2017.05.555665

Changing the Traditional Muscle Approach to Focus on the Skin

Producing recombinant antigens in GMP grade for vaccine purposes can be very difficult and in general, a time-consuming process [1]. Overcoming these two problems was one of the most important goals of DNA vaccines [2]. Producing and purifying plasmids that encode antigens has many advantages, namely easy storage and high stability [3]. However, there are different roadblocks concerning DNA for use in vaccines.

The main problems regarding DNA vaccines are

The capacity of inadvertedly integrating into the vaccine’s genome and
Low immunogenicity [4].

In order to increase immunogenicity, a different methodology to deliver DNA vaccines was tried [5]. The most common way to deliver DNA vaccines involves muscle cells to generate immune responses [3].To increase immunogenicity and transfection efficiency the use of gene guns or transient electric pulses to amplify the DNA delivery to cells was proposed [6]. A new approach is currently focusing on the delivery of DNA vaccines to skin resident APC cells to elicit a better immune response. The delivery of DNA content is based on tattooing naked plasmid DNA or DNA complexed with polymers using coated micro needles [7,10]. This strategy focuses on monocytes that play a major role in adaptive immunity in the skin but also on professional APCs, leading to an increase inimmune responses. This configuration turns out to greatly improve the effectiveness of DNA vaccines. On another hand, despite the new strategies available, the plasmid DNA still has to be translocated to the nuclei of transfected cells. This drawback apparently can now be overcome with the advent of RNA-based approaches which present themselves as excellent alternatives to plasmid DNA vaccines [11,12].

RNA Vaccines

RNA is the basis of biological life [13]. The RNA molecule is able to not only hold information, but also to be enzymatically active contrasting to DNA, which appears to function mainly as information storage. Next generation vaccines employ RNA to encode antigens against virus, parasites [14] and even cancer [3]. RNA possesses a number of advantages: RNA production is easily scaled up through in vitro production in high purity and is easily modified by molecular cloning. One very convenient aspect of RNA is that when delivered to the cytoplasm it may directly work as an effector molecule triggering antigen translation and therefore enhancing nucleic acid-based immunization. Different RNA vaccines are currently in use. The system deploys RNA, chemically modified or not, composed by a 5’ defined sequence and a 3’ end with a long poly (A) tail containing the gene of interest between these sequences [15]. This construction can be employed in other therapies besides vaccine formulations and has demonstrated effectiveness when administering lower amounts of RNA compared with DNA based approaches. A second construction implemented in RNA vaccines is biologically inspired by RNA viruses. It relies on a long, virus-derived protein-encoding (+) RNA molecule that possesses the ability of self-replicating the original RNA molecules (also termed "replicon") delivered to the cytoplasm [16]. This replication capacity provides waves of antigen production capable of being sustained for 48 hours with subsequent decrease triggered by Interferon gamma responses [17]. There are many RNA viruses potentially useful as RNA vaccines and it can be expected that this field in vaccine technology may grow exponentially in the near future. The replicon RNA can partially overcome the most crucial complications of RNA strategies, namely the instability of these molecules to environmental RNAses and the commonly short half-life of RNA molecules.

Combining Biomedical Engineering with RNA Vaccines

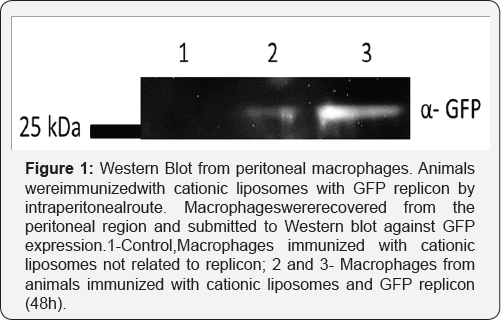

For many years, biomedical engineering was a technological approach to improve bioavailability of drugs and stabilize compounds with the benefit of decreasing the unwanted side effects of bioactive molecules [18]. For RNA vaccines, biomedical engineering might be a useful tool, especially considering liposome applications. Liposomes are bilamellar lipids structures that can provide a hydrophilic core for RNA loading, creating functional particles that protect RNA from degradation and increase their stability [19]. The composition of the lipids can be changed, allowing the creation of a cationic vesicle that functions as an effective transfecting particle. Finally, liposomes are naturally phagocytosed by monocytes, particularly macrophages that initialize adaptive immune responses [20]. Combining these features with a proper way of immunization might generate better effects than DNA immunization itself. DNA vaccines carried out by liposomes that focus the delivery to peritoneal macrophages can inducea strong humoral response against malarial antigens (in revision, our group). The use of RNA replicons for producing GFP instead of pDNA encoding GFPis depicted on Figure 1. Peritoneal macrophages were used as a target and these strongly produce reporter protein, an effect not observed when transfecting DNA. Transfection of RNA complexes inside liposomes generated successful results in various strategies for RNA with [21] or without the replication features aforementioned [22]. Additionally, skin immunization achieves monocyte transfection by liposomes with potentially transfection of epithelial cells sustaining antigen production for natural drainage to lymph nodes, as shown in Figure 2. The combination of skin tattooing or immunization using microneedles with versatile RNA combined with nanoparticles, e.g. liposomes, can provide an exciting future for vaccines and other therapeutic approaches as biomarkers [23,24].
