Viability of Optical Scanning Techniques for Digitization of Lower Limbs
A Horta1,3, M Borges1,4, M Volpini1* and P Reis1,2
1Oh Lab, Associando Mineira de Reabilitafdo, Belo Horizonte, Brazil
2Universidade Federal de Minas Gerais, Department of Industrial Engineering, Brazil
3Universidade do Estado de Minas Gerais, Escola de Design, Brazil
4Universidade do Federal de Minas Gerais, Department of Electrical Engineering, Brazil
Submission: May 20, 2017; Published: June 14, 2017
*Corresponding author: M Volpini, Oh Lab, Associafào Mineira de Reabilitafào, Belo Horizonte, Brazil, Email: marivolpini@yahoo.com.br
How to cite this article: A Horta, M Borges, M Volpini, P Reis. Viability of Optical Scanning Techniques for Digitization of Lower Limbs. Curr Trends Biomedical Eng & Biosci. 2017; 5(2): 555659. DOI: 10.19080/CTBEB.2017.05.555659.
Abstract
When it comes to the development of customized orthopedic products that fit the patient's anatomy the measurement capture method is a constant challenge. Therefore, the measuring instrument must have high accuracy. Considering this context, the three-dimensional digitization methods are helpful tools for the capture of complex measurements and geometries. The advantages and limitations of each scanning method will determine the fidelity in data capture and the dimensional singularities of the object to be scanned. This paper aims to validate and determine the precision of optical scanning tools in support of orthopedics. They were evaluated here as digitization techniques of photogrammetry and structured light for the representation of the patient's anatomy. As result a comparative study between the dimensional deviation of the digital 3D models and the actual limb is made. The obtained results evidenced greater dimensional and geometric fidelity of the digital model generated by scanning through structured light.
Keywords: Scanning methods, photogrammetry, structured light, orthopedic devices
Introduction
Aiming the proper development of customized orthopedic products, the anatomy of the patient's limb is a fundamental factor for the correct functioning and suitability of the device to be developed [1]. The dimensions and geometry of the model that will serve as reference for the manufacture of the device must be measured with a high accuracy, making the device personalized and more efficient for the treatment and adhesion of the patient [1,2].
In this context of high metrological complexity, the computational models obtained from three- dimensional scanning devices prove to be of a high-impact in terms of assistance in preoperative planning, conceptual communication among physicians and support for the development of personalized devices such as orthotics and prostheses [3,4]. The accuracy achieved by the models produced by threedimensional technologies is determined by the data acquisition devices, varying according to the scanning objectives and the environment to which the scanning is performed [5].
The evolution of optical technology has allowed accurate and detailed reconstruction of the geometry of real objects to become a more common and simplified process. Understanding the processes of acquisition of the virtual model by optical technologies, its limitations, advantages and disadvantages, is essential to guarantee the efficiency of the process [6]. In order to assess the quality of the digital models generated by optical scanning technologies, this study seeks to compare the scanning methods by Photogrammetry and Structured Light. The central objective is to test the feasibility of two optical scanning methods for the production of orthopedic devices through the dimensional fidelity analysis of the patient's limb.
Experimental procedure
For the accomplishment of this study the object of the scanning was the morphology of the foot of an adult male. The scanning was done respecting favorable conditions, compatible with the equipment of digitization used. Tendon and points of bone prominence were used to analyze and compare the dimensions and geometry of the foot. The marks were placed on the first and fifth metatarsals and on the medial and lateral malleolus. The object of study, as well as the layout of the marks can be visualized in Figure 1.
The models generated by the scanning methods will be evaluated according to six dimensional indicators, which are: the distance between the first and fifth metatarsals, the size of the head of the first metatarsus, the center of the medial malleolus to the ground, the distance between the medial malleolus and the lateral malleolus, the distance between the lateral malleolus to the calcaneus tendon and the distance between the medial malleolus and the calcaneus tendon. The original distances specified by this study as reference are shown in Table 1.
The scanning of limb morphology was performed using Autodesk ReMake software, which uses the photogrammetry technique to capture the digital model and the Intel 3D Sense equipment, which uses the structured light pattern technique for execution of the virtual model. For the development of the virtual model by the photogrammetry method was used 70 digital photographs generated by a 9 megapixel camera of a smartphone model Moto G1 XT1036.
Results and Discussion
As expected, the scans performed by this research, because they were based on optical scanning techniques, presented requirements regarding the incidence of ambient light. The scanning tests were performed with uniform incident light, taking into account the necessary scanning conditions.
The method of digitalization by photogrammetry resulted in a digital model demonstrating geometric deviations in the structure of the virtual mesh when compared to the original member. The generated model presented low capture of details and low geometric complexity, demonstrating little morphological fidelity with the foot of the patient. The model, as well as the indications of the distances taken, can be visualized in Figure 2.
The measured dimensions for the model generated by the geometry method presented greater percentage variation when compared to the original model. The measured distances, as well as the percentage of variation are shown in Table 2.
The model generated by the structured light scanning method presented high geometric detail capture and high dimensional fidelity with the original model, although it presented a higher noise index when compared to the model generated by photogrammetry. The detail capture was high, accurately representing the geometric contours of the patient's foot. The model, as well as the distance indications taken, can be visualized in Figure 3.
The reference dimensions of the model generated by structured light presented greater fidelity to the original model, with low percentage variation. The measured distances, as well as the percentage of variation are shown in Table 3.

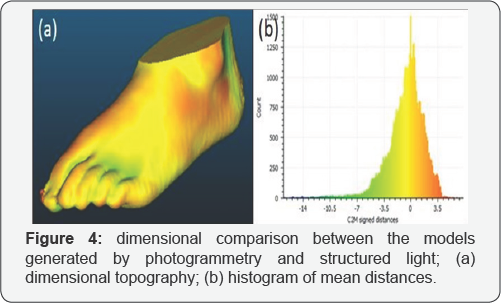

Considering the dimensional topography of the two models, the most latent differences were evidences in bone prominences of greater dimensional significance, such as the medial malleolus and the first metatarsus. The dimensional comparison between the two models presented greater variation in the size of the medial malleolus, with an error of 14.94mm. The average dimensional error between the two models was 1.01mm. The dimensional variation and distance histogram can be visualized in Figure 4.
Conclusion
The results demonstrated by this study show the feasibility of the three-dimensional optical data capture procedures to aid in orthopedic demands. The precision of the models generated by the scanning techniques presented few dimensional variations when compared to the original member. Although the two models generated presented viability in the context of diagnostic assistance and the manufacture of orthopedic devices, the model that came closest to the observed reality was the model generated by scanning through structured light.
