Biodiesel Production from a Mixture of Vegetable Oils Using Marble Slurry Derived Heterogeneous Catalyst

Jharna Gupta and Madhu Agarwal*

Department of Chemical Engineering, Malaviya National Institute of Technology, India

Submission: March 09, 2017; Published: May 30, 2017

*Corresponding author: Madhu Agarwal, Department of Chemical Engineering, Malaviya National Institute of Technology Jaipur-302017, India, Email: magarwal.chem.@mnit.ac.in

How to cite this article: Jharna G, Madhu A. Biodiesel Production from a Mixture of Vegetable Oils Using Marble Slurry Derived Heterogeneous Catalyst. Curr Trends Biomedical Eng & Biosci. 2017; 5(1): 555651. DOI: 10.19080/CTBEB.2017.05.555651.

Abstract

The catalytic activity of marble slurry derived calcined marble slurry and Hydroxyaptite (HAP) as heterogeneous catalyst has been studied for biodiesel synthesis. The developed catalysts characterized by the XRD and FTIR. Experimental results showed that biodiesel yield has been increased from 91% to 94% using calcined marble slurry and HAP as solid base catalyst respectively under reaction parameters such as reaction temperature 65 °C, reaction time 3hr, methanol to oil molar ratio 12:1 and catalyst concentration 4wt%. The solid base catalyst developed from marble slurry i.e. HAP shows superior catalytic activity for the trans esterification reaction of mixture of oils, which proposed that this waste could be possibly used as solid heterogeneous catalyst in biodiesel synthesis from mixture of edible and non edible oils.

Keywords: Biodiesel; Mixture of oils; Heterogeneous catalyst; Trans esterification

Abbreviations: FAME: Fatty Acid Methyl Ester; RSPCB: Rajasthan State Pollution Control Board; XRD: X-Ray Diffraction; MS: Marble Slurry; HAP: Hydroxyaptite; CMS: Calcined Marble Slurry

Introduction

Biodiesel can be an alternative fuel source for energy production. The main advantages of biodiesel as an alternative fuel are its renewability, biodegradability, nontoxic nature, and blending capacity with other energy sources [1,2]. Biodiesel is also known as fatty acid methyl ester (FAME) obtained by trans esterification reaction of methanol and vegetable oil in the presence of suitable homogeneous or heterogeneous catalyst [3]. Commonly used homogeneous catalysts are NaOH, KOH and CH₃ONa which have high catalytic activity, but it is also difficult to separate, purify and reuse them after the reaction [4]. Till now various heterogeneous alkali catalysts such as Zeolite, alkali earth metal oxides, KF/ϒAl₂O₃ and sodium aluminate etc. have been developed for biodiesel production [5-11]. Recently only selective heterogeneous catalysts are utilized in the industry due to the high expense in catalyst synthesis. So the good alternative to reduce the overall biodiesel production cost is the utilization of waste material as a heterogeneous catalyst.

Different kinds of wastes have been explored as catalyst such as marble slurry Dolomites and waste shells such as waste egg shell, oyster shell, and scallop shell, bivalve clam shells and bones [12-19]. Among them, CaO is one of widely-used catalysts due to its highly availability in nature, low cost and high activity. In literature, 87.28% and 91.87% of biodiesel yield were reported using snail shell and dolomite as heterogeneous catalyst respectively under optimized conditions [20-21] also found 88% of biodiesel yield by heterogeneous catalyst developed from waste marble.

Among these wastes, marble slurry is a natural calcium carbonate source found in several areas of the world such as India, USA, Belgium, France, Spain, Sweden, and Greece. In marble processing plant, 20-30% marble blocks generates marble dust after cutting process which cannot be disposed of in the residential area. Storage of these wastes is impossible; hence marble wastes constitute an environmental Pollutant. Rajasthan State Pollution Control Board (RSPCB) proposed a project of two plants at Udaipur to recycle waste marble slurry. So the biodiesel production from marble slurry derived heterogeneous catalyst has been explored in our study. The purpose of the research was to prepare a highly basic heterogeneous catalyst derived from marble slurry for biodiesel production from a mixture of oils. Catalyst characterization has done by XRD, FTIR and Hammett titration method.

Experimental Work

Materials

Natural marble slurry was obtained from Jaipur, Rajasthan, India. Linseed oil, palm oil, thumba oil and Karanja oil were brought from the local market. AR grade methanol with 99.9% purity and Potassium dihydrogen orthophosphate (KH₂PO₄) from Merck limited, Mumbai India was used in this study.

Quality analysis of mixture of oil

The physicochemical properties of optimized mixture of oil were measured which has been shown in (Table 1).

Catalyst preparation

The marble slurry (MS) sample was collected from marble shop of Jaipur, Rajasthan. The marble slurry was rinsed with distilled water several times for removing dust and then dried in oven at 120 °C for 10h. After drying, marble slurry was calcined at temperature of 850 °C for 3hr in muffle furnace. The Calcined material was then cooled down to room temperature in a desicator and then used for biodiesel synthesis.

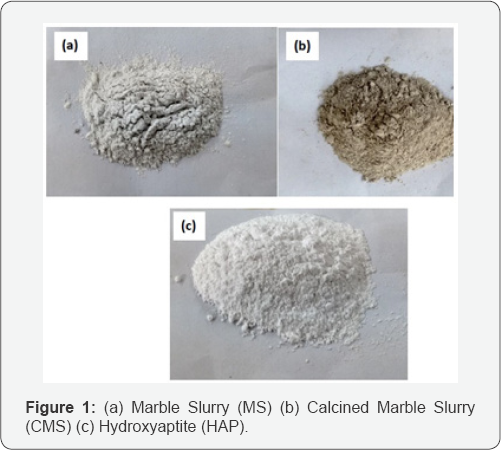

The synthesized basic heterogeneous catalyst form marble slurry powder i.e. Hydroxyaptite was prepared by wet method as described in literature. Twenty grams of dried marble slurry powder was dissolved in 800ml of 1M Potassium dihydrogen orthophosphate (KH₂PO₄). The preperared solution was then heated in microwave oven for 20 minutes and resulted as Hydroxyaptite (HAP) powder. HAP powder was cleaned with distilled water and was dried by microwave for 15 minutes followed by 5h calcination at 850 °C. Untreated marble slurry and resulted catalysts into powder form as shown in (Figure 1).

Catalyst characterization

X-ray diffraction (XRD) analysis was done using X-Pert Pro powder analytical instrument equipped with Cu anode under the following conditions: tube voltage of 40kV, a tube current of 40mA and the sample were scanned in the range of 2θ=10- 90 °C. The FTIR (Fourier Transform Infrared Spectroscopy) spectrum of the sample was obtained on FTIR spectrometer (Perkin Elmer spectra two) in the range of 400-4500cm^-1 by KBr pellet. Catalytic basicity was also examined by Hammet method [22-27].

Biodiesel production method

Various mixtures containing different proportions of four oils with high acid fatty were chosen for biodiesel production through two step trans esterification process at similar operating conditions (temperature 65 °C, time 60min, 6:1 methanol to oil molar ratio, KOH catalyst loading 1gm/100cc). The blends producing highest yield and better biodiesel properties were selected for further studies.

In the first step, the esterification reaction was carried out to reduce FFA at 60-70 °C. The experimental set up includes 250ml two necks round bottom flask equipped with a reflux condenser, temperature controller and magnetic stirrer. 100ml of oil mixture was preheated to the set temperatures (60 °C) before starting the reaction. A fixed amount (1-2ml) of H₂SO₄ was mixed to reaction mixture consisting of methanol and oil in 6:1 molar ratio. After completion of 2 hour reaction time, the product mixture was transferred to the separating funnel for separation of phases. The upper phase consisting of esterified sample was separated, stored for further trans esterification reaction.

In last, the trans esterification reaction was done using developed heterogeneous catalysts. The 100ml of esterified oil mixture was preheated and added into the flask containing methanol and catalyst under vigorous stirring. The trans esterification reaction was done 65 °C with a reaction time (3 hours), 12:1 methanol to oil molar ratio for 3hrs. After the reaction, the reaction product was transferred to the separating funnel for separation of phases. The solid base catalyst was separated from the reaction mixture via centrifugation at 5000rpm for 20min. Glycerol was then separated using a separating funnel, and the excessive amount of methanol from FAME was recovered under reduced pressure in a rotary evaporator. The FAME thus obtained was stored for further characterization. The biodiesel yield (%) was calculated as follows:

Biodiesel yield (%) =(volume of biodiesel (ml))/(volume of oil( ml))x100 (1)

Results and Disscusion

Catalyst characterization

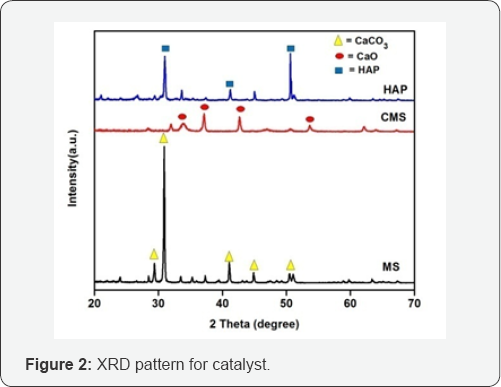

XRD analysis: To investigate the structure and crystallinity of the catalyst, the X-ray diffraction analysis was done as shown in (Figure 2) shows the XRD result of marble slurry (MS), calcined Marble slurry (CMS) and Hydroxyaptite powder (HAP). The crystallinity of all the samples was analyzed by XRD. The source material i.e. MS showed major diffraction peaks at 29.38°, 30.92° and 41.06° which is characteristic of CaCO3 (marble slurry) and after calcination, the reflection arising from marble slurry were lost, coincident with the appearance of new crystalline phase that can be assigned to highly crystalline CaO (33.92°, 37.11°, and 42.65°) as described in literature [28,29]. XRD patterns of HAP shows the two highest peaks at 31.02° and 50.61° which is characteristics of HAP and closed to HAP standard compared with literature [30-31]. These result indicated that the marble slurry had been successfully synthesized into HAP.

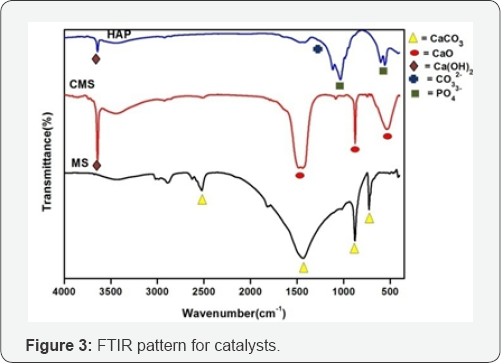

FTIR analysis: FTIR analysis of marble slurry (uncalcined and calcined) and HAP powder was performed as shown in (Figure 3). Two bands around 878cm^-1 and 1435cm^-1 are confirm the C-O stretching and bending modes of CaCO₃ as shown in (Figure 3). After calcinations at 850OC the intensity of these bands decreases due to thermal decomposition of CaCO₃ and formed CaO and Ca(OH)₂. One sharp band appears 3642cm^-1 due to the formation of basic OH groups attached to the calcium atoms as shown in (Figure 3). Hydroxyl stretch is observed at 3643cm^-1 in the spectra of Hydroxyaptite as shown in (Figure 3). There were also bands at 103.04cm^-1 and 1420cm^-1, which were assigned to the phosphate group and the carbonate group (CO₃²-).

Biodiesel characterization

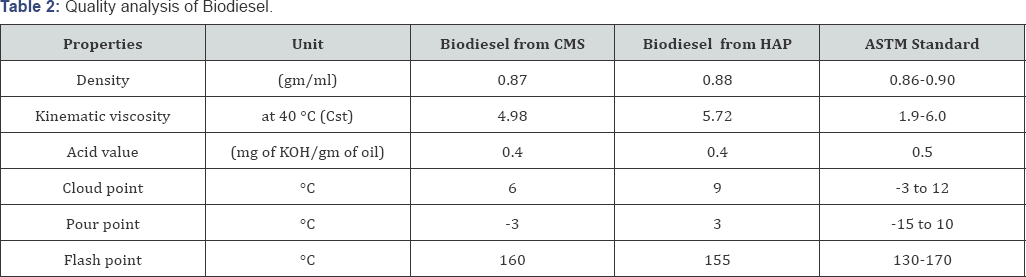

The characteristics of oil mixture biodiesel were measured and compared with ASTM D6751 Standard and found within the prescribed limit See (Table 2).

Conclusion

The mixture of oils can be efficiently converted into biodiesel using marble slurry derived modified heterogeneous catalyst. Among both catalysts tested, HAP shows high catalytic activity with good biodiesel yield i.e. 94% in the biodiesel production form mixture of oil at the reaction conditions such as reaction time of 3h, methanol to oil molar ration of 12:1, reaction temperature of 65 °C and catalyst loading of 4 wt%. More importantly than all of that, this catalyst is good for biodiesel production from the economic point of view, which makes waste utilization, reduces cost, saves resources, and protects the environment.
