Instrumentation Issues and Problems in
Earth Dams(Case Study; Shah Qasim
Dam in Yasouj, Iran)
Amir Behshad1* and Saeed Noraeenezhad2
1 Department of Structural Engineering, Yasouj University, Iran
2 Department of Geotechnical Engineering, Yasouj University, Iran
Submission:April 27, 2020; Published: July 22, 2020
*Corresponding Author:Amir Behshad, Department of Structural Engineering, Yasouj University, Iran
How to cite this article:Amir B, Saeed N. Instrumentation Issues and Problems in Earth Dams (Case Study; Shah Qasim Dam in Yasouj, Iran). Civil
Eng Res J. 2020; 10(2): 555784.DOI: 10.19080/CERJ.2020.10.555784
Installation and monitoring of instrumentation is one of the practical methods for controlling safety and stability of earth dams. Piezometers existing in dam body and dam abutments are one of the various types of precision instruments used in dams, which indicate the height of water level in different parts of the dam. In order to evaluate the performance of piezometers of Shah Qasim Dam in Kohgiluyeh and Boyerahmad province (in south east of Iran), we compare water level changes in piezometer and water level changes in the dam lake over time. In this paper, the above-mentioned dam is modelled using the SEEP/W software, then after imposing boundary conditions, water levels are computed at various points. For more accurate comparison, water level changes are plotted in transverse and longitudinal piezometers over time. The results of analysis indicate significant increase of permeability in vicinity of some piezometers. The piezometers BX4, BX14, BX13 and SP6, and the region near them, as well as piezometers SP24 and SP18 and their surrounding area, have critical conditions which should be inspected as soon as possible.
Keywords:Earth dam; Piezometer; Water level; Instrumentation
The importance of monitoring programs for dam safety is widely accepted. A well designed and executed instrumentation monitoring program can provide information that is needed for a solid understanding of the ongoing performance of a dam and may help detect early warning signs of trouble, . Monitoring programs, including instrumentation and visual inspection, result in better estimation of probability of failure for dam owners. Furthermore, prediction of maintenance cost and rehabilitation time of the dam would be an easy issue using instrumentation. Many researchers and scientists have been interested in assessment of performance of various types of dams by analyzing and processing reliable data prepared by inserted instruments and modern monitoring settlements. Dam safety monitoring program for earthen dams has been considered by the National Hydrologic Warning Council in November 11, 2013. Modes of dam failure and monitoring and measuring techniques were investigated under the supervision of environment agency of England (Almog, E, 2011). A comprehensive research with the title ; Evaluating and Maintaining Piezometers, Relief
Wells, and Drains were performed by Charles N. Easton et al for Association of State Dam Safety Officials, Inc (2016). There are a practical project about instrumentation of large dams which is issued by the ministry of water resources of india (2017). Well-planned and implemented monitoring is an essential component of successful dam construction and operation. Dam monitoring is subject to numerous regulations  and in many countries it is regulated by strict administrative standards (SMARTEC SA, 2017). Masoumi et al, considered reliable monitoring of embankment dams with optimal selection of geotechnical instruments (2017). Behaviors of earth and rockfill dams during construction and initial impounding using instrumentation data and numerical modeling were evaluated by Rashidi and Haeri (2016). In this research, we have evaluated problems and difficulties related to inserting monitoring settlements and measuring instruments in earth dams . The target dam is an earth dam near Yasouj, center of Kohgiluyeh and Boyerahmad province in south east of Iran. In the Shah Qasim Dam, which was exploited in the mid-1970s, there is a considerable leakage and water escape due to some problems (design, implementation and monitoring), according to field
observations; for this purpose, downstream lands are drained.
Leakage from the body and abutments of a dam threatens its
stability . The leakage from the dam destructs the dam structure
due to underwater phenomenon over time and destroys parts
of Yasouj and leads to considerable damages to agriculture and
industries located at downstream. Therefore, a comprehensive
study is essential to investigate the problem of leakage from the
body and foundation of the Shah Qasim dam. General objectives
of this research are:
1. Evaluating performance of different dam components by
comparing numerical and field results.
2. Determining parts of the dam which have an
Geotechnical precision instrument was invented as a tool
for helping workshop observations in the 1930s and 1940s.
Early measuring systems of precision instruments were simple
hydraulic and mechanical tools and were mostly used by
experts and designers who purposefully sought to measure
their estimated parameters . Safety of structures must be
ensured during operation; thus, monitoring of this period is a
reliable and appropriate way to ensure the safety of structures.
Dams like living creatures always require care and maintenance.
Management of water resources and exploitation of dams and
hydroelectric power stations are vital through continuous
monitoring. Since observation and monitoring of earth dams is
very important during construction phase and exploitation phase,
therefore, suilevel tools and equipment are installed in dam
foundation, lateral abutments, dam body and lateral structure and
the resulting data is analyzed continuously in order to achieve this
goal . In addition to assessing the current behavior of a dam,
availability of this type of data will allow assessment of accuracy
of the predicted parameters at the design phase and provide
designers and engineers with a more thorough scientific basis for
designing structures to be built in the future. In the Shah Qasim
Dam, no precision instruments such as strain gauges, barometers
and inclinometers have been installed. Among common precision
instruments, there are only piezometric and accelerator wells in
the Shah Qasim earth dam.
The Shah Qasim dam is located at coordinates X = 554440
eastern longitude and Y = 3382851 northern latitude and 15 km
south of the Yasouj city. It is an earth dam with thick core. Crest
length is 220 meters, the river elevation is 1860 meters alongside
the dam, normal water elevation is 1894, and crest elevation of
the dam is 1896 meters above sea level. Volume of the lake is 9
million cubic meters and the regulated volume is 12 million cubic
meters. The dam was constructed to irrigate about 1800 hectares
of Servak plain in the vicinity of Yasouj and provide a recreationaltourist
center for tourism attraction. Figure 1 shows its plan of
geological, and Figure 2 shows position of piezometers on the
body and abutments of the Shah Qasim dam .
The first step in monitoring the dam is to study piezometer
data of this dam. For 105 days, the height of the water level in
perimeters of the dam and abutments was recorded by a catheter.
To obtain calculation data, the dam was modelled in Seep/w
software; boundary conditions were applied to calculate water
level values in various parts. Seep/w is a software product with
limited elements which can be used to model displacement and
distribution of pore pressure inside porous materials such as soil
and rock. Its comprehensive and extensive formulation allows
analysis of simple and very complex problems of water leakage.
This software is used in analysis and design of geotechnical,
developmental, hydrological, and mining projects.
To quantify the difference between precision instrument data
and the results obtained from numerical formula, relative error
(RE) percentage was used as follows:
Greater REs indicates high difference between numerical results
and precision instrument; smaller REs (closer to zero) indicate
high correlation between numerical results and precision
instrument. For further study, performance of piezometers
existing in a longitudinal or transverse axis was examined in terms
of physical principles, and physically dysfunctional piezometers
At first, water level variations of piezometers and the
dam lake were plotted over time. For example, Table 1 shows
variations in the piezometer SP23 and (Figure 3) shows variations
in piezometer BX5. At the upper level, variations in observed data
and calculated data were similar. At the lower level, observed
data was more than calculated data, which was due to increased
permeability. Thus, it had logical function.
It can be claimed that it functioned properly. Although the
difference was greater in the lower levels, it was not high enough
to cause a problem and the piezometer had no problem (Figure
4). For better comparison, variations in water level of piezometers
were plotted over time for transverse and longitudinal axes.

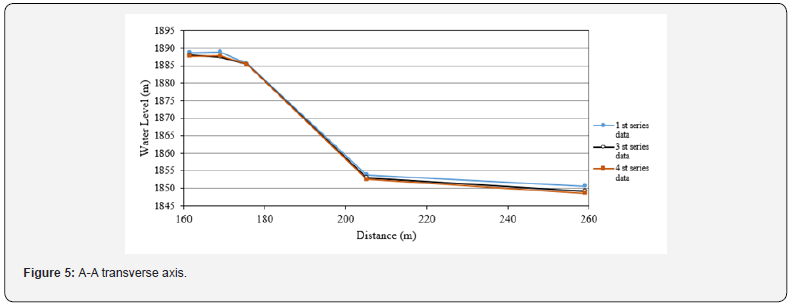

Figure 5 shows physically proper functioning of the A-A
axis; water level decreased with the movement from upstream
to downstream of the dam. Physically, water always moves from
a higher level to a lower level. Regarding this, the concept of
hydraulic gradient is presented by;
Where, 1 h is upstream pressure equivalent height; 2 h is
downstream pressure equivalent height; l is the distance between
1 and 2.

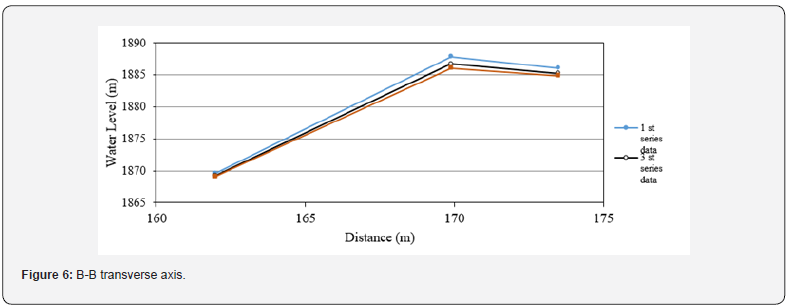

At B-B axis, water level of the piezometer SP6 was lower than
water level of the piezometers SP5 and SP4. Thus, the above rule
was violated because the piezometer SP6 was located on upstream,
while it had lower pressure equivalent height than downstream
piezometers. Therefore, the piezometer SP6 or its surroundings
were dysfunctional (Figure 6). At C-C, the water level, moving
from SP18 to SP17, suddenly had a high upward jump. Physically,
the fluid travels from a point with more energy to a point with
less energy; therefore, upstream piezometer should have a higher
water level than downstream observational well. In this way, this
law was violated. Thus, results of the piezometer SP18 indicate a
problem (Figure 4).
At the E-E axis, only SP3 and BX12 functioned properly
and logically. Water level should be close to each other in all
piezometers of this axis, while it was 15 m lower in SP6 and SP24,
20 m lower in BX14 and approximately 25 m lower in BX13. Given
the close proximity of SP6, BX14 and BX13, a major problem can
be expected in this area (Figure 7). All piezometers in the F-F axis
functioned logically; permeability increased in their surroundings.
Observed water level was more than calculated water level. Perhaps the reason for differences in water level of these
piezometers can be explained by the difference in permeability
along the dam and the fact that permeability changed curly along

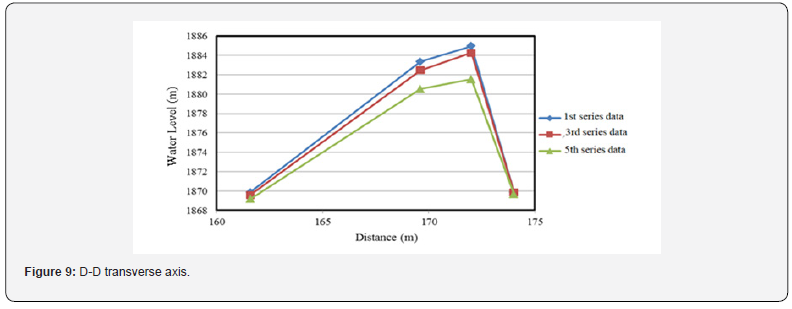

the dam (Figure 8). At the D-D axis, water level was even lower in
SP24 than the water level in the last piezometer of this axis and
violated physical rules, as well as the SP18. The close proximity
to SP24 proves the existence of a problem in the vicinity of these
two piezometers or a problem with two piezometers (Figure 9).

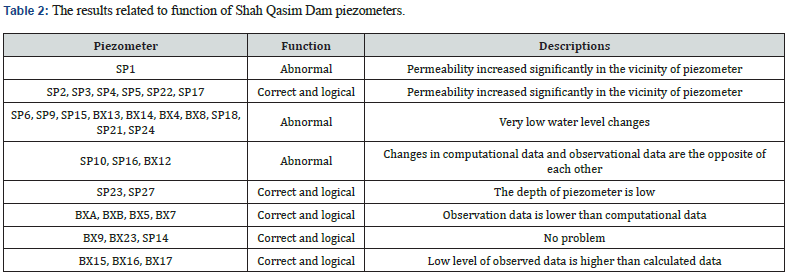

Function of piezometers is summarized in Table 2. BX4, BX14,
BX13, SP6 or close proximity of these piezometers, as well as
SP24 and SP18 or the area surrounding these piezometers have a
fundamental problem requiring rapid examination, because water
level in this area is very low; this is despite the fact that these
piezometers are located above the dam. Permeability increased in
the area surrounding some of the piezometers, particularly near
A-A transverse axis.
