The research is devoted to individual environment-friendly vehicles, which can be used in the street-road network of settlements. Are analyzed the benefits that accrue from the use of such vehicles in the areas of medicine, the environment, the economy, and the social sphere. The examples of individual vehicles, the most common of which is a bicycle, are presented. Are formulated particularities of such modes of transport and the requirements that must be applied to the infrastructure for comfortable and safe driving by them.
Keywords:Individual environment-friendly vehicles, Street and road network, Design principles.
Abbreviations: IEFV – individual environment-friendly vehicles, SRN – street and road network.
The settlements infrastructure development, aimed at satisfying, first, the needs of motorists, is accompanied by powerful negative changes in the conditions of human life . Recently, more and more researchers of transport planning use the term «Automobile Dependency» . In developed countries, alternative vehicles are becoming increasingly popular - individual (for 1 or 2 people) eco-friendly (do not harm the environment) vehicles . This article discusses the principles of creating infrastructure for the movement of IEVF (the most common of which is currently a bicycle) into the street and road network of settlements.
World experience shows that even investing heavily in the road network development, the solution of road transport services complex problems, it is impossible to solve the problem of transportation in large cities by providing comfortable movement of cars. Not by chance the best in terms of transport cities in the world (Copenhagen, Berlin and others) use the so-called pyramid of priority (Figure 1), which advise to apply when making decisions in SRN designing and reconstruction .
Considering the mass of the pedestrian movement (almost every citizen with one or another frequency use to move the walking) and its safety for the environment, on the highest step of this pyramid put pedestrians. On the second step is cycling
transport, which has the same advantages and problems as the pedestrian, but occupies a separate place in the pyramid because it allows you to overcome much larger distances (effective radius of bicycle use is 5 - 7 km) and needs parking spaces and, on separate streets, a separate infrastructure.

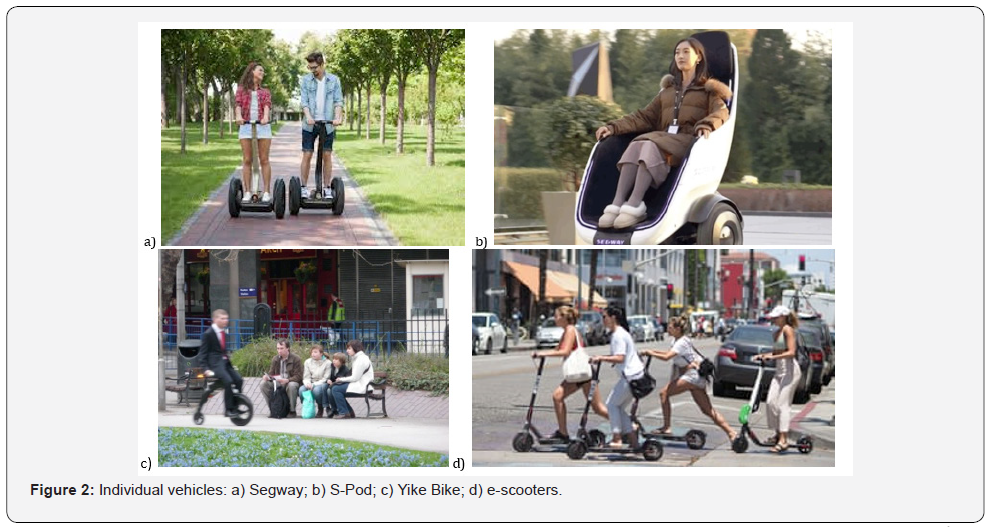

In our opinion, the creation of infrastructure for bicycle traffic is the preparation of settlements for future progress in the field of vehicles. Since scientists of the world are now actively working on the creation of various types of IEFV designed to replace or minimize the use of individual cars in settlements. For example, in the countries of Europe and America Segway is already actively used - an individual vehicle, which is a small platform on two wheels with an electric motor (Figure 2a). It is controlled by moving the centre of weight .
The press service of Segway-Ninebot published the announcement of a new vehicle. An unusual model of a hovercraft called S-Pod is a comfortable egg-shaped chair (Figure 2b). The S-Pod is based on the same gyroscopic self-balancing system as the company’s previous products. Unlike all other models, control is carried out using a manual joystick on the armrest .
YikeBike – the little electric bike (Figure 2c) that has 450-watt motor that will take you for six miles at 14mph, built-in LED lights and anti-skid regenerative brakes . Recently e-scooters (Figure2d) have become a common sight in many cities in the US and
Europe . So, among the features that combine the above IEVF
and other similar modes of transport, the following advantages
and disadvantages can be distinguished.
a) low speed of movement in comparison with the car.
b) instability: the area of the IEFV contact with the road
surface is smaller than that of the car, which leads to less stability
of the IEFV.
c) insecurity of a driver from precipitation.
Based on the above properties of IEFV, we can formulate
the features of infrastructure design for the movement of such
1) When designing such an infrastructure, care should be
taken to protect the driver of an environmentally friendly vehicle
from harmful exhaust gases from cars and the noise they generate.
2) The compactness and mobility of the IEFV allow you
to design ways for driving on them in those places where area
restrictions do not allow to lay roads.
3) The relatively low speed of IEFV requires the shortest
means of communication, which will allow you to reach the final
points within the time limit not exceeding automobile crossings,
as well as the completeness and consistency of routes.
4) Based on the small area of IEFV contact with the road,
special attention should be paid to the evenness, roughness and
adhesion of the road surfaces.
5) Since most IEFV do not provide driver protection
from precipitation, this must be considered when designing the
infrastructure. So, it can be installed special canopies over bike
paths in front of traffic lights, in bicycle parking lots and in bike
The use of individual eco-friendly vehicles in the street-road
structure of a settlement brings with it a number of positive
changes. To date, the most common type of IEFV is a bicycle.
The introduction of bicycle infrastructure into the SRN not only
solves many problems of modern settlements, but also prepares
them for future progress in the field of vehicles. When designing
the infrastructure for the IEFV traffic, it is necessary to protect
the drivers of such vehicles from car noise, gas pollution and
precipitation, if possible. Particular attention should be paid to
coatings used on the IEFV traffic routes. Routes should be short,
complete and logical. So, to ensure the comfortable movement of
the IEVF, in addition to laying special routes (complex, with road
connections, convenient exits, comfortable coverage), a number
of issues still need to be addressed:- to organize traffic (to set up
traffic signs, traffic lights, to provide “green waves”, to build special
tunnels, overpasses, junctions, etc., to coordinate the intersection
of paths for IEFV traffic with passenger boarding and landing
points for public transport) to create infrastructure for IEFV (to
develop a rental system for such vehicles, to arrange convenient
parking, to build service stations) to provide social protection for
IEFV drivers (to regulate their rights as full-fledged participants in
road traffic, to ensure the possibility of transporting small vehicles
in public transport) to coordinate the work of public utilities (to
organize the work of snow machines and constant monitoring of
the cleanliness and serviceability of such paths).
The work is connected with the research program of Highways,
Geodesy, Land management and Rural buildings department
of National University «Yuri Kondratyuk Poltava Polytechnic»
(Ukraine) –“Improvement of highways and street and road
network” (Project ID: 0114U000354).
