Stress-Settlement Model of Piles in the Coastal Regions of Nigeria
Jaja GWT and Akpila SB*
Department of Civil Engineering, Rivers State University, Nigeria
Submission: March 13, 2019; Published: June 18, 2019
*Corresponding Author: Akpila SB, Faculty of Engineering, Department of Civil Engineering, Rivers State University, Nkpolu Port Harcourt, Nigeria
How to cite this article: Jaja GWT, Akpila SB. Stress-Settlement Model of Piles in the Coastal Regions of Nigeria. An Operational Evaluation and Graphic Analysis. Civil Eng Res J. 2019; 8(3): 555738. DOI: 10.19080/CERJ.2019.08.555738
A model that predicts the settlement of pile in the coastal regions of Nigeria (Lekki, Aja, Ikoyi, Victoria Island, Magodo, Ikorodu, Ipakodo and Festac) in Lagos was studied through the use of statistical analysis. Descriptive analysis, parametric test, correlation and regression were used to determine a significant relationship between stress and its settlement. A predictive model describing the relationship between stress and maximum settlement of these piles was generated. The results reveal that the settlement increased by 0.0009mm for every one-point increase in stress. A predictive stress-settlement model was developed with a regression coefficient of 0.8428. The model may be useful in providing settlement information on piles driven within the Lagos.
The steady increase in the rate of urbanization within the coastal region of Nigeria, necessitated by the increase in population in the area is quite remarkable. A number of factors are responsible for this increase, one of the reasons is the presence of oil exploration and exploitation companies in the region. This has made Government, and many multinationals invest in the region, thus creating infrastructure driven investments opportunities such as loads, buildings, bridges, water retaining structures, transmission towers among others, and the resultant high ingress of people to the region. There is therefore an increase in the demand for pile foundation to support these structures as they are principally used to transfer the large loads from superstructure, through weak, compressible strata, or water onto a stronger, more compact, less compressible and stiffer soil .
Burland et al.  pointed out that traditionally engineers have asked themselves how many piles are required to carry the weight of the building and claimed that designers should perhaps better ask themselves the question of how many piles are required to reduce the settlement to an acceptable limit. The number of piles in answer to the second question is invariably significantly less than in answer to the first question.
There are a number of compelling arguments for moving towards a settlement-based design methodology for pile foundations, and since 1977 a number of interesting developments have occurred in this direction, including some outstanding applications [3,4] nevertheless, the capacity-based design is still dom
inant, as is evident for instance in current revisions of national and regional design codes. Venkata  developed a simple but rational method of estimating settlement of pile groups based on load transfer approach for single piles and equivalent pier method. The method takes into account layered soil system and makes use of input parameters obtained from usually conducted field tests such as standard penetration test (SCPT) in cohesionless soils and consolidation test in cohesive soils. Chandra et al.  addressed the issue of settlement of pile-supported structures due to the loss of pile capacity in liquefied soil. A simple mathematical model that can be implemented in an EXCEL type program was proposed for characterizing the above phenomenon. The method used envelopes of unit load transfer curve that describes the axial load transfer mechanism of the pile foundation in liquefied soil. Tomislav et al.  analyzed the bearing capacity and settlement of bored piles, as the most frequently used type of piles in local practice. It was observed that empirical methods based on geotechnical soil parameters for capacity estimation, introduced some simplifications which lead to neglecting certain elements of a complex pile-soil interaction. On the other hand, the results of pile field testing methods were a direct summary consequence of the overall complex conditions on pile-soil contact. This study will provide an in-depth understanding of the settlement of piles in the coastal region of Nigeria and subsequently, develop a pile settlement- stress model [8,9].
The study area is situated in Lagos, Nigeria with latitude 6.465422°N and longitude 3.406448°E with the gps coordinates
of 6° 27’ 55.5192’’ N and 3° 24’23.2128’’ E shown in Figure 1.
Static Pile load tests were carried out on five locations within the
study area. The locations include Lekki, Aja, Ikoyi, Victoria Island,
Magodo, Ikorodu, Ipakodo and Festac Figure 1.
Static load test of a pile or group of piles is used to establish an
allowable load. This was carried out on piles located in Lekki, Aja,
Ikoyi, Victoria Island, Magodo, Ikorodu, Ipakodo and Festac. The
applied load is usually maximum of 150 % to 200 % of the design
safe working load. These tests were guided in accordance to the
Geotechnical Engineering Bureau (2007).
The pile load test involves the application of the load in stages,
with the load at each stage being maintained constant until the
resulting settlement of the pile virtually ceases before the application
of the next load increment. Maximum load to be applied
on a single pile for this method will not exceed 2.0 x safe working
load (S. W. L). The load is applied in increments of 25 % of
the design load. Each load increment is maintained until the rate
of settlement is not greater than 0.05mm/30 minutes or until a
maximum of about 2 hours have elapsed, whichever occurs first.
The maximum load is maintained on the pile for 6 hours, except
in the event that the average rate of settlement is not greater than
0.05mm/30minutes. Unloading of pile is done in decrements of
25 % of the maximum load or as specified by the client
Table 1 consists of raw data obtained from the series of static
pile load test (SPLT), which include the test location, length of
pile, diameter and area of pile, safe working load, maximum stress
and most importantly the maximum settlement. It is observed
that Lekki had the highest settlement followed by Aja, Ikoyi, and
Victoria Island. The high settlement observed in Lekki is liken to
the reclamation of area and in Figure 3, the bar chart depicts the
variation of maximum settlement at the various static pile load
test locations. In order to obtain the model that predicts the settlement
of pile in the coastal region of Nigeria, the following statistical
analysis were conducted:
This analysis provided an opportunity to assess the variables
in terms of the mean, median, mode, standard deviation, variance,
range, minimum and maximum value as shown in Table 2. Also,
some very useful descriptive statistics, which include the mean,
standard deviation and 95 % confidence intervals for the dependent
variable (maximum settlement) for each separate group
(Lekki, Magodo, Ikorodu, Ipakodo, Aja, V.I, Onikan, Ikoyi, Festac),
as well as when all the groups are combined (total) are also presented
Parametric Test: The function of this parametric test is to analyze
the test group mean of the data.
The purpose of this test was to determine whether there were
any statistically significant differences between categorical independent
variables and a normally distributed interval dependent
variable. Table 3 shows the output of the one-way ANOVA analysis
on maximum settlement. The output of the ANOVA analysis
shows whether there is a statistical difference between the groups
of means Table 4. It can be seen that the significant value is 0.027
(i.e., p = 0.027), which is below 0.05. And therefore, there is statistically
significant difference in the mean maximum settlement
with respect to its location.
The purpose of a correlation analysis is to determine a significant
relation between two variables, in this case, it is the relationship
between stress and maximum settlement. The Pearson’s
correlation test estimates the strength of the linear relationship
between the two variables, correlation coefficients range from
-1.0 (a perfect negative correlation) to positive 1.0 (a perfect
positive correlation). The closer the correlation coefficient get to
-1.0 or 1.0, the stronger the correlation. The closer the correlation

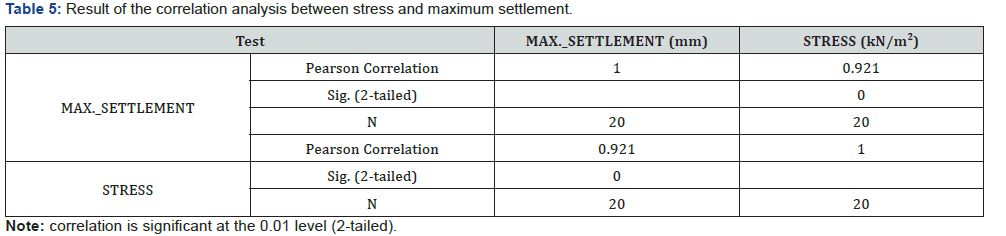

coefficient get to zero, the weaker the correlations between the two variables. Table 5 shows the result of the Pearson’s correlation
test analysis between stress and maximum settlement.
It is evident that stress has a strong positive correlation with
maximum settlement, which implies that an increase in stress influence
increase in maximum settlement. This was indicated by
the Pearson correlation coefficient (R) = 0.92 which is positive
as indicated by the beta coefficient of the independent variable
(stress). In Figure 4, the variation of maximum settlement (mm)
with stress is shown and there is a positive relation between the
maximum settlement and stress with an R2 regression correlation
coefficient of 0.8428. The predictive model is given in equation 1
Based on the results of this study, the following conclusions
can be drawn:
1) Stress had a strong positive correlation with settlement,
this implied that an increase in stress influenced increase in maximum
settlement. This was indicated by the Pearson correlation
coefficient (R) = 0.92 which was positive as indicated by the beta
coefficient of the independent variable (stress). The implication
is that as the stress increased, the maximum settlement also increased
by 92 %.
2) That Lekki a reclaimed area has the highest settlement
followed by Aja, Ikoyi and Victoria Island.
3) A model for predicting the maximum settlement of a pile
in the coastal regions of Lagos was formulated in this research as:
Based on the results of this study, it is recommended that the
developed predictive model developed may be used in predicting
Stress- maximum settlement response of static pile load tests in
the coastal regions of Lagos.
