In the economically developed countries, especially the ones of the European Union, increasing attention is paid to the possibilities of use of the hydropower potential at very low heads (i.e. from 0.5m up to about 2.5m). This substantial existing potential has not been used so far because it is generally not cost-effective to apply conventional water turbines. In the frames of several research projects, other machines have been developed and studied as hydropower converters for the range of very low heads. In this work, laboratory studies on the so-called Hydrostatic Pressure Machine (HPM) developed at the University of Southampton within the international research project HYLOW are presented. The parameter studies performed on a smallscale laboratory model in the frame of a subsequent research project served the improvement and the further investigations of the full scale prototype of the machine built on river Iskar in Bulgaria.
The interest ofthe hydropower industry for the use of very low heads(i.e.less than 2.5m) is growingin recent timeintensively. On the one hand, thisis theresult ofthe ever-growing energy needsof our society.On the other hand, renewable energy sources (incl. water power) become increasingly more important. Inthe field of hydropower, this range of the very low heads remains in fact still unused.Thereasonsarenumerousanddiverse. It should be mentioned however that theexistinghydropowerpotentialin this head rangein Europeamounts to several hundredMW, andthe interest for the use of this potentialbecomes increasingly up-to-date. Furthermore, the application of conventionalwater turbines for such very low heads is in principlenot feasible.The devices for hydropower applications with very low heads have specific features. It would be not possible here to go into detail description of the existing devices, their structures, operational conditions and performance parameters. There are already large number of such recent review works. As an example, [1-3] can be mentioned.
In this connection,it wasa maingoal of thefour-year researchprojectHYLOWin the 7thFramework Programme of theEuropean Commission(completed at the end of February 2012)to develop,study and test a newpowerconverter forverylow head,i.e. for the head range 0.5-2.5m. As partof this project,the so-calledHydrostatic PressureMachine(HPM) was developed
(Figure 1a),theoretically justifiedandtestedunder laboratory conditions. On the nextstage of development, the HPM prototypes weretested on a full scalein nature conditions as realoperating small hydropower plants, Figure 1b.Infulfilling this task, a research small hydropower plant with a full-scale prototype of the HPM was builton the riverIskar in Bulgaria[4,5]. This activitywas intendedfor tracing the construction and operation of completesmall power plantswiththeHPM comprising allnecessaryequipmentcomponents.This power plant was run underdifferent real operating conditionsand therefore alloweddecisiveconclusions about theactualpossibilities for industrial implementation of the HPM[6,7].
The mentioned research project had a successor one  within which substantial activities were aimed at improvement of the machine and its implementation conditions. In this connection, extensive laboratory experiments were carried out on small-scale models, and the main results were further tested in real conditions on the full-scale prototype of the machine. In this work, the concept of the experimental program and its most important results are shortly presented. At the end, conclusions are drawn about the implementation of the obtained results. These research activities are of particular importance since for the water wheels and the HPM, respectively, unlike the
water turbines, there are no similitude laws available. Thus,
the parameter studies in small scale and the subsequent
confirmation of selected results on the full-scale prototype are
decisive for the further development of such devices. WPM
principle and theoretical efficiency curve.
The qualitative difference between the HPM pressure
machine from the water wheels is the pond effect of the hub.
Thus, a concentrated head is created by the machine itself, and
the blades are driven by the stream under pressure.
In fact, this is not a new idea. The so-called hydraulic pressure
machine (originally in German: Staudruckmachine) uses this
principle and was patented in Austria in 2006 by Adolf Brinnich.
However, it can be discussed whether this device was not similar
to the discharge measuring wheel of John Dethridge of 1910.
Nevertheless, a consistent theoretical background of this concept

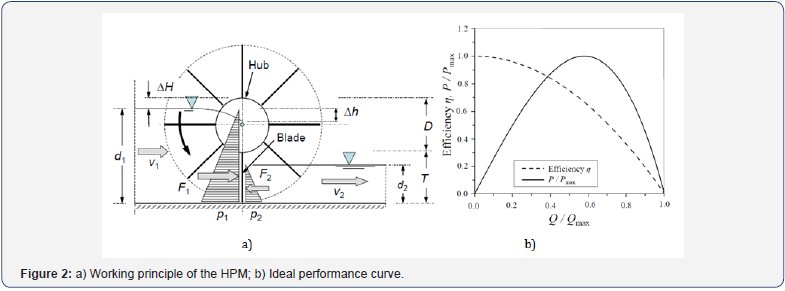

was presented in [9,10] with the introduction of the HPM (Figure
2). With the mentioned basic reference works on the HPM, it is
not necessary to go here into further details regarding the theory
of the machine, its implementation conditions and performance.
In the following, the recently carried out laboratory works in
small scale for further improvement of the HPM performance
will be shortly described.

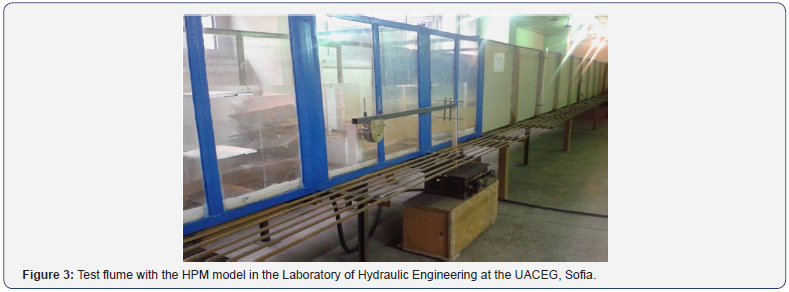

The described research activities were carried out in the
open channel in the laboratory of the Department of Hydraulic,
Irrigation and Drainage Engineering at the UACEG in Sofia,
Bulgaria (Figure 3). A series of models of the HPM were built
in a scale of 1:5. The scale was chosen to best fit the channel’s
capabilities and to be compatible with previously performed
The measurement system was the possibly most simple one.
The flow discharge was measured with a triangle measuring
weir at the inflow of the test channel upstream of the model. The
torque at the machine shaft was measured through the friction

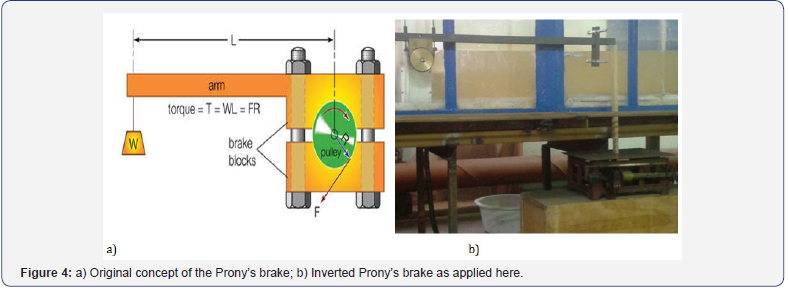

force by means of a Prony’s brakeand scales (Figure 4). Thus, the
power limit of the HPM model could be reached, too. It should
be mentioned that the original Prony’s brake works in tension
(Figure 4a), while here; the moment arm was applied under
compression (Figure 4b). This inverted implementation ensured
a more stable operation of the device. The rotation speed of the
model was measured with a stop watch, and the water levels
upstream and downstream of the model were measured with
piezometer cylinders. The laboratory program.
The program for laboratory research included 5 different
models. In the following, they are introduced with their working

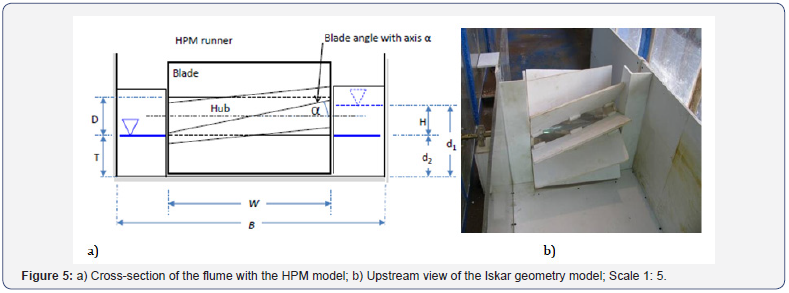

Iskar geometry (Figure 5): The model was made of PVC and
had 10 inclined blades with depth of 140 mm and the inclination
of α = 15°. The runner width and the other model parameters
were as described above. The geometry corresponded to the
original prototypebuilt on river Iskar in the frame of the HYLOW
project [3,4,6,7]. With this model, experiments also were carried
out with improved ventilation downstream, as described further
Improved geometry (Figure 6): This model was made of

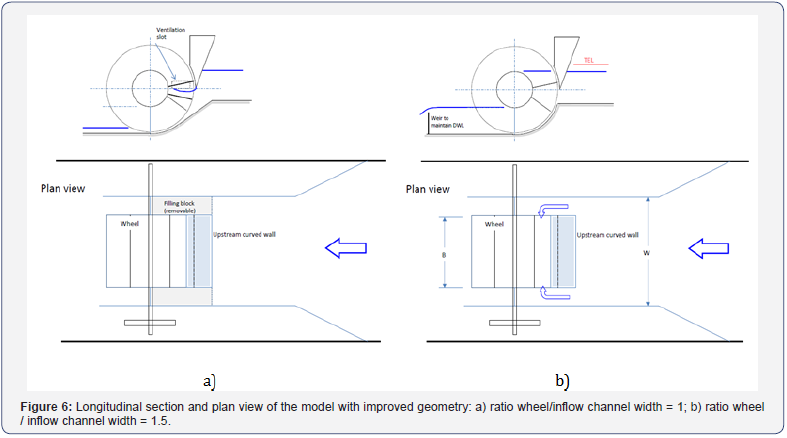

PVC, too. This model was tested with a curved upstream guiding
wing wall, the ratio of the widths wheel/channel had the values
1.5 and 1, respectively. In the latter case (Figure 6a), the built
side blocks allowed the water to enter the machine model only
frontal. An improved ventilation downstream was tested here,
New geometry (Figure 7): The model was made plexiglass
and had ten asymmetric blades with 140 mm depth. The runner
width was 360 mm because in this way, additional air inflow was
provided on the left side. The other parameters of the model
were the same as mentioned above. This model was tested only
with improved ventilation based on the results obtained already
with the previous two models. The aim of the new asymmetric
geometry was to reduce the insertion angle of the trailing edge
of the blade. Therefore, the geometry was chosen asymmetrical,

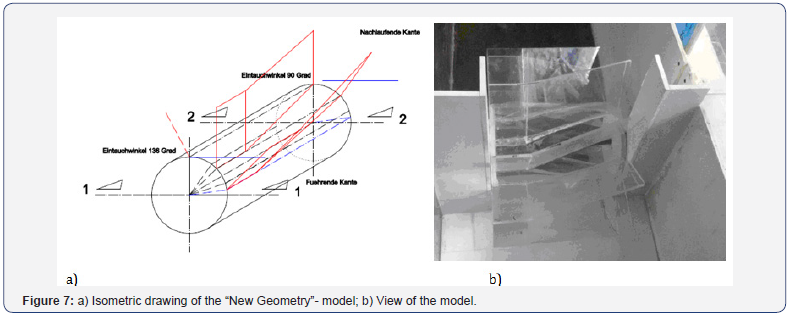

and the blade was quarter-point bent (Figure 7). This limited the
blade depth at the leading edge. The blade was disposed below
the axis line (Figure 7a), in order to create insertion angle of the
trailing edge of 90°. The model was built entirely of plexiglass
for improving the quality (i.e. the model stiffness) and reducing

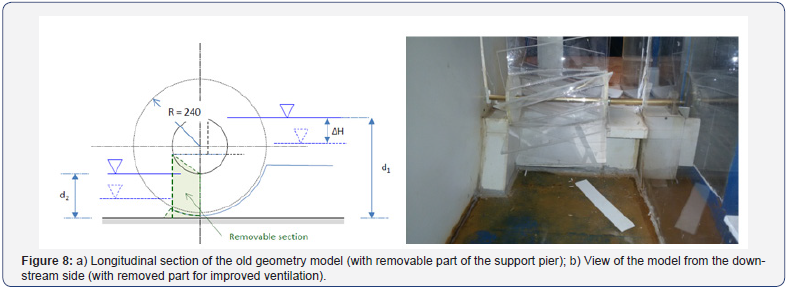

Old geometry(Figure 8): This was the scaled geometric
model of the planned full-scale installation on river Iskar, but
with increased upstream bed level and improved downstream
ventilation of the blades. The model was with the diagonal
blades and built entirely of plexiglass for improving the quality
(i.e. increasing the stiffness of the surfaces) and reducing the
leakages. The model had 10 inclined blades at an angle of 15°
with respect to the longitudinal axis of the WPM.
Scaled Iskar geometry: The model had the original Iskar
geometry with 10 inclined blades and was made of plexiglass but
the runner width was 360 mm to provide additional air from the
left side. The model also had increased upstream bed level and
For all these above described 5 models, a total of over 70 different test series were carried out, i.e. series with different
combinations of up- and downstream water levels. One test series includes 8 to 10 measurements of different rotation speeds. The
characteristic water levels were as follows:
Upstream water level (UWL)- ΔH / D = 0 → UWL is at the top of the hub
ΔH / D = 0.1 → UWL is 2cm below the top of the hub
ΔH / D = 0.2 → UWL is 4cm below the top of the hub
ΔH / D = 0.3 → UWL is 6cm below the top of the hub
ΔH / D = 0.4 → UWL is 8 cm belo w the top of the hub
Downstream water level (DWL)- d2 / T = 1.0 → DWL is at the bottom of the hub
In the frame of the experimental program, the main traced parameters were mechanical power and efficiency in function of the
rotation speed of the machine. In the following, the main results from the performed experimental studies are shortly presented. The
next two graphs show the values of both investigated performance parameters for the model No.5, Old geometry (diagonal blades) with improved ventilation“. These graphs in Figure 9 represent
the best obtained results, i.e. the maximum reached values of
both performance parameters throughout the whole laboratory
program. The curves with the same color correspond to the
same combination of the water levels for mechanical power and

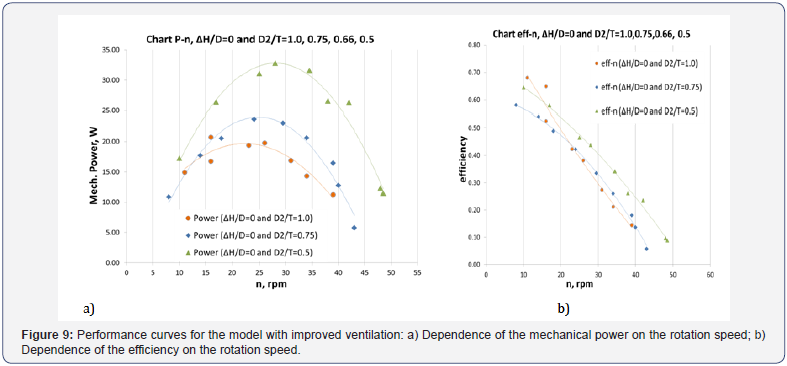

efficiency, respectively (Figure 9). The maximum values of the
observed and depicted here parameters were at the maximum
head differences, i.e., the DWL was as low as possible, and the
UWL was as high as possible but not higher than the upper edge
of the hub, where additional hydraulic resistance in the machine
operation would have appeared. This pattern was observed in

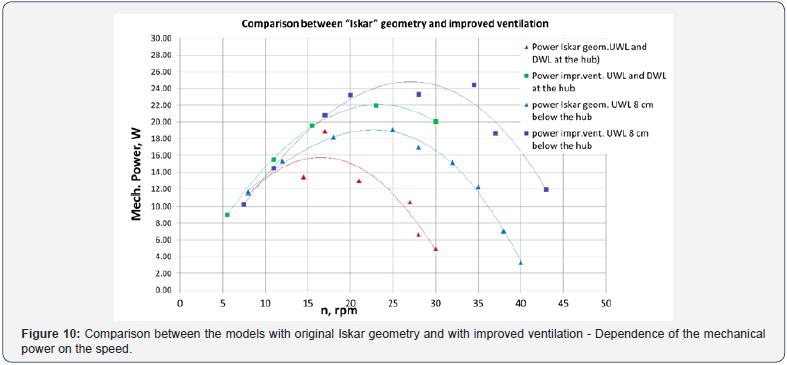

Furthermore, another comparison between the performance
of the model with the original geometry Iskar and the same one
but with improved ventilation was made as shown in Figure 10.
From the graphical presentation it is obvious that the improved
ventilation results in about 15% higher mechanical power
At the end, the performance of all models was compared
with respect to the mechanical power as function of the rotation

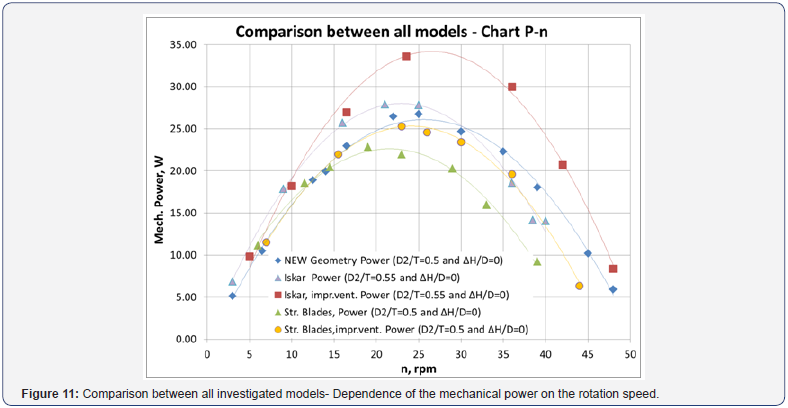

speed of the machine (Figure 11). It can be clearly observed
that Iskar geometry with improved ventilation delivers the
highest performance in the sense of this parameter, moreover,
with a substantial difference to the other developments. The

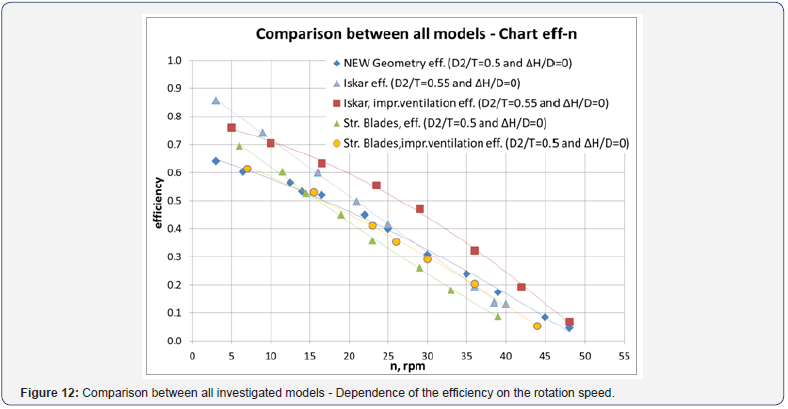

comparison between the obtained results for all models is similar
with respect to the efficiency, too (Figure 12). This means that
enabling downstream ventilation of the blades of the original
geometry of the HPM leads to maximum improvement of its performance both as mechanical power and efficiency. All other
investigated improvements of the approaching flow conditions
and of the blade geometry did not prove to be comparatively
In general, the results confirmed the expectations based on
previously performed similar research activities proving that
the models were built with good quality, and the results are
representative. On the basis of the carried out analysis of the
obtained results, the following conclusions can be drawn:
a. The deflecting upstream wing wall did not supply any
increase in the efficiency.
b. The raised inlet bottom did not deliver the expected
increase in the efficiency of the machine performance.
c. The smaller leakage losses in the newer models did not
prove to be decisive for increasing of the machine efficiency,
d. The effect of the Downstream Water Level (DWL) on the
model performance proved to be of crucial importance. The
lower the DWL, the greater the efficiency of the model operation.
e. A decrease of the efficiency values was observed for
higher rotation speeds and .
f. The improved downstream ventilation of the model (i.e.
of the upcoming blades) resulted in about 15% higher efficiency
g. The greatest influence on the performance results in
the sense of mechanical power and efficiency has the machine
operating head. As already noted above, the DWL should be as
low as possible in this connection. As expected, the Upstream
Water Level (UWL) leads to the best results with respect to the
mentioned parameters when being at the top of the machine
Carrying out the above described research activities
was possible only within the international research project
“Development of an ecologically compatible modular system
for the use of low power and low heads water power systems”
(in German: “Entwicklung eines ökologisch verträglichen,
Modularen Systems zur Nutzung kleiner Wasserkräfte mit
niedrigen Fallhöhen”) funded by the German Federal Ministry
of Environment and reactor safety, subsequently by the German
Federal Ministry of Economy and energy. Coordinator of the
project was Prof. Dr.-Ing. Nicole Sänger from Hochschulke
Darmstadt, Darmstadt, Germany.
The here described research activities were carried out in the
Laboratory of the Dept. of Hydraulic, Irrigational and Drainage
Engineering at the Univ. of Architecture, Civil Engineering and
Geodesy (UACEG) in Sofia, Bulgaria, and would have not been
possible without the kind assistance of Mr. Angel Karadzhinov,
MSc, and Mr. Valentin Marinkov.
