Evaluation of the Effect of Elevated
Temperatures on Compressive Strength of
Recycled Aggregate Concrete
Arif Cekic1*, Bulent Celik2 and Jale Tezcan3
1Intertek-PSI, Farmington Hills, United States
2Department of Civil Engineering, Nisantasi University, Turkey
3Department of Civil and Environmental Engineering, Southern Illinois University, United States
Submission: March 13, 2018; Published: May 25, 2018
*Corresponding author: Arif Cekic, Intertek-PSI, 37483 Interchange Drive, Farmington Hills, Michigan, USA, Tel: 734-564-3562; Email: firstname.lastname@example.org
How to cite this article: Arif C,Bulent C,Jale T. Evaluation of the Effect of Elevated Temperatures on Compressive Strength of Recycled Aggregate
Concrete. Civil Eng Res J. 2018; 5(1): 555655. DOI: 10.19080/CERJ.2018.05.555655
Recycled concrete aggregates are produced from demolition of concrete structures. Their successful integration to aggregate supply chain may play an essential role in creating a sustainable infrastructure system. With increasing acceptance of the recycled aggregates as a main concrete ingredient, a need has emerged to quantify the engineering properties of recycled aggregate concrete. A significant body of research exists regarding the comparison of the mechanical properties of the recycled aggregate concrete to those of natural aggregate concrete. While recent research efforts have addressed the effect of mix design on various engineering properties, the effect of exposure to elevated temperatures has not been sufficiently investigated, despite the fact that a variety of concrete structures are exposed to high temperatures either as part of their operation or due to unexpected events such as thermal shock or fire. This article uses experimental results from 31 compressive strength tests to investigate the effect of exposure to elevated temperatures on the compressive strength of natural and recycled aggregate concrete for different levels of water-to-cement ratio, maturity (i.e. age), and recycled aggregate replacement ratio. The findings of this study are relevant to the design, operation and maintenance of a variety of structures that are regularly exposed to elevated temperatures during their life cycle, such as concrete chimneys, furnaces, reactor vessels and coal gasification vessels.
Waste materials and industrial by products have been utilized in construction industry, mainly due to economic and environmental concerns. Various waste materials and industrial byproducts such as fly ash and silica fume , waste tire [2-4], waste glass [5-6], and waste plastic [7-9] have been introduced to Portland cement concrete mixes over the last few decades.
Utilization of construction waste materials as an aggregate source for production of new Portland cement concrete has become more attractive in the recent decade due to drastic increase in landfill costs, concerns over scarcity of natural resources for aggregate, and environmental concerns. In this regard, demolished concrete or recycled concrete aggregate is also classified as solid waste and has found an increased use in Portland concrete production [10, 11]. Recycled concrete aggregate, also referred to as recycled crushed concrete, is typically produced via demolition of Portland cement concrete elements of buildings, roads, and other structures made of Portland cement concrete . In general, use of aggregates from demolished concrete structures is considered for two reasons: creating a sustainable alternative to storage of demolished concrete and preservation of limited natural resources . Rubble generated through demolition of foundations and concrete building elements as well as concrete roadways and airport runways has been successfully integrated into the aggregate supply chain around the world. Recycled aggregates have become a part of various construction projects as new concrete, base and subbase aggregates or structural backfill materials .
Since 1970s, many researchers have focused on the evaluation of the engineering properties of recycled aggregates in an effort to identify the design requirements for their utilization in new concrete. An early review of the use of recycled concrete as an aggregate was provided by Nixon . A more comprehensive document encompassing research performed by various institutions between 1945 to 1985 has been compiled by Hansen . RILEM Committee 121-DRG has published specifications  for concrete with recycled aggregates. Ross  summarized the general applications of the recycled aggregates in various countries, emphasizing the application type, allowable recycle materials by volume, recycled sand content, allowable concrete class and allowable limits of other materials by mass in percent.
The use of recycled aggregates is known to affect the mechanical properties of concrete. In particular, recycled aggregate concretes tend to exhibit lower strength and stiffness relative to their natural aggregate counterparts . Limbachiya et al.  found that inclusion of up to 30 % coarse recycled concrete aggregate (RCA) did not impact the ceiling strength of high strength concrete (C50 or higher) while a gradual reduction in strength was observed at higher replacement ratios. Using an experimental database, Xiao et al.  investigated the potential relationships among the flexural strength, the compressive strength, the splitting tensile strength, the density, and the elastic modulus. Their research identified marked differences between the interrelationships among various mechanical properties of recycled aggregate concrete and those of natural aggregate concrete. Etxeberria et al.  investigated that effect of the replacement ratio of recycled aggregates on the shear strength of the concrete beams. They found that the use of recycled aggregates up to a replacement ratio of 25 percent had no appreciable effect on the shear strength. At higher replacement ratios, a linear decrease in shear strength was observed. Kwan et al.  concluded that proposed design strength of the concrete can be achieved with a recycled concrete aggregate replacement ratio of up to 80%. Yildirim et al.  suggest that the water-to-cement ratio, the degree of saturation (i.e. absorption) and the replacement ratio are negatively associated with the compressive strength of recycled aggregate concrete. Cakir  investigated that effect of inclusion of granulated blast furnace slag and silica fume in recycled aggregate concrete on its tensile splitting strength and the compressive strength. A reduction of approximately 24% in the compressive strength at a replacement ratio of 100% was observed. Tensile splitting strength was notable at 50% plus recycled aggregate content. Test specimens incorporating granulated blast furnace slag were observed to have a greater tensile-to-compressive strength ratio than the ones incorporating silica fume.
Despite extensive research, many questions remain regarding the factors affecting the compressive strength of recycled aggregate concrete. Silva et al. [25,27] provide a systematic review of publications between 1977 to 2014 addressing the effect of data from published studies. Silva et al.  point out significant discrepancies in the literature, attributing the lack of consensus to two main reasons:
a. The difficulty of considering all the variables affecting compressive strength including but not limited to the replacement ratio, size, quality, and moisture content of the recycled aggregates, mix design, maturity, and environmental conditions;
b. The difficulty of isolating the effect of single factor on the compressive strength of concrete, due to dependence of the relationship on the values of the remaining variables, and in some cases, on the value of the considered variable itself. This difficulty precludes describing the effect of a variable on the compressive strength of concrete in terms of a linear relationship. It is clear that further research is needed to fully understand the strength development in recycled aggregate concrete.
This article uses the experimental results from 31 compressive strength tests, each test result being the average of three specimens, to investigate how the compressive strength of recycled aggregate is affected by exposure to elevated temperatures, for different levels of water-to-cement ratio, replacement ratio, and concrete maturity (i.e. age). Knowledge on the effect of elevated temperatures on the compressive strength is relevant in the design, operation and maintenance of a variety of structures that are regularly exposed to elevated temperatures during their life cycle, such as concrete chimneys, furnaces, reactor vessels and coal gasification vessels. The findings of this paper are also relevant in predicting the response of structures made with recycled aggregate concrete in the event of a thermal shock or fire.
The rest of this article has been organized as follows: Section 2 describes the concrete mix design. Section 3 explains the experimental program. Section 4 presents the test results and discussion. The article ends with the conclusions in Section 5.
In the production of concrete, ASTM Type I Portland cement (PC 42.5) was used as binder material. The chemical composition of the Portland cement is provided in Table 1.
Natural coarse aggregates were the crushed limestone No. I and No. II with blue-gray color. Natural fine aggregates were the natural sand, and crushed limestone sand (No. 0). The recycled aggregates were produced from the concrete produced in a laboratory environment. The physical properties and gradation of the natural coarse and fine aggregates and recycled aggregates in Table 2.

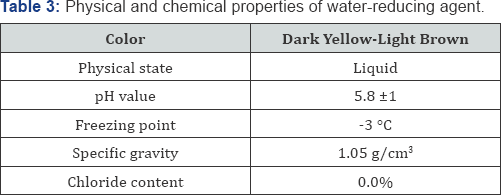

A chemical admixture (ADVA Flow 400) was used in concrete mixes as water reducing agent. The physical and chemical properties of the water reducing agent are provided in Table 3. A coloring agent, organic-base red powder, was used in the recycled aggregate concrete batches in order to be able to distinguish the new and old mortar. Per manufacturer's specifications, the coloring agent was introduced to the concrete batch by approximately 3 percent of weight of cement.
An experimental study was designed to investigate the individual and combined effects of the following four variables on compressive strength of recycled aggregate concretes: exposure to temperature, water/cement ratio, replacement ratio of recycled coarse aggregate, and maturity (i.e. age). A total of 31 tests were conducted using the levels of the variables noted in Table 4. Each test consisted of measuring the compressive strength of three hardened cylinder specimens of 100mm by 200mm, in accordance with ASTM C39. The specimens were heated in an electric furnace up to temperatures of 105, 175 and 250 °C. Each peak temperature was maintained for three hours to achieve the thermal steady state. At the end of three hours, the power was turned off and the specimens were kept in the furnace until the furnace cooled down to room temperature. The temperatures were recorded at every 30 minutes. The specimens were tested at room temperature and after the heating and cooling cycle. Of the 31 tests, 15 tests were performed at 28 days, and the rest at 90 days.
Table 5 shows the compressive strength measurements for the 31 tests, the associated variables of which are listed in Table 4. The result of each test is determined as the average of three specimens.

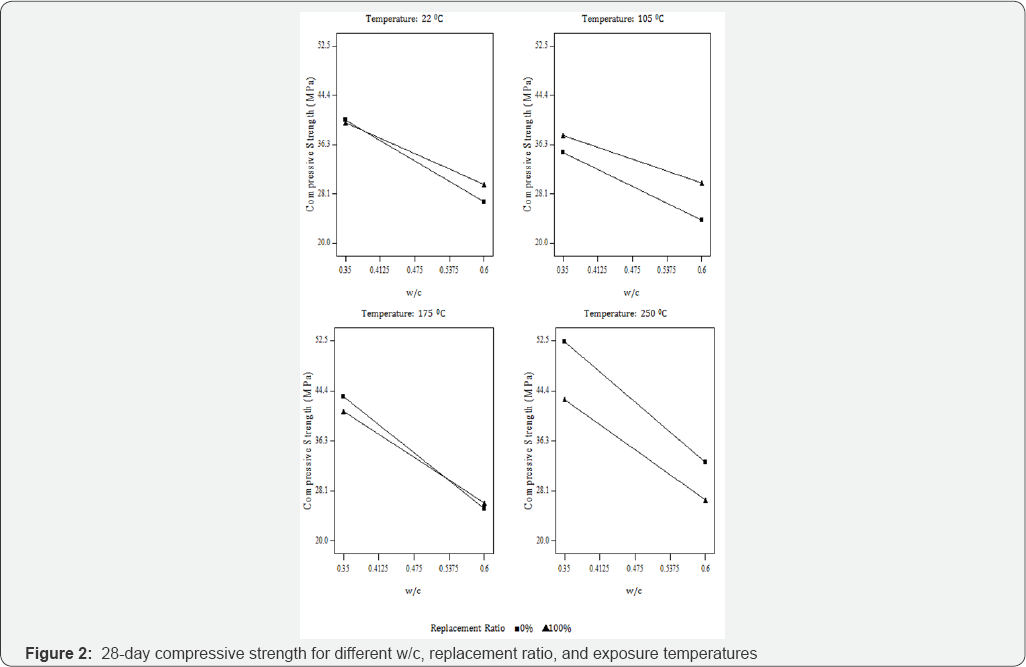

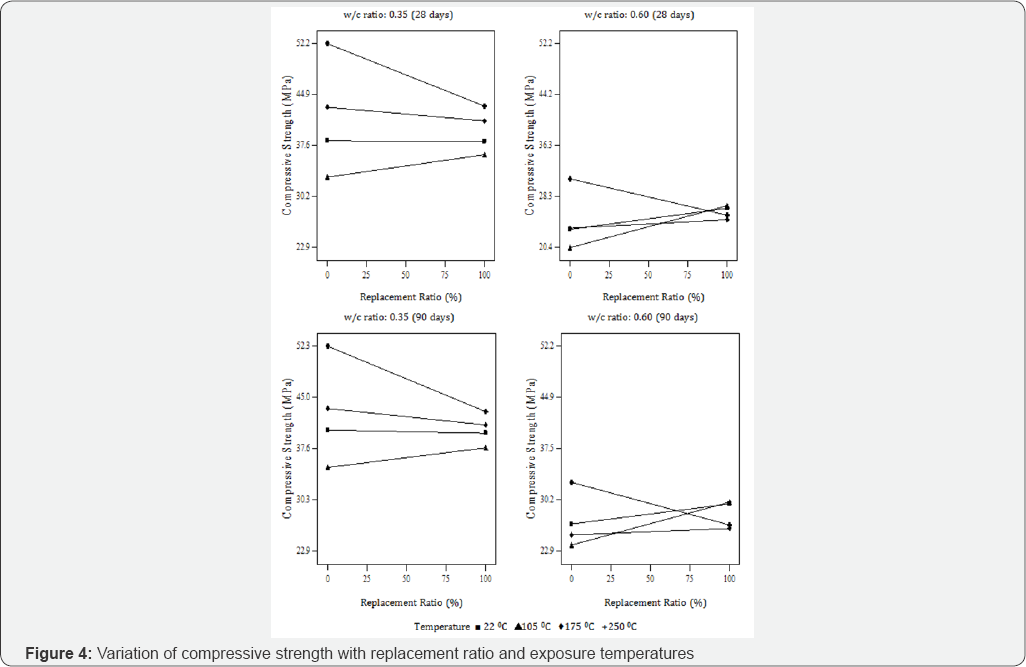

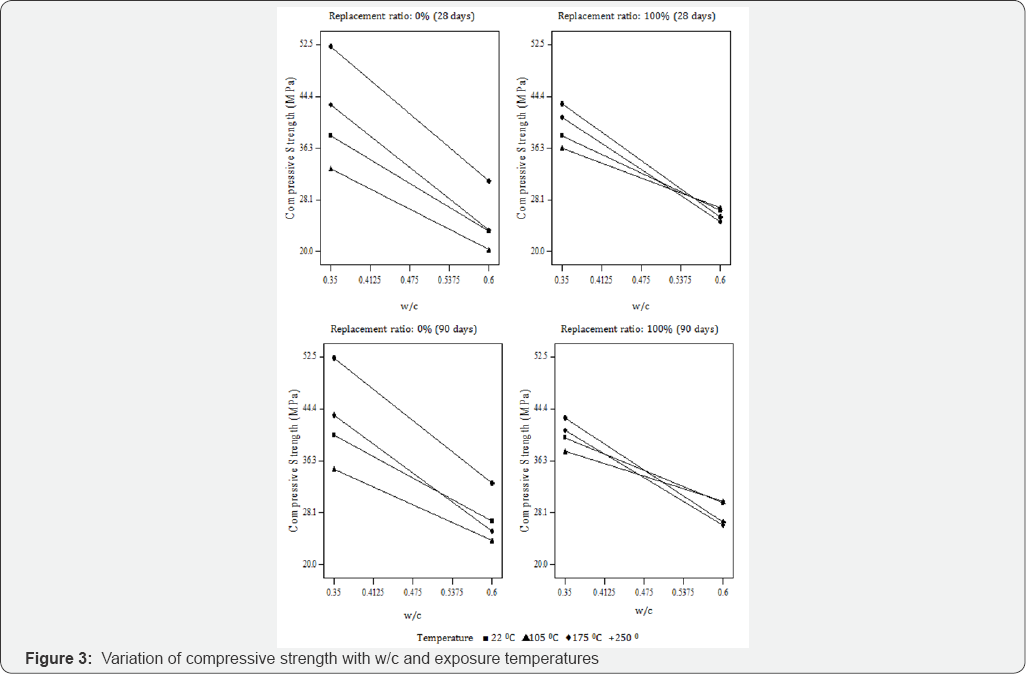

Figures 1 through 5 show the variation of mean compressive strength with respect to the test variables. The 28-day and 90- day mean compressive strength for different water-to-cement ratio, replacement ratio, and exposure temperature are shown in Figures 1 & 2, respectively.
Based on the experimental results, the following observations are noted regarding the effect of the four variables on the compressive strength.
Each temperature interval (i.e. 22 °C and 105 °C, 105 °C to 175 °C, and 175 °C to 250 °C) showed a different pattern in terms of a change in compressive strength. From 22 °C to 105 °C, the use of recycled aggregate appears to be associated with a modest increase (up to %14) in the compressive strength.
Considerable difference in compressive strength was observed between natural and recycled aggregate concretes exposed to a temperature of 250 °C. For exposure temperature 250 °C, the compressive strength of recycled aggregate concrete is 21 to 23% lower than natural aggregate concrete.
Compressive strength of recycled aggregate concrete exposed to 175 °C is slightly lower (up to 5 %) than that of natural aggregate concrete when the w/c ratio is 0.35. However, with w/c equal to 0.6, the opposite is observed.
For the natural aggregate concretes, generally a slight decrease in the compressive strength, relative to the compressive strength determined at 22 °C, was observed when the exposure temperature was increased to 105 °C. As the exposure temperature was increased to 175 °C, the concrete compressive strength showed a trend to recover the loss in strength to the strength levels that were observed at 22 °C. As the exposure temperature was further increased to 250 °C, a gradual increase in the compressive strength from the strength levels at 175 °C was also observed. However, for the recycled aggregate concrete, a general trend in compressive strength increase or decrease was not observed with varying exposure temperature levels. The test results also indicated that in general, compressive strength of recycled aggregate concrete was relatively insensitive to the change in exposure temperature compared to that of the natural aggregate concrete.
As expected, compressive strength of both natural and recycled aggregate concrete increased with age (up to 90 days). The highest level of increase of compressive strength with age was observed for natural aggregate concrete with a water- cement ratio of 0.60 and an exposure temperature of 105 °C.
The incorporation of recycled aggregate into concrete mixes affect the compressive strength of concretes. Compressive strengths of recycled and natural aggregate concrete ranged from 25MPa to 43MPa and 20MPa to 52MPa, respectively. The change in the upper and lower values of compressive strength can be attributed to the change in the water-cement ratio, exposure temperature and maturity of the specimens.
The 28-day compressive strength of natural aggregate concretes increased by 62-84% when the water-cement ratio was reduced from 0.60 to 0.35. On the other hand, the recycled aggregate concrete showed an increase of 35-70% in the 28-day compressive strength for the same change in the water-cement ratio. These findings indicate that the compressive strength of natural aggregate concrete is more sensitive that recycled aggregate concrete to the changes in water-to-cement ratio.
Based on the compressive strength test results and findings noted above, the following conclusions can be drawn:
a. The incorporation of recycled aggregate into concrete mixes changes the compressive strength of concrete. The amount and direction of change is dependent on water- cement ratio, exposed temperature, replacement ratio, and maturity.
b. A considerable difference in compressive strength is observed between natural and recycled aggregate concretes exposed to a temperature of 250 °C.
c. Although the exposure temperature has an apparent effect on the compressive strength, a general trend in terms of an increase or decrease in compressive strength of recycled concrete aggregates, with varying exposure temperature levels, was not noted.
d. Compressive strength of the recycled aggregate concrete appears to be less sensitive to changes in exposure temperatures than natural aggregate concrete. A similar observation can be made regarding water-to-cement ratio.
It must be noted that the effect of elevated temperatures over 250 °C on the compressive strength was outside the scope of this paper. In addition to the impact of temperatures exceeding 250 °C, potential impact of the heating and cooling rate, duration of maximum exposure temperature to the concrete compressive strength need to be investigated for a more complete assessment of the effect of exposure to elevated temperatures on the compressive strength of recycled aggregate concrete.
