Methodology of Bending of Rc Beams with Opening for the Usage in Construction Engineering Management
Ahmed Abdel Hamid Abdallah*
Civil Engineering Department at the MTI - University, Egypt
Submission: August 08, 2017; Published: August 31, 2017
*Corresponding author: Ahmed Abdel Hamid Abdallah, Assistant Professor at the Civil Engineering Department at the MTI - University, Cairo, Egypt, Tel: +201007090069; Email: firstname.lastname@example.org
How to cite this article: Ahmed A H A. Methodology of Bending of Rc Beams with Opening for the Usage in Construction Engineering Management. Civil Eng Res J. 2017; 1(4): 555569. DOI: 10.19080/CERJ.2017.01.555569
In this methodology for providing an opening in beam develops cracks around the opening due to stress concentration. In this analysis an experimental works conducted to study the behavior of RC beam with different shapes of opening with varying diameters at different locations. This investigation presents the behavior of RC beam with opening unstrengthened by additional reinforcement. In this experimental study over twenties beams were casted, one beam (BN) without opening as a control beam and the remaining beams were provided with opening. These beams were tested under four point loading. The effect of size of opening with different settings was studied in terms of ultimate failure load, maximum deflection and failure has been mode. From the test results, it could be concluded that the ultimate load carrying capacity of the RC beam at shear zone with opening was maximum reduction but at flexure zone showed minimum reduction. Rectangular opening increased the ultimate load reduction than square opening by (3%), while the circular opening reduced the ultimate load reduction than square opening by (6%).
Keywords: Construction engineering management; Shear and flexural behavior; RCbeams, circular opening; Depth of beams web opening effect; Rectangular opening
Utility pipes and ducts are necessary to accommodate essential services in a building. The types of services include air- conditioning, power supply, telephone line, computer network, sewerage and water supply. It has been practiced that pipes and ducts are usually hanged below the floor beams, and covered by a suspended ceiling for its aesthetic purpose. These openings can be of different shapes and sizes as circular, square or rectangular .
The presence of an opening in the web of a reinforced concrete beam leads to many problems in the beam behavior such as reduction in the beam stiffness, excessive cracking, excessive deflection and reduction in the beam strength [2-4]. Furthermore, sudden change in the dimension of cross section of the beam leaded to high stress concentration at the corners of opening that may lead to cracking unacceptable from aesthetic and durability viewpoints. The reduced stiffness of the beam may also give rise to excessive deflection under service load and result in a considerable redistribution of internal forces and moments in a continuous beam. It has been noted that the classification of opening depended on the structural response of the beam; when the opening is small enough to maintain the beam-type behavior, then the opening could be termed as small opening. Otherwise, large openings are those that prevent beam-type behavior to develop [1,5,6]. A circular opening may be considered as large when its diameter exceeds 40% of the depth of the web [3,7,8], but square opening considered as large when height exceed quarter of the depth of the web [9,10].
The tested RC beam specimens were designed according to Egyptian specification code. The nominal value of compressive strength of concrete (fc) is 30MPa. The longitudinal steel reinforcement was steel bars with nominal yield strength (fy) of 360MPa. The stirrups were mild steel with nominal yield strength of 240MPa. In the experimental program, a total of 27 RC beam specimens were tested to failure under four point loading to investigate the behavior including ultimate load, ultimate deflection and failure mode.
Ordinary Portland cement (CEM I 42.5N) was used. The water cement ratio was 0.5. The coarse aggregate was 20mm dolomite. Fine sand as fine aggregate was used. The main reinforcement bars was 2∅12 at bottom, and 2∅10 at top. The web reinforcement was closed stirrups of 8mm with spacing of 150mm.

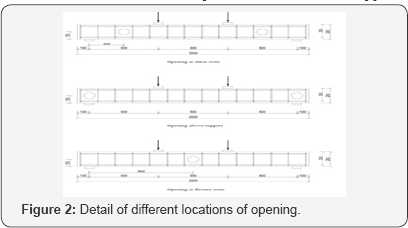

All the tested beams were rectangular in cross-section having the dimensions width (b) of 120mm, height (H) of 250mm with effective depth (d) of 220mm. The overall length (L) is 2000mm with span length (l) of 1800mm. Figure (1) and Table (1) give details of the tested beams. The beams were cast in a horizontal position using steel formwork. The circular opening was created by a circular polyvinyl chloride (PVC) pipe inserted in the beam before casting of concrete; whereas, square and rectangular opening was created by inserting a box fabricated from plywood. Figure (2) shows the different locations of opening. Openings were at three different zones; above support, flexural zone which is between two concentrated points load, and shear zone which is between concentrated point load to and close support
In order to make it easy to recognize the description of each beam, abbreviation of words had been used. So alphabetic letter "N" will refer to the solid beam without opening; and "C, S and R" will refer to the type of opening that is circular, square and rectangular, respectively. "SH, S and F" will refer to opening zone that is shear, above support and flexural zones, respectively.
Items of investigation
At the age of 28 days, RC beam specimens were tested to investigate the effect of size the unreinforced opening on the behavior of concrete beams without additional reinforcement at opening. This experimental study focuses on:
a. The effect of different diameters of circular opening on the behavior of concrete beams at shear zone.
b. The effect of different heights of square opening at different locations.
c. The effect of different shapes of opening (circular, square and rectangular) at different locations (flexure zone, shear zone and above support).
d. Comparison between circular opening of 140mm in diameter and equivalent area of square opening of 125mm in height.
e. Comparison between square opening of 80mm in height and rectangular opening of same height.
Experimental Results and Discussion

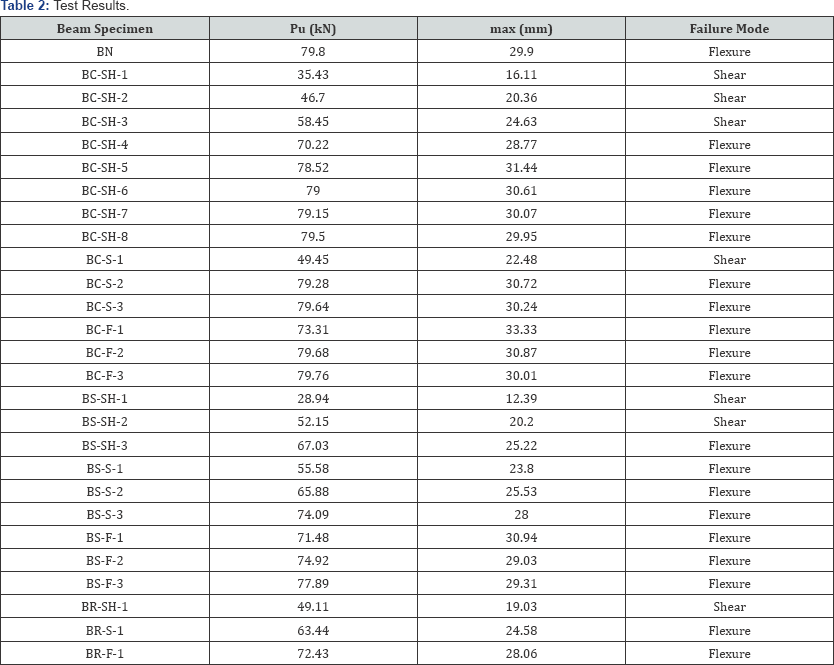

The test results are summarized in Table 2. The table shows ultimate failure load (Pu), maximum deflection (max) and failure modes for all the beam specimens. It was observed that solid beam (BN) deformed less than some beams with circular opening. The deflections of these beams were more both near the opening due to reduction of stiffness of the beam.
Effect of circular opening sizes at shear zone

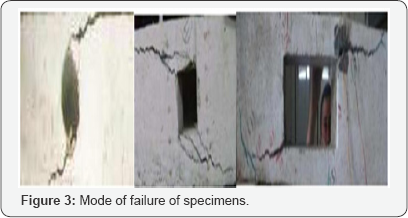

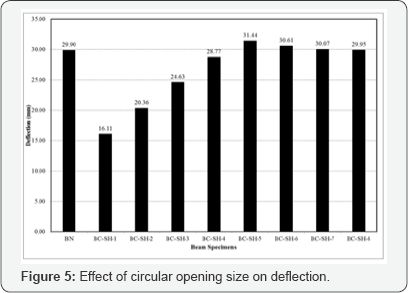

To study the effect of different sizes for circular opening, the position of the applied load was kept constant and the distance from the support to the opening for both sides of the beam was taken as 300mm. (Figures 3 & 4) show comparison of beam specimens in this section. The test results showed there is a slight difference between beams with opening and control beam till opening size of 100mm (0.4H). Increasing opening size than 100mm (0.4H), the ultimate load decreased significantly. So the opening with size less than (0.4H) was considered as small opening; otherwise, was considered as large opening.
Effect of square opening sizes at different zones

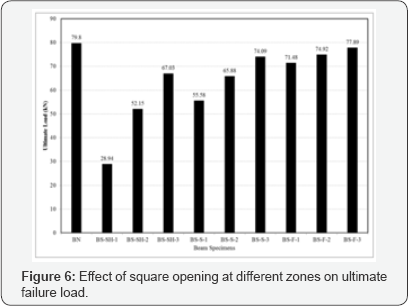

To study the effect of square opening sizes, sizes of 40, 80 and 140mm at different zones was investigated. (Figures 5 & 6) show the comparison of beam specimens in this section. The test results showed that providing a square opening of 40mm (0.16H) caused average reduction in ultimate load about (9%), while size of 80mm (0.32H) caused average reduction about (19%) but a rectangular opening caused average reduction about (35%). When opening located at the shear zone causes sharp decrease in the ultimate load about (38%) and when opening is located above the supports the average reduction was about (18%) but at flexure zone showed the minimum effect where the average reduction was (6%).
Effect of different opening shapes at different zones

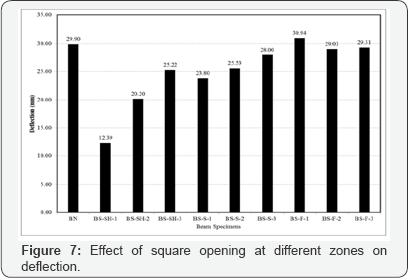

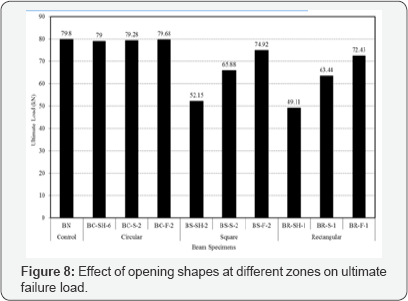

To study the effect of different opening shapes, size of 80mm at different zones was investigated. (Figures 7 & 8) show the comparison of beam specimens in this section. The test results showed that providing a circular opening caused average reduction in ultimate load about (1%), while a square opening caused average reduction about (19%) but a rectangular opening caused average reduction about (23%). When opening located at the shear zone causes sharp decrease in the ultimate load about (25%) and when opening is located above the supports the average reduction was about (13%) but at flexure zone showed the minimum effect where the average reduction was (5%).
Comparison between circular opening and equivalent area of square opening

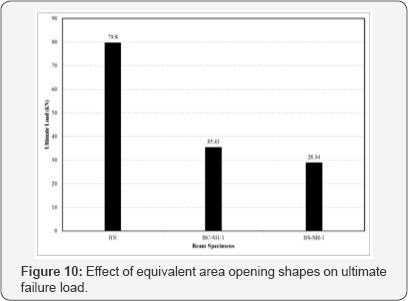

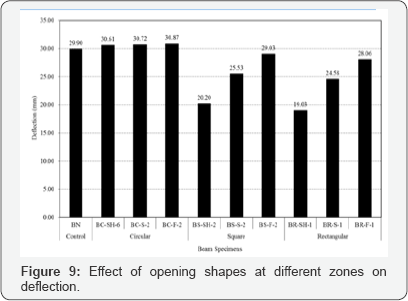

In this part circular opening of 140mm in diameter and square opening of 125mm in height with same area were studied. (Figures 9 & 10) show the comparison of beam specimens of this section. The test results showed that providing a square opening caused reduction in ultimate load about (8%) more than circular opening. The reason behind that reduction in square opening is that the existing orthogonal corners caused more stress concentration at these corners. Sudden change in the dimension of cross section of the leaded to high stress concentration at the corners of square opening that may lead to undesirable cracks.
Comparison between square opening and rectangular opening of same height
In this part square openings of 80mm in height and rectangular openings with same height were studied. (Figures 11 & 12) show the comparison of beam specimens of this section. The test results showed that providing an opening, a rectangular opening caused reduction in ultimate load about (34%) more than square opening. The shear stresses developed in the top and bottom chords at rectangular opening, which that we considered the beam act like a frame.
a. Studying the shear strength of concrete deep beams with openings can be carried out by modifying the material.
b. Studying strengthening opening by web reinforcement.
c. Studying strengthening opening by new materials as steel fiber or FRP laminates and different configurations.
d. Study behavior of deep beam with openings using different concrete types such as high strength concrete
Based on the results of this experimental investigation, it could be concluded that:
a. The location of openings has a large effect, where this effect is the large0073t when openings location is at shear zone and a small effect when openings location is at flexure zone, so the best place for the location of opening in these beams is in middle of a beam.
b. Circular opening is the best shape of opening that showed the least reduction in ultimate load.
c. In RC beams with small opening at flexure zone, the maximum reduction in ultimate load was about (1.5%).
d. In RC beams with large opening at flexure zone, excessive flexural cracks were found at the tension zone around the openings. The failure mode was in flexure. Providing large opening in RC beam decreased the ultimate load about (10% max.). However, in terms of deflection, the beam deflection increased by (11% max.) more than the control beam.
e. In RC beams with small opening at shear zone, the maximum reduction in ultimate load was about (2.5%).
f. In RC beams with large opening at shear zone, excessive shear cracks were found around the openings. The failure mode was in shear. Providing large opening in RC beam decreased the ultimate load about (64% max.). However, in terms of deflection, the beam deflection decreased by (57% max.) more than the control beam.
