Abstract

Ionizing radiation is radiation with enough energy to remove tightly bound electrons from atoms, creating ions. Examples of this radiation include alpha particles, beta particles, and gamma rays. Ionizing radiation is harmful to living organisms, including humans, especially if ingested.

The overall objective of the work is to measure and analyze the alpha and beta radiation activities in the water samples and then use the findings to assess the water concentrations in relation to the radiation level. The study collected water samples from five sampling points in Mubi-North Metropolis and analyzed them through the use of a desktop Alpha/Beta counting machine or detector (MPG 2000B-DP).

The results of the analysis showed that ranges are 0.0027- 0.1982, 0.0023- 0.1746 Bq/kg for Uranium, Thorium and Radium emitter respectively. The overall conclusion drawn from the results is that alpha emitters in all the samples collected were lower than screening levels for radioactivity of drinking water, as recommended by agencies such as EPA, WHO, and GEG-FAO.

Keywords:Ionizing radiation; beta activity; Alpha activity; Concentration

Root Pressure

Water is the most important natural resource with numerous needs. Its origin dates to the creation of the universe itself, and efficient management of water bodies is required. All human activities including irrigation, generation of electricity, and domestic use rely on water. Its source is rain and underground water, in various forms such as rivers, wells, dams, lakes, and streams. But human activities and natural processes continuously contaminate these water sources, lowering their quality [1]. The contamination is due to the uncontrolled release of waste, sewage, and agricultural chemicals into rivers and the environment by industries, hospitals, and farmers using fertilizers [2]. The materials disposed of are typically radioactive substances. The primary sources of water are usually upland or deep groundwater from boreholes or wells. Though there is little chance of chemical pollution, there is a chance of radioactive pollution due to the rise in terrestrial radioactivity with depth in the Earth’s crust. Naturally occurring radioactive isotopes like those of the Uranium and Thorium series and their decay products like Radium and Radon are of particular concern [3]. They increase rain and groundwater radioactivity, in turn influencing the quality of drinking water. On the other hand, flowing water and spring water also come into contact with rocks that have other radioactive elements and thereby influence the immediate soil and vegetation. This water may transport these elements to wells, boreholes, and piped water via pipeline leakage [4]. Notably, certain radionuclides, such as Tritium, Potassium 40, Radium, and Radon, emit alpha, beta, and gamma radiation that is of health concern. Hence, measurement of the concentration of such radiation-emitting radionuclides in drinking water is significant.

The topic of this study is on the Mubi-North urban area of the local government area of Adamawa State. The research herein is particularly intended to be a study of underground water sources (such as boreholes and taps) that serve the community to drink and carry out domestic usage. The following letters of the alphabet will serve to describe varied study regions.
A = Shagari low cost bore hole close to jumma’a mosque
B = Wurogude behind river
C = ADSU water (faculty of Mag.Sci)
D = Lokuwa water adjacent emir palace
E = Federal polytechnic reservoir

Equipment’s and Materials

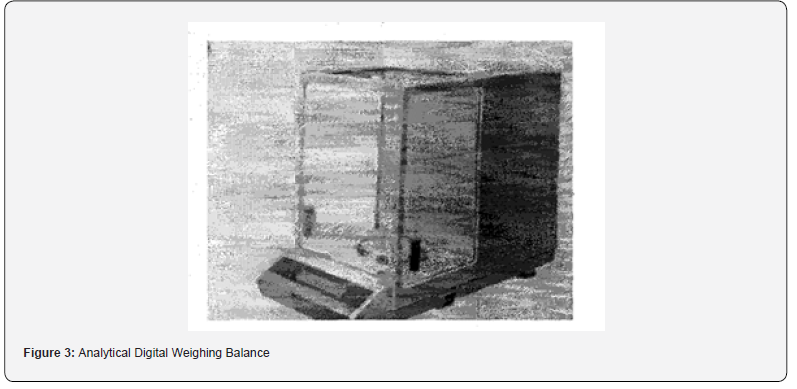

Beakers (Pyrex), Gloves, Oven, Hotplate, Plastic container (1-liter container), Blunt forceps, Analytical weighing balance, Spatula, Fume cupboard, Petri-dish (crucible), Planchet, Syringe and needle, Police man (rubber)

Reagents Use

Acetone, Nitric acid (HNO), Vinyl acetate

Sample selection

The sampling procedure used in this study is known as convenient sampling (Williams, 1977), and five (5) points of sampling were utilized.

Sampling Methodology

i. The sample receptacle was washed three times with the collected water to reduce potential contamination from its previous contents.
ii. A 1% airspace of the container volume was allowed to account for thermal expansion. The container is graduated to indicate the 1.0L sample volume equivalent to this airspace.
iii. Upon collection, 0.5ml of diluted nitric acid (HNO) was added immediately to the sample in order to lower its pH, thereby preventing precipitation, colloid formation, and adsorption of radioactivity onto the walls of the container.
iv. The sample was thereafter tightly sealed with the container lid and stored in the laboratory (as per ISO, 9697, and 9698:1992a standards) for analysis.

Sample Preparation

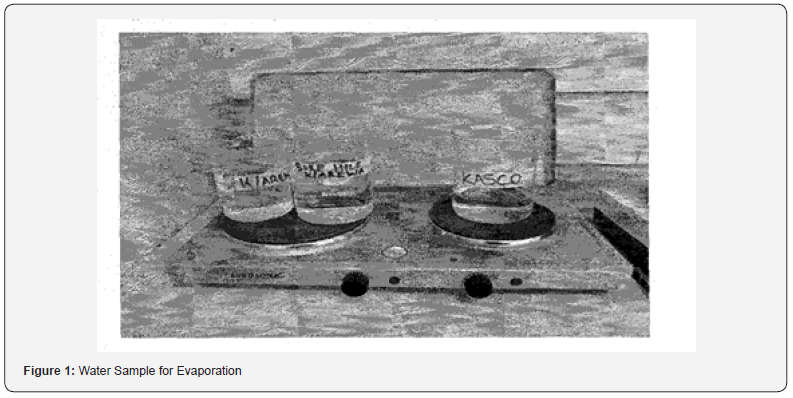

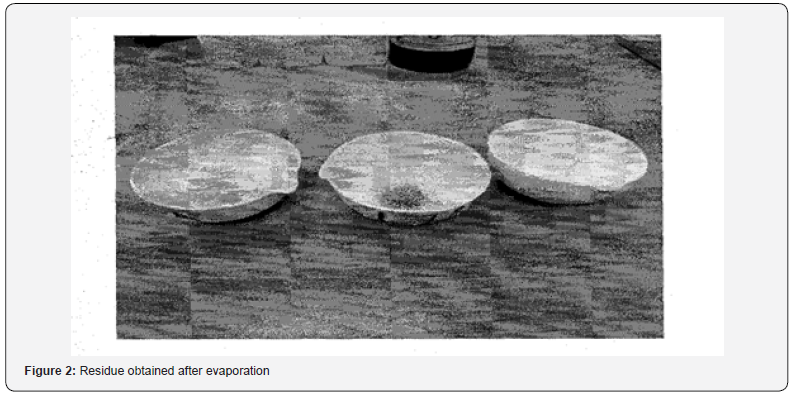

Sample preparation involved evaporating a one-liter sample without agitation on a hot plate at 60 degrees Celsius. This took approximately twenty-four hours to finish. The rest of the material was rinsed using distilled water with the assistance of a rubber scraper and then poured into a petri dish (crucible). The material was left to dry thoroughly at room temperature (approximately 25 degrees Celsius) [5]. The residue and the dish were weighed and recorded on the analytical weighing balance (Figure 1). The weight of the residue by itself was also determined and recorded. To extract the residue from the Petri dish, it was carefully scraped with a spatula and emptied into a sterilized 9/16 planchet [6-10]. This planchet, which contained the residue, was then put in an analytical digital weighing balance to achieve the necessary weight, which was approximately 77mg (Figure 2). Vinyl acetate was applied onto the residual material within the sample holder in order to eliminate any remaining moisture and prevent moisture absorption from the surrounding atmosphere (Figure 3). The prepared samples are now ready for the counting process. The planchet’s specimens were inserted into the drawer of the MPC-2000B-DP for the purpose of tallying [11-16].

Counting

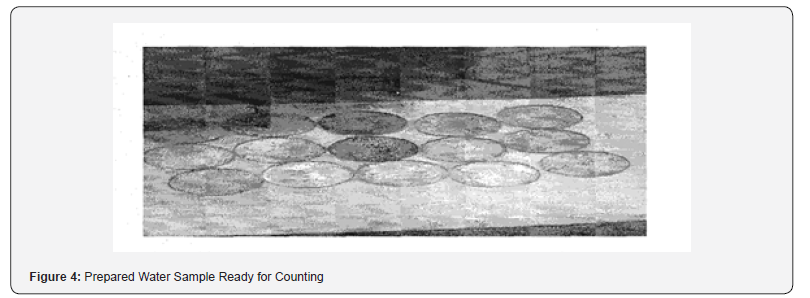

The counting device is automatic. It entails inputting predetermined time intervals, recording voltage, and tracking the number of count cycles (Figure 4,5). One also inputs data about the counter characteristics (i.e., efficiency and background noise), sample volume, and sampling efficiency [17-23]. Results are shown in raw counts (count per millimeter), count rates, and activity levels. The data acquisition was simultaneous in both alpha and beta modes, and the choice of the counting mode was optional. The equations for the calculation of the count rate, activity, and other parameters for a specific sample are presented below [24-40]:

Where
De = the detector’s efficienc
Net counts(α ,β )= Raw(α ,β ) counts(CPM)-Background(α ,β ) (CPM)

Discussion Of Results

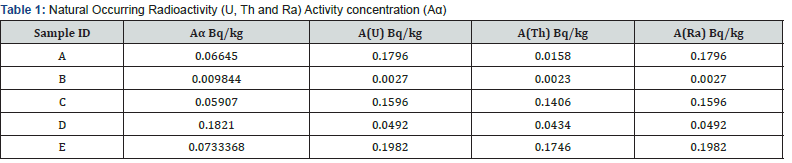

The results from the given Table 1 indicated that sample location E has the highest activities of concentration of Uranium, Thorium and Radium, while location B has the least. The results showed that sample location E, has the highest chance of radiation mutation.

Conclusion and Recommendation

Conclusion

The results achieved were below the recommended screening value of 0.5 Bq/L, hence are less harmful hazard.

In conclusion, the quality of water in these areas was in accordance with the World Health Organization (WHO) and United States Environmental Protection Agency (USEPA) guidelines for alpha activity. Thus, no further screening is required in this regard.

Recommendations

i. An in-depth survey of not just Mubi-North but the entire Mubi town needs to be conducted.
ii. The method of preparing the sample should be better because one must be able to measure the dissolved material accurately in order to leave very little residue on the plate to be counted.
iii. Individuals consuming water from the source above are requested to file complaints to the Ministry of Health in a bid to initiate further beta radiation screening.
iv. Additionally, it would be advisable to perform gamma radiation readings in the water samples.
v. To broaden the scope of inquiry, it is advisable that the examination of surface water sources such as sea ponds and river water be added. This is very important as other artificial sources can cause an increase in radioactivity in water, which can result in health risks to the population.

Contribution to the Field of Knowledge

To my knowledge, no data on the gross alpha and beta radioactivity levels in drinking water of any part of Mubi-North is available. Therefore, this data can serve as the foundation for future data development and analysis.

Possible directions for additional research

Some of the villages in Mubi-North, such as Digil and Vimtim, and Mubi-South and nearby villages, present the potential for such studies. Nearby local governments such as Hong and Michika also present themselves as potential areas to study, with the ability to compare data.

References

1. Bomben AM, Canoba (1996) A simple determination of natural Uranium and Radium-226 in waters and soil. Journal of Radioanalytical and Nuclear Chemistry 212(3): 209-219.
2. Zalewski M, Karpinski M, Mnich Z, Kapala J, Zalewski P (2001) Study of 222Rn concentrations in drinking water in the north-eastern hydro regions of Poland, J Environ Radioact 53(2): 167-173.
3. Barantta EJ (1990) Radon, Radium and Uranium in Dnnlung water in (cothern CR and Rebers DA eds) Radon, Radium and Uranium m Dnnlung water Lewis publishers, Washington DC pp203-212.
4. Akpa TC Mallam, SP Ibeanu IGE, and Onoja RA (2004) Characteristics of Gross Alpha/Beta proportional counter, Nigerian Journal of Physics 16 (1): 13-18.
5. Alabi A (2001) Analysis of Fadama water, soil and vegetables for heavy metal unpublished B.sc project Abmadu Bello University Zaria.
6. Andras SS (1993) Radioecology and Environmental protection, Ellis Howard Ltd Chichester pp 6671.
7. Cember H (1992) Introduction to health Physics, second edition McGraw-Hill, mc, Toronto pp 220-231.
8. Alan M, AH (1992) an introduction to radiation protection s^rd edition, London, New York pp 6-9.
9. Leo WR (1987) Techniques for Nuclear and Particle Physics Experiments. Springer Verlag, Bertin. P9-il.
10. Alison PC (1968) Radiation Biology, Prentice Hall Inc New Jersey pp 62-63.
11. Al- Masri MS, Blackburn R (1995) Application of Cerenkov, Radiation for the assay of Radium-226 in natural water. sci Total environ 173:53-59.
12. Alvarado, J S, Orlandim, K A and Enckson, M D (1995) Rapid determination of Radium Isotopes by Alpha Spectrometry,” Journal of Radioanalytical and Nuclear Chemistry 194(1): 163-172.
13. Arnold EG, Lenore SC, Andrew DE (1992) Standard method for the examination of water and waste water, 18th edition, American public health association, Washington p7-17.
14. Banwo AA (1989) Comparison of National Background Radiation in soils from Zaria and Jos, Nigena unpublished MSc Thesis Ahmadu Bello University, Zana.
15. Belloni P, Cavaioh M, Ingrao G, Mancini C, Notaro M, et al. (1995) Optimization and comparison of three different methods for degermation of Radium-222 m water SC, Environ 173-174 (1-6) 69-67.
16. Betti M, Aldave de las Heras L, Janssens A, Hennch E, Hunter G, et al. (2004) Results of the European Commission MARINA II study part II - effects of discharges of naturally occurring radioactive material. J Environ Radioactivity 74(1-3): 255-277.
17. CEC (1982), Results of Environmental Radioactivity measurements in member states of European community for air deposition-water-milk in 1980 Commission of European communities, Luxembourg p234-235.
18. Correia JA, Weise SB, Callahan RJ, Straus HW (1987) The kinetics of ingested 222Ra in humans determined from measurement with 13 3Xe. Cooperative Agreement USEPA, Health effect research laboratories, cincinnali.
19. Cothern RC and Rebers PA (1990) Radon, Radium and Uranium in drinking water, Lewis publishers. pp206-301.
20. Cothern RC, Lappenbusch WL, Cotruvo JA (1983) Health affects guidance for Uranium in drinking water “Health Physics 44:377-84.
21. Chase RF, Anderson RF, Fleisher MQ, Kubik PW (2003) Scavenging of 230Th,23 iPa and lOBe in the Southern Ocean (SW Pacific sector): the importance of particle flux, particle composition and advection. Deep Sea Research Part II: Topical Studies in Oceanography 50: 739-768.
22. Eisenbud M, Paschoa AS (1989) Environmental Radioactivity, Nucl. Instruments and method in Physics Research A80:472-473.
23. Ekpo NM, Inyang LED (2000) Radioactivity, Physical and chemical parameters of underground and surface waters in Qua Thoe River Estuary, Nigeria. ters in Qua Iboe River Estuary, Nigeria. Environmental Monitoring and Assessment 60(1): 47-55.
24. Hay GA, Huges D (1978) first years Physics for Radiographer 2^nd edition, Bailliere Tindall, London pp233-242.
25. ICRP (1979) Limits for intakes of Radionuclides by workers, International Commission on Radiological Protection, pergamon press New York P277.
26. ICRP (1991), Recommendation of the International Commission on Radiological Protection Annals of the ICRP-60 Pergamon press oxford. P200.
27. Ishikawa Y, Kagaya H, Saga K, (2004) Bio magnication of 7Be, 234Th, and 228Ra in marine organisms near the northern Pacic coast of Japan. J Environ Radioactivity 76(1-2): 103-112.
28. Knoll FG (1989) Radiation Detection and Measurement, 2^nd edition John Willey and sons Toronto. p3 10:3-15.



29. Longtin JP (1988) Occurrence of Radon, Radium and Uranium in ground water. J AM Water works Assoc 80: 84-93
30. Milla WA (1990) Risk Assessment and control measurement of Radon in drinking water m (Cotheern, C R and Rebersp eds) Radon, Radium and Uranium in drinking water. Lewis’s publishers Washington DC P27-37.
31. Oguejiofor LC (1994) A study of pollution and seif-purification of River Kubam, Zaria Kaduna State, unpublished master of Engineering thesis, Ahmadu Bello University Zaria.
32. Okun DA (1992) Water quality management, public health 619-648.
33. Peter HS, Bruce DH (1989) Radionuclides in aquatic environment. Radiation physics and chemistry 34(2): 213-240.
34. Surbeck H (1995) Determination of Natural Radionuclides in drinking water. A Tentative protocol Sci Total Environ 173-174: 91-99.
35. Theodore B and Lionel SM (1967) Standard hand book for Mechanical Engineers, 7^th edition McGraw- Hill book company, New York. Section 6 pp 5-242.
36. Webster S, Salt CA, Howard BJ, (2003) Sea-to-land transfer of technetium-99 through the use of contaminated seaweed as an agricultural soil conditioner. J Environ Radioact 70(1-2): 127-137.
37. Williams G C (1977) Samplmg Techniques 3rd edition, New York 89-97.
38. Wrenn ME, Sighn N (1987) Uptake of ingested Uramum Reports on the conference of trace substances in envirol) mental health, University of Missouri, Columbia.
39. Wrenn ME, Sighn NP, Herbert R, Rallison ML, Burleigh DP (1990) In:(Cothern CR and Rebersp eds) Radon Radium and Uranium in drinking water Lewis publishers, Washington DC 159.
